24GHz microwave ranging radar 24G radar FM24-NP100 level radar demo FMCW
Product Description
Microwave ranging radar is an electronic sensor that senses the distance of an object by transmitting and receiving radio waves. Compared with other principle sensors, it has the advantages of small volume, light weight, penetrating ability (smoke, dust, thin non-metallic material, etc.) , multi-target identification and measurement ability.

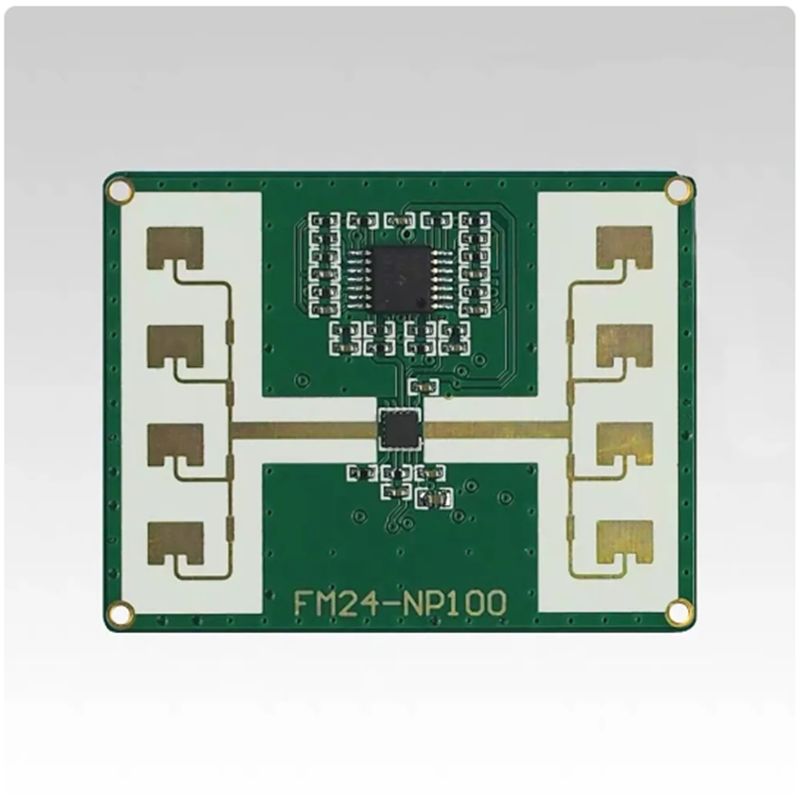

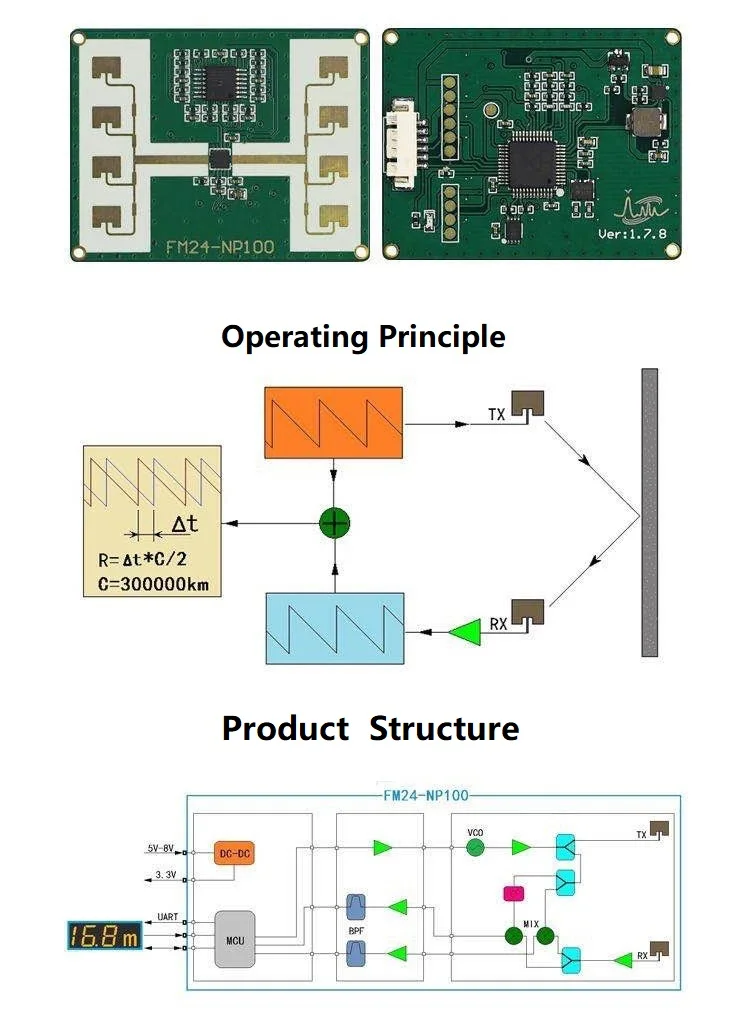

FM24-NP100 is a K-band millimeter-wave ranging radar with antenna isolation design. It works by measuring the time difference between the transmitted and received signals to measure the distance of the object. Its work is frequency modulation continuous wave mode (FMCW) . FM24-NP100 integrates all the signal processing units of the microwave radar, users only need to get the distance of the object through a serial interface, for multi-target recognition or other users who need to measure the environment, the range spectrum information can be obtained by changing its working mode for further processing. For customers with special needs can be customized to meet their own requirements.
The data interface of FM24-NP100 microwave ranging radar adopts asynchronous serial communication, the Baud rate is 57600bit/s, the logic level is 3.3V TTL, which can communicate with host computer or other MCU easily and shorten the development cycle of users.

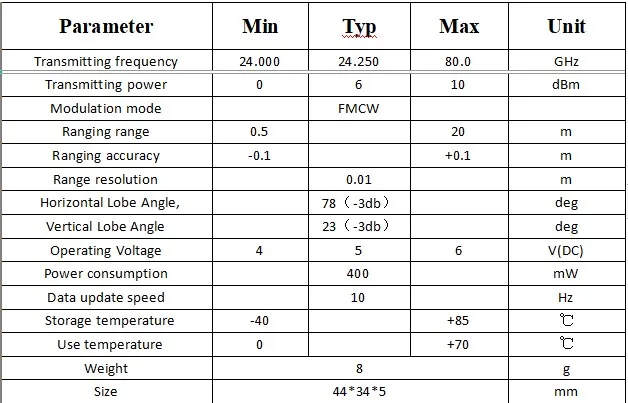

Product parameters
