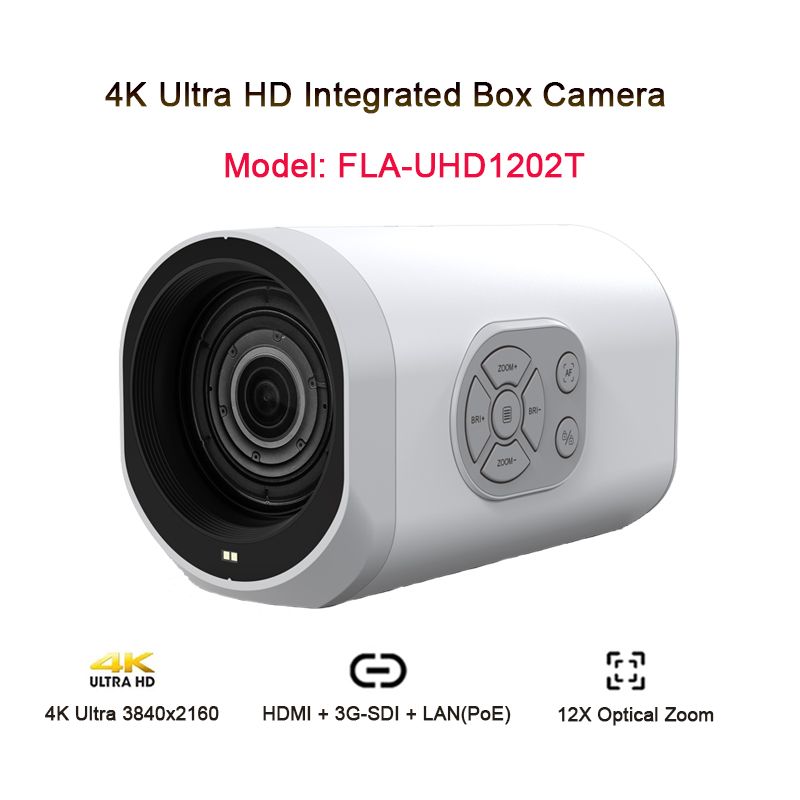

4K TOF Box Camera PoE, Simultaneously HDMI & SDI Output, RTSP/RTMP(s)/SRT, Live Streaming to YouTube/Facebook for Webcast, Teach

$1,155.40

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

4K TOF Box Camera PoE, Simultaneously HDMI & SDI Output, RTSP/RTMP(s)/SRT, Live Streaming to YouTube/Facebook for Webcast, Teaching


Main Features:

4K UHD Image: It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 3840×2160 with frame rate up to 30 fps.,Present clear and lifelike HD videos that vividly show the characters' expressions and movements.

Optical Zoom Lens:12x

Leading Auto Focus Technology: Leading autofocus algorithm allow the camera to focus swiftly, accurately, and stably.

Laser rangefinder: assisted focusing for faster and more stable focusing.

Low Noise High SNR: Low noise CMOS effectively ensure the camera’s ultra-high SNR. 2D&3D noise reduction technology furtherly reduce the noise without image comprising.

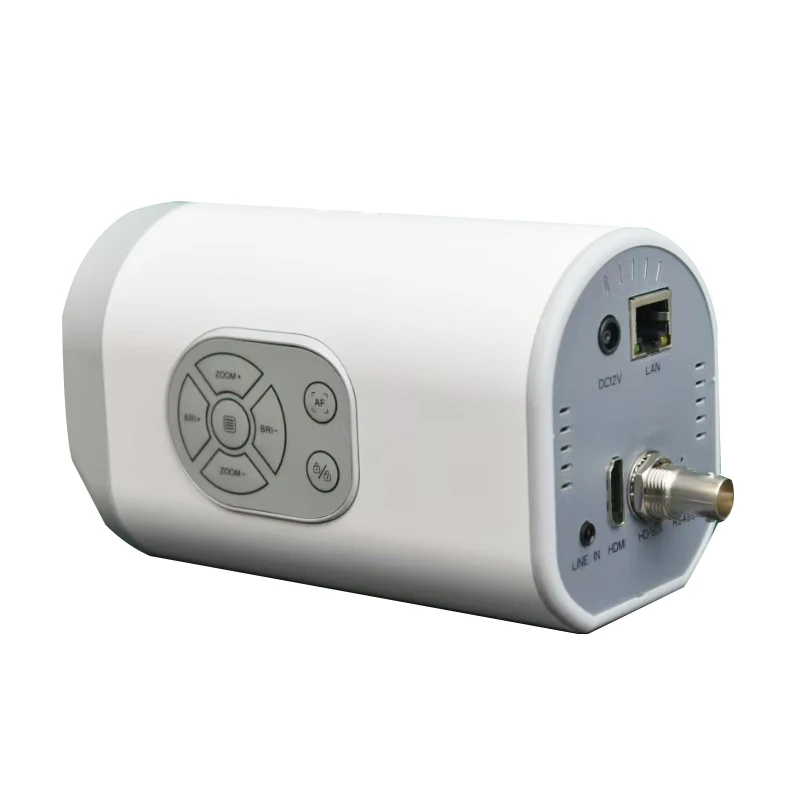

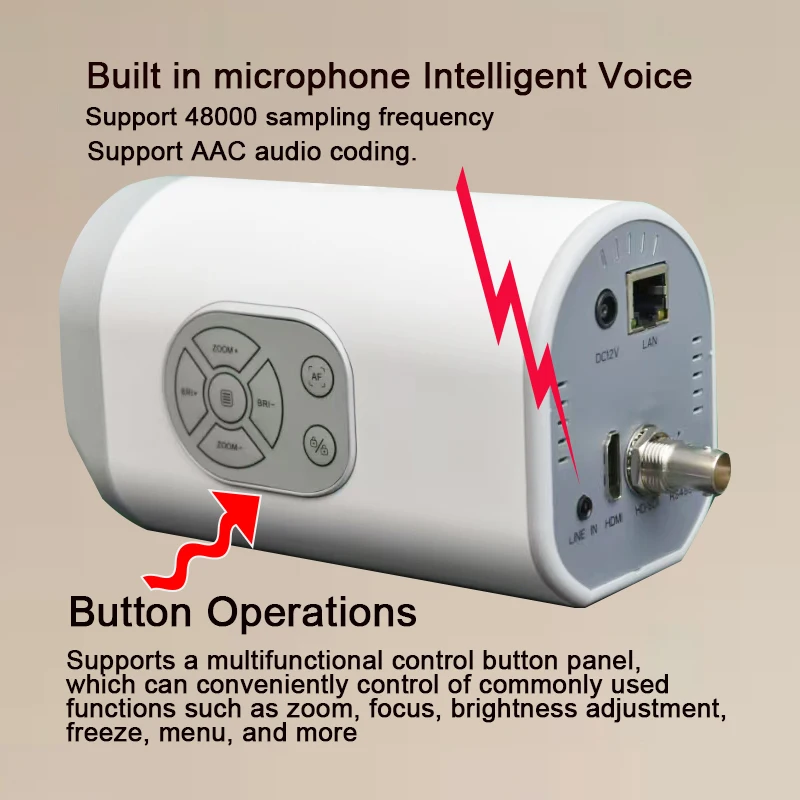

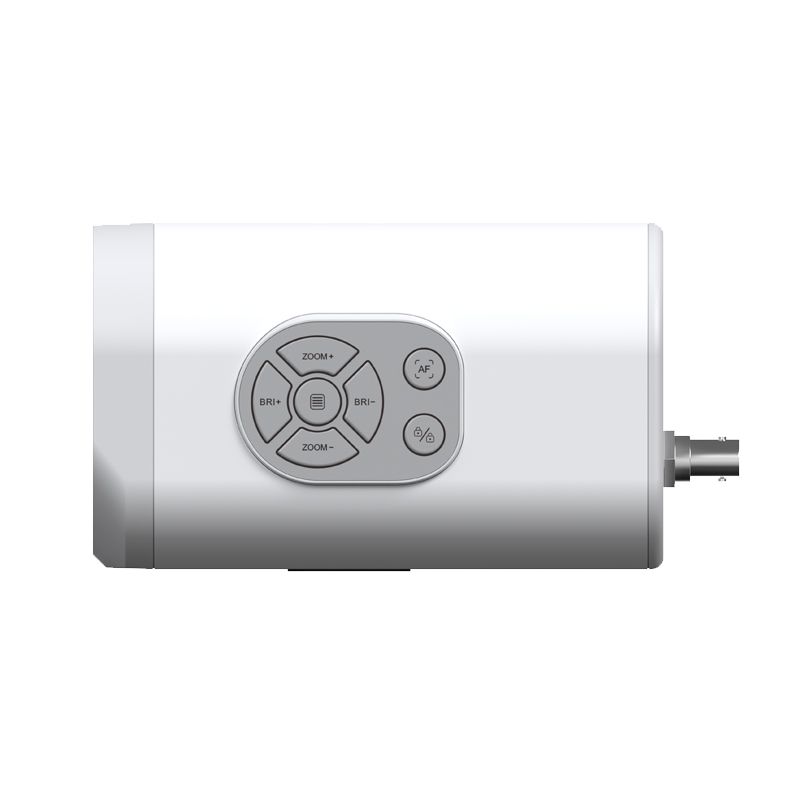

Button Operations: Supports a multifunctional control button panel, which can conveniently control of commonly used functions such as zoom, focus, brightness adjustment, freeze, menu, and more.

Multi Video Outputs:Support HDMI, 3G-SDI, LAN, support audio and video output; The LAN interface supports POE power supply.

Audio Input Jacket:Support48000 sampling frequency, support AAC audio coding.

Multiple Network Protocols: protocols ONVIF、GB/T28181RTSP、RTMP、VISCA OVER IP、IP VISCA、RTMPS、SRT protocols;and also support RTMP push mode, easily link to streaming media servers (Wowza, FMS); support RTP multicast mode.


Technical Parameter:


Model number

FLA-UHD1202T

Camera Lens

Image Sensor

1/2.8inch high quality4K HD CMOSsensor

EffectivePixel

842M,16:9

Video Signal

HDMI:

3840*2160P30/25;1080P60/50/30/25/59.94

/29.97;720P60/50/59.94fps

3G-SDI:

1080P60/50/30/25/59.94/29.97

720P60/50/59.94fps

LAN:

H264:3840*2160P30/25;1080P60/50/30/25

/59.94/29.97;720P60/50/59.94fps

Optical Zoom

12xf=3.9~46.8mm

Viewing Angle

7.42°(T)~78.58°(W) (D)

6.48°(T)~70.82°(W) (H)

3.66°(T)~42.72°(W) (V)

Iris

F1.6 – F2.8

Minimum Illumination

0.5Lux(F1.8, AGC ON)

DNR

2D& 3D

White Balance

Auto/Manual/One-push / Specifying Color Temperature

Focus

Auto/Manual/One-push,

Support for TOF Laser Ranging Module for Assisted Focus

Shutter Aperture

1/25-1/20000,Auto/Manual

BLC

On/off

Dynamic Range

Off/dynamic level adjustment

Video Adjustment

Brightness, Chroma, Saturation, Contrast,

Sharpness, Black and White Mode

SNR

≥50dB

Button Panel Functions

Zoom In, Zoom Out, Brightness Increase,

Brightness Decrease, Freeze, Mode, Menu

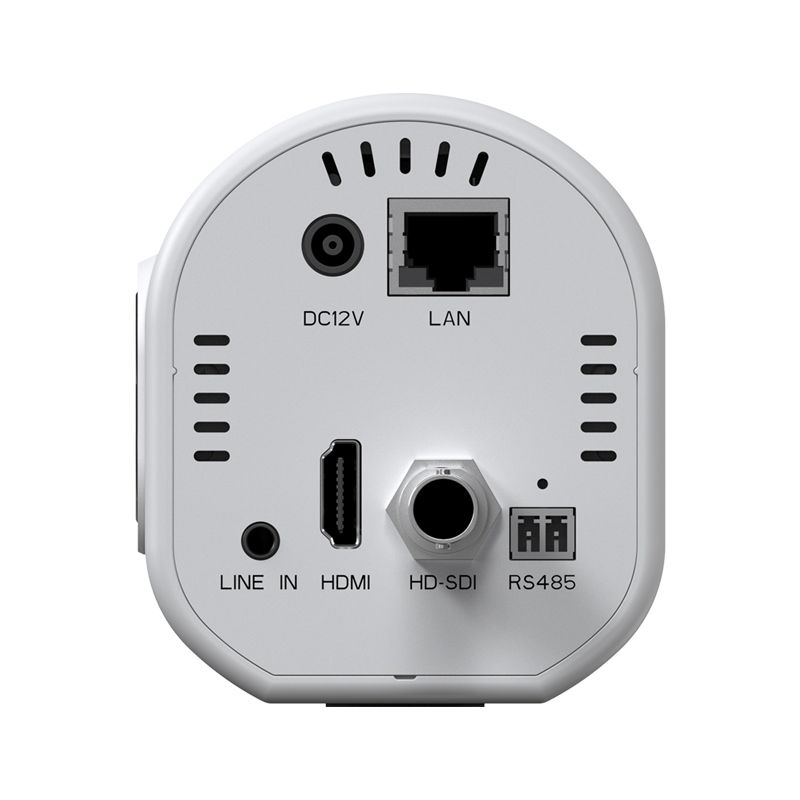

Interface Parameter

Video Output Interface

HDMI, SDI, LAN

Audio Input Interface

Line IN

Image Stream

Dual Stream Output

Control Jacks

RS485, 2-PING Phoenix Connector,

Supports VISC Protocol

Video Compression

Format

H.264

LAN Interface

100M network port(10/100BASE-TX)

Supports POE Power Supply,

Supports Audio and Video Output

Network Protocol

RTSP、RTMP、ONVIF、GB/T28181;

Support networkVISCAcontrol protocol;

Support remote upgrade, remote restart, remote reset

Power Supply

5.0 Card Slot (DC12V)

Power Adapter

Input: AC110V-AC220V Output: DC12V/2A

Input Voltage

DC12V±10%

Consumption

<6.6W

Other Parameter

Storage Temperature

-10℃~ +60

Storage Humidity

20%~ 95%

Working Temperature

-10℃~ +50

WorkingHumidity

20%~ 80%

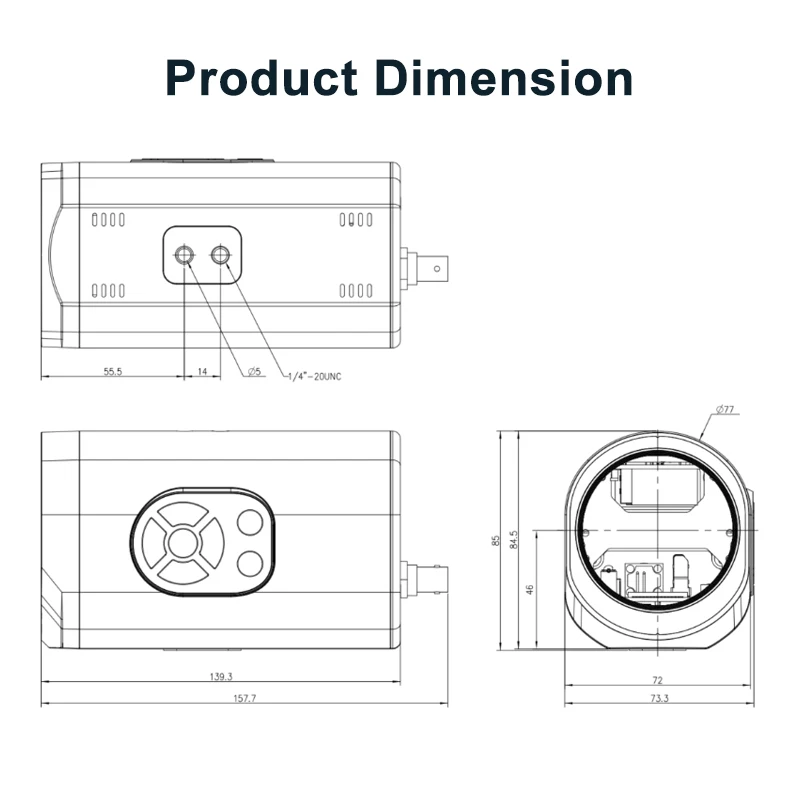

Dimension

157.7(L)mm×73.3mm(W) ×85mm(H)

Weight (Approx.)

690g (Camera Body Only)

Environment

Indoors


Product Photos:
