DeepSDR 101 Software Defined Radio SDR Radio DSP Digital Demodulation Short Wave FM MW SSB CW HAM Radio Receiver XQ

$138.05

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Portable 4.3" IPS SDR Receiver | 100kHzโ€“149MHz | SSB/AM/FM/CW/WFM | Real-Time FFT Spectrum | 5000mAh Battery

Product Overview

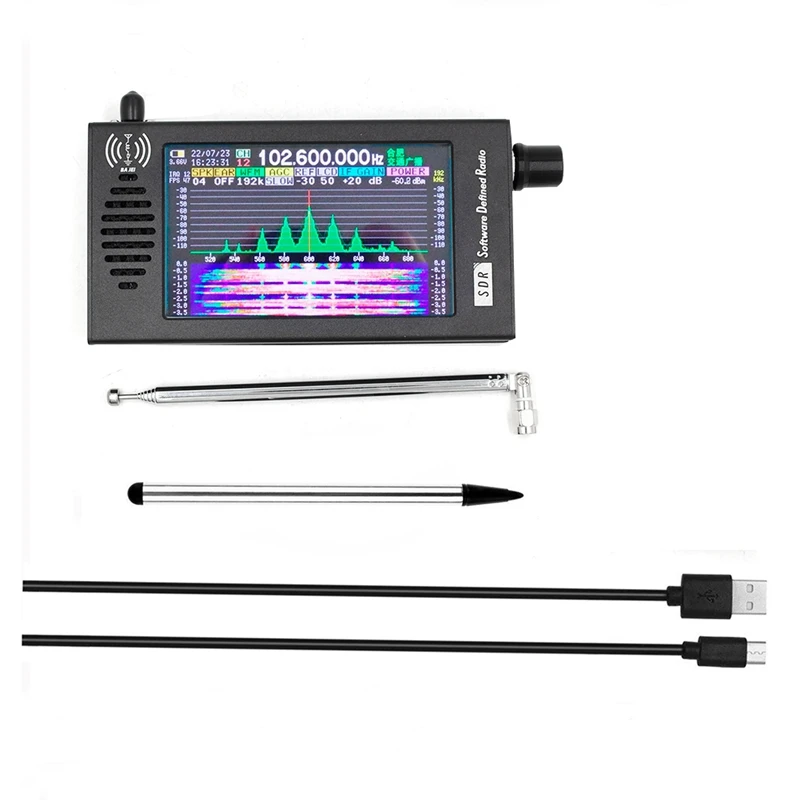

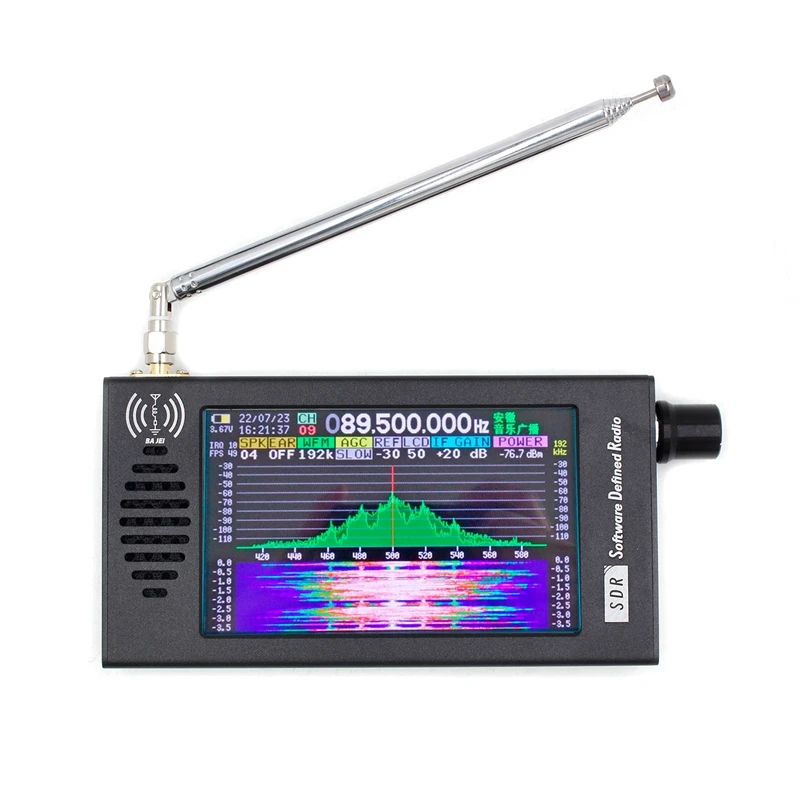

Experience professional-grade signal monitoring in a pocket-sized package. This compact Software Defined Radio (SDR) receiver combines a vivid 4.3-inch IPS display, precise rotary/ touch control, and a high-performance Zero-IF architecture to deliver exceptional clarity across a wide 100kHzโ€“149MHz frequency range. Perfect for radio enthusiasts, field engineers, emergency preparedness, and HF/VHF signal exploration.

โœจ Key Features

๐Ÿ”น Vivid 4.3" IPS Display โ€“ 800ร—480 resolution with DC dimming and high brightness ensures crystal-clear readability in direct sunlight or low-light environments.
๐Ÿ”น Intuitive Dual Control โ€“ Seamless operation via responsive resistive touchscreen + precision rotary encoder for fast frequency tuning and menu navigation.
๐Ÿ”น Versatile Demodulation Modes โ€“ Supports CW, AM, SSB (LSB/USB), WFM, and FM Stereo Broadcast (headphones required for stereo output).
๐Ÿ”น Real-Time FFT Spectrum Analyzer โ€“ Visualize signal activity instantly with selectable bandwidths: 192kHz, 128kHz, or 64kHz.
๐Ÿ”น High-Precision RF Architecture โ€“ Zero-IF (ZIF) design with fixed 20dB RF preamplifier, โ‰ฅ50dB sideband suppression, and a stable 26MHz TCXO (ยฑ0.5ppm) for superior signal fidelity and frequency accuracy.
๐Ÿ”น All-Day Portability โ€“ Built-in 5000mAh/3.7V battery delivers 10โ€“12 hours of continuous use. Ultra-lightweight at ~315g with a slim 22mm profile.
๐Ÿ”น Smart Channel Memory โ€“ Save up to 99 favorite channels with custom names, frequencies, and demodulation modes for instant recall.
๐Ÿ”น Flexible Tuning Steps โ€“ Choose from 1Hz to 10MHz steps for precise scanning or rapid band navigation.

๐Ÿ“Š Technical Specifications

Category
Specification

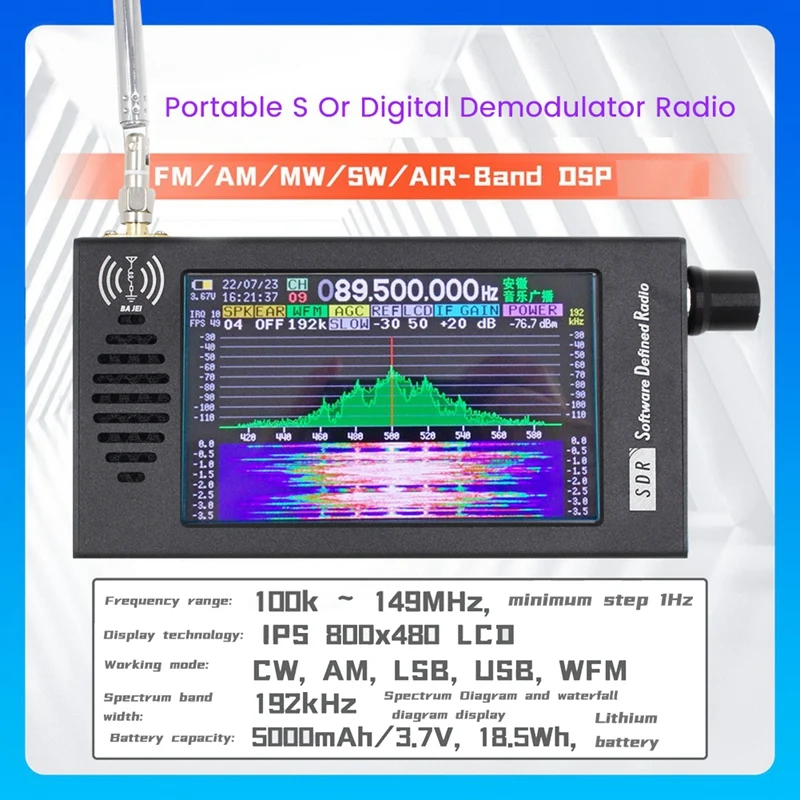

Display
4.3-inch IPS LCD, 800ร—480 Resolution, DC Dimming, High-Brightness
Control Interface
Resistive Touchscreen + Rotary Encoder
Frequency Range
100 kHz โ€“ 149 MHz
Modulation Modes
CW, AM, SSB (LSB/USB), WFM, FM Stereo (headphones required)
Tuning Steps
1 Hz / 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz
Spectrum Display
Real-Time FFT (192kHz / 128kHz / 64kHz bandwidth)
Antenna Interface
BNC Male, 50ฮฉ Impedance, Max Input Power: -20 dBm
Reference Oscillator
26 MHz TCXO (ยฑ0.5 ppm)

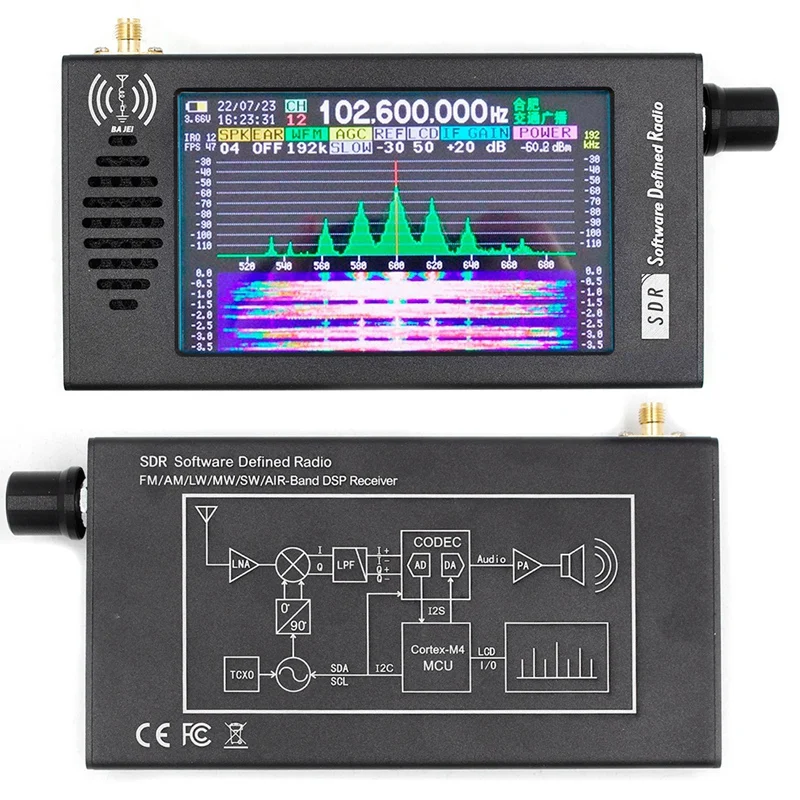

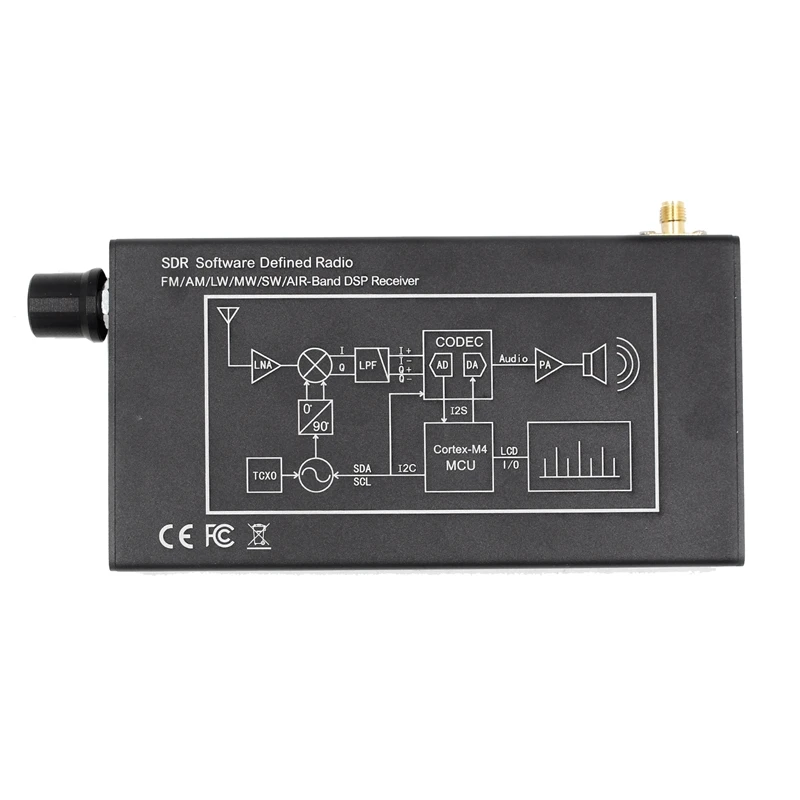

RF Architecture
Zero-IF (ZIF), Fixed 20dB RF Preamp, โ‰ฅ50dB Sideband Suppression
Audio Output
3.5mm Jack (Standard & CTIA compatible), Built-in 3W / 4ฮฉ Speaker
Power & Charging
USB Type-C (5V/2A), 5000mAh / 3.7V Li-ion (18.5Wh)
Current Draw
~250 mA @ 5V
Battery Life
Approx. 10โ€“12 hours (varies with volume & screen brightness)
Channel Memory
99 Presets (Name, Frequency, Mode)
Dimensions
140 ร— 74 ร— 22 mm (Lร—Wร—H, excluding protrusions)
Net Weight
~315 g (host only)

๐Ÿ“ Important Notes

  • โš ๏ธ FM Stereo Output requires a compatible 3.5mm headphone or headset. The built-in speaker outputs mono audio.

  • ๐Ÿ”Œ Antenna Input Limit: Maximum safe input power is -20 dBm. Do not connect directly to transmitters or high-power amplifiers.

  • ๐Ÿ”‹ Battery Performance: Actual runtime depends on screen brightness, speaker volume, and active decoding modes. For optimal longevity, charge via a standard 5V/2A USB adapter or power bank.

  • ๐ŸŒ Frequency Coverage: Designed for receive-only applications. Ideal for amateur radio monitoring, aviation/maritime bands, weather radio, shortwave broadcasting, and experimental RF listening.
