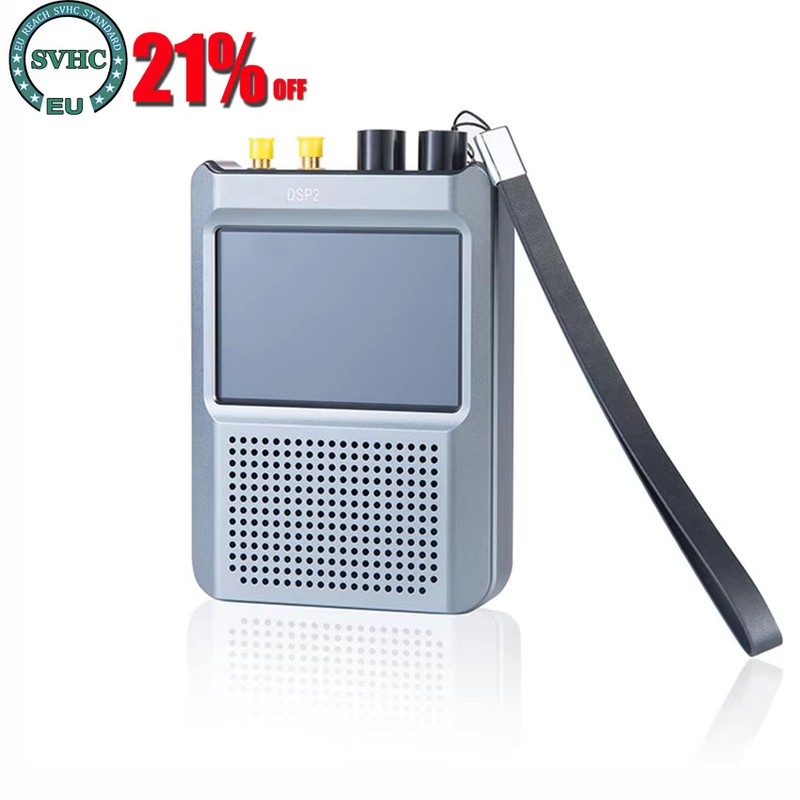

DSP2 SDR Malachite Radio Receiver Portable AM SSB CW NFM WFM Radio Receiver 5000mAh Battery 3.5-inch Touch Screen
Includes all taxes
Meet your Seller
-
$447.71Sold by BILLIONS BIRDS
Description
Notice :
when the parcel arrived to your customs ,please pay the tax and pick up the parcel ,we are not responsible for any customs duty or import tax
if your place is remote ,then need to pay 48usd .
Specifications:
Name: DSP2 Malachite Radio
Product Features:
This is a high sensitivity wideband radio receiver based on SDR technology.
The receiver utilizes SDR architecture and is powerful with a unique NR noise reduction feature for excellent listening results.
1) The radio is built on the SDR principle and the functionality is determined by the loaded software.
2) Frequency range 10 kHz to 380 MH and 404 MHz to 2 GHz
3) All types of analog modulation: AM, SSB (LSB USB), CW, NFM, WFM,
4) Powerful features: variable filter width, adaptive noise suppressor, threshold noise suppressor, and
Noise Blanker(AGC_Equalizer.
5）Using a full-featured chip msi001
6) Powerful stm32h743 with a clock frequency of 480 MHz is applied.

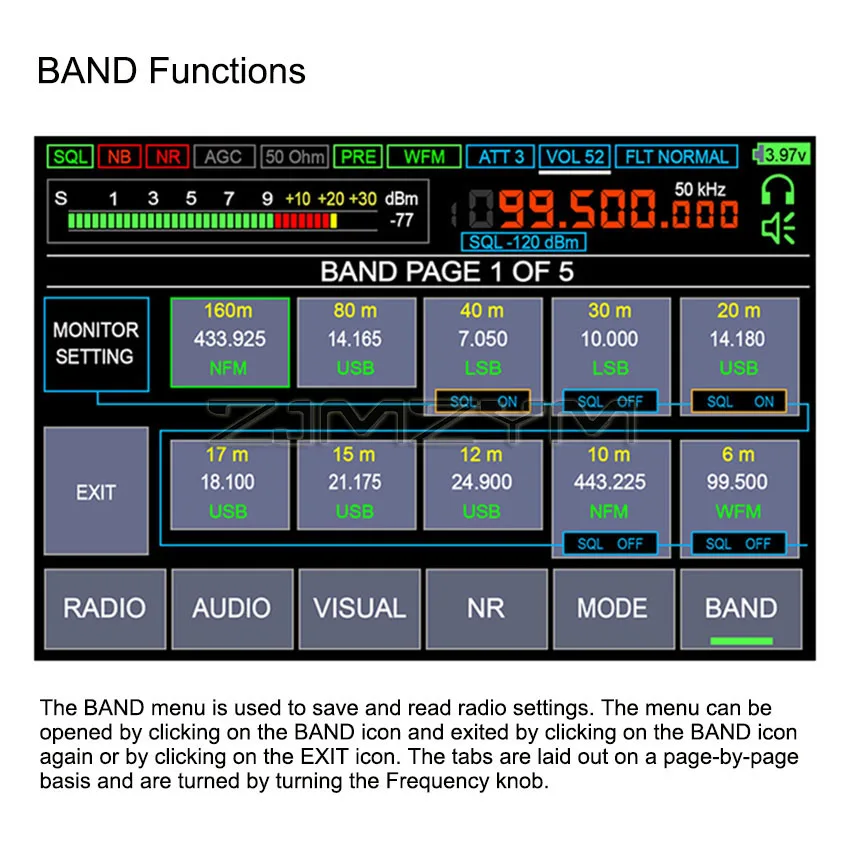

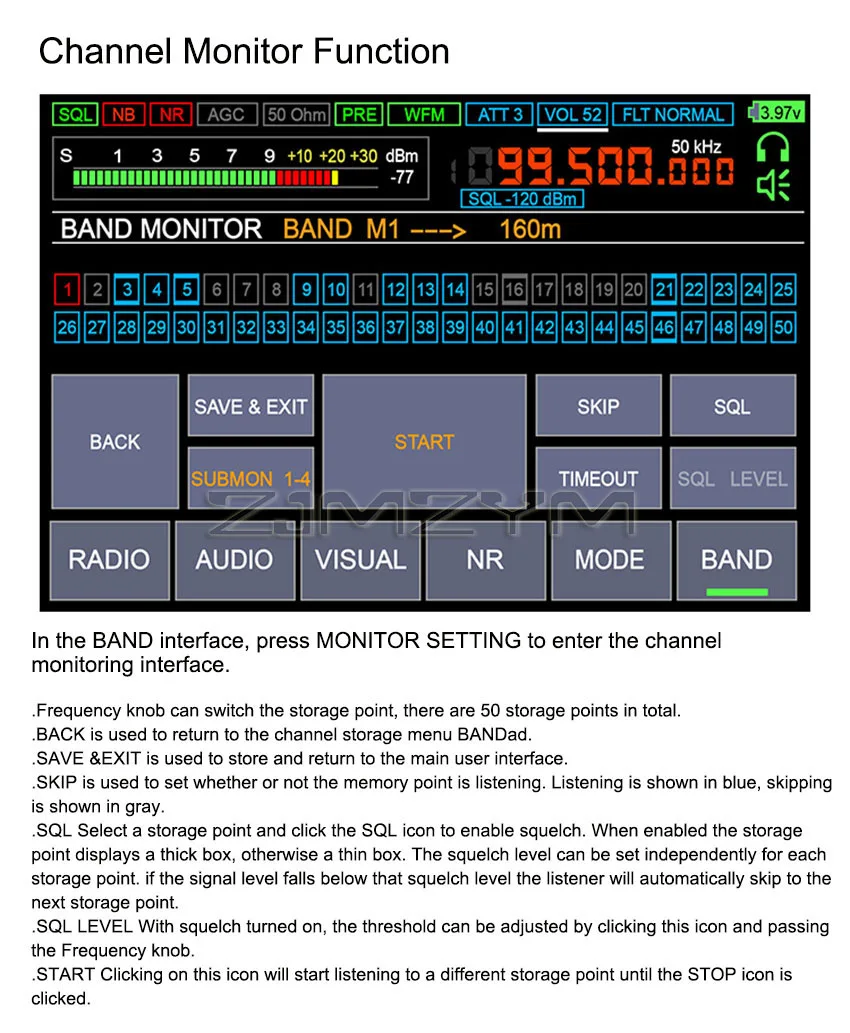

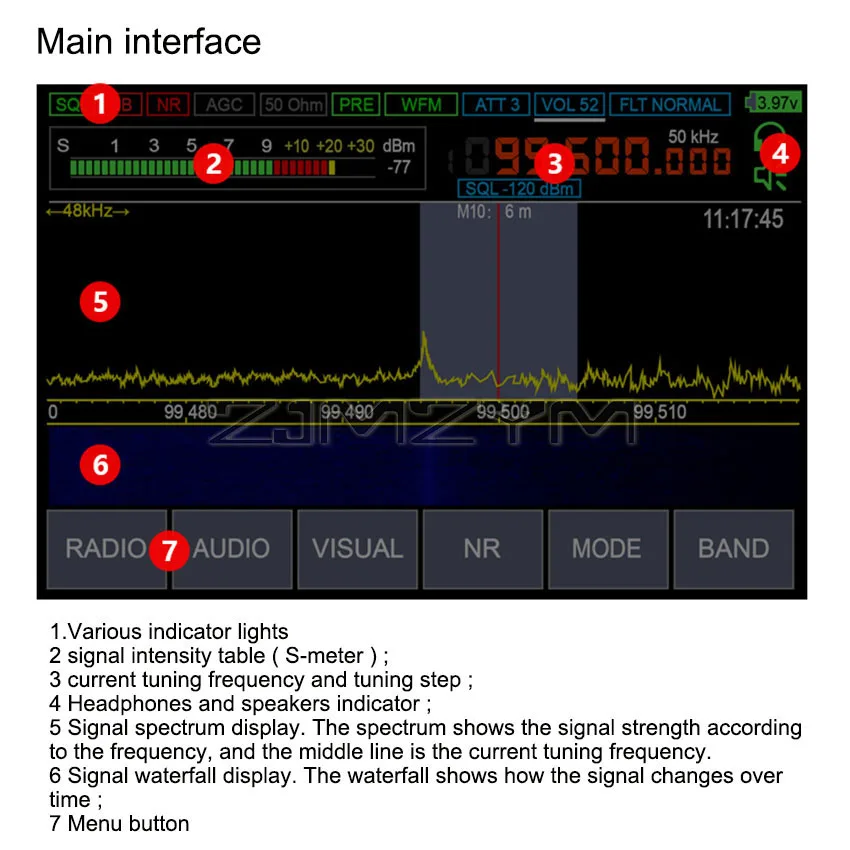

7) 3.5-inch IPS display with touch screen.
8) Presence of a built-in UHF.

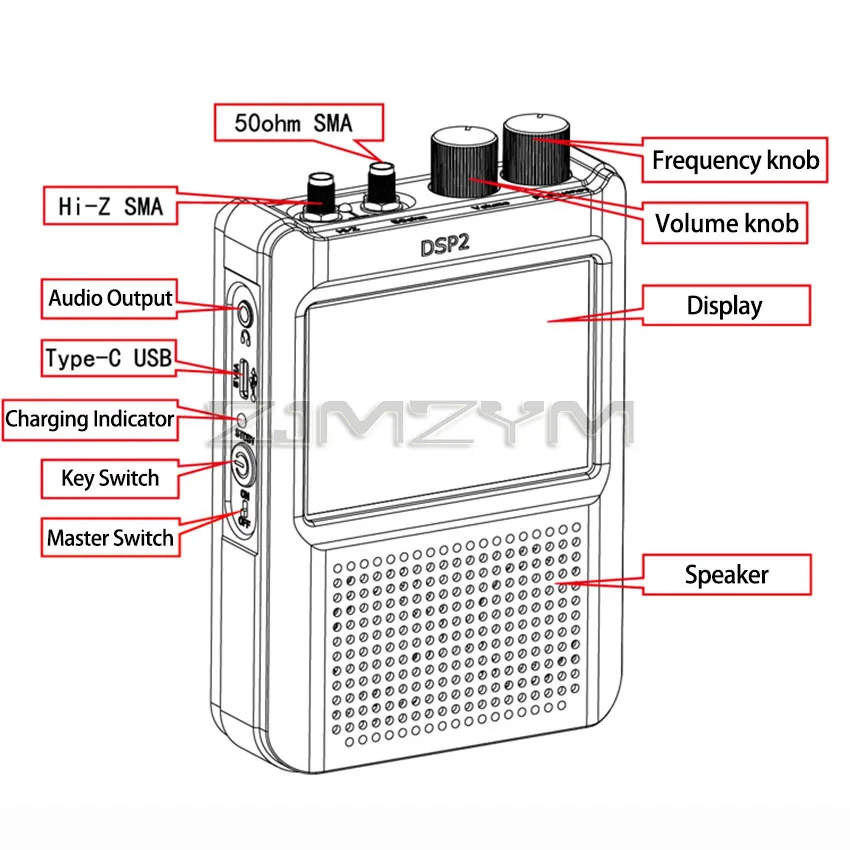

9) Controls 2 encoders with buttons and touch screen.
10) Power supply is supplied by an external TYPE-C connector, which can be charged by TYPE-C. Internal battery voltage 3.7V capacity 5000mAH.
11) The current is 300mA when listening to headphones.
12) Built-in Receiver Module In order to improve HF reception on the antenna, an add-on board with a source follower has been developed. This board will be built into the standard receiver design.

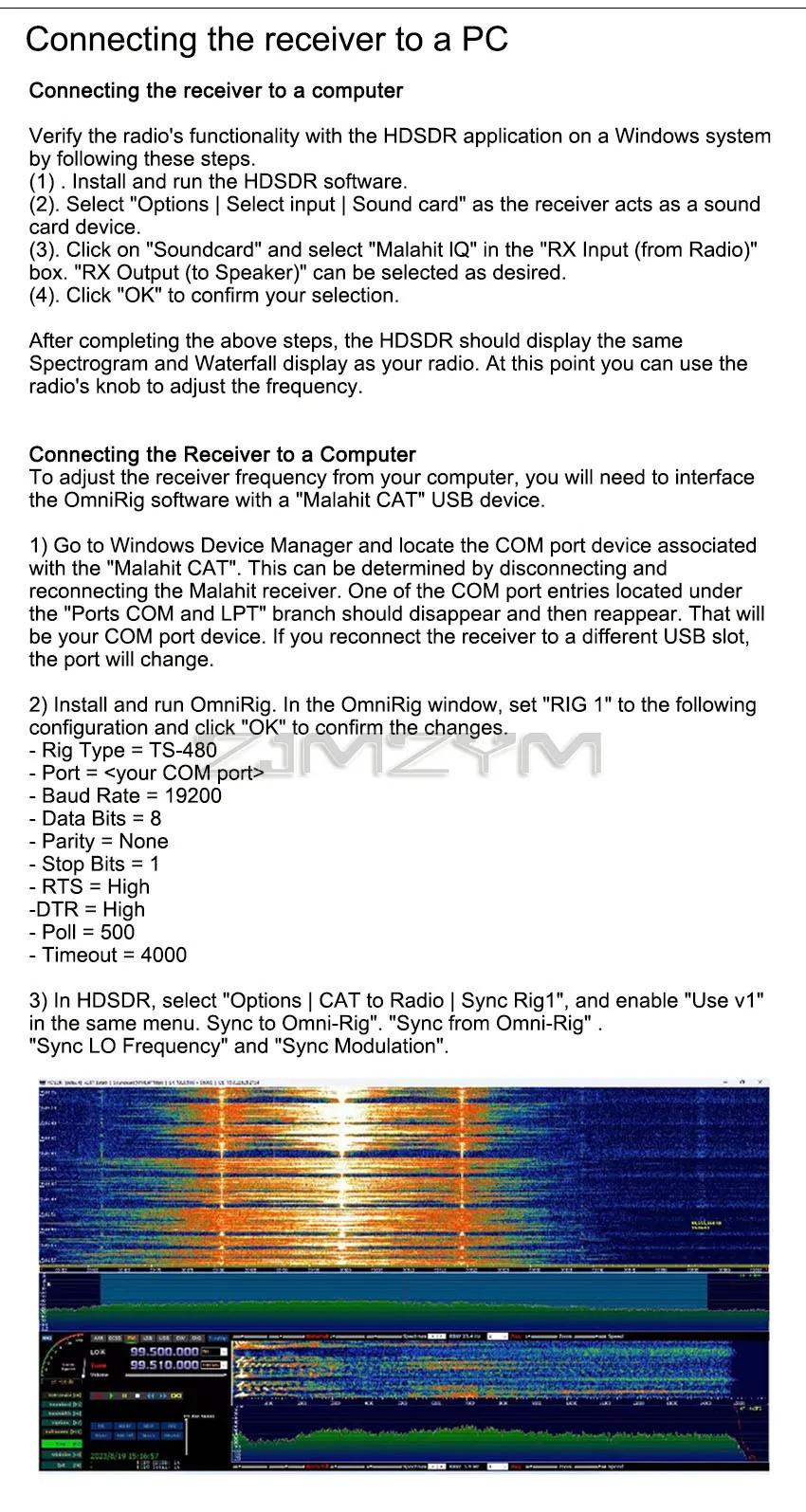

13) Connection to a computer via USB enables transmission of CAT, IQ and audio.
14) 192kHz span for scalability.
15) Sensitivity - 0.3μV= 10dB at s / w at up to 1GHz.
16) Dynamic blocking range is approximately 85dB due to the characteristics of the msi001 chip used.
17) Backlight control is available.
18) SMA female antenna socket;
19) The use of temperature complementary crystal, making the frequency stability up to 1ppm
20) Dynamic up to 82db
21) Tie rod antenna length: 0.75 meters
22) External dimensions 140X94X30mm (excluding protrusions)
Note :
1. product color random shipment.
2.This product is currently out of stock, and the delivery time after placing an order is about 10-15 days

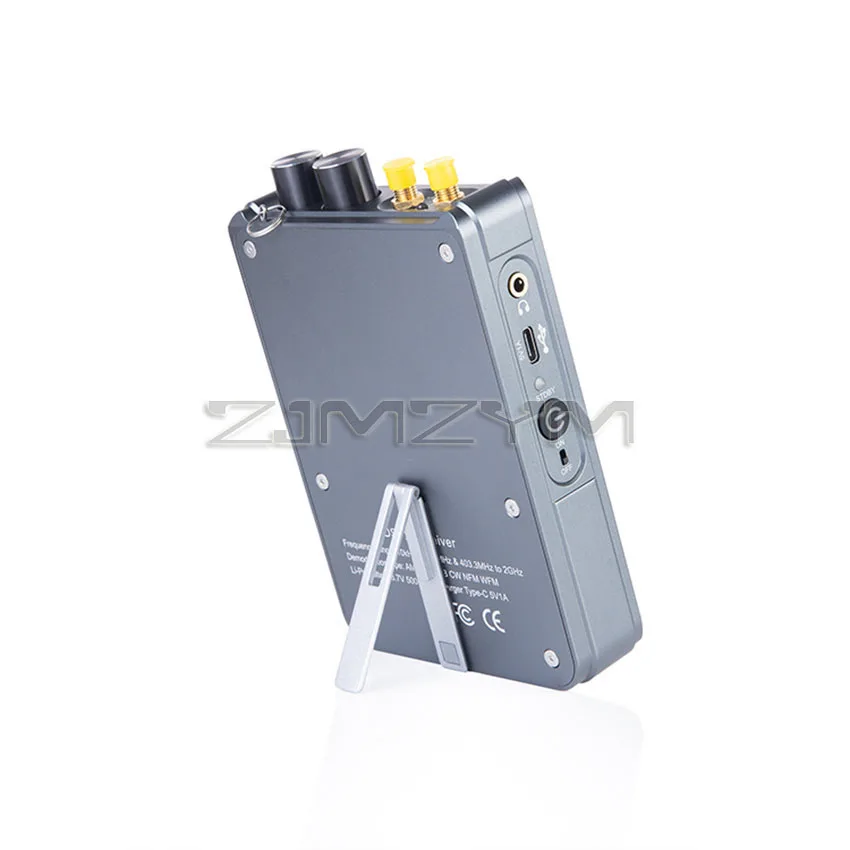

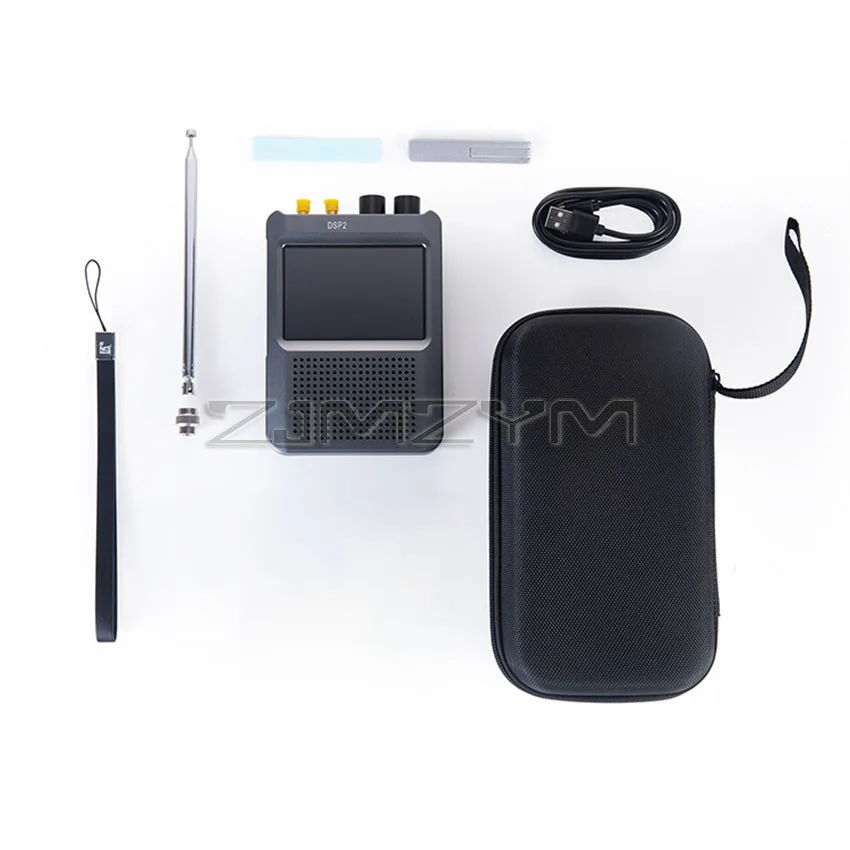

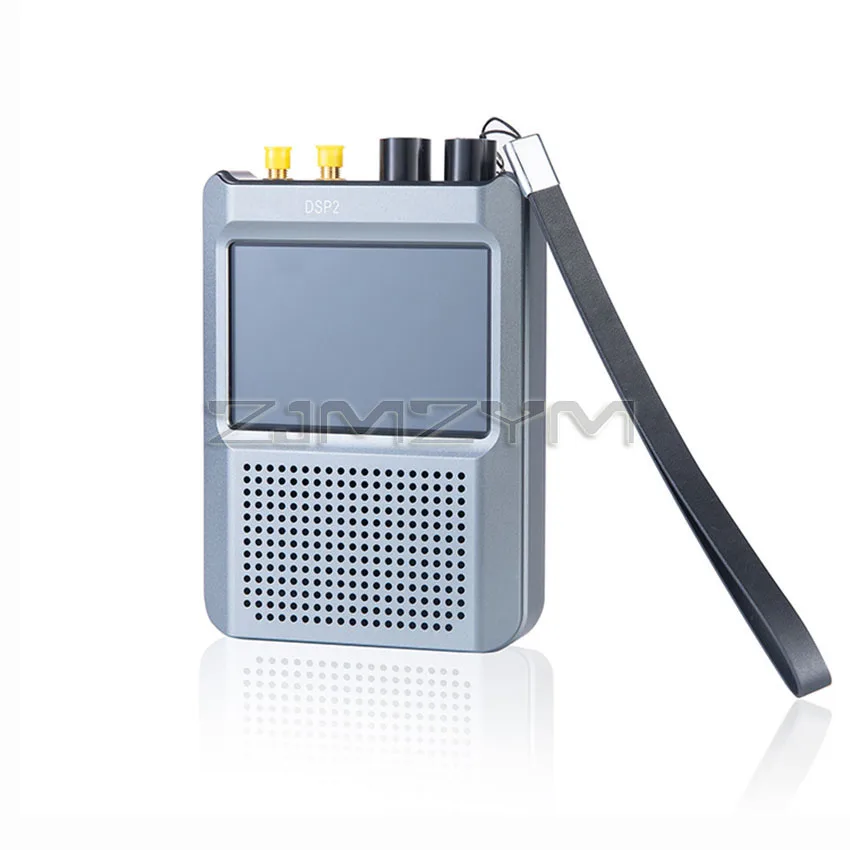

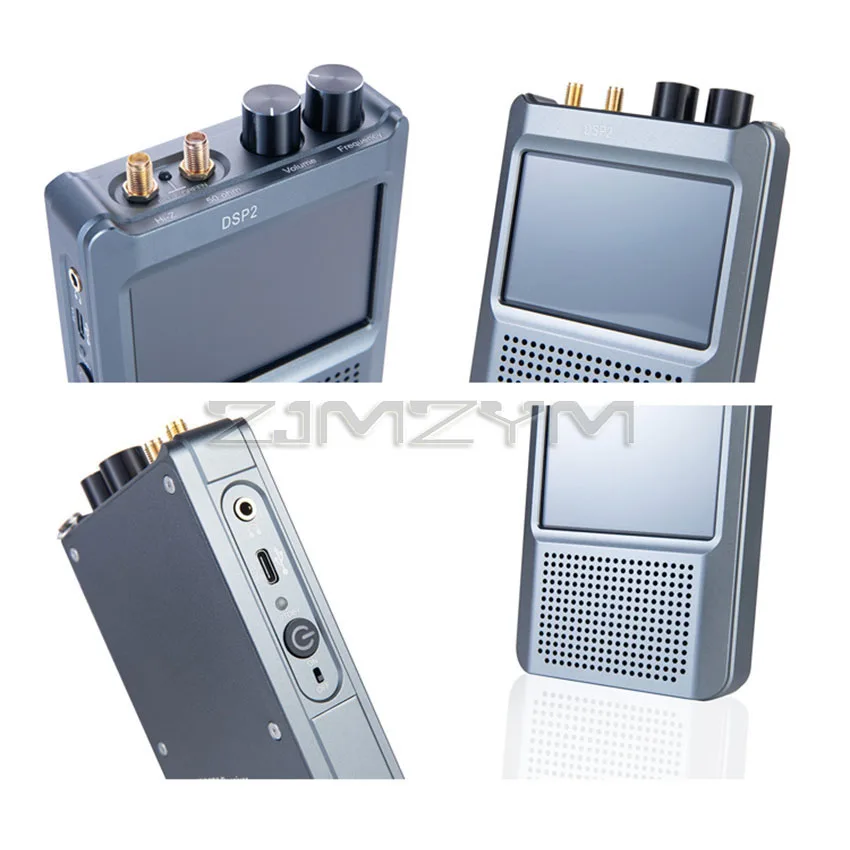

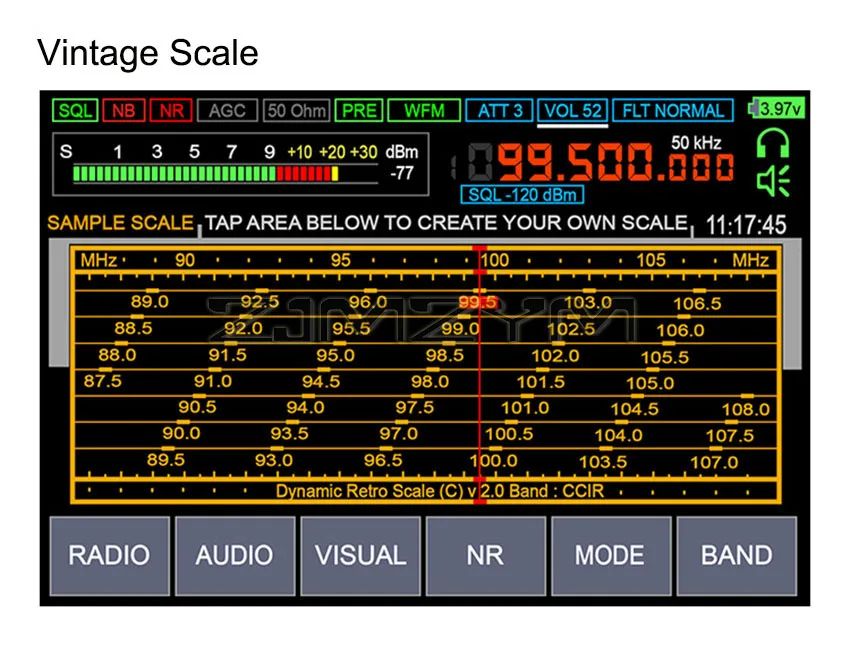

Product show:
