Phase Solar Hybrid Inverter 5KW 6KW 8KW 10KW 12KW Deye SUN-12K-SG04LP3-EU Three

$2,329.78

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Leo
WhatsApp:+86 18774978531
Email:qianruileo@gmail.com

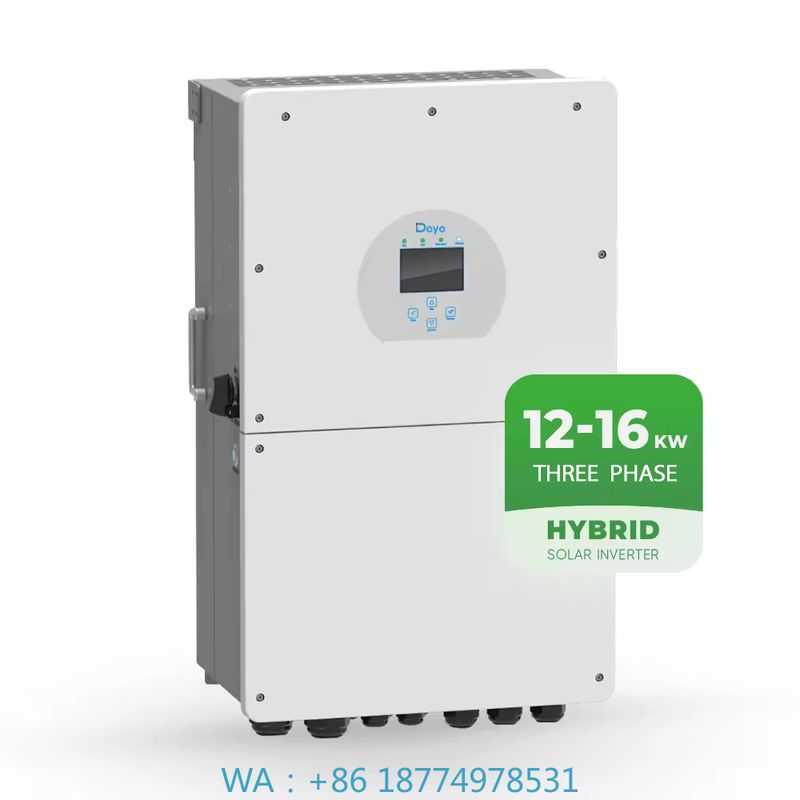

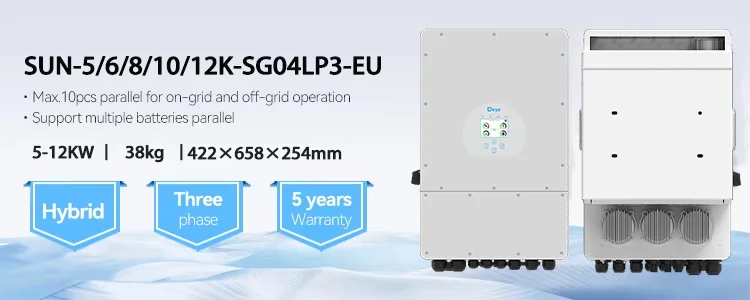

Deye SUN-12K-SG04LP3-EU Three Phase Solar Hybrid Inverter 5KW 6KW 8KW 10KW 12KW

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.
Deye hybrid solar inverter SUN-5K/6K/8K/10K/12K-SG04LP3-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

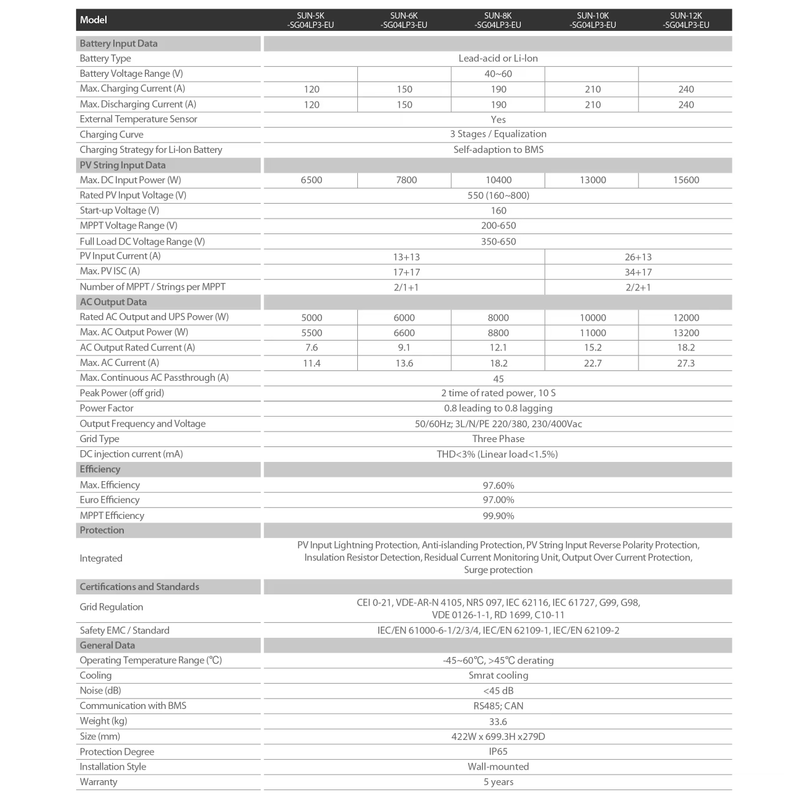

Product Parameters
Model
SUN-5K-SGO4LP3-EU
SUN-6K-SGO4LP3-EU
SUN-8K-SG04LP3-EU
SUN-10K-SG04LP3-EU
SUN-12K-SG04LP3-EU
Battery Input Data





Battery Type
Lead-acid or Li-lon




Battery Voltage Range (V)
40~60




Max.Charging Current (A)
120
150
190
210
240
Max.Discharging Current (A)
120
150
190
210
240
External Temperature Sensor
Yes




Charging Curve
3 Stages /Equalization




Charging Strategy for Li-lon Battery
Self-adaption to BMS




PV String Input Data





Max.DC Input Power(W)
6500
7800
10400
13000
15600
Rated PV Input Voltage (V)
550(160~800)




Start-up Voltage (V)
160




MPPT Voltage Range (V)
200-650




Full Load DC Voltage Range (V)
350-650




PV Input Current (A)
13+13


26+13

Max.PVISC(A)
17+17


34+17

Number ofMPPT /Strings per MPPT
2/1+1


2/2+1

AC Output Data





Rated AC Output and UPS Power (W)
5000
6000
8000
10000
12000
Max.AC Output Power(W)
5500
6600
8800
11000
13200
AC Output Rated Current (A)
7.6
9.1
12.1
15.2
18.2
Max.AC Current(A)
11.4
13.6
18.2
22.7
27.3
Max.Continuous AC Passthrough(A)
45




PeakPower(off grid)
2 time of rated power,10 S




Power Factor
0.8 leading to 0.8 lagging




Output Frequency and Voltage
50/60Hz;3L/N/PE 220/380,230/400Vac




Grid Type
Three Phase




DC current (mA)
THD<3%(Linear load<1.5%)




Efficiency





Max.Efficiency
97.60%




Euro Efficiency
97.00%




MPPT Efficiency
99.90%




Protection





Integrated
PV Input Lightning Protection,Anti-islanding Protection,PV String Input Reverse Polarity Protection,
Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,




Output Over Voltage Protection
DC Type lI/AC Type IIl




Certifications and Standards





Grid Regulation
CEI0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,





VDE 0126-1-1,RD 1699,C10-11




Safety EMC /Standard
IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2




General Data





Operating Temperature Range (C)
-45~60鈩�,>45鈩� derating




Cooling
Smart cooling




Noise (dB)
<45 dB




Communication with BMS
RS485;CAN




Weight (kg)
33.6

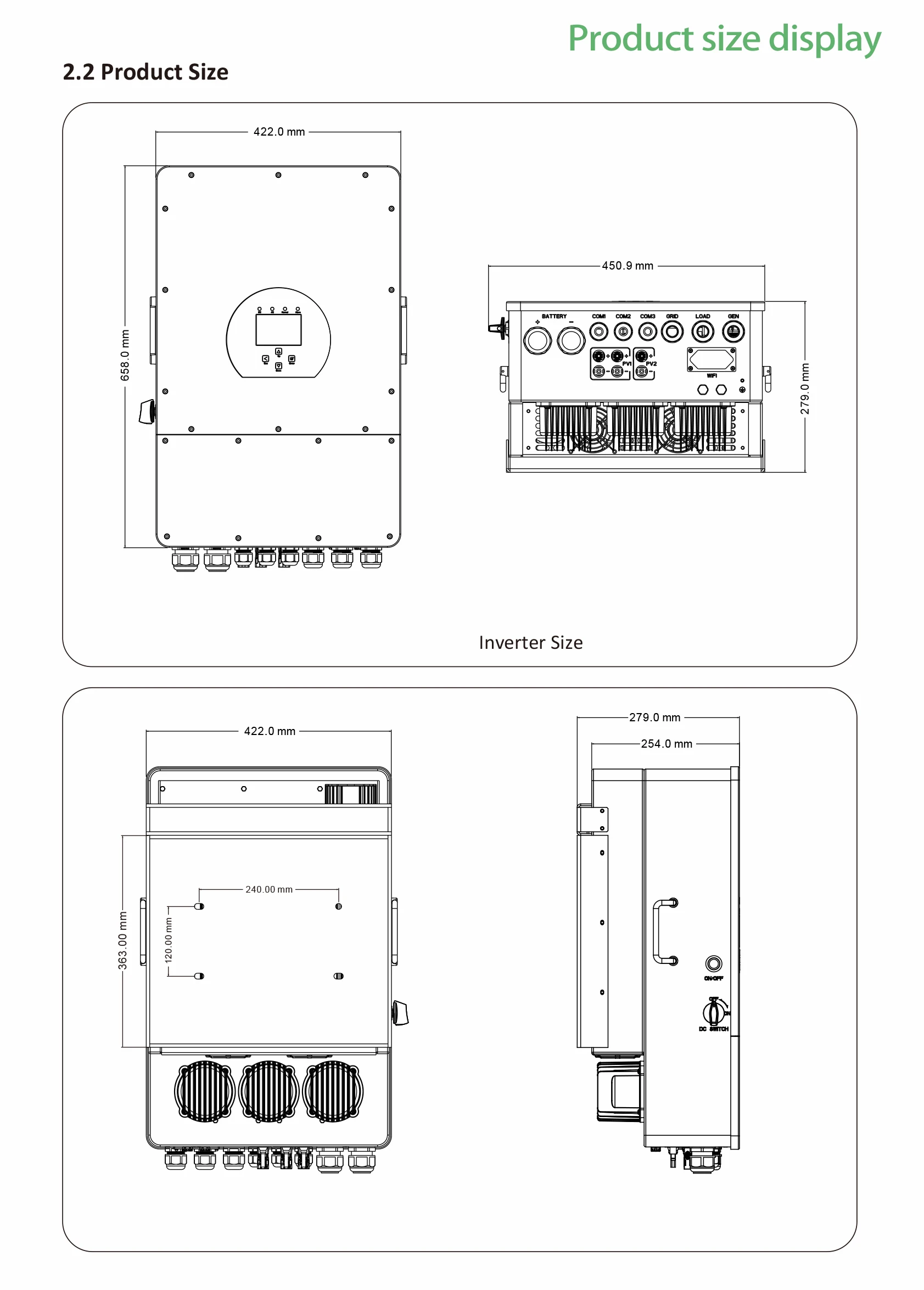

Size (mm)
422Wx699.3Hx279D




Protection Degree
IP65




Installation Style
Wall-mounted




Warranty
5 years

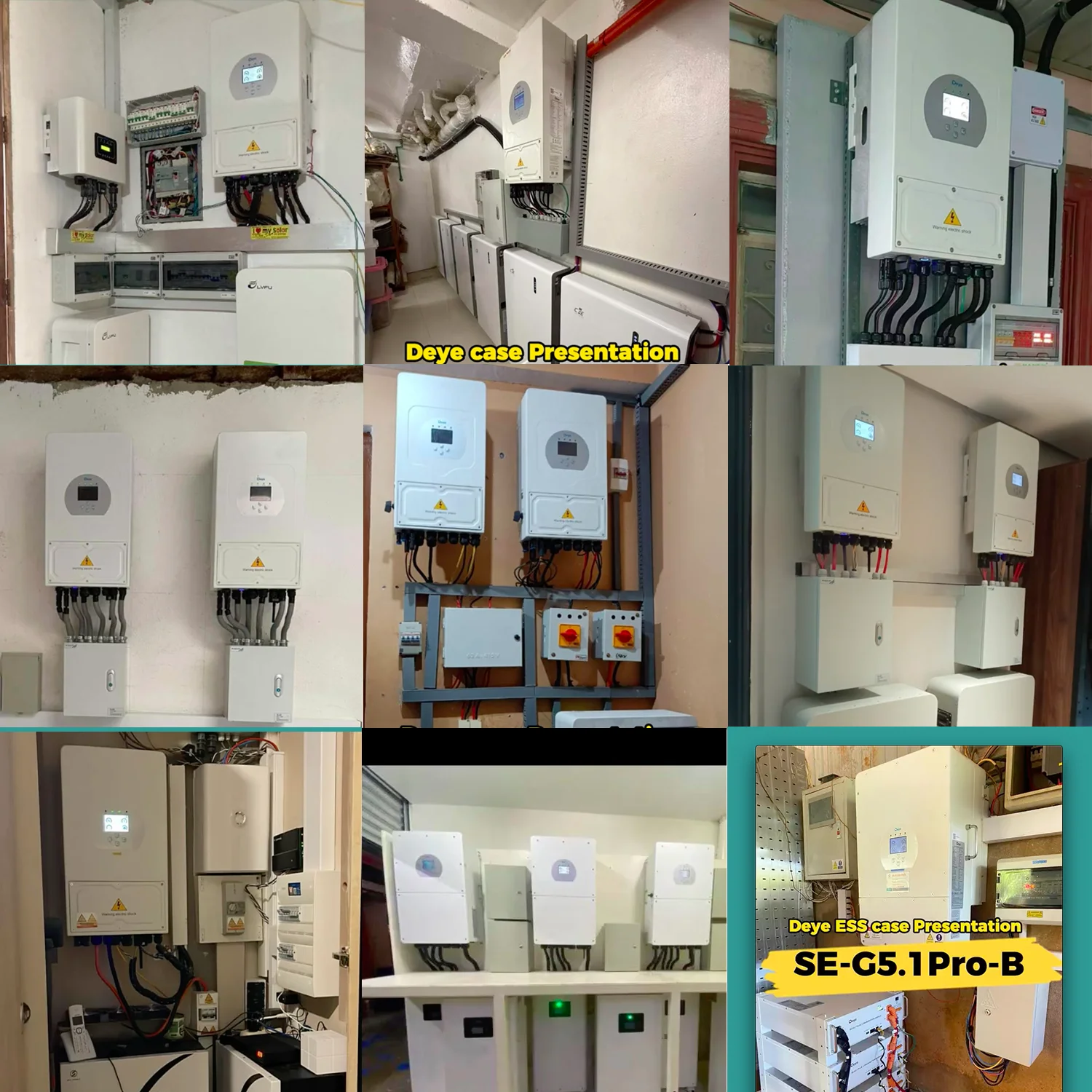

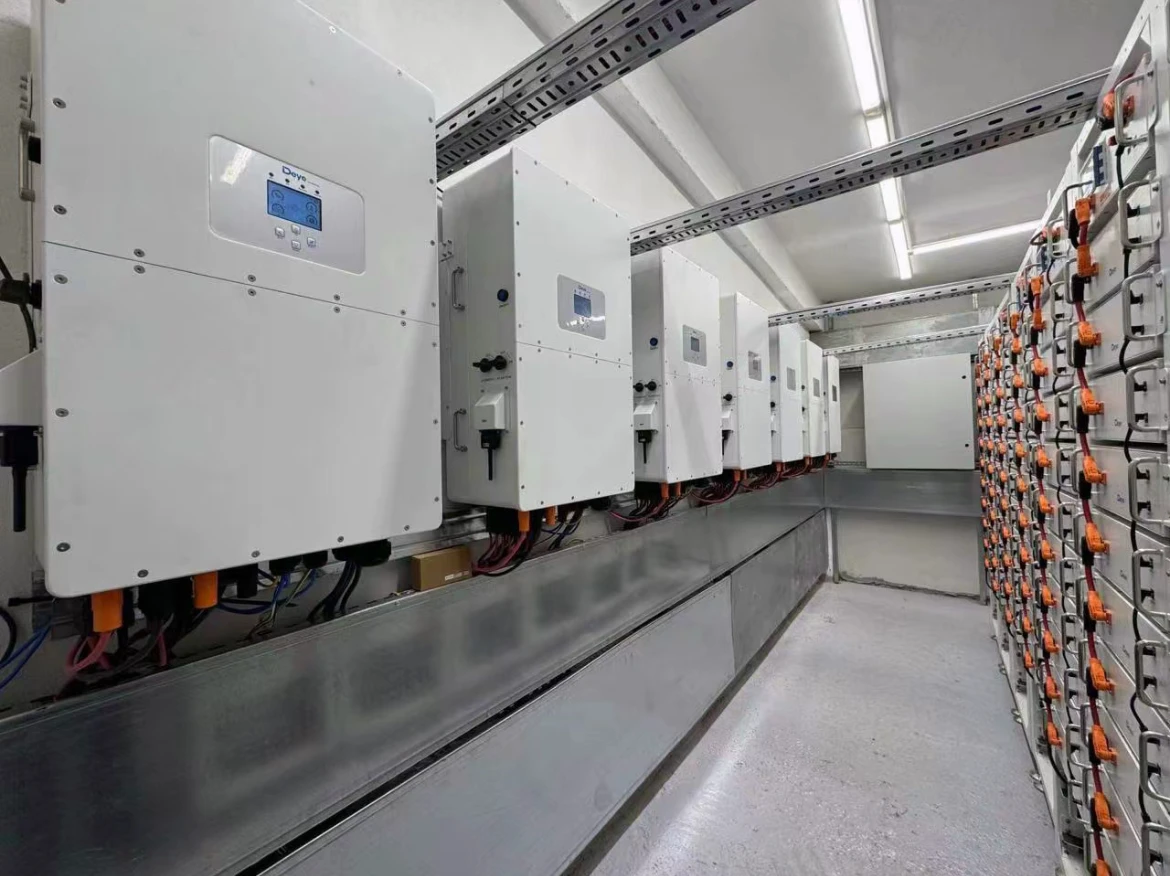

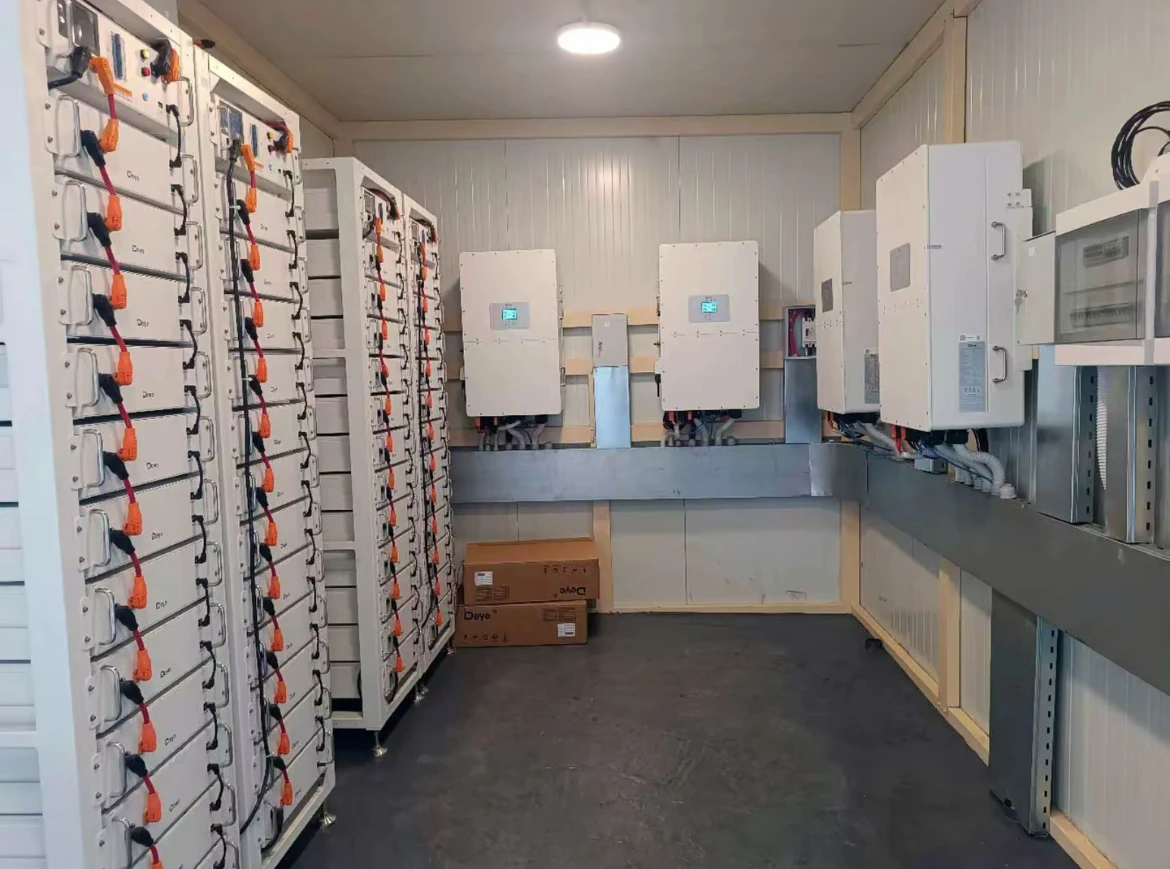

Project Case

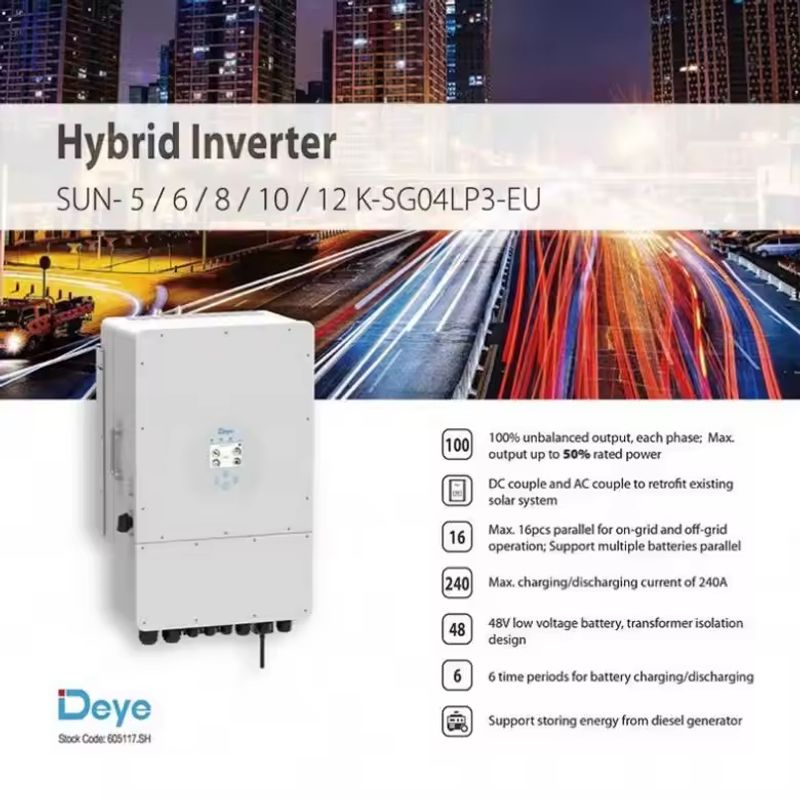

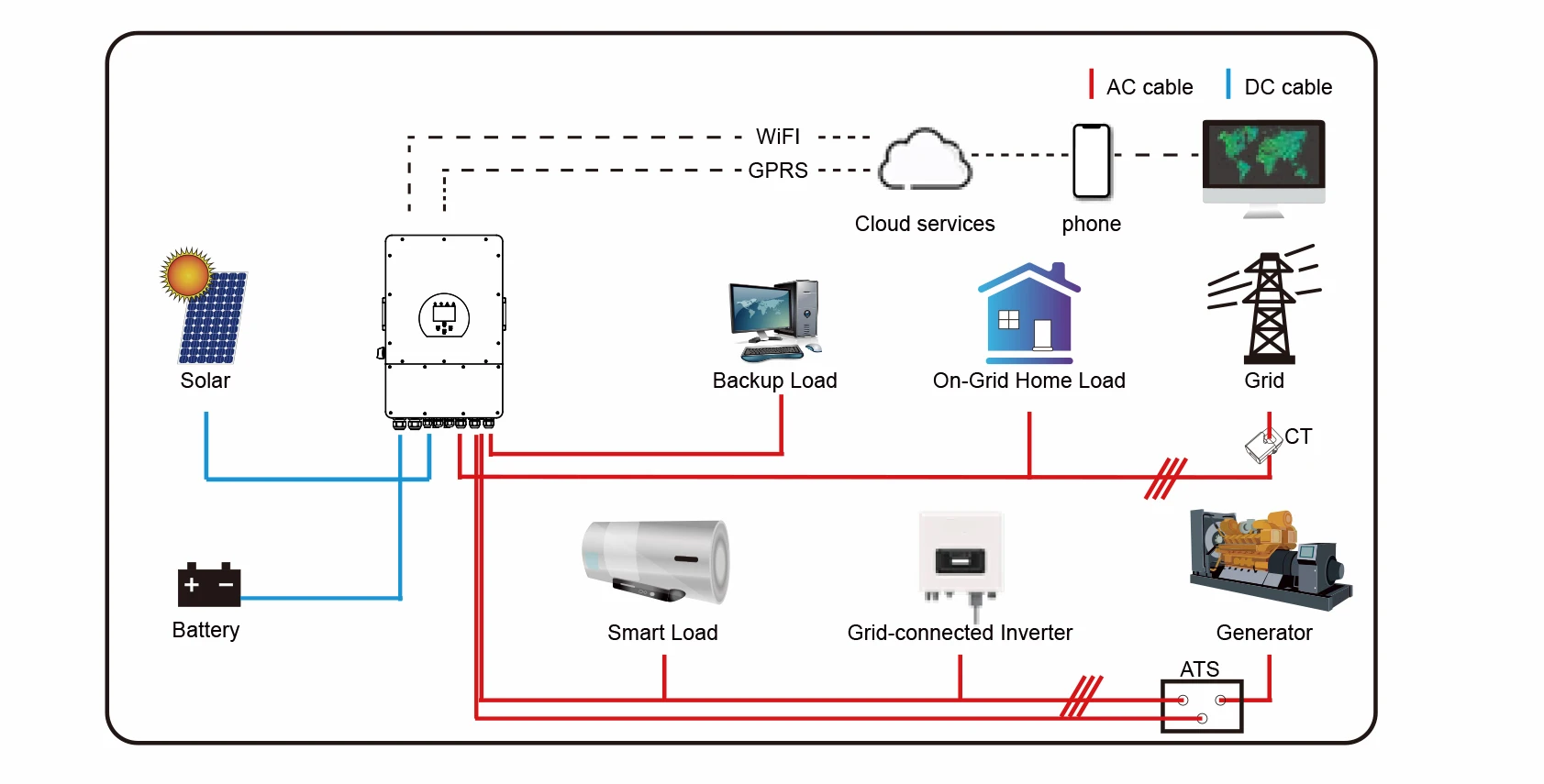

Product Features
β€”β€” 100% unbalanced output, each phase; Max. output up to 50% rated power
β€”β€” AC couple to retrofifit existing solar system
β€”β€” Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
β€”β€” Max. charging/discharging current of 240A
β€”β€” Support storing energy from generator
β€”β€” 48V low voltage battery, transformer isolation design
β€”β€” 6 time periods for battery charging/discharging

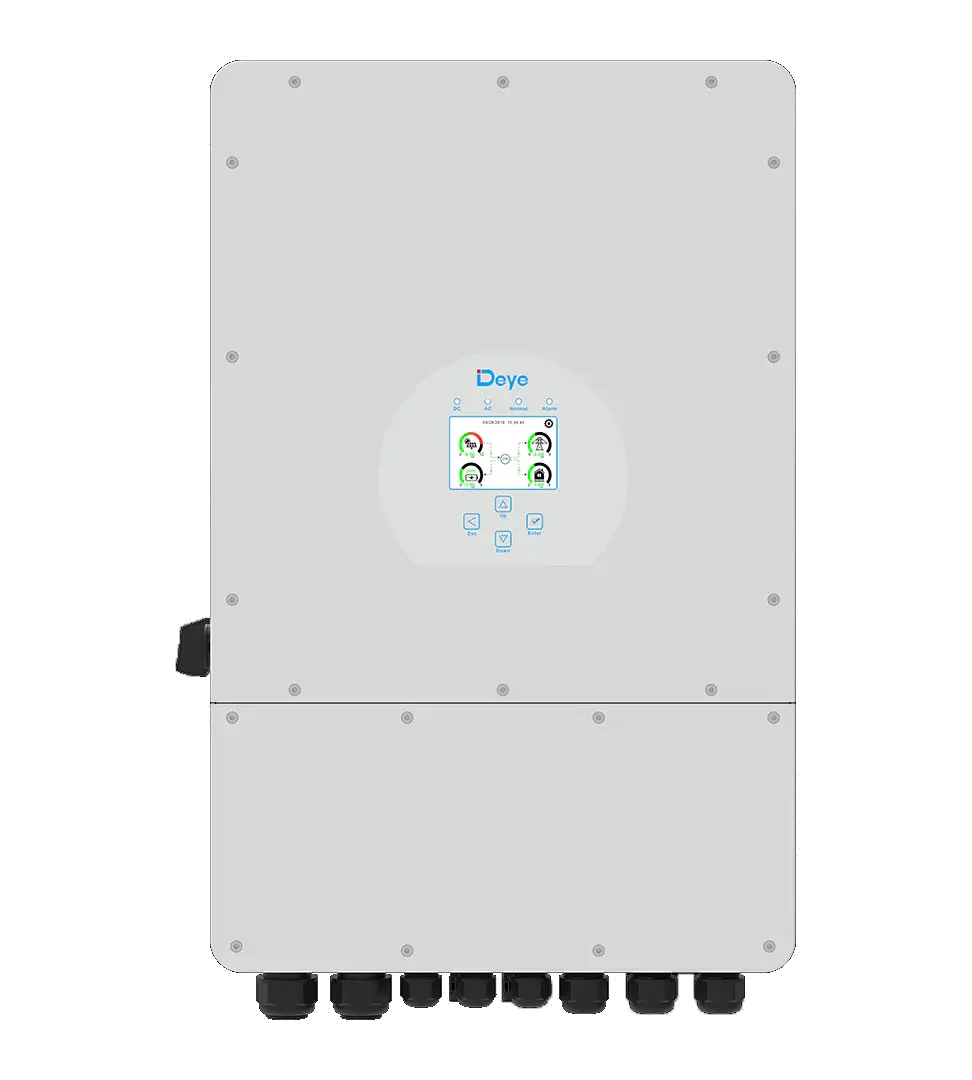

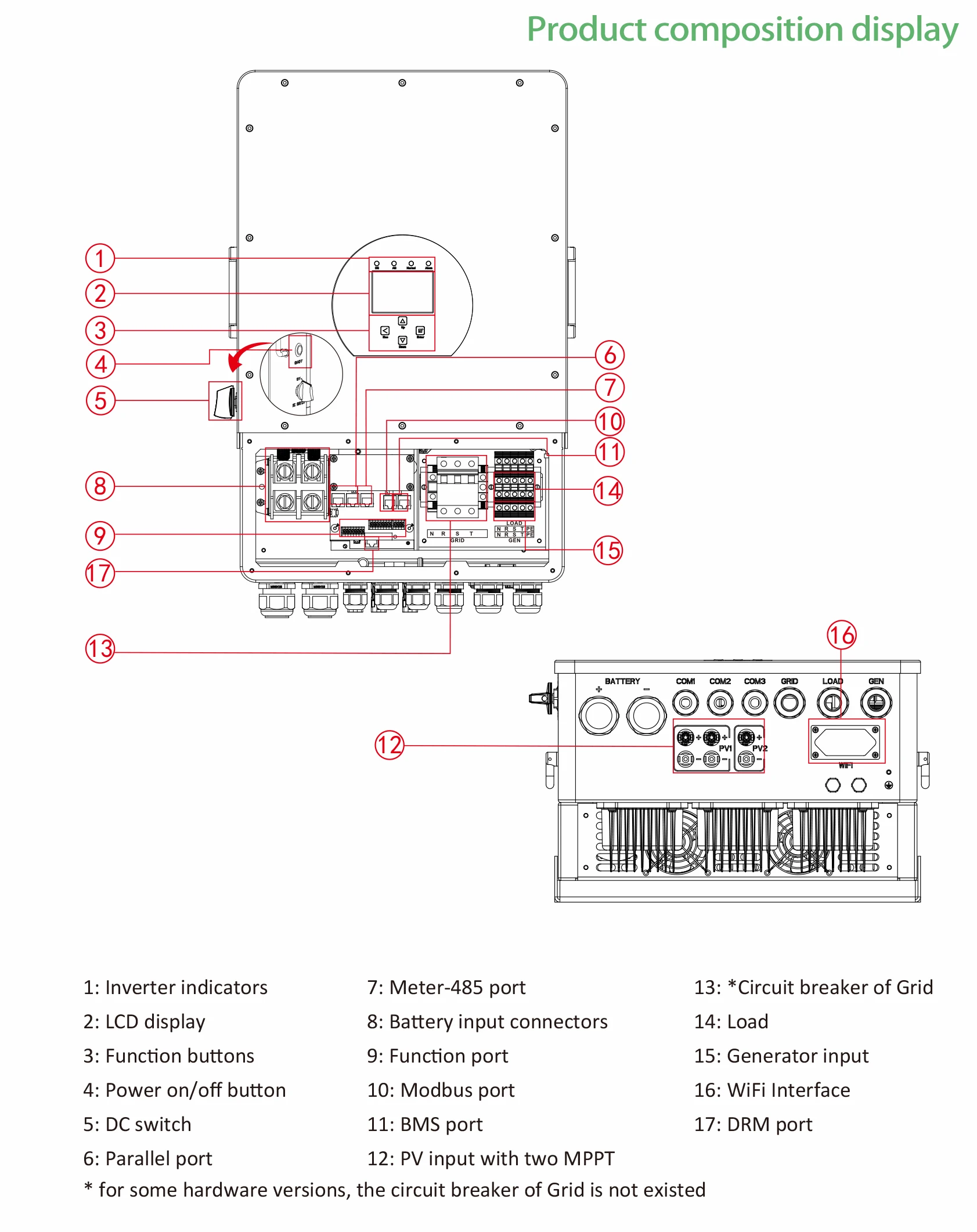

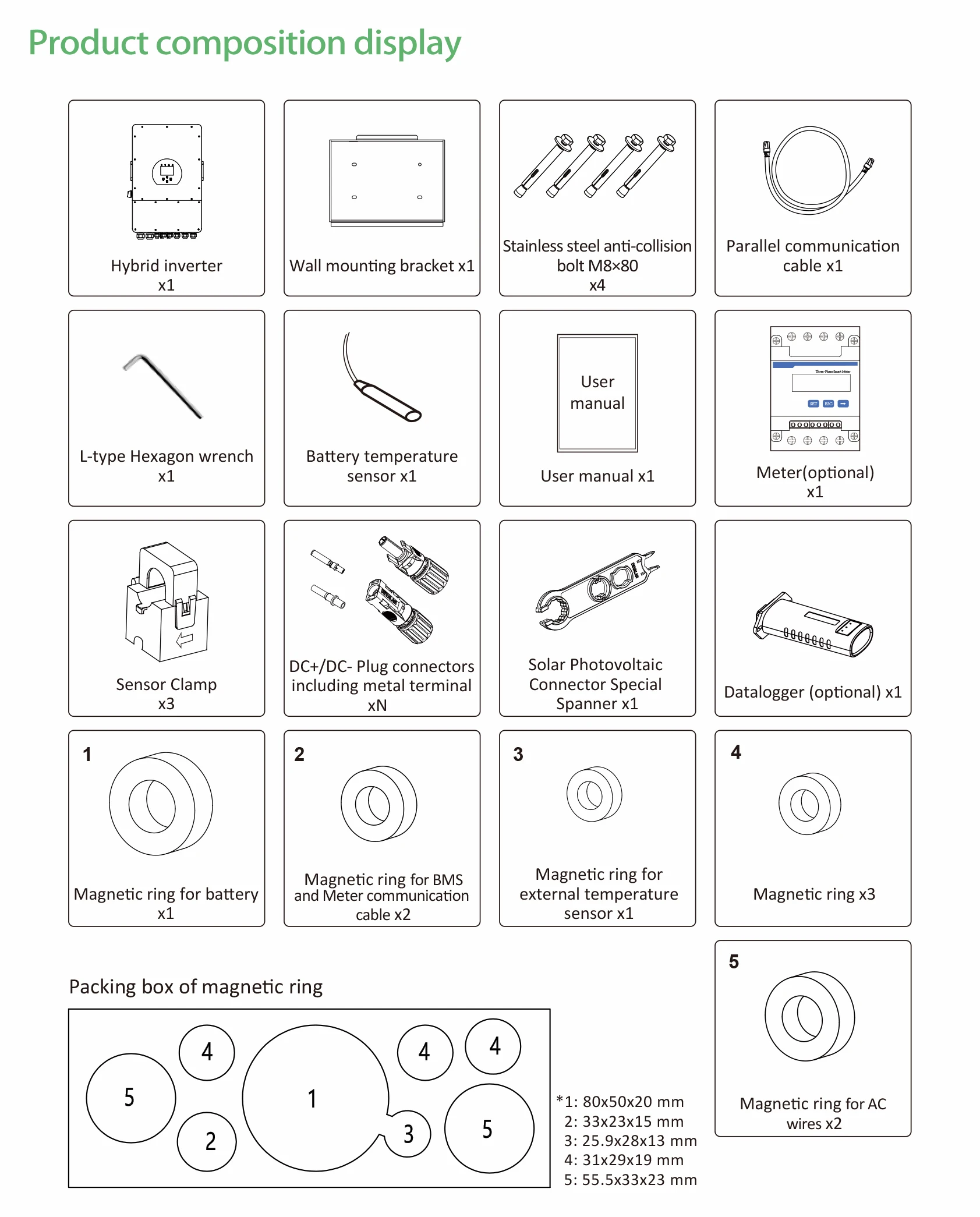

Products Details

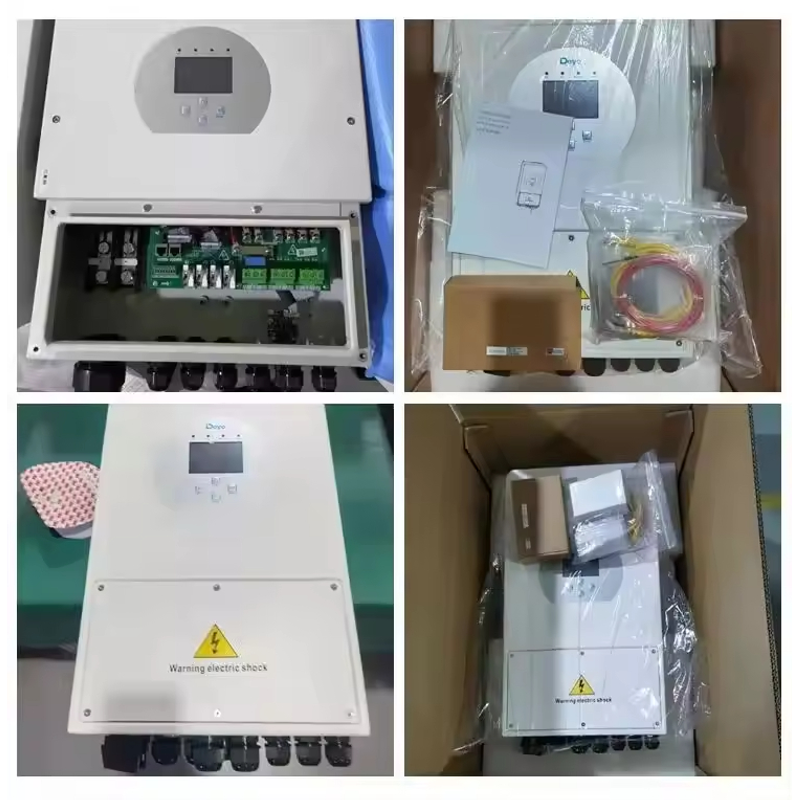

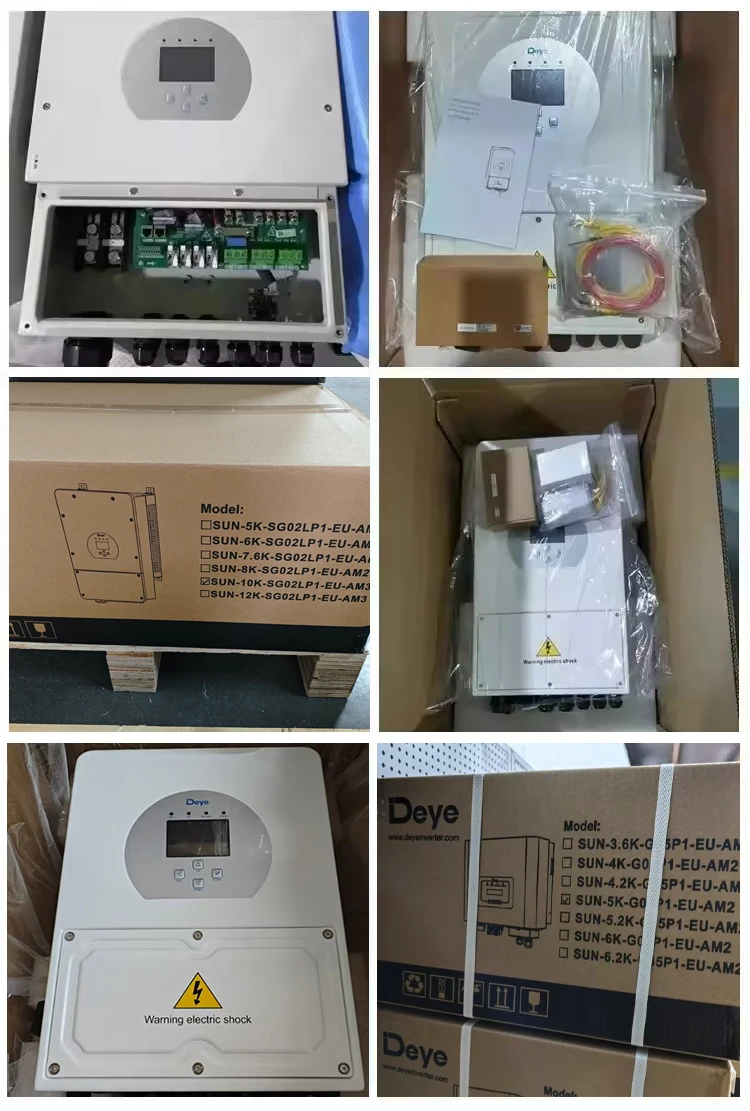

Packing & Delivery
All products, we will pack them carefully, protect the product from damage. We can also customize the cardboard packaging you need. carton or any other protected stuff if necessarily.
For heavy product, We use wooden boxes or frames to secure the equipment inside the container, ensuring appropriate dimensions and preventing shaking or tipping during transportation. If the goods are large and heavy, we will also carry out reinforcement treatment.ιŠ†οΏ½Fit in international shipment standard.ιŠ†οΏ½
You will get some surprised small gifts if you are lucky with the puchasing.
