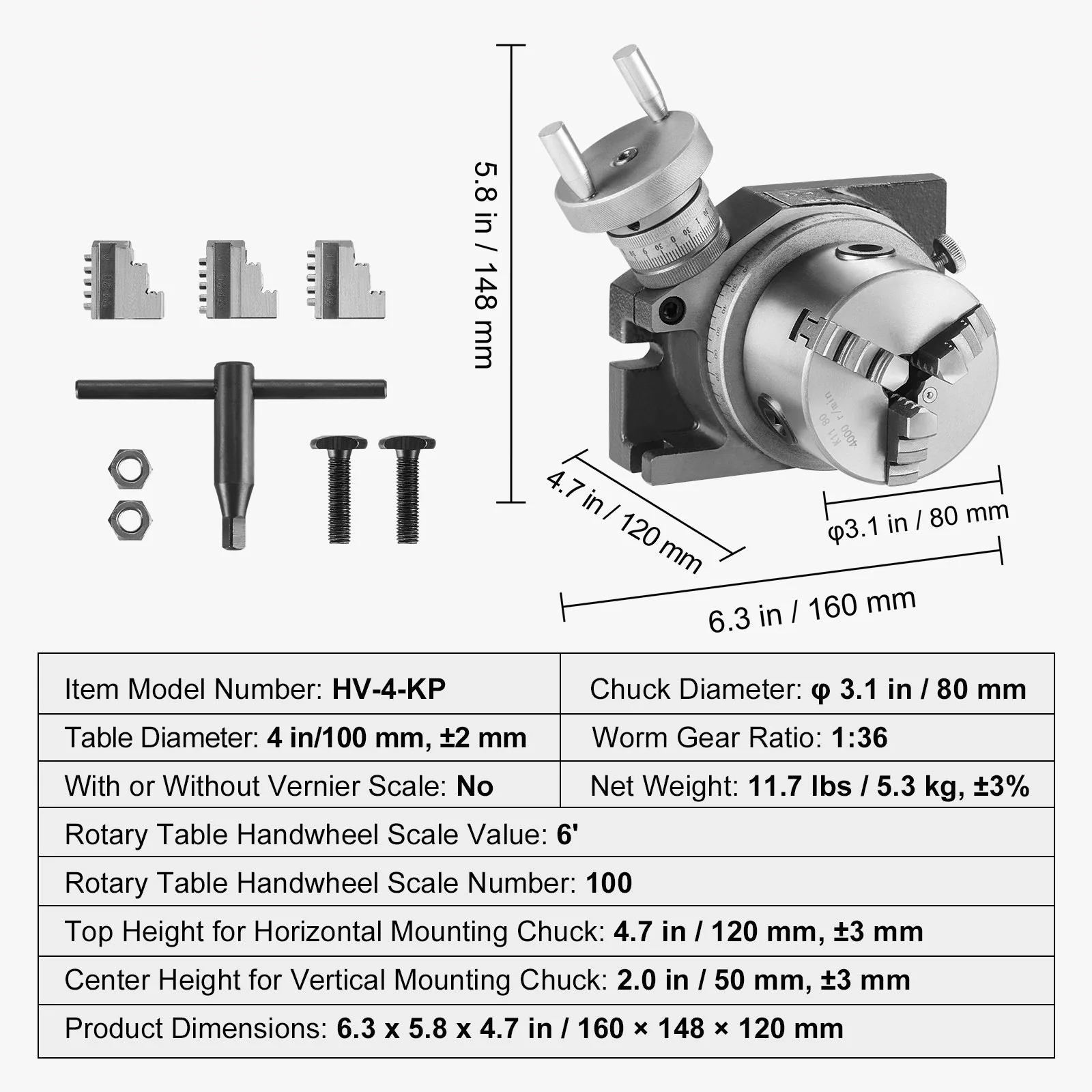

Precision Milling Rotary Table 4''/ 100 mm, Horizontal Vertical Model with 3-Jaw Chuck Indexing Tools for Milling Machines
Includes all taxes
Meet your Seller
-
$336.72Sold by BILLIONS BIRDS
Description
4-Inch Rotary Table for Milling Machine
Our 4''/100 mm diameter rotary table is the perfect companion for small milling machines or specialized machinery and is designed for intricate and complex dividing cuts. Embrace the efficiency and versatility of our 4-inch rotary table and take your milling projects to the next level of accuracy.
Features & Details
4-Inch Milling Machine Rotary Table:

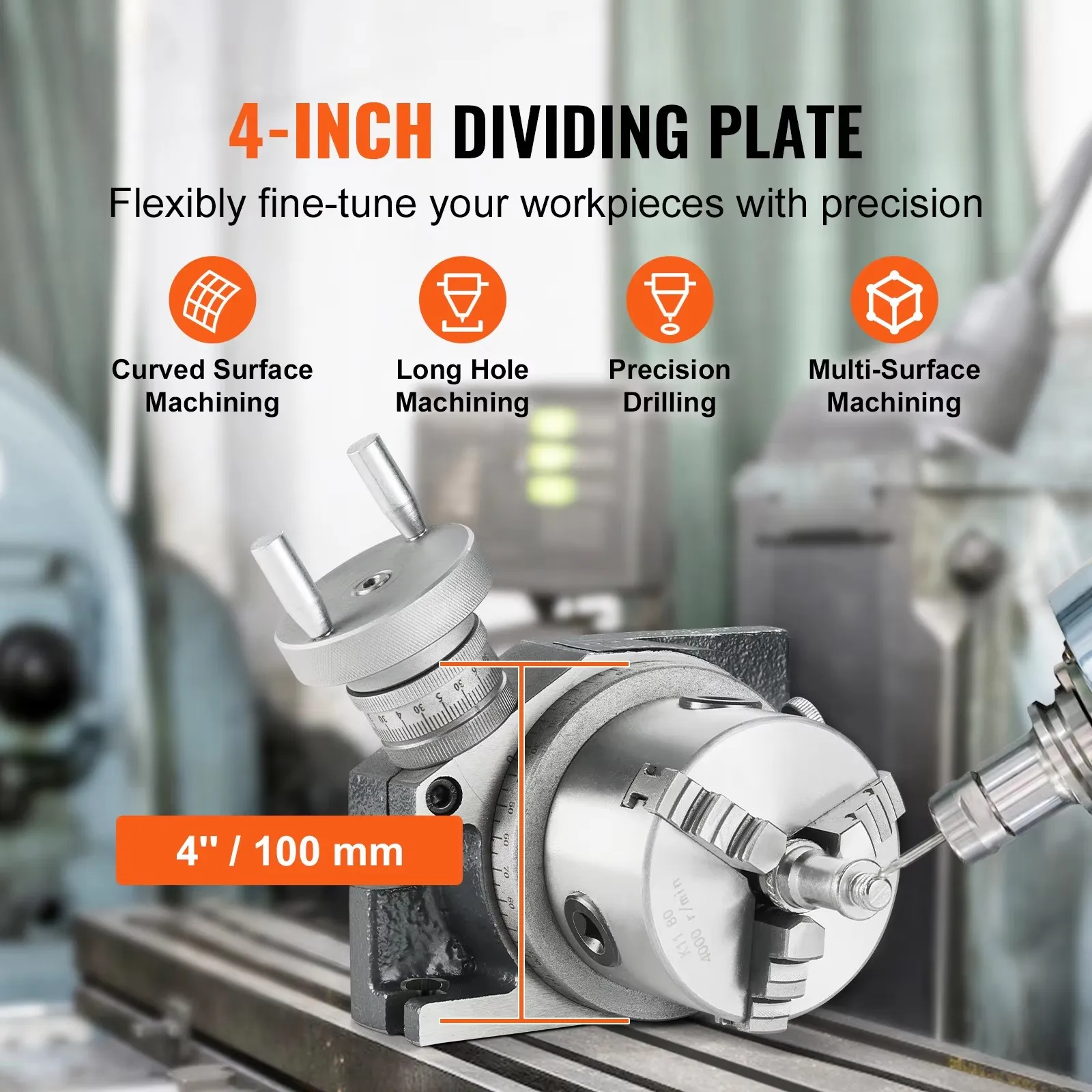

Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.
Secure Small Workpieces with Ease

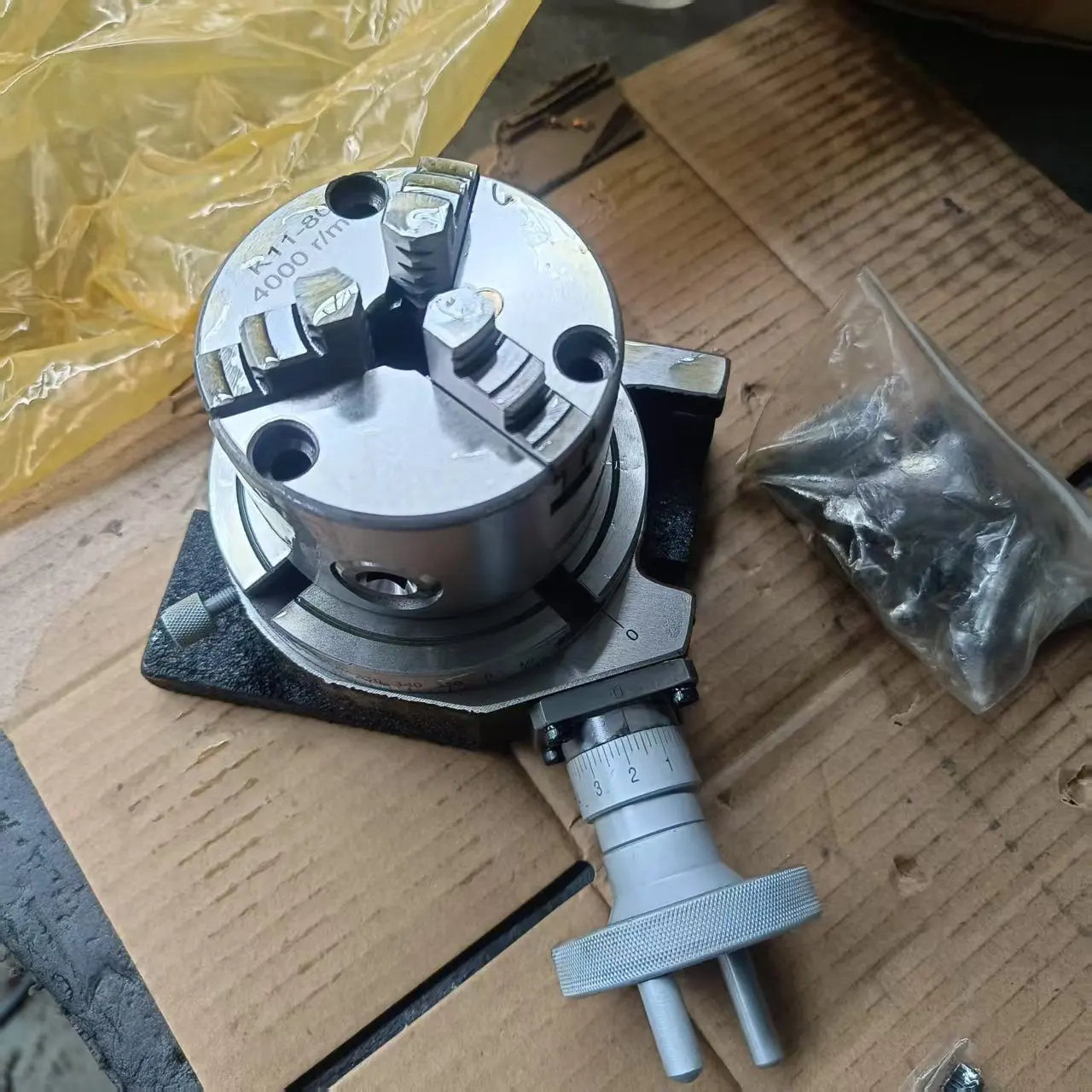

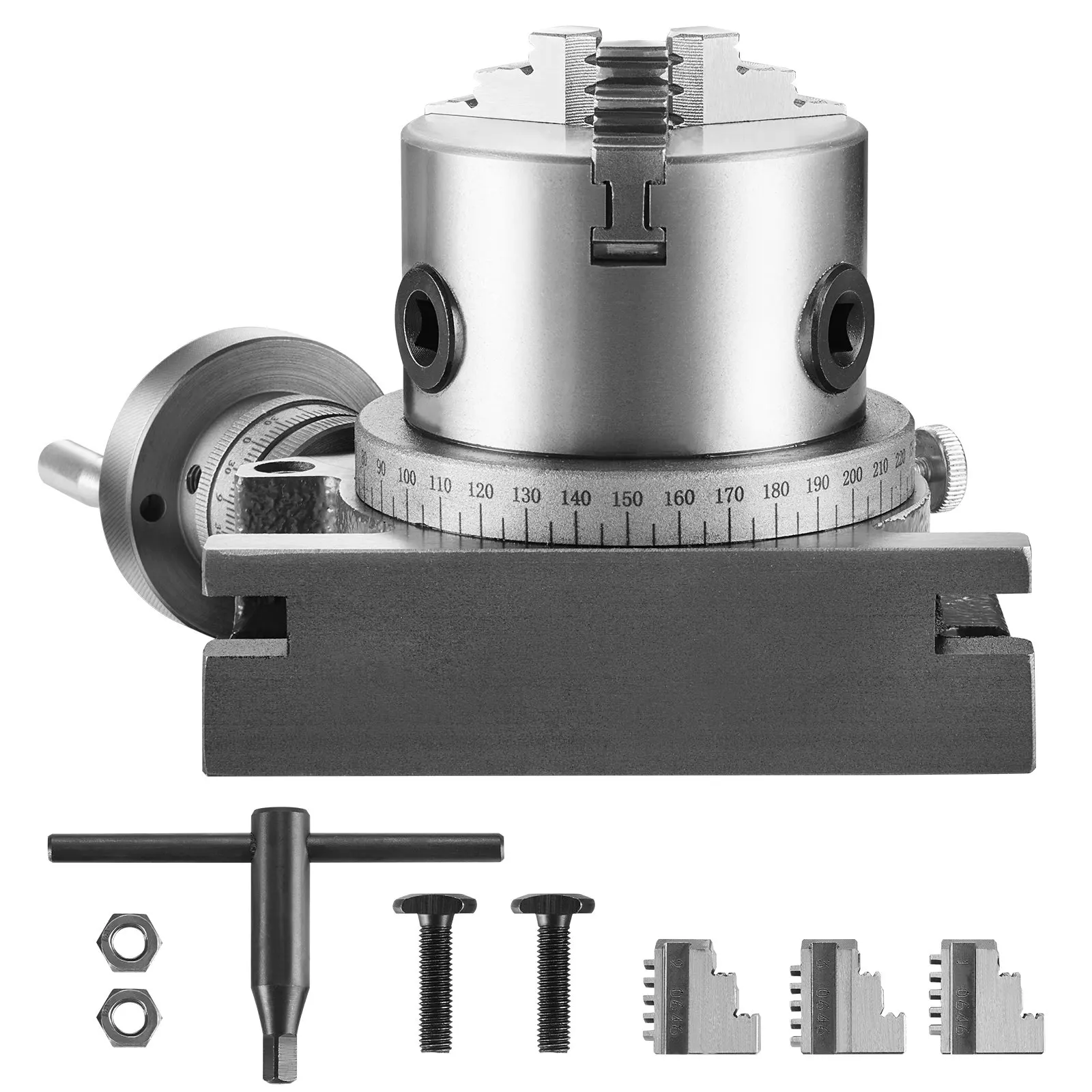

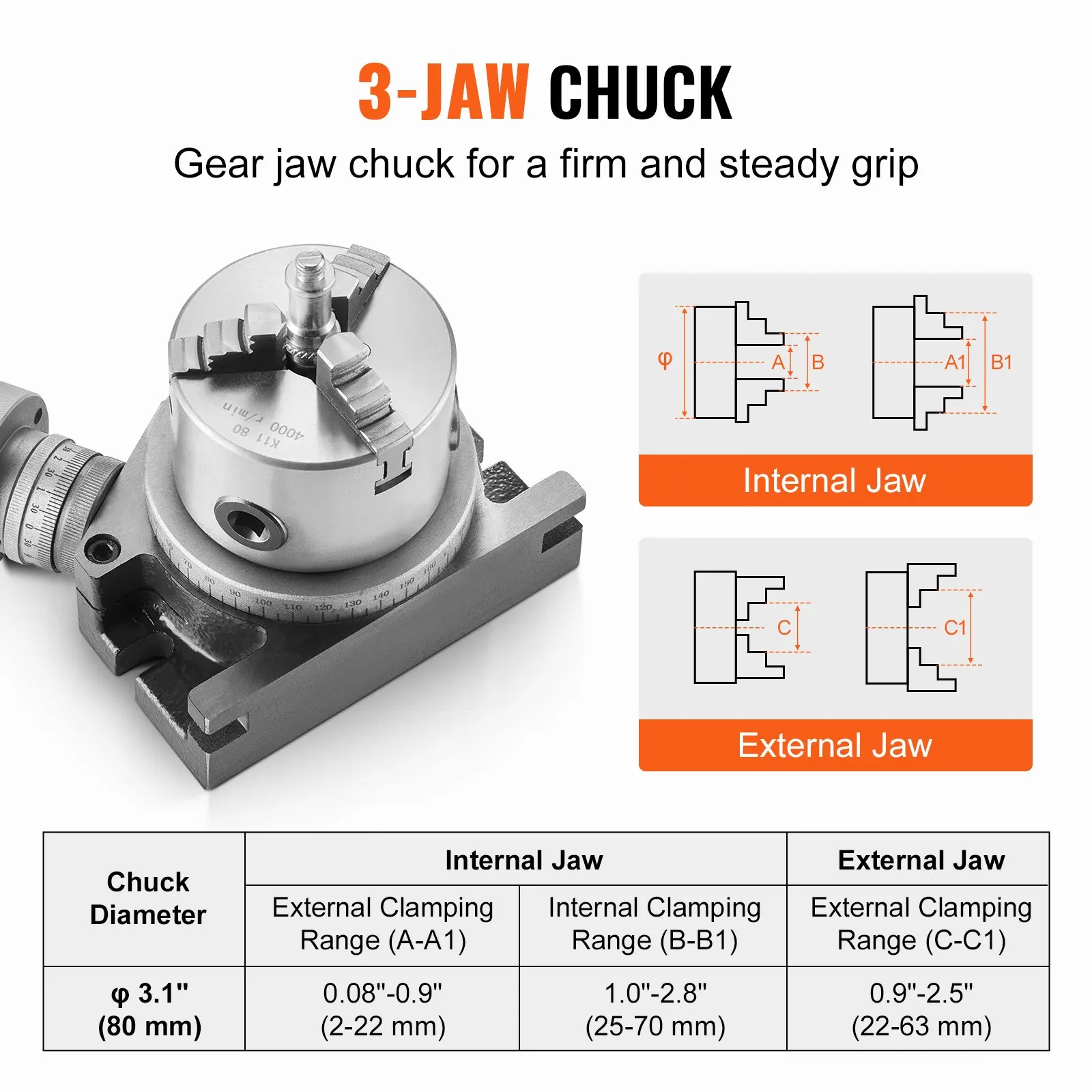

Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter: φ 3.1'' / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm. It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm. Enjoy the precise and secure machining of small components!
High Precision at Your Fingertips:

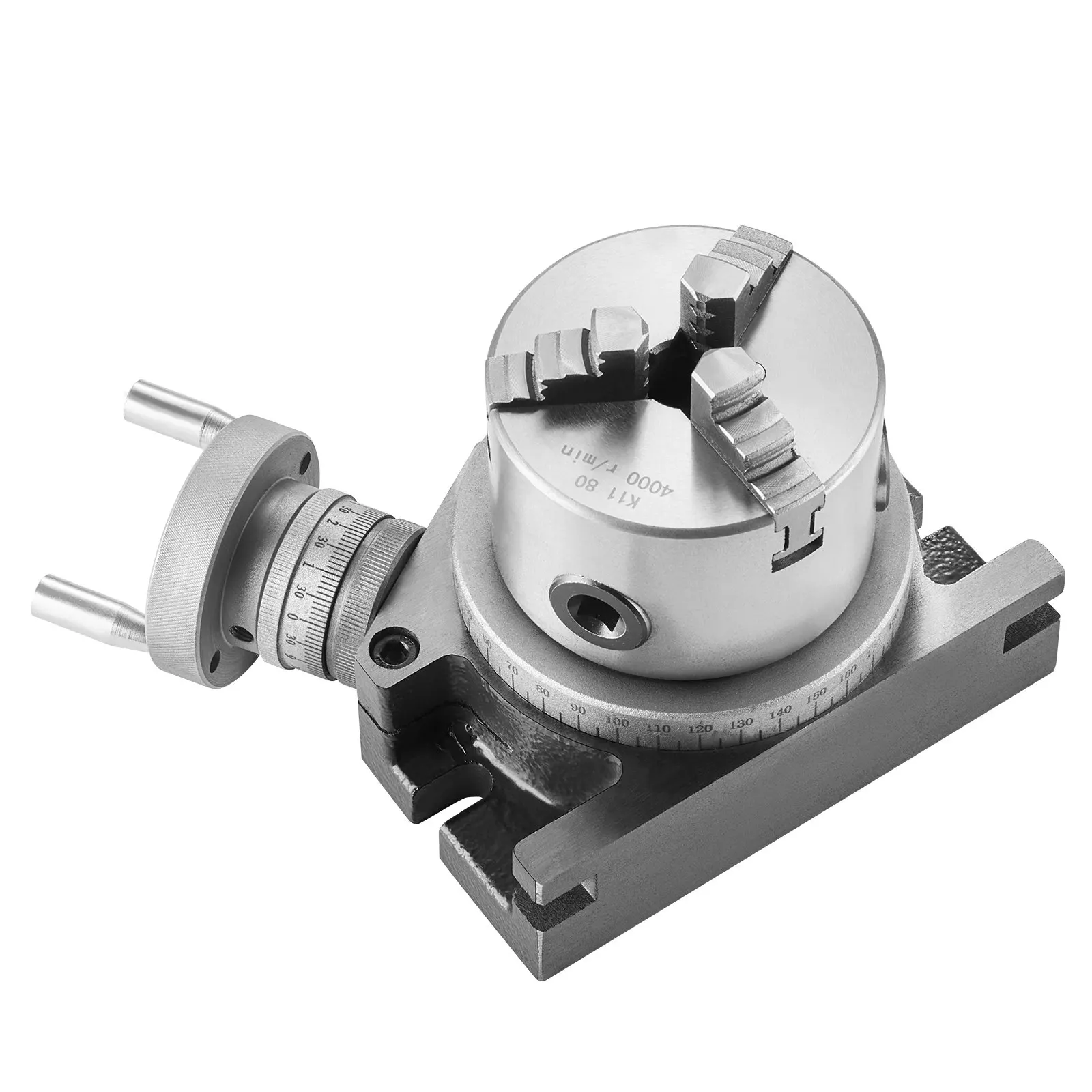

The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale number is 100, while the table itself is marked with 360 degrees. With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation.
Horizontal & Vertical Installation:

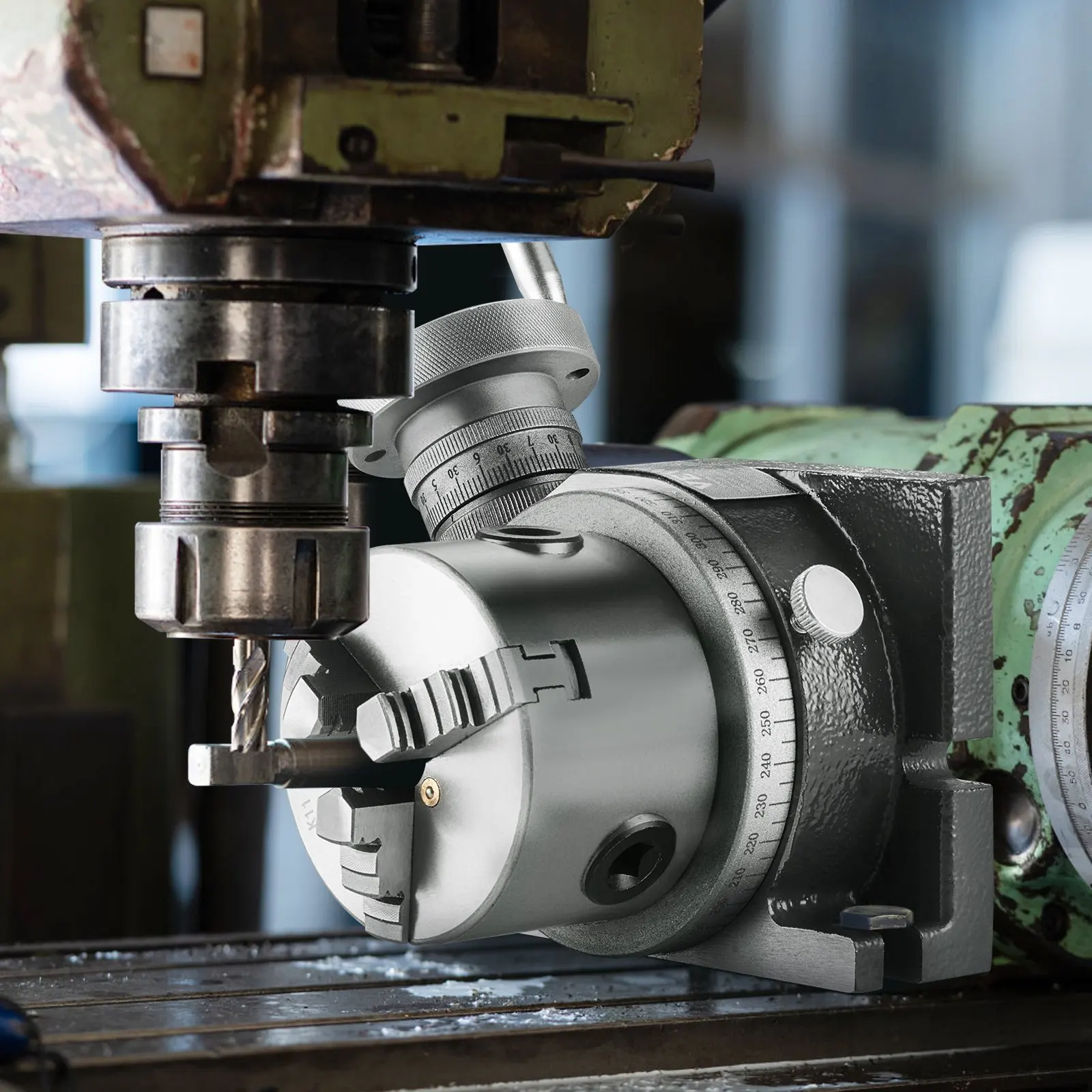

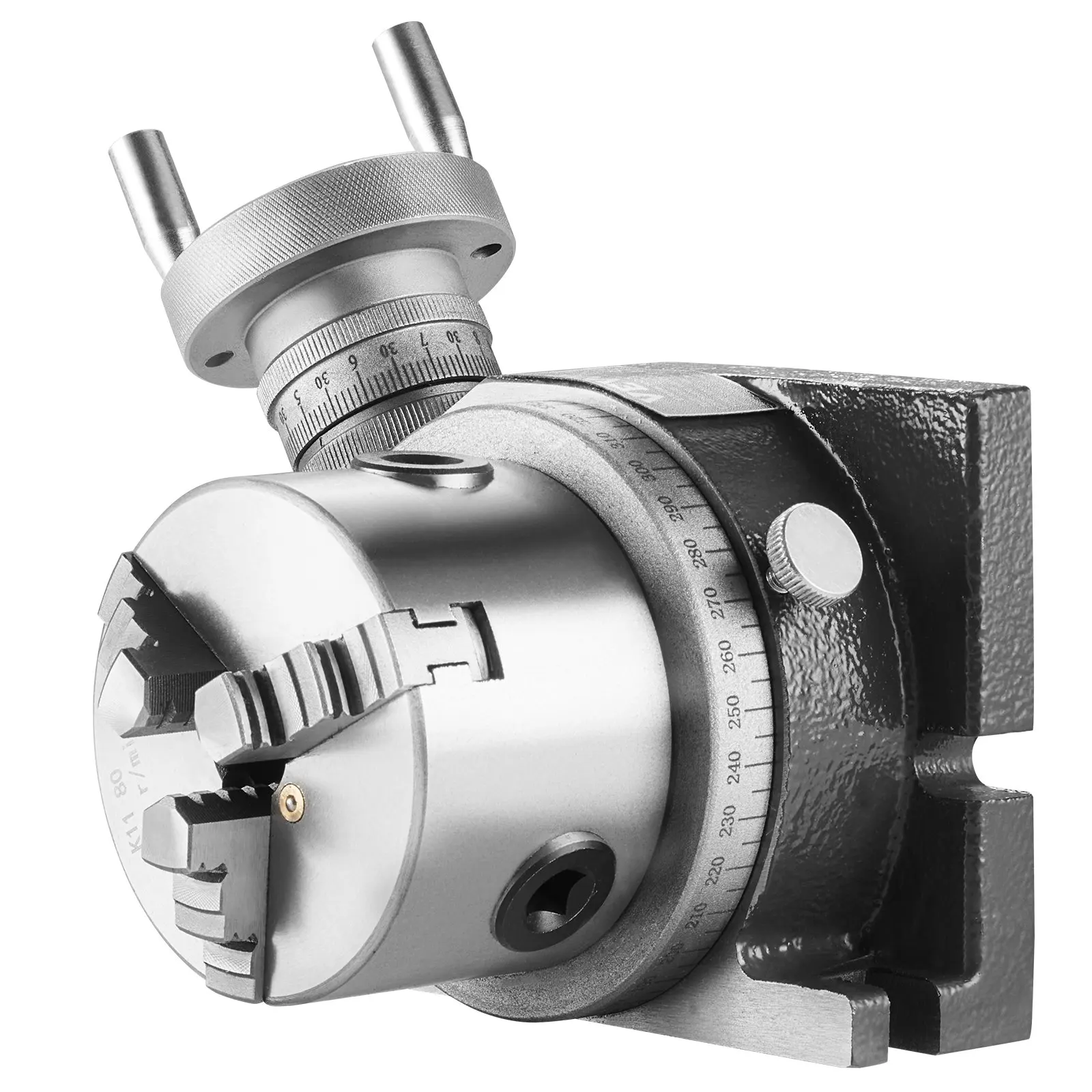

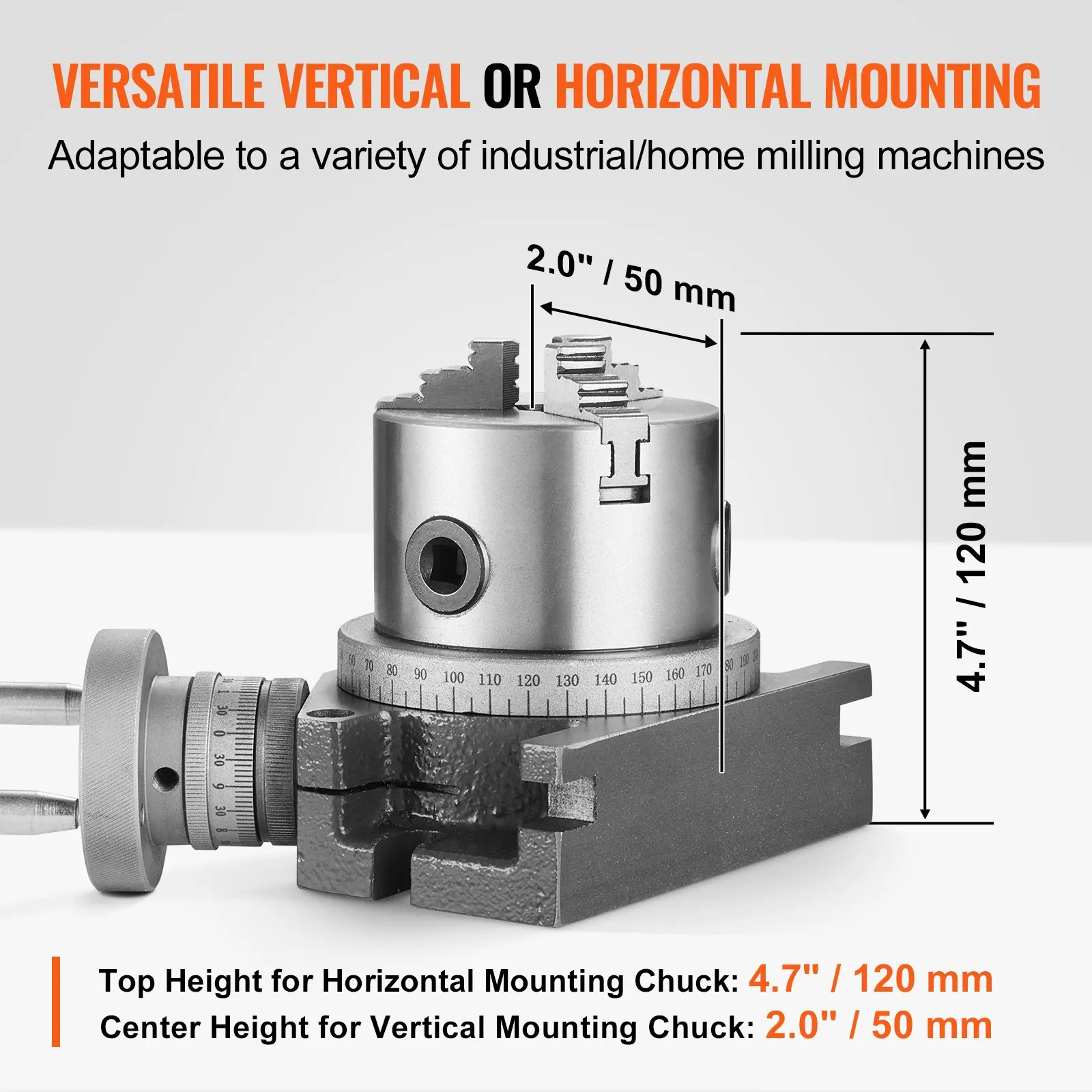

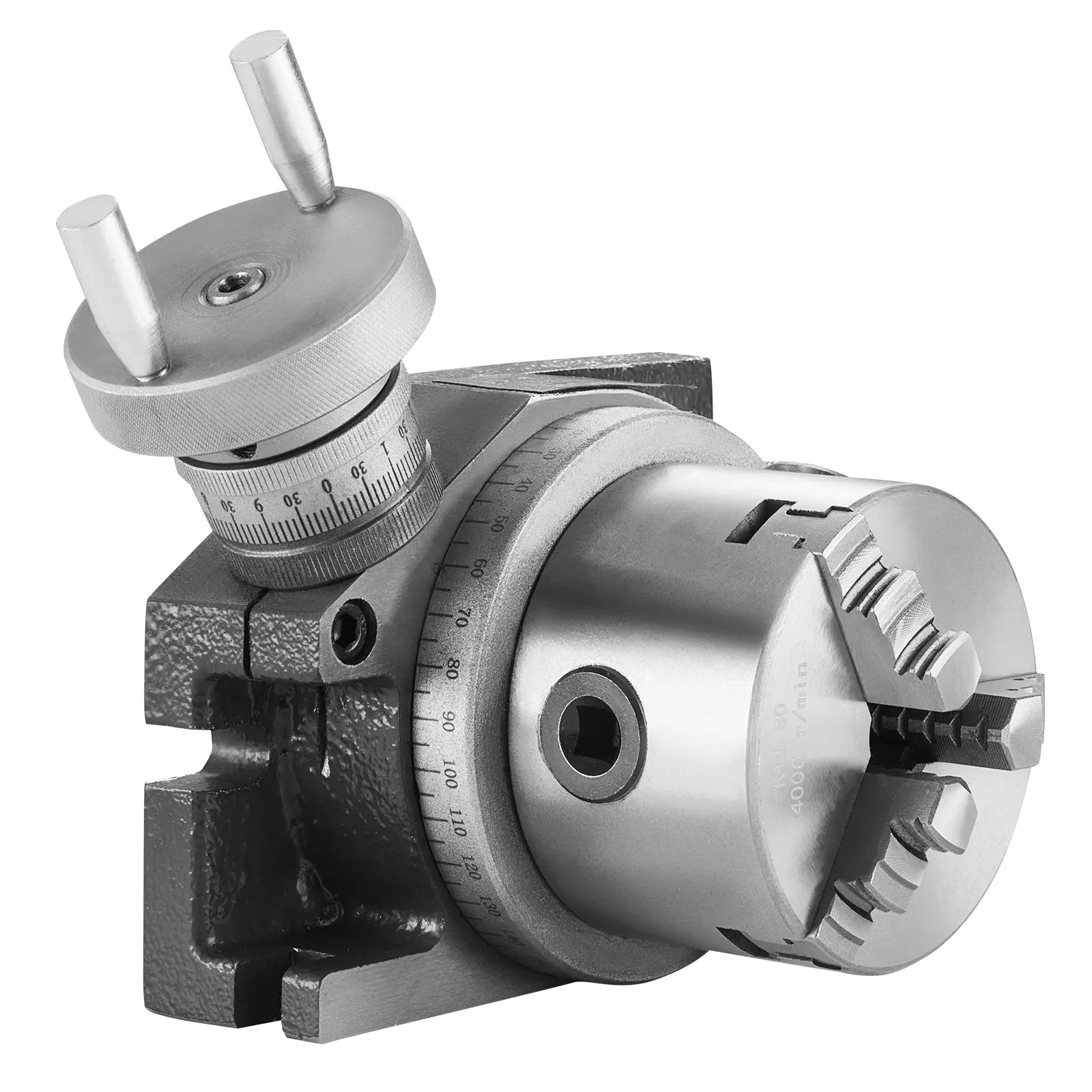

When mounted horizontally, the chuck top height is 4.7'' / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2'' / 50 mm. Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights. Additionally, the table's bottom features positioning slots for easy and secure attachment to your milling machine.
Exceptional Durability, Built to Last:
Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan. Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability. Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.
Our rotary table is crafted from HT250 cast iron for exceptional wear resistance and high hardness and is a staple in precision and heavy-duty machining industries. Choose our rotary table for a lasting addition to your workshop, where strength meets precision at every turn.
Rotary Table for Milling Machines—Precision and Quality at an Affordable Price
this rotary table for milling machines is the best choice. It offers precision and quality. You get great value for your money. It is perfect for hobbyists and professionals. The strong construction ensures durability. A smooth operation of the table enhances efficiency. It provides accurate milling for various projects. Our table's quality matches more expensive models in terms of cost-effectiveness. The affordable price makes it accessible to many. This feature stands out in its category. Due to its precision and affordability, it is a top choice. No matter if you perform light or heavy work, this table performs well.
Horizontal Vertical Rotary Table—Versatile and Easy to Set Up
this horizontal vertical rotary table offers both horizontal and vertical setups. This versatility suits different machining needs. It is easy to switch between modes. The quick setup saves time and effort. The table's design allows for various configurations. This flexibility makes it perfect for diverse projects. You can easily align it for accurate cuts. The adjustable zero-degree mark enhances precision. You can effortlessly align it for precise cuts. The table's ease of use makes it suitable for beginners and experts. It is a valuable addition to any workshop. The table’s adaptability ensures that it meets various machineinability demands.
Precision Milling Rotary Table—Minimal Backlash and Smooth Operation
The precision milling rotary table features low backlash. It provides precise milling operations. The smooth operation improves overall efficiency, giving consistent results across various projects. Our table's surfaces are beautifully machined. This contributes to its precision and performance. You can trust it for accurate cuts and shapes. Smooth handwheel movement helps in precise adjustments. This table is ideal for achieving high accuracy.
3-Jaw Chuck Milling Rotary Table—Well-Built and Functional for Various Projects
The 3-jaw chuck milling rotary table comes with a 3-jaw chuck. This adds to its functionality. The 3-jaw chuck holds workpieces securely. It ensures stability during milling operations. Our table is well-built and robust. You can handle various milling projects. The construction quality meets high standards. The table's functionality extends beyond the standard set. We have provided you with diverse machining tasks. The table is reliable for both light and heavy work. The 3-jaw chuck enhances our tool for different machining tasks, making it incredibly versatile. For both light work and heavy work, the 3-jaw version improves the table’s versatility. It enables precise positioning of workpieces, providing accurate positioning in all tasks. The table meets the demands of different projects.
