USB Mach3 CNC Controller accessories NVCM 6V2.1 Motion Card 200KHZ for CNC Router Stepper Motor Servo motor

$86.48

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Package include:

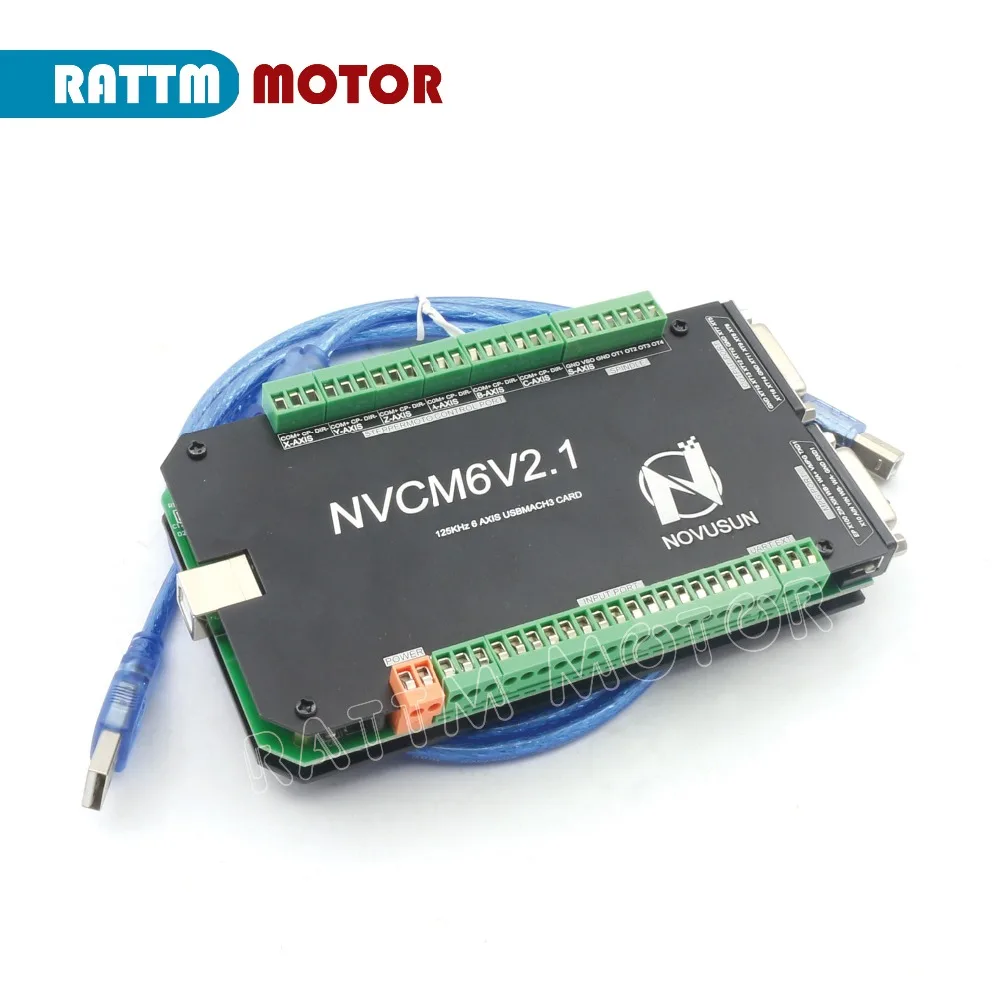

1 x 6-Axis Mach3 USB Card NVCM

1 x USB Cable

English Manual Will send by Email.

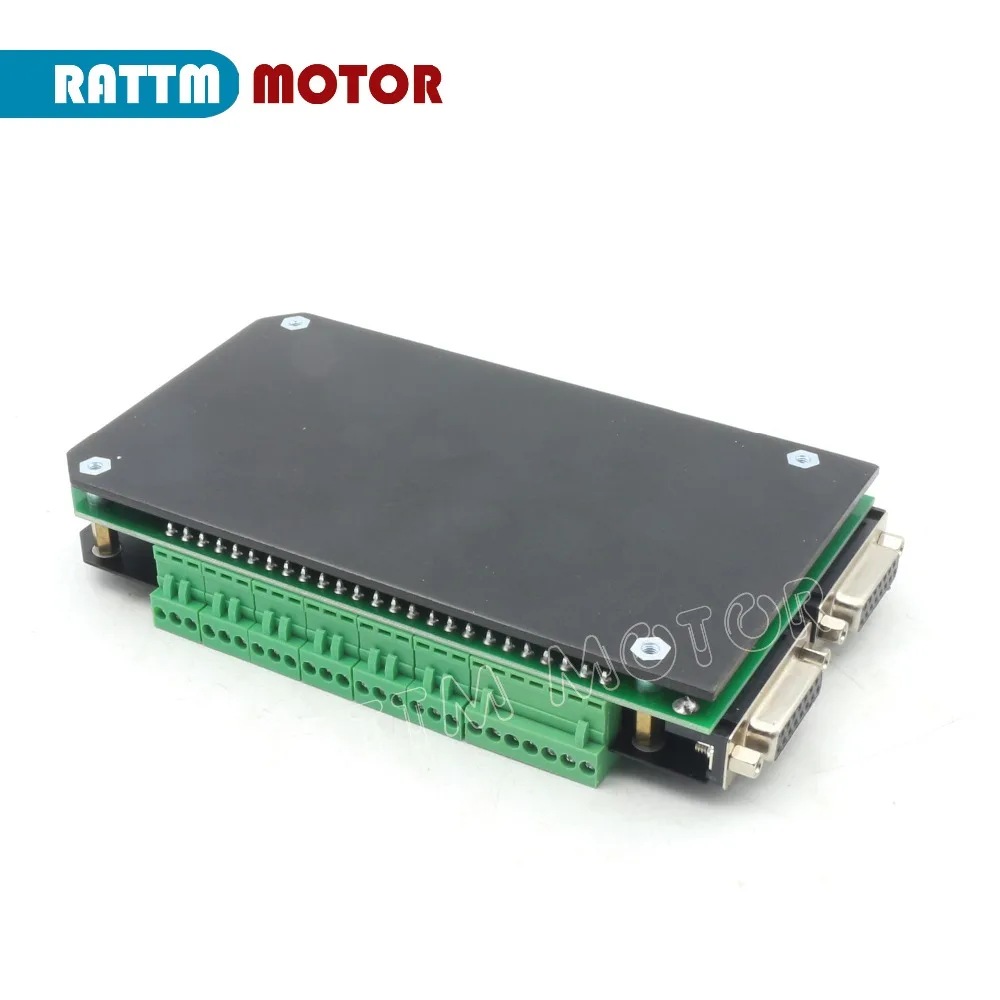

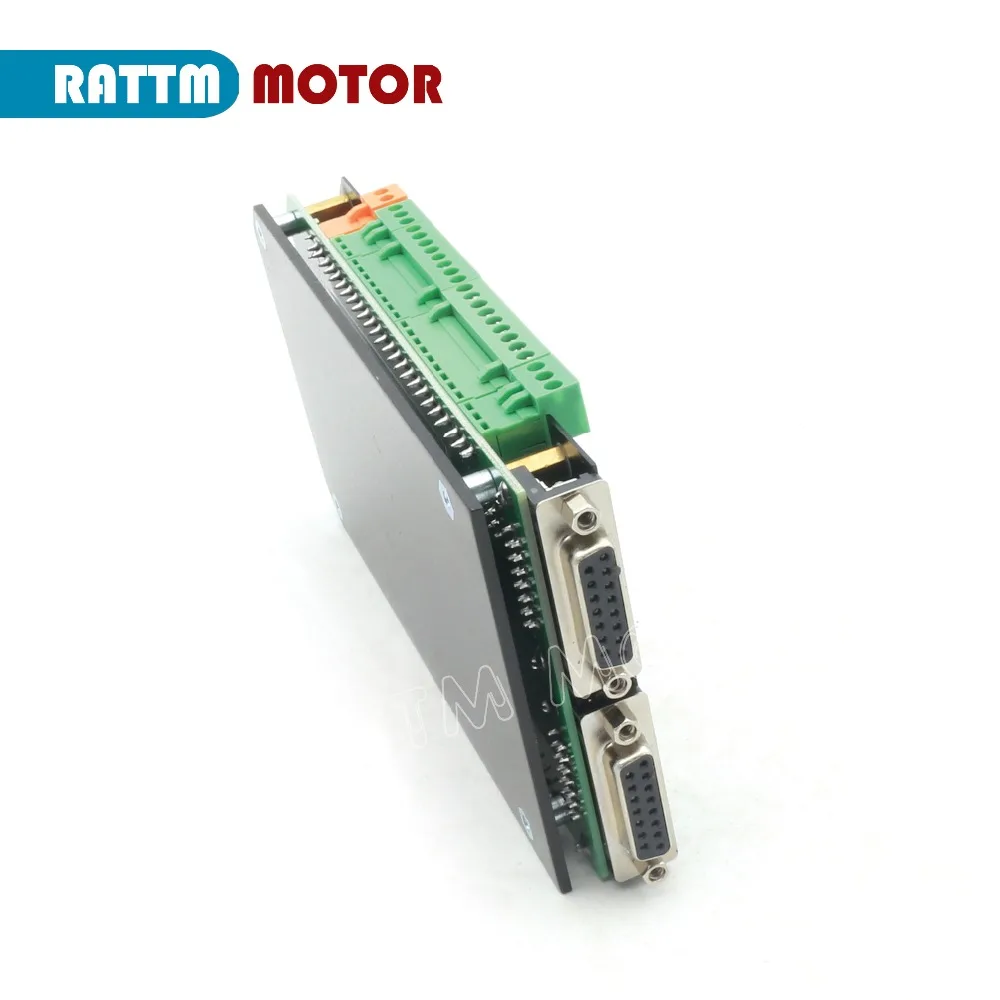

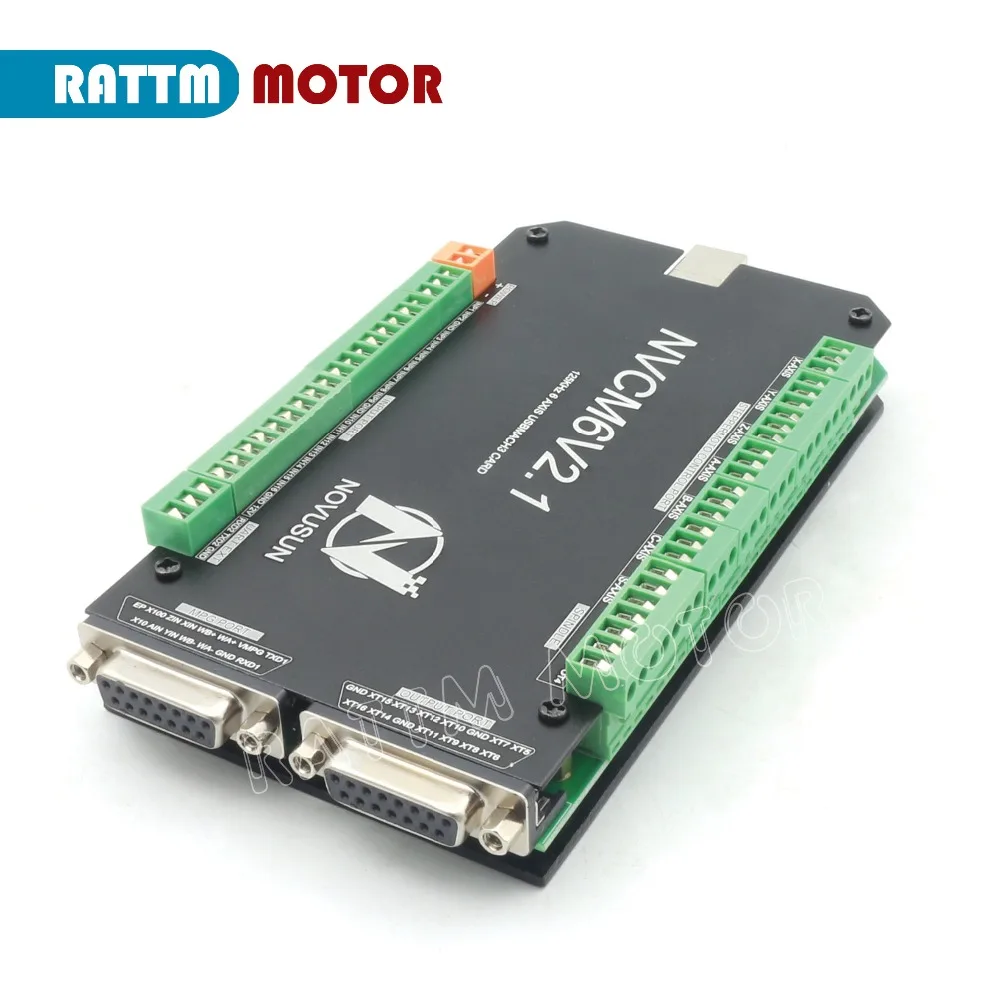

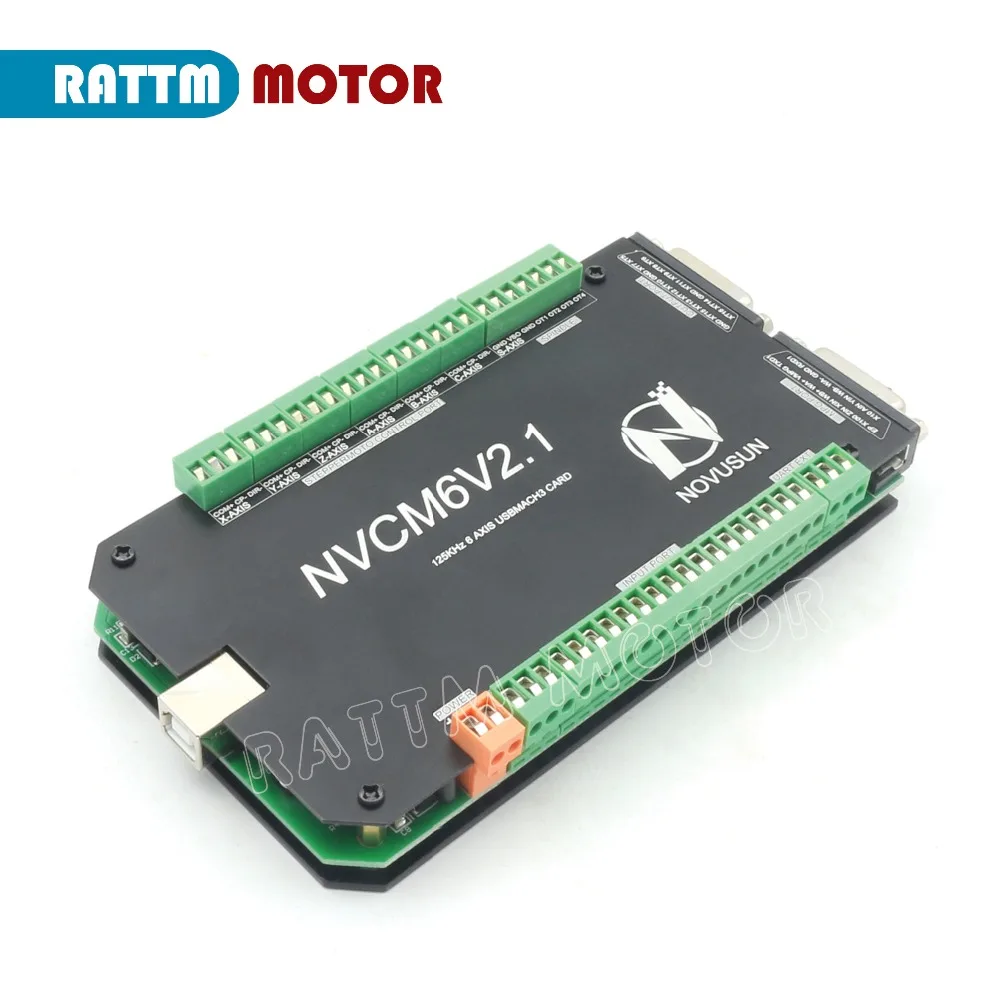

6Axis NVCM Mach3 USB Motion Control Card

1. Performance parameter

1) Support USB;

2) 16 ports photoelectric isolated input interface for ordinary digital data;

3) 16 ports photoelectric isolated output interface for ordinary digital data;

4) 1 port 0-10V spindle speed analog output interface(can change to PWM output);

5) can support 6 axis stepper systems,125KHz pulse output for every axis;

6) ARM motion control chip;

7) Main device is 12V-32VDC power supply input,current should higher than 1A;

8) Compatible with MPG input,support the digital display MPG from our company.


2.Product connection define and method


the connection of the controller includes power supply interface, USB connection interface, MPG interface, Stepper/Servo control output interface, spindle control output interface, Estop and limited switch and tool setting input interface and so on. Now we descript them in details as below.


3. Stepper motor control interface

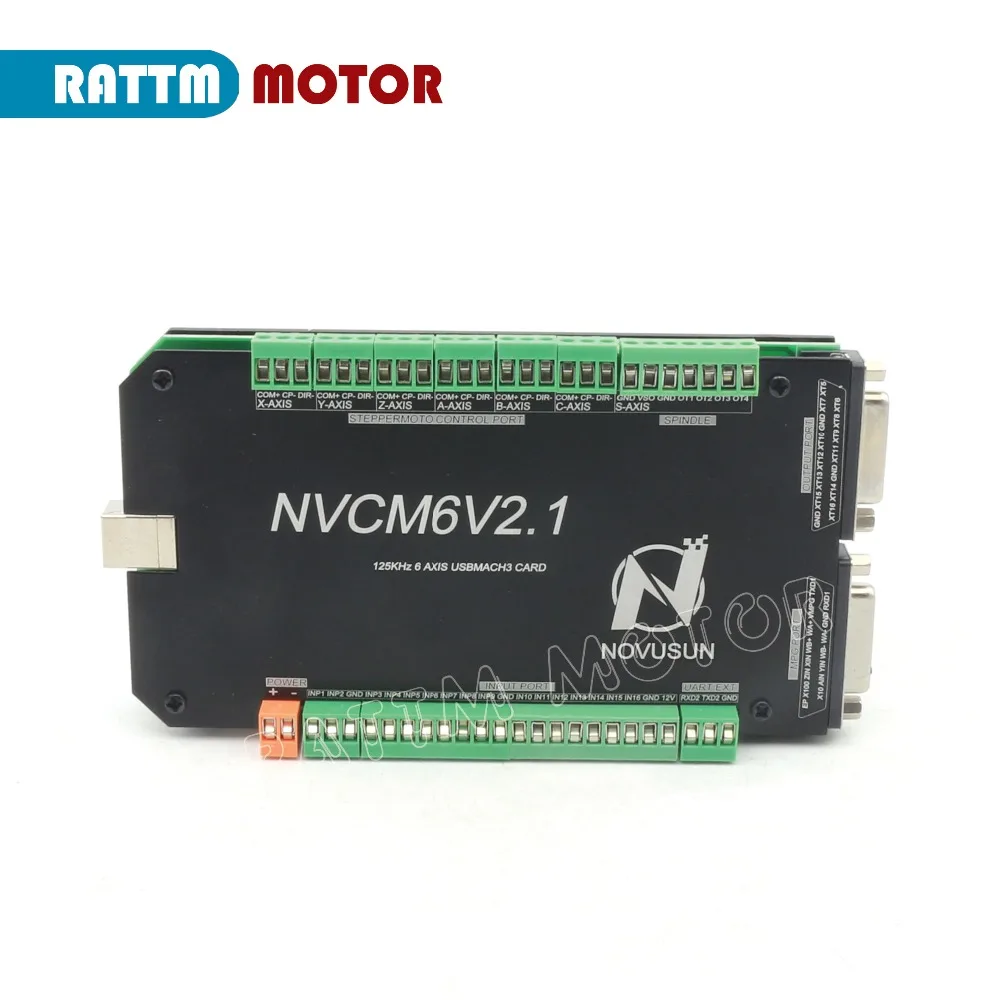

The marked No. 8 are 6 axis stepper motor controller port. They are

X/Y/Z/A/B/C from left to right. Each axis's pin is defined as COM+/CP-/DIR- from left to right.


4. Spindle control output/ Universal output interface 1

We define the interface from left are: GND1(Output GND),VSO(0-10V adjustable speed
output),OT1,OT2,OT3,OT4.
Take Nowforeuer inverter as the example. Spindle control output and the inverter connection
showed as Figure 2-7.If ACM and DCM are closed,only need to connect one port.

VSO real output voltage=10V*s spindle setting speed/max spindle speed.Forexample,if max
spindle speed is 24000,current spindle speed is S=18000,so the VSO output
voltage=10*18000/24000=7.5V.
Max. spindle speed setting ports ,open it from Pulley from Menu config.
The current spindle speed can be set by S directive or Mach 3 spindle setting speed module.
