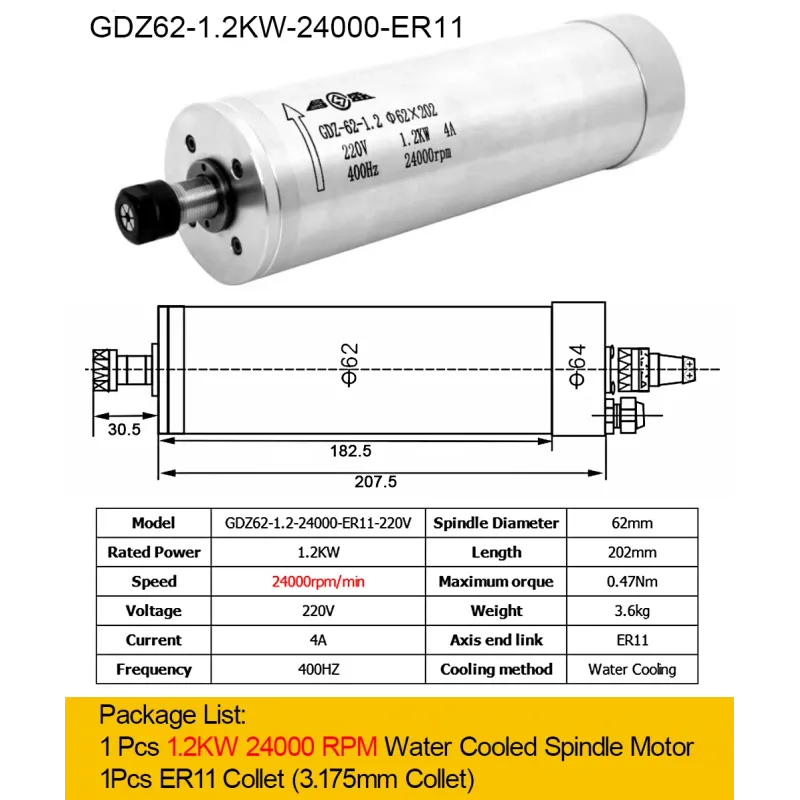

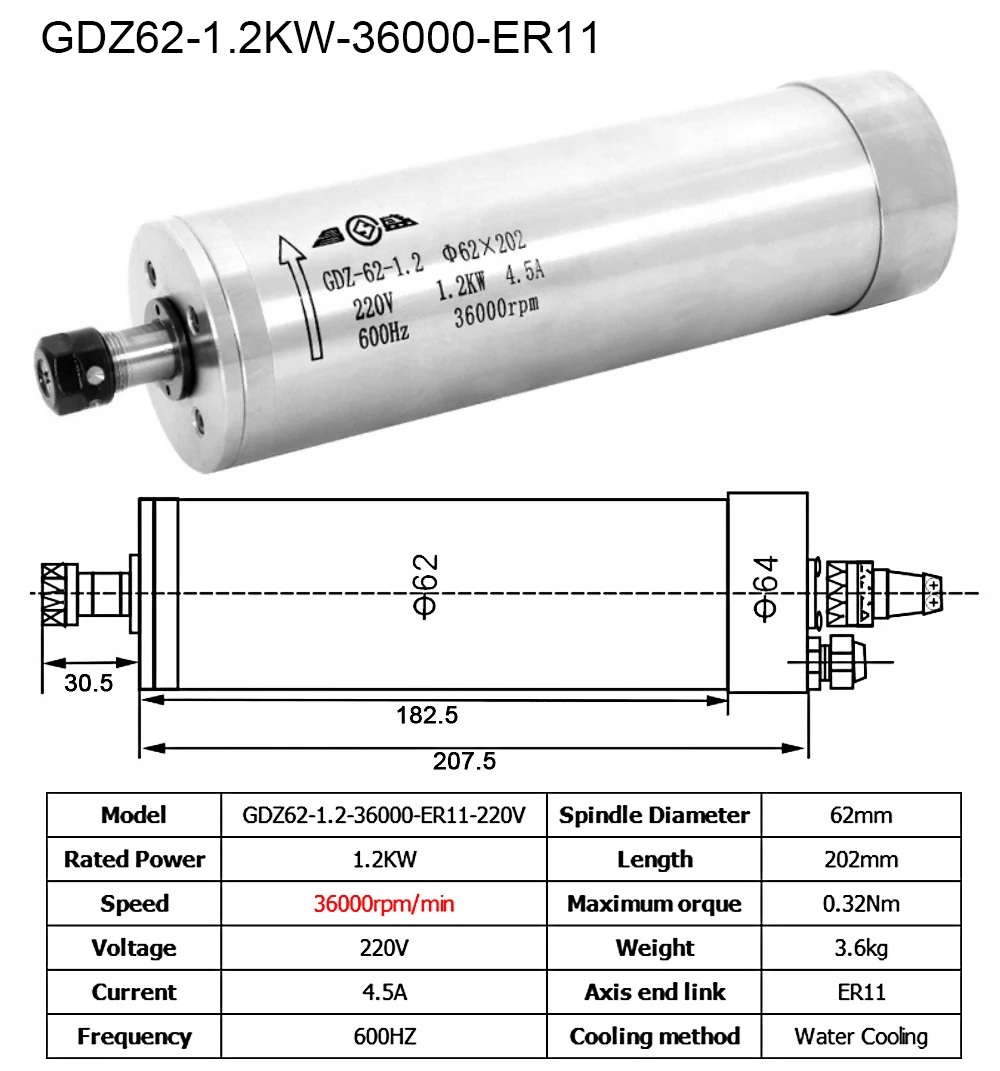

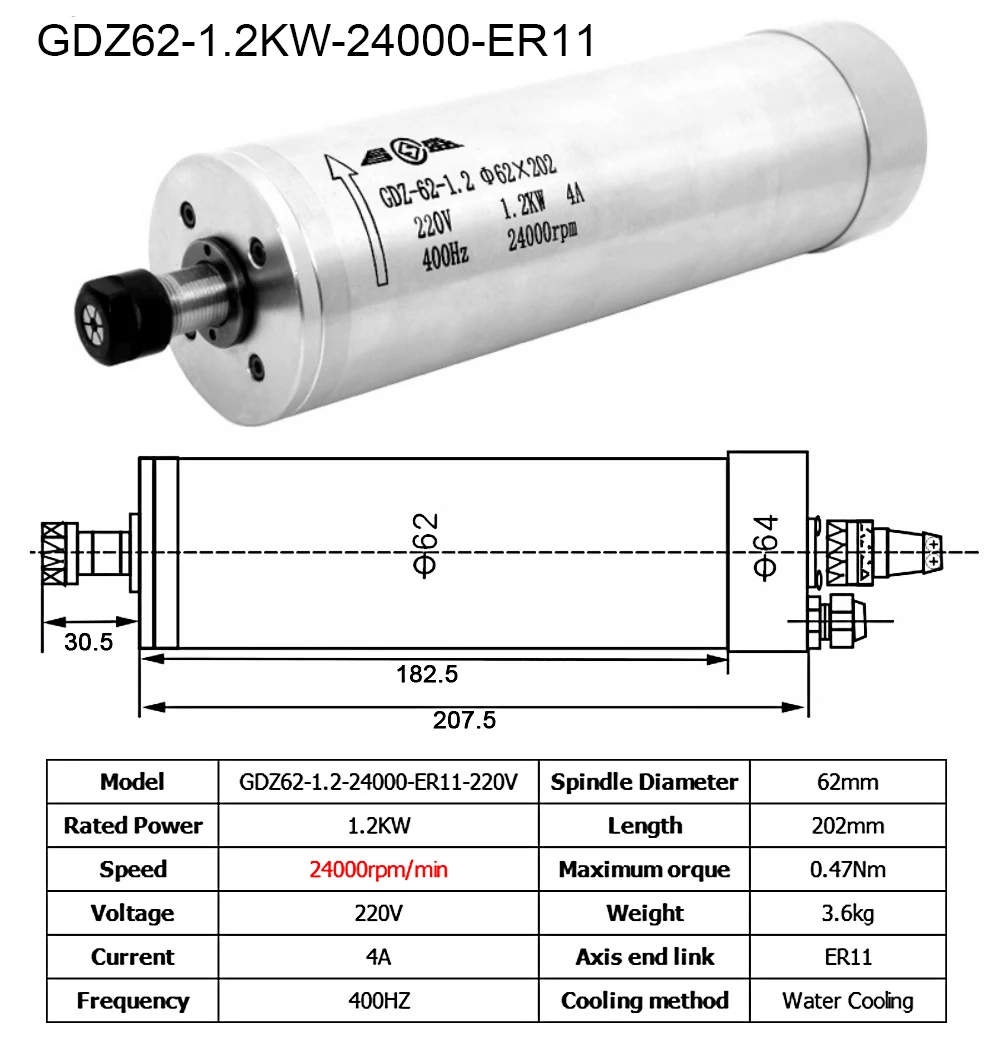

1.2KW Water Cooled Spindle Motor Kit 220V 62mm Diameter 60000rpm 4 Bearings ER11 Collet Mold Stone Spindle Woodworking Spindle
Includes all taxes
Meet your Seller
-
$989.54Sold by BILLIONS BIRDS
Description
Spindle 24000/36000/36000 Rpm

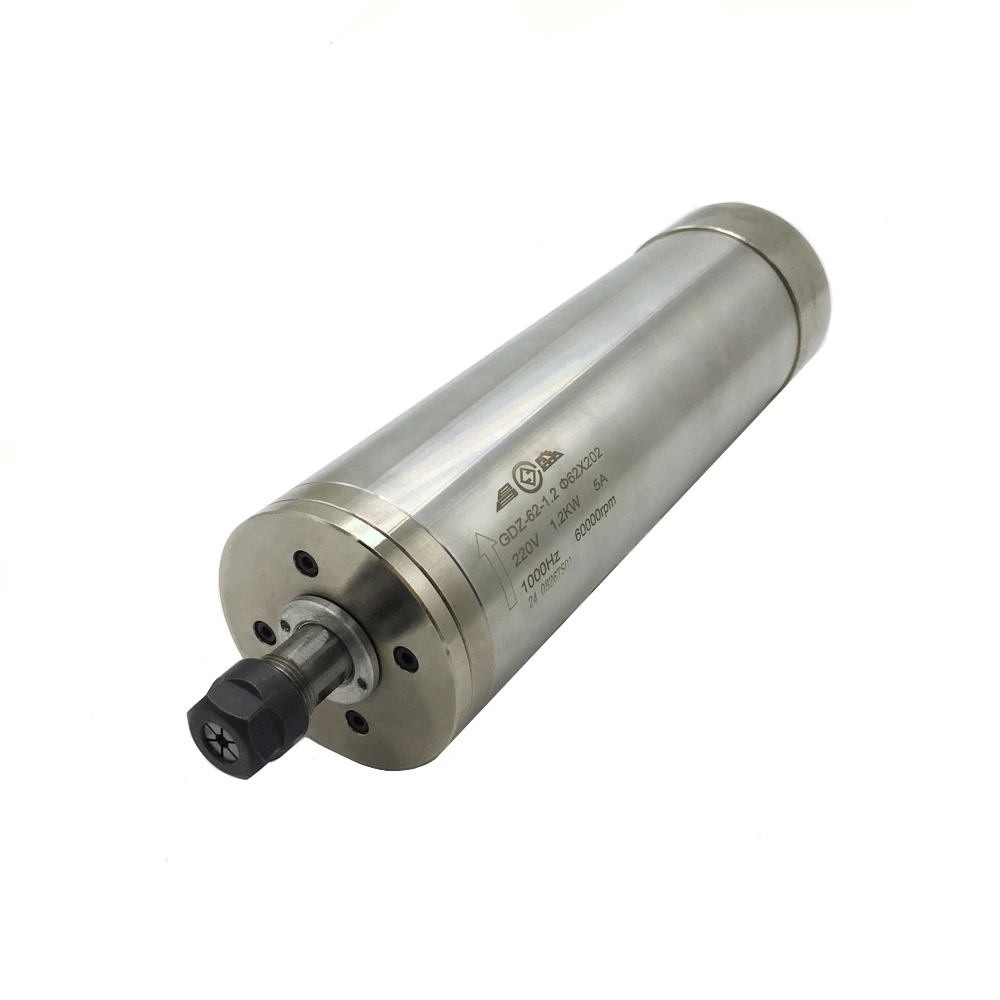

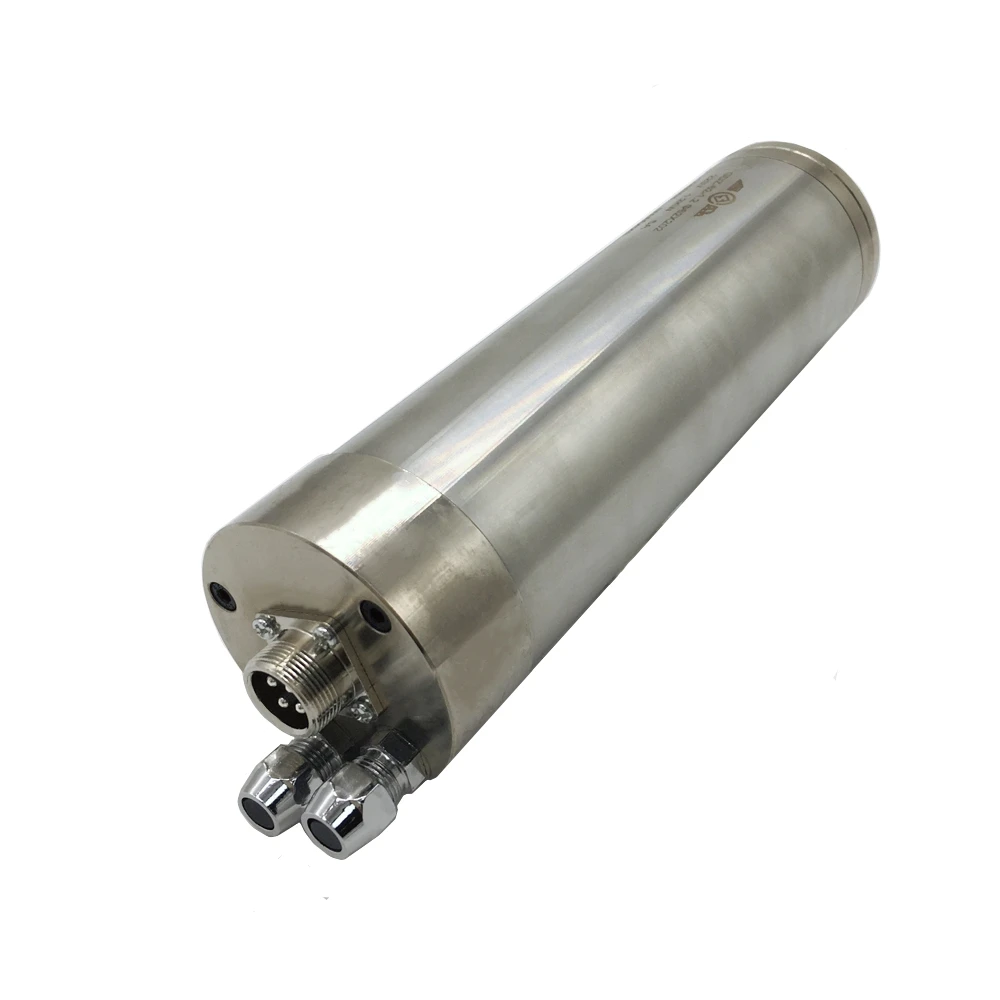

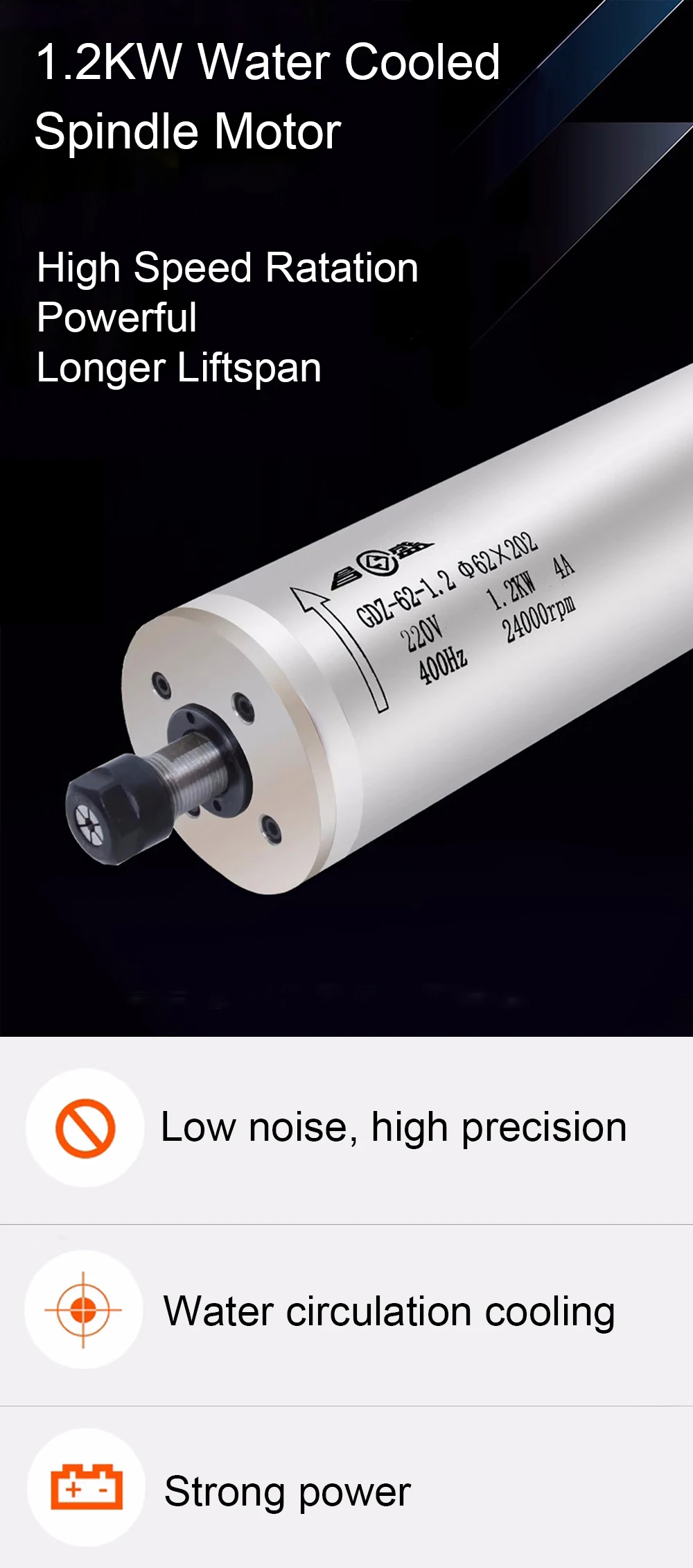

1Pcs* 1.2KW Water Cooled Spindle Motor
1Pcs* 1/8 Collet
1Pcs* Aviation plug

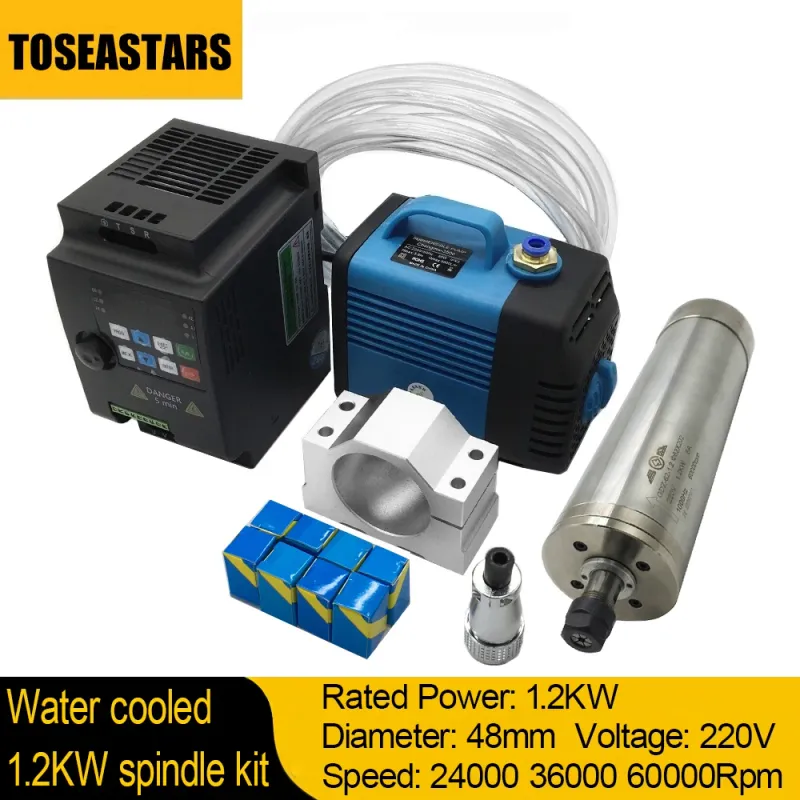

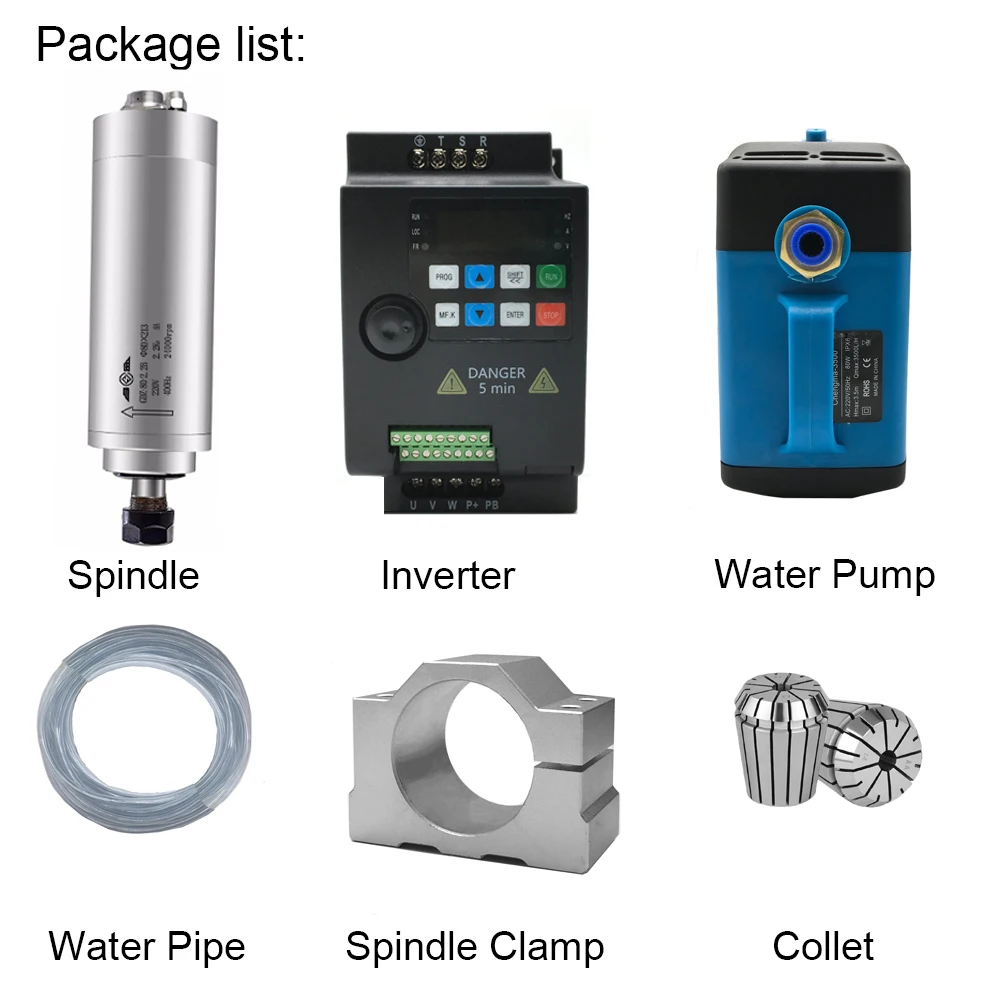

Spindle 24000/36000/60000 Rpm Kit

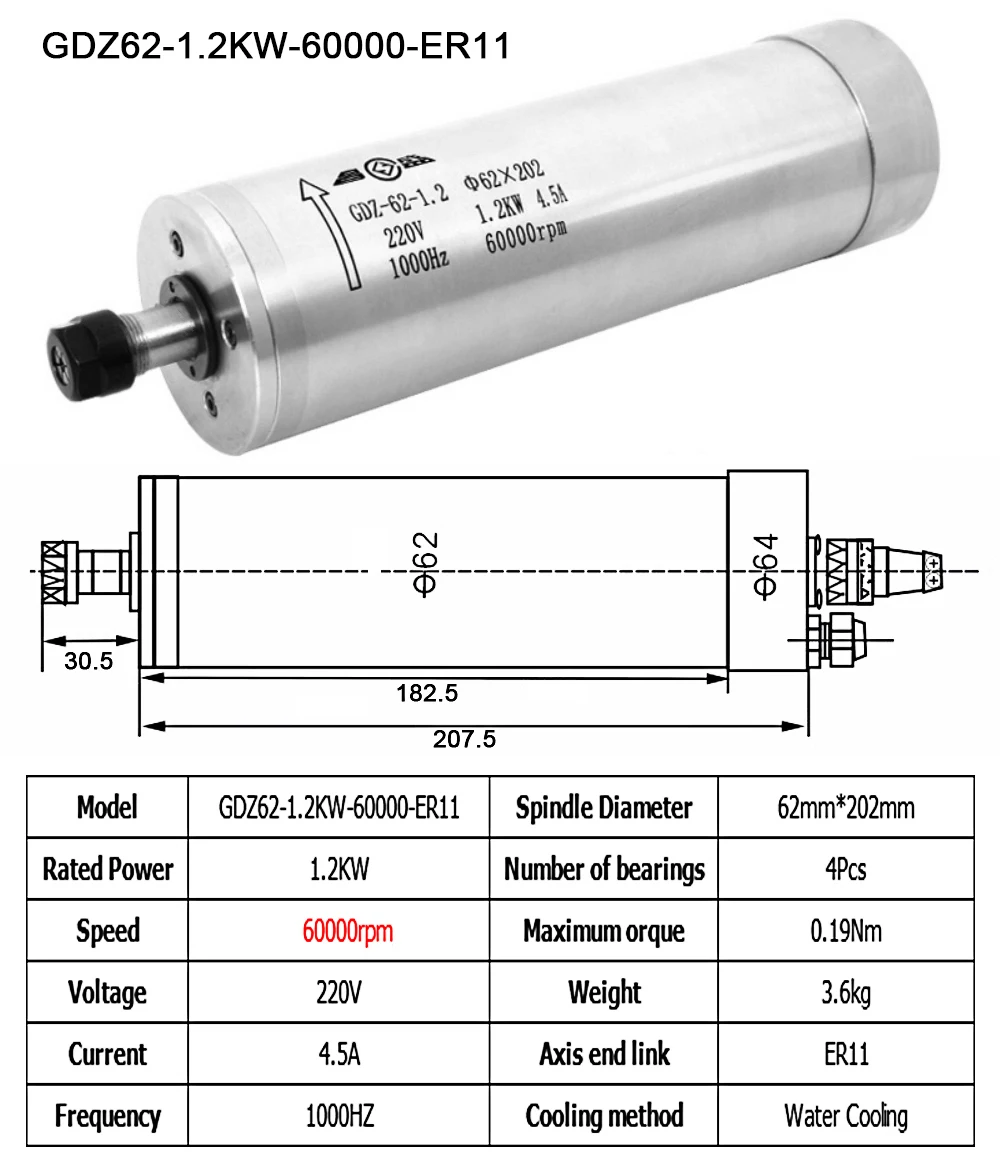

1Pcs* 24000/36000/60000 Rpm 1.2KW Water Cooled Spindle Motor

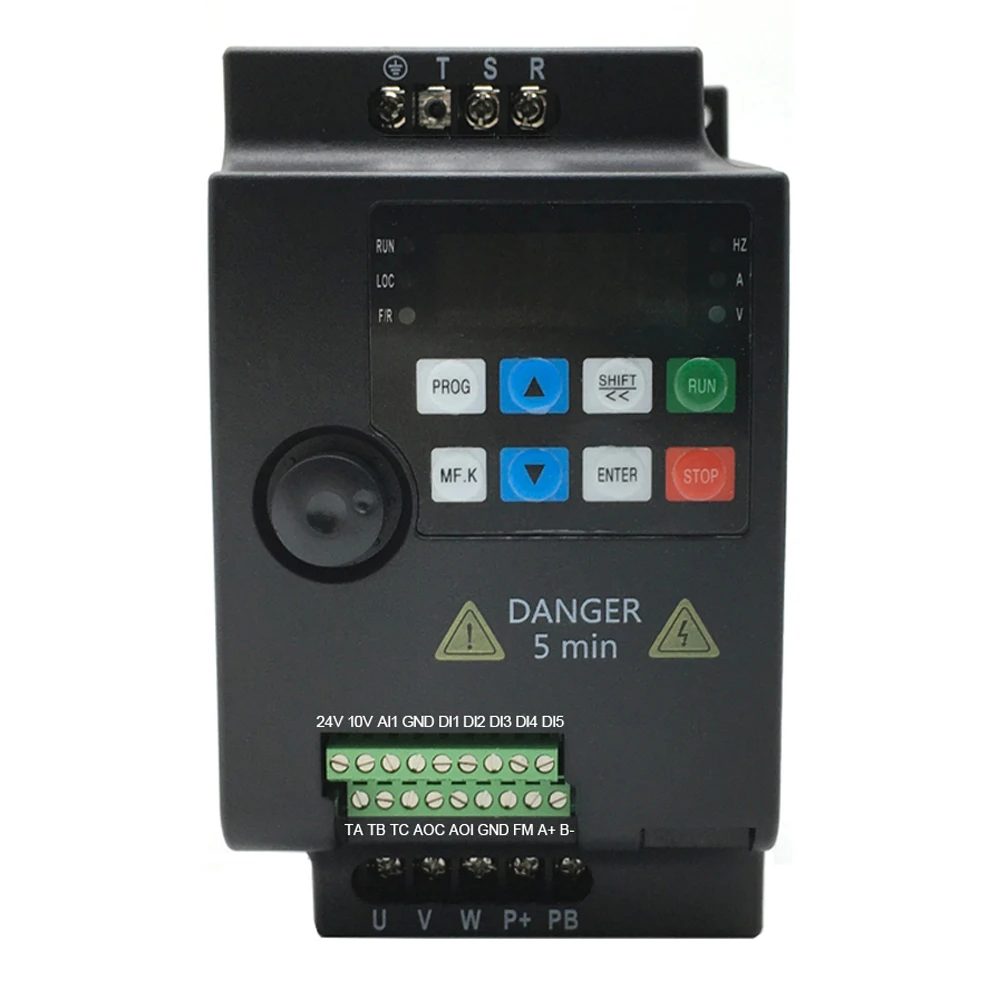

1Pcs* 1.5KW Variable Frequency Drive(1PH220V to 3ph220V,0-3200HZ)

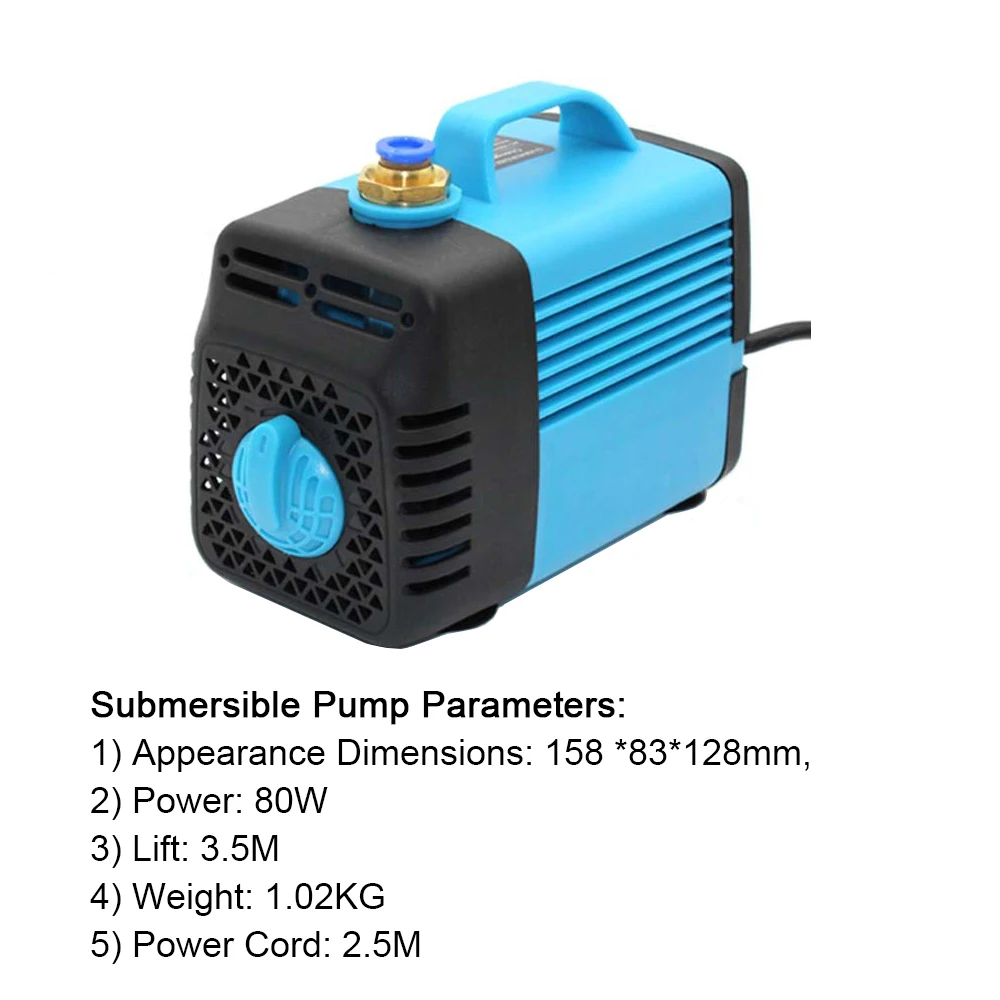

1Pcs* 80W Water pump
1Pcs* 5 Meters Water Pipe
1Pcs* 62mm Spindle Clamp
8pcs* ER11 Collet (1,2,3,4,5,6,7,1/8)
1Pcs* Aviation plug
Carved wood, hardwood PVC, PVC, ABS plastic board, acrylic board; Plywood circuit board; Mold; Stone

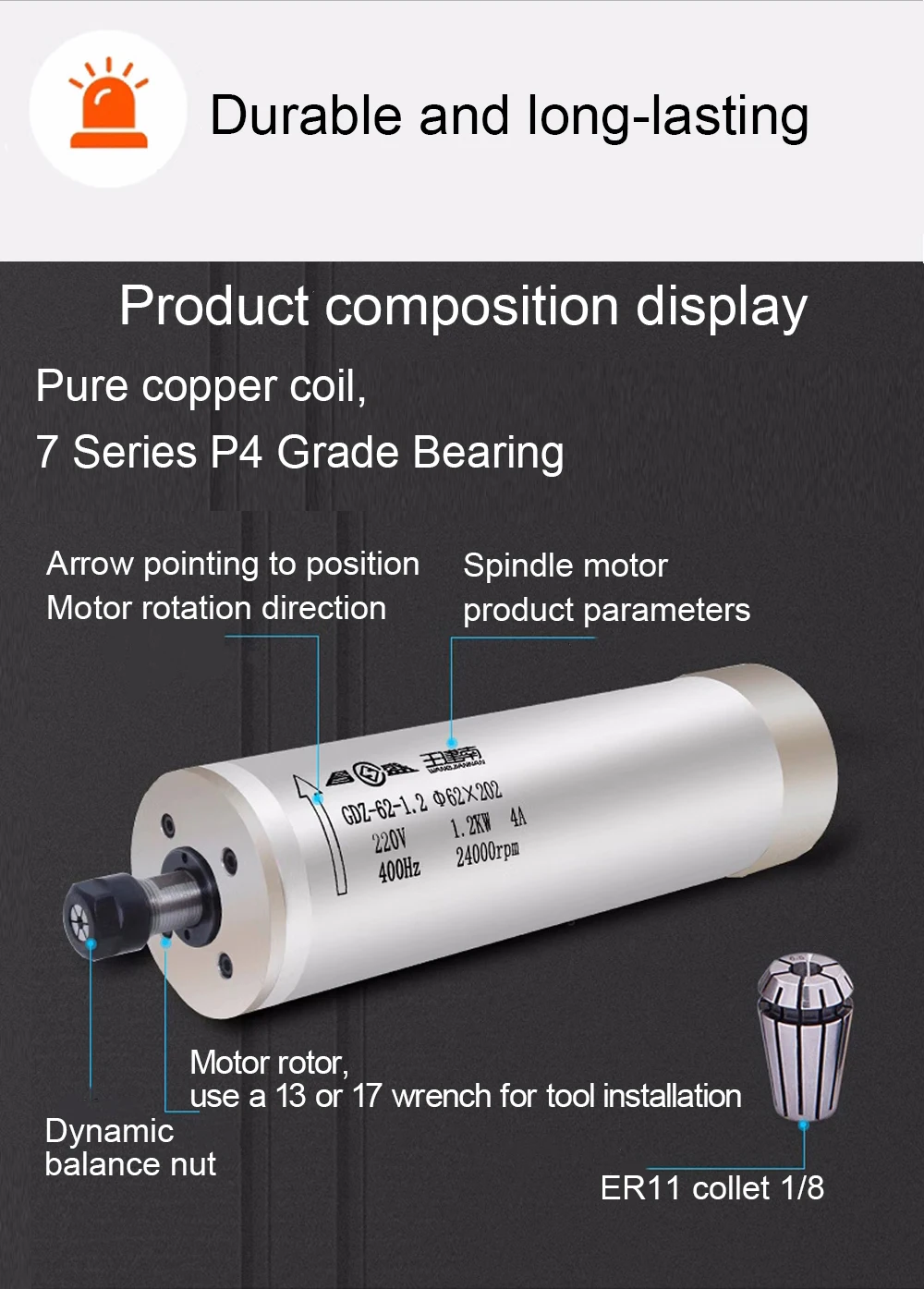

2. Key Features
1) Dynamic Balance Design

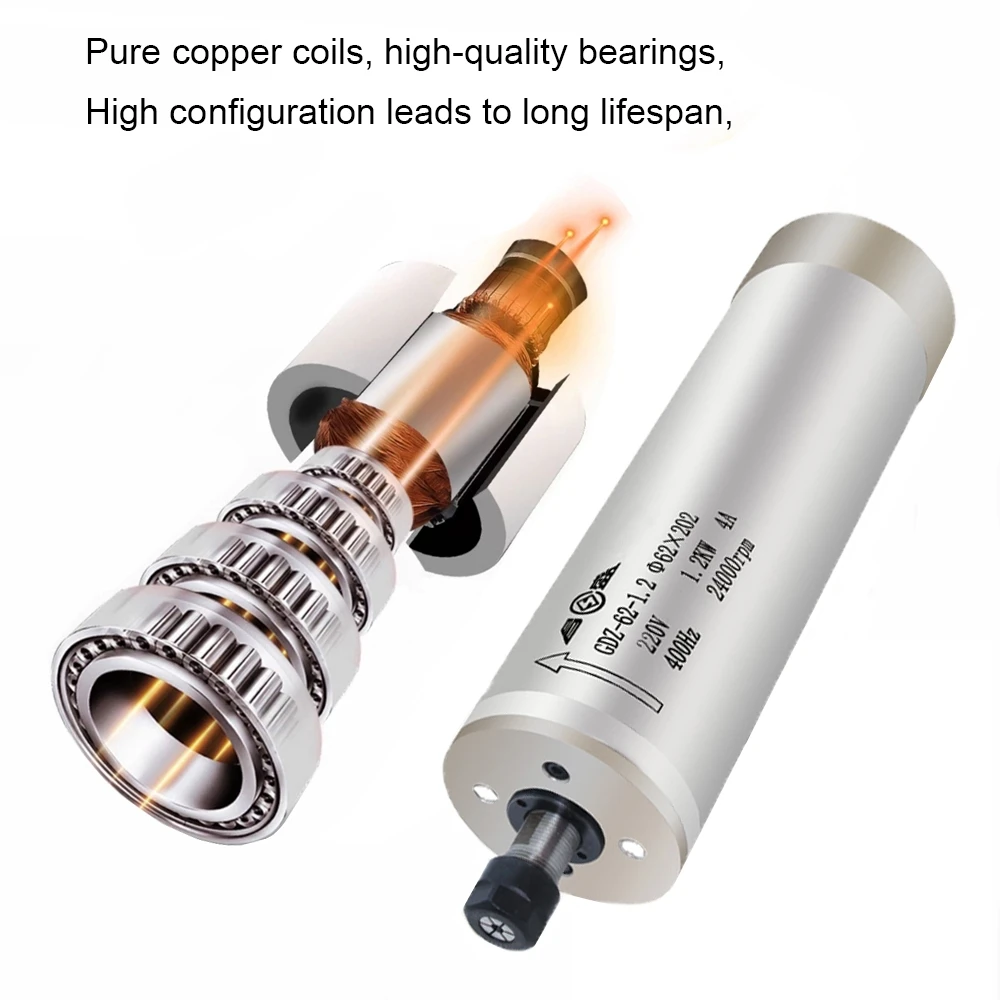

2) High-quality Bearings

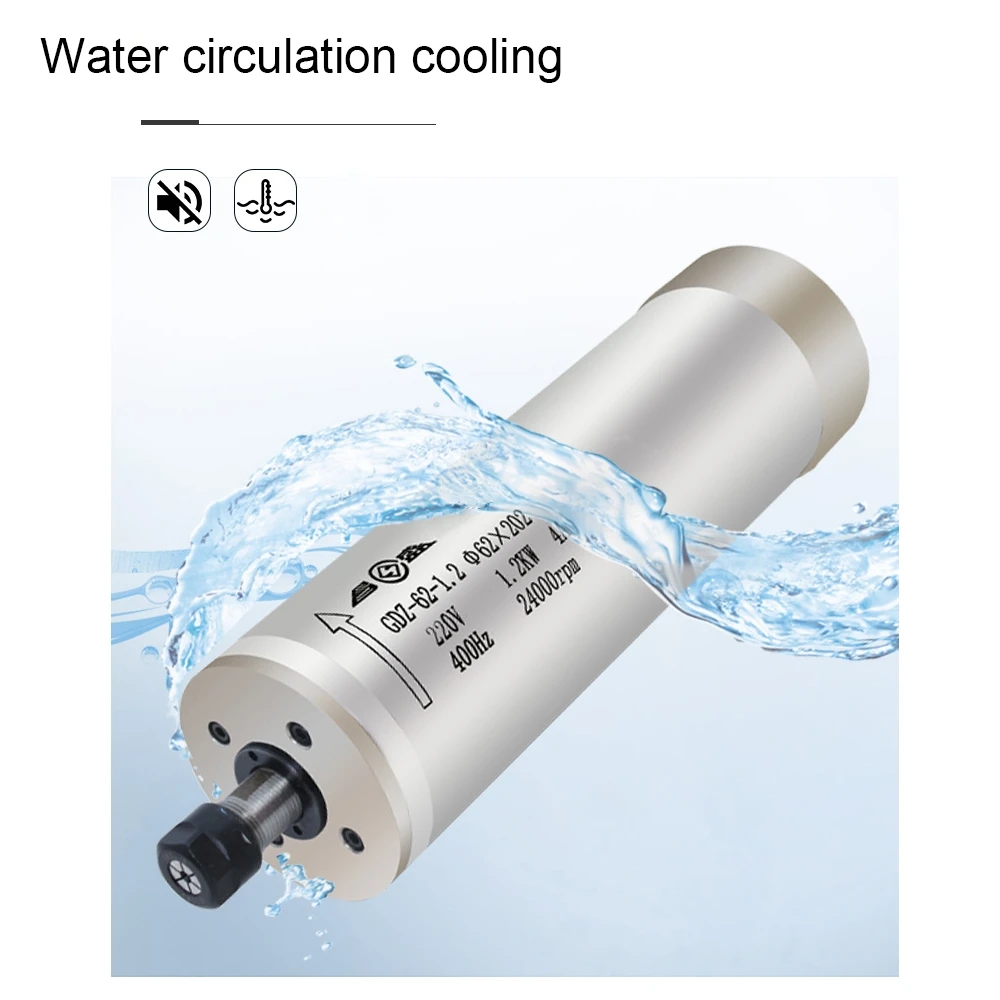

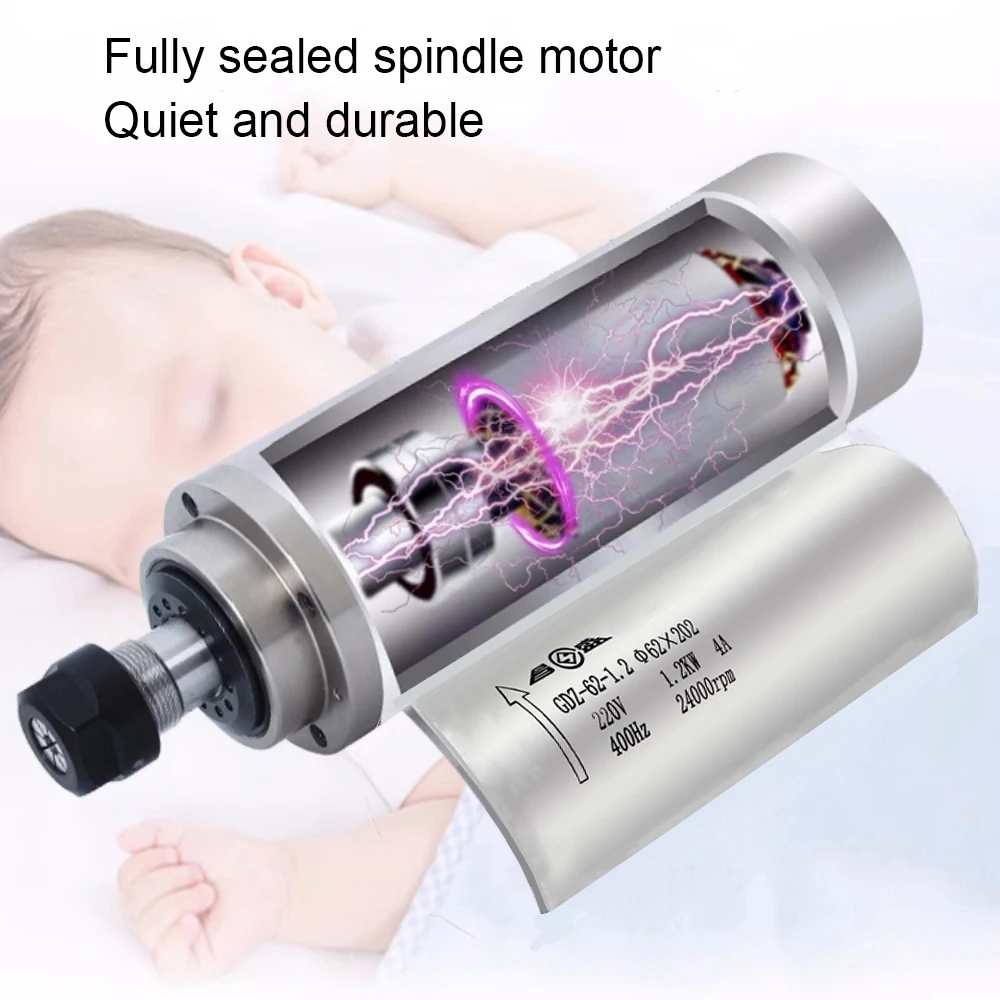

3) Noise Reduction and Water Cooling
4) Premium Material
5) Refined Internal Details
3. Preparations before using
- Spindle working environment temperature is usually -10 ~ 40 .
- Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
- Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.
- Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
- It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
- Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using.
- Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
- AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
- When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.
