Includes all taxes

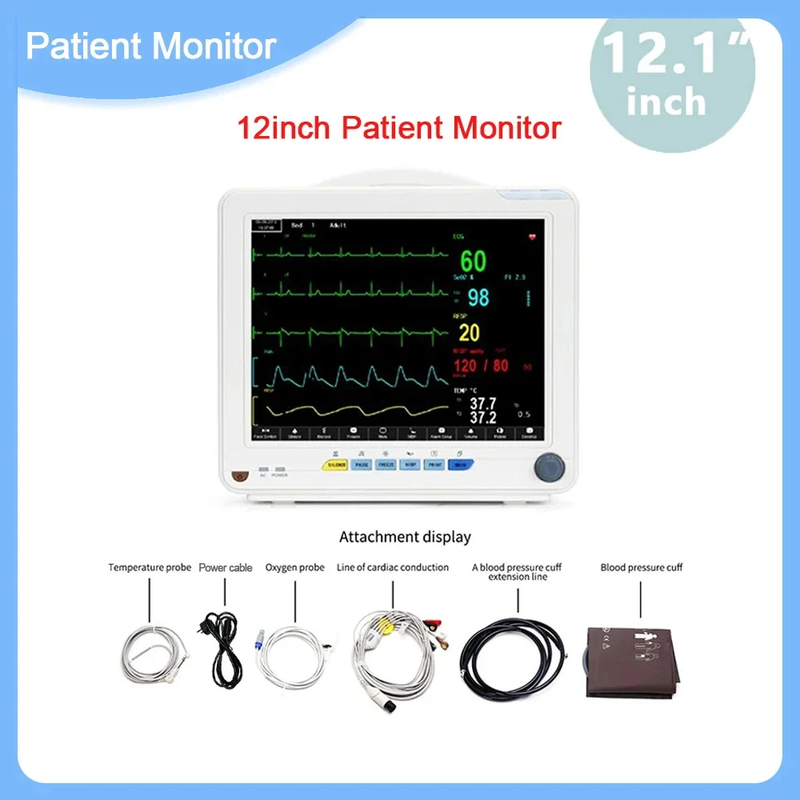

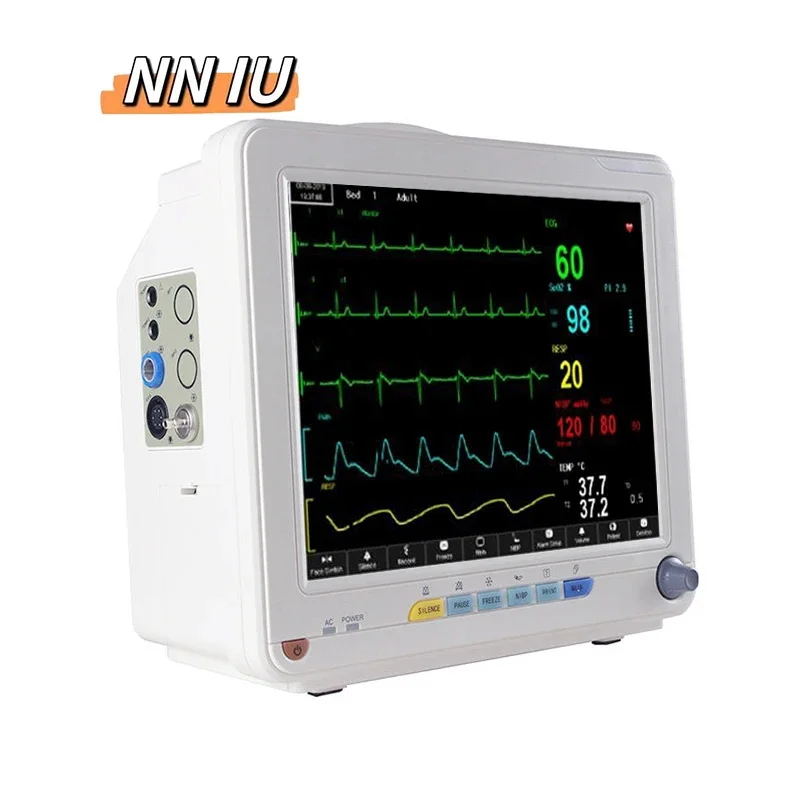

12 inch screen multiparameter Patient Monitor TFT human use/ animal veterinary 6 parameter ETCO2 IBP optional for capnograph





Main Features
Elegant appearance, clear marks, standard interface, oxyCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.
Be applicable for adult, pediatric and neonatal.
Standard parameters of ECG, RESP, NIBP, SpO2 and dual-channel TEMP. IBP, CO2, Built-in printer, curving handle, moving bracket and hanging bracket are optional.
Operation interface with Chinese and English. Finish all operations by keys and knobs.(Optional languages: French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Poland.) design with full built-in module, stable and reliable performance.

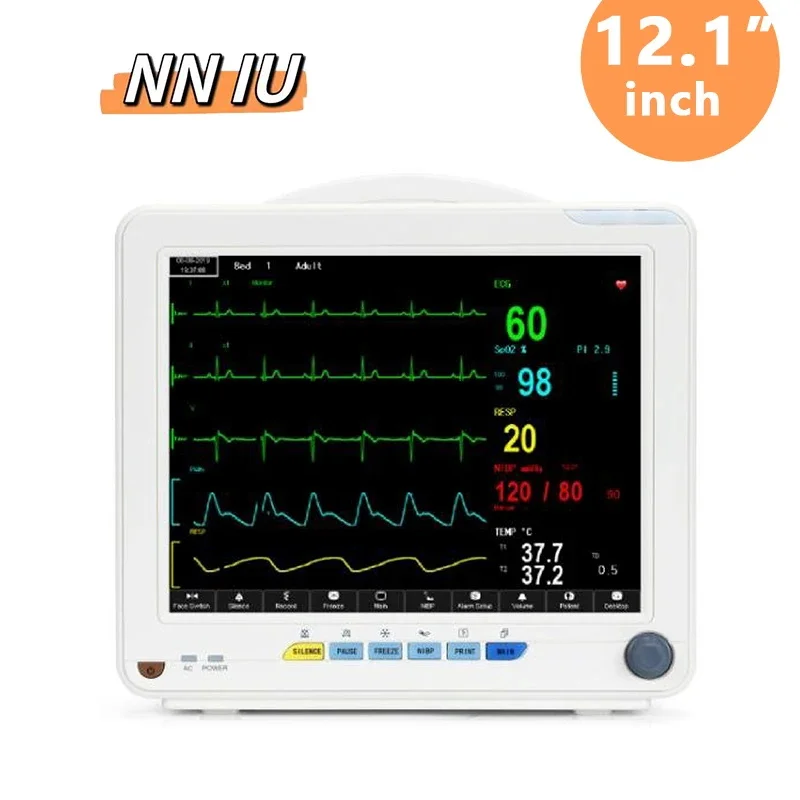

12'' color TFT LCD with high-resolution displays patient parameter and waveform, and alarm, bed NO, clock, state and other information provided by the monitor synchronously.
Monitoring contents, scan speed, volume and output contents can be set optionally.
Storage of 480-hour trend data, and review of 40-second holographic waveform.
Storage and review of 72-hour ECG waveform.
Function of NIBP review, storage for up to 2400 NIBP data.
Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.
Calculation of drug concentration.
Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.
Built-in rechargeable battery for uninterrupted monitoring.
Print ECG, SpO2, RESP, BP and temperature data with one-key.
Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).
Analysis function for heart rate variability(HRV) (optional)
NIBP:
Method: Oscillometry
Modes: Manual/Auto/Continuous
Auto measure time: Adjustable
Measurement rang: 10-270mmHg
ECG:
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, avR, avL, avF, V
Heart rate range: Adult: 15-300bpm, Pediatric/Neonatal: 15-300bpm
ECG waveform: 2 channels
Accuracy: 1 bpm or 1%
S-T segment detection Measurement range:-0.2mv~2.0mv
Alarm: Yes, audible and visual alarm, alarm events review
SPO2:
Measurement range: 0-100%
Accuracy: 70-100%, 2% 0-69%, unspecified
Pulse rate:
Range: 20-254bpm
Accuracy: 3bpm
Respiration:
Method: RA-LL impedance
Range: Adult:0-120rpm; pediatric/neonatal:0-150rpm
Apnea alarm: Yes
Temperature:
Range: 0-50
Apnea: 0.1
Channel: Dual-Channel
EtCO2 (option, not included, you should buy it if you need):
Measurement Mode: Side-stream or mainstream
Measurement range: EtCO2: 0-99mmHg
Accuracy: CO2 concentration
Apnea alarm: YES
IBP (option, not included, you should buy it if you need):
Channel: 2 channels
Pressure transducer: Sensitivity: 5( mV/V/mmHg)
Transducer sites: ART, PA, CVP, RAP, LAP, ICP
Alarm range: -10~300mmHg
Standard parameter & configuration:
3/5 lead ECG, RESP, SpO2, NIMP, TEMP, PR
Optional parameter & configuration (not included):
2-IBP, 12 lead ECG, ETCO2, Printer

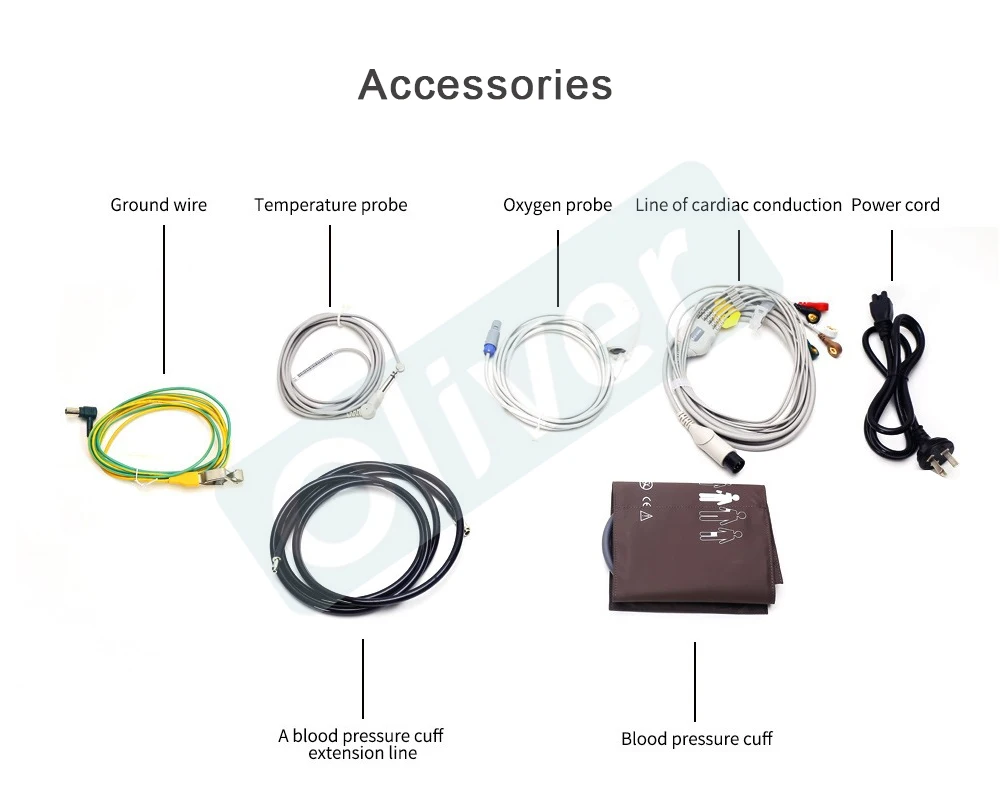

Accessory:
Main Unit 1
Power cable 1
NIBP tube 1
ECG cable 1 (5 lead )
ECG Electrodes 10
SPO2 Sensor 1 (adult)
Cuff 1 (adult)
TEMP Skin Sensor 1
Packing list 1
User manual 1
