2.2KW Spindle 110v/220v/380v Air-cooled 2200W CNC Milling Motor+2.2kw Inverter+ER20 Collet CNC Spindle Motor for CNC Router.

$392.53

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

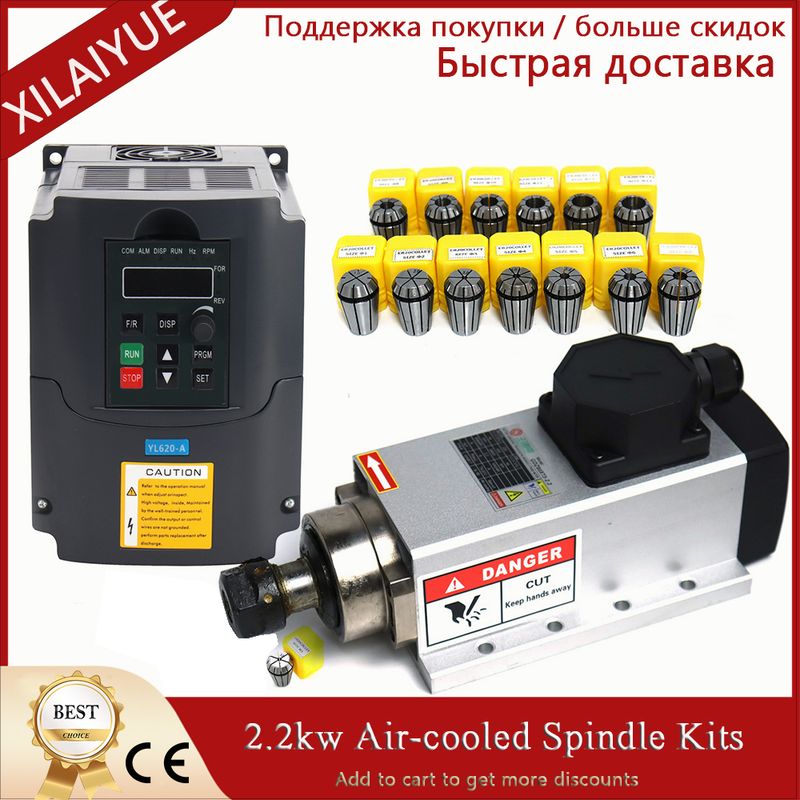

Package Includes:

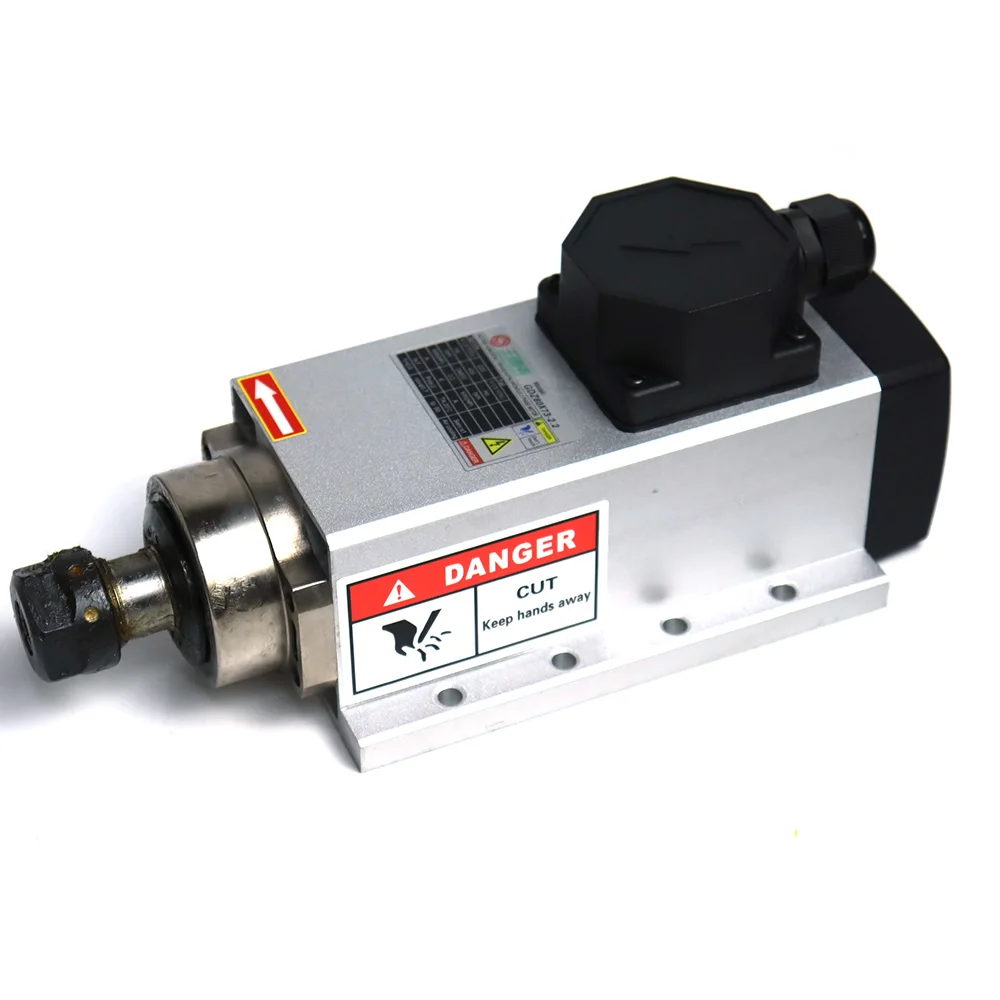

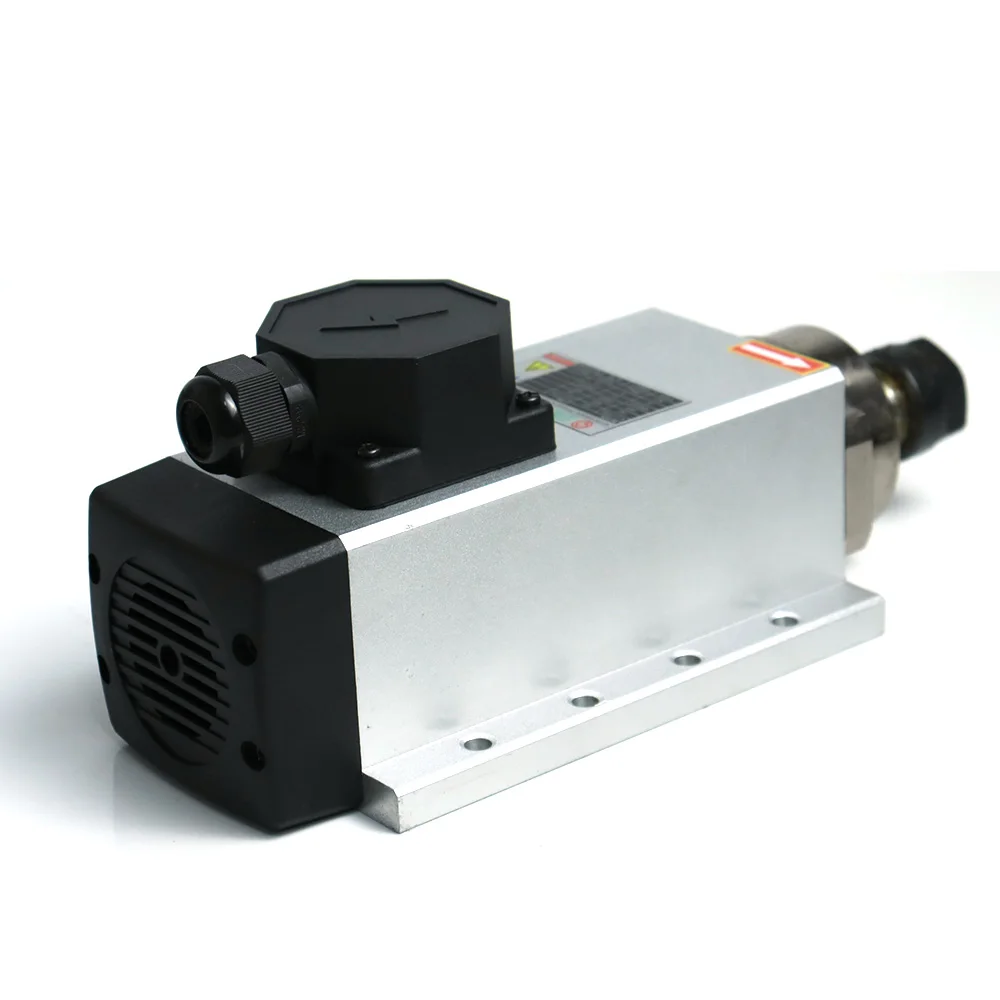

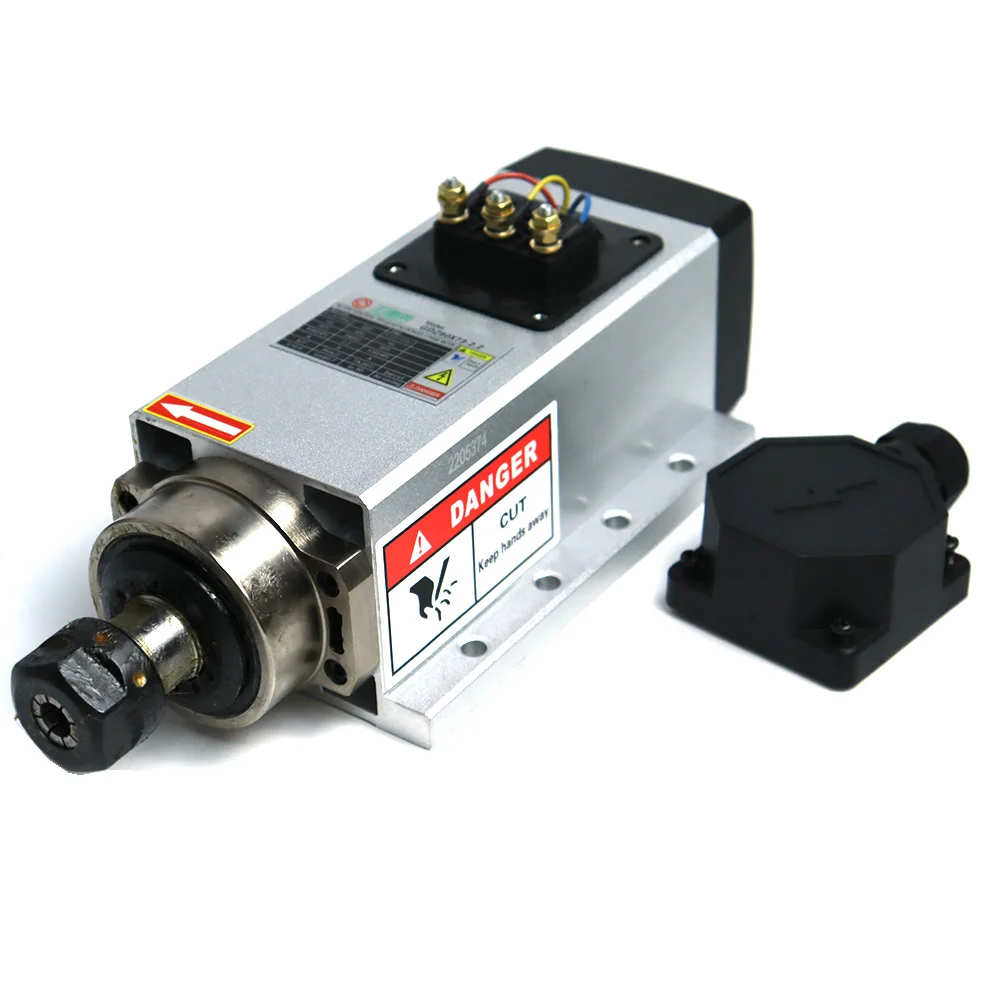

1 x 2.2Kw Square ER20 Air-cooled spindle

1 x 2.2kw inverter

1 x 13pcs/set ER20 collect

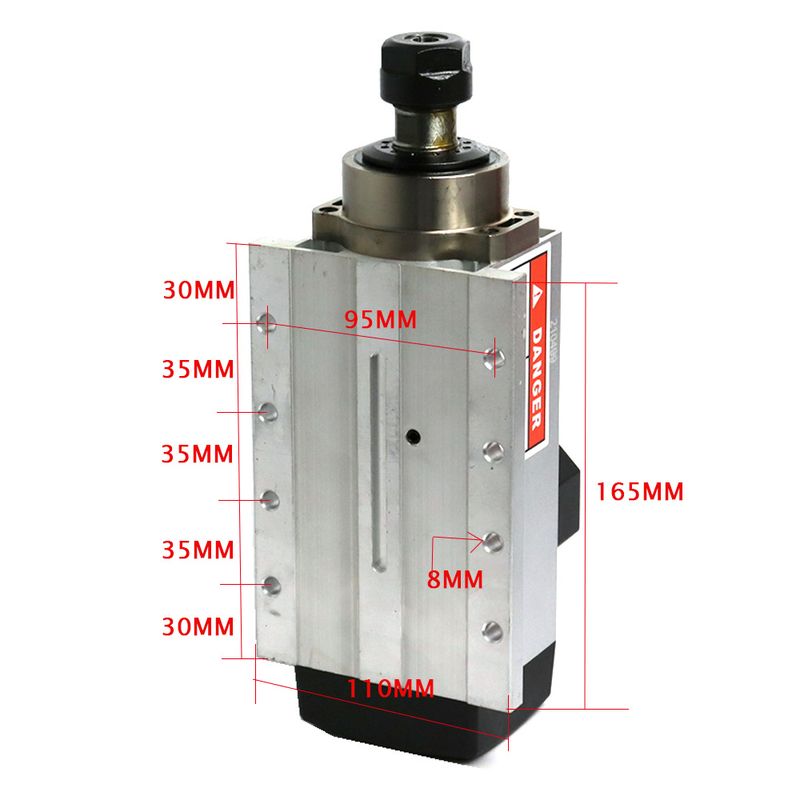

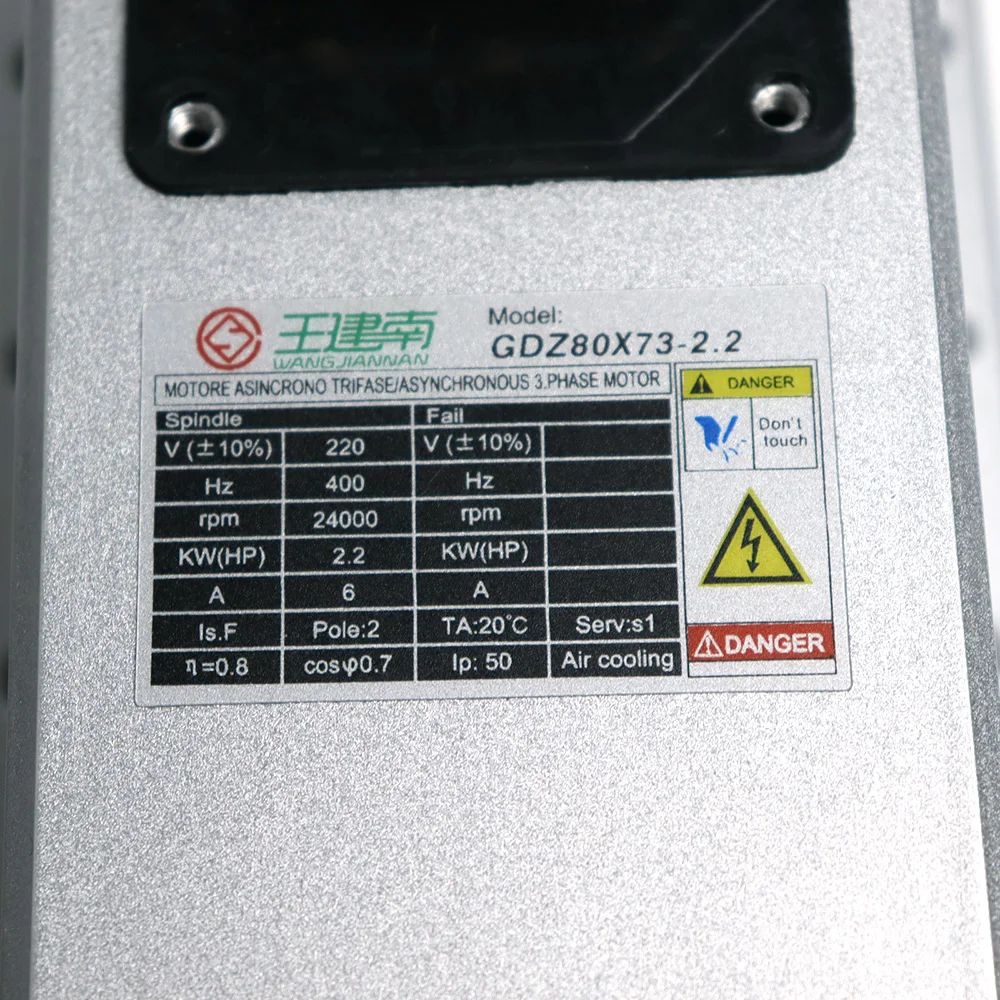

1. Spindle Parameter:

Power: 2.2kw

Voltage: 110/220/380VAC

Current: 6A

Frequency: 400 Hz

Speed: 24000 rpm

Cooling: Air-cooled

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size: ER20

Material: Stainless Steel

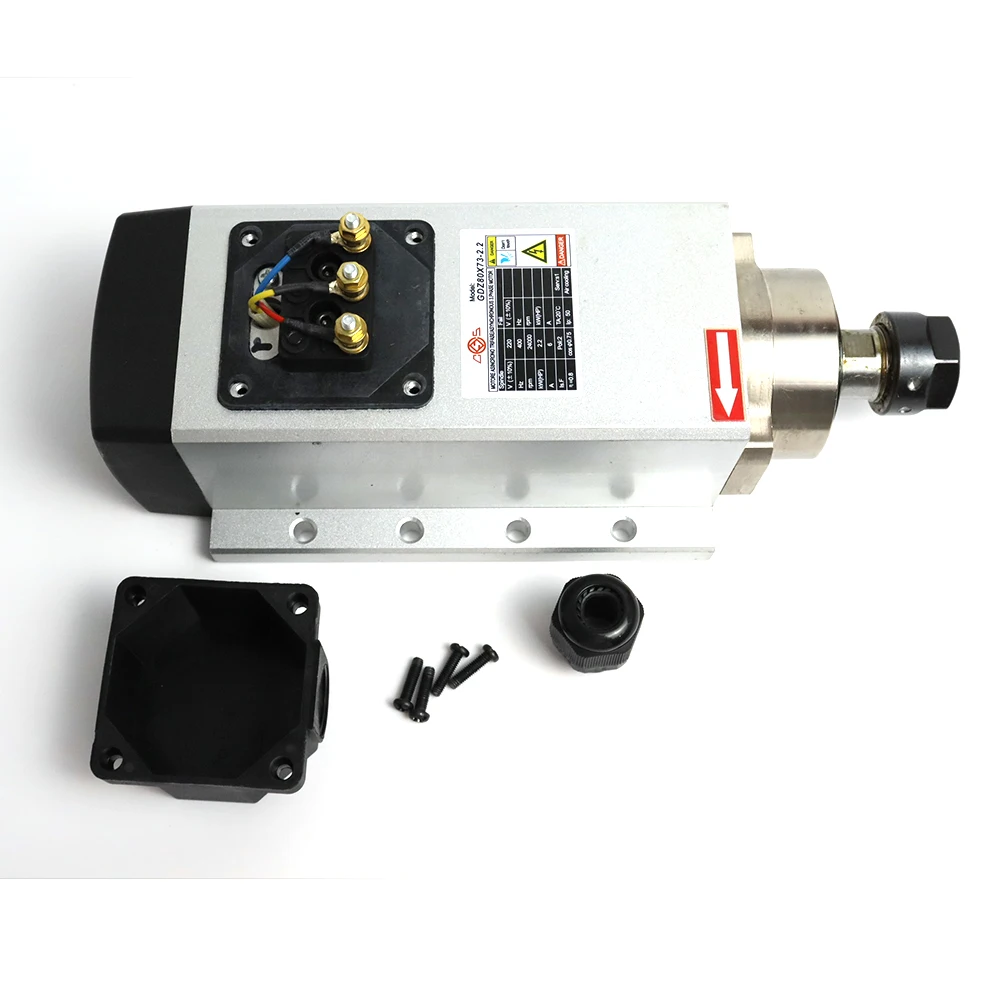

Power Interface:

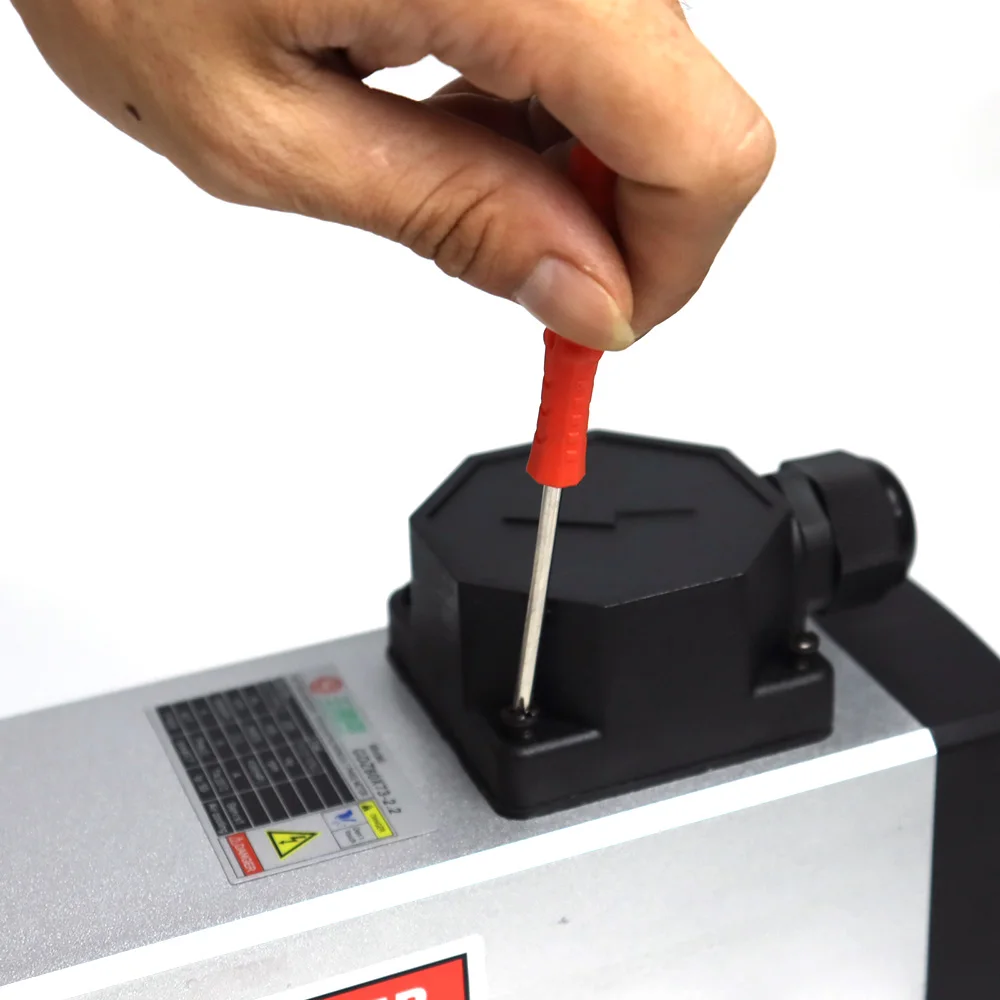

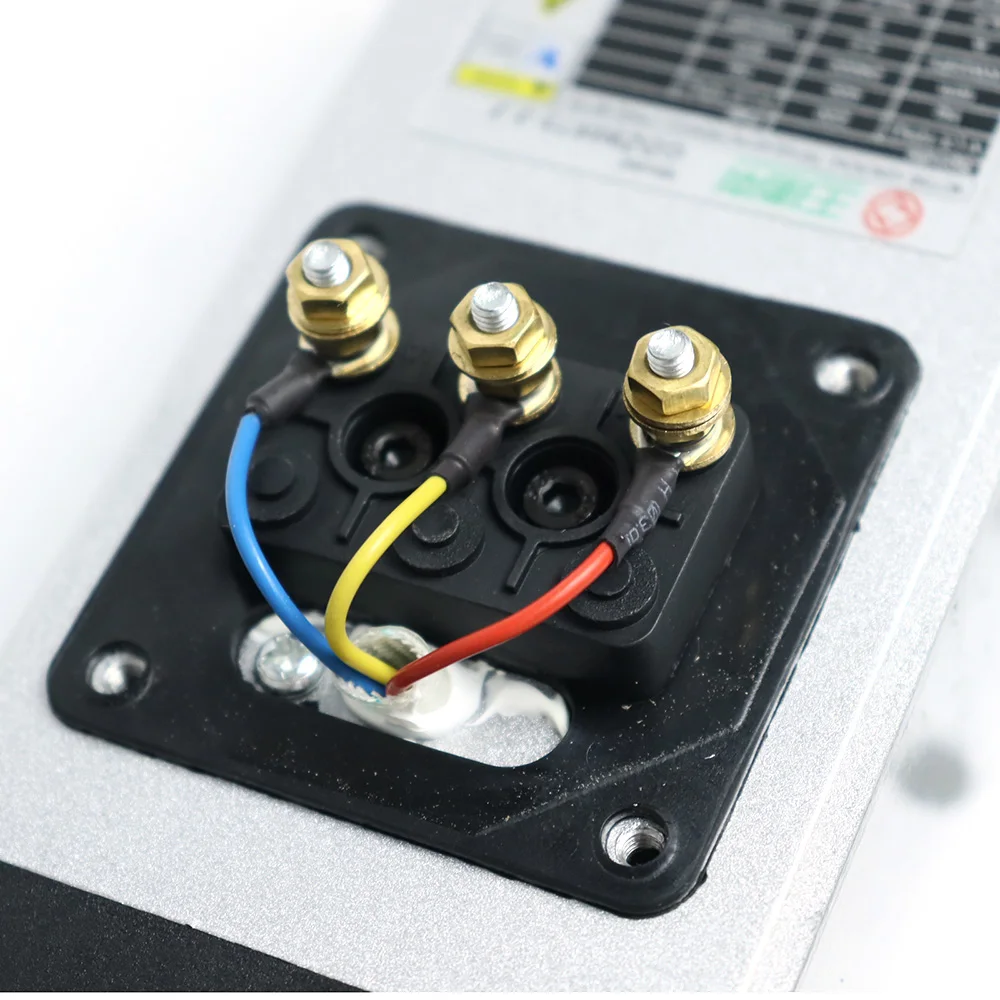

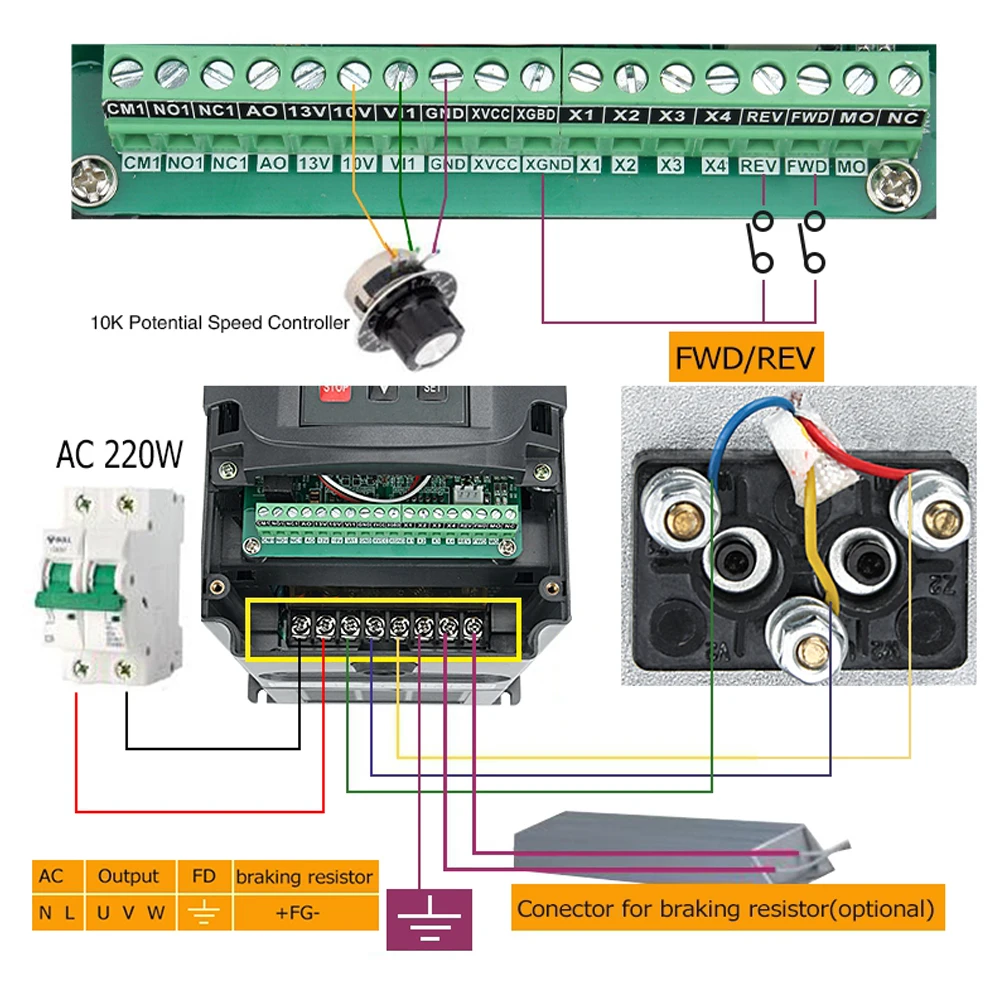

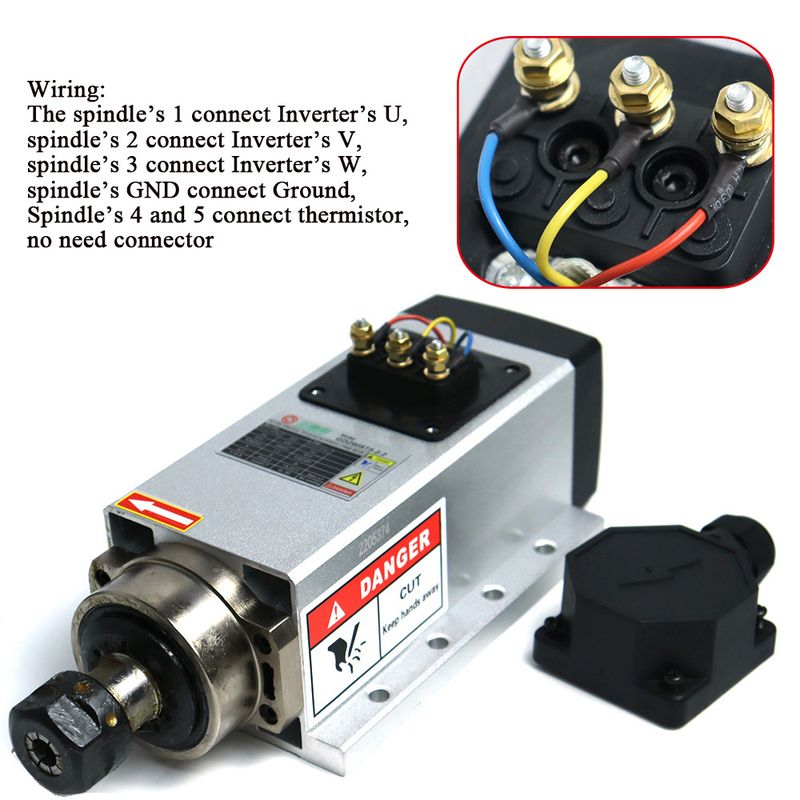

Wiring:The spindle’s 1 connect Inverter’s U,spindle’s 2 connect Inverter’s V,spindle’s 3 connect Inverter’s W,spindle’s GND connect Ground,Spindle’s 4 and 5 connect thermistor,no need connector,the inverter’s R S T any 2 pins connect 220VAC


Main application:

Wood, Aluminum, Stone, metal, glass, PVC industry


The advantage of XILAIYUE spindle:

1. Adopting precision steel ball retainer, the rotation precision is higher, which ensures the rotation precision of the electric spindle during high-speed grinding.

2. Fan cooling, no water pipe, direct connection, more convenient.

3. The spindle is lubricated with 200 degree high temperature grease.

4. The body is made of greased stainless steel to keep the body clean and not easy to rust.

5. 24,000 ultra-high speed rotation per minute, running smoothly, running sound is only 50-60 decibels, low noise.

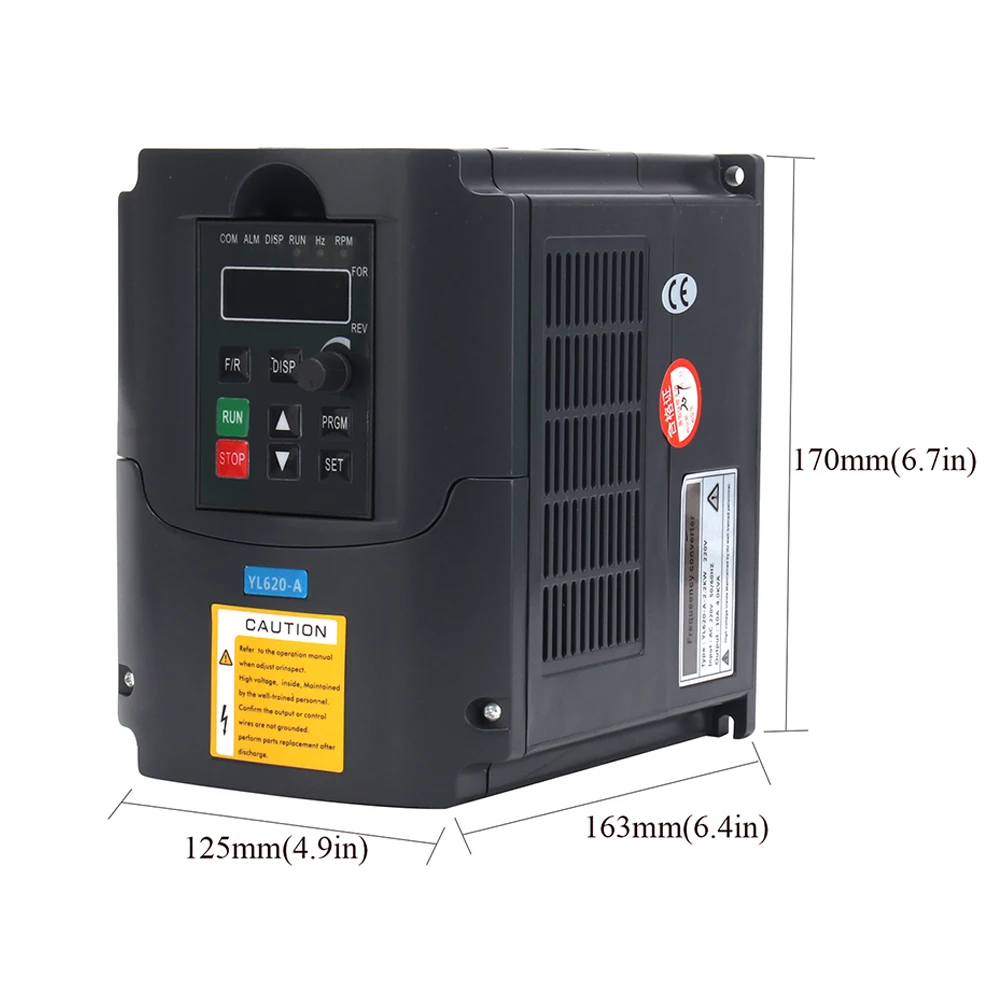

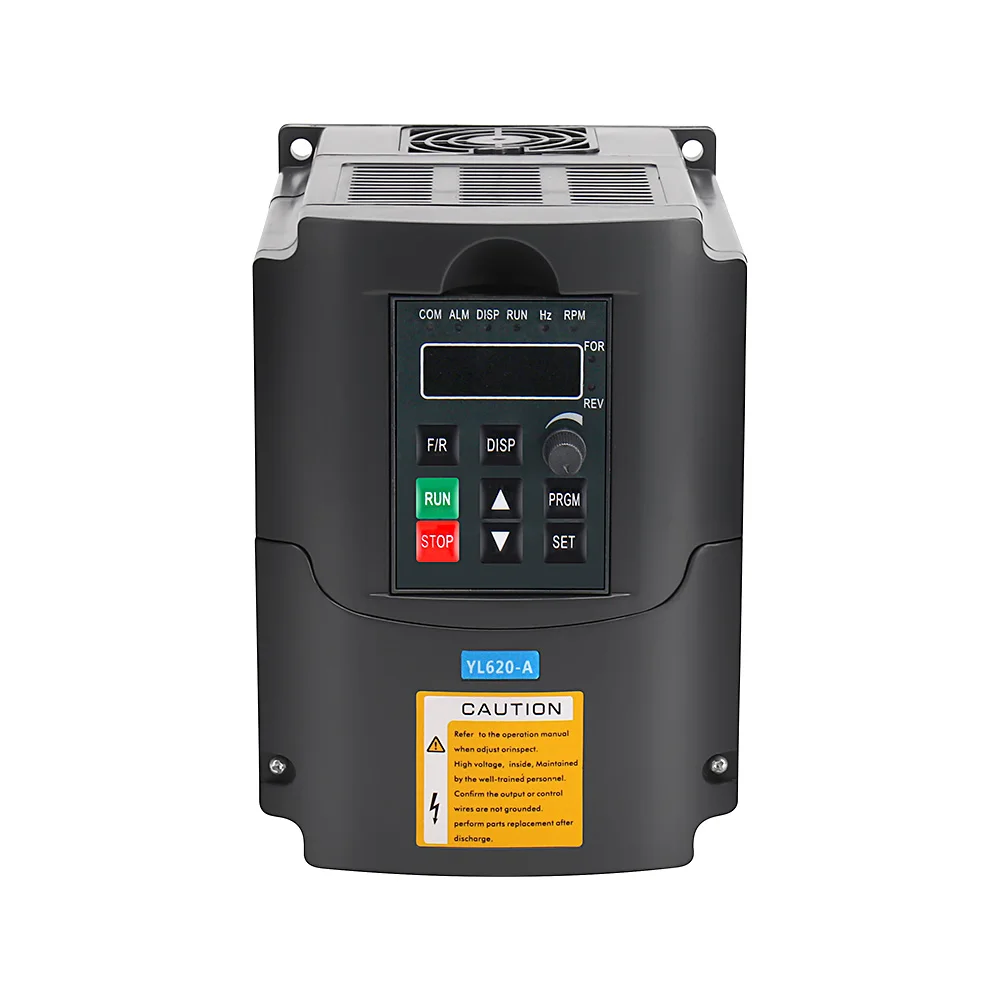

2.Inverter
Type:2.2KW
Input Voltage:AC 220V or 110v  or 380v  (according to your choose)
Input Frequency:48-63 Hz
Output Voltage:AC 220V or 110v  or 380v  (according to your choose)
Output Frequency:0-400 Hz
Input Phase:1 or 3 phase
Warranty:1 year from the date you purchased
Application:
Machinery: winding machine, mixer, extruder, slitter, winder, compressor,ventilator, pump, grinder,conveyor, elevator, centrifuger and other speed control machines.
Feature:
1)PID Control: advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port,adopting standard international MODBUS maincircuit control With extremely strong anti-jamming capability;
4)Low output ratting torque 0.5HZ-150%,low speed running ability;
5)Carrier adjustable by 16KHZ,completely soundless working environment;
6)Broad voltage working area,normal running in 304V-456V;
7)Auto voltage regulation (AVR) technique,for ensuring the inverter load capability;
8)Various control technique by both synchronization and non-synchronization,
9)dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
11)Dead-time compensation and auto torque slip compensation function,can realize 180% high torque output at low frequency 0.25Hz;
12)Unique EMC design,can minimize inverter’s pollution to power;
13)Overall reinforcement layer to suit all kinds of harsh environment
Advantage:
1.Control mode is SPWM, it is very easy to use and convenient
2.Protection functions are very strong,
3.Fin over-heat protection,
4.Overload protection,
5. Fuse protection,
6.Restart after instant stop, stall protection.
7.Powful function

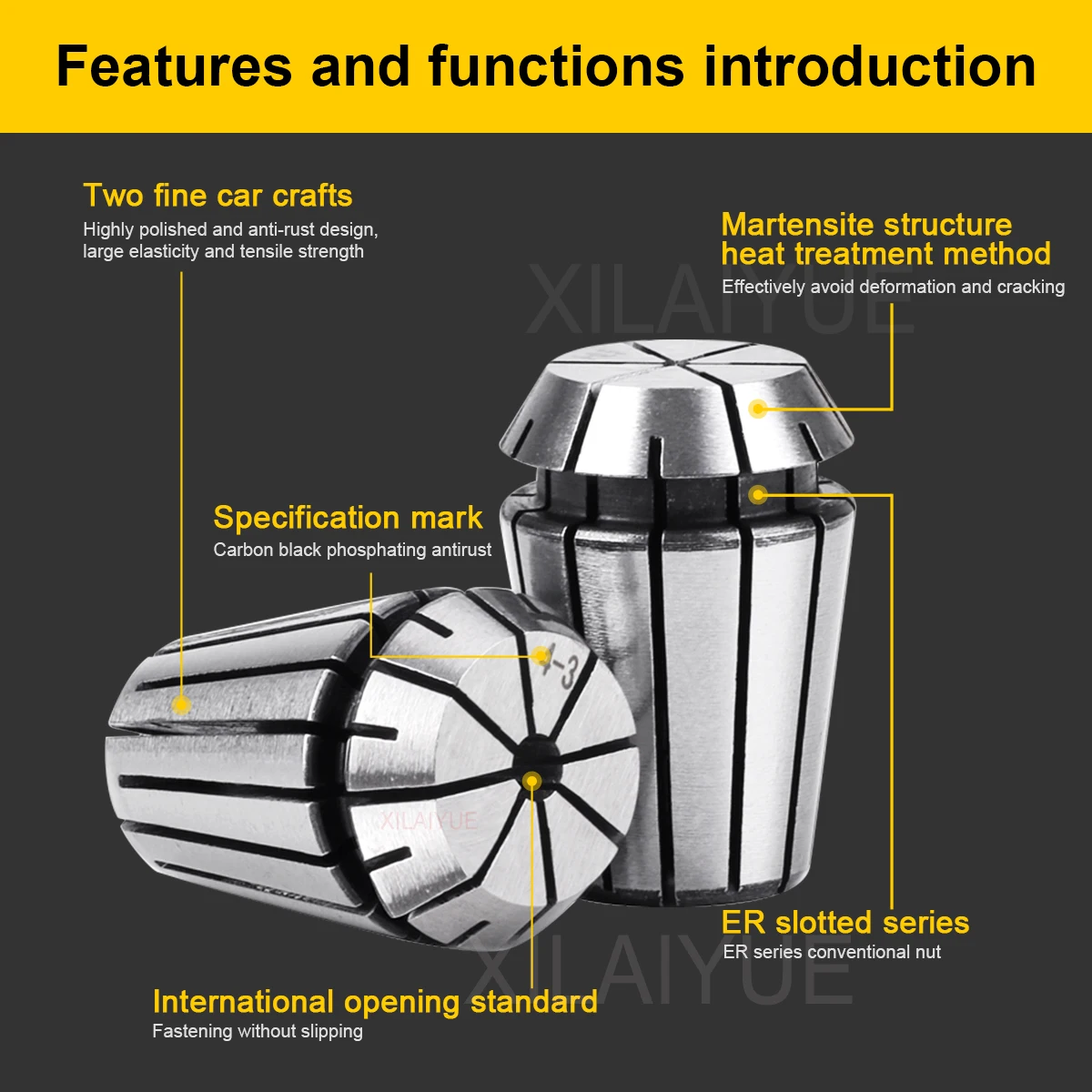

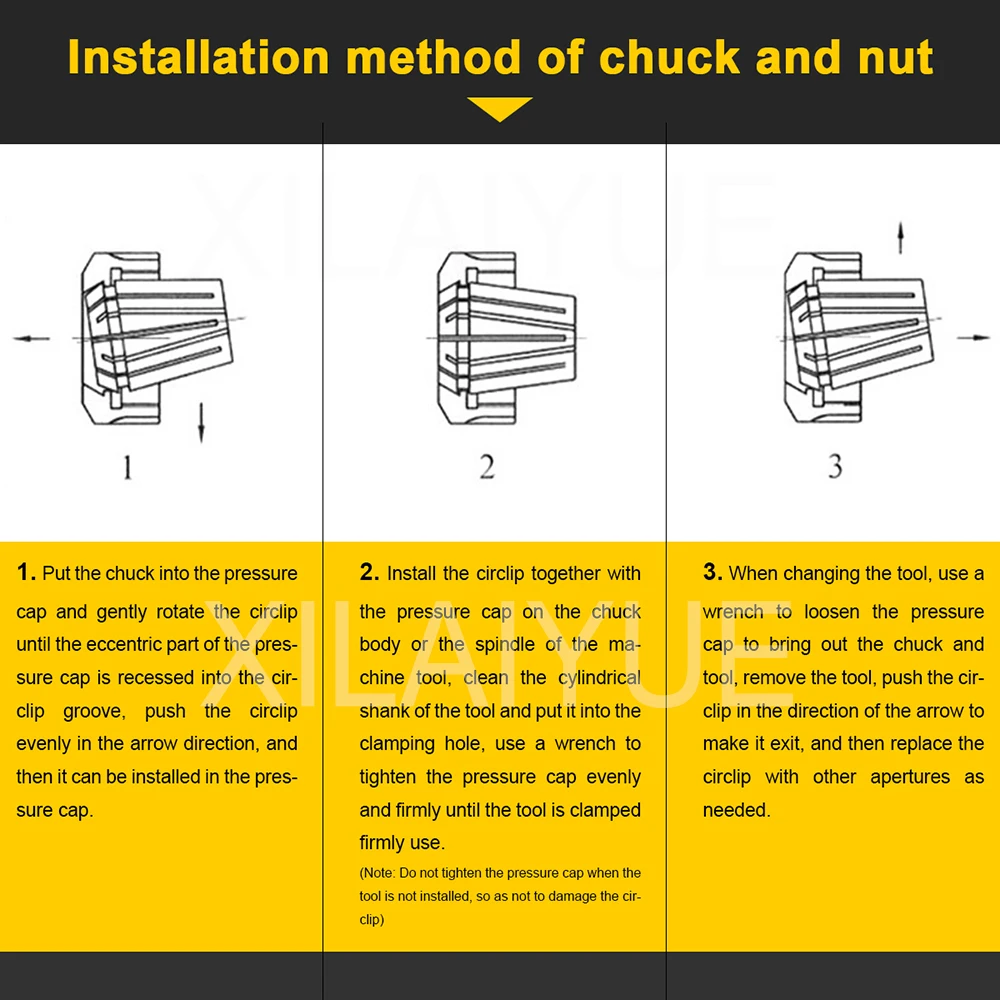

3. Type:ER20 Collet
Material:65Mn
Run-out tolerance Accuracy: 0.008mm.
Type: Machine Tool Accessories.
Brand: XILAIYUE Collet chuck.
Applicable machine: CNC machine.

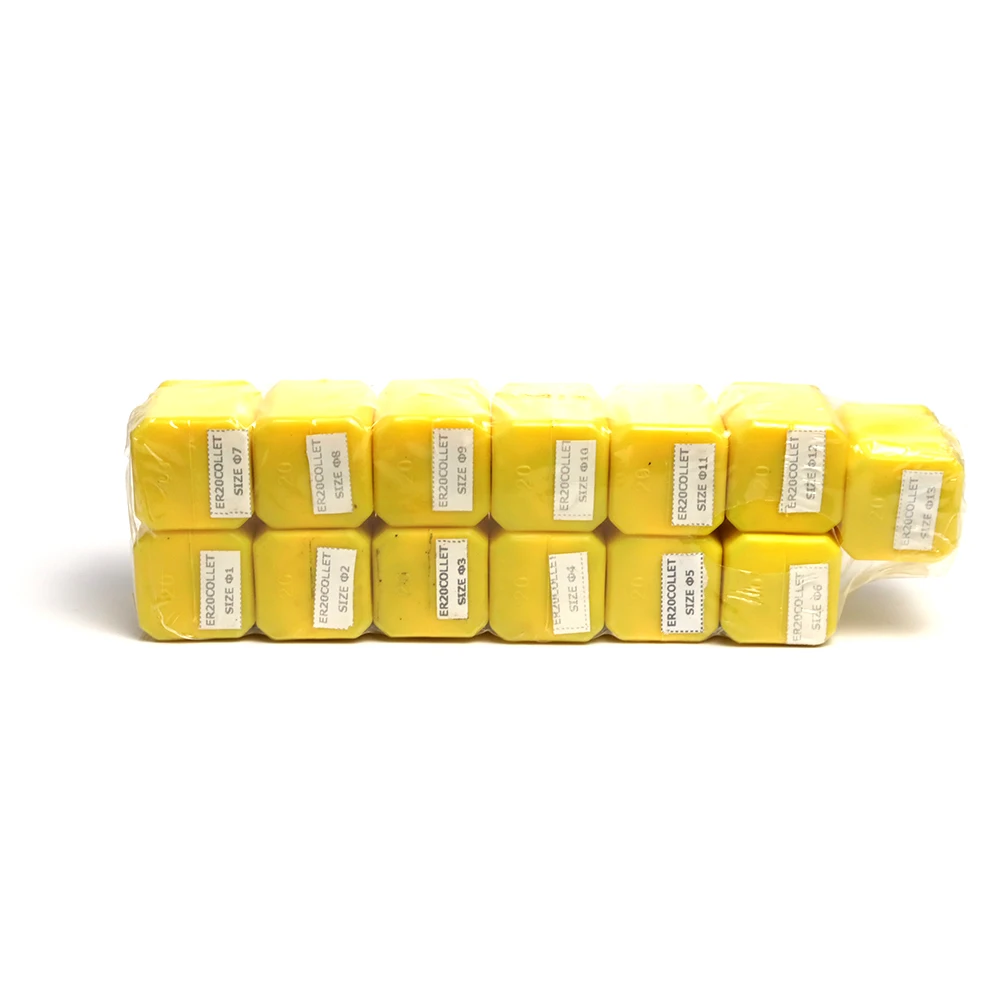

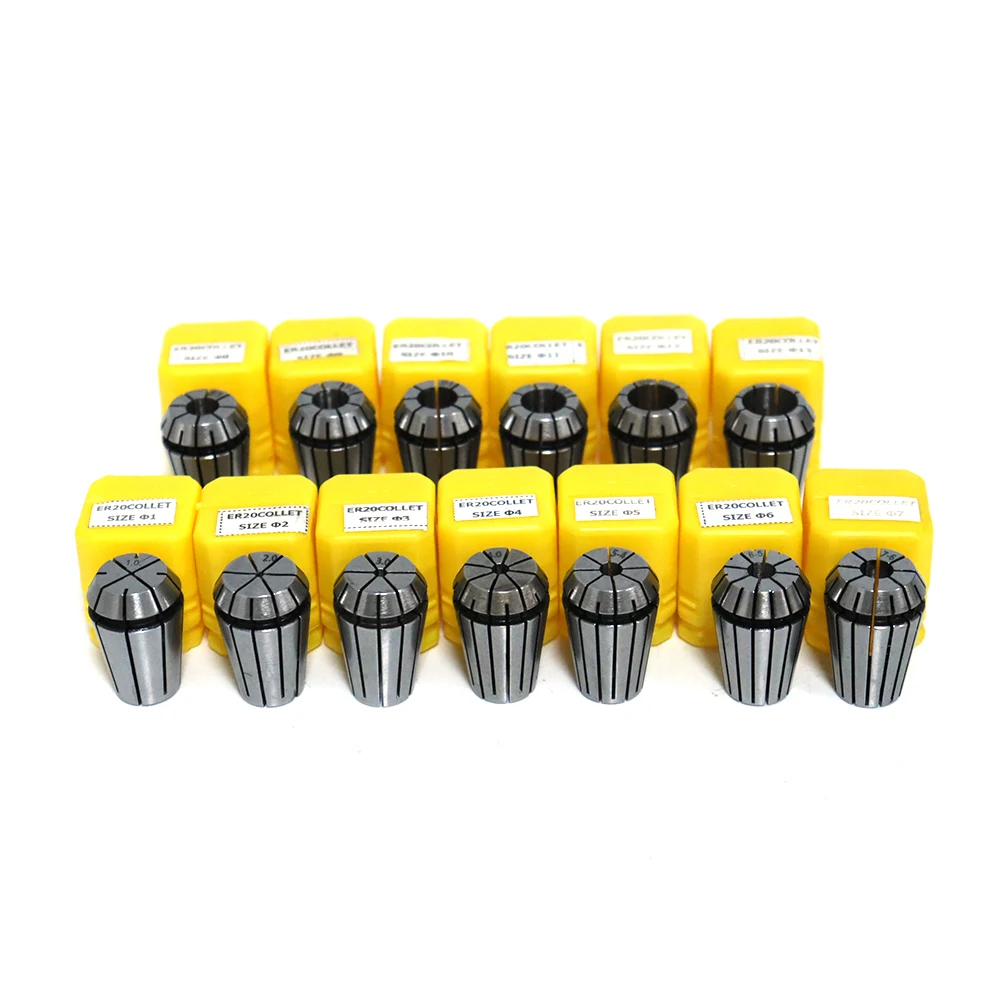

Model:13pcs,ER20(1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)


The spindle common questions and answers:

1) Q: Can the spindle work without the inverter?

A: No. The high speed spindle motor must be equipped with a frequency converter because our spindle motor reference frequency is 400hz and the frequency of the household appliance is 50hz.


2) Q: When the spindle motor is running, the heat is severe. What is the cause of the inverter alarm or even burnout?

A: This is the reason for the improper setting of the inverter parameters.

Common manifestations are:

- Spindle heating

- very low speed

- Inverter alarm

- In severe cases, the spindle motor emits smoke and an abnormal sound occurs.

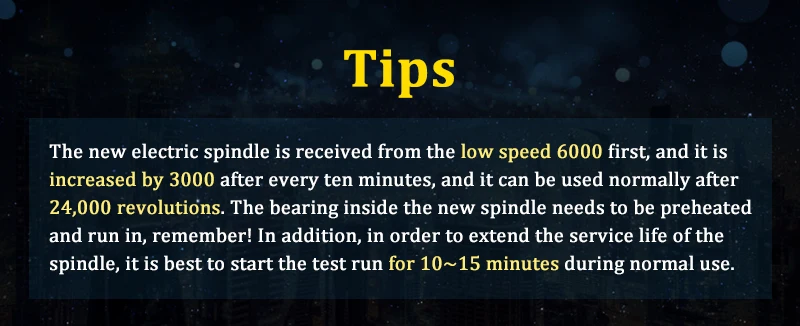

3) Q: What is the abnormal sound of rustling when the new motor is running?

A: Because the main shaft is lubricated with solid grease, it should be started at low speed (100hz-60000 rpm) for 15 to 20 minutes before starting high-speed operation. The motor that is not used for a long time should be first run-in and then started. high speed.

If you have more questions, please contact customer service to answer your questions.
