200w/300w/400w/500w Engraving Machine Spindle Motor Air-Cooling High Speed CNC (Drill Chuck Clamping Range:1.5-10mm)

$53.23

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

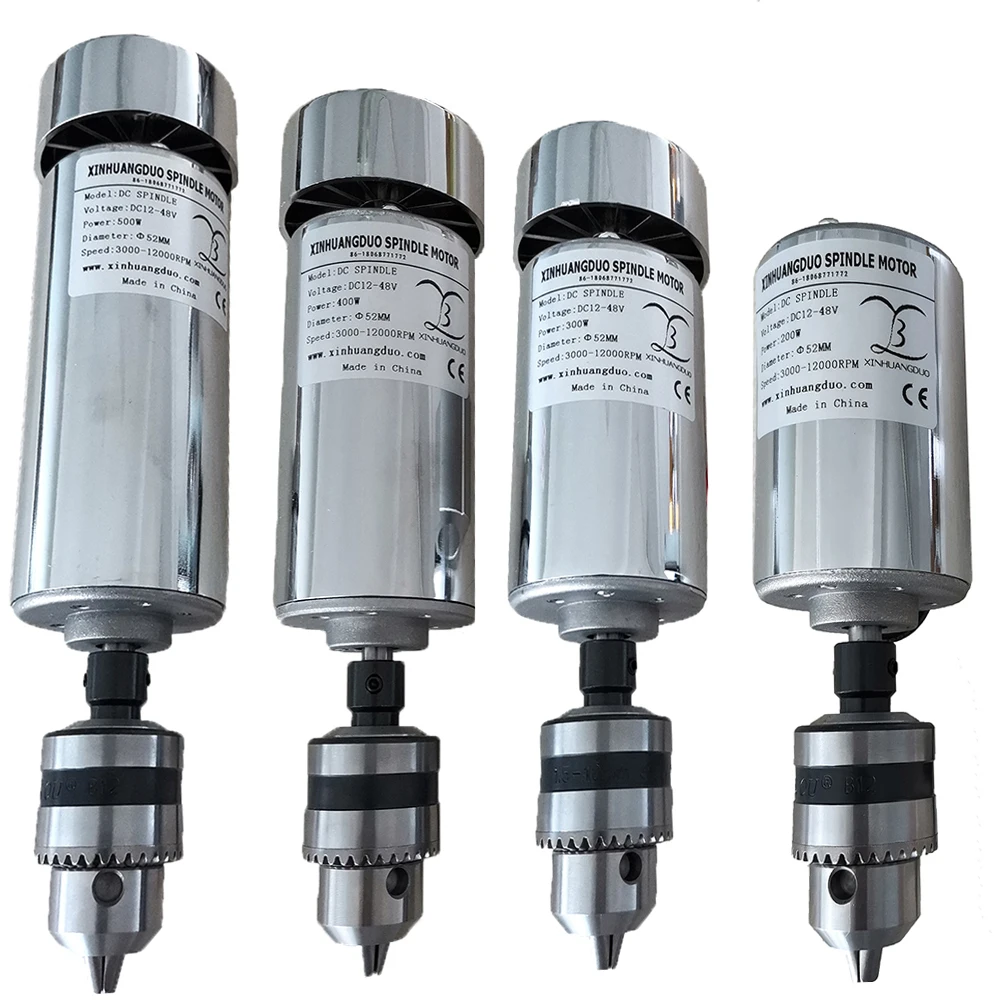

200w/300w/400w/500w Spindle Engraving Machine Spindle Motor Air-cooling cnc Spindle DC Motor CNC Engraving Machine

23450

Package include:

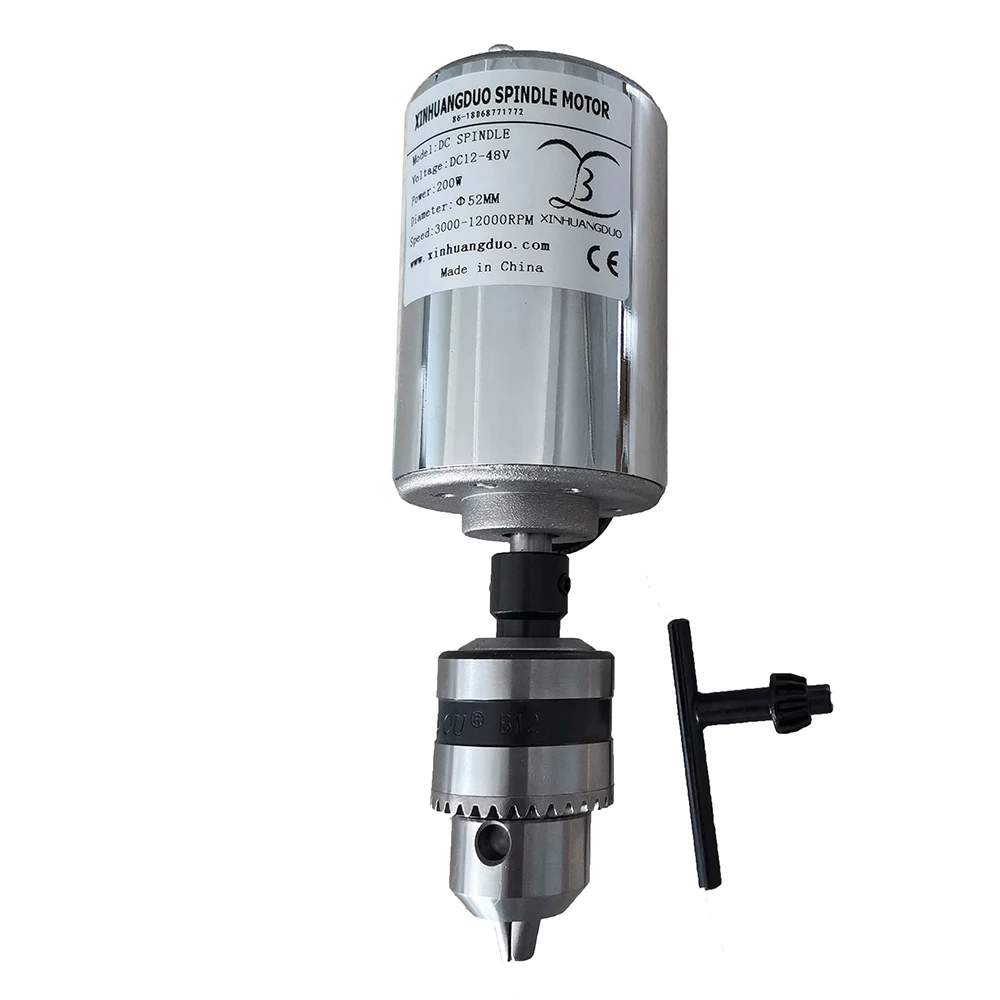

1PCS  200w spindle motor

Feature:

Spindle motor: new DC motor

Operating voltage: 12-48VDC

Power: 200W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Torque:280mN.m

Insulation resistance: >2 Mohm

Insulation dielectric strength: 400V

Diameter: 52mm

Chuck part length: Arbor part contains nut and sandwich 41MM

Chuck part of the diameter: 16mm (clip default with 3.175MM)

Total length of motor: 141mm (including clamping area and motor)

Spindle radial runout is about 0.01-0.03.

This motor does not have a fan. Do not work continuously for a long time!

A single motor net weight: 620 g

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor

200 (6)




Display seiz:



Package include:

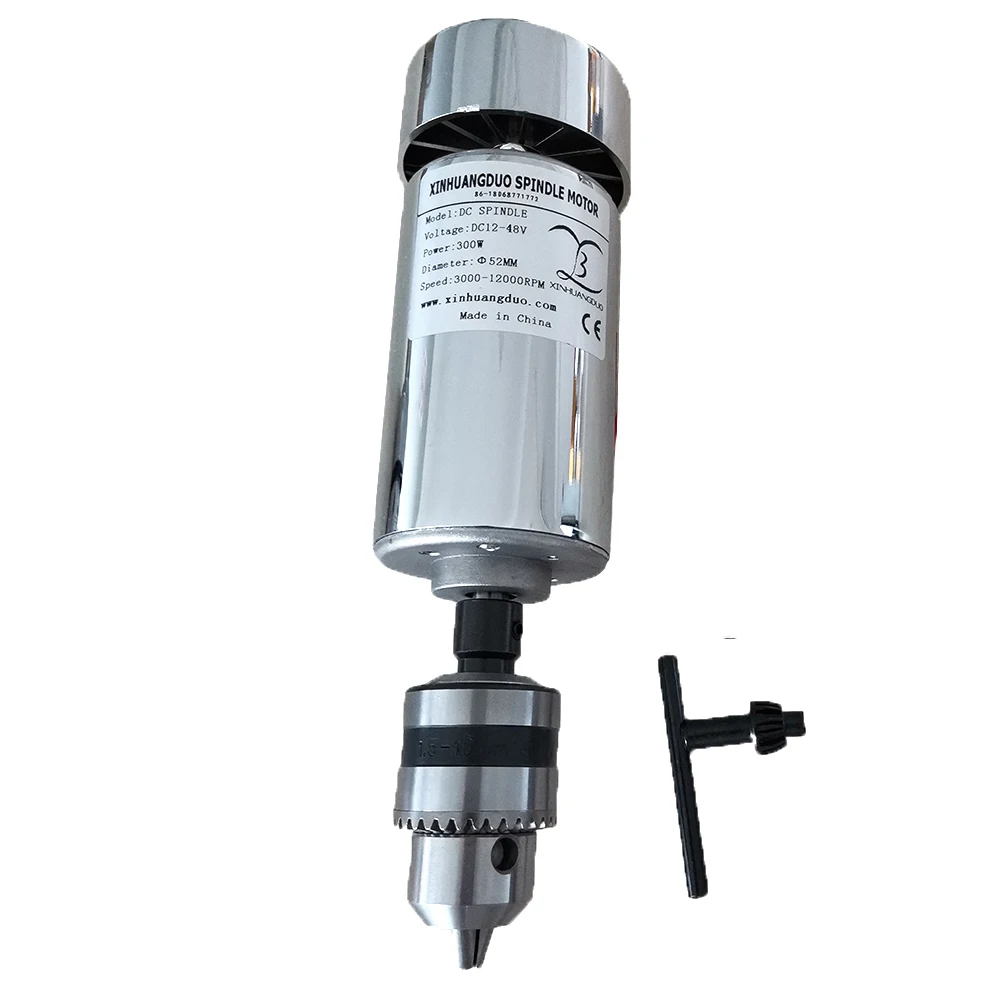

1PCS  300w spindle motor

Condition:NEW

Model:300w air cooled spindle motor

Work voltage: 12-48VDC

Rotation speed: 3000-12000r/min  (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Power: 300W

Torque:400mN.m

Insulation resistance:>2Megohm

Dielectric strength:400V

Motor Length :  175mm

Diameter:52mm

Axis collet Length: 48mm

Diameter of Axis collect holder:16mm

ER11 chuck : 3.175

Spindle radial runout is about 0.01-0.03.

300 (1)300W-SIZE


Package include:

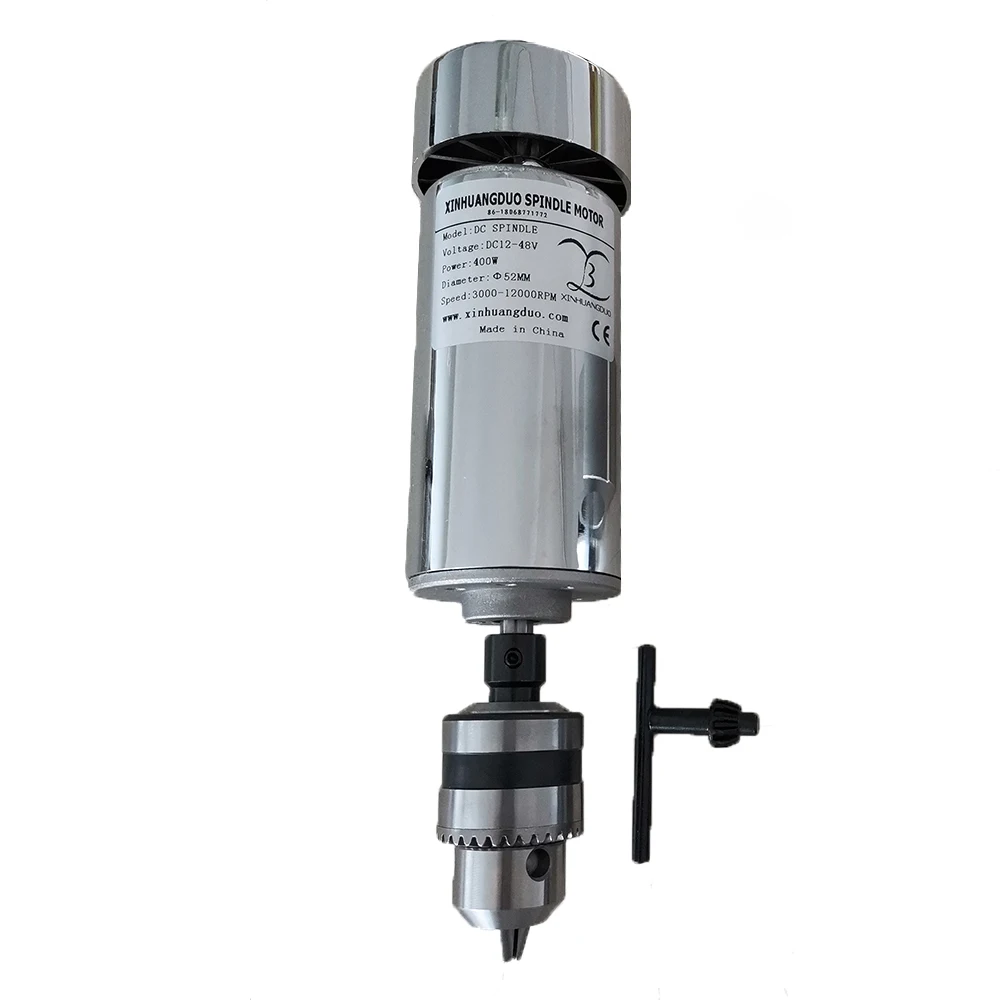

1PCS  400w spindle motor

Feature:

Spindle motor: new DC motor

Operating voltage: 12-48VDC

Power:400W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Condition:NEW

Torque:500mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

Diameter: 52mm

Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)

Part chuck diameter: 16mm

Motor length: 185mm (including gripping parts and motor)

Spindle runout of about :0.01-0.03.

Can be used for engraving metal or non-metal and other materials.

Spindle radial runout is about 0.01-0.03.

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor


400 (0)400Wsize

Package include:

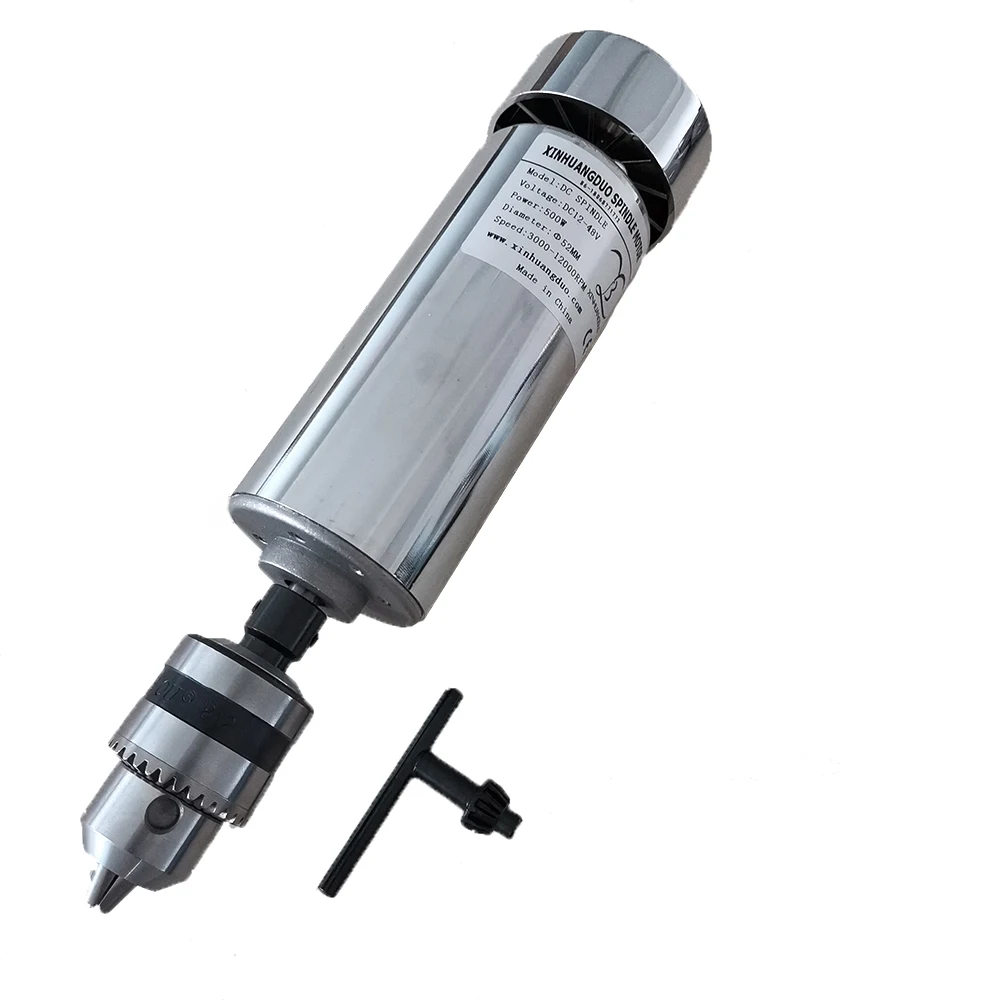

1PCS  500w spindle motor

Feature:

Spindle motor: new DC motor

Condition:NEW

Working voltage :12-48VDC

Power: 500W

Speed :3000-12000RPM  (12v-3000rpm,24V-6000rpm,36V-9000rpm  .48V-12000rpm)

Torque:550mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

Diameter: 52mm

Motor length: 203mm (including gripping parts and motor)

Spindle runout of about :0.01-0.03.

Can be used for engraving metal or non-metal and other materials.

Spindle radial runout is about 0.01-0.03.

If the motor needs to work long hours, just need to add a cooling fan, forced air cooling, hot, or too long motor

500 (5)500W-48V
80 (2)QQ截图20190930135601 拷贝QQ截图20190930135703 拷贝
Description:

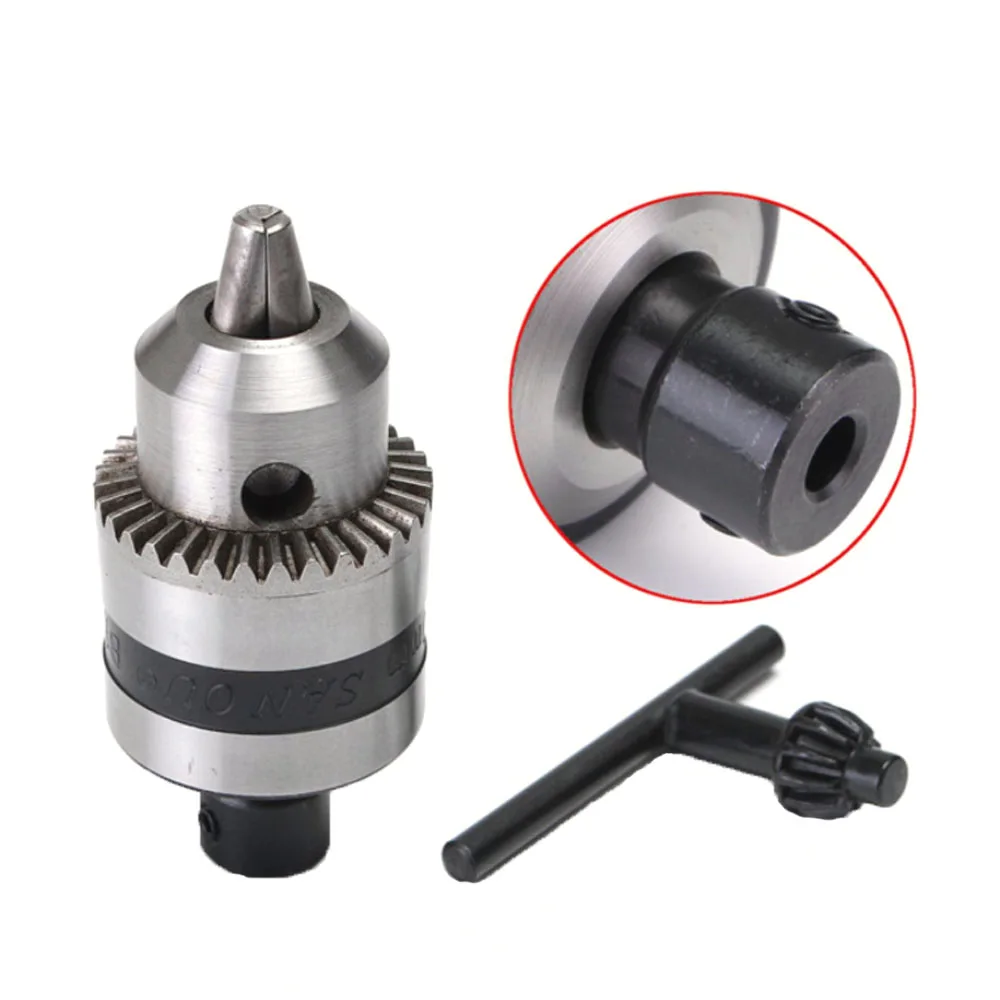

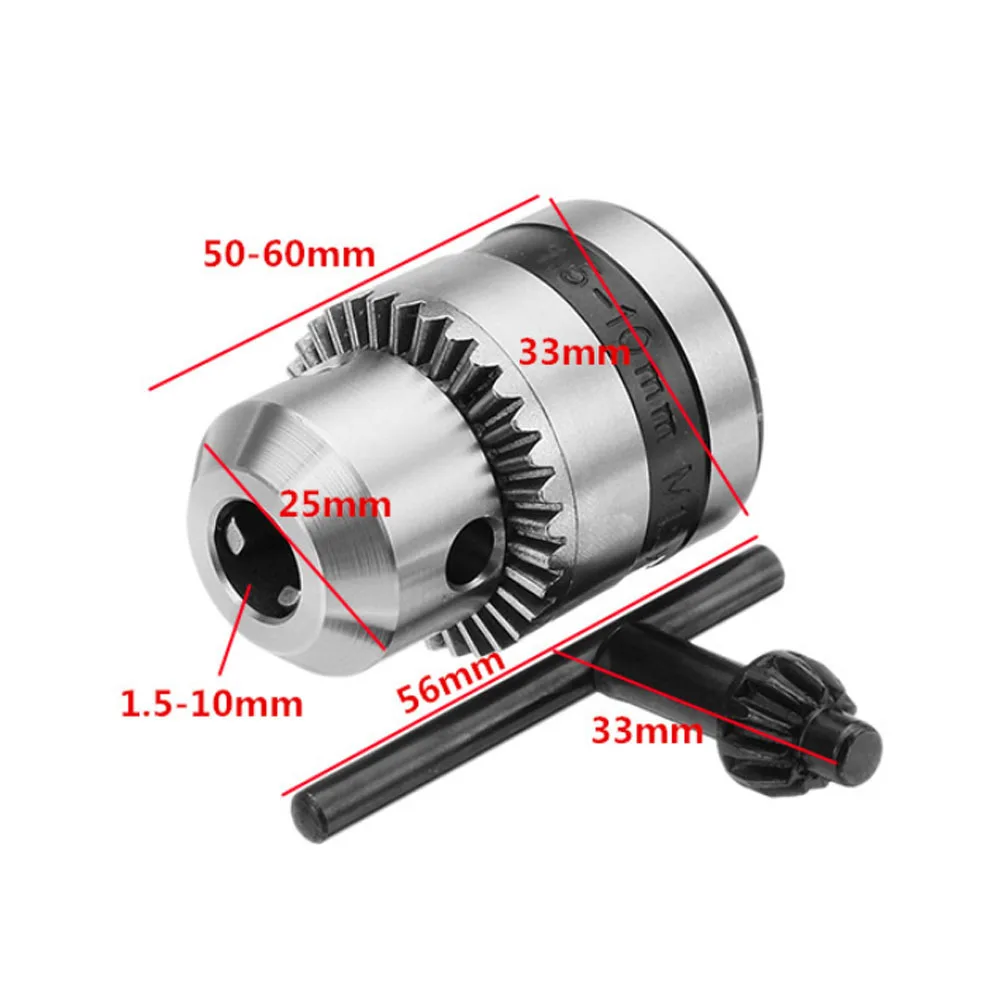

1.5-10mm Metal Stable Keyed Drill Chuck Convertor M12 Thread Chuck Adapter
 Specification:
Chucks: 1.5-10mm
Thread: M12
Length: 50mm
Features:
Triple grip drill chuck.
Accepts accessories with 1.5-10mm shanks.
Quick Change, Easily locks onto and releases drill bits.
Allows hex drive power tools to use conventional drill bits.
Key type drill chuck,lock your accessory stable.
