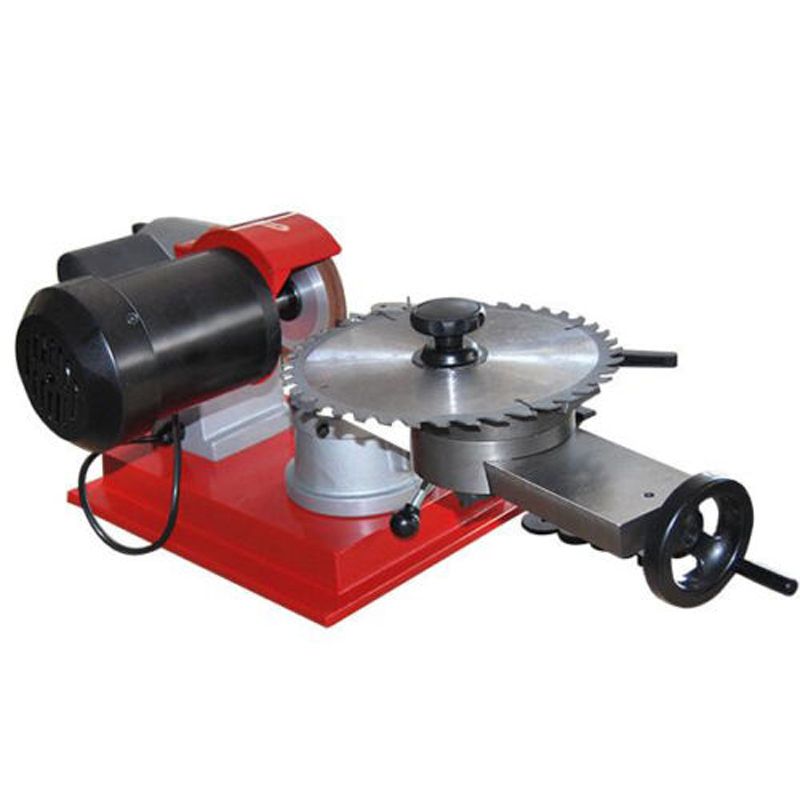

Saw Blade Grinder Mill Sharpener Machine
The machine is designed for sharpening various kinds of carbide tipped saw blades from size 80mm to 700mm.It's also suitable to grind other material, such as plastic, wood, aluminum alloy for different purpose like furniture manufacturing, decoration etc. Its fascia can support the teeth of saw blades and other parts in order to prevent jumping and improve grinding quality.

Parameter:
Voltage | 220V |
Grinding Wheel Size | 4.92"(12.5cm) |
Bore Size of Grinding Wheel | 1.26"(3.2cm) |
Adjusting Range of Grinding Wheel | +/-20 degrees |
Power | 370w |
Handle Turning Angle | 30 degrees from left and 45 degrees from right |
Revolution | 2850rpm |

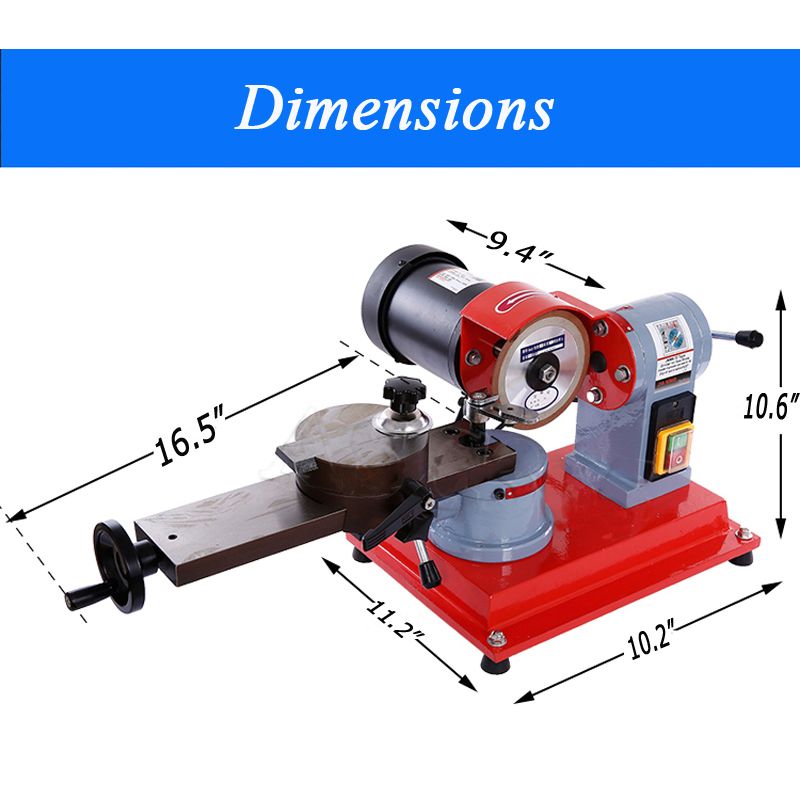

Product Dimension | 28.35"x16.93"x11.81"(72x43x30cm) |
Package Dimension | 16.93"x16.93"x13.58"(43x43x34.5cm) |
Weight | 70.4lbs (32kgs) |
centering arbor size | 5/8" (15.87mm), 0.79"(20mm),0.86"(22mm), 1"(25.4mm),1.18"(30mm), 1.57"(40mm) |

Method of operation
First ,loosing the fascia, then adjust the angle of grinding blade and fasten.
Second, adjusting of center axle
 1)Rotating the center axle to the grinding blade Â
 2)Pushing the center axle to the right
 3)Installing the saw blade ,rotate the wheel and decide the position of grinding surface saw teeth
 4)Rotating the rotation table to ensure the angle of grinding blade.
 5)The cross angle between the grinding surface and work surface is about 5°
Third, adjusting of positioning assembly      Â
 1)Adjusting the saw blade to the best grinding position, rotating the positioning frame and fascia,
 2)Adjusting positioning pin to the proper base of saw teeth and leave gap of grinding quantity, fasten the fixed screw
Fourth, adjusting the center axle to the same gap of grinding quantity to the right
Last, when all the parts are fastened, the saw blade supported with hand will be grinded

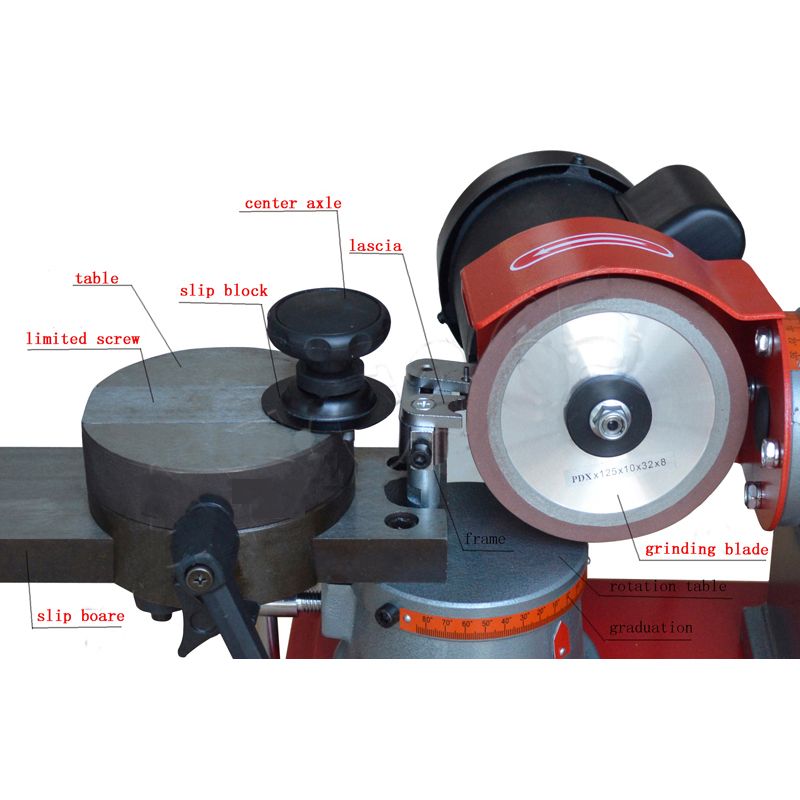

1.base | 2.box body | 3.end cover | 4.rotatary base | 5.rotary table base | 6.rotary table |
7.slide base | 8.slide disc | 9.table | 10.guide nut base | 11.guide screw | 12.slide block |
13.frame | 14.board | 15.positioning board | 16.safe cover | 17.press board | 18.adjusting bolt |
19.upright post | 20.long bolt | 21.short bolt | 22.long handle | 23.short handle | 24.positioning pin |
25.mat cover | 26.diamond wheel | 27.cover | 28.motor | 29.rear stuck disc | 30.fore stuck disc |
31.big pin | 32.small pin | 33.hand wheel | 34.round handle | 35.turret handle | 36.earth foot |
37.adjusting bolt base | 38.fastening handle | 39.switch | 40.screw | 41.lirnit pin | 42.washe |
43.cover |
