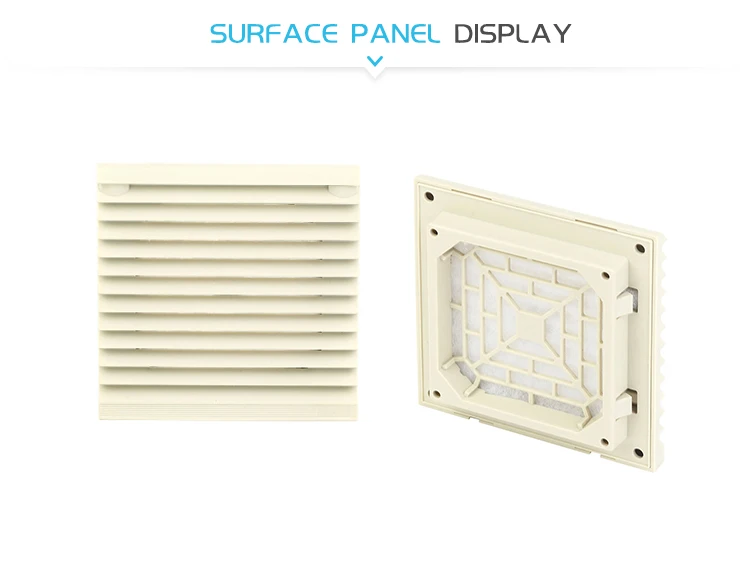

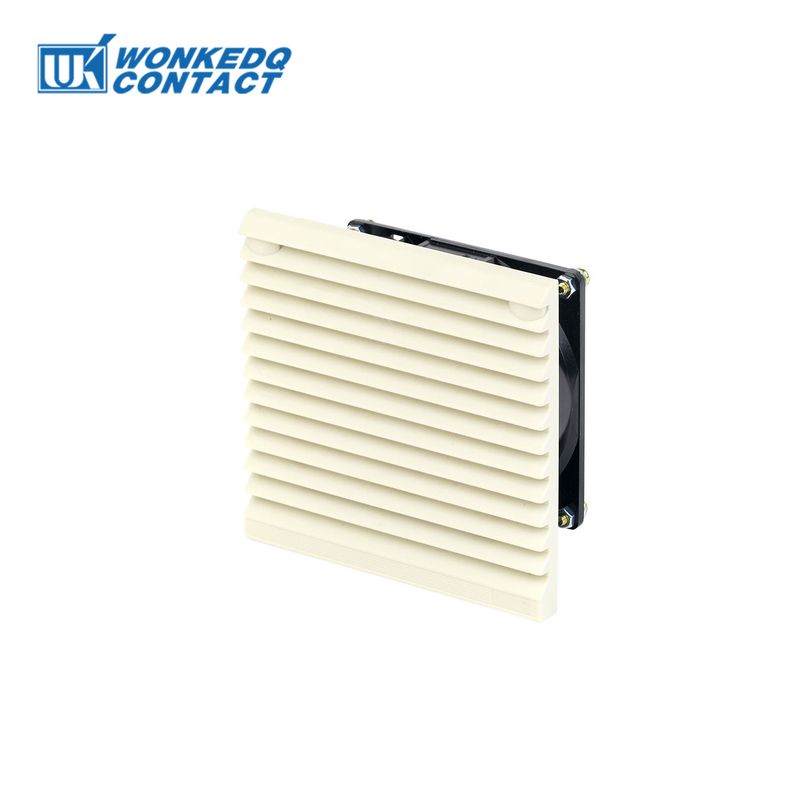

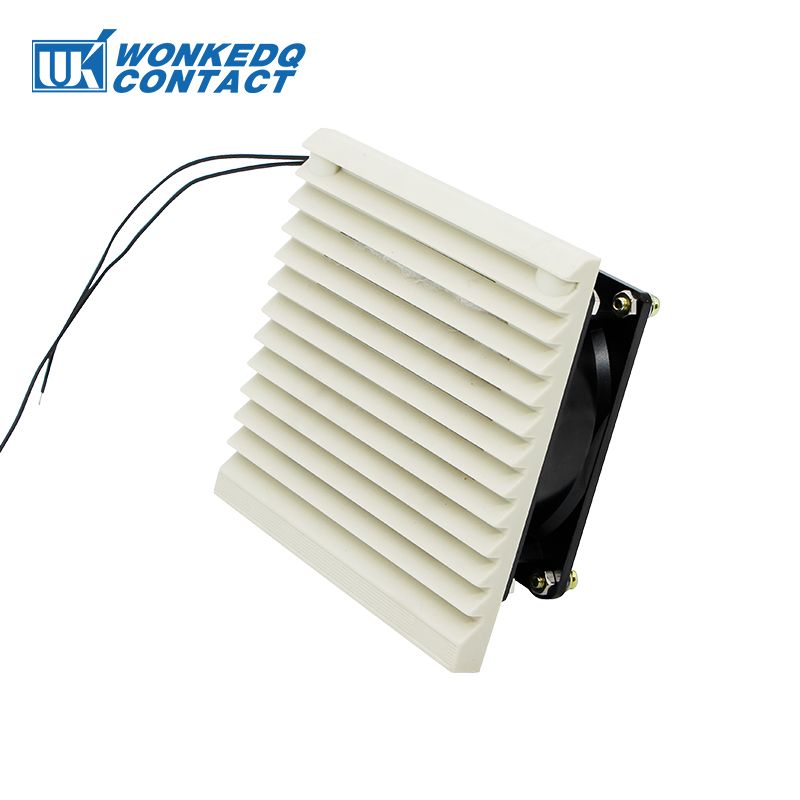

The Filter of the Fan can prevent rainwater along the filter into the control cabinet, especially with the curved surface structure cascade from the openings to prevent rainwater from entering. The non-woven fiber filter are special for preventing the dust run into the enclosure.
◆ Body material is made from heat resistance and anti-flame ABS.
◆ Powerful Axial Fans can be fitted to operate in a BLOWING or EXTRACTING Mode.
◆ The enclosure interior is cooled through the in-feed of filtered external air.
◆ Widely used for installations in industrial fields like Electronic, Electrical, Engineering, Electric Panel Assembly and more.
◆ Fully compatible with the cut outs and fixing holes of all the existing fan modules available in the industry.

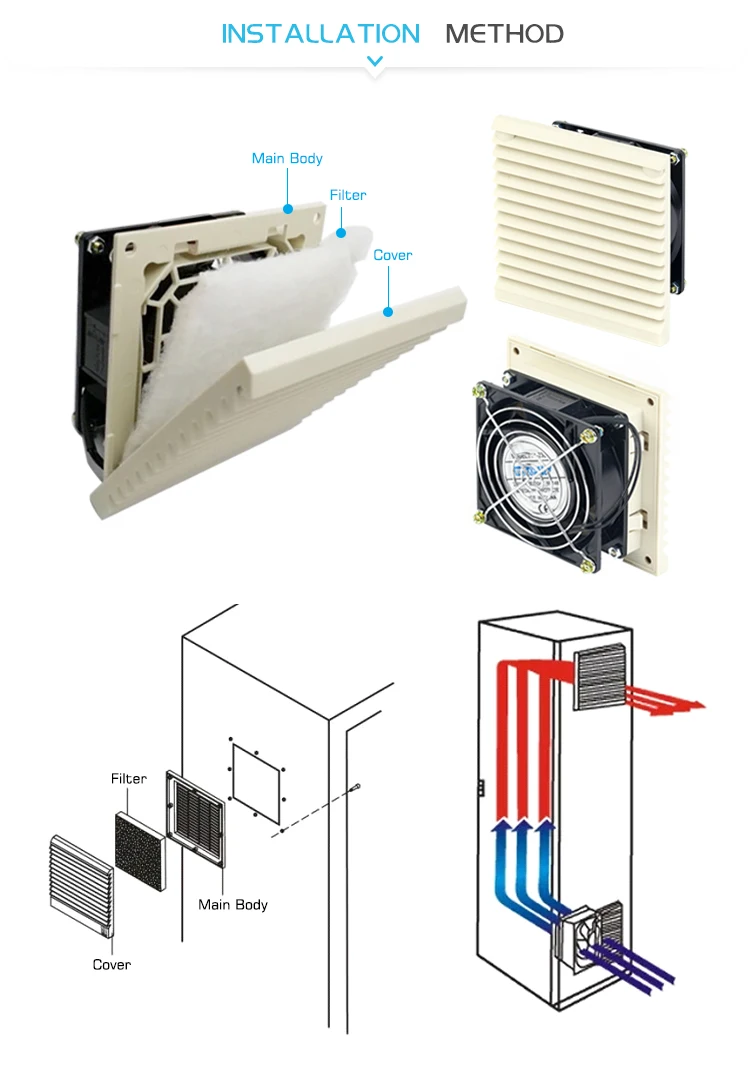

◆ The Quick assembly design reduce the installation time and cost.
◆ The Filter for cleaning purpose is accessible from outside of enclosure with Systems in Working Condition.
◆ The Filter pads are quickly changed with no need for Tools, also can be changed during the fan is operation.

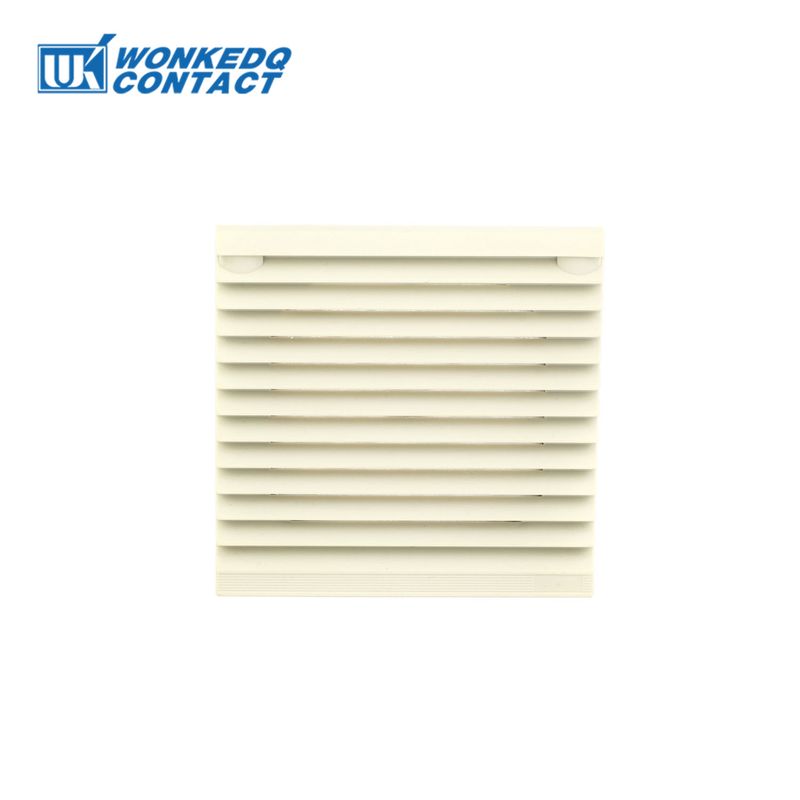

Filter unit Part No. | 3321-300 |

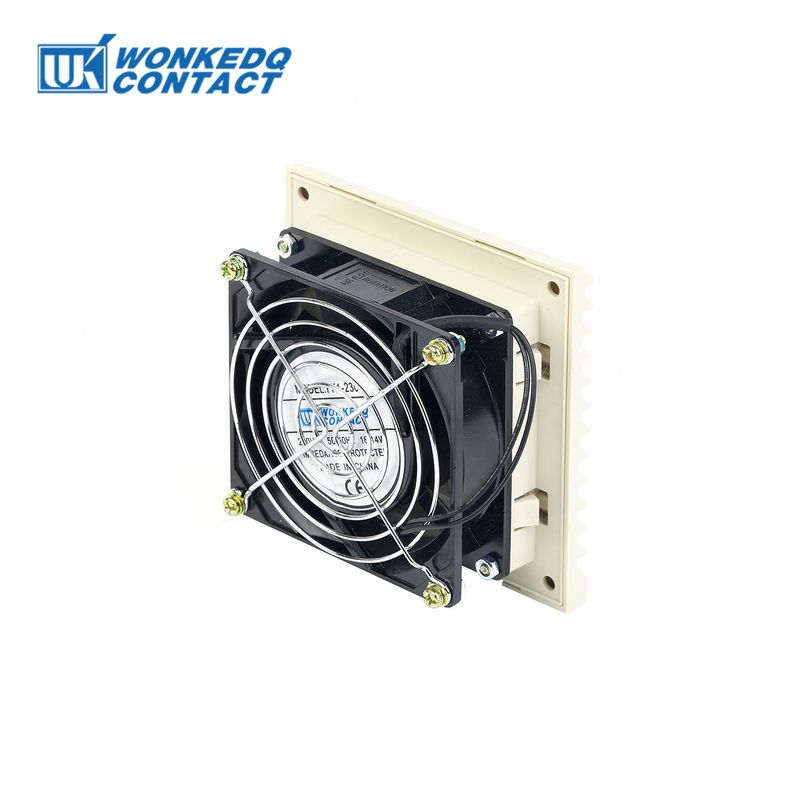

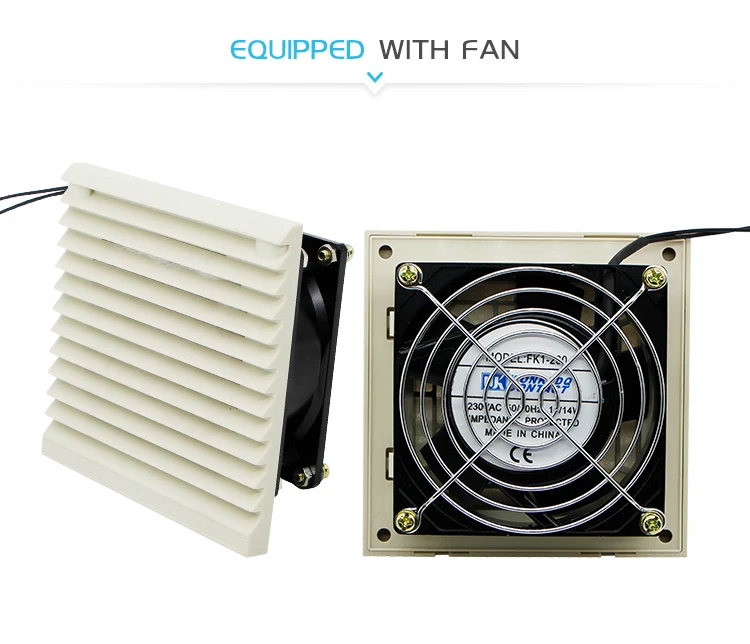

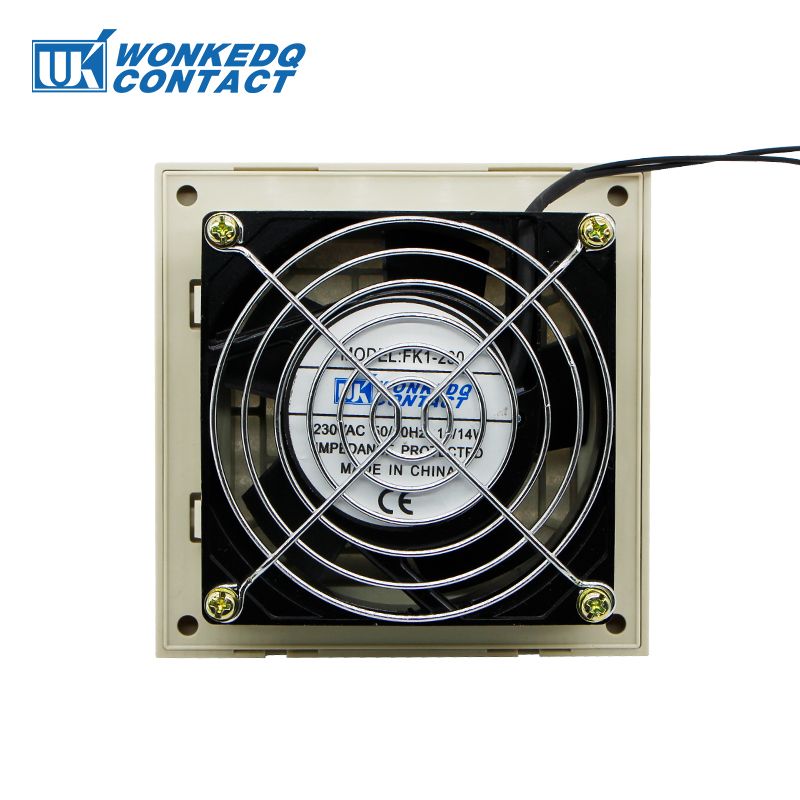

Fan with filter unit Part No. | 3321-230 |
Unimpeded air flow | 20m³/h |
Noise level | 41dB |

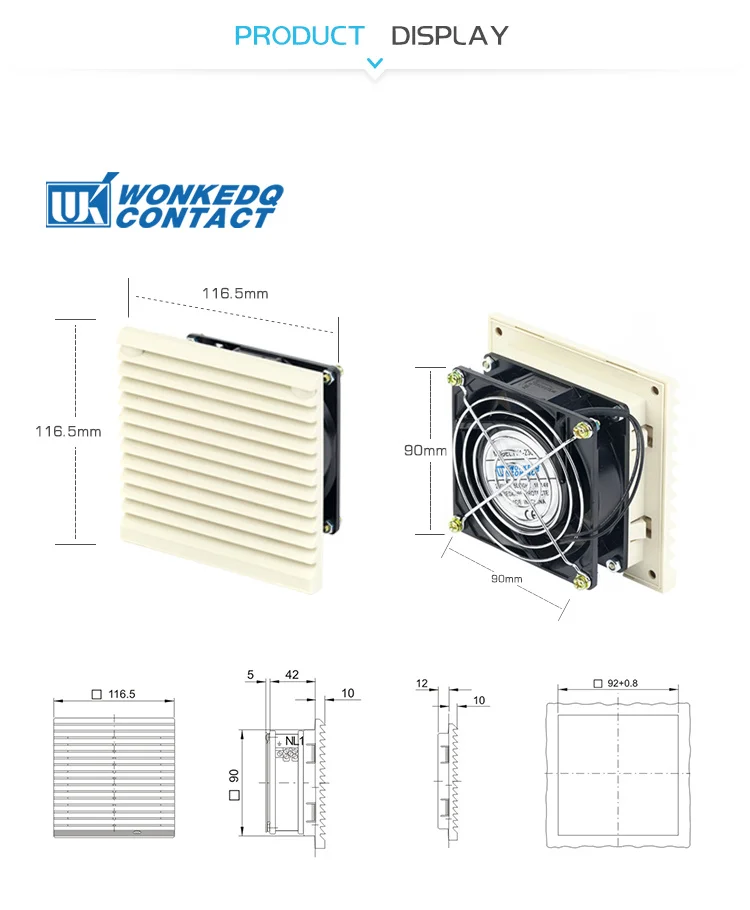

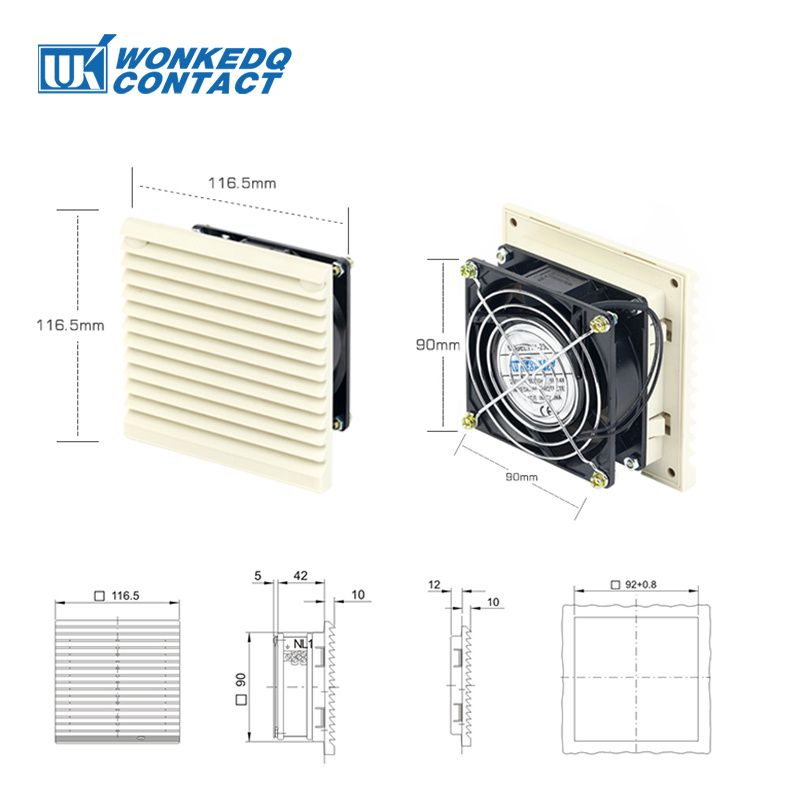

Surface dimension (mm) | 116.5x116.5 |
Installation hole size (mm) | 92x92 |
Voltage/Current | 230V/80mA |
Input Power Rating | 16W |
Temperature range | -10°C~+55°C |
Packing detail: 3321-300 (Filter unit) | 0.069kgs/pc |
Packing detail: 3321-230 (Fitler with Fan) | 0.340kgs/pc |
Certificate | CE, RoHS, CQC |

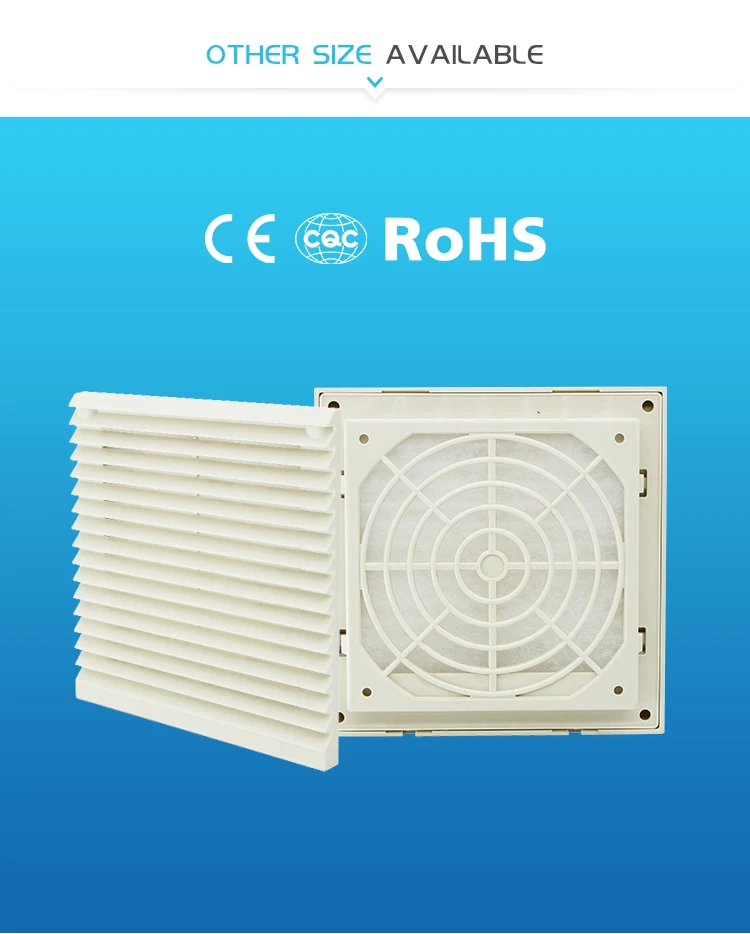

Other size available
Filter UnitItem No. | Installation hole size(mm) | Distance between hole (mm) | Overall size L/H/W(mm) | Matched Fan size(mm) |
3321-300 | 92x92 | 102x102 | 116.5x116.5 | 92x92x25 |
3322-300 | 124x124 | 132x132 | 148.5x148.5 | 120x120x38 |
3323-300 | 177x177 | 185x185 | 204x204 | 120x120x38 |
3325-300 | 224x224 | 234x234 | 255x255 | 172x150x51 |
3326-300 | 290x290 | 300x300 | 320x320 | 225x225x80 |
