3323-230 Electrical Cabinet Ventilation Set Shutter Fan Grille Louver Blower Exhaust Cooling 230V 120mm Industrial Fan Filter

$20.43

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

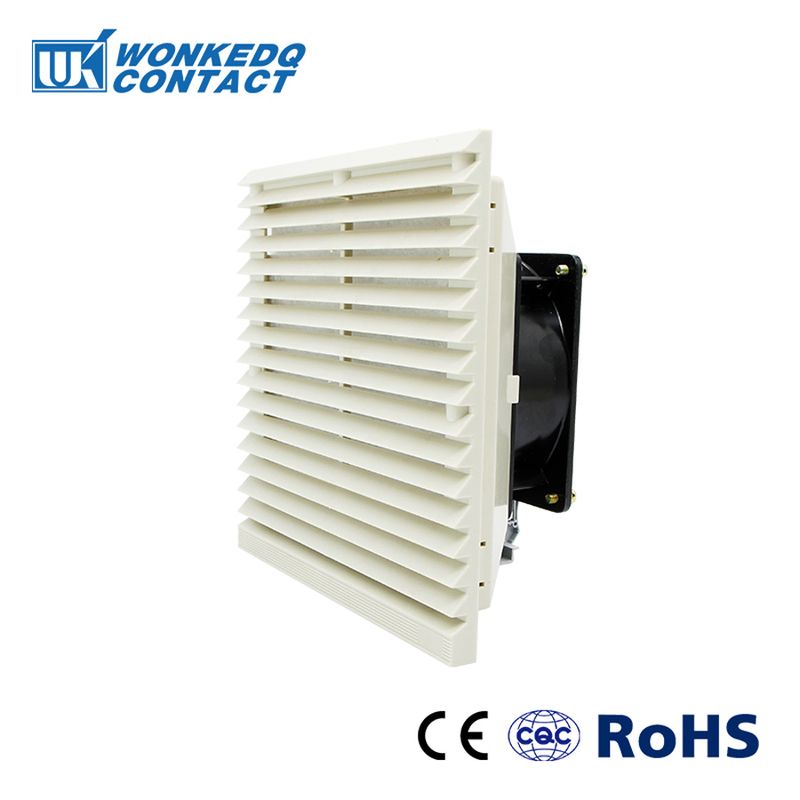

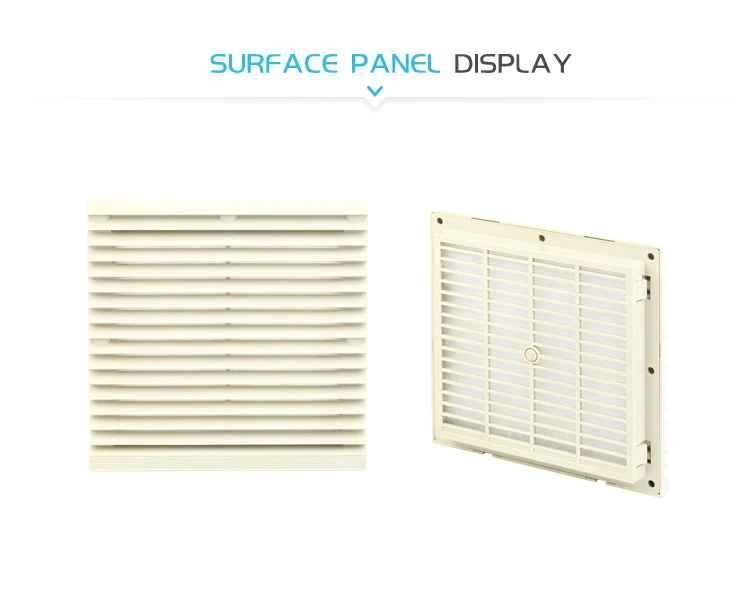

3323-230 Ventilation Air Filter Fan For Cabinet



DESCRIPTION

Filter fans provide an optimum climate in enclosures with electrical/electronic components.  The interior temperature of enclosures is reduced by channeling cooler filtered outside air into the enclosure, thus expelling heated internal air.

Dust can be a electrical system's worst enemy as it has the potential to lower cooling performance or cause damage when left overly accumulated. We provide filters in the unit,these filters provide maximum airflow with effective filtering the dust. The units can be mounted directly to the fan or to a panel.

◆ Frame material is made from engineering plastic ABS.

◆ Filter pad is made from non-woven fiber, easy and safe replacement of filters during operation without any danger.

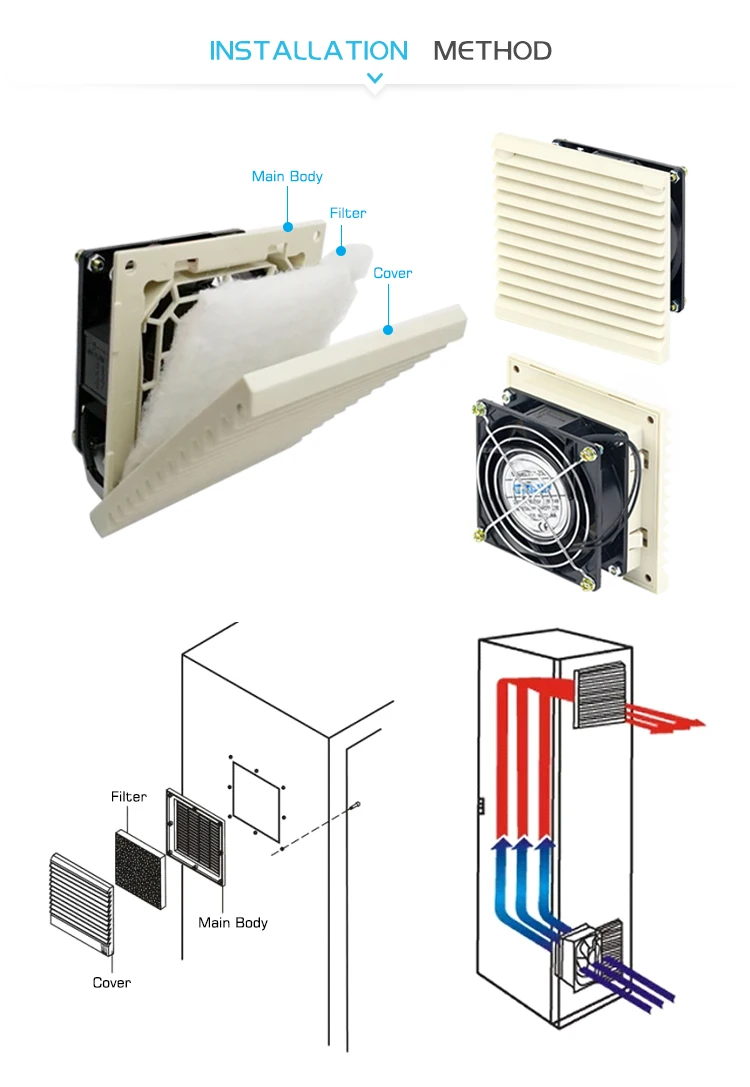

◆ Click-fit design quickly installs into enclosure wall

◆ Its easy to change the filter pad by using the groove handle on shutter.

◆ Other dimension can be customized.



TECHNICAL PARAMETERS

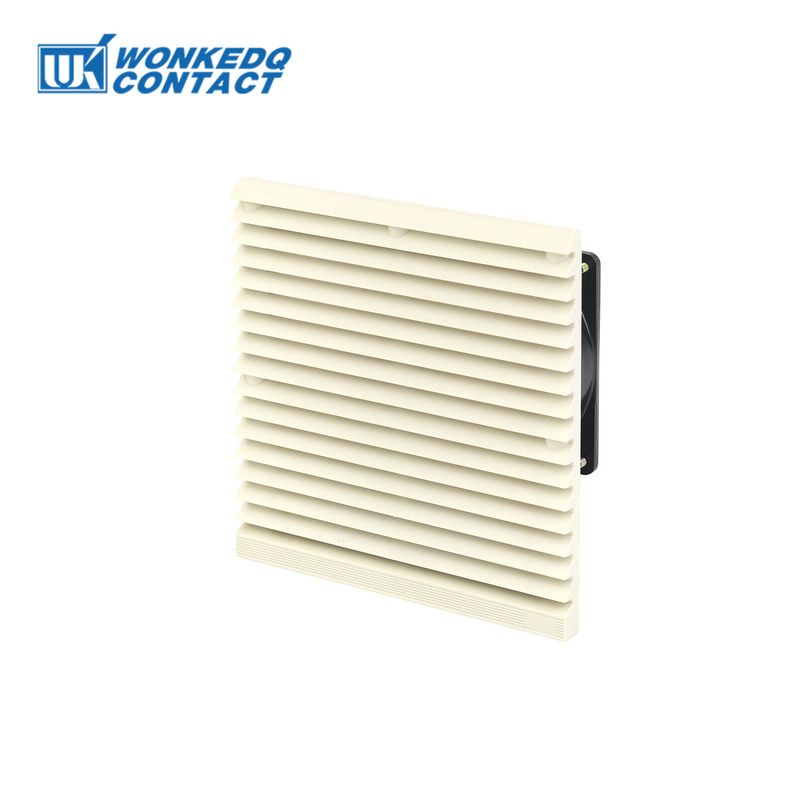

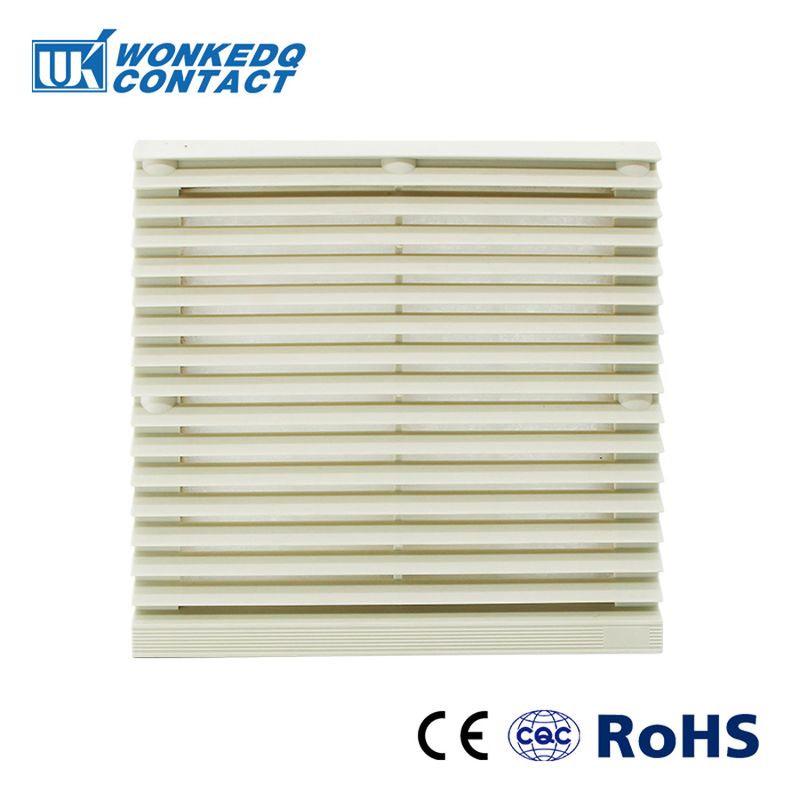

Filter unit Part No.

3323-300

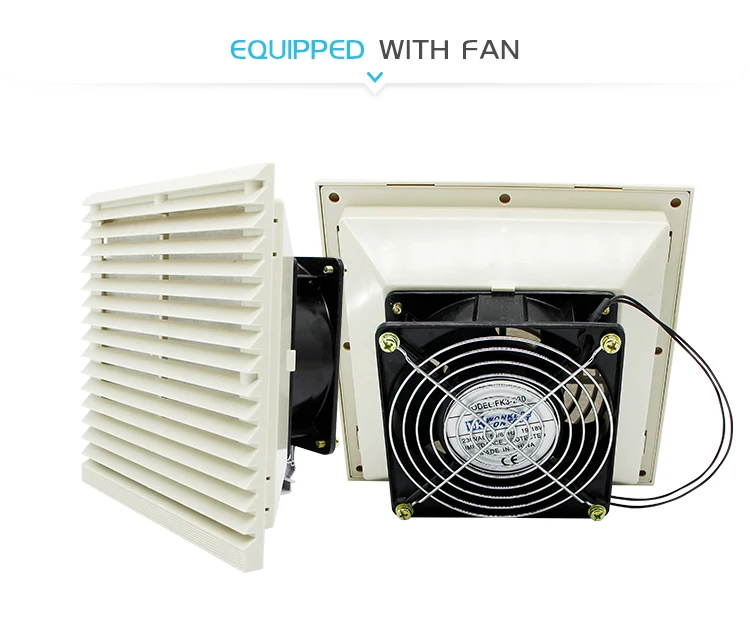

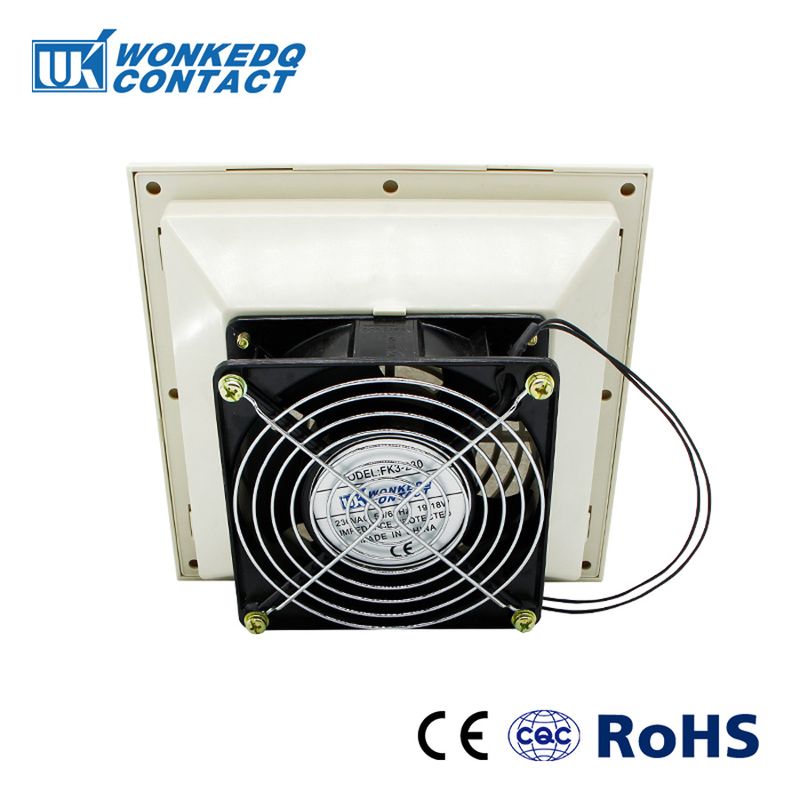

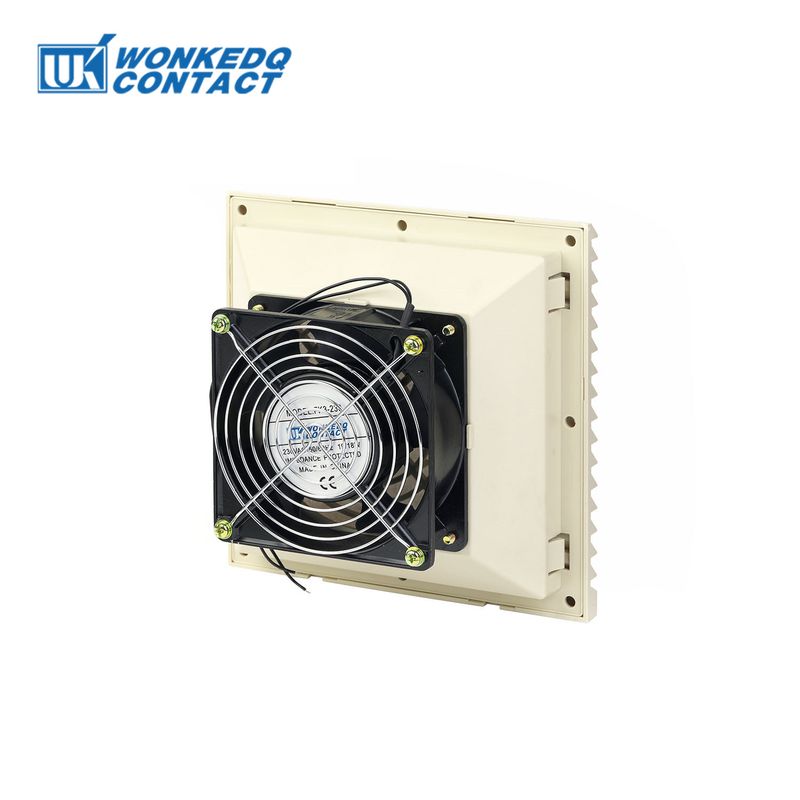

Fan with filter unit Part No.

3323-230

Unimpeded air flow

105m³/h

Noise level

46dB

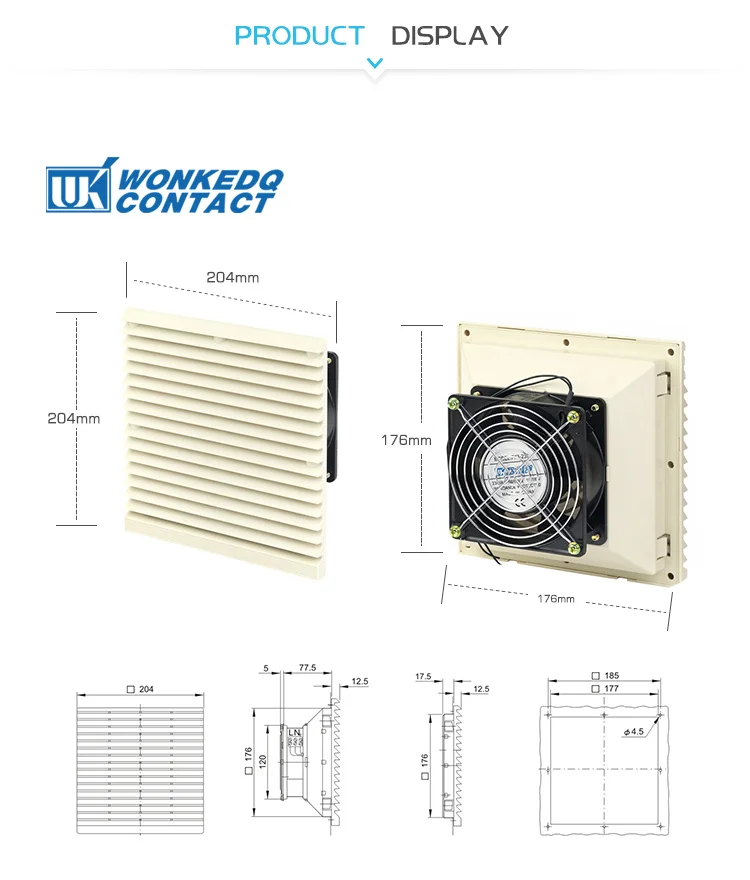

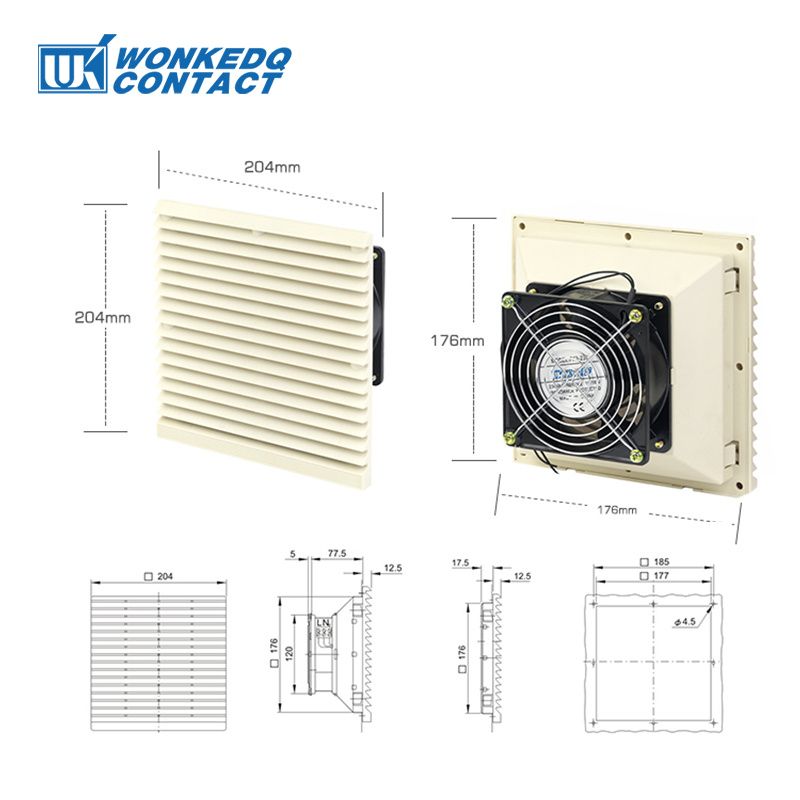

Surface dimension (mm)

204x204

Installation hole size (mm)

177x177

Voltage/Current

230V/120mA

Input Power Rating

19W

Temperature range

-10°C~+55°C

Packing detail: 3323-300 (Filter unit)

0.207kgs/pc

Packing detail: 3323-230 (Fitler with Fan)

0.635kgs/pc

Certificate

CE, RoHS, CQC


Other size available:

Filter Unit

Item No.

Installation hole size

(mm)

Distance between hole (mm)

Overall size

L/H/W(mm)

Matched Fan size(mm)

3321-300

92x92

102x102

116.5x116.5

92x92x25

3322-300

124x124

132x132

148.5x148.5

120x120x38

3323-300

177x177

185x185

204x204

120x120x38

3325-300

224x224

234x234

255x255

172x150x51

3326-300

290x290

300x300

320x320

225x225x80
