4*18650 Battery Uninterruptible Power Supply DC 5V 9V 12V UPS Backup Battery Monitoring Router Mobile Power Bank AC 85-265V

4*18650 Battery Uninterruptible Power Supply DC 5V 9V 12V UPS Backup Battery Monitoring Router Mobile Power Bank AC 85-265V

Feature:

This uninterruptible power supply (UPS) with a cycle life of ≥ 500 times. It balances portability and battery life, providing stable and reliable emergency power supply for various electronic devices.
1. Large capacity adaptation, precise matching of requirements
The 4*18650 Battery version features lightweight and portable design, with a lightweight and easy to store body, suitable for personal emergency use and short battery life of small electronic devices; which can meet the needs of multiple devices supplying power simultaneously or high-power devices for long-term emergency use, catering to the needs of multiple scenarios such as home, office, and outdoor.

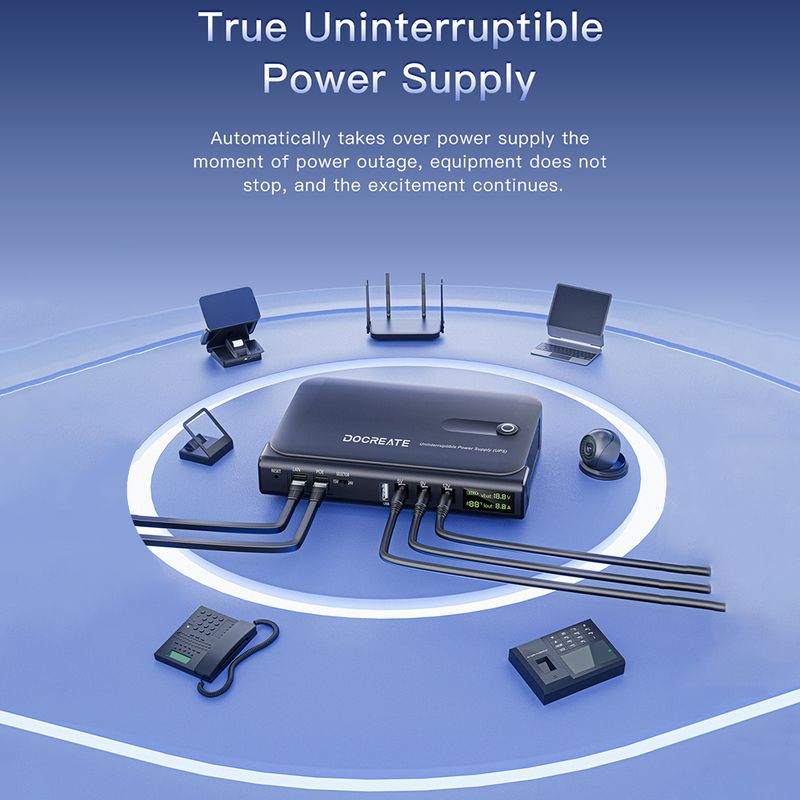

2. Uninterrupted power supply to safeguard critical data and work
The core advantage lies in "zero interruption switching". When the mains power is suddenly interrupted, the equipment can automatically switch to battery power mode within 10ms, avoiding data loss and hardware damage caused by sudden power outages of computers, servers, and other devices; After the mains power is restored, it automatically switches back to mains power supply and charges the built-in battery without manual intervention throughout the process.

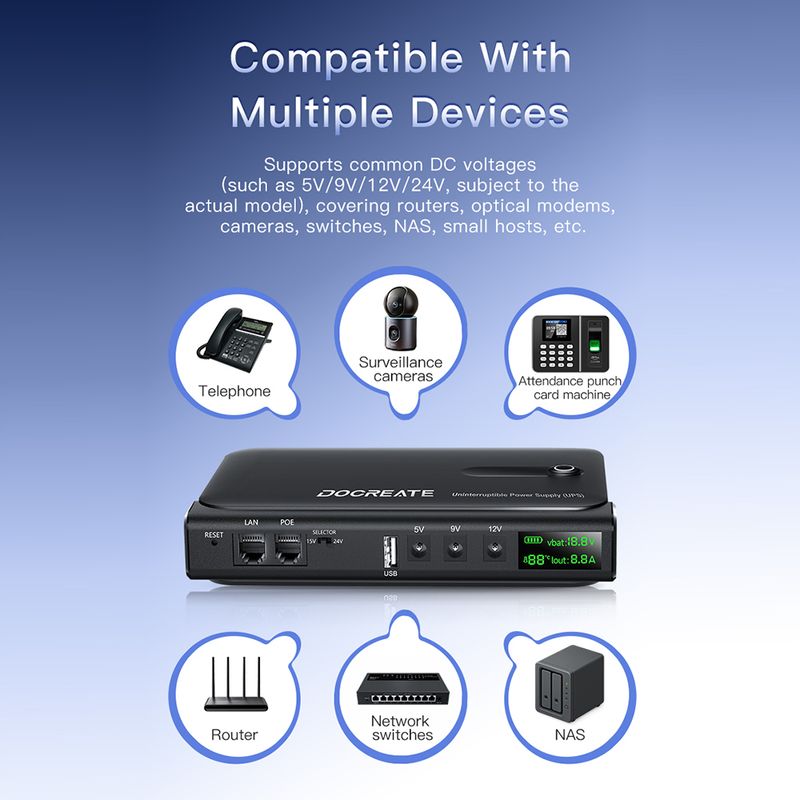

3. Multi interface compatibility, full device coverage
Equipped with multiple interfaces such as USB-A (5V/2.1A), USB-C (5V/3A, 9V/2A, 12V/1.5A), DC (5V/9V/12V/5A), LAN(15/24V-1A),POE(15/24V-1A)etc., it supports power supply for various electronic devices such as laptops, desktops, routers, surveillance cameras, printers, mobile phones, tablets, projectors, etc. One device can solve the emergency power supply needs of multiple devices.
4. Intelligent security protection, worry free use
Built in intelligent security chip, integrating six core protection functions including overcharge protection, over discharge protection, over-current protection, short circuit protection, over temperature protection, and surge protection. It can monitor the power supply status in real time and immediately cut off the power supply when abnormal situations occur, effectively protecting equipment and user safety; Simultaneously equipped with intelligent sleep function, it automatically enters sleep mode when there is no load for a long time, reducing power consumption and extending battery life.
5. Fast charging compatibility, efficient energy replenishment
Supports bidirectional fast charging technology, USB fast charging input interface, can fully charge the battery in just 3 hours, and can quickly charge devices such as smartphones and laptops that support fast charging, improving energy replenishment efficiency.

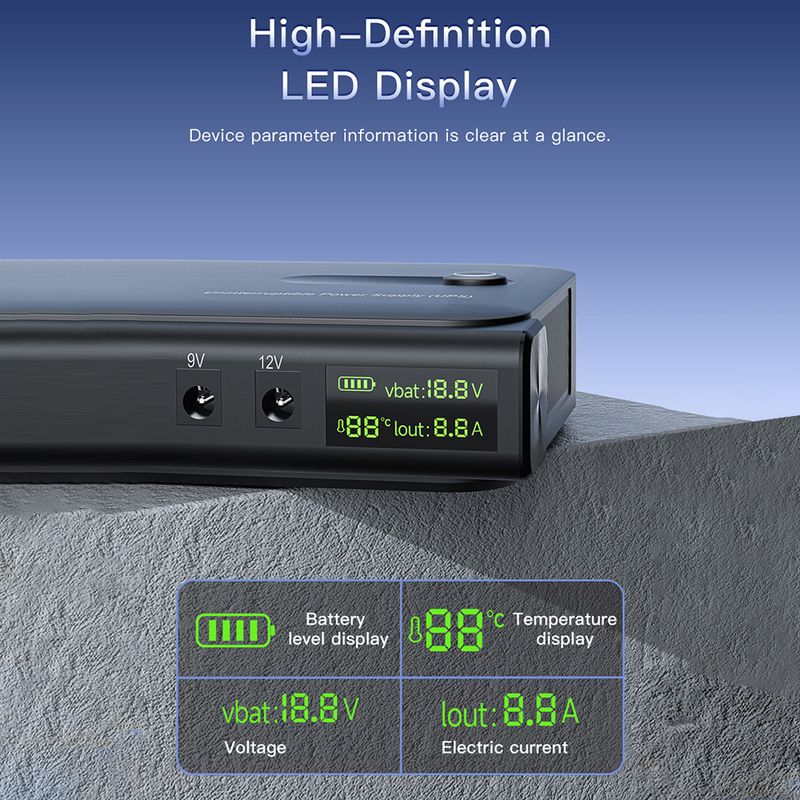

6. Clear status display, real-time control of battery level
The device is equipped with an LED digital display screen, which can clearly display information such as remaining battery level, power supply mode (mains/battery), charging status, fault prompts, etc. Users can control the device's working status in real time and make power supply plans in advance.

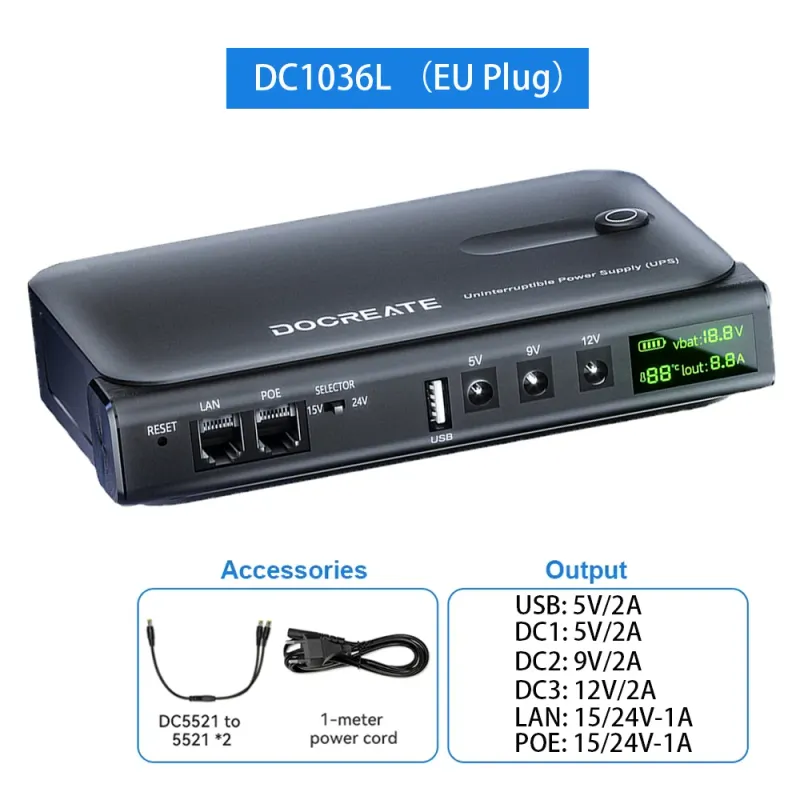

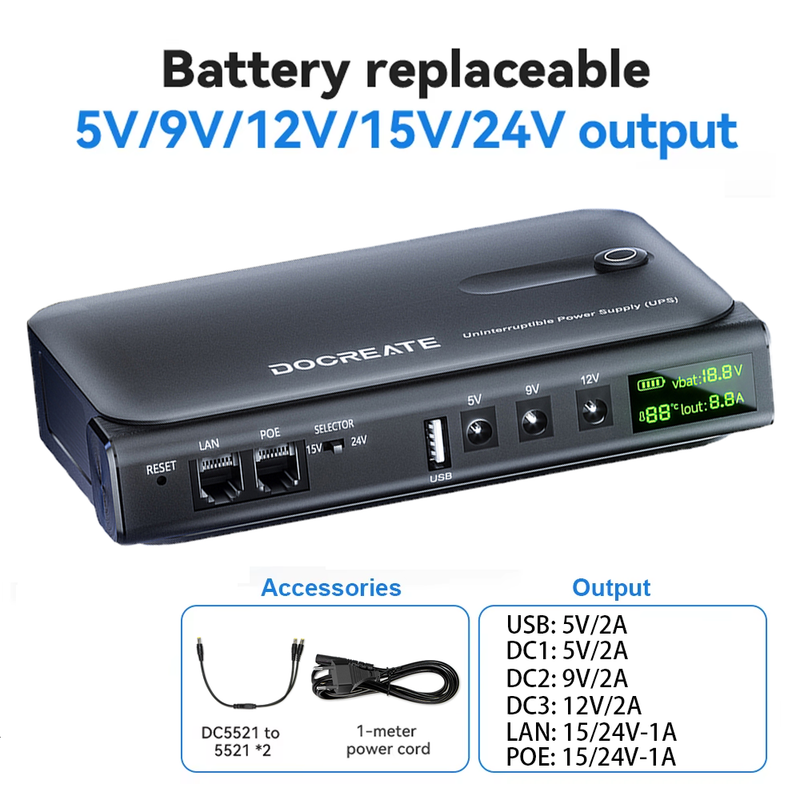

DC1036L UPS Uninterruptible Power Supply

Product Parameters:
Product Name: Digital UPS Uninterruptible Power Supply
Input: AC85-265V
Output current: 16.4V/DC 2.5A
Battery model: 18650
Battery capacity:>2000mAh * 4
Frequency: 50-60Hz
Total output power: 36W
Output specifications:
USB 5V/2A
DC 5V/2A
DC 9V/2A
DC 12V/2A
LAN 15/24V-1A
POE 15/24V-1A
Working temperature: 0 ℃~45 ℃
Humidity: 10% -90% RH
Power supply: Flat 18650 batteries * 4 (not included in shipment)

Packing List:
UPS uninterruptible power supply * 1
Power cord * 1
One to two line * 1
One to one line * 1
Screwdriver * 1
Chinese and English instruction manual * 1

DC1018L UPS Uninterruptible Power Supply

Product Parameters:
Input: AC85-265V
Frequency: 50-60Hz
output:
USB 5V/2A
DC 5V/2A
DC 9V/1A
DC 5V2A
DC 12V/1A
POE 15V/0.6A
POE 24V/0.6A
Output power (maximum): 18W
Working temperature: 0 ℃~45 ℃
Humidity: 10% -90% RH
Power supply: Flat 18650 batteries * 4 (not included in shipment)
Notes:

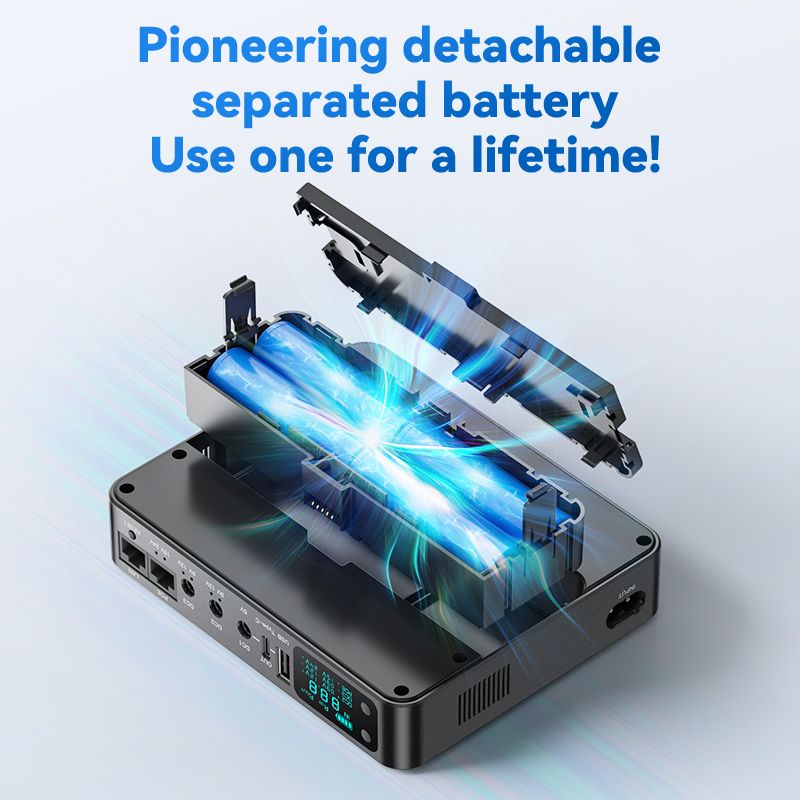

1. Use 18650 lithium battery and install in the indicated direction
2. The discharge rate of the battery used is 2C/3C
3. During installation, ensure that the voltage of the four batteries is consistent (with an error of less than 0.05V)

Packing List:
UPS uninterruptible power supply * 1
Power cord * 1
One to two line * 1
One to one line * 1
Screwdriver * 1

Full scenario application guide

1. Home emergency scenarios
Adaptation scenarios: sudden power outages, unstable voltage, and other situations. The 10400mAh version can meet the continuous power supply needs of home routers and optical modem for 6-8 hours, ensuring uninterrupted network connection and meeting the demands of online classes, online office work, and drama watching; The 18000mAh version can provide an additional 3-5 hours of power supply for laptops and 1-2 hours of emergency power supply for desktop computers, avoiding data loss. It can also charge devices such as phones and tablets, solving communication and entertainment needs during power outages. In addition, it can also provide power for devices such as surveillance cameras and smart door locks, ensuring home safety.
2. Office and business scenarios
Adaptation scenarios: office power outages, business meetings, outdoor work, etc. For enterprise office computers and servers, emergency power supply can be provided during power outages to buy time for data backup and normal system shutdown; In business meetings, power can be supplied to projectors, laptops, speakers, and other equipment to avoid interruptions in the meeting; In outdoor office environments (such as temporary work on construction sites or exhibition sites) without mains power, the 18000mAh version can provide power to office equipment for a long time, ensuring smooth progress of work.
3. Network communication security scenarios
Adaptation scenarios: 24-hour power supply requirements for routers, optical cats, and monitoring devices. For places such as internet cafes, convenience stores, and community monitoring centers that require high network and monitoring continuity, this UPS can be used as a backup power source to ensure the continuous operation of routers, optical cats, and monitoring cameras, avoiding network interruptions and monitoring failures caused by power outages, and ensuring that business and security management are not affected. The 10400mAh version can support 8-10 hours of router+optical modem power supply, while the 18000mAh version can support 12-15 hours.
4. Outdoor travel scenes
Adaptation scenarios: outdoor camping, self driving tours, outdoor live streaming, fieldwork, etc. The 10400mAh version is highly portable and can be placed in a backpack to charge devices such as mobile phones, cameras, and drones, solving the problem of charging outdoor non mains electricity; The 18000mAh version can be used as an outdoor small power station to supply power to laptops, projectors, outdoor lighting and other equipment, meeting various needs such as outdoor office, entertainment, and homework.
5. Medical/Security Emergency Scenarios
Adaptation scenarios: small medical equipment (such as blood glucose meters, small oxygen concentrators), security alarm devices, etc. This type of equipment has extremely high requirements for power supply stability. This UPS can immediately connect power supply in the event of a power outage, ensuring the normal operation of medical equipment and preventing security equipment from malfunctioning, providing dual protection for life safety and property safety.

Frequently Asked Questions (QA)

Q1: Can multiple devices be powered simultaneously? What is the maximum supported power?
A1: Supports powering multiple devices simultaneously, with a maximum supported power of 100W (18000mAh version) and 60W (10400mAh version). When using, it should be noted that the total power consumption of multiple devices should not exceed the maximum output power of the UPS, otherwise overcurrent protection will be triggered and the power supply will be automatically cut off. It is recommended to calculate the total power consumption of the equipment in advance to avoid overloading.
Q2: How long is the lifespan of the battery? How to extend battery life?
A2: The battery has a cycle life of ≥ 500 times (cycle life refers to the process of the battery from full charge to discharge to below 20%, and then fully charged), and can be used for 2-3 years under normal use. Methods to extend battery life: ① Avoid overcharging and discharging, and maintain battery power at 40% -60% when not in use for a long time; ② Avoid using and storing in high temperature (>40 ℃) or low temperature (<0 ℃) environments; ③ Regularly charge and discharge the battery (recommended every 3 months) to activate its activity; ④ Use the original charger for charging and avoid using inferior chargers.
Q3: Will there be a momentary power outage when switching to battery power supply when the mains power is interrupted?
A3: No. This UPS adopts online switching technology, with a switching time of ≤ 10ms, far below the power outage sensitivity threshold of electronic devices (the power outage time allowed for general devices is ≥ 20ms). Computers, servers, routers and other devices will not restart or shut down, ensuring that data is not lost and work is not interrupted.
Q4: Can this UPS provide power to desktop computers? How long can it last?
A4: It can provide power to desktop computers, and the specific battery life depends on the power consumption of the desktop computer. The power consumption of a regular desktop computer (CPU+motherboard+hard drive+monitor) is about 150-200W. The theoretical battery life of the 18000mAh version (rated capacity 10800mAh, voltage 12V) is about (10800mAh × 12V) ÷ 200W=0.648 hours (about 39 minutes), which can meet the normal shutdown and data backup needs of the desktop computer; If it is a low-power desktop computer (power consumption<100W), the battery life can be extended to 1-2 hours.
Q5: If the fault warning light comes on during use, how should I handle it?
A5: When the fault indicator light is on, it usually indicates that the UPS has overcurrent, overheating, short circuit, or battery abnormality. At this time, the equipment will automatically cut off the power supply. Solution: ① Immediately disconnect all connected devices and turn off the UPS power switch; ② Check whether the equipment has overload, short circuit (such as interface water ingress, line damage) and other problems, and eliminate faults; ③ After waiting for the UPS to cool down (if it is an overheating fault), turn on the power again and connect 1-2 low-power devices (such as mobile phones) for testing; ④ If the problem persists, do not disassemble it yourself and contact the brand's after-sales service for maintenance.
Does this UPS need to be plugged in continuously for use?
A6: It is recommended to use it with a power source plugged in for a long time. When plugged in for a long time, UPS will be in a state of "mains power supply+battery float charging", which can provide stable power to the equipment and keep the battery fully charged, responding to mains power interruptions at any time. The built-in intelligent charging management system will automatically switch to float charging mode after the battery is fully charged, avoiding overcharging and not damaging the battery. If not used for a long time, it is recommended to disconnect the power supply, maintain the battery level at 40% -60%, and regularly recharge.
