4.3-Inch Touchscreen HMI AMT043 Series for Industrial PLC Control ARM9 CPU 16M RS232/RS485 DC9–30V

$53.70

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

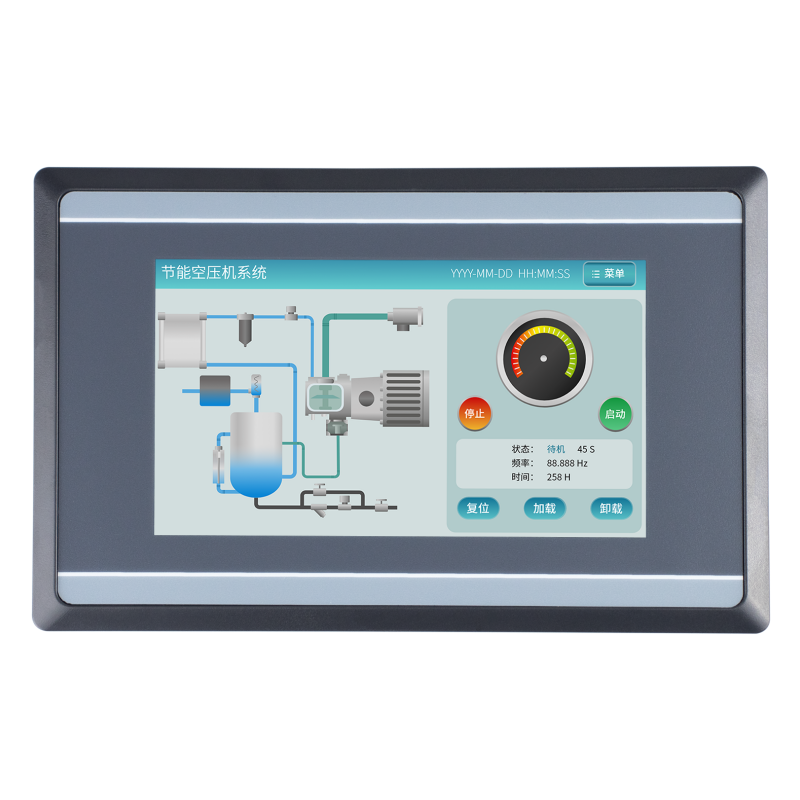

4.3-Inch Industrial Touchscreen HMI Panel – AMT043 Series

The AMT043 series is a compact 4.3-inch touchscreen HMI terminal designed for PLC-based automation systems. With a high-performance ARM9 CPU, RS232/RS485 communication, and robust industrial-grade design, it’s the perfect interface for control cabinets and embedded system integration.

Key Features

  • Display: 4.3-inch TFT LCD with 480x272 resolution and 260K colors

  • Brightness: 250 cd/m² with LED backlight and brightness adjustment

  • Touch Technology: 4-wire resistive industrial touchscreen, 4H hardness

  • Processor: 600MHz ARM9 with 8MB DDR2 RAM

  • Storage: 16MB SPI NOR Flash

  • Backlight Lifetime: 20,000 hours

  • Communication: RS232 or RS485 serial port (1 channel)

  • Download Interface: SD card supported

  • Power Supply: DC9–30V with ±250V surge protection

  • Protection Rating: Front panel IP65 (with panel installation), rear housing IP20

  • Mounting: Standard panel cutout and terminal block wiring

Applications

  • Embedded industrial automation systems

  • Compact PLC control panels

  • Machine interface solutions

  • Equipment monitoring terminals

Why Choose This Product

  • Compact & Lightweight: Ideal for space-limited applications (only 200g)

  • Wide Voltage Input: Supports DC9–30V with high surge protection

  • Stable Performance: ARM9 CPU and SPI NOR Flash for fast, reliable operation

  • Environmental Adaptability: Operates from -10°C to 50°C and stores at -30°C to 70°C

  • Easy Integration: SD card program download and terminal port communication

Technical Specifications

  • Model Options:

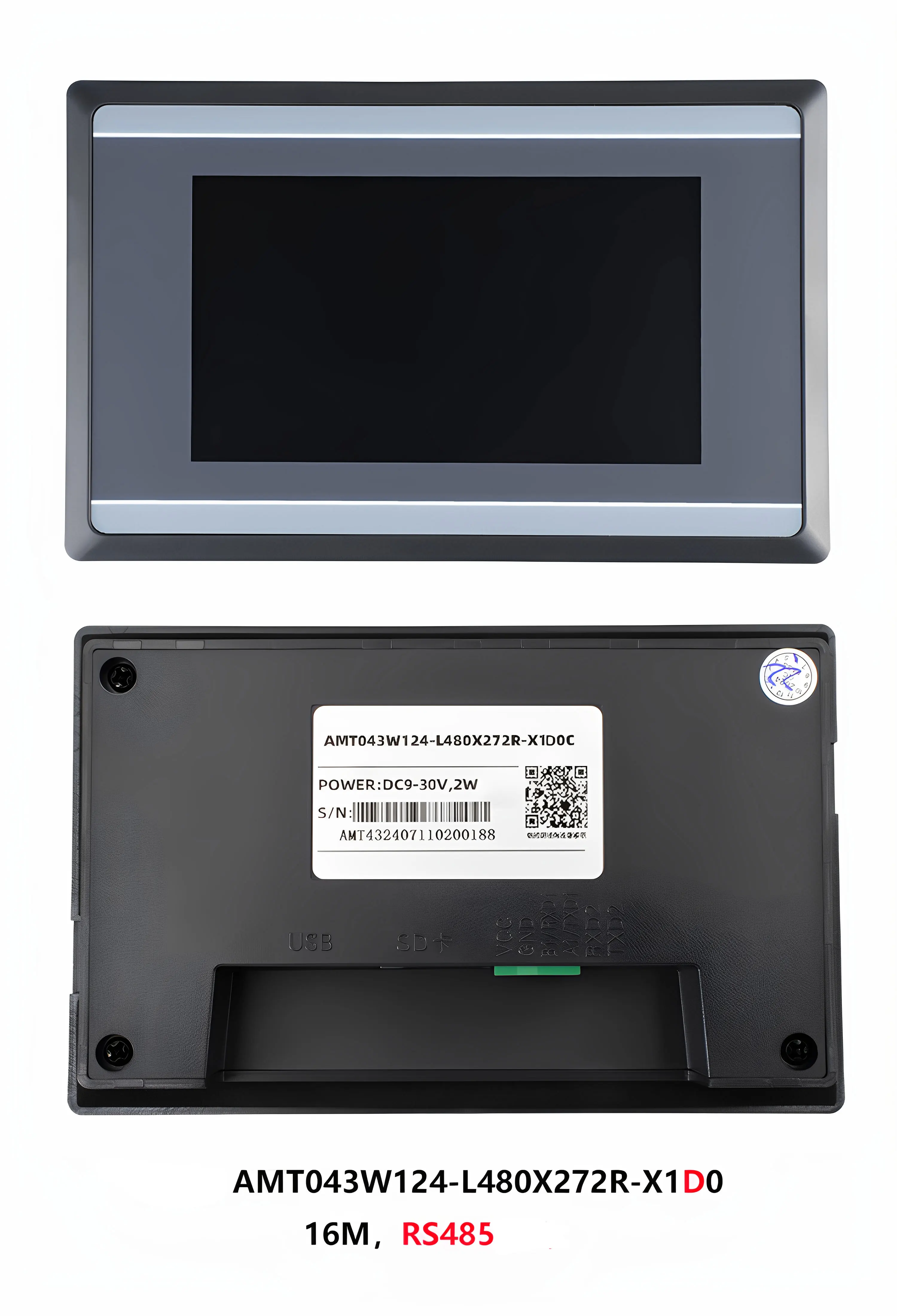

    • AMT043W124-L480X272R-X1D0C (16MB, RS485)

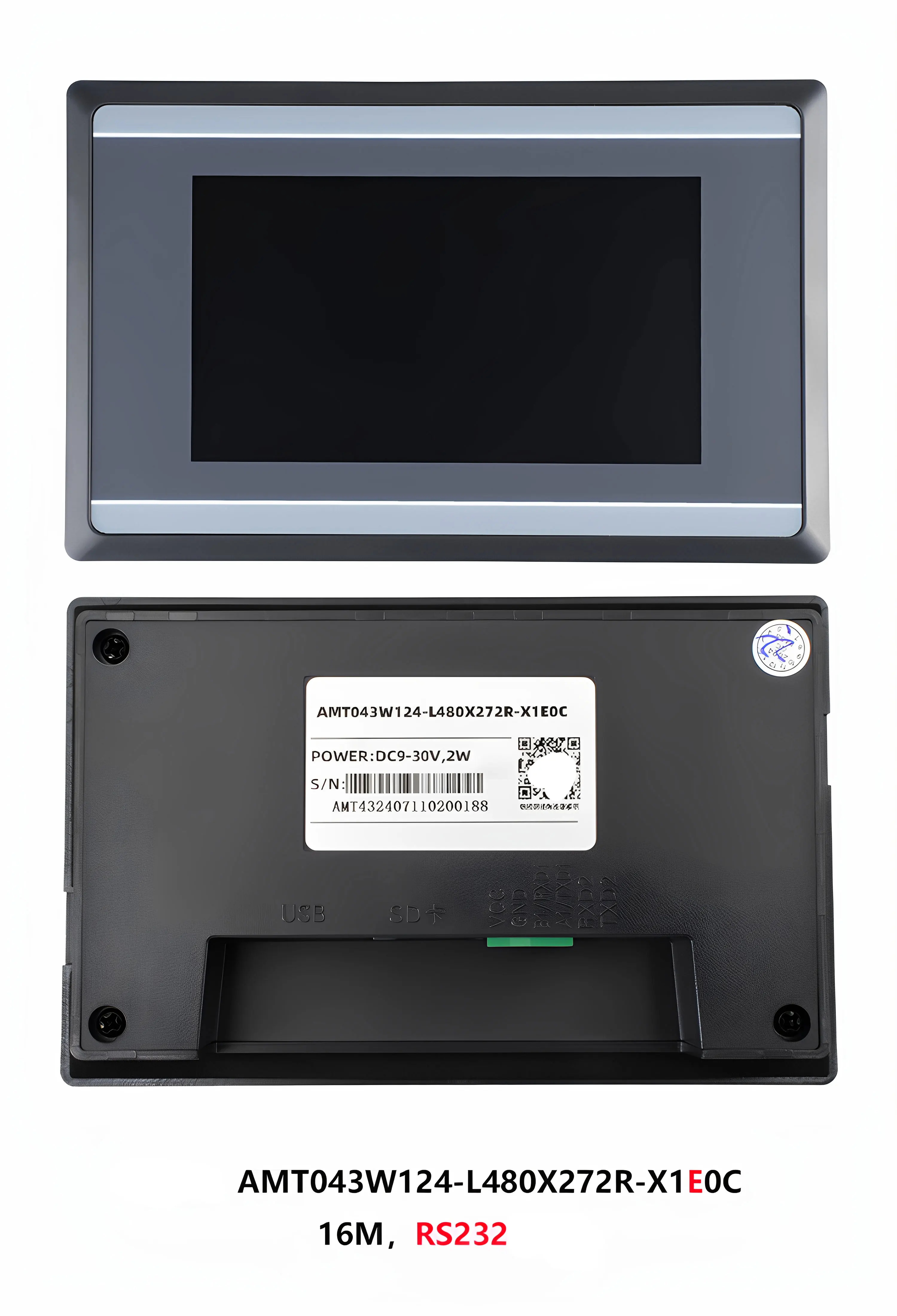

    • AMT043W124-L480X272R-X1E0C (16MB, RS232)

  • Power Consumption: Max 2W

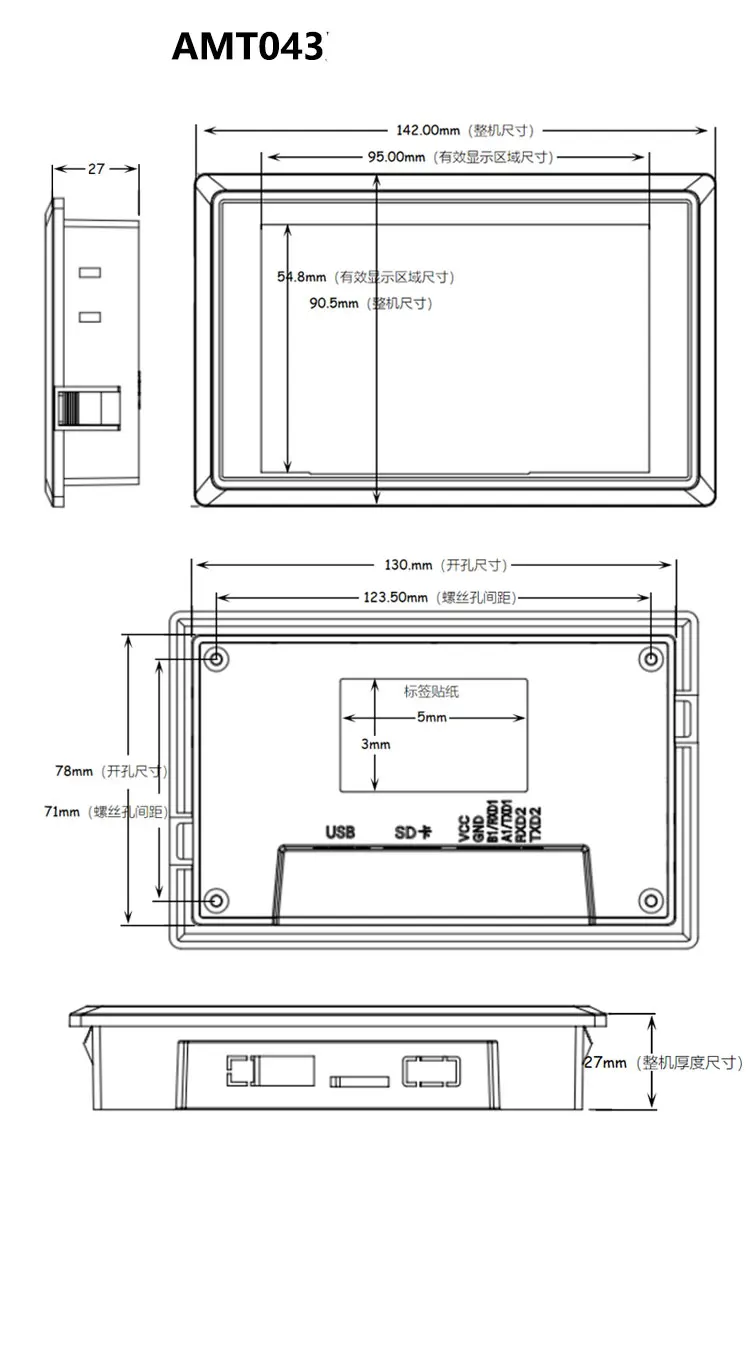

  • Cutout Dimensions: 130 × 78 mm

  • Outer Dimensions: 142 × 90.5 × 27 mm

  • Compliance: CE & ROHS, EN61000-6 standards

  • Cooling: Passive natural cooling

  • Weight: 200g

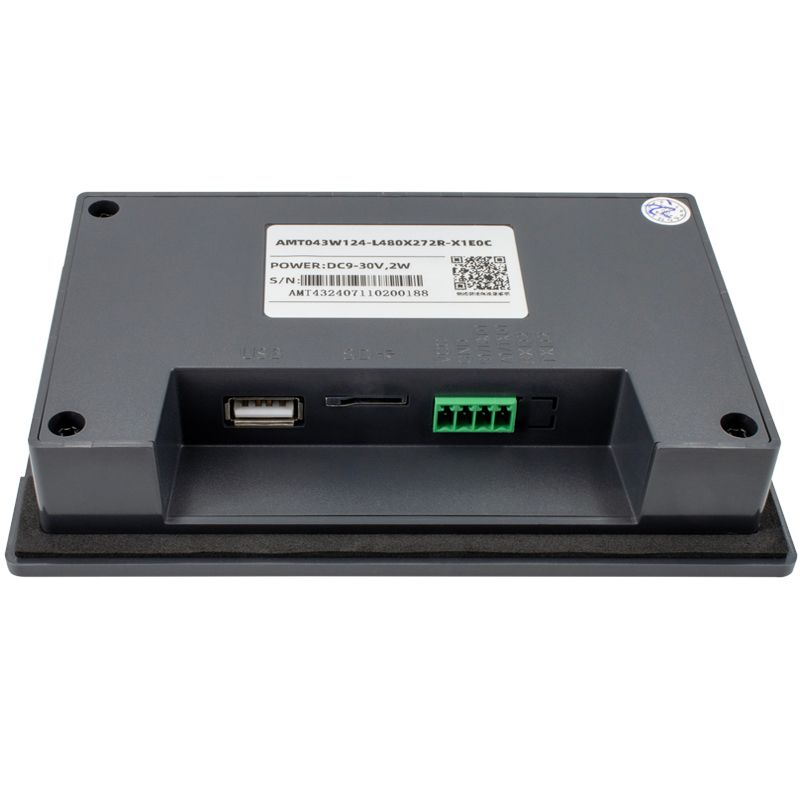

AMT043 Series Power and Communication Interface Pin Definition

Model

AMT043W124-L480X272R-X1D0C (16M, 485 Communication)

AMT043W124-L480X272R-X1E0C (16M, 232 Communication)

VOC (Power +)

DC9–30V Power Input (Positive Pole)

DC9–30V Power Input (Positive Pole)

GND (Power -)

DC9–30V Power Ground (Negative Pole)

DC9–30V Power Ground (Negative Pole)

B1 / RXD1

COM1: 485B, connect to controller’s 485B

COM1: RXD, connect to controller’s TXD

A1 / TXD1

COM1: 485A, connect to controller’s 485A

COM1: TXD, connect to controller’s RXD

AMT043 Series Product Technical Specifications

Item

Specification

Model

AMT043W124-L480X272R-X1D0C (16M, 485 Communication)
AMT043W124-L480X272R-X1E0C (16M, 232 Communication)

Operating System

UCOS

Display

4.3" TFT LCD

Resolution

480×272 pixels

Color Depth

262K colors

Brightness

250 cd/m²

Backlight

LED (supports brightness adjustment)

LED Lifespan

20,000 hours

Touch Panel

4-wire resistive industrial touch panel (surface hardness: 4H)

CPU

600MHz ARM9 with 8MB DDR2 memory

Storage

16Mbyte SPI NOR Flash

RTC (Real-Time Clock)

Supported

Buzzer

Supported

Data Retention on Power Loss

Not supported

USB Port

Not available

Program Download Methods

SD card

Communication Interface

1× serial port, supports RS232 or RS485

Power Consumption

Max 2W

Operating Voltage

DC9–30V

Power Protection

With ±250V surge protection capability

Permissible Power Interruption

<5ms

CE & ROHS Compliance

Complies with EN61000-6-2:2005, EN61000-6-4:2007
Surge: ±250V, Burst: ±2KV
ESD Contact: ±4KV, ESD Air: ±8KV

Operating Temperature

-10°C to 50°C

Storage Temperature

-30°C to 70°C

Humidity

10–90% RH (non-condensing)

Vibration Resistance

10–25Hz (X, Y, Z directions, 2g/30 minutes)

Cooling Method

Natural cooling

Protection Rating

Front panel: IP65 (with flat installation)
Rear case: IP20

Overall Dimensions

142 × 90.5 × 27 mm

Panel Cut-out Dimensions

130 × 78 mm

Net Weight

200g
