4W 5W 10W Laser Head 450nm Blue Light TTL Module with Metal Hood for CNC Laser Engraving Cutting Machine Woodworking Tools

$154.58

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

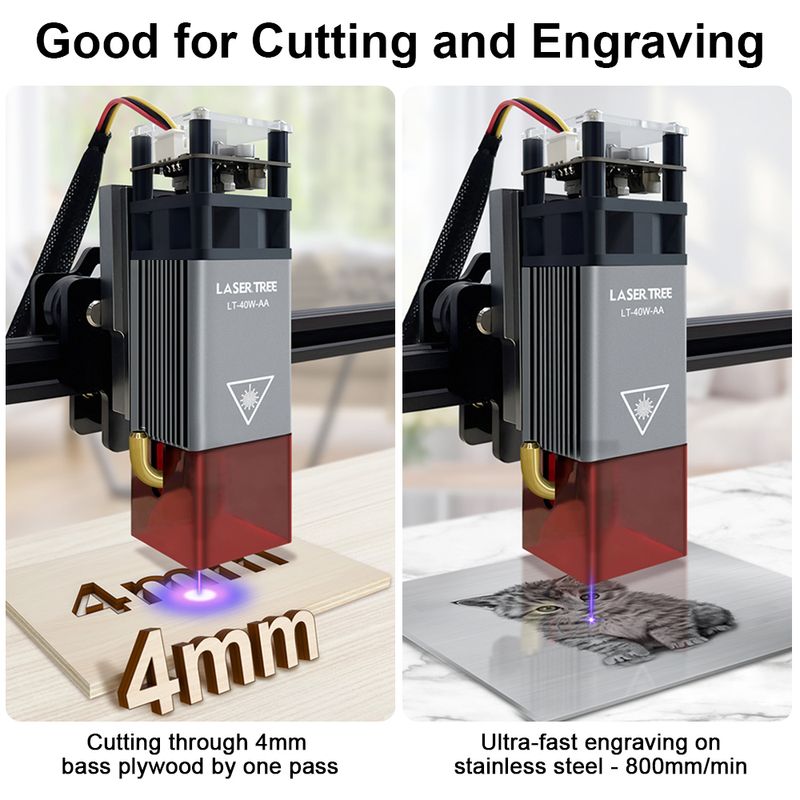

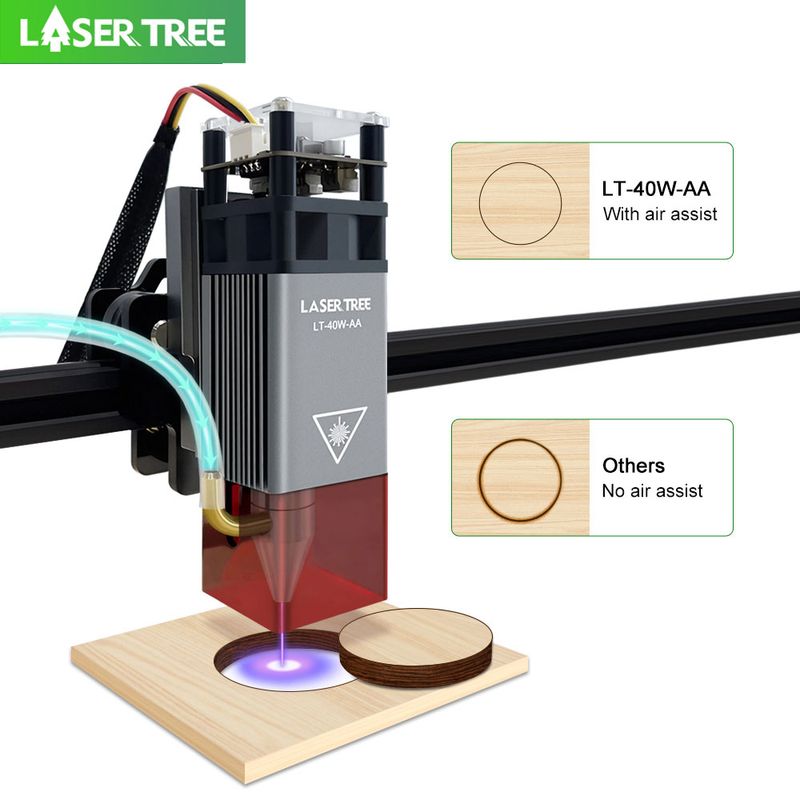

40W Laser ModulePowerful High Speed Air Assist

LT-40W-AA, as a 40W laser module with air assist, can effectively get clean-cut edges, improve cutting performance and increase the service life of lens.

Product Features:

1.Beam compression technology, 5W optical power laser module
2.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 190mm/s.
3.Very Fast Engraving Speed: 45mm focal length, engrave 304 stainless steel at speeds up to 6000mm/min.
4.Magnetic eye protective cover: Eye protection and easy disassembly.
5.Can be installed on Ato**tack, ZBAIT*, Ortu*, Two Tr**s and other models of DIY laser engraving machines.

For various 12V 3PIN laser engraving machines, plug and play. For 12V 4PIN machines, just use the driver adapter to connect.

Specification:

Output optical power: 5W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Input voltage: 12V 1.8A(1.5A-2A)
Interface: XH2.54-3PIN socket
Modulation: 0/3-12V 0-5kHz TTL/PWM (0V off, 3-12V on)
Item size: 40*40*141.4mm
Product weight: 255g

Beam Compressed Spot

More Precise with 5W Compressed Spot

Professional Air Assist

Air tube outer diameter: 8 mm;  inner diameter: 6 mm

Powerful High Speed Air Assist

Get clean-cut edges and improve lens life and module cutting performance

Reference Settings for Cutting

For cutting, the ideal position of the focal point is in the middle of the material, the focal length of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm(45-38mm) below the air nozzle.

Cut 4mm plywood, the distance from the air nozzle to the surface of the material should be 7mm-4mm/2=5mm.

Reference Settings for Engraving

For engraving, the focal point is at the surface of the material, the focal length of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm(45-38mm) below the air nozzle.
Put a 7mm thick focus fixing plate between the nozzle and the board for the best engraving point.

Widely Compatible Design

Can be installed on Ato**tack, ZBAIT*, Ortu*, Two Tr**s and other models of DIY laser engraving machines

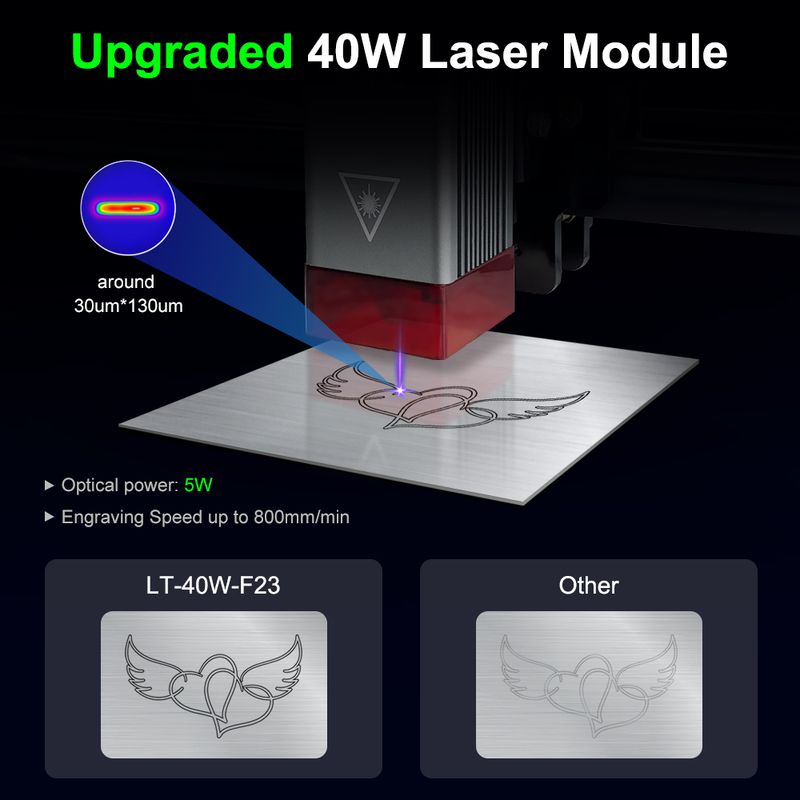

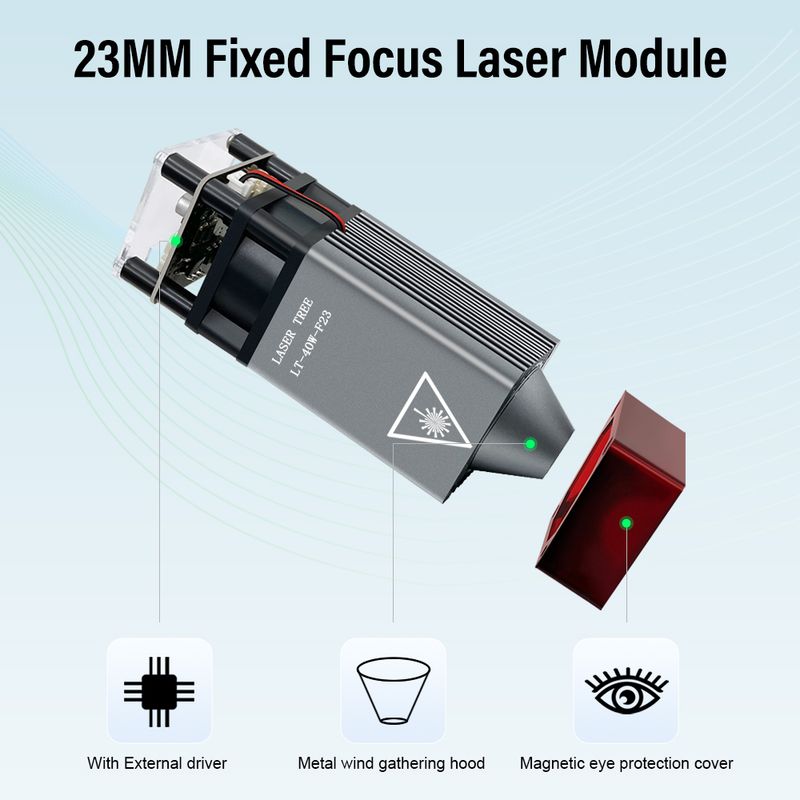

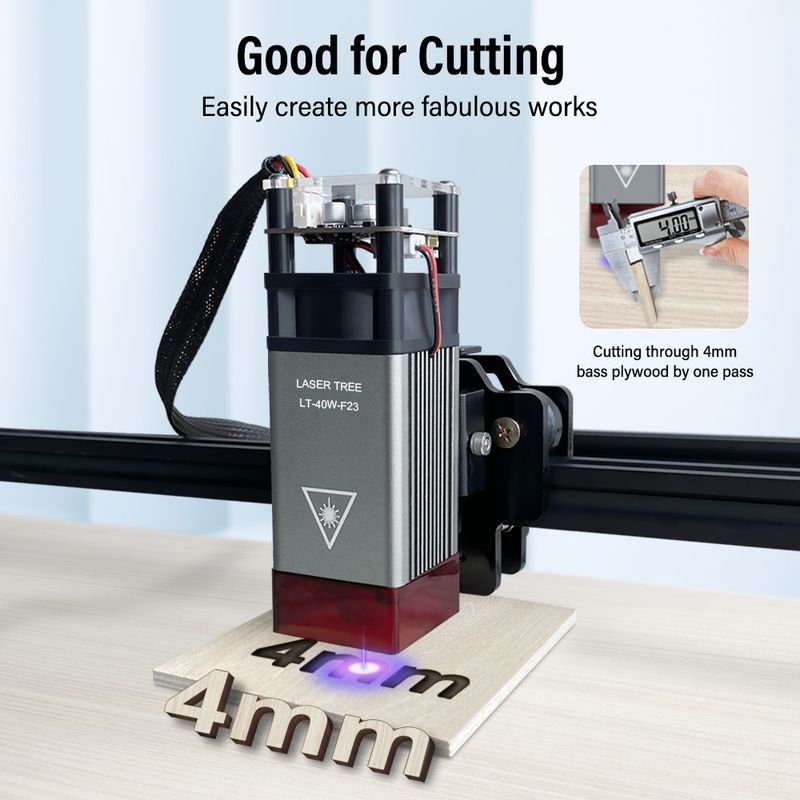

40W Fixed Focus 23mm Laser Engraving Head

Product Description
Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine


Product Features:
1.Engraving Mirror Stainless Steel, no need to Paint Black.

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.

4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.

5.Metal cutting air outlet: Which does not generate heat and can resist flames.


Specification:
Material: Aluminum alloy

Effect Output Power: 40W

Output Optical Power: 5W

Electric Power: 12V 1.8A(1.5A-2A)

Focus Length: 23mm

Interface: XH2.54-3P socket

Power Adjustable: Support 5V PWM modulation

Function: Engraving/Cutting

Module Size: 40*40*121mm

Module Weight: 240g

Magnetic Eye Protection Cover

Watch laser engraving without wearing goggles

Beam Compressed Spot

More Precise with 5W Compressed Spot

LT-40W-A-GOLD:
