5.0MP imx335 CMOS sensor 25fps USB2.0 digital eyepiece microscope camera for Microscope Eyepiece

$220.94

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

5.0MP SONY imx335 CMOS sensor 25fps USB2.0 digital microscope camera for Microscope Eyepiece



Camera Feature

Microscope eyepiece camera with 23.2 diameter and compact size;

Easy to extend to C or CS- Mount camera with high quality lens(optional)

High-quality camera with SONY imx335 CMOS sensor;

Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;

High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;

With advanced video & image processing Software: RisingView;

Instruction

SCMOS is an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact. USB2.0 is used as the data transfer interface.

Microscope eyepiece camera with 23.2 diameter and compact size;

The SCMOS eyepiece camera comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;

Also the SCMOS comes with advanced video & image processing application RisingView;

The SCMOS can be widely used to transfer the mono or binocular student microscops to digital microscope.

With 23.2 to 30mm or 23.2 to 30.75 convert ring, the SCMOS camera can also changethe

stereo microscope to digital stereo microscope.

NOTE: This Camera only support Windows and MAC Computer, not support Linux computer



Camera Specification

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure

Dark Signal

TP505100A

5.1M/IMX335(C)

2.0x2.0

505mV

25fpsfps/2592x1944

1x1

0.1~1000ms


1/2.8"(5.18x3.89)

73dB

25fpsfps/1280x960

1x1



43dB

25fpsfps/640x480

1x1



NOTE: This Camera only support Windows and MAC Computer, not support Linux computer

OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Capture/Control API

Native C/C++, C#, Directshow, Twain, Labview

Recording System

Still Picture and Movie

Guilding Port

ASCOM ST4-port

Cooling System*

Natural with High Performance Cooling Structure

OPERATING ENVIRONMENT

Operating Temperature

-10C--50C

Storage Temperature

-20C--60C

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft Windows  XP / Vista / 7 /8 /10(32 & 64 bit)

Support MAC

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM




Camera Pictures

More Detailed pictures

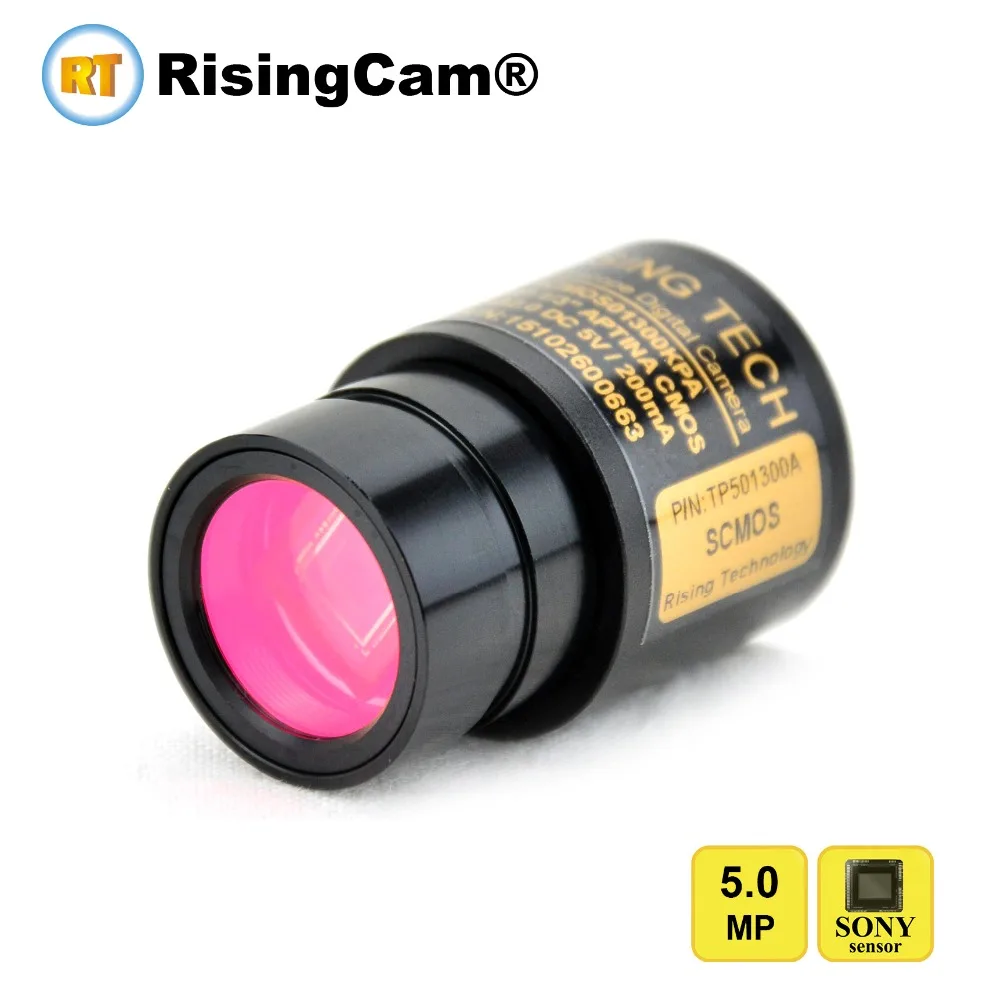

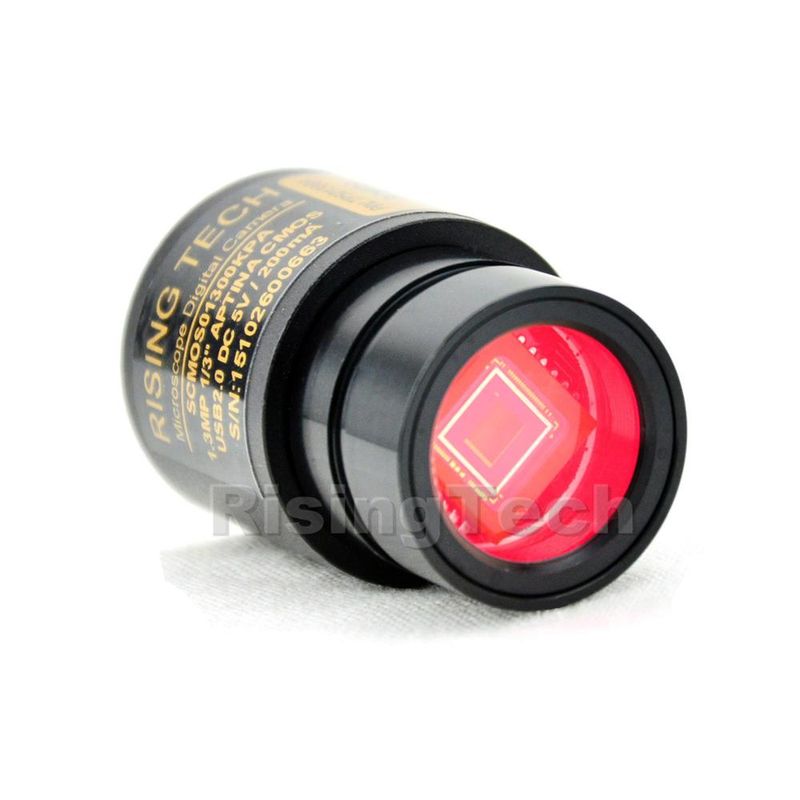

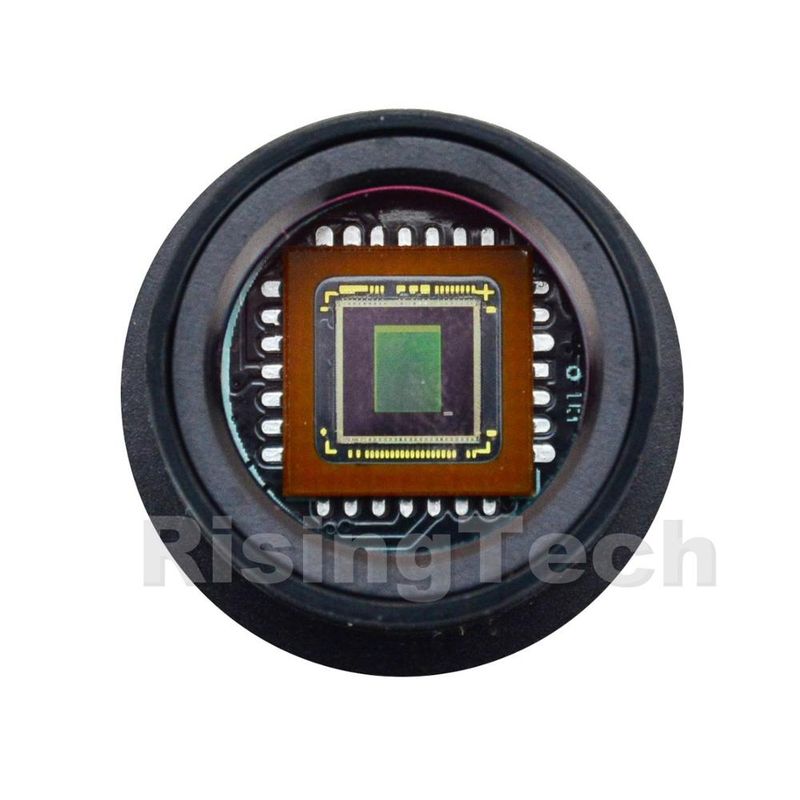

High-quality camera with SONY imx335 CMOS sensor

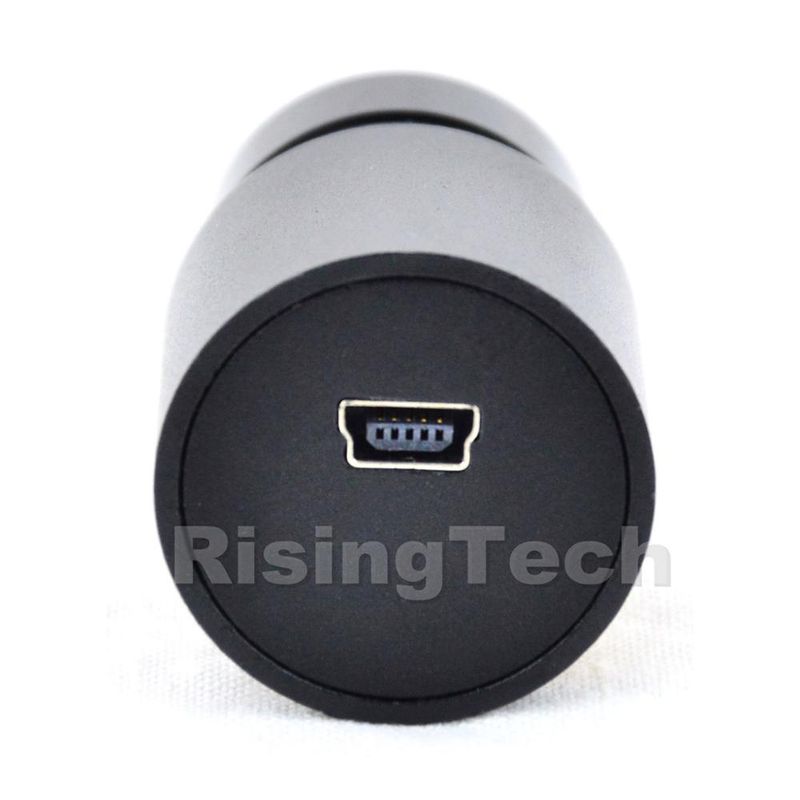

High-speed Mini USB2.0 interface and high frame rate video display keep the screen smooth without interruption

Camera Working Pictures

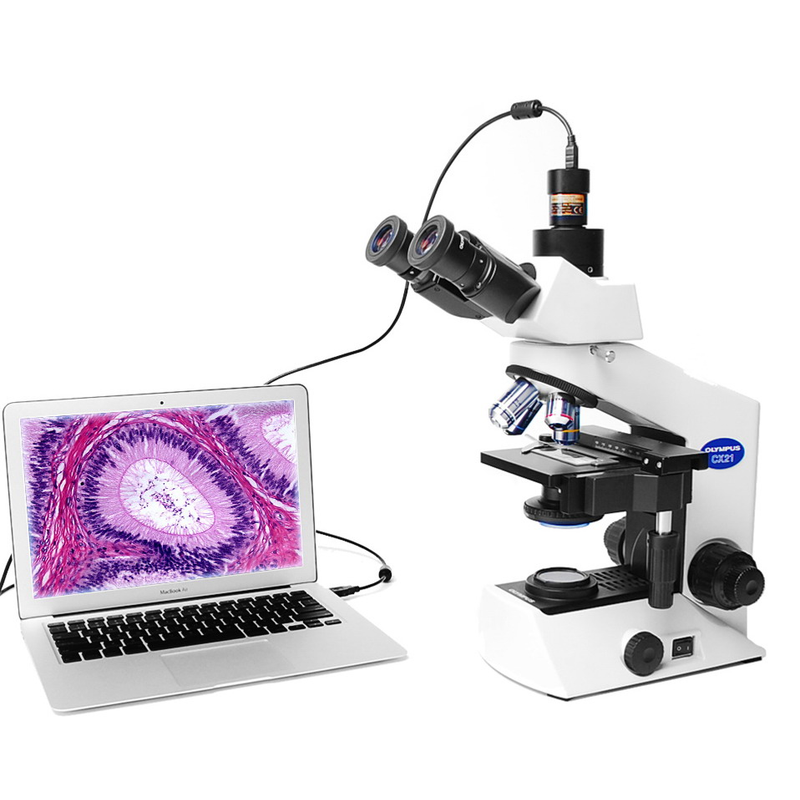

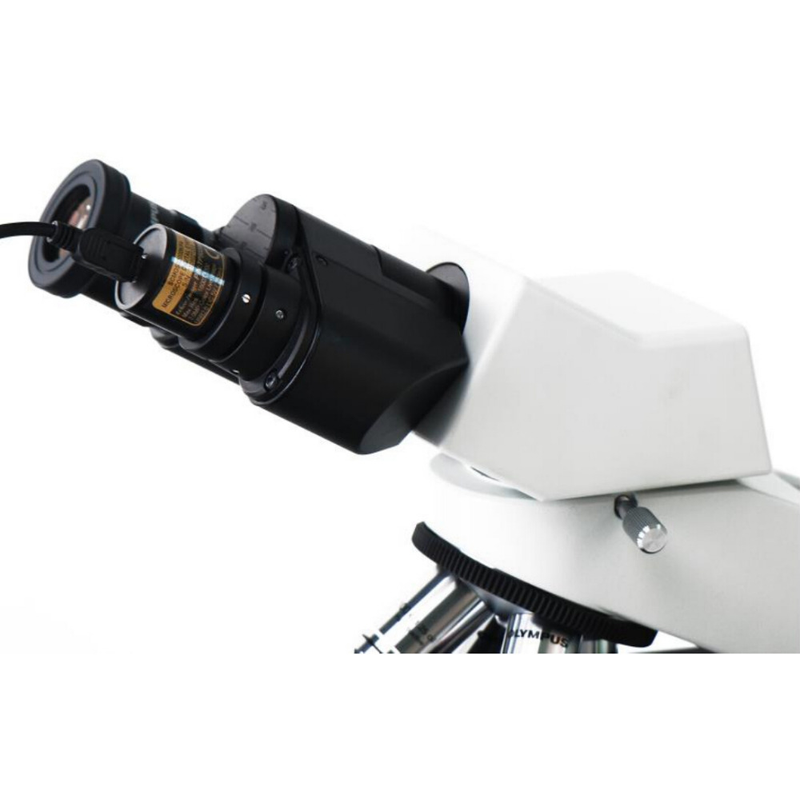

SCOMS camera connect to microscope and PC computer

NOTE: This Camera only support Windows Computer, it not support MAC computer

Sample Pictures

Fern_Leaf_CS

Blood of frog

Camera Size


The SCMOS Camera body, made from aluminum alloy blackening, ocular ousing:Dia.27.2 X 40mm ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT filter to filter the infrared light and protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions









RisingView Software



Packaging & Shipping

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (50pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:14.5cm W:9.5cm H:6.0cm  (0.25~0.35Kg/ box)

C

SCMOS series USB2.0 C-Mount camera

D

High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m

E

CD (Driver & utilities software, Ø8cm)

Optional Accessory

F

C-Mount Adapter Housing:108027(HS502)

G

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

H

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

I

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

J

Calibration Kit

106011/TS-M1(X=0.01mm/100Div.);


SCOMS camera standard packing picture



NOTE:

RisingTech Can provide 1pc of Adapter rings for eyepiece tube for buyer free. We provide 30mm, 30.5mm and 31.5mm three size for buyer choice,

Buyer could leave message to tell which size adapter ring is needed, RisingTech will deliver Camera and Adapter Ring together.

if Buyer not leave message,  RisingTech will shipping out camera according to Standard Packing List


Optional Accessory

Optional Accessory                                                                                      Unit Price/USD

(This price not include freight, Deliver with camera order togehter free shipping)


H  108015(Dia.23.2mm to 30.0mm Ring) Adaptor rings for 30mm eyepiece tube                                                                    USD5.00/pc

I  108016(Dia.23.2mm to 30.5mm Ring) Adaptor rings for 30.5mm eyepiece tube                                                                   USD5.00/pc

J 108017(Dia.23.2mm to 31.75mm Ring) Adaptor rings for 31.75mm eyepiece tube                                                                USD5.00/pc

K  Calibration kit 106011/TS-M1(X=0.01mm/100Div)                                                                                                            USD10.00/pc



SCOMS camera can connect to Trinocular microscope by C-Mount Adapter Housing 108027                                               USD15.00/pc


SCOMS camera install C-Mount Adapter Housing                   SCOMS camera connect to Trinocular Microscope



If you want buy above Optional Accessory, please place camera order but not send payment,

and then send meassage to me that which item and how many do you want buy?

We will amend the order amount, then you could send payment
