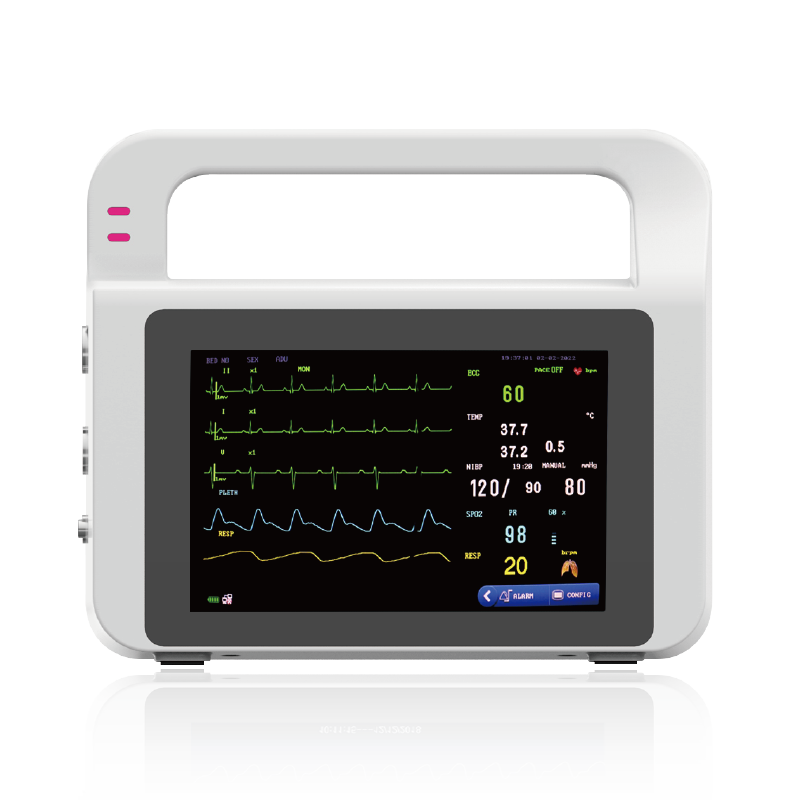

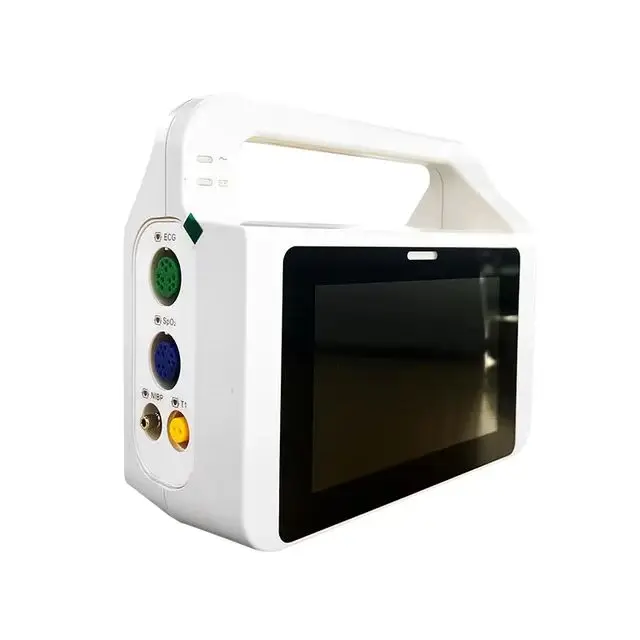

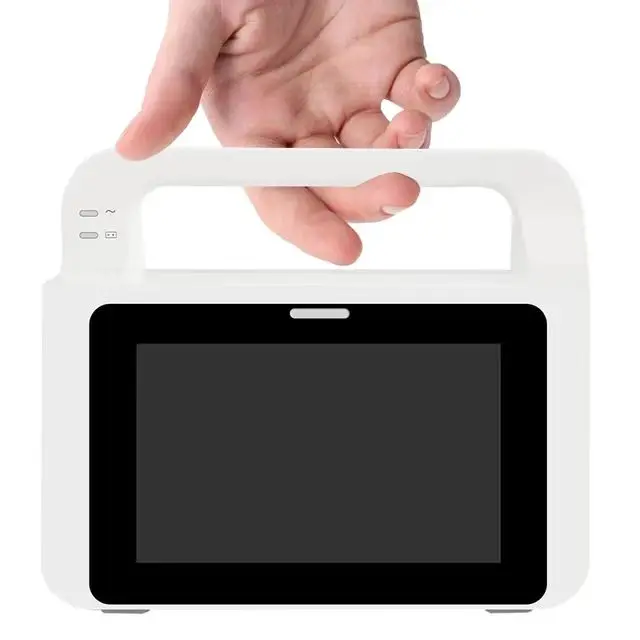

5 Inch Color SPO2 PR NIBP TEMP ECG 6 Parameter Vital Signs Mini Monitoring Patient Monitor

$64.54

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

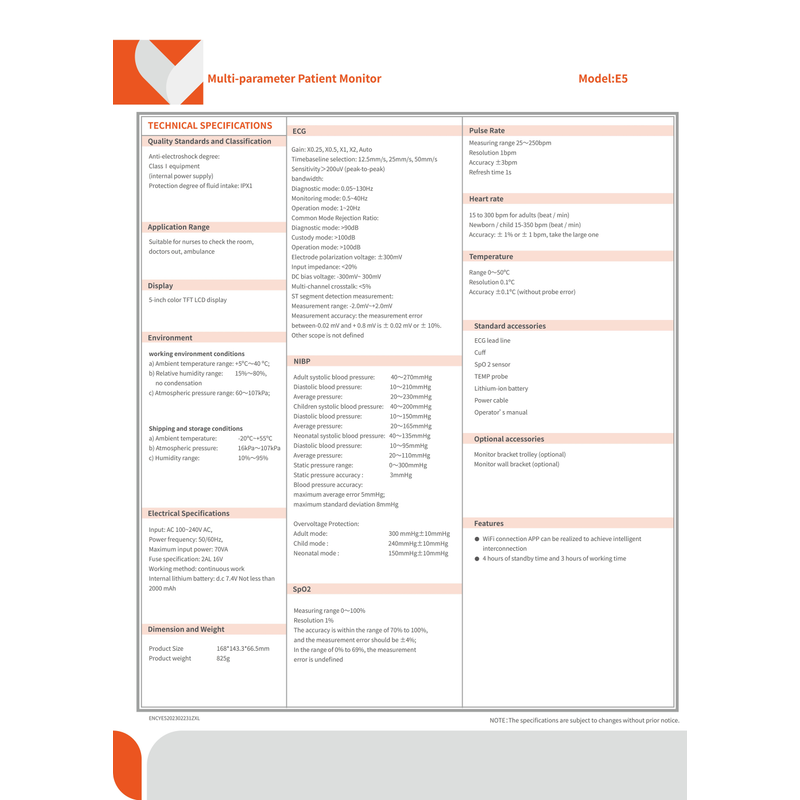

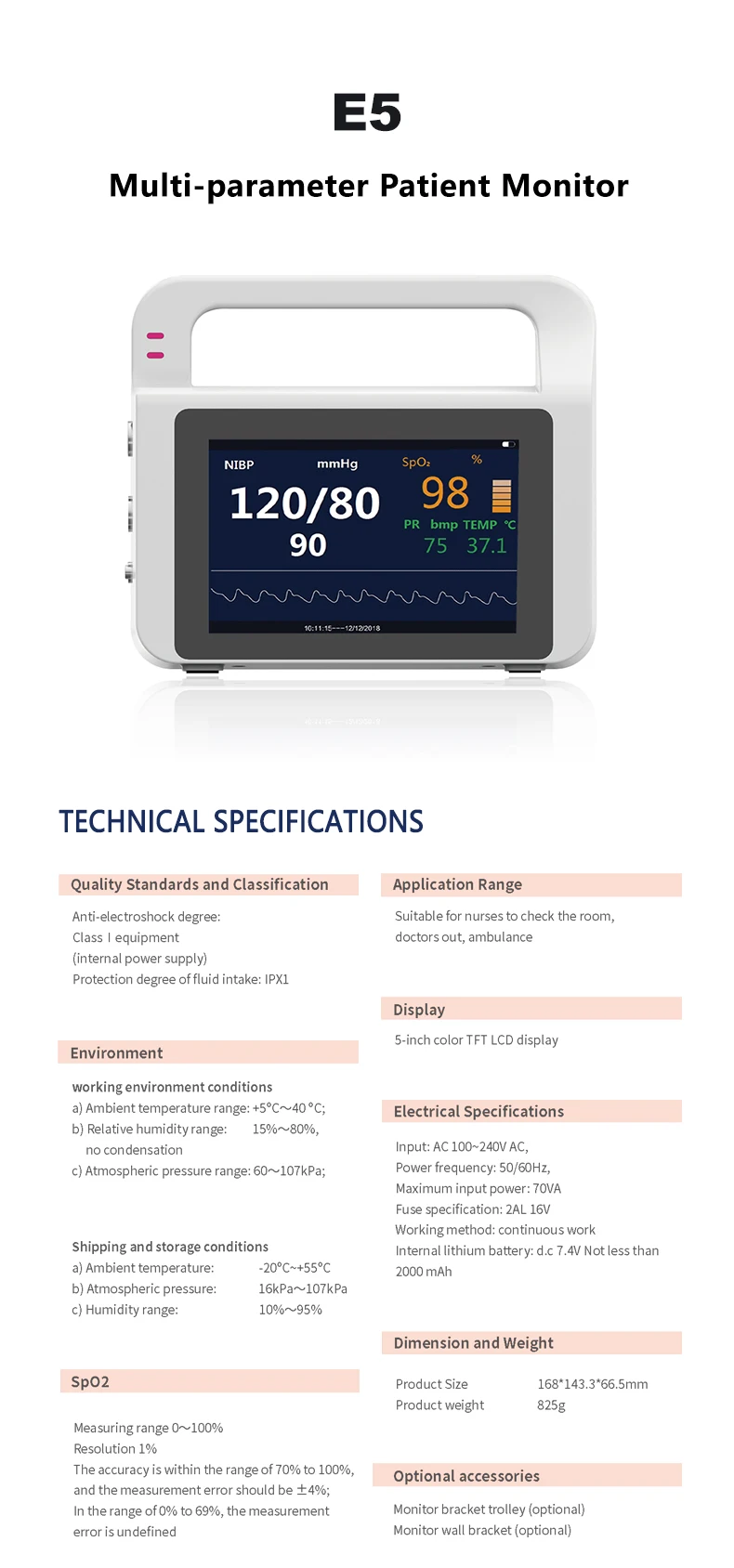

TECHNICAL SPECIFICATIONS

Quality Standards and Classification:

Anti-electroshock degree:

ClassⅠequipment

(internal power supply)

Protection degree of fluid intake: IPX1

Application Range:

Suitable for nurses to check the room,

doctors out, ambulance

Display:

5-inch color TFT LCD display

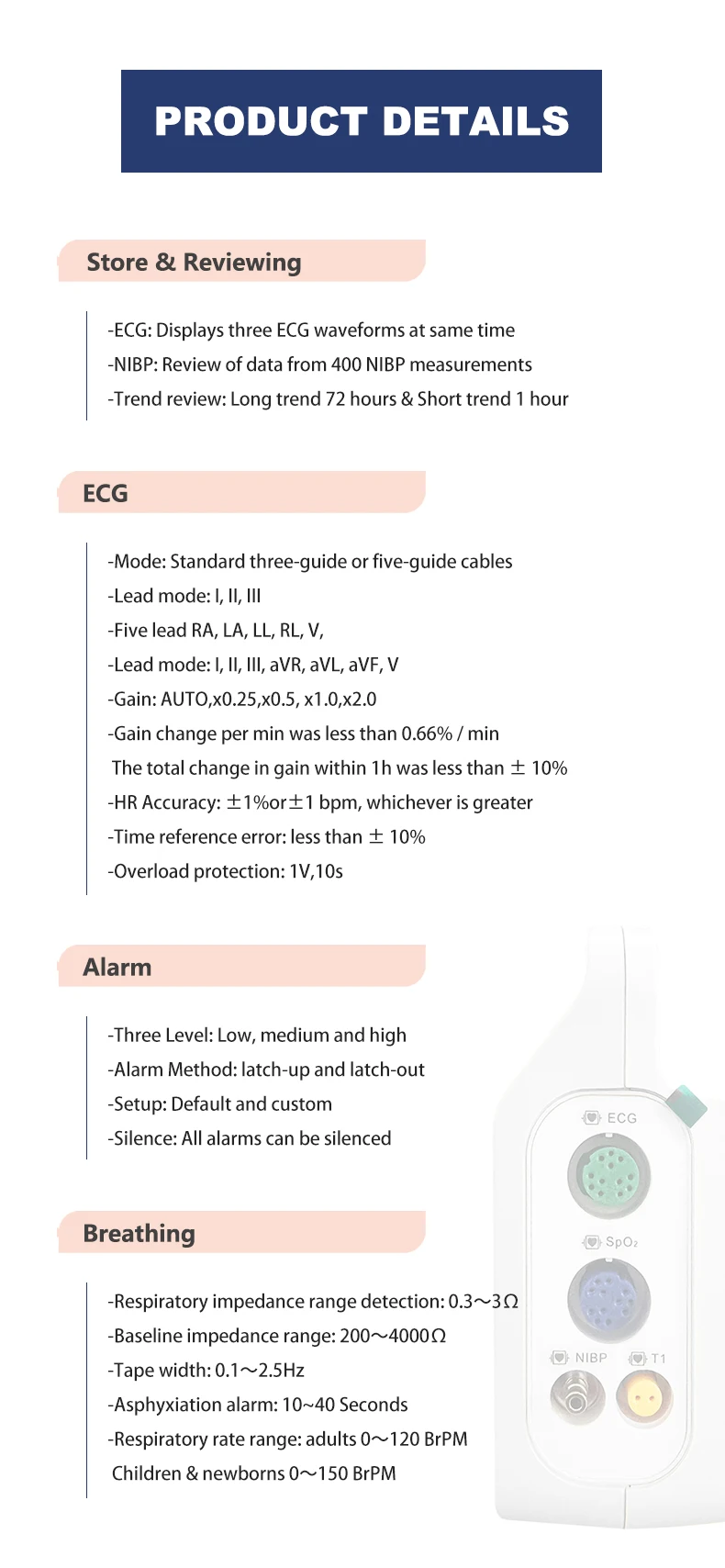

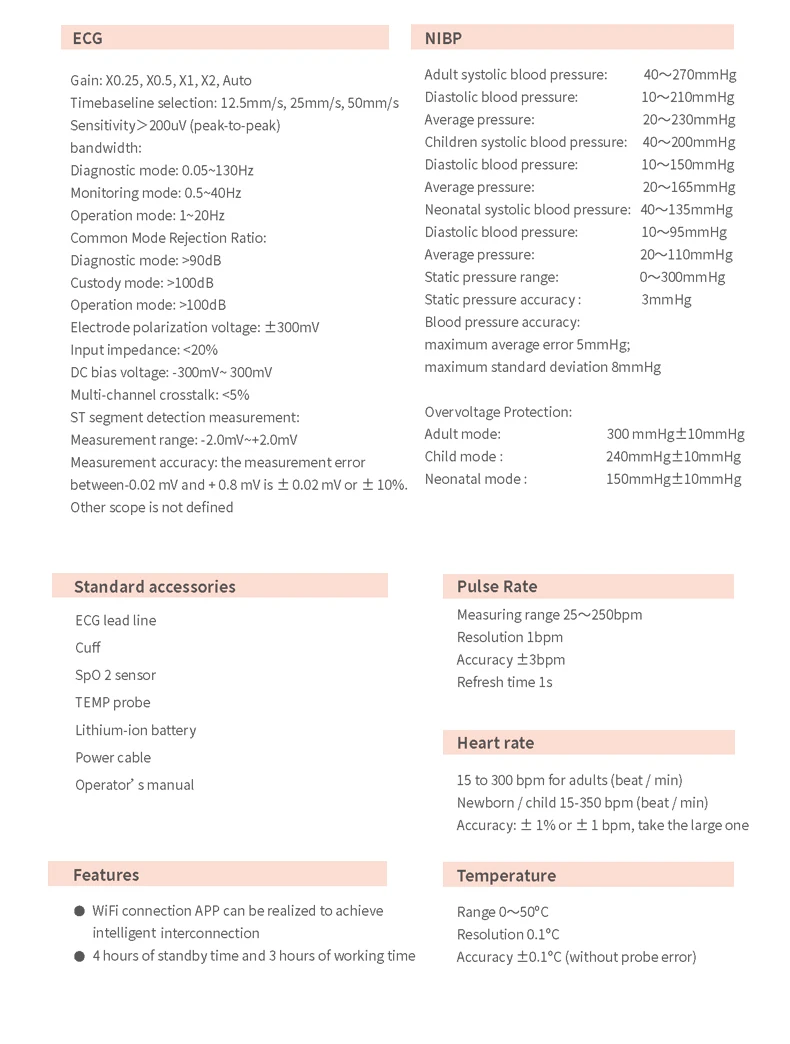

ECG:

Gain: X0.25, X0.5, X1, X2, Auto

Timebaseline selection: 12.5mm/s, 25mm/s, 50mm/s

Sensitivity>200uV (peak-to-peak)

bandwidth:

Diagnostic mode: 0.05~130Hz

Monitoring mode: 0.5~40Hz

Operation mode: 1~20Hz

Common Mode Rejection Ratio:

Diagnostic mode: >90dB

Custody mode: >100dB

Operation mode: >100dB

Electrode polarization voltage: ±300mV

Input impedance: <20%

DC bias voltage: -300mV~ 300mV

Multi-channel crosstalk: <5%

ST segment detection measurement:

Measurement range: -2.0mV~+2.0mV

Measurement accuracy: the measurement error

between-0.02 mV and + 0.8 mV is ± 0.02 mV or ± 10%.

Other scope is not defined

NIBP:

Adult systolic blood pressure: 40~270mmHg

Diastolic blood pressure: 10~210mmHg

Average pressure: 20~230mmHg

Children systolic blood pressure: 40~200mmHg

Diastolic blood pressure: 10~150mmHg

Average pressure: 20~165mmHg

Neonatal systolic blood pressure: 40~135mmHg

Diastolic blood pressure: 10~95mmHg

Average pressure: 20~110mmHg

Static pressure range: 0~300mmHg

Static pressure accuracy : 3mmHg

Blood pressure accuracy:

maximum average error 5mmHg;

maximum standard deviation 8mmHg

Overvoltage Protection:

Adult mode: 300 mmHg±10mmHg

Child mode : 240mmHg±10mmHg

Neonatal mode : 150mmHg±10mmHg

SPO2:

Measuring range 0~100%

Resolution 1%

The accuracy is within the range of 70% to 100%,

and the measurement error should be ±4%;

In the range of 0% to 69%, the measurement

error is undefined

Pulse Rate:

Measuring range 25~250bpm

Resolution 1bpm

Accuracy ±3bpm

Refresh time 1s

Heart rate:

15 to 300 bpm for adults (beat / min)

Newborn / child 15-350 bpm (beat / min)

Accuracy: ± 1% or ± 1 bpm, take the large one

Temperature:

Range 0~50ºC

Resolution 0.1ºC

Accuracy ±0.1ºC (without probe error

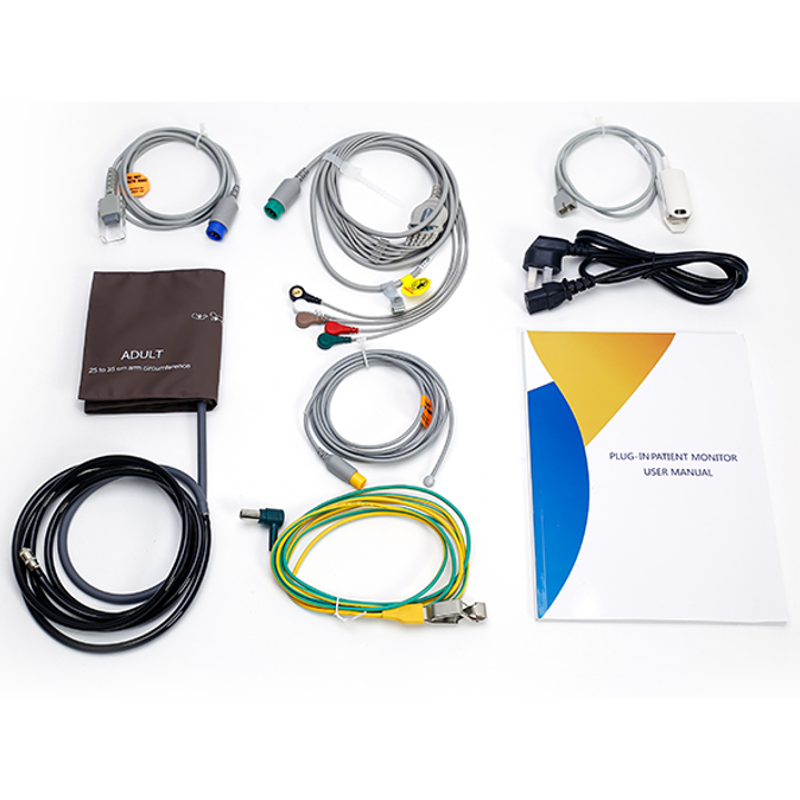

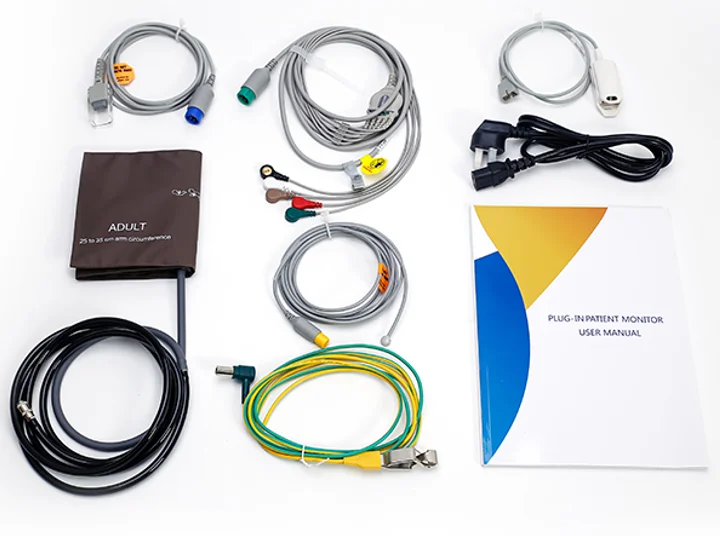

Standard accessories:

ECG lead line

Cuff

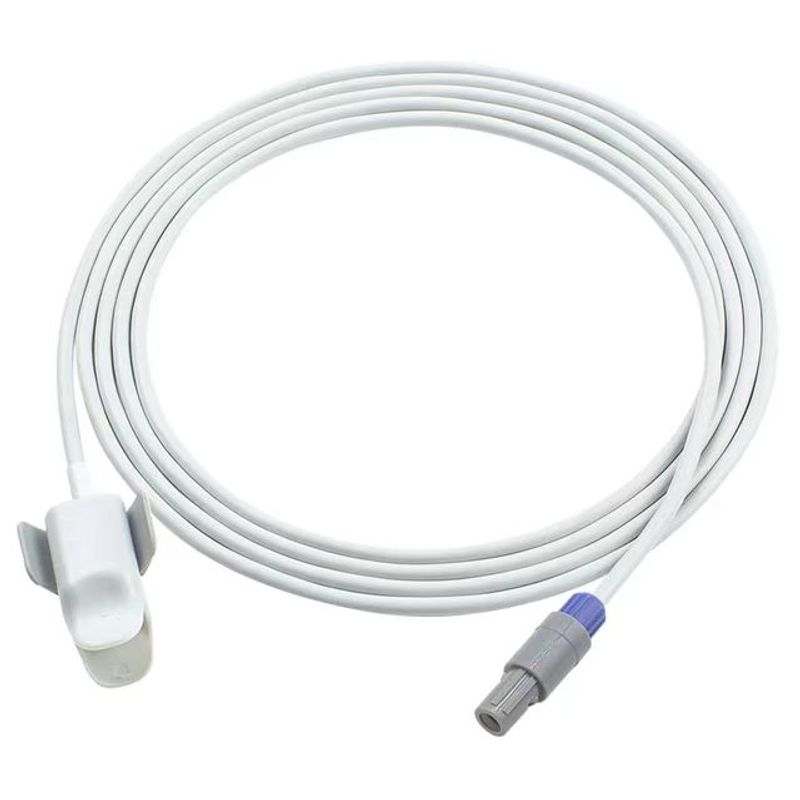

SpO 2 sensor

TEMP probe

Lithium-ion battery

Power cable

Operator’s manual

Optional accessories:

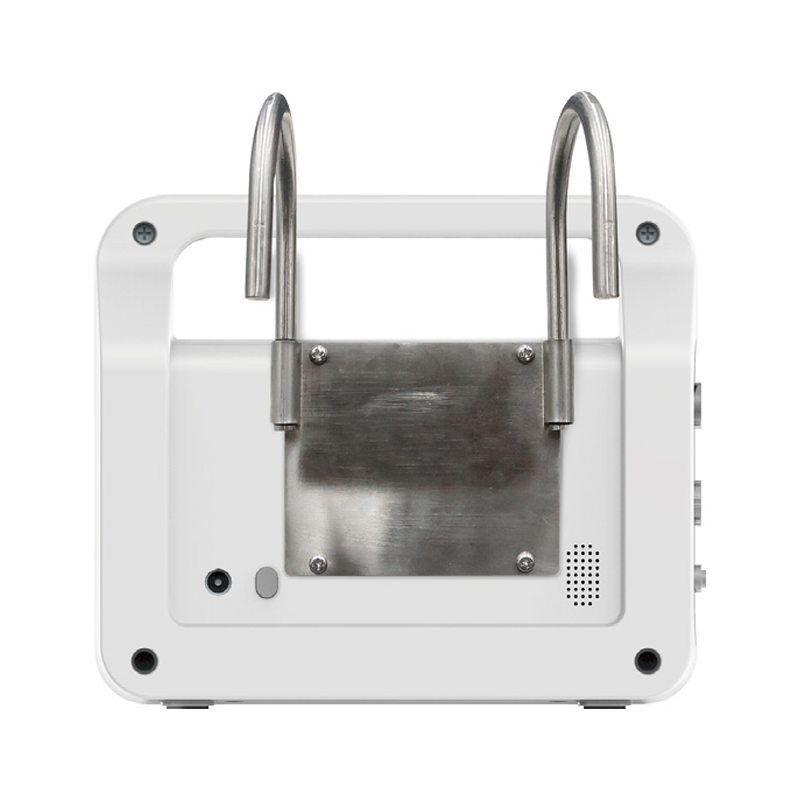

Monitor bracket trolley (optional)

Monitor wall bracket (optional)

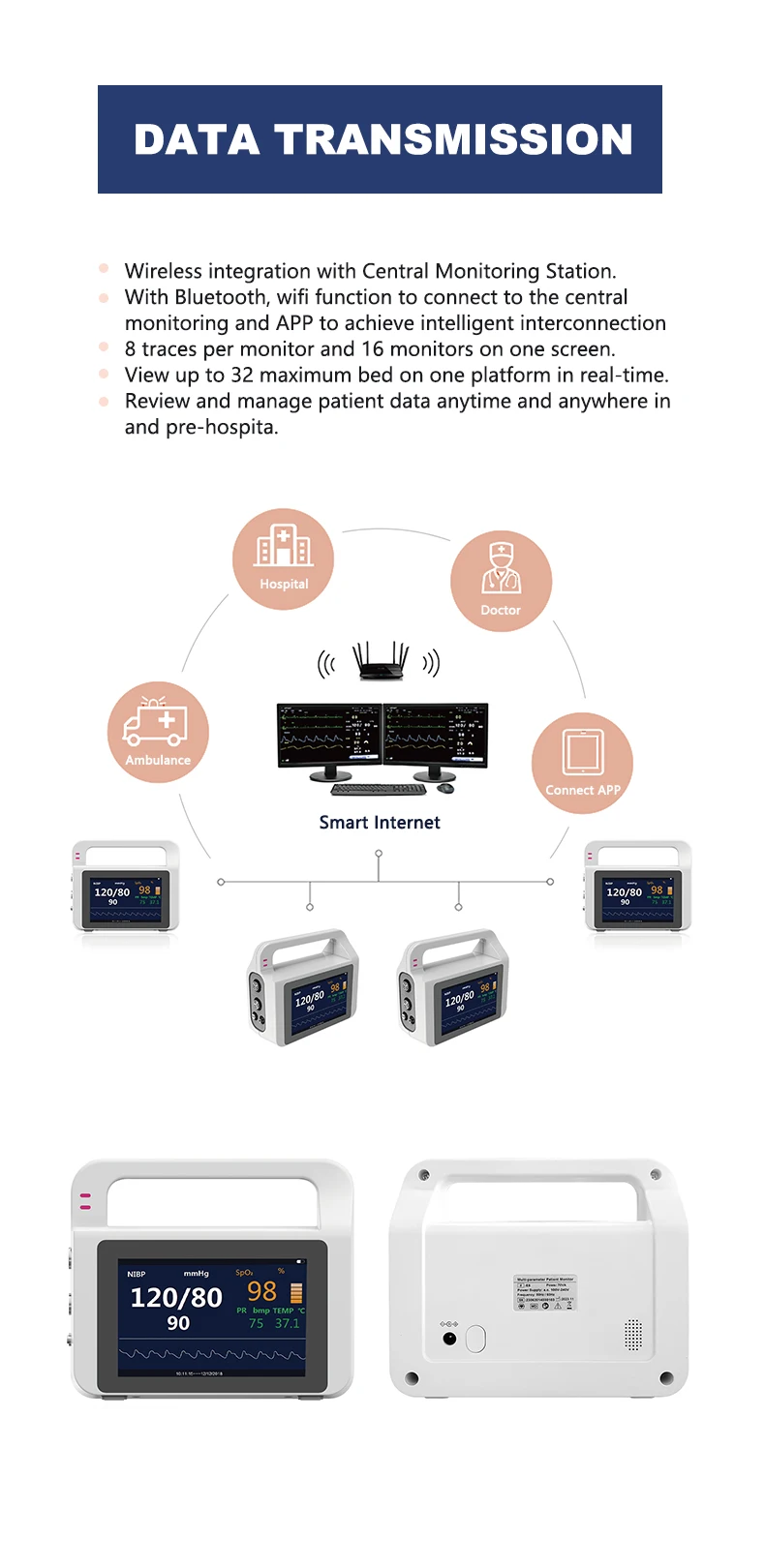

Features:WiFi connection APP can be realized to achieve intelligent

interconnection

4 hours of standby time and 3 hours of working time

Electrical Specifications:

Input: AC 100~240V AC,

Power frequency: 50/60Hz,

Maximum input power: 70VA

Fuse specification: 2AL 16V

Working method: continuous work

Internal lithium battery: d.c 7.4V Not less than

2000 mAh

Environment:

working environment conditions

a) Ambient temperature range: +5ºC~40 ºC;

b) Relative humidity range: 15%~80%,

no condensation

c) Atmospheric pressure range: 60~107kPa;

Shipping and storage conditions

a) Ambient temperature: -20ºC~+55ºC

b) Atmospheric pressure: 16kPa~107kPa

c) Humidity range: 10%~95%
