5 Type 9CM 15CM 20CM 25CM 30CM PCB Ruler Multi-functional Measuring Tool Resistor Capacitor Chip IC SMD Diode Transistor

$3.15

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

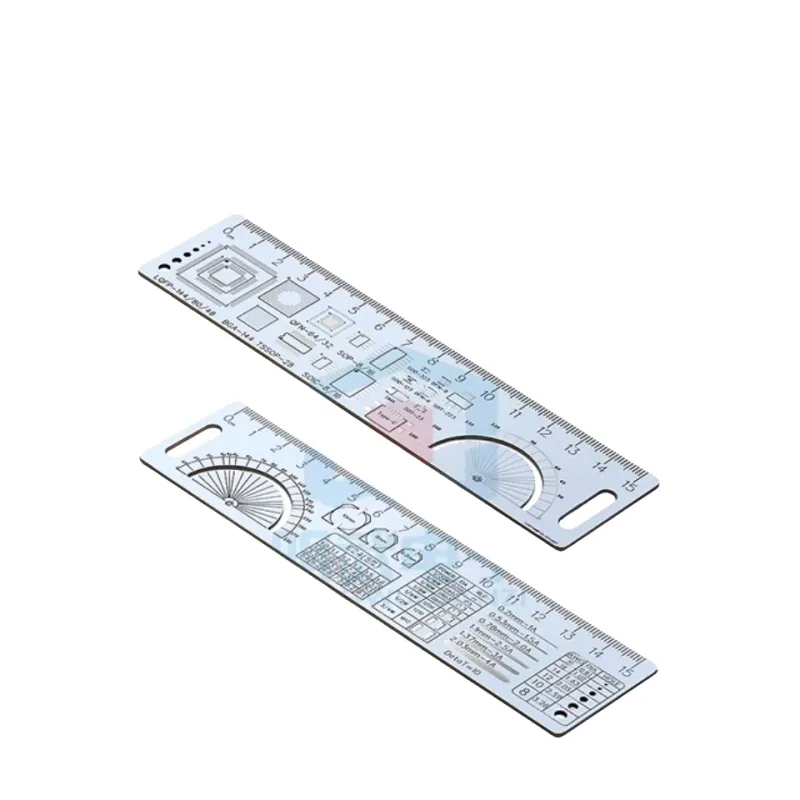

15CM PCB Ruler

Feature:

Material: PCB

Font size guide, trace-width diagram, and a set of AWG-sized drills

Centimeter side: 0.1cm marks

20CM PCB Ruler

Description:

This versatile PCB ruler,

It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

In addition to measuring the basic functions of millimeter and inch sizes,

It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables,

Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference

We printed this information on FR-4 gold-plated PCBs.

R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

Positive Specification:

The measurement length:  20 cm

Measuring length :   7.8 inches

Commonly used packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64.

Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343.

Common bore diameter reference dimensions (unit: mm)

Slot for hanging straightedge

Back Specification:

Commonly used line width reference (unit: mil)

Angle measurement: 180 degrees

Device, IC pin spacing table: 0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm;

Commonly used MOS, diode, transistor package: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC.

25CM PCB Ruler

Description:

This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference

We printed this information on FR-4 gold-plated PCBs.

R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

Positive Specification:

The measurement length: 25cm

Measuring length: 10 inches

Commonly used IC package: 1.NAND_FLASH_TSOP48  2.QFP7X7-64  3.PLCC-20  4.SOP16  5.TSSOP24  6.SSOP8  7.SOP8

Commonly used CHIP component: 1.TO252-3  2.SOT223  3.SOT89-3  4.SOT23-6 5.SOT23-3  6.SOD123  7.SOD323  8.1210  9.3528  10.1206  11.0805 12.0603  13.0402  14.TO92

Common bore diameter reference dimensions (unit: mm): 3.0  2.5  2.0  1.5  1.0  0.8  0.5  0.4

Slot for hanging straightedge

Back Specification:

Commonly used line width reference (unit: mm)

Angle measurement: 180 degrees

Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;

Common bore diameter reference dimensions (unit: mm): 3.0  2.5  2.0  1.5  1.0  0.8  0.5  0.4

9CM PCB Ruler

30CM PCB Ruler
