5000W ZVS Induction Heater, Induction Heating PCB Board Heating Machine Melted Metal + Coil+Pump+ crucible+power supply
Includes all taxes
Meet your Seller
-
$633.34Sold by BILLIONS BIRDS
Description
5000W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal+heating Coil+Pump+crucible+power supply
This product is DC48V power supply, maximum current 100A power 5000W small power
induction heater, mainly used for heating and quenching of small ferrous metal materials, with
supporting 70mL or 150ml crucible maximum temperature up to 1600 degrees Celsius.
Easily melt iron copper gold Silver and other metals.

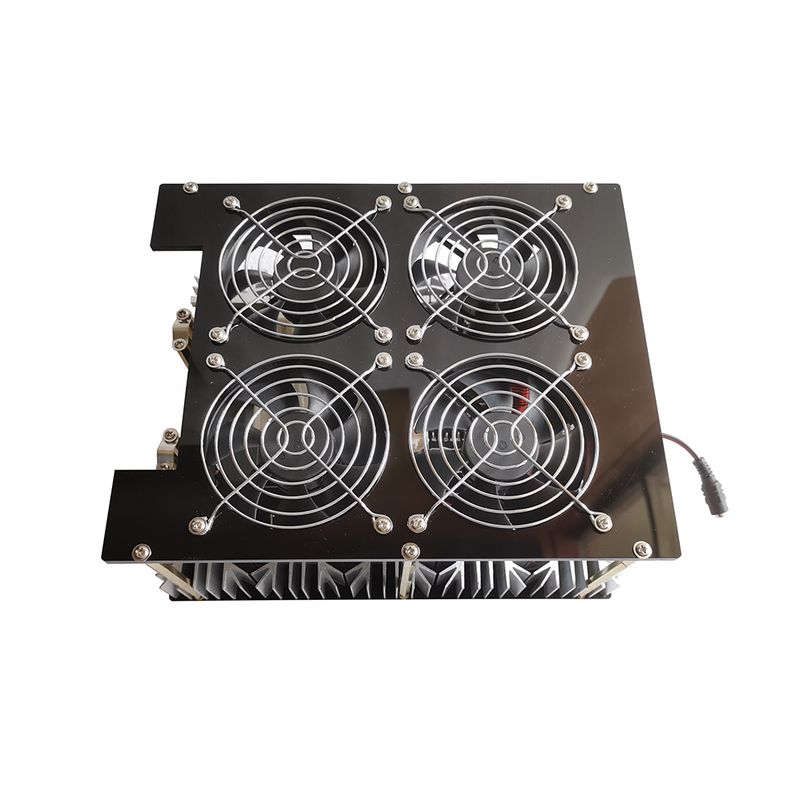

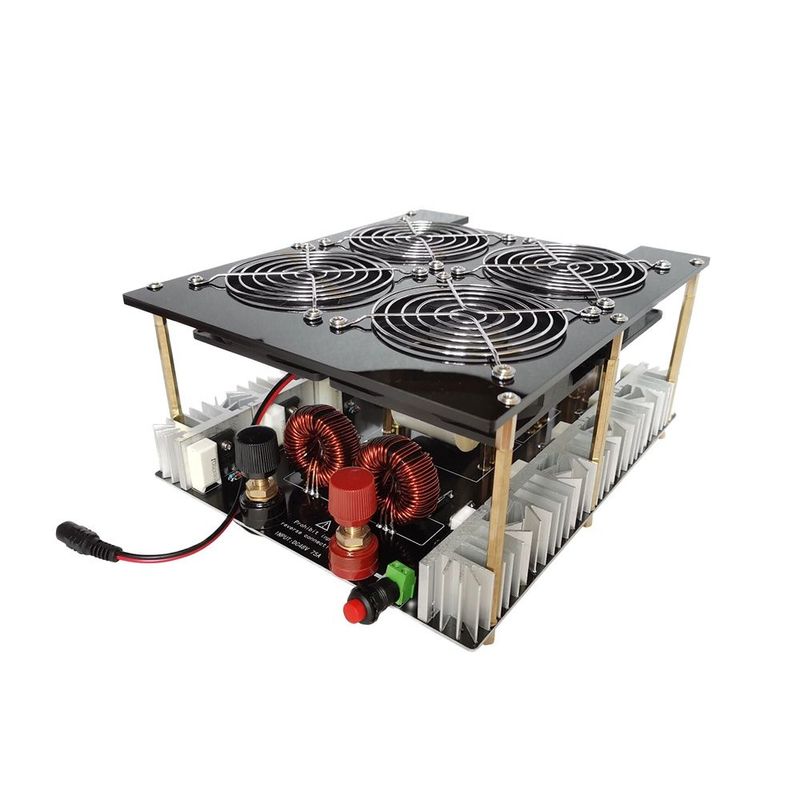

1. Use 2mm thickness PCB design, copper thickness 2OZ, large current, good heat dissipation;
2.4 high-power cooling fans;
3. The heating ring is wrapped with high-temperature insulation materials to prevent short
4. The input terminal uses high-current power terminals, which can be directly connected to a
dedicated 100A power meter;
5. Send the matching water pump for water cooling of the heating ring, and send a temperature
sensor to monitor the temperature of the motherboard at any time;
6. Optional external control board function, which can realize external button soft control, control
board integrated overload protection temperature protection, etc.
2. Heating ring size: 60 * 70 * 73 or 70 * 80 * 73 (inner diameter * outer diameter * height);
3. Input voltage: DC48V;
4. Maximum power: 5000W;
5. Maximum DC working current: 100A;

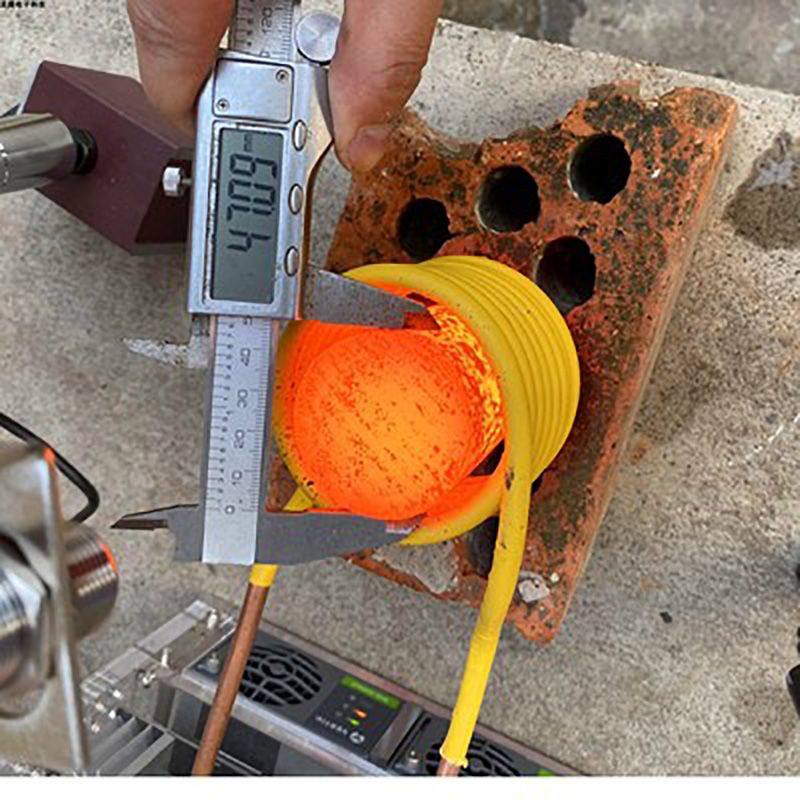

6. The maximum temperature of metal iron directly heating is above 1000 degrees Celsius;
7. The maximum temperature of the crucible is 1600 degrees Celsius;
NOTE:
When in use, it is necessary to continuously observe the running state of the machine
If the motherboard is damaged, please don't turn it on again easily, it is dangerous

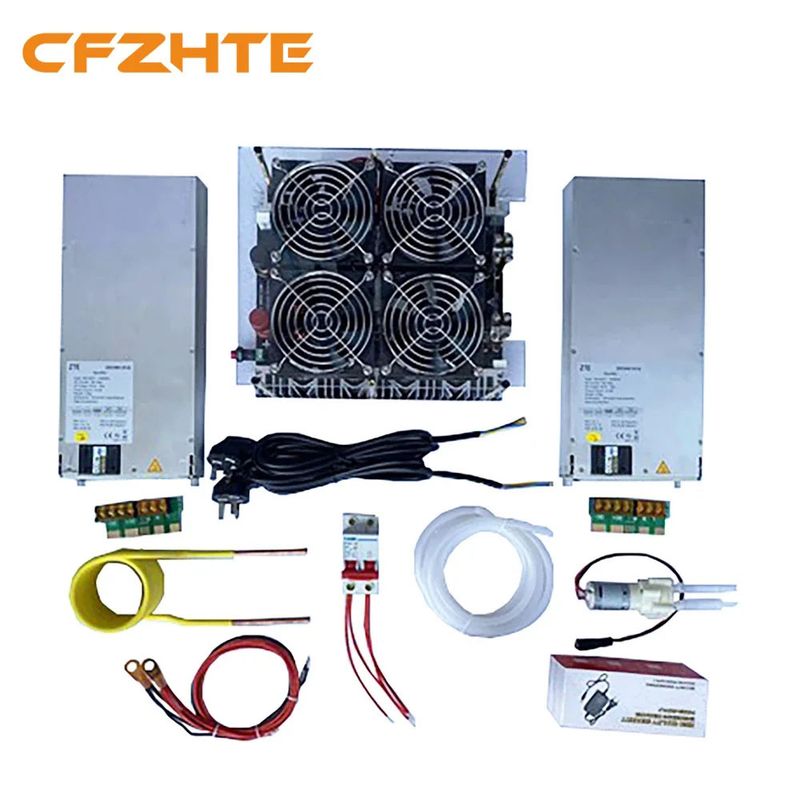

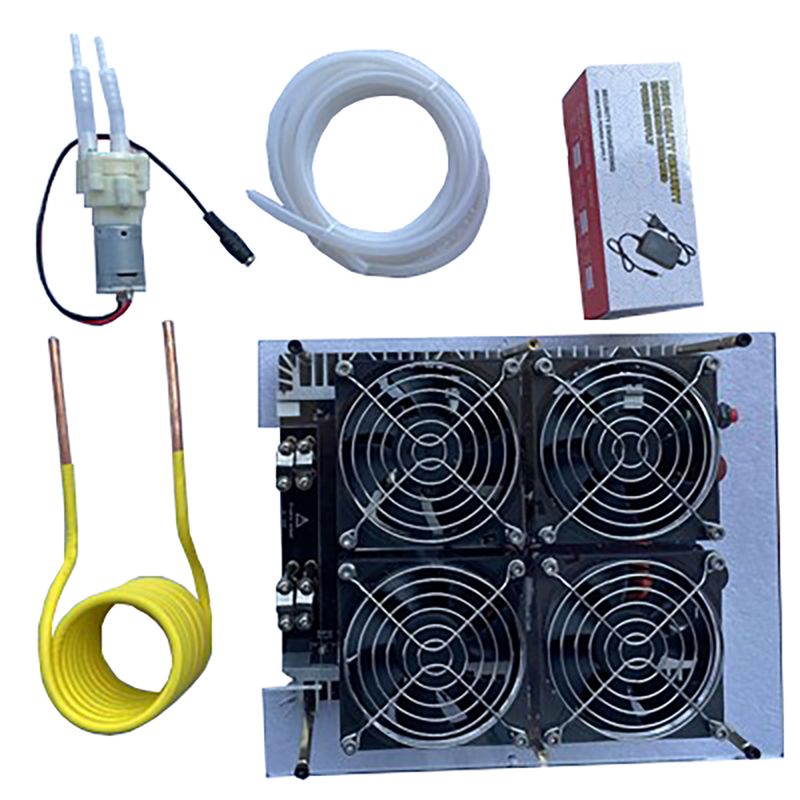

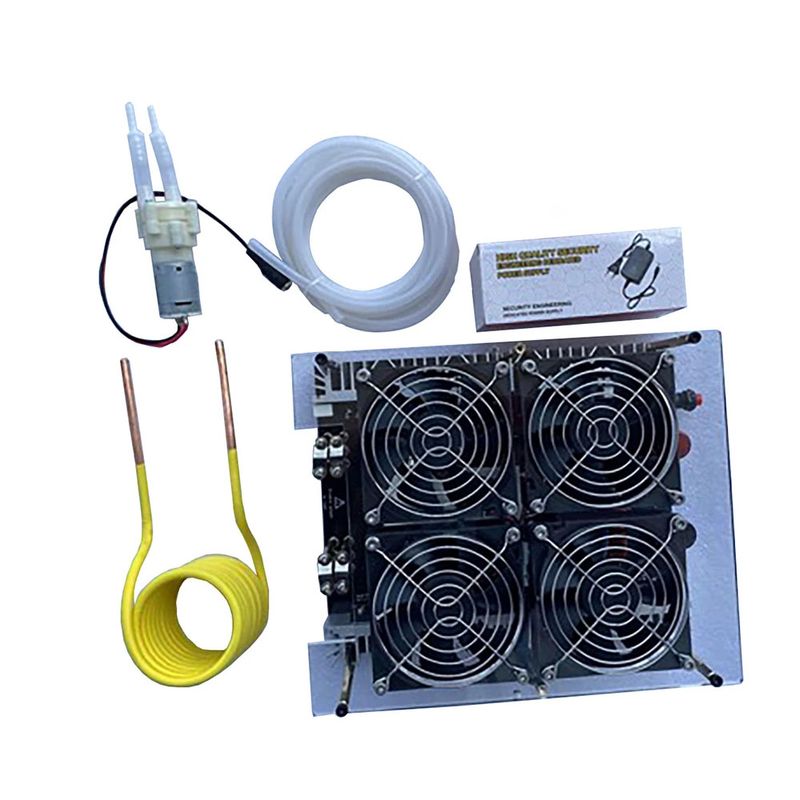

2 x power supply
1 x PCB Board
1 x 48V Copper Tube
1x water pump
Host + heating ring (water pump)
We are not responsible for any custom duty or import tax, it is buyer’s
1. Users who only purchase the main board and do not purchase the power supply must use their
own power supply to ensure that the power supply can stably output more than 100A of current.
Generally, two 50A communication power supplies are used in parallel
2. The boot sequence should follow the power supply to the power supply, wait a few seconds for
the power supply to stabilize, then connect the power supply between the power supply and the
motherboard (recommended to use a 100A current switch), and finally press the red button on the
green control interface . Do not make mistakes, otherwise the motherboard will be burned directly
and unprotected. When shutting down, first turn off the red button, then turn off the switch
between the motherboard and the power supply, and finally turn off the power switch.
3. Water cooling and air cooling must work at the same time when working. If any of them does
not work, you should immediately disconnect the power and contact the manufacturer for a
solution;
5. For long-term use of crucibles, more crucibles should be prepared. The high temperature
heating of graphite will react with oxygen to generate carbon dioxide and gradually consume the
crucible;
6. Pay attention to the changes of various parameters of the display at all times, especially the
voltage and current and the temperature of the main board. Once the abnormality is found, the
power must be disconnected immediately.
