500W 400W 200W 100W Flexible Solar Panel kit Portable Photovoltaic solar panels PV Connector Cables for Yacht Boat RV Cabin 12V
Includes all taxes
Meet your Seller
-
$1,056.15Sold by BILLIONS BIRDS
Description

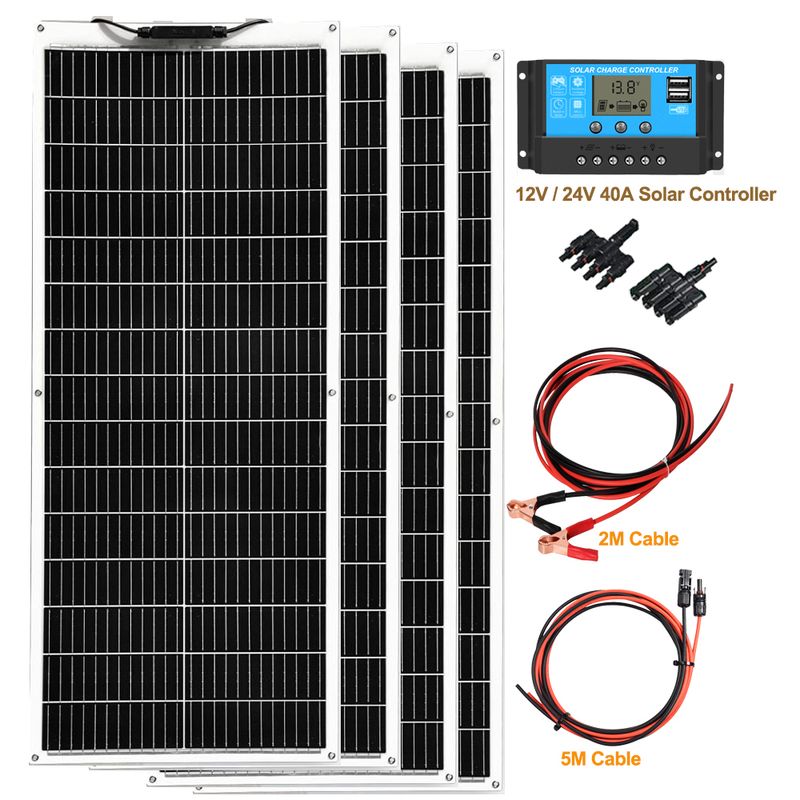

XINPUGUANG Solar Panel 500W 400W 300 200W 100W Flexible Solar Panel kit Photovoltaic solar panels PV Connector Cables for Yacht Boat RV Cabin
Packing listing
1pcs 16.5V 100w flexible solar panel
or
1 x 100W 16.5V Solar Panel (12V Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 10A Controller
OR
2pcs 16.5V 100w flexible solar panel
or
2 x 100W 16.5V Solar Panel (12V /24V Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 20A Controller
1x 2 in 1 adaptors
OR
3pcs 16.5V 100w flexible solar panel
or
3 x 100W 16.5V Solar Panel (12V Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 30A Controller （Controller color random shipment）
1x 3 in 1 adaptors
OR
4pcs 16.5V 100w flexible solar panel
or
4 x 100W 16.5V Solar Panel (12V Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 40A Controller （Controller color random shipment）
1x 4 in 1 adaptors
OR
5pcs 16.5V 100w flexible solar panel
or
5 x 100W 16.5V Solar Panel (12V Solar Kit)
1 set 3m cable with PV connector
1 set 3m cable with Alligator clip
1 X 50A Controller （Controller color random shipment）
1x 5 in 1 adaptors
16.5V 100W Solar panel Specification:
Maximum power(Pmax) 100 Watt
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.8V
Short circuit current(Isc) 6.66A
Maximum power voltage(Vmp) 16.5V
Maximum power current(Imp) 6.06A
Weight 1.8kg/4.0lb
Size 1140X460X2.5mm / 44.88X18.11X0.098 inch
Cable length 90cm/10FT
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.
The flexible solar panel made of Mono cell with conversion rate of 23%. The weight is 4lb, which is 30% of the traditional solar panels. Lightweight,portable nature of flexible solar panels makes more effective for RVs, caravan,boats,trailers,cabin,etc. , easy to install, plug and play.
Highlights:
Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.
Unique frameless design includes six metal reinforced mounting holes for easy installation
Rigorous quality control to meet the highest international standards CE,TUV
High transmittance, flexible lamination material is less prone to cracking than traditional glass
Outstanding electrical performance under high temperature and weak light environments
Positive and negative leads equipped with pv connectors
Two bypass diodes minimizes performance drop due to partial shade
(Bendable ）: The plastic back sheet can be curved to a maximum 260 degree arc and mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
（Lightweight）: Ultralight and Ultra-thin ，Better applied to the carrier with weaker bearing, attached to the surface, no space，easy to install
(Functional）Solar panels can convert light energy into electricity, which can effectively deal with the difficult problems caused by power shortage and power outage.
（Practicality）: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.
（Protection）：The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design
Set up easily:
Can be conveniently placed on curved solid surfaces
Lighter and thinner ,only 2.5mm thick .
Built in blocking diode to prevent battery discharge at night
All weather proof. They are water-proof and UV-Resistant. Potted junction box
This product we set up inventory in Russia, Canada, Spain，France，U.S.. When you buy it， we will ship from your country that you don't need to consider customs clearance and duties and it will be fast delivery.
However，the zip code in Spain that starts with 35, 38, 51, 52 need to provide buyer identity information, sales vouchers, and add 15 euros for customs clearance and duties.
The zip code in Russia that starts with 6，the delivery time is long ，maybe 30-45 days and some zip codes will only be sent to the post office instead of the shipping address，you need to go to the post office to pick up the parcel.
Some areas of Canada are remote areas and need to add remote fees. When you need to add remote fees, we will send you an email. Please check the mail, thank you！
[Highly efficient]The solar panel uses high efficiency 210MM monocrystalline solar cells with a conversion efficiency of 23%-24%. Built-in bypass diode to better protect the solar panel.
[Ultra-light and Flexible] A single solar panel weighs only 4.0 pounds and is only 0.098 inch thick. It can be easily picked up and carried. The solar panel be bent up to 260°. Ideal for mounting on RV ,roofs, campers, trailers, boats, cabins, tents, and other uneven surfaces.
[Highly Durable] The solar panels come with an IP67 waterproof rating .Withstand heavy snow loads of up to 5400 Pa and high wind loads of up to 2400 Pa,suitable for outdoor weather.
[Functional] Solar panels are connected to a 12V-48V system depending on the battery, perfect solution for power supply. which can effectively deal with the difficult problems caused by power shortage and power outage.
PET Solar Panel Features:
[Multiple Compatibility] Perfect solar power kit for a variety of off-grid applications like shed, cabin, gate opener, etc where 12V battery is used, as well as to charge and maintain AGM, Flooded, GEL, Deep Cycle and Seal Lead Acid, etc batteries in the car, Rv, boat, marine, trailer, camper, pump, etc.
[Light weight] Made of high efficient solar cells,withstand extreme weather conditions like UV, anti-rusting, IP65 waterproof.
[Intelligent Charging] Optimized 3-stages charging algorithm allows to charge the battery more efficiently, and prevent the battery from overcharge, over-discharge, over-voltage, short circuit, etc, fully protect battery and extend the lifetime.
[Visual Monitor] Visual bright LED indicators help to monitor battery conditions and better understand the status of solar panel and load. Exclusively equipped three working modes for load, allowing to set up the load to work under dusk to dawn automatically plus working hours according to personal requirement, very practical and useful.
The solar panels can be directly connected to a portable battery with control function (note the voltage input required for the battery)
PWM Solar Controller Product application:
Suitable for all kinds of lead-acid batteries (including opening, sealing, colloid, etc.) and lithium battery,
PWM Solar Controller Specifications:
1. Material: ABS;
2. System voltage: 12V/24V adaptive;
3. Rated charge/discharge current: 10A;/ 20A / 30A / 40A / 50A
