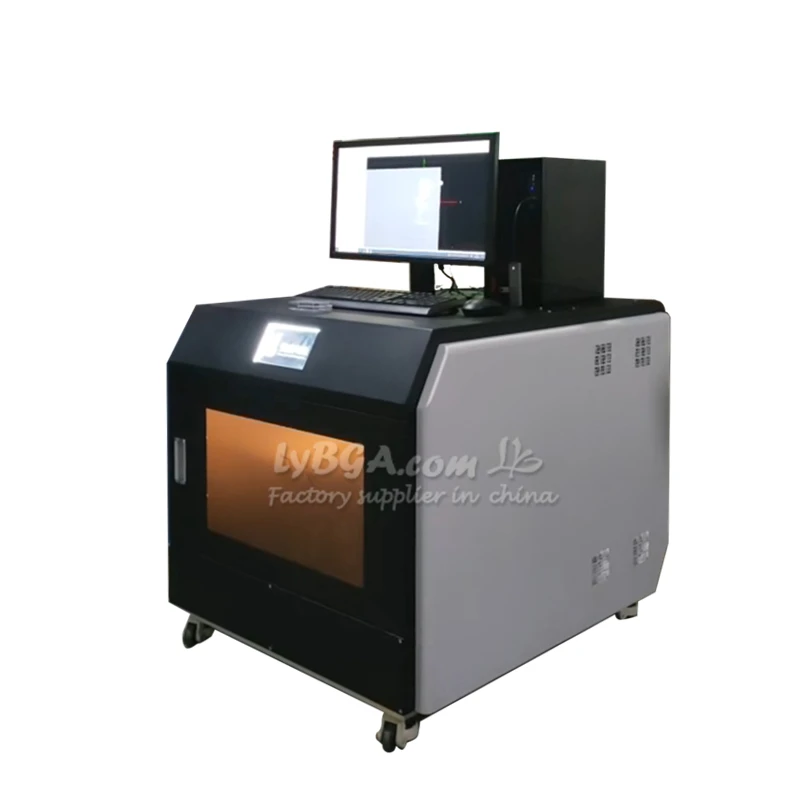

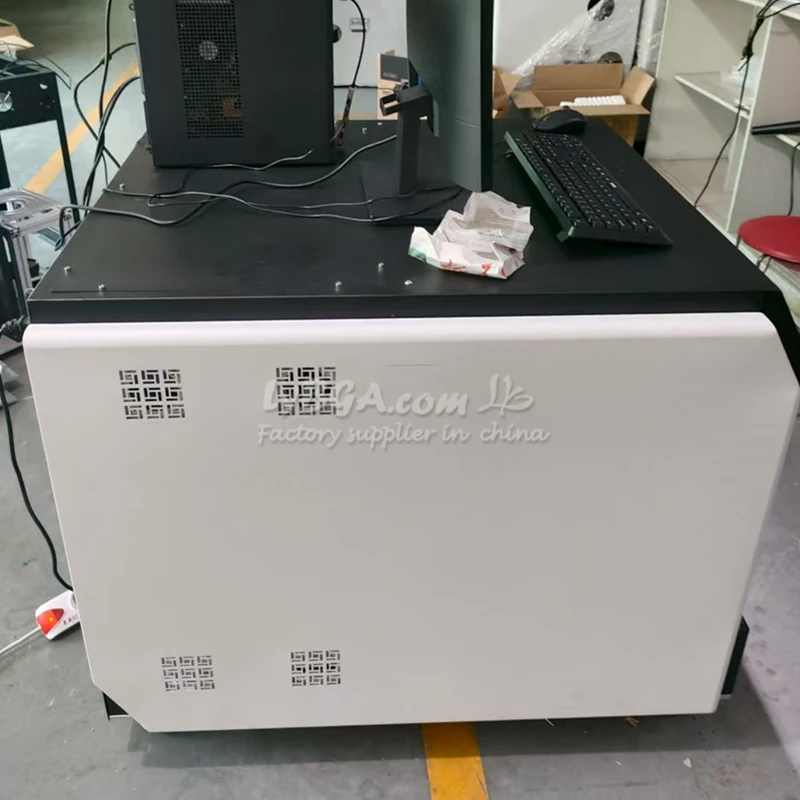

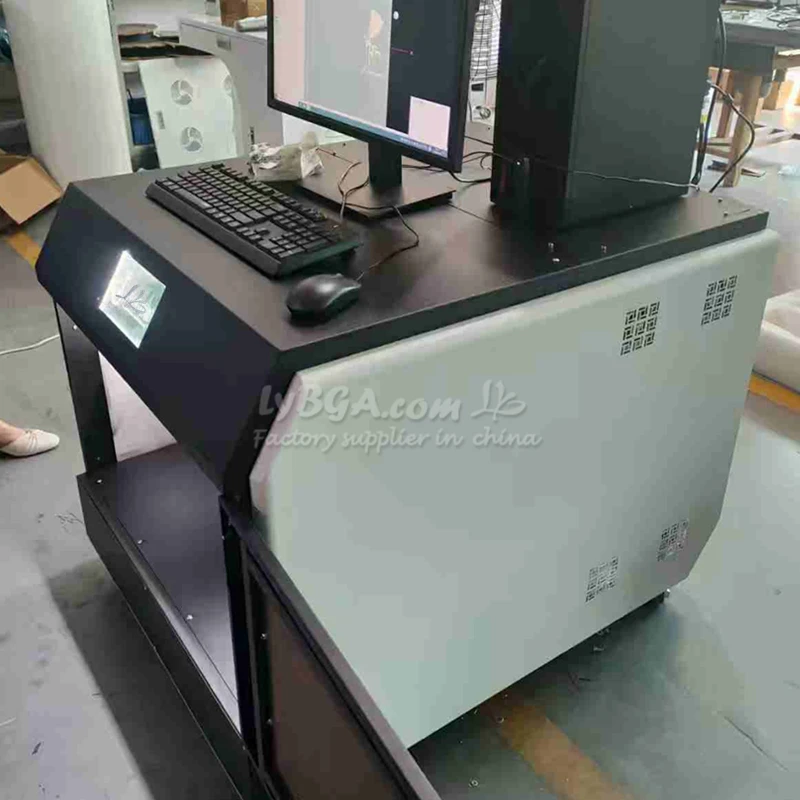

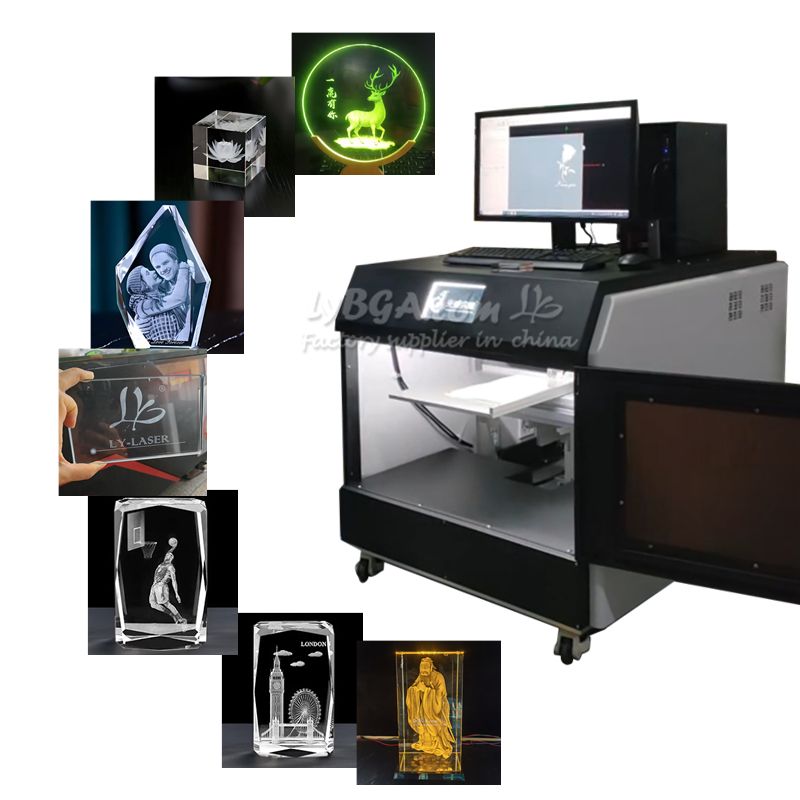

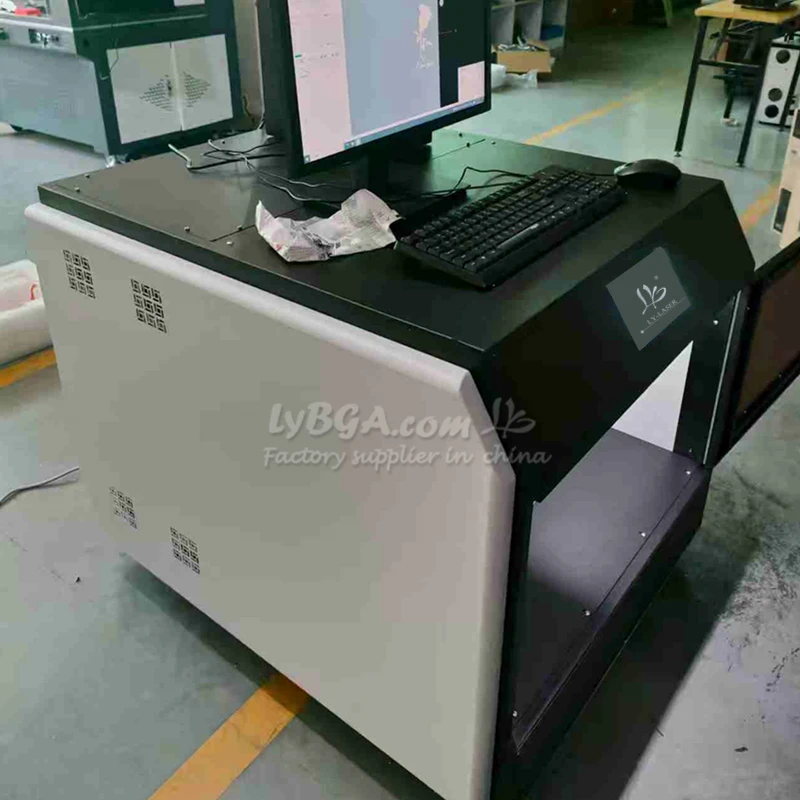

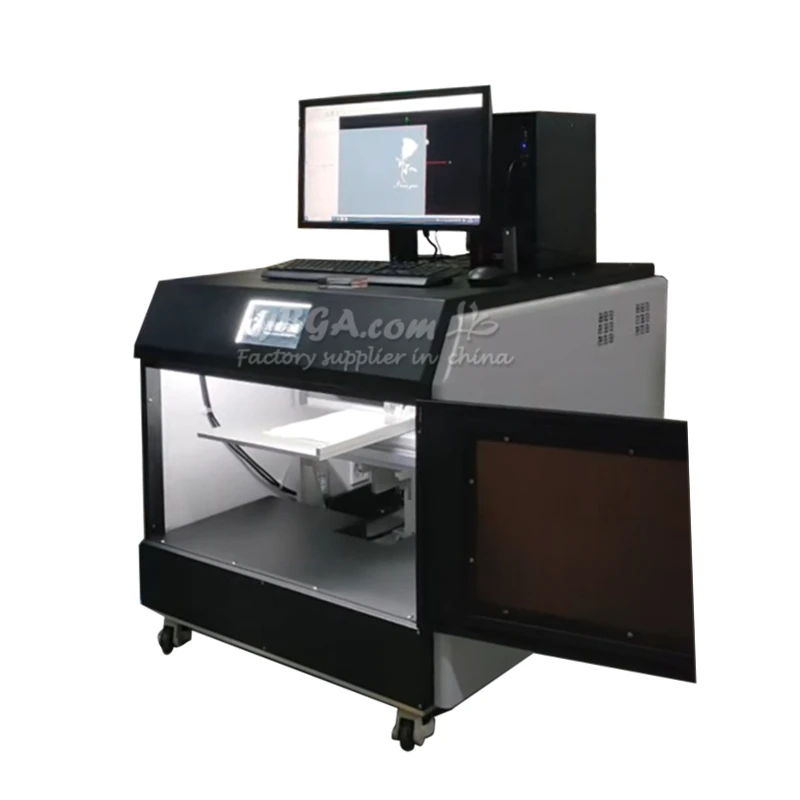

532nm 6W 2D Green Light Laser Engraving Machine 300x400x100MM Glass Crystal 3D Internal Engraving 1W UV Laser Marking Machine
Includes all taxes
Meet your Seller
-
$8,100.00Sold by BILLIONS BIRDS
Description

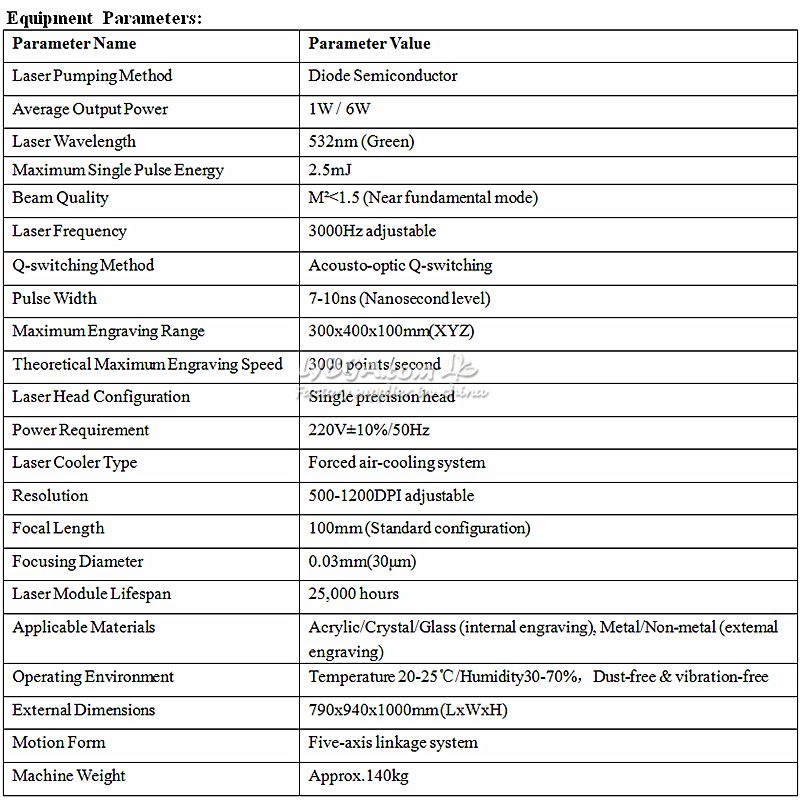

Equipment Parameters:
Parameter Name | Parameter Value |
Laser Pumping Method | Diode Semiconductor |
Average Output Power | 1W / 6W |
Laser Wavelength | 532nm (Green) |
Maximum Single Pulse Energy | 2.5mJ |
Beam Quality | M²<1.5 (Near fundamental mode) |
Laser Frequency | 3000Hz adjustable |
Q-switching Method | Acousto-optic Q-switching |
Pulse Width | 7-10ns (Nanosecond level) |
Maximum Engraving Range | 300x400x100mm(XYZ) |
Theoretical Maximum Engraving Speed | 3000 points/second |
Laser Head Configuration | Single precision head |
Power Requirement | 220V±10%/50Hz |
Laser Cooler Type | Forced air-cooling system |
Resolution | 500-1200DPI adjustable |
Focal Length | 100mm (Standard configuration) |
Focusing Diameter | 0.03mm(30μm) |
Laser Module Lifespan | 25,000 hours |
Applicable Materials | Acrylic/Crystal/Glass |
Operating Environment | Temperature |
External Dimensions | 790x940x1000mm (LxWxH) |
Motion Form | Five-axis linkage system |
Machine Weight | Approx.140kg |
Note: The above are the standard configurations and parameters. For special requirements, customizations are available, including laser parameters and performance.
Features of the LY-A02 Equipment:

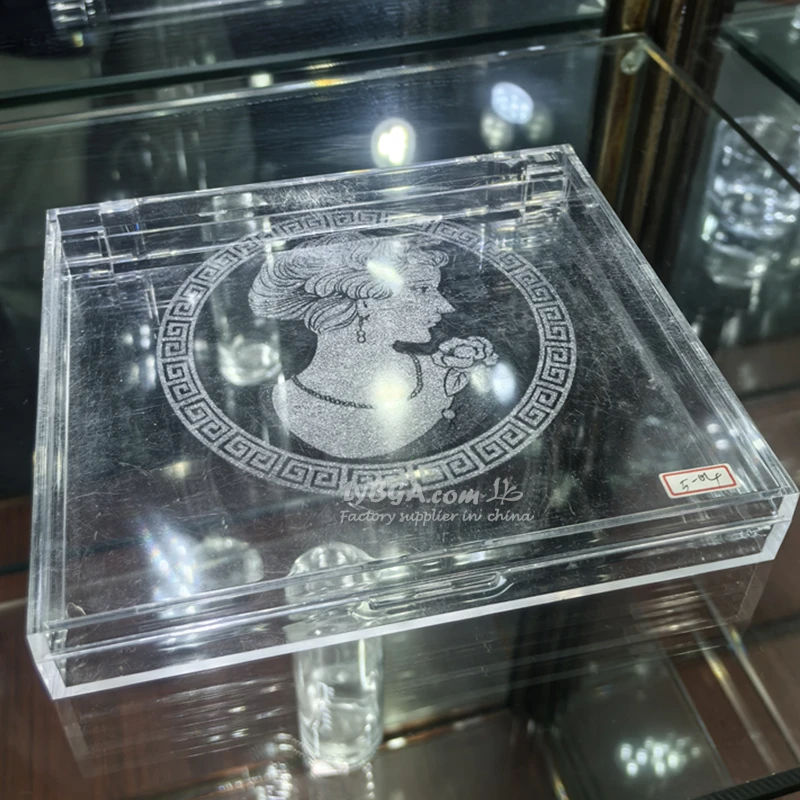

1. Material Flexibility and Multi-functionality: It can engrave any text and patterns inside transparent materials such as acrylic, crystal, glass, and zircon. Thanks to our company's technical improvements, the device can also perform basic laser engraving on non-transparent materials like metal and non-metal surfaces, achieving multi-functionality with a single machine.

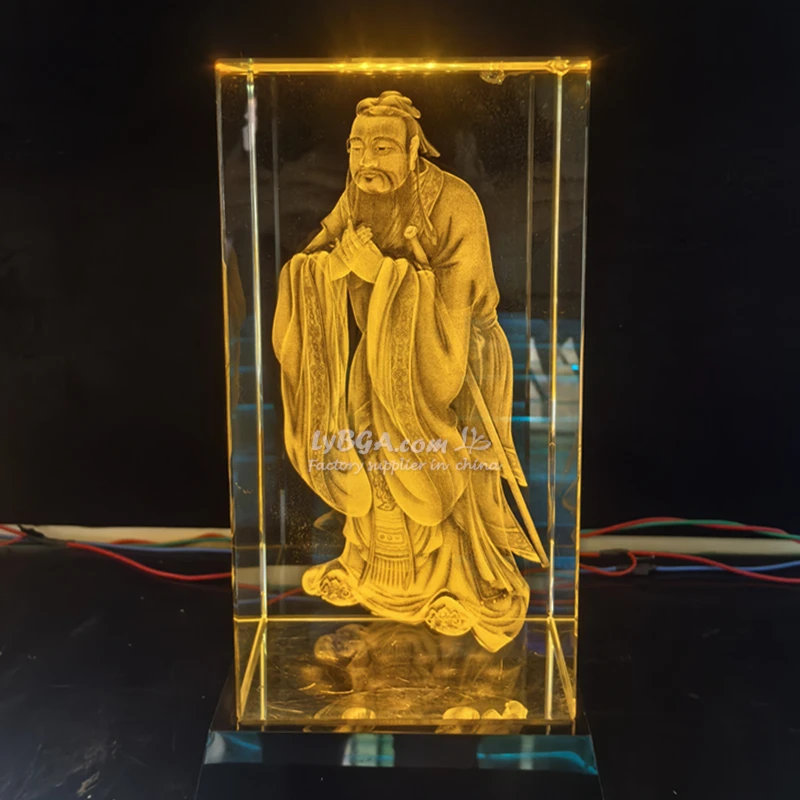

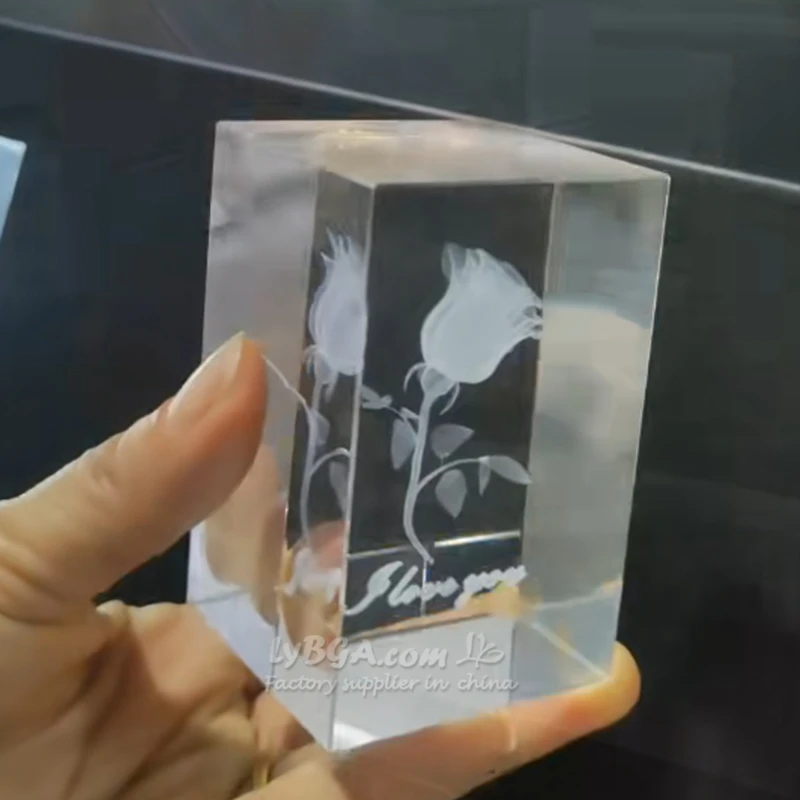

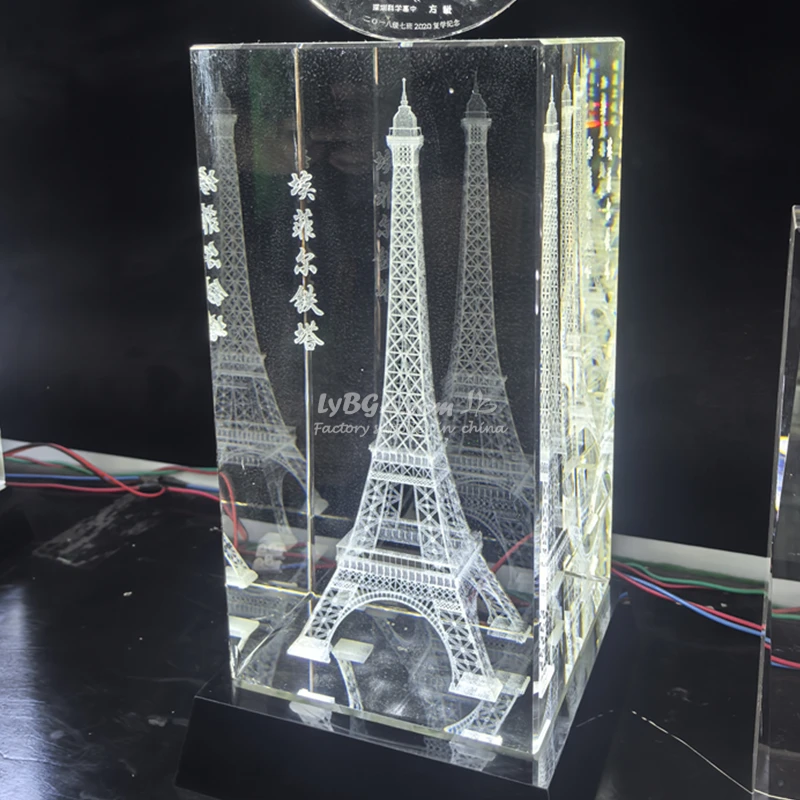

2. 2D and 3D Capabilities: It can create flat photos, children's hand and footprints, trophies and medals, 3D portraits, and various 3D models.
3. Integrated Z and XY Axis Design: This design enhances the precision and quality of the engraving.
4. User-friendly Operation: With our self-developed user-friendly software, even a novice who is familiar with basic computer operations can independently operate the machine within an hour. It is suitable for both mass production and personalized processing. During mass production, one person can operate several machines, saving labor.
5. Fast Engraving Speed and Fine Dot Distribution: A crystal portrait of size 368 can be quickly and high-quality completed in just two or three minutes.
6. Dust-free and Pollution-free: Since the laser engraving is done inside materials like crystal, glass, acrylic, and transparent plastic films without any surface damage, there is no pollution emission.
7. Wear-resistant and Tamper-proof: The engraved patterns are inside the material, with no gaps or damage on the surface. Therefore, they cannot be removed by acids, alkalis, solvents, high temperatures, or friction, completely preventing tampering.
8. Energy-efficient: The machine consumes approximately one unit of electricity per hour, with a power requirement of 220V±10%/50Hz.
Application Fields:
1. Electrical and Mobile Phone Industries: Engraving on the exterior and interior of electrical panels, mobile phone buttons, casings, lenses, film buttons, and IMD/IML products.

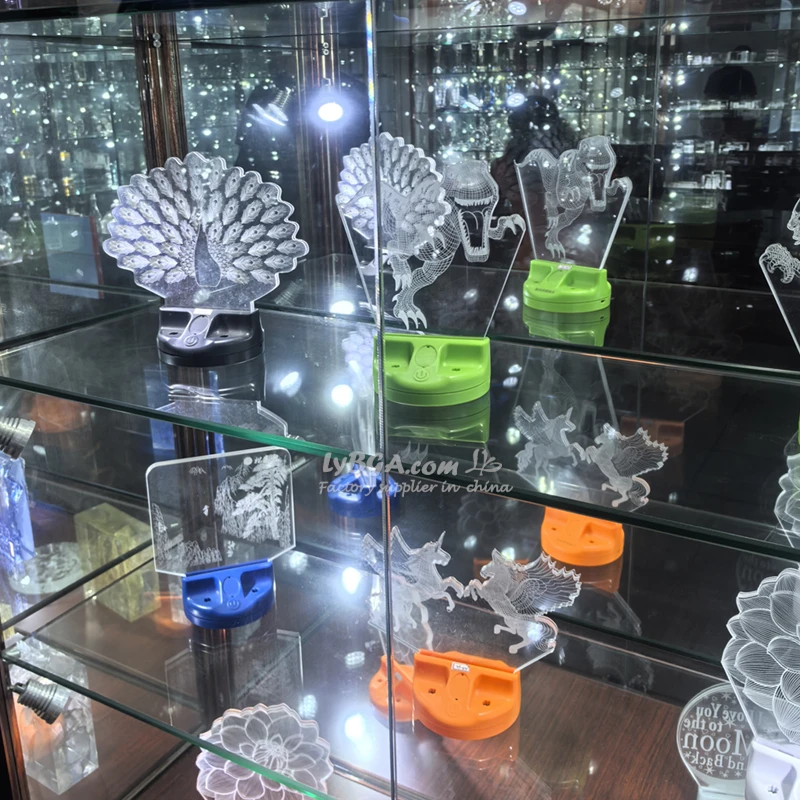

2. Lighting and Jewelry Industries: Internal engraving of LOGOs, names, text, logos, and patterns on transparent materials.
3. Beverage, Cosmetics, and Glass Industries: Anti-counterfeiting and anti-diversion measures for products, such as anti-counterfeiting codes, regional codes, QR codes, production dates, and logistics codes.

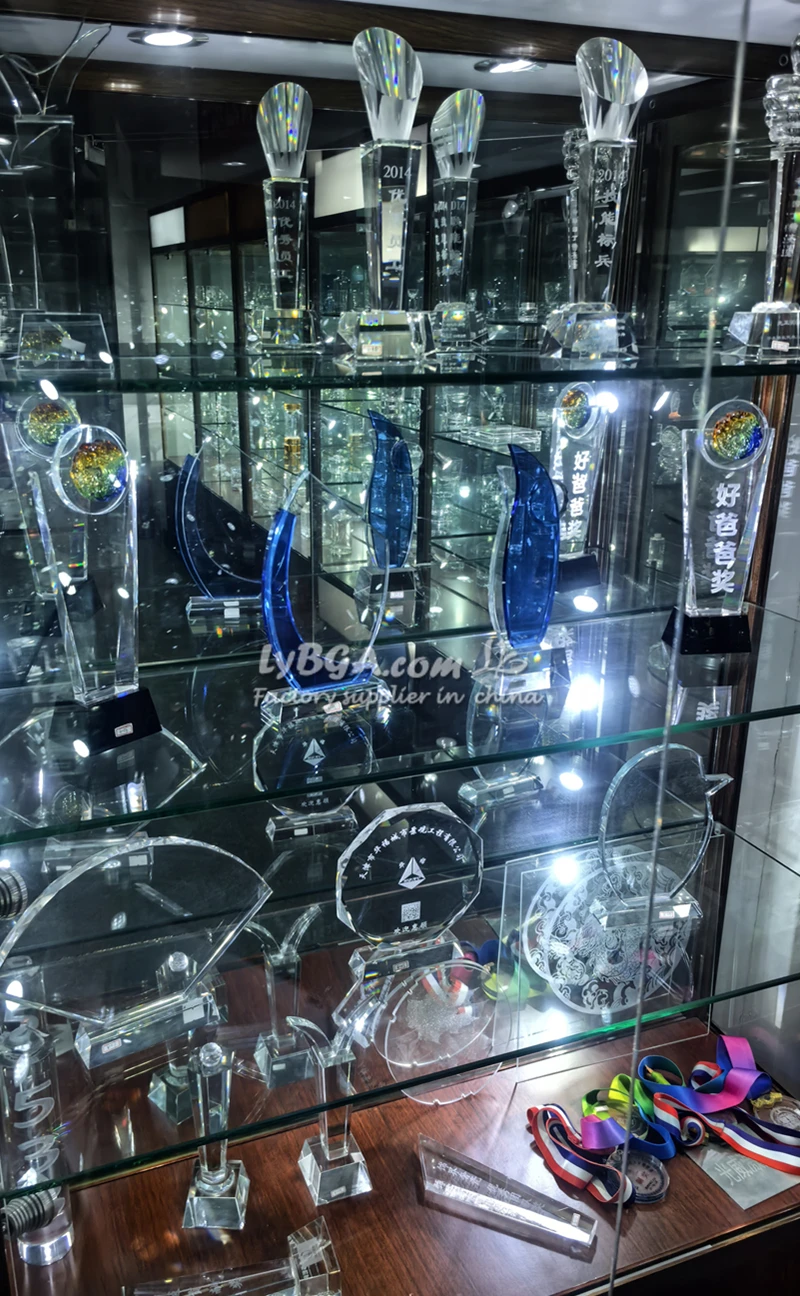

4. Wedding Photography Studios, Tourist Attractions, Portrait Making, and Gift and Trophy/Medal Industries: Creating portraits and various gifts and awards.
5. Other Industries: Including identification marks for the ceramics industry; car lights for the automotive industry; lenses and frames for the eyewear industry; watch dials for the watchmaking industry; and ultra-thin light boxes and internal engraving of any characters and text on transparent materials for the advertising industry.
