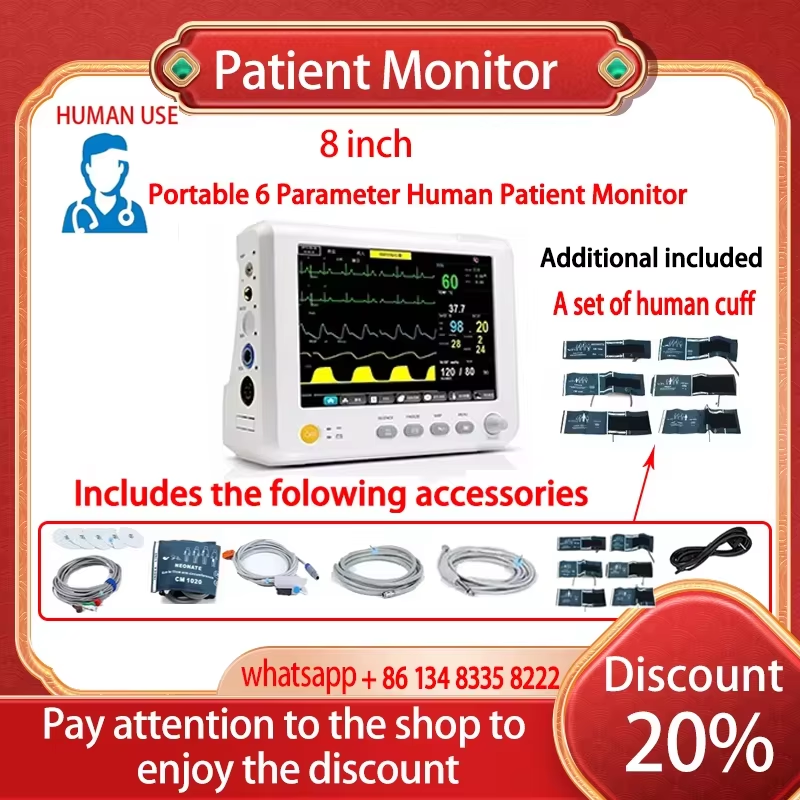

7/ 8/10 inch Screen Newborn adult/Vet use portable 6-parameter patient monitor vital signs monitor ECG/NIBP/PR/SPO2/RESP/TEMP
Includes all taxes
Meet your Seller
-
$878.09Sold by BILLIONS BIRDS
Description
Please "Follow" my store, you will get extra discount for fans.
Multi-Parameter Monitor
7 inch Color LCD Screen
Built-in lithium battery Professional Level
6 Detection Functions
Protect family health
Intelligent Alarm Function
With sound, text, and visual three-level alarm function
Portable Design
Lightweight and easy to carry,Handle design is more convenient for transfer and carrying
Built-in Lithium Battery
Rechargeable lithium battery, AC/DC dual, can achieve uninterrupted monitoring
Kind Tips：
Standby time is 4 hours, working time is 3 hours
Easy to Operate
Standard touch screen,more convenient operation
Various Application Scenarios
Family health testing Class-A hospital (ICU/CCU)
Ambulance Veterinary hospital
Home Health Check
Tertiary hospitals (ICU/CCU)
Veterinary hospital
Ambulance
Community Medical
Specialized Hospital
Accessories Display
① ECG electrodes*5
② Power cord*1
③ Blood pressure extension tube*1
④ ECG lead wire*1
⑤ Ground wire*1
⑥ Temperature probe*1
⑦ Instructions*1
⑧ Blood pressure cuff*1
⑨ Oxygen probe*1
The Standard Configuration:
ECG/HR/PR/TEMP/RESP/NIBP/SPO2
Optional:
End-tidal CO2
Inlet blood pressure module
Built-in recorder
Monitor bracket cart
Monitor support wall frame
Intelligent interconnection
With Bluetooth, wifi function can connect to the central monitoring. can connect to APP to realize intelligent interconnection
Fanless design
Quiet, energy saving, clean, does not affect patient rest, while reducing the possibility of cross infection
Widely applicable
It can be widely used to give more protection to the family
Various Operation Interfaces
Multi-parameter display on the same screen
Product Specifications
Electrical Specifications: 12V 2A adapter
Maximum input power:70VA
Battery:Rechargeable lithium battery both AC and DC
Weight:825 g
Product size:168*143.3*66.5mm
Standard parameter:ECG/NIBP/PR/RESP/TEMP/SPO2
Product Model E7
Screen Size 7 inch
Operating Temperature: 5°℃-40°℃
Working Humidity: 15%-80%
Atmospheric Pressure: 60kPa-107kPa
Optional configuration ETCO2/Monitor bracket trolley /Monitor wall bracket
Parameter brochure
Product configuration description
* 8 inch high-resolution color screen
* Exquisite design, suitable for moving operation.
* Various interfaces:standard screen, trend screen, oxyCRG screen, big front screen.
* Real-time S-T segment analysis, pace-maker detection
* Up to 400 groups NIBP list, 60 alarm event records recall,7-day trend chart in storage
* Indication of incorrect manipulation and malfunction analysis
* Capture 2-hour dynamic trend.
* Built-in rechargeable lithium battery, 2-hour working capability
Standard Configuration:
SpO2, PR, NIBP, ECG, RESP, TEMP
Optional Configuration:
(If necessary, please contact the store customer service staff.)
ETCO2
Neilcor’m blood oxygen
Invasive blood pressure IBP
Intelligent Alarm Function
With sound, text, and visual three-level alarm function
Portable Design
Lightweight and easy to carry
Built-in Lithium Battery
In case of sudden power failure, the system will automatically use the battery
Kind Tips
After the low battery alarm, it can continue to work for about 5 minutes.
Easy to Operate
The operation on the monitor can be completed by buttons and knobs
Various Application Scenarios
Family health testing Class-A hospital (ICU/CCU) Ambulance Veterinary hospital
Accessories Display
① ECG electrodes*5
② Power cord*1
③ Blood pressure extension tube*1
④ ECG lead wire*1
⑤ Ground wire*1
⑥ Temperature probe*1
⑦ Instructions*1
⑧ Blood pressure cuff*1
⑨ Oxygen probe*1
The Standard Configuration: ECG
Suitable for Central Monitoring System
Provide comprehensive networking solutions Allows you to obtain patient information anytime and anywhere across the constraints of time and space
Please note:
The function is an optional function, if necessary, please contact online customer service. thanks
Various Operation Interfaces
Multi-parameter display on the same screen
Screen display function display
Product Specifications
Multi-Parameter Monitor
This monitoring device is in adult configuration by default, and different types are optional
Optional Configuration:
ETCO2 This configuration requires extra charge.
Please contact us for details.
These four parts can be replaced freely without extra charge :
Adult parts
Baby parts
Children part
Animal parts
Parameter Description
NIBP:
Method: Oscillometry
Modes: Manual/Auto/Continuous
Auto measure time: Adjustable
Measurement rang: 10-270mmHg
ECG:
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, avR, avL, avF, V
Heart rate range: Adult: 15-300bpm, Pediatric/Neonatal: 15-300bpm
ECG waveform: 2 channels
Accuracy: 1 bpm or 1%
S-T segment detection Measurement range:-0.2mv~2.0mv
Alarm: Yes, audible and visual alarm, alarm events review
SPO2:
Measurement range: 0-100%
Accuracy: 70-100%, 2% 0-69%, unspecified
Pulse rate:
Range: 20-254bpm
Accuracy: 3bpm
Respiration:
Method: RA-LL impedance
Range: Adult:0-120rpm; pediatric/neonatal:0-150rpm
Apnea alarm: Yes
Temperature:
Range: 0-50
Apnea: 0.1
Channel: Dual-Channel
EtCO2 (option, not included, you should buy it if you need):
Measurement Mode: Side-stream or mainstream
Measurement range: EtCO2: 0-99mmHg
Accuracy: CO2 concentration
Apnea alarm: YES
IBP (option, not included, you should buy it if you need):
Channel: 2 channels
Pressure transducer: Sensitivity: 5( mV/V/mmHg)
Transducer sites: ART, PA, CVP, RAP, LAP, ICP
Alarm range: -10~300mmHg
Standard parameter & configuration:
3/5 lead ECG, RESP, SpO2, NIMP, TEMP, PR
Optional parameter & configuration (not included):
2-IBP, 12 lead ECG, ETCO2, Printer
MUlti-function 5 in 1 Portable 3 channel ECG holter ecg device machine blood pressure monitor with analyzer Clinical Analytical Instruments
Routine functions: ECG, blood pressure, blood oxygen, body temperature, breathing monitoring
Other features:
1.Adopt 5.5-inch high-definition display: 1280*720
2.Powerful operating system, capacitive touch screen operation, easy to use
3.Optional Etco2 and blood sugar functions
4.Small size, can be used in surgical monitoring, bedside monitoring, first aid and other places
5.A variety of placement, fixing methods and hanging, convenient to use in a variety of places
6.Standard TYPE-C interface power supply, which can be powered anytime and anywhere
7.Built-in lithium battery power supply, up to 5-6 hours, with a power bank, can work uninterrupted.
ECG EKG
1, gain selection: 2.5mm/mV;5.0 mm/mV;10mm/ mV;20mm/mV;
2, lead type: 3 channel;
NIBP blood pressure
1, measurement mode: automatic measurement, continuous measurement, manual measurement three modes;
2, support over voltage protection;
3, static pressure measurement: in the range of 0mmHg (0KPa) ~ 300mmHg (40.0KPa), the measurement error should be 3mmHg (± 0.4kpa);
4, measurement accuracy:the maximum standard error ±5mmHg, the maximum standard deviation 8mmHg;
5, resolution: display resolution should be 0.1kpa (1 mmHg>) ;
SPO2 oxygen saturation
1.Blood pressure saturation measurement range :0% ~ 100%;
2, measurement accuracy: within the range of 90%-100% accuracy should be ±1%;
Pulse frequency
1.Measurement range: the blood oxygen pulse rate ranges from 20bpm to 250bpm, and the measurement error should be ±3bpm;TEMP temperature1, high sensitivity temperature probe;
2, the measurement range :O℃ ~ 50℃: the measurement error does not include the probe is ±0.1℃, including the probe is ±0.2℃.
Product list:
Multifunctional monitor, adult blood pressure cuff, high precision temperature probe, 3-wire ECG, blood oxygen probe.
