81kg Load Car Chassis Heavy-Duty 4WD Mecanum Wheel Trolley Omnidirectional Metal RC Car for Arduino Programmable Robot DIY Kit

$445.08

Includes all taxes

Ships From
Meet your Seller
Delivery options
  • Ship Only

Description

Youfang Smart is smarter, tech, and healthier

    We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This rc robot is a new, very intelligent robot designed by our institute, but also the enlightenment of children and engineers to learn and educate, we will release more technology, education, health new products from time to time, can be used as children's robot gifts, adult learning demoboard.I believe you will like our robot.


75-81kg Load Heavy-Duty 4WD Mecanum Wheel Trolley Omnidirectional Metal Wheel RC Robot Car Chassis for Arduino Programmable DIY Kit


【 Read carefully before buying 】

Title: 4WD 80kg large load McNamum wheel chassis omnidirectional mobile trolley Intelligent vehicle chassis programmable development


Parameters of the car:

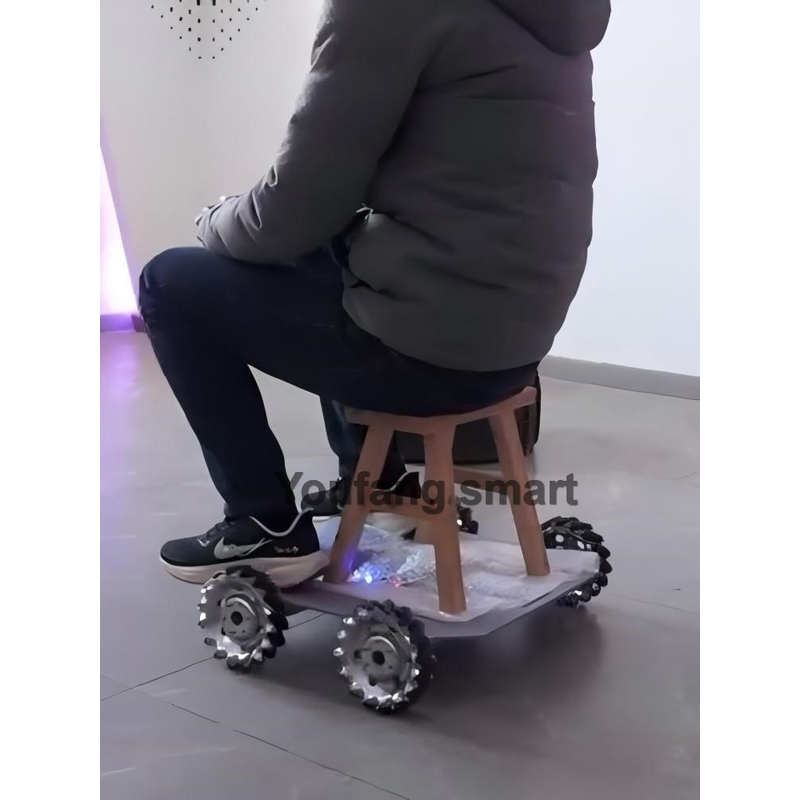

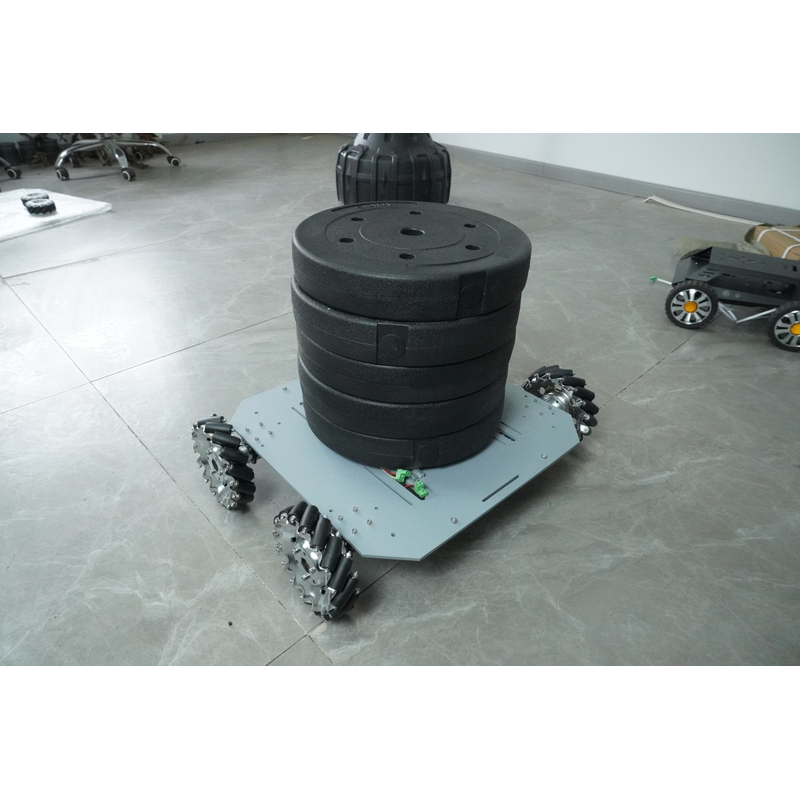

Load: up to 81kg

Car dimensions length, width and height: 450 + 600 + 120mm

Frame board size length and width: 450+450mm

Frame plate size thickness: 5mm

Wheel diameter: 152mm

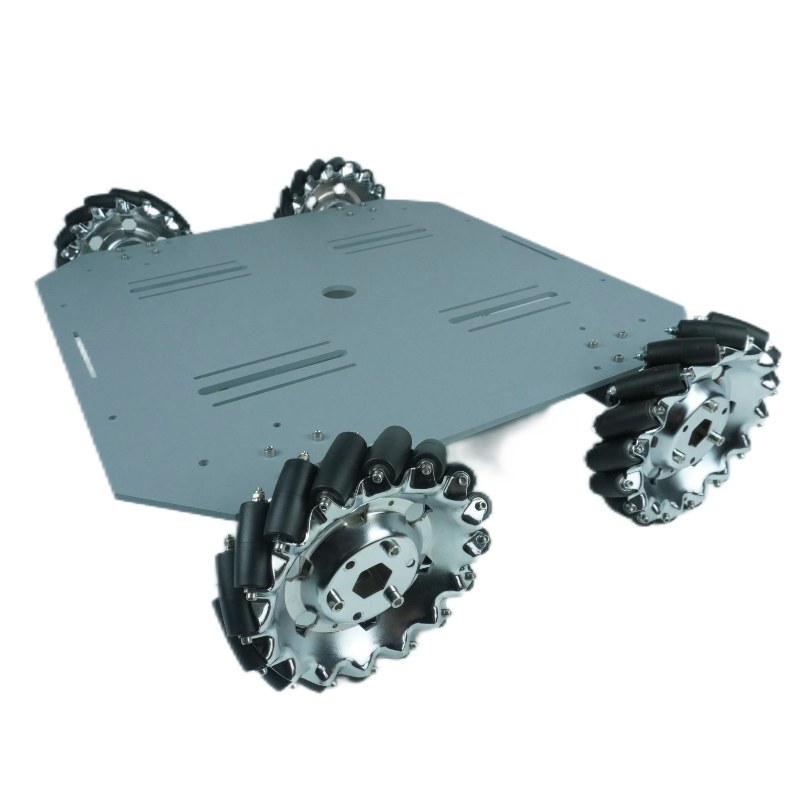

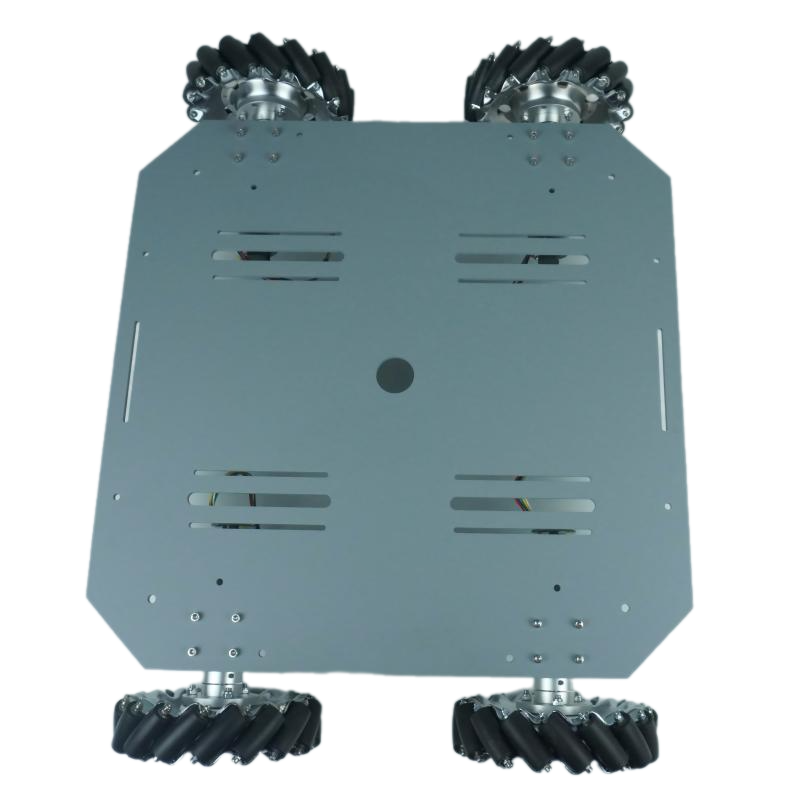

Plate Chassis:


Chassis plate size: 450 * 450 * 5mm (length * width * thickness)

Chassis plate material: Aluminum alloy


Motor parameters:

Model: 36GP-555 Permanent Magnet Planetary Geared Motor

Size: 36 * 114mm (excluding output shaft and terminal)

Shaft length: 20.0MM unidirectional shaft

Shaft diameter: 8mm D-shaped shaft double ball bearing positioning structure

Weight: about 480g

The input voltage is 24V

Wiring specifications: PH2.0-6PIN terminal connector

Encoder specifications: AB dual-phase encoder 11-line basic signal voltage 3.3V or 5.0V

Reduction ratio ratio: 1:50 (The reduction ratio determines the output torque!) The higher the reduction ratio, the greater the torque and the lower the speed! )

Maximum no-load RPM: 120

L size mm: 38.9

Rated RPM: 100

Rated torque Kg.cm:15

The Stall load torque Kg.cm:50

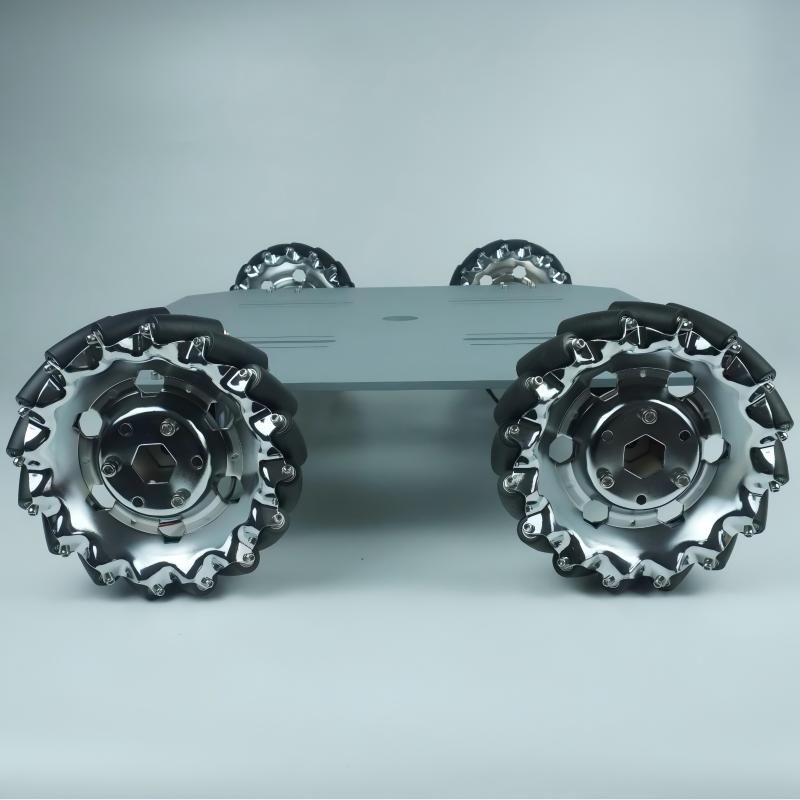

Mecanum Wheel:


Size: 6 inch diameter / 152mm

Weight: about 700g / piece

Small roller: full bearing structure, very smooth. A set of four bearing 150Kg

The diameter of the middle hole is 20mm, surrounded by a 6-division distribution circle with a diameter of 45mm, and the size is 5.20mm in diameter

Overall wheel thickness: 45mm


  • Package list:


81kg load Car chassis:

450*450*5mm Aluminum Alloy plate*1

152mm mecanum wheel*4

24V Motor*4

Motor Bracket*4

Motor Wires* 1set

Screws* 1 set

Without controller


For UNO Full set:

450*450*5mm Aluminum Alloy plate*1

152mm mecanum wheel*4

24V Motor*4

Motor Bracket*4

Motor Wires* 1set

Screws* 1 set

With RC controller For UNO (Ps2 control distance: about 10-50m)


Note:

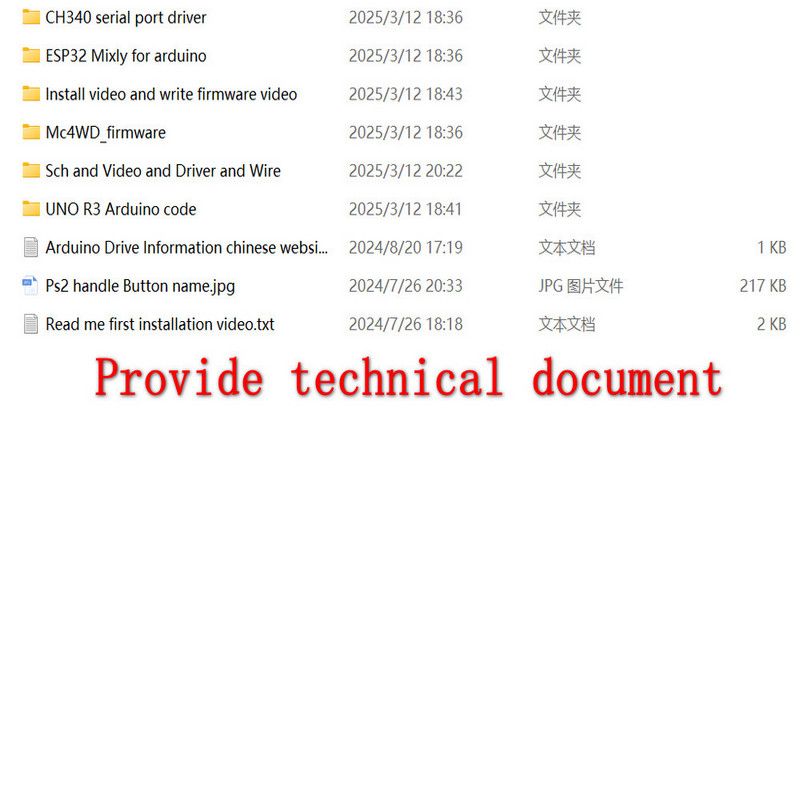

1.This is unassembled, you need to assemble it, we provide tutorials and open source code for free,Please leave your email address

2.Due to the customs policy, the product is mailed without a battery, and 24 V is recommended.It is recommended to use 24V power lithium battery.
