Acrel Din Rail ADL400N Power Analyzer 3-phase Smart Energy Meter RS485 Modbus-RTU Paired 3 Pcs Split Core 80A/120A/200A/300A Cts

$194.35

Includes all taxes

Ships From
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

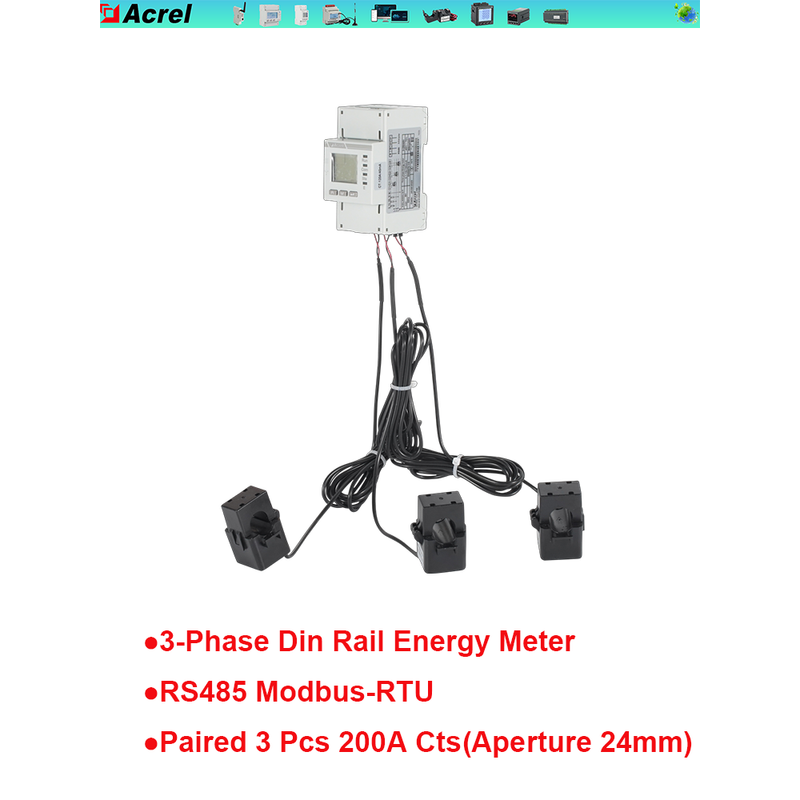

ADL400N Three-phase DIN Rail Energy Meter and 3 Pcs Cts

ADL series DIN-rail mounted multifunctional electric energy meter is an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected systems, micro inverter systems, energy storage systems, AC coupling systems, etc. The product has the advantages of high precision, small volume, high respondent speed, and convenient installation. The product has the features of sampling, metering, and monitoring power parameters, communicating with an inverter or an energy management system (EMS), realizing the functions of preventing reverse flow, regulating power generation, charging and discharging batteries according to real-time power and accumulated electric energy, and realizing bidirectional metering and household distributed photovoltaic energy management.

● Measurement: 3-phase AC kWh, kVarh, U, I, P, Q, S, PF, F and etc
● Accuracy: 0.5% (kWh)
● Frequency: 45~65Hz
● Rated Voltage: 3x230~456Vac L-L ;3×110-265Vac L-N
● Rated Current: 3x80A AC,3x120A AC,3x200A,3×300 AC (via CTs)
● Communication: RS485 (MODBUS-RTU)
● Standard&Certificate: IEC; CE;CE-MID; EAC

Item
Performance Parameters
Model Series
ADL200N-CT
ADL400N-CT
Grid
Single-phase
Three-phase four-wire, three-phase
three-wire, single-phase three-wire
Rated voltage
230V
Single-phase: 240/480V
Three-phase:3×230/400V,3× 277/480V,3×110/220V


Overload
1.2 times rating (continuous)
2 times the rating for 1 second
Power
consumption
<0.2VA
Accuracy class
Error ±0.5%
Input current
80A, 120A, 200A, 300A
80A, 120A, 200A, 300A, 3×80A, 3× 120A, 3×200A, 3×300A
Overload
1.2 times rating (continuous)
2 times the rating for 1 second
Power
consumption
<0.2VA
Accuracy class
Error ±0.5%
Power
Active, reactive, apparent power, error ±0.5℅
Grid frequency
45~65Hz, error ±0.5%
Response rate
≤100ms (voltage, current, power)
≤1s (electrical energy)
Electric energy
Active energy: Class B (split current transformer) /Class C (closed
current transformer)
Reactive energy (Class 2 accuracy)
Electrostatic discharge immunity class III
Electrical fast transient burst immunity class IV
Surge (shock) immunity Class IV
Power frequency withstands voltage
Between communication and signal input, AC4kV 1min
Insulation resistance
Input and output terminals to casing >100MΩ
Interface and communication
protocol
RS485 interface and Modbus RTU protocol
Communication address range
Modbus RTU:1~ 247;
Baud rate
Support 1200bps-38400bps
Operating temperature
-40℃~+70℃
Storage temperature
-40℃~+70℃
Relative humidity
≤95℅ (without condensation)
Altitude
≤3000m
