AENBUSLM 40W 80W Laser Module 450nm TTL/ PWM Laser Head Blue Laser for CNC Laser Engraving Cutting Machine Wood Working DIY Tool
Includes all taxes
Meet your Seller
-
$215.15Sold by BILLIONS BIRDS
Description
Laser Engraving/Cutting Machine (click on the image below to view details)
Question: Is this laser engraving head suitable for my laser engraving machine?
Answer:
1. Our laser module socket is compatible with a plug with 3 pin wires. As long as it can be plugged into the socket of the laser module, it can be powered on. We will give away 3 connecting cables with different interfaces.
2. In addition, for the laser module with a power of 80W, the main board power supply of the laser machine is preferably 12V / 24V 5A, minimum 12V / 24V 3.5A, so as to maximize the power of the laser module.
3. If the laser machine is below 12V / 24V 5A, there are also methods to maximize the power of the laser module (for specific methods, please contact our customer service personnel for answers)
4. Laser module with a power below 80W do not have special requirements for power supply. Such as 40W.
40/80W Fixed Focus
The newly upgraded 40W/80W power is strong, and the engraving speed is 6-7 times faster than traditional laser modules. The stainless steel engraving effect is better.
The accuracy of laser engraving is 3-4 times that of traditional laser modules, with faster, more accurate and precise conversion.
80W Fixed Focus Features:
1. High Quality Materials: laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;
2. Work Efficiently: easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;
3. With Air Assist: with air nozzle to get clean-out edges, improve cutting performance;
4. Strong Skills: able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);
5. Super Cutting Ability: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);
6. Protective Cover Design: with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;
7. Wide Application Range: used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;
8. Easy to Assemble: small, compact, cable length is 28 cm, convenient and easy to install.
Parameter:
1. Laser Effect Power: 80W
2. Laser Optical Power: 10W
3. Size: 45*35*145mm
4. Wavelength: 450nm
5. Input Voltage: 12V / 24V
6. Power Supply Current: 3.5A - 5A
7. Working Life: 20000 hours
8. Power Control: PWM/TTL (0-5V signal control)
9. Interface Specification: 3pin 2.54 / 4pin 2.54
10. Light Color: Semiconductor blue light
11. Material: Aluminum Alloy + Plastic + Copper

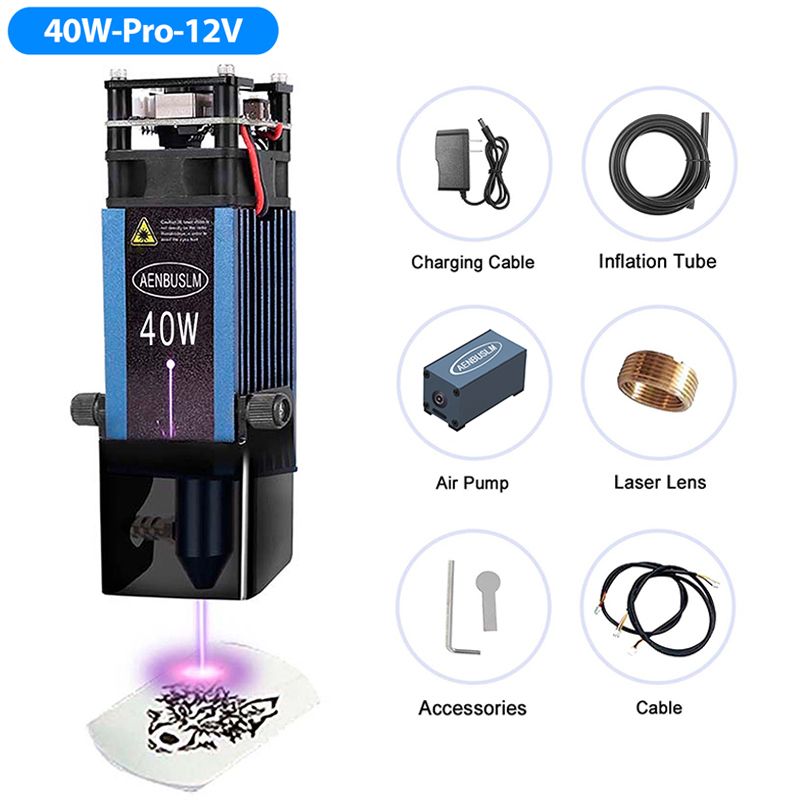

Package List 1:
1*laser engraving head
1*3pin cable; 1*4pin cable; 1*DC short cable
1*protective glasses(random color)
1*fixed focus column
1*focus lens
Package List 2:
1*laser engraving head
1*3pin cable; 1*4pin cable; 1*DC short cable
1*fixed focus column
1*laser lens
1*air pump
1*inflation tube
1*charing cable
1*accessories
Notice:
1. Pay Attention to Line Sequence: 3pin: 12V / 24V + red line, GND-black line, PWM+yellow line; 4pin: 12V / 24V + red line, 12V / 24V - black line, TTL+yellow line, TTL-white line;
2. Can Be Engraved: 201/304 stainless steel, titanium steel and anodized aluminum oxide, stone, MDF, light wood, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc;
3. Can Not Engrave: copper raw materials, aluminum raw materials, steel raw materials;
4. Cutting Materials: plywood, black acrylic, leather, paper, etc;
5. Engraving instructions: Engraving reflective objects must be painted black before engraving; otherwise, the reflected light can easily damage the focus lens.
Air Pump
40W Fixed Focus Features:
1. High Quality Materials:laser module, durable aluminum alloy shell, fast engraving speed, low power consumption, good stability, long working life;
2. Work Efficiently:easy-to-use, flexible, fast, clear, efficient, and high-precision engraving;
3. With Air Assist:with air nozzle to get clean-out edges, improve cutting performance;
4. Strong Skills:able to engrave metal, wood, leather, rubber, acrylic, etc., as well as cut wood and acrylic (power determines skill);
5. Super Cutting Ability: 40W: pine wood 10mm; Basic plywood 5mm; Black acrylic 5mm; 80W: pine wood 20mm（15mm one pass）; Basic plywood 10mm(one pass); Black acrylic 10mm(7mm one pass);
6. Protective Cover Design:with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head;
7. Wide Application Range:used in conjunction with laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, etc., compatible with most recording programs;
8. Easy to Assemble:small, compact, cable length is 28 cm, convenient and easy to install.
Parameter:
1. Laser Effect Power: 40W
2. Laser Optical Power: 6W
3. Size: 45*35*145mm
4. Wavelength: 450nm
5. Input Voltage: 12V / 24V
6. Power Supply Current: 2A-5A
7. Working Life: 20000 hours
8. Power Control: PWM/TTL (0-5V signal control)
9. Interface Specification: 3pin 2.54 / 4pin 2.54
10. Light Color: Semiconductor blue light
11. Material: Aluminum Alloy + Plastic + Copper
