Product sellpoints:

【 Fully Balanced Hi-Fi Vacuum Tube Preamplifier 】 Extremely low noise, low distortion, wide dynamic range, faithfully amplifies and transmits signals without adding excessive coldness, fully balanced circuit design/high-end operational amplifier chip/rich and mellow sound color, SNR : ≥112dB/ THD+N 0.003%/ Dynamic Range: 109dB

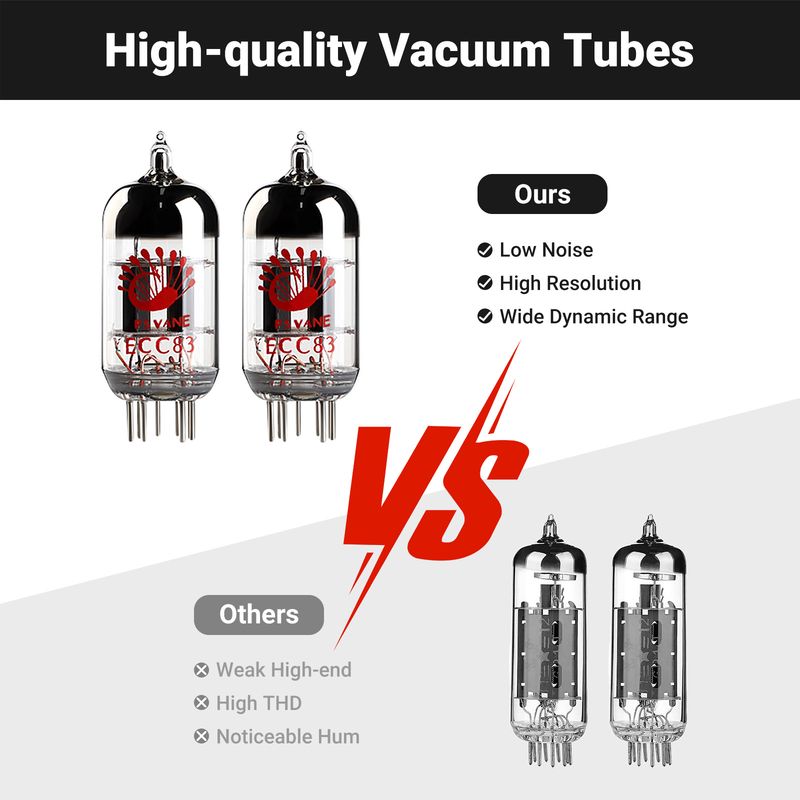

【ECC83 Vacuum Tube 】 PSVANE ECC83 electronic tube has a warm and rich tone, and it also features a wide dynamic range. The listening experience is both soft and full of tension. With a power supply of up to 180v for the tube, the electronic tube can perform at its best. Different models of vacuum tubes, such as 12AX7-S, 12AX7B, 7025 and 12AX7, can be replaced to experience different tones.

*For optimal sound quality, allow a 20-30 minute warm-up on initial use to let the tubes reach their ideal operating state.

*For optimal performance of ECC83 tubes and to ensure low noise, it is recommended to match with downstream equipment featuring an input sensitivity of 2V (RCA) / 4V (XLR) and speakers with a sensitivity range of 88dB-92dB.

【LME49720+OPA1612 Operational Amplifier Chip 】 Top-tier operational amplifier chip combination, three plug-in operational amplifiers, supporting free replacement to meet the pursuit of different tones. Replaceable operational amplifier chips: LM4562, NE5532, OPA2604, OPA2134, JRC5532, etc.

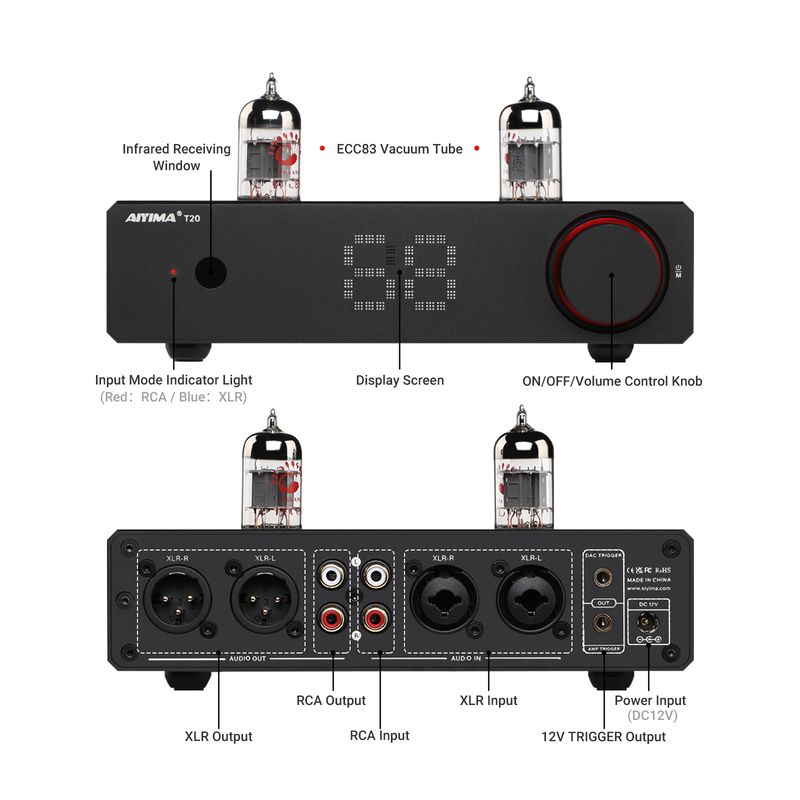

【 Input Mode 】 The T20 supports both XLR and RCA input/output interfaces, offering multiple options. Even professional HIFI is suitable for home scenarios and can be adapted to.

【 Brand-new elegant appearance Design 】 The front panel features a multi-functional knob with a red ring. The knob integrates multiple functions and can be rotated infinitely. Short press to turn on the device and switch input modes, while long press to turn it off. Double-click to mute; Rotate to adjust the volume, digital volume display, 12V TRIGGER output.

*For the initial use, the connected device must be manually powered on. The trigger function will then operate normally for subsequent uses. This feature is not compatible with WiiM series products.

Product description：T20

OP AMP chip: LME49720*3, OPA1612*2

Replaceable OP amp chips: LM4562, NE5532, OPA2604, OPA2134, JRC5532, etc.

Tube model: ECC83 (PSVANE)

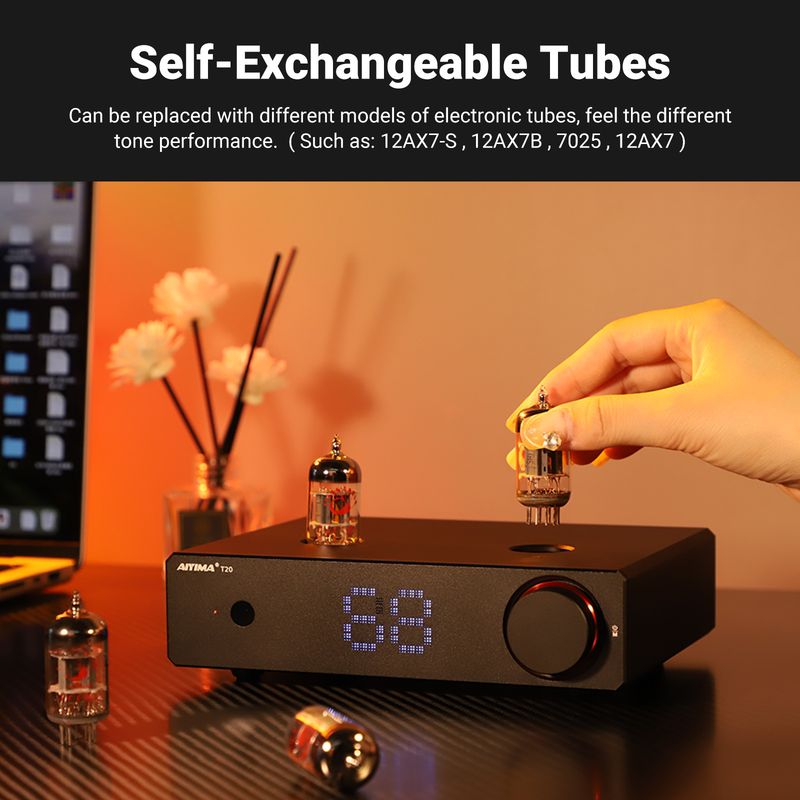

Replaceable tube model: PSVANE: 12AX7-S  or  shuguang: 12AX7B;7025;12AX7

Input mode: RCA, XLR

Output mode: RCA, XLR

T20 output level： RCA：4V XLR：6V；

T20 input sensitivity ：RCA：2V XLR：4V；

with AMP12V trigger output, DAC12V trigger output

Noise Floor: 20uV

SINAD: 91dB

SNR: ≥112dB

Dynamic Range: 109dB

THD+N: 0.003%

Frequency response: 20Hz-20kHz (±0.2dB)

Supported equipment: decoder, TV, CD player, digital player, etc.

Output mode: 1.power amplifier + passive speaker ； 2.Active speaker

Working power supply: DC12V/≥2A

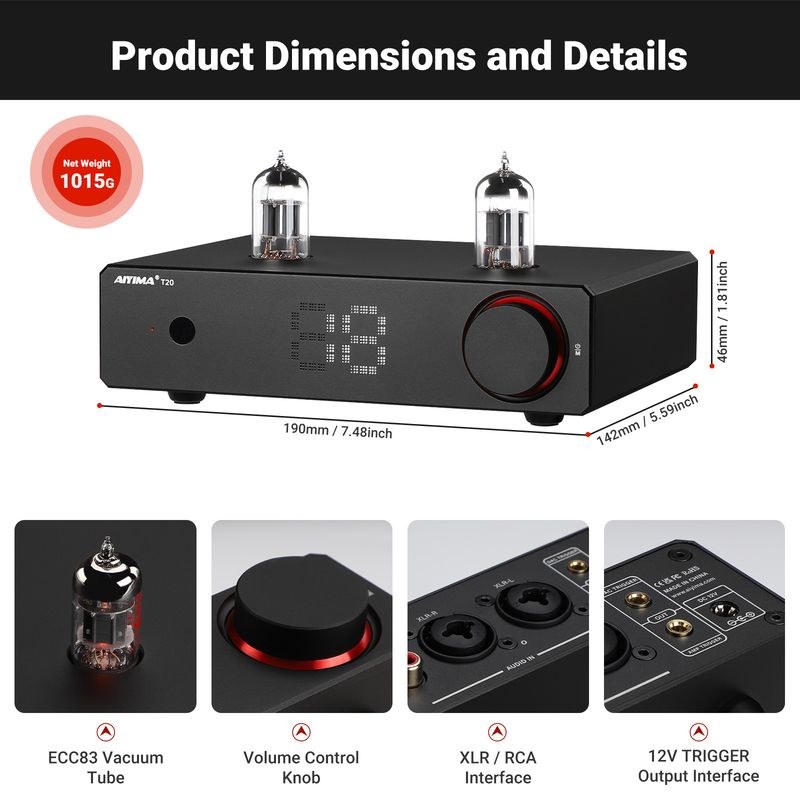

Product size: 190*142*46mm

Packing size: 300*230*80mm

Product net weight: 1015g (including tube)

Packing weight: 1314g (without power supply)

T20 Design Philosophy Q&A

Q: Why doesn’t the T20 preamp have bass/treble adjustment?
A: Bass/treble adjustment is indeed an important feature for entry-level preamps. However, in the high-end T20, we intentionally omitted it in order to:

1. Achieve a purer and shorter signal path, reducing distortion and noise;

2. Maximize the performance of the core amplification circuit (tube buffer + op-amp amplification + fully balanced design);

3. Uphold a pure commitment to the “high-fidelity” design philosophy.

Q: Why does the digital display show a 20-second countdown at startup?
A: The main purpose is to protect the vacuum tube and extend its lifespan. The 12AX7 tube is the core amplification element. Vacuum tubes require a heated filament (cathode) to emit electrons. If high-voltage is applied before the filament reaches operating temperature, it puts great stress on the cathode, accelerating its aging and shortening tube life.

Q: How does the T20 sound differ from other traditional tube preamps in terms of tuning?
A: The T20 uses a combination of ECC83 (12AX7) vacuum tubes and LME49720 op-amps, resulting in the following sonic performance:

High frequencies: Retains the extreme detail and extension of the LME49720 while being smoothed by the 12AX7, making it natural and non-fatiguing. Cymbals and violins present rich overtones without harsh “digital” glare.

Mid frequencies: This is the T20’s strength. Vocals and instruments are warm, intimate, and emotionally engaging, while maintaining clear imaging and positioning. Unlike some tube preamps, it avoids sounding overly thick or blurred.

Low frequencies: Excellent control, fast response, deep extension, and tight bass. With the LME49720’s strong driving capability and low output impedance, the bass is solid and punchy, closer to high-quality solid-state amplifiers than to the loose feel of traditional tube preamps.

Soundstage and resolution: The LME49720 provides a wide soundstage, precise imaging, black background, and abundant detail. The 12AX7 complements rather than diminishes these qualities, making the details more pleasant and listenable.

Q: The 12AX7 tube requires high voltage, but the T20 input power is only 12V. Is the tube merely decorative?
A: The T20 adopts true anode amplification, internally boosting the voltage to 180V. This allows the vacuum tube to fully perform to its potential, making the T20 a genuine tube preamp.

NOTE:The T20 requires a dedicated power adapter (DC12V). Using incompatible or higher voltage power sources will cause permanent damage to the device.

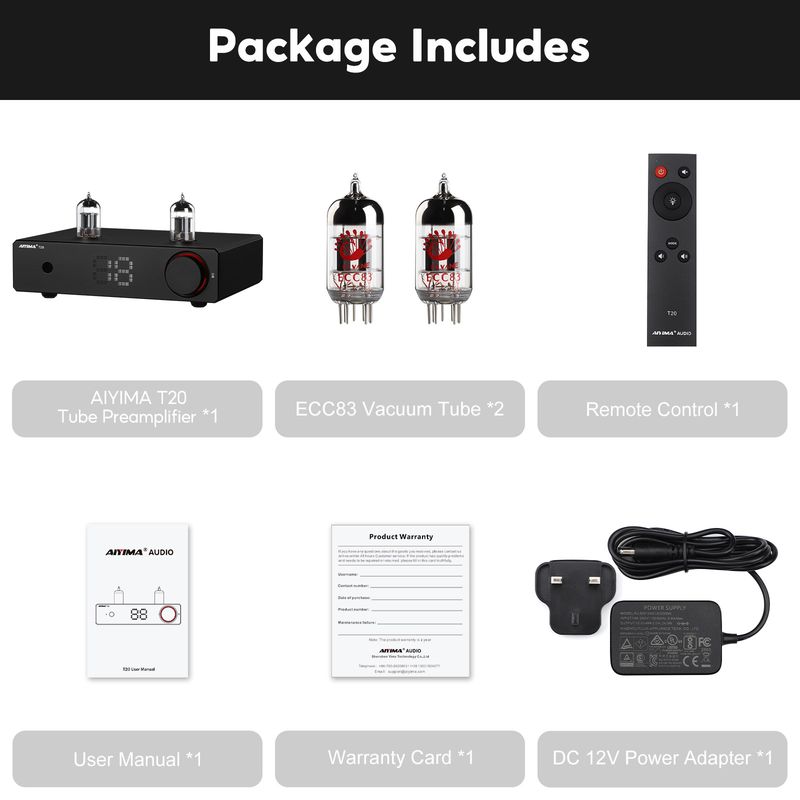

Package include:

T20 Tube Amplifier*1

User Manual*1

ECC83 Tube*2

Remote Control *1
