Andonstar AD210 10.1inch 12 Million Pixels IPS Digital Microscope 260X Magnification Microscope with LED Light for Soldering
Includes all taxes
Meet your Seller
-
$372.24Sold by BILLIONS BIRDS
Description
AD210:

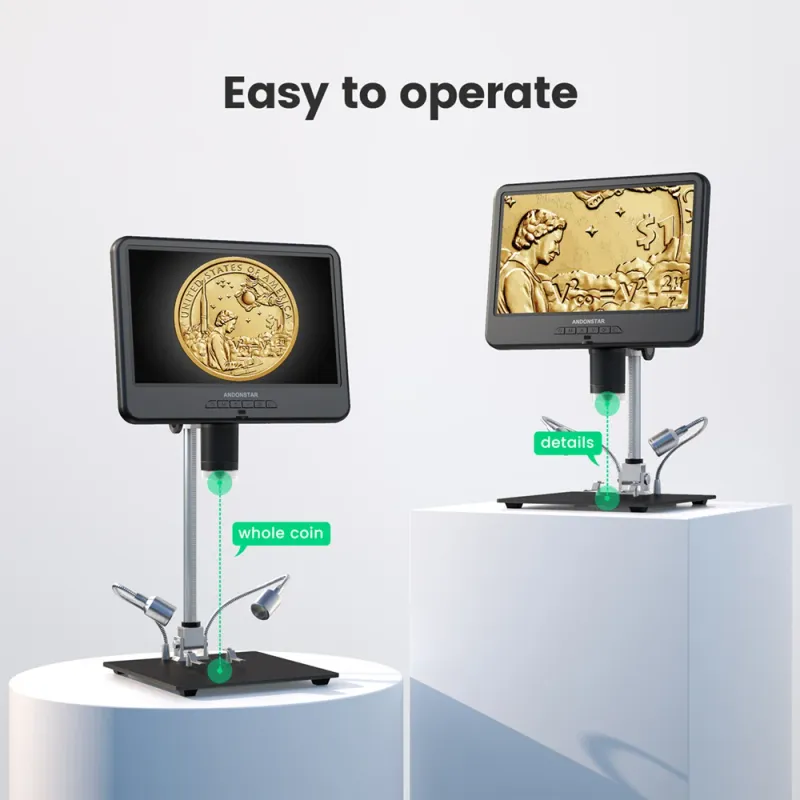

This microscope has 10.1-inch LCD display, 800*1280P resolution and 2-megapixel for clear definition imaging quality, and the screen can be rotated 180°. Max 260X adjustable magnification design, with photo and video recording function. 8 LED lights around the bottom of the lens & 2 auxiliary LED lights at the base of the tripod, adjustable brightness, make the imaging sharper and clearer. 180° adjustable metal bracket, adjust it front and back, bring 3D visual effect and larger working space. The two metal clips design on the black metal base plate, can fix the observation object firmly. Available for a variety of occasions, it meets the needs of all kinds of microscopy, and is suitable for circuit board identification, antiques identification, fine engraving, product appearance inspection, scientific observation, and line inspection in the electronics industry.
Features:
【10.1inch LCD Display】: Industrial maintenance microscope, 10.1-inch LCD, 800*1280P resolution and 2 megapixels for clear imaging quality, and the screen can be rotated up and down 180° for user-friendly multi-angle observation.
【Premium Lens】: Adopts quality optical lens with high optical transmittance and imaging clarity, with adjustable object distance for clearer observation.
【High Magnification】: 2 megapixel resolution and max 260X adjustable magnification design, high magnification support observe the microscopic details which is invisible to the eye. And the small magnification are suitable for observing the daily routine, beautiful in colors and rich in layers.

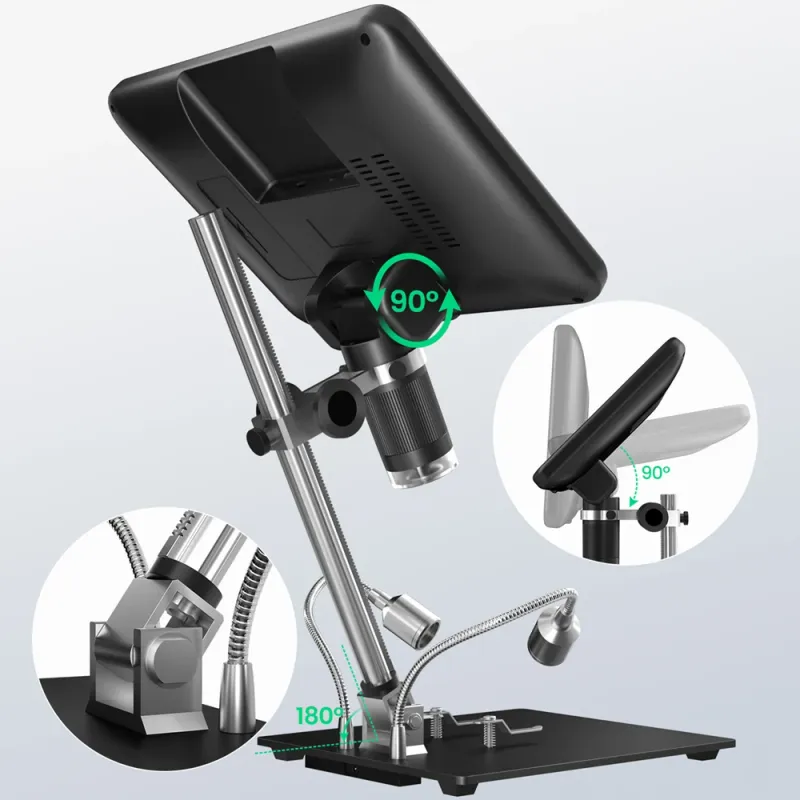

【Metal Base】: 180° adjustable metal bracket, adjust it front and back, bringing 3D visual effect and larger operating space. The two metal clips design on the metal black base plate, can fix the observation item tightly.
【Focal Adjustable】: The focusing wheel with a minimum focal length of 20 mm, which adjusts the imaging sharpness by turning the knob left and right, and a high focal length for long-distance observation. Use the large knobs on the optical mount to raise or lower the microscope to the desired height. Then gently rotate the focusing knob to obtain a clear imaging.

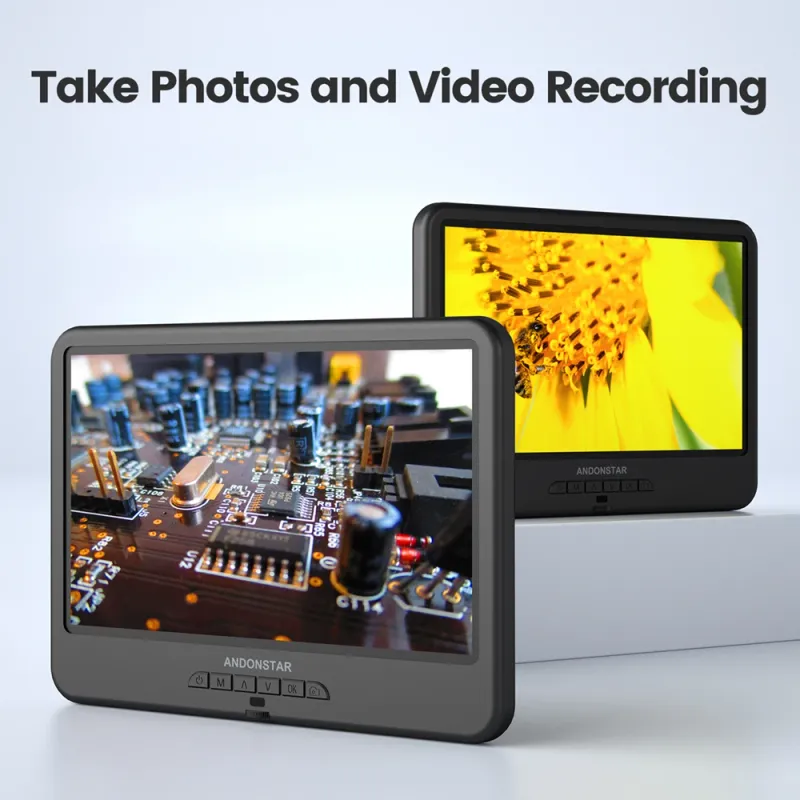

【Photo Taking & Video Recording】: With photo and video recording function. Built-in high-sensitivity chip, with faster response speed and more convenient to use.

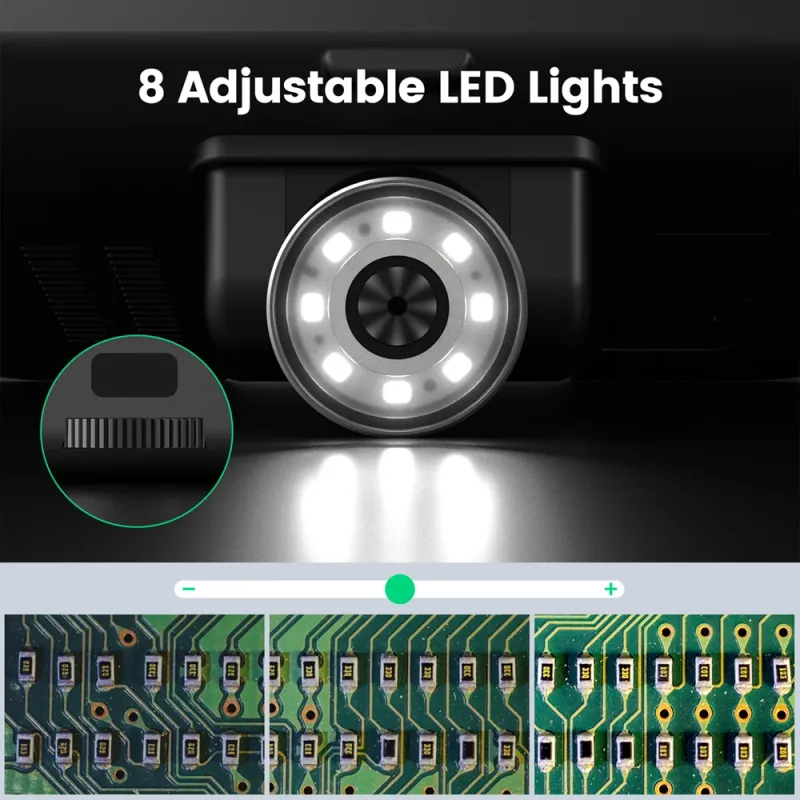

【LED Illumination Light】: 8 LED lights around the bottom of the lens & 2 auxiliary LED lights at the base of the tripod, adjustable brightness, make the imaging sharper and clearer.
【12 Language Systems】: English, Spanish, Russian, Korean, Japanese, Thai, Portuguese, German, French, Vietnamese, Traditional Chinese, and Simplified Chinese.
【Wide Applications】: Available for a variety of occasions, it meets the needs of all types of microscopy and is suitable for printed circuit board identification, antiques identification, fine engraving, product appearance inspection, scientific observation, and line inspection in the electronics industry.
Specifications:
Name: Microscope
Material: metal+plastics
Display: 10.1inch LCD display, 800*1280
Magnification: max 260X magnification
Video format: AVI
Photo format: JPG
Photo resolution: max 12M (4032*3024)
Focusing length: min 20mm
Frame rate: max 30 frames per second
Memory card: support maximum 64G memory card (without card)
PC support: not supported
Power supplying: 5V, 2A
Light source lens: 8 LED lights around the bottom & stand base with 2 universal LED lights
Stand size: 180 * 200 * 320mm / 7.09 * 7.87 * 12.60in
Package size: 295 * 250 * 126mm / 11.61 * 9.84 * 4.96in
Package weight: 1900g / 4.19lb
Packing List:
1 * Microscope
1 * Bracket
1 * Cable
1 * Remote Controller
2 * Clip
1 * User Manual
AD209:
Industrial grade maintenance microscope, 10 inch LCD display, integrated imaging system with clear imaging quality, and the screen can be fliped at 180°. Adopts two quality optical lens, with 3-200X 90-300mm object distance and 13-80X 12-320mm object distance, with high imaging clarity. 1080P resolution and 0-4X adjustable display digital zooming design, support observe the microscopic details which is invisible to the eyes. With resolution adjustable, loop recording time adjustable, exposure value adjustable, date/time format setting, language setting, format delet, and default setting function.
Features:
10 Inch Display: Industrial maintenance microscope, 10 inch LCD display, integrated imaging system with clear imaging quality, and the screen can be 180° adjusted to facilitate multi-angle observation. High sensitive chip, with faster response speed, and more convenient to use.
Two Lens: Adopts two quality optical lens, with 3-200X magnification 90-300mm object distance lens and 13-80X magnification 12-320mm object distance, which can effectively suppress reflection and scattering, improve optical transmittance and imaging clarity.
High Magnification: 1080P resolution and 0-4X adjustable digital zooming design, support observe the microscopic details which is invisible to the eyes, beautiful in colors and rich in layers.
Multifunctional Design: With resolution adjustable, loop recording time adjustable, exposure value adjustable, date/time format setting, language setting, format delet, and default setting function. Supports memory card video recording and taking pictures, which is more convenient to use.
Metal Base Design: The metal bracket can be adjusted front and rear, and the microscope can be adjusted up and down, which can bring 3D visual effects and larger operating space.
LED Illumination Light: 2 high bright LED shadowless auxiliary lights were added to the bracket base, uniform luminous light without ghosting, soft and comfortable, 8 gears of brightness adjustable, make the imaging sharper, support for arbitrary use without the limit of light and environment.
Wide Applications: Widely used in optical instruments, photographic equipment, laser equipment, maintenance, precise machinery, circuit board, printing, welding, textile, surface inspection, etc. Suitable for jewelry identification, interest cultivation, welding process photo taking and video recording, etc.
Specifications:
Name: Digital Microscope
Material: metal+plastics
Display: 10inch LCD display
Video resolution: FHD1920*1080P 30FPS, 1080P 1440*1080 30FPS, 720P 1280*720 30FPS
Video format: AVI
Frame rate: MAX 30fps
Picture resolution: max 12MP 4032*3024P
Magnification ratio: Lens A 3-200X; Lens L 13-80X (with 4X digital zoom)
Working distance: Lens A 12-320mm, Lens L 90-300mm
Input voltage: 5V, 2A
Knob focusing distance: 30-90mm
Imaging format: JPG
Memory card: support max 128G (not included)
Loop recording: off, 1 minutes, 2 minutes, 3 minutes, 5 minutes
Exposure: +5/3, +4/3, +2/3, +1/3, +0.0, -1/3, -2/3
Date/time setting: MM/DD/YY, DD/MM/YY, YY/MM/DD
Language: Traditional Chinese, Simplified Chinese, English, Japanese, French, German, Korean, Vietnamese, Portuguese, Russian Spanish, Thai
Frequency: 50/60Hz
Format (all date will be deleted): cancel, ok
Default setting (return menu setting to defults): cancel , ok
Version: 10" 20220714N90V3.7H
Item size: 245 * 198 * 320mm / 9.65 * 7.80 * 12.60in
Item weight: 1444g / 3.18lb
Package size: 300 * 267 * 145mm / 11.81 * 10.51 * 5.70in
Package weight: 1926g / 4.25lb
Packing List:
1 * Microscope
1 * Replacement Lens
1 * Metal Stand
1 * Dimmer Cable
2 * Metal Clip
1 * Instructions
