Includes all taxes


Standard Configuration:
Android 13.0+4.5'' Screen +4G RAM+64GROM+Wifi+Bluetooth4.0+GSM/4G LTE+GPS+Camera+Free SDK
Option:
● 1D Laser Scanner: Minde 966

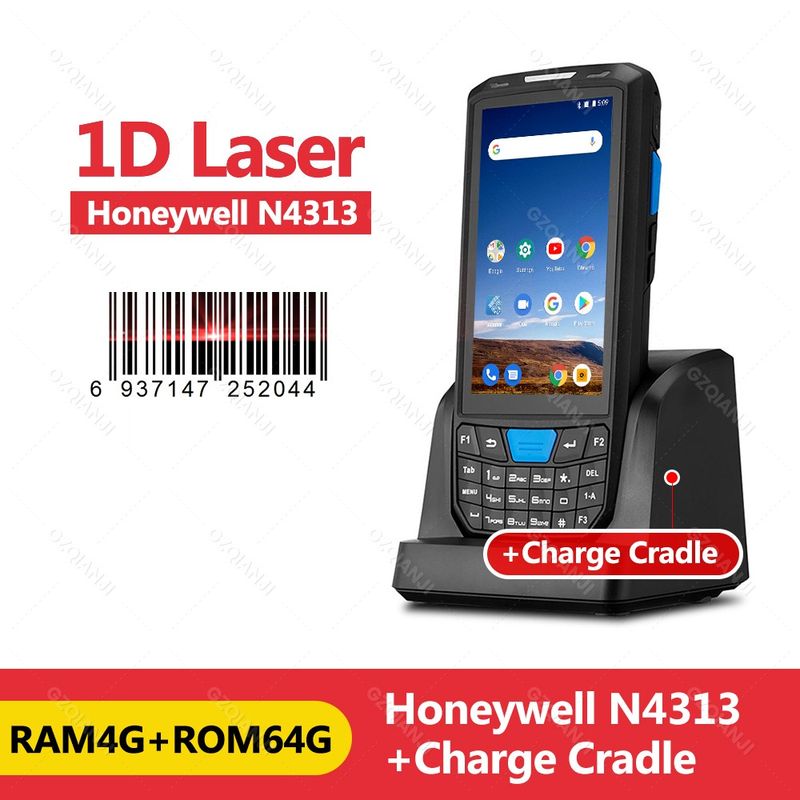

● 1D Laser Scanner: Honeywell N4313 (Recommend, Fast scan+ Identify more barcodes)
● 2D Scanner: 6602
● 2D Scanner: Honeywell N5703 (Recommend, Fast scan+ Identify more barcodes)
Accessories:
Standard: ●PDA-1pcs; ●USB data cable-1pcs;●Plug-1pcs;●Battery-1pcs;●Hand strap-1pcs; ●Protectivefilm-1pcs;●User Manual English Version-1pcs
Optional: ●Extra Charge Cradle ; ●uilt-in NFC(optional)
Standard Features:
Android 13.0 OS/ 4G FDD-LTE/WCDMA/GSM, WIFI/ Bluetooth/ GPS/ 8MP camera/Google player store;
●System: Android 13.0 Highly optimized Android operating system;
●4G RAM + 64 ROM
●Camera: 8.0M mega pixel ;
●Battery: High capacity 4200mA large capacity battery for critical requirements;
●Pogo Pin interface: for convenient charging with optional charge cradle;
●IP66 Grade:Industrial rugged design, water-proof and protection grade;
●Support Google Play Store
●Multiple languages
●Compact and Portable Ergonomic Design with wrist strap
Data Communication:
●WI-FI: Support IEEE802.11a/b/g/n, it need effective wireless LAN signal cover
●4G: FDD-LTE (B1/B2/B3/B5/B7/B8/B20) TDD-LTE (B40)
●3G: WCDMA (850/900/1900/2100MHz)
●2G: GSM(850/900/1800/1900MHz)
●BT: Support 2.0+EDR/3.0+HS/4.0+HS (Transmission distance is 5-10)
Scanner engine(Optional)
●1D Laser scanner (optional): Minde SE966 / Honeywell N4313, Support Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codaber, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc.
●2D CMOS scanner (optional): 2D6602/ Honweyll 5703, Support PDF417, MicroPDF417, GS1 Composite, Aztec, Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin Code, etc.

1D/2D Honeywell scanner
Many brands of scan heads are available.
Honeywell scan heads are recommended for faster scanning speed and more stable performance.




NFC Function
Upport: 13. 56MHz; IS01443A/B, IS01 5693;Reading distance: 2cm-5cm

Compatible with free software ocra scan















64G NAND Flash Storage
Physical Parameter | |
Dimensions | 166mm(L)X77.5mm(W)X22mm(D) |
Weight | <500g |
Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen |
TFT-LCD, 650000 colors, 480*800 (QVGA size) | |
The brightness of LED Backlight is adjustable | |
Expand Port | SIM card, Micro SD (TF) Card |
Communication Interface | USB2.0 Device, |
Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh Optional |
Frequency | 8 1W speaker |
Buttons | 21pcs soft silicon key |
Data Communication | |
WI-FI | Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover |
FDD-LTE 4G | Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ |
Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ | |
WCDMA 3G | Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
GSM 2G | 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ |
900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ | |
1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ | |
1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ | |
Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
Operating Environment | |
Operating Temperature | —20C to 50C |
Storage Temperature | —25C to 70C |
Environment Humidity | 5%RH--95%RH(no condensation) |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
Sealed Environment | IP65 |
Development Environment | |
Operating System | Android 13 |
SDK | exclusive use software development kit |
Supported Language | JAVA |
Development Tool | Eclipse |
1D Laser Scanner | |
One dimensional laser scanner | Minde966 or Honeywell N4313 |
Resolution | 4Mil minimum width |
Ambient Light | 10000ft.candles(107640 lux) |
Scanning Speed | 104(±)12/sec (both way) |
Scanning Angle | 47o±35o(Standard) / 35o±3o(narrow angle) |
Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, |
2D CMOS (Optional) | |
CMOS Scanner | 2D 6602 or Honeywell 5703 |
The Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
Ambient Light | All dark 9000ft.candles/96900 lux |
Focus element (VLD) | 655nm ± 10nm |
Support bar code type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, |
NFC(Optional) | |
NFC | 13.56MHz |
If you need the NFC | Please choose the NFC optional |
Camera | Hd 8 million pixels, with LED, automatic focusing |
GPS | Support A-GPS |
Android 13.0 System | |
CPU | ARM Cortex-A53 64bit Quad-Core 1.3G |
RAM | 4G RAM |
Flash ROM | |
