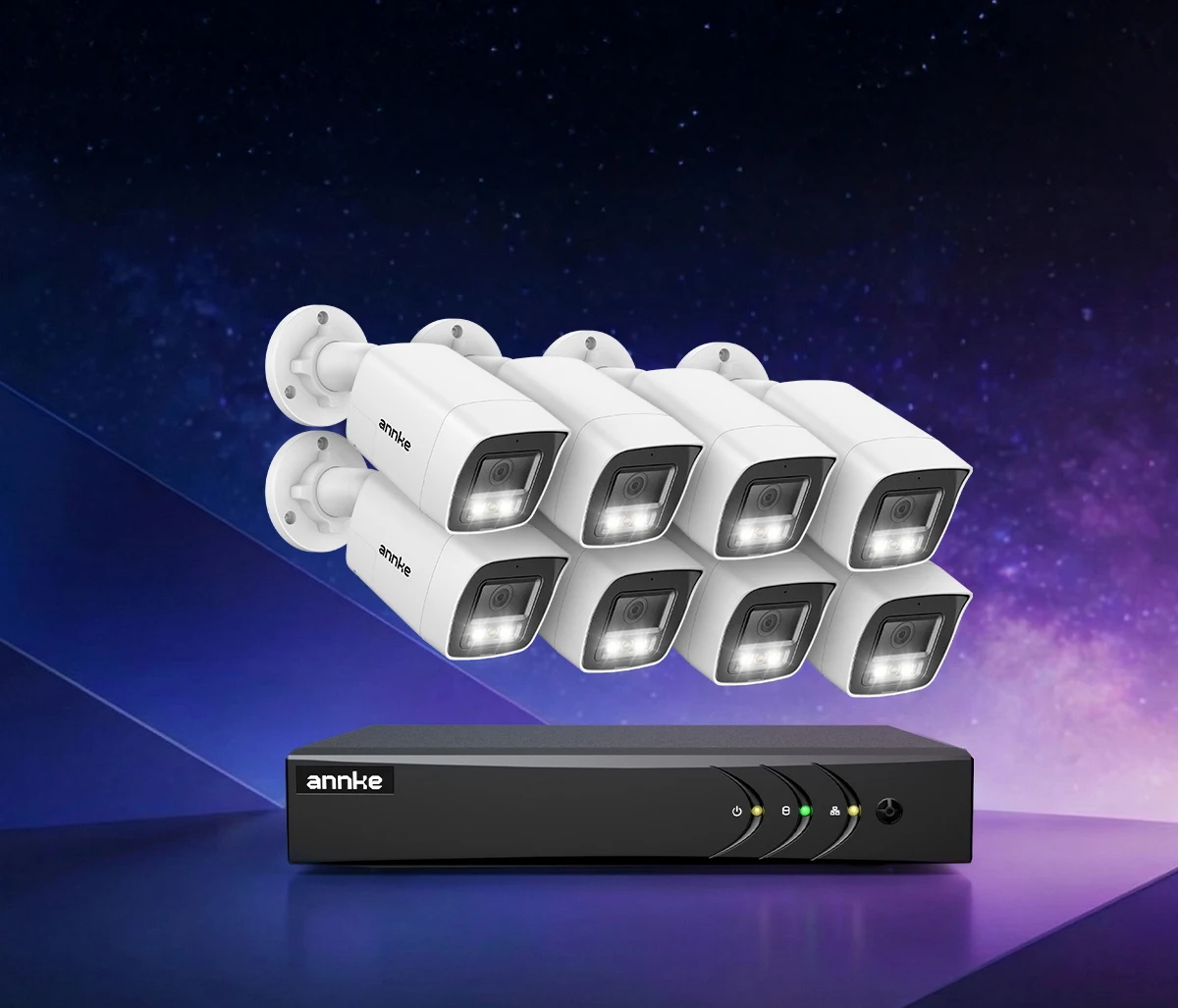

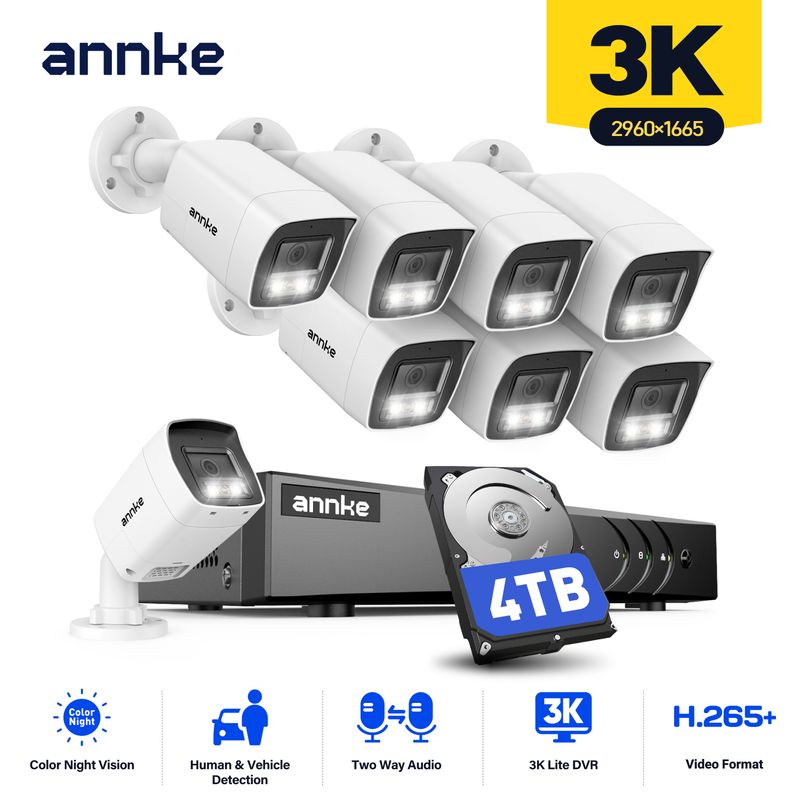

NVR Key features
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels

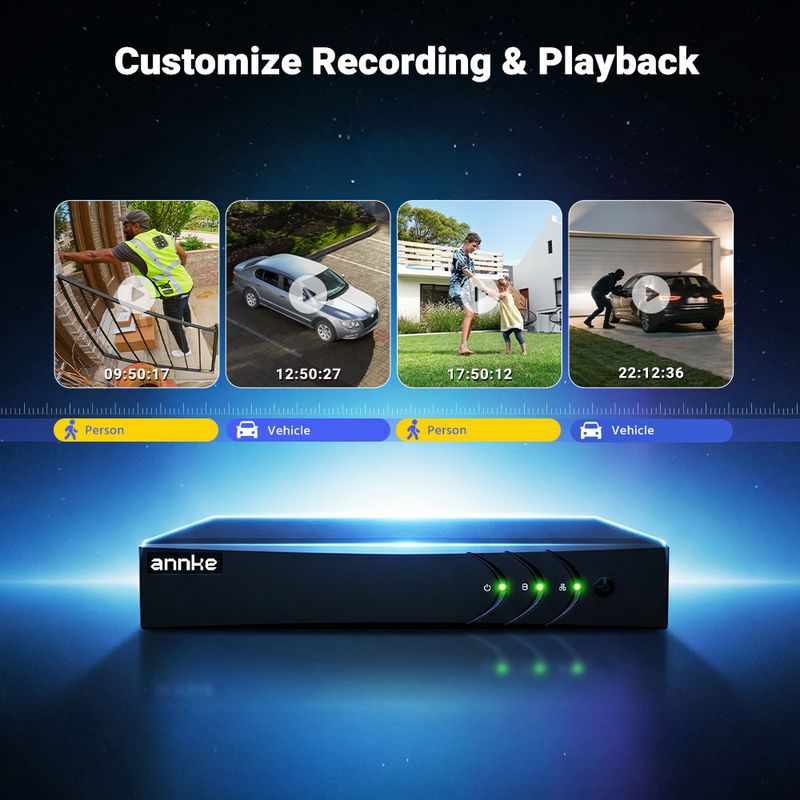

· Quick search by object or event type
· Audio via coaxial cable

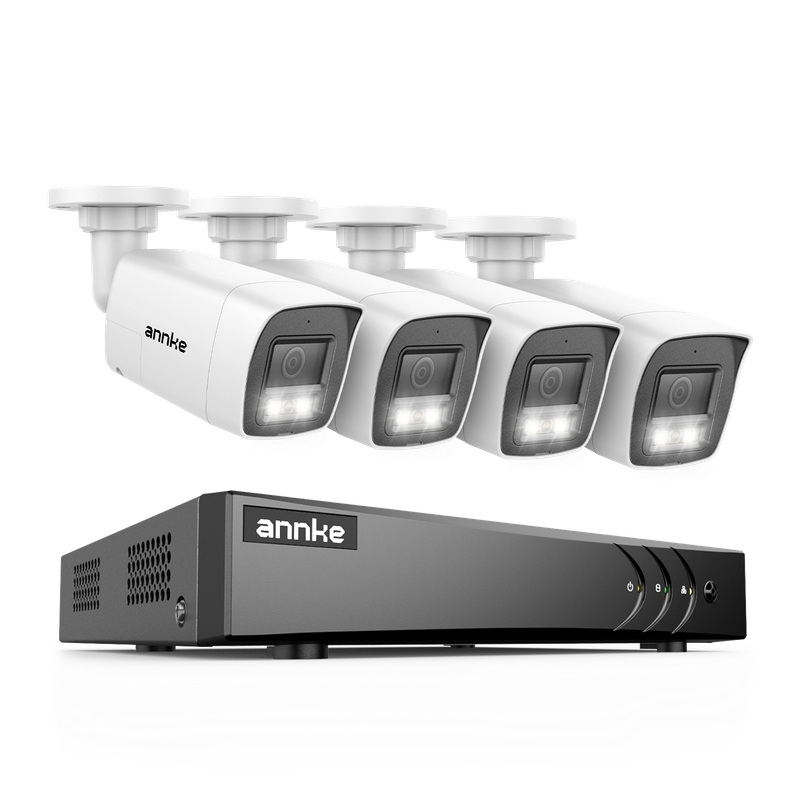

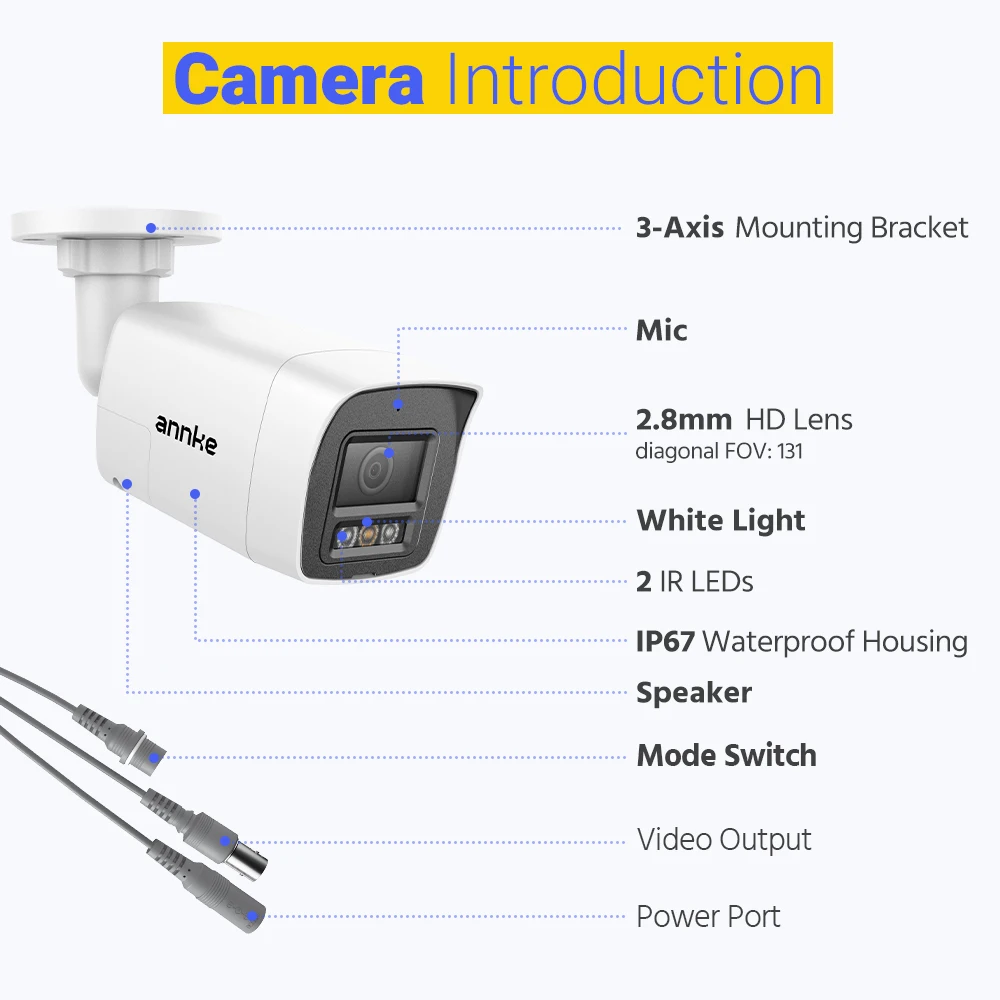

Analog camera Key features
1.High quality imaging with 3K, 2960×1665 resolution
2.2.8 mm fixed focal lens
3.Smart-Hybrid Light, optimize your security with flexible lighting options
4.Up to 25 m IR distance for bright night imaging
5.Up to 20 m white light distance for bright night imaging
6.High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
7.Provide real-time communication via built-in two-way audio
8.Water and dust resistant (IP67)


3K Crystal-Clear HD Footage
Featuring a 3K CMOS image sensor and 2.8mm lens, this camera captures 2960×1665 video footage—delivering twice the clarity of 1080p. Enjoy a vivid display even when digitally zooming in, with sharp details preserved.

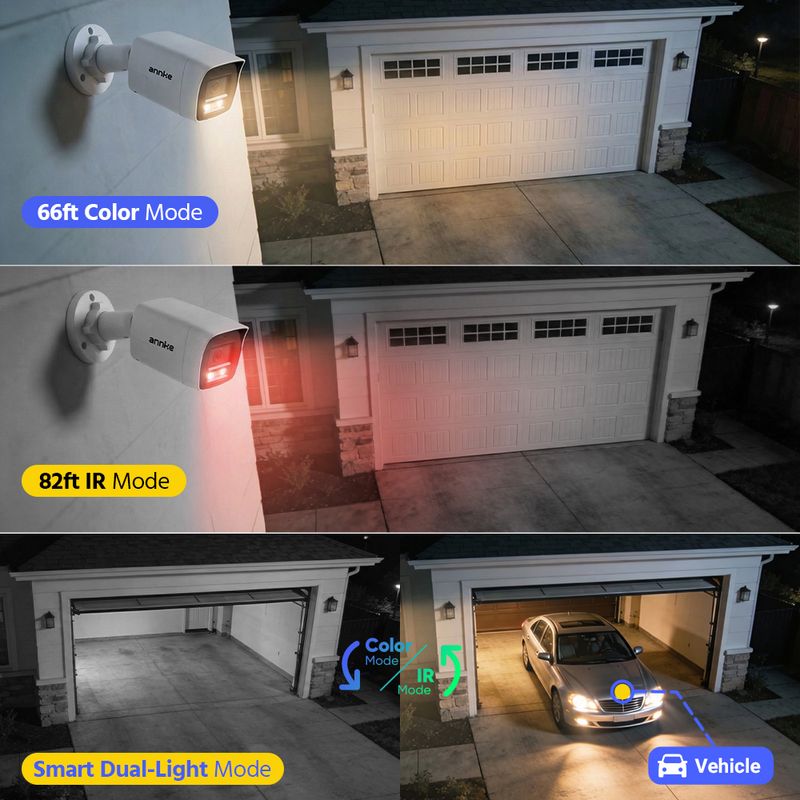

Three Smart Night Vision Modes
The built-in spotlight brightens the surroundings, providing clear vision even in pitch-black darkness.Infrared B&W Mode - Crisp 82ft night vision in total darkness.Triggered Color Mode - Automatically activates the spotlight and switches from infrared to color upon human or vehicle detection.

Digital WDR for Backlit Clarity
Solves high-contrast lighting issues at entrances or windows. Suppresses glare from bright light while enhancing dark areas, ensuring clear visibility of faces and objects even in backlit conditions.

Accessible Two-Way Audio

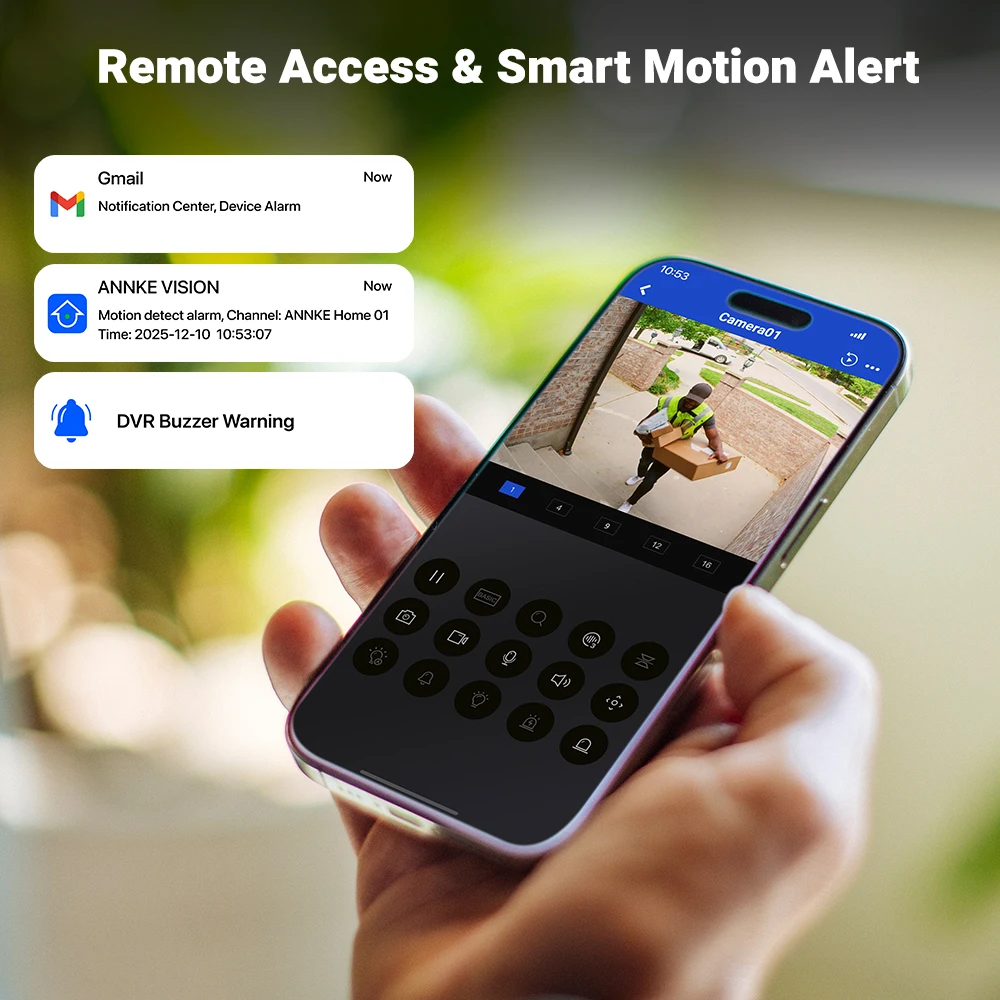

Equipped with a built-in speaker and mic, this camera enables two-way talk. Use the ANNKE Vision App to chat with family, greet front-door visitors, or deter potential intruders in real time—adding practical convenience to home security.

H.265+ Encoding, Doubles Storage Efficiency
Utilizes advanced H.265 + compression technology. It saves about 75% storage space and bandwidth compared to older formats while maintaining the same high-definition quality, allowing for longer recording times and smoother remote viewing.

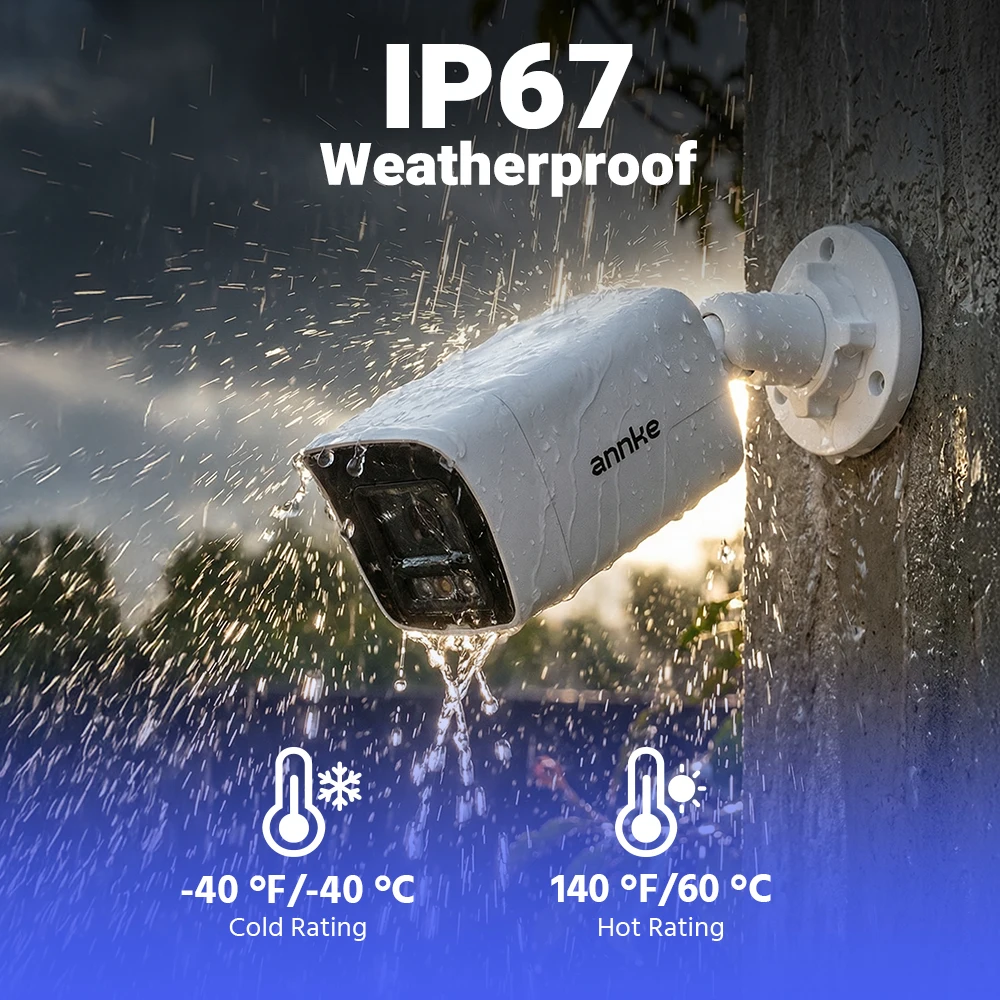

All-Weather Durability & Easy Setup
The camera boasts an IP67 rating for dust/water resistance and operates reliably from -40°C to 60°C, suitable for indoor/outdoor use. The DVR supports 5-in-1 input (TVI/AHD/CVI/CVBS/IP), offering flexible and straightforward installation.

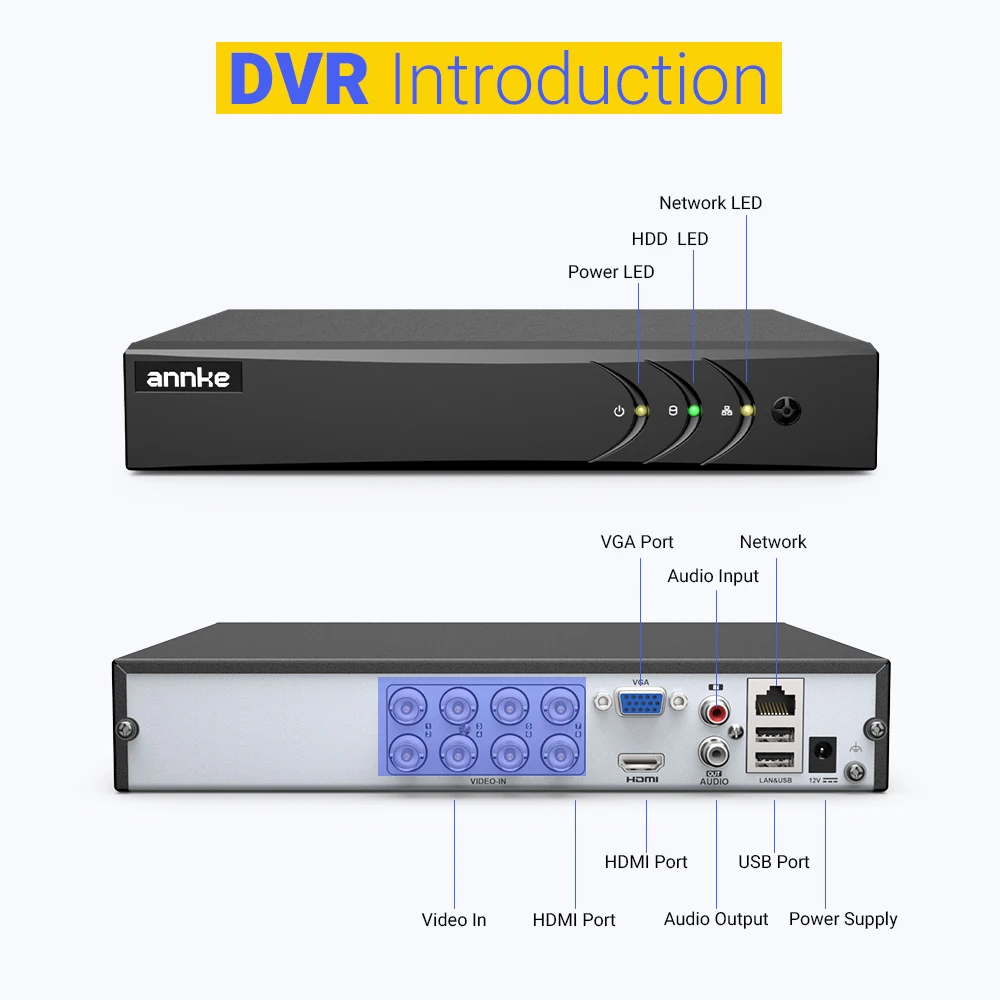

DVR | ||
Video & Audio | Video Compression | H.264+/H.264/H.265/H.265 Pro+ |
Video Input | 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) | |
Video Output | HDMI and VGA Up to 1080P | |
Audio Input | 1-ch RCA,8-ch via coaxial cable | |
Audio Output | 1-ch RCA | |
Supported Camera Types | Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; | |
Analog HD Playback Resolution | 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps | |
IPC Playback Resolution | Up to 6MP | |
Max Playback Channel | 8-ch | |
Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS | |
Total Bandwidth | 96Mbps | |
Remote Connection | 64 | |
Motion Detection 2.0 | All analog channels support human and vehicle detection to reduce false alarm | |
Hard Drive | HDD | 1 SATA interface |
HDD Capacity | Up to 10TB capacity | |
External Interface | Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
USB | USB2.0x2 | |
General | Operating Power | DC12V,≤ 12W (without HDD) |
Working Temperature | -14 °F – 131 °F /-10 °C – 55 °C | |

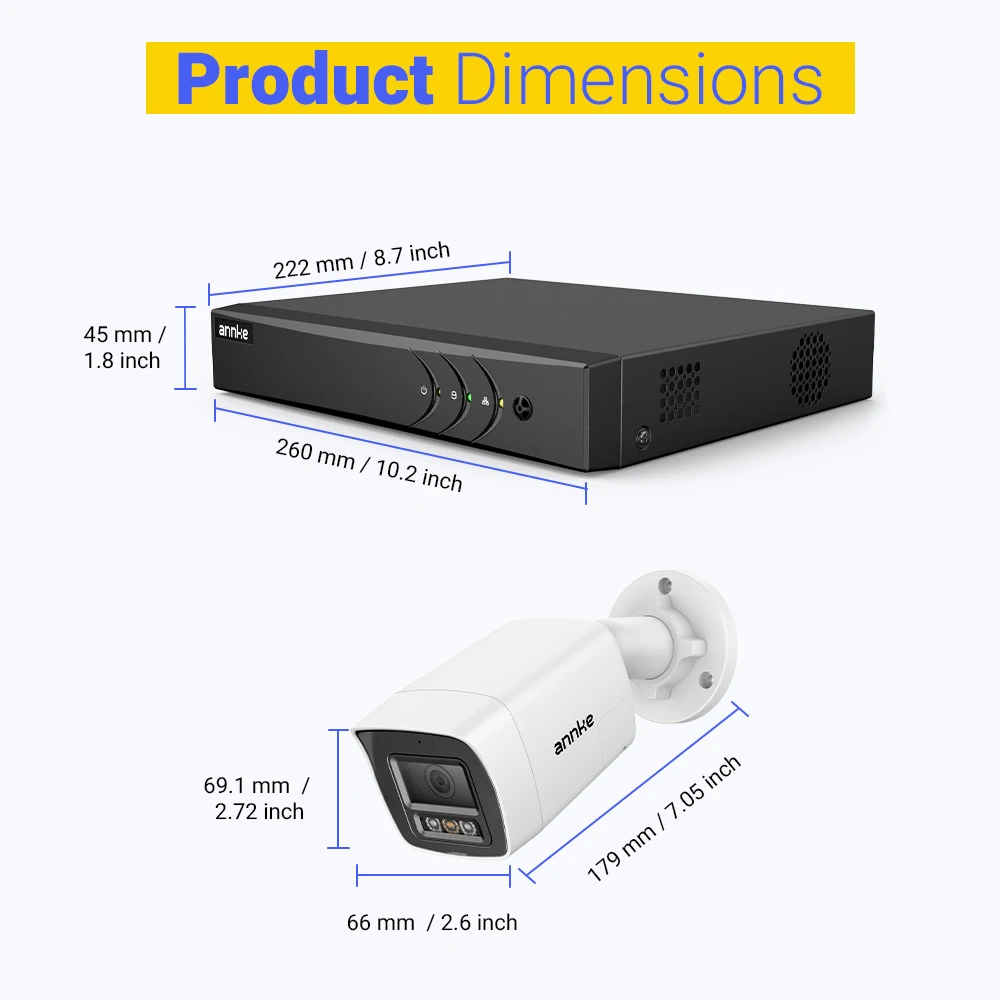

Dimensions(W x H x D) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) | |
Weight (without hard disk) | ≤ 1 kg (2.2 lb)(without HDD) | |
Analog HD Camera | ||
Camera | Image sensor | 3K CMOS Image sensor |
Video Resolution | 2960 (H) × 1665 (V) | |
Signal System | PAL/NTSC | |
Frame Rate | TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @ 25 fps/30 fps, 1080P @ 25 fps/30 fps | |
Lens | 2.8 mm | |
Min.Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light | |
Angle of View | 2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 131°; | |
Supplement Light type | White Light (1pcs led) & IR(2pcs led) | |
Supplement Light Range | IR : Up to 25 m, white Light : Up to 20 m | |
Supplement Light Mode | IR light works normally, and it switches to white light when human or vehicle are detected at night. | |
Wide Dynamic Range | Digital WDR | |
IR Cut Filter | Yes | |
Video Output | 1 HD Analog output | |
Microphone Pickup Distance | In a radius of up to 5 m | |
Speaker Rated Power | 2W | |
Speaker Range | In a radius of up to 5 m | |
General | Housing | Plastic |
Color | White | |
Operating Power | DC12V | |
Operating Temperature | -40 °F – 140 °F /-40 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | 179 mm × 66 mm × 69.1 mm (7.05" × 2.6" × 2.72") | |
Weight | Approx. 245 g (0.92 lb.) | |
