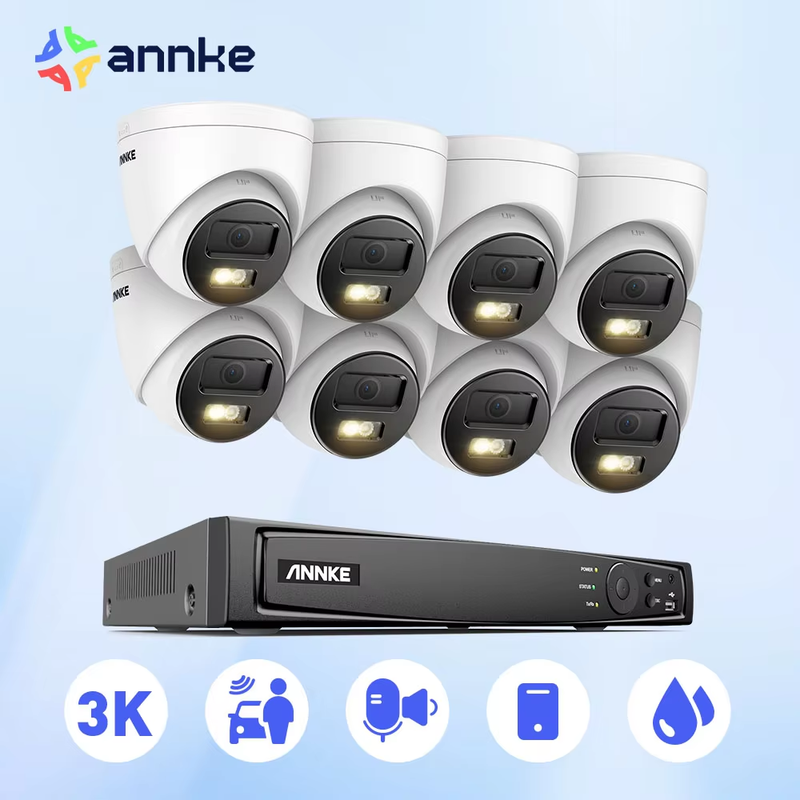

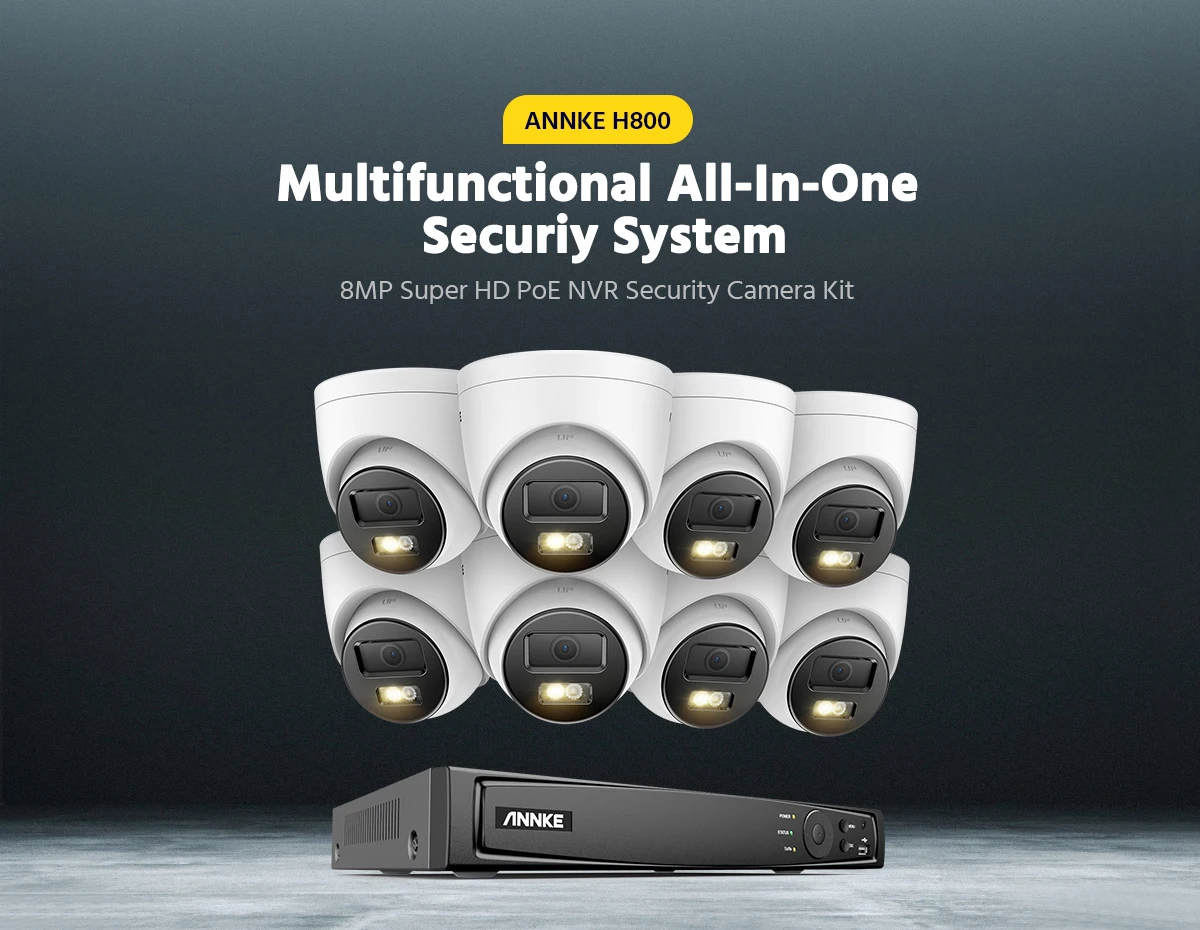

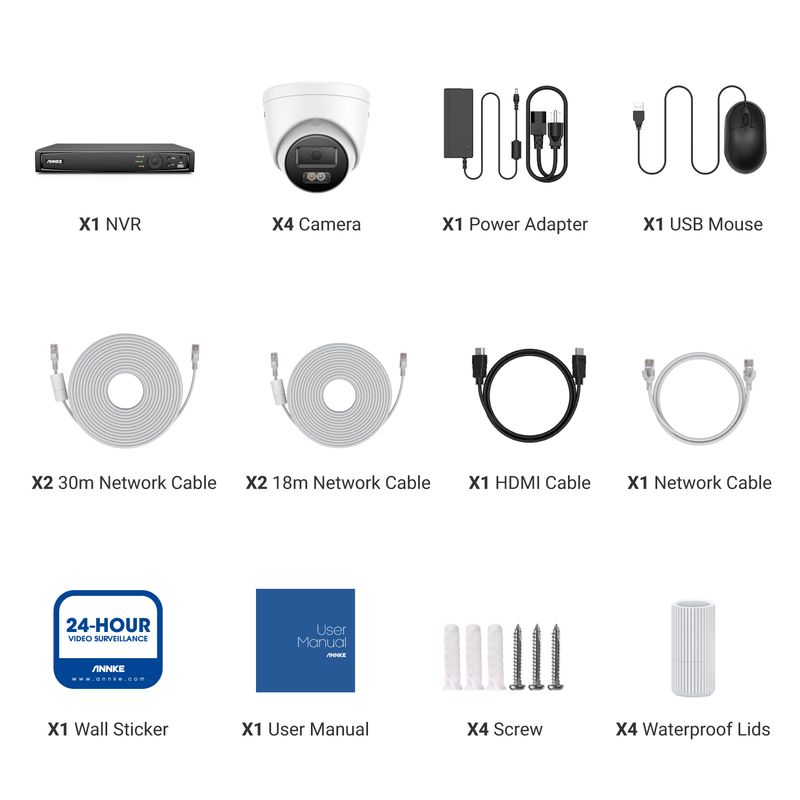

ANNKE 3K Ultra HD POE Video Surveillance System 8CH NVR Recorder With 3K Security Cameras CCTV Kit Built-in Mic 3K Ip camera

$672.60

Includes all taxes

Build-in HDD
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

NVR Key features:

· 8MP high definition Real-time live viewing

· Live view, recording&playback up to 8 MP resolution

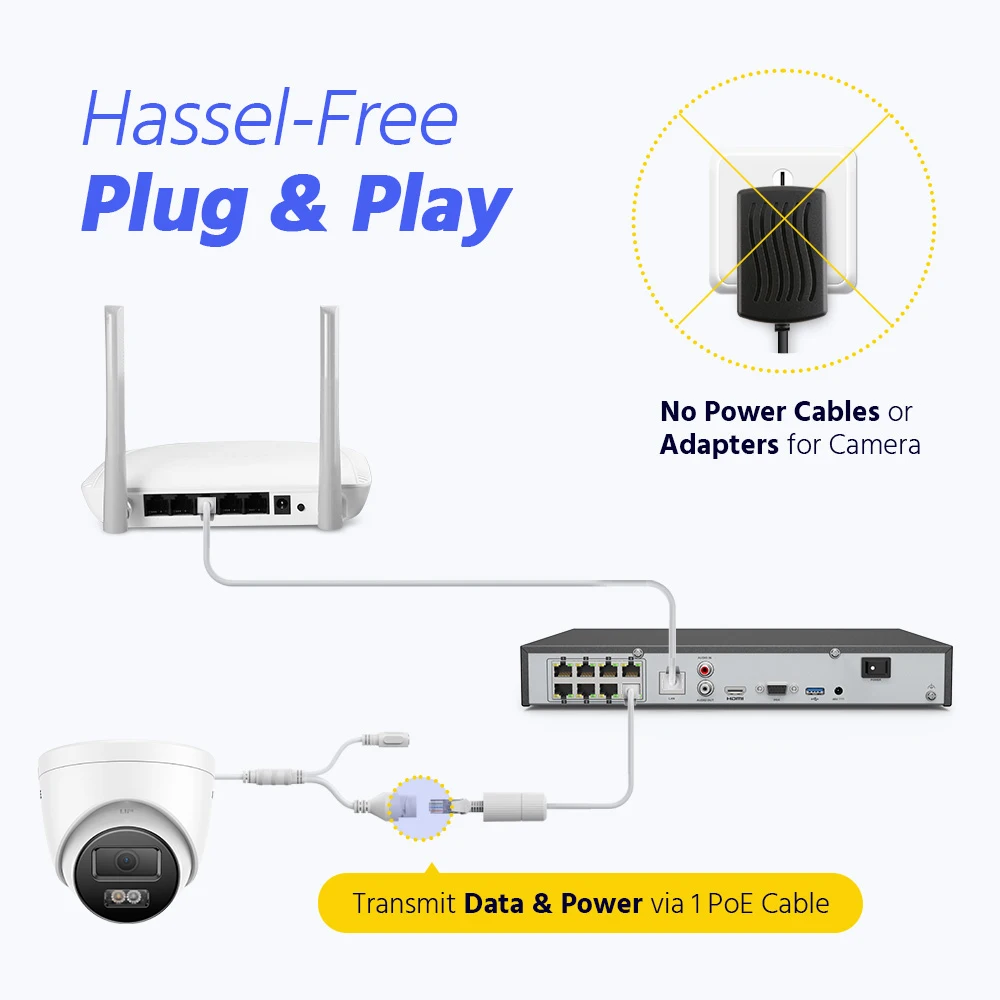

· Up to 8 channel IP cameras can be connected with built-in PoE inputs

· Advanced H.265+ Video Compression

· Supports iPhone、iPad、Android mobile remote monitoring

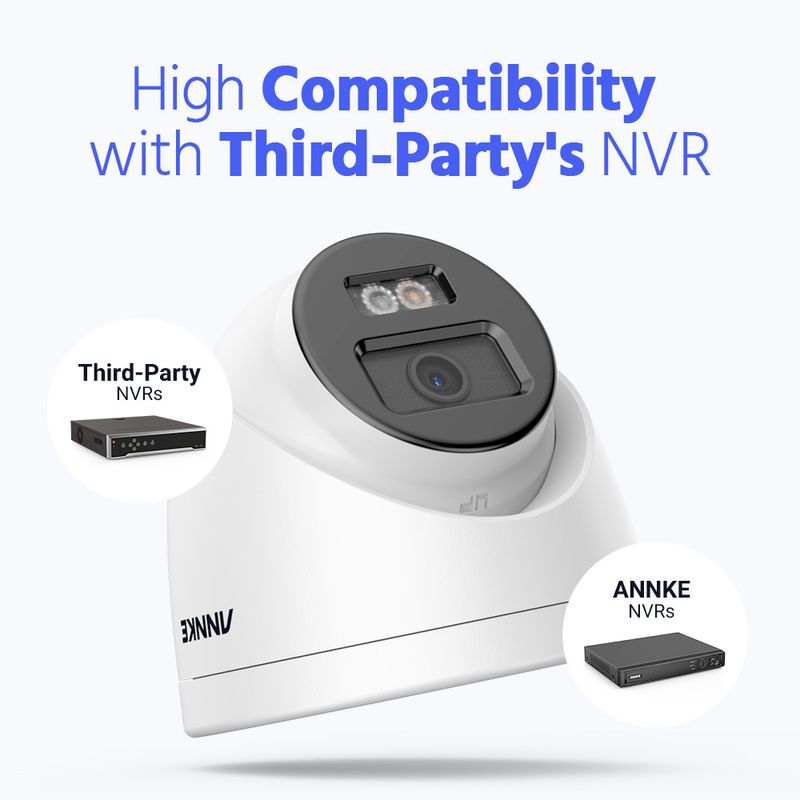

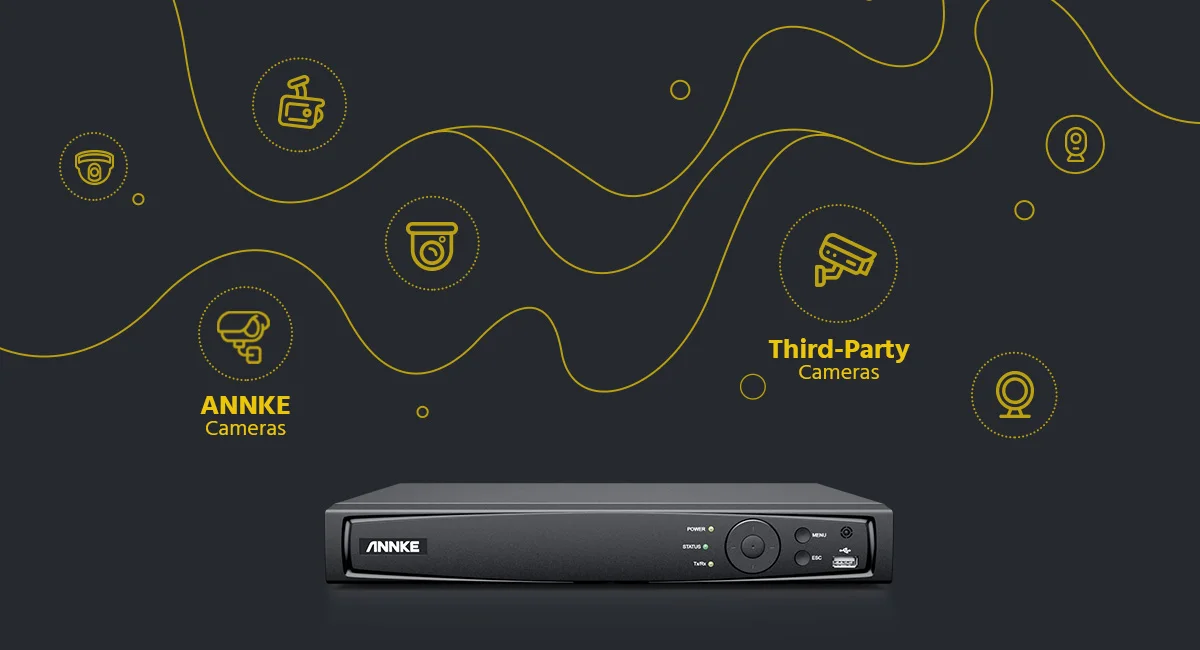

· Connectable to the third-party network cameras

· HDMI Video output at up to 4K (3840 × 2160) resolution

· Annke Vision for easy remote view

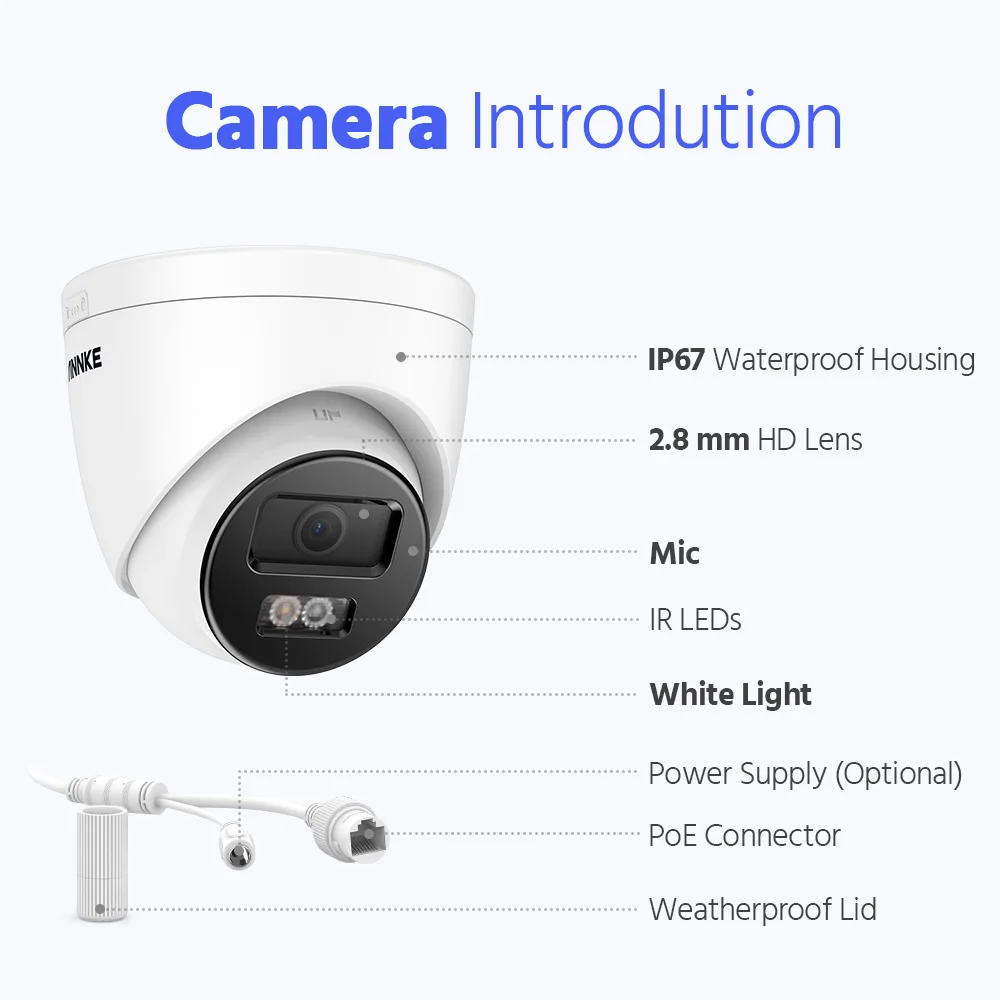

CAMERA Key features:

★ 3K IR Network Camera with 16:9 image scale

★ 2.8mm lens brings everything back to life

★ Efficient H.265+ compression technology

★ Motion detection 2.0 with human & Vehicle Detection

★ Smart Dual-Light: advanced technology with long range

★ Clear day and night vision with 3D DNR and 120DB WDR

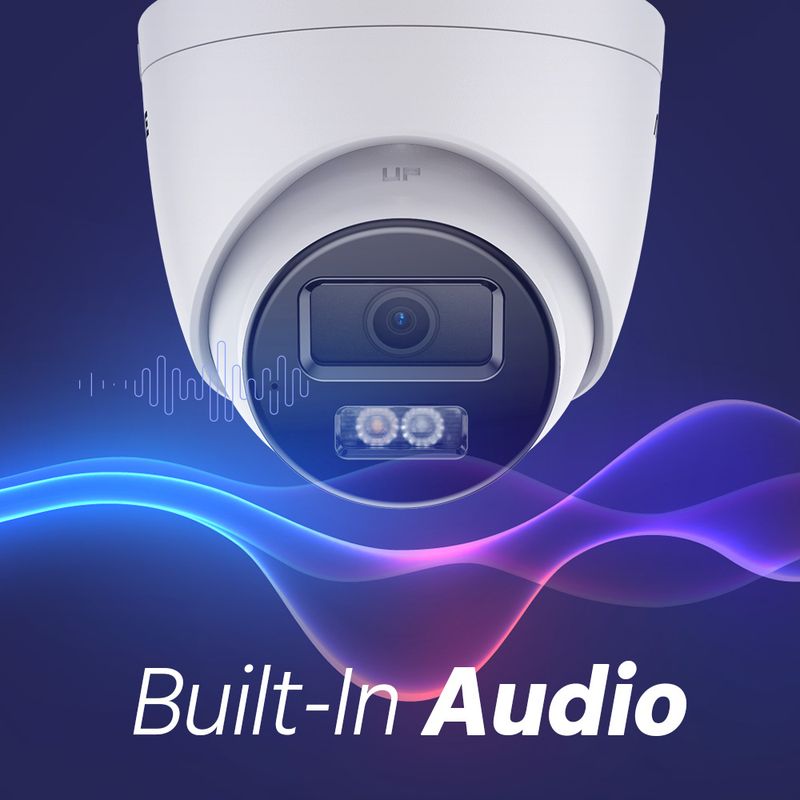

★ Built-in microphone for real-time audio security

★ Support on-board storage up to 256 GB (SD card slot)

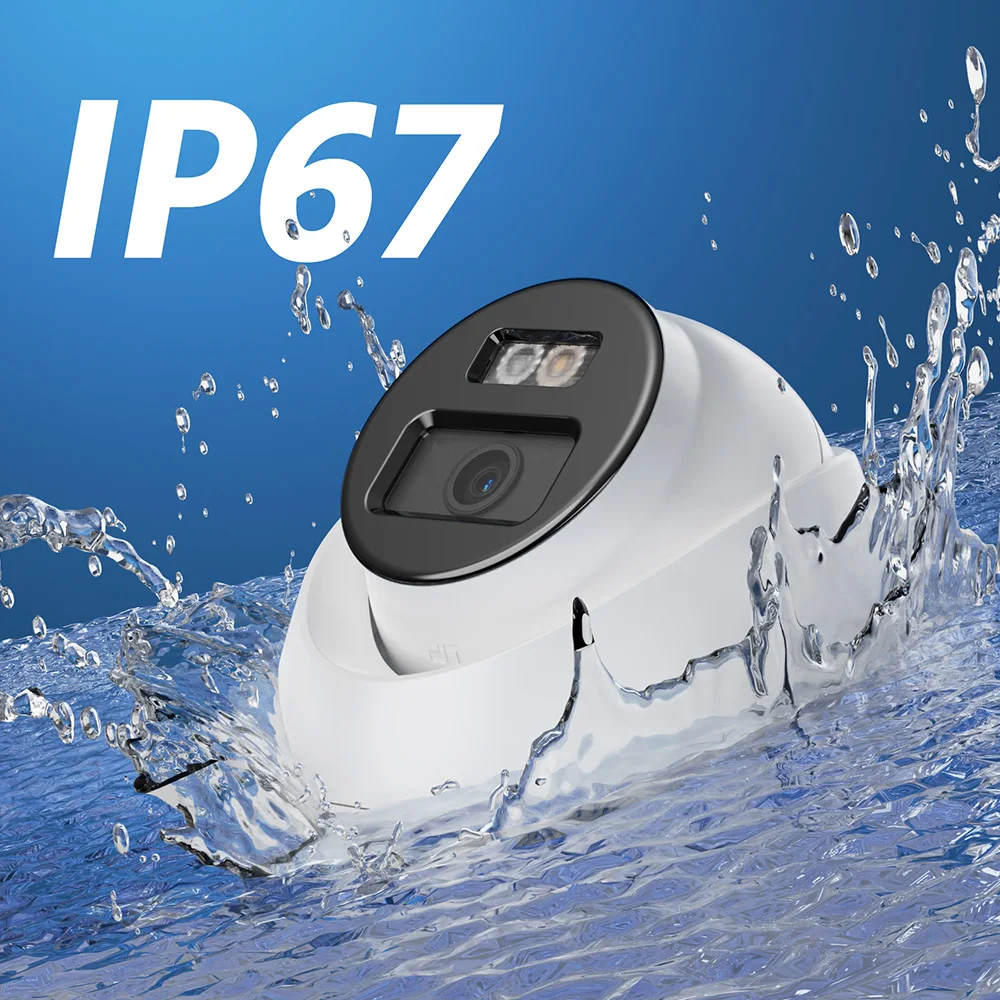

★ IP67 Dust and Waterproof Rating

★ Support PoE &DC12V


IP Camera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max resolution

3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display

Main Stream

50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz:20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)

Substream

50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 6 Mbps

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Input

Built-in Microphone, record with audio

Lens

2.8 mm

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

IR: up to 30 m, wite Light: up to 20 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

API

Open Network Video Interface Version 18.12

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Mirror,rotate,password protection, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White & Black

Storage

Built-in microSD/SDHC/SDXC Slot, up to 256 GB

Hardware Reset

Yes

Operating Power

DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67

Dimension (L X W X H)

170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight

0.6 lb./270 g

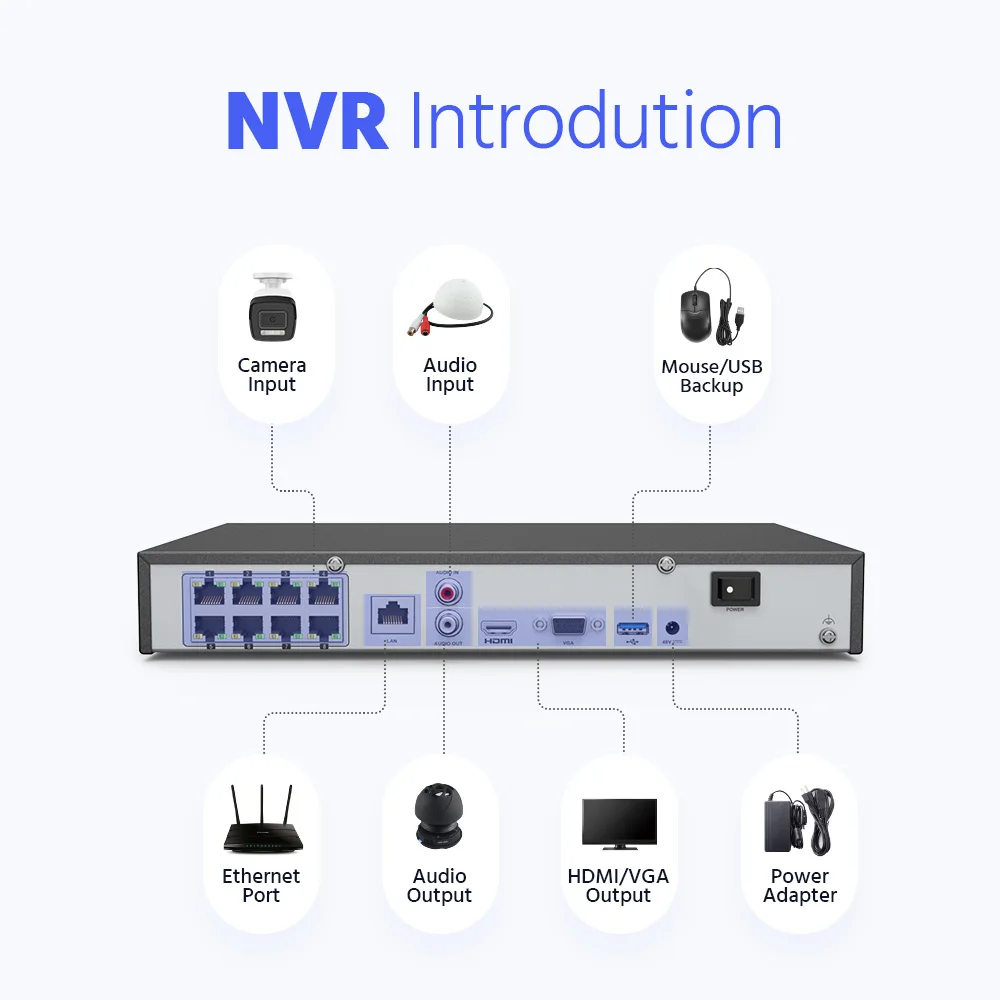

NVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

IP Video Input

8CH PoE

Video Output

HDMI up to 4K, VGA up to 1080p

Audio Input/Output

1/1 RCA

Incoming/outgoing Bandwidth

80/80 M

Max Recording Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max Playback Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max Playback Channel

8CH

Max Playback Capacity

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

ONVIF Protocols

Support

Hard Drive

HDD

1 SATA Interface

HDD Capacity

Up to 8 TB Capacity

External Interface

Network Interface

1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at

USB interface

USB 2.0*2

Smart Function

Deep learning

Human and vehicle targets detection(Need IP camera support)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)

General

Operating Power

DC 48 V

Power Consumption

10 W (Without HDD and PoE)

PoE: Max 25.5 W for Single Port

Working Temperature

14 °F ~ 131 °F/-10 °C ~+55 °C

Dimensions (W X H X D)

12.4” X 9.4” X 1.9”/315 X 240 X 48 mm

Weight (Without Hard Disk)

2.2 lbs/1 kg
