Beok Zone Heating System Thermostat for Water Floor and Gas Boiler Thermostat Controller 8 Zone with Actuator

$52.18

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

CCT-10 is a central control system that can be connected to boilers, water pumps, actuators, and temperature controllers. It can control the temperature of multiple rooms simultaneously and connect multiple actuators.

The difference between CCT-10 (NC) and CCT-10 (NO):

CCT-10 (NC) is a controller that connects normally closed actuators.
CCT-10 (NO) is a controller connected to normally open actuators.

Specifications:

Power Supply: 170-240VAC 50\60HZ
Current Load: 3A
Size: 240mm X 110mm X 42mm
Working Temp: -20 - 60 celsius
Storage Temp: -20 - 70 celsius

Wiring diagram:

CCT-10: Connect to 220V AC
Circulating pumps, boilers, actuators, and temperature controllers.

How many rooms can CCT-10 control temperature?

CCT-10 has 8 zones, each of which can be connected to a wired temperature controller, and can control the temperature of up to 8 rooms separately.

How many actuators can be connected to each region?

Each zone can connect up to 4 actuators or even more.

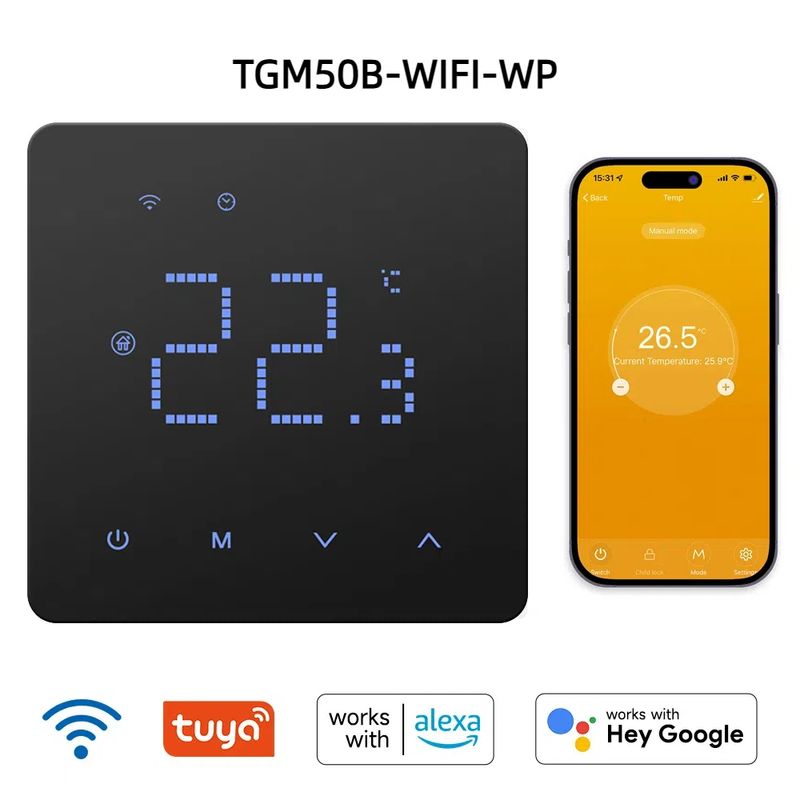

Function of thermostat:

【APP Control】The thermostat can be connected to Tuya and the Smart Life app to remotely control the device through a mobile phone.
【Voice control】Work with Google Home,Alexa,Alice.
【Weekly Programmable】There are 3 programming modes: 5+2/6+1/7, which can set the temperature for different time periods according to your lifestyle habits.
【Backlight adjustment】
【Anti freezing function】
【Power down memory function】
【Child lock】
【Temperature hysteresis: ± 0.5 ℃】

Actuator:

Size:M30*1.5
Working Voltage:230VAC±10%
Initial Current:About 50MA
Power Consumption:2W
Working Journey:3.5~3.6mm
Working Temperature:-20~50
Storage Temperature:-25~60
Security Class:II(Double Insulation)
Cable Length:65cm
Running Time:180seconds (open-closed)
