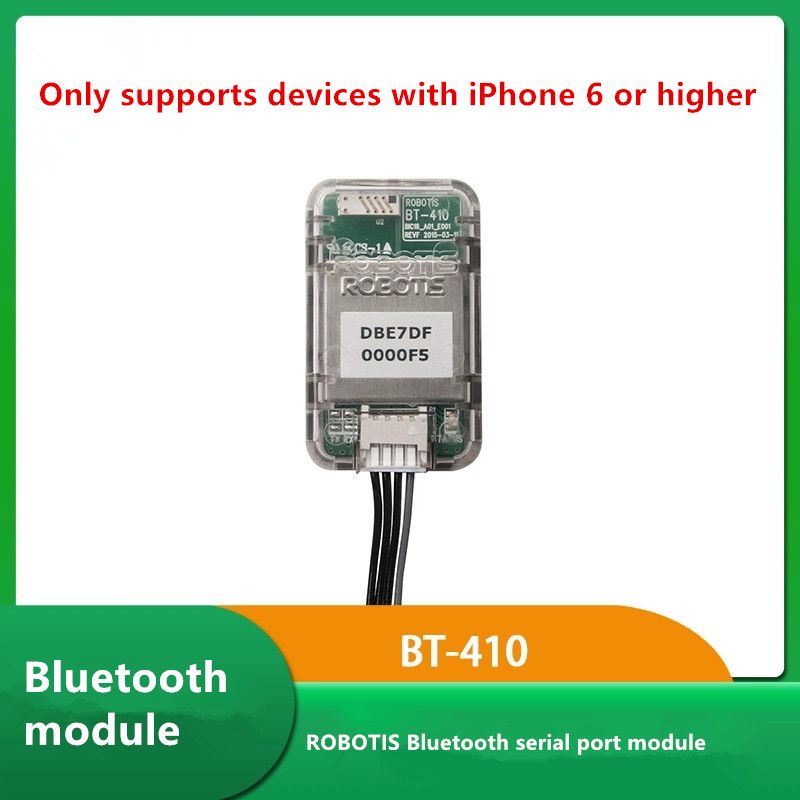

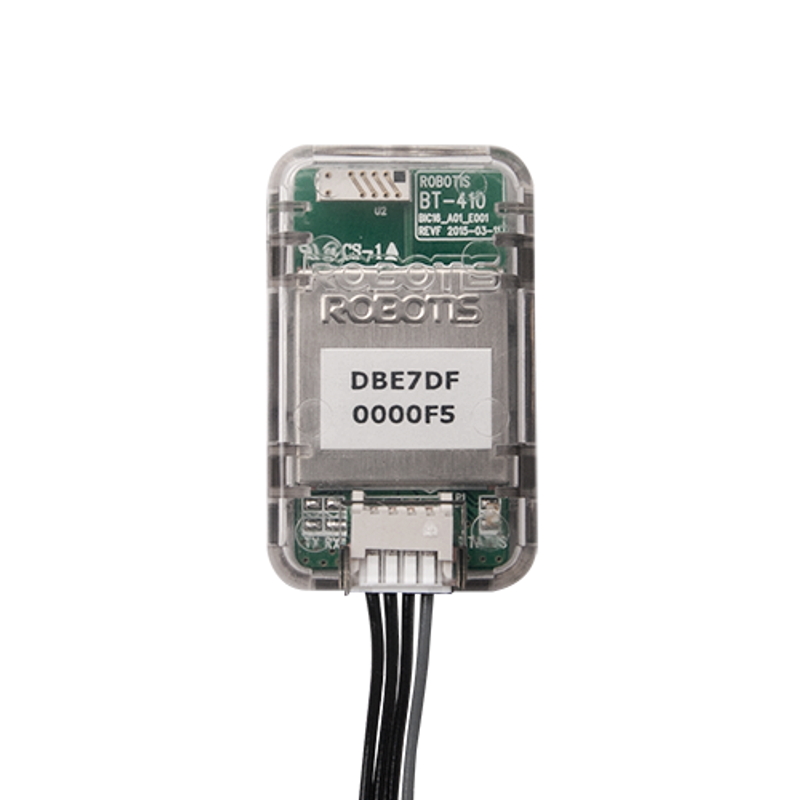

BT-410 Bluetooth module ROBOTIS robot accessory control module

$162.86

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

Note:

BT-410 cannot be directly linked to the Bluetooth of a PC. If you want the robot to be linked to the Bluetooth of a PC, please use BT-210.

Only supports devices with iPhone 6 or higher!!!


Features

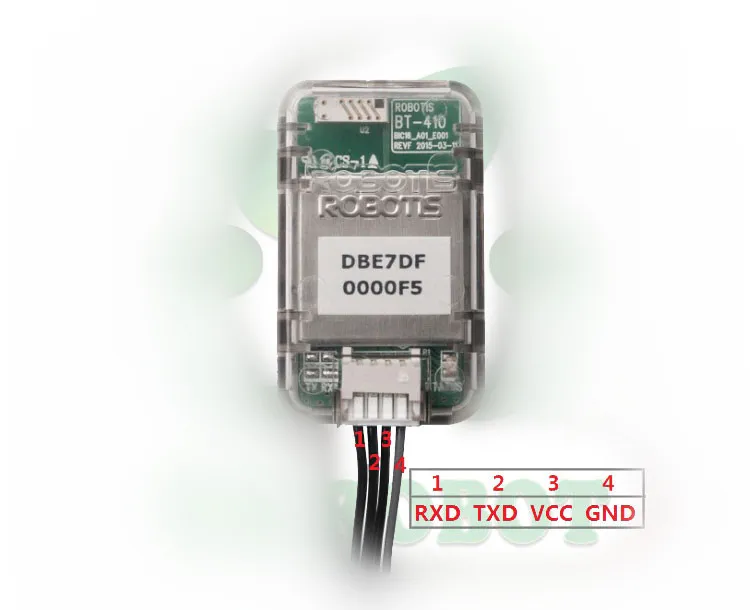

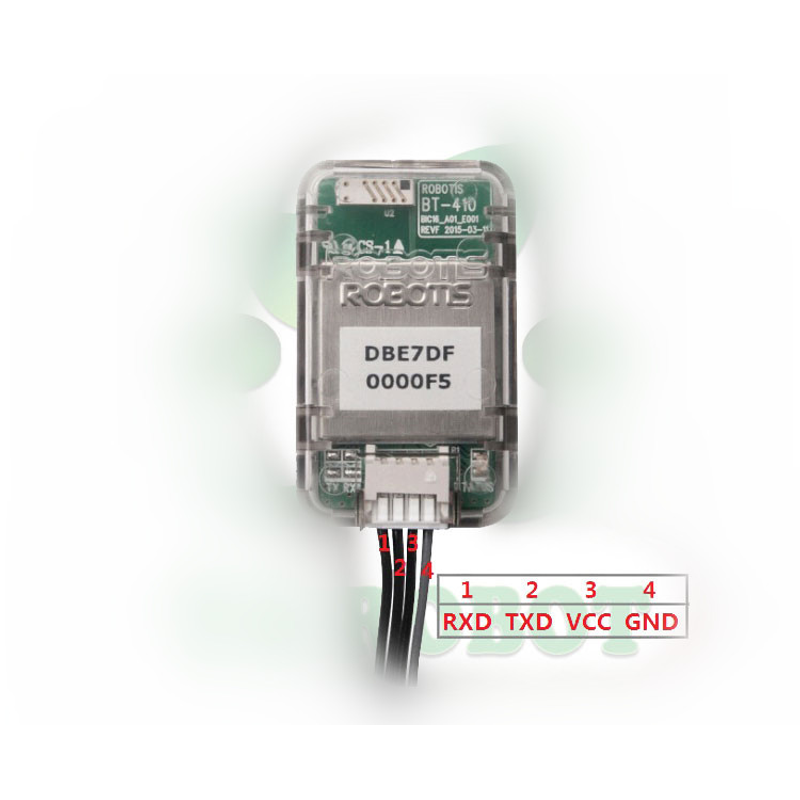

BT-410 is a device that enables serial communication (UART) via Bluetooth communication.
BT-410 has a case that protects the circuits and a connector-type cable that is used to connect the device onto the robot.
Used with smart phone, tablet PC, or other devices that support BLE (Bluetooth 4.0 Low Energy) to control the robot.


BT-210

BT-410

Android

O

O

iOS

X

O

PC

O

O (need Dongle)

1 Master : 1 Slave

O

O

1 Master : N Slave

X

X

1 Phone : 1 Slave

O

O

1 Master : N Slave

X

support later

Master / Slave

O

X

Data transfer reliability

High

High

Max throughput

250kbps

128kbps

Module FW update

X

X

Default MAC address

B863BC xxxxxx

DBE7DF xxxxxx

MAC address range

6 byte

6 byte

Package Components

BT-410 (120mm cable included)

1

H/W Specification

Weight

4.5g

Dimensions

18mm x 30mm x 9.1mm

Bluetooth Specifications

Bluetooth Specification 4.0 Low Energy Support

Effective Communication Range

10m

Bandwidth Frequency

2.4 GHz ISM Band

Bandwidth

MAX 128kbps

Default Baud Rate

57600bps

Operating Voltage

3.3V

Consumed Current

7mA (Max)

Operating Temperature

0℃ ~ 40℃

Baud Rate Range

1,200bps ~ 1.000,000bps

Antenna

Chip Antenna

Interface

UART (3.3V Level)

Sensitivity

-81dBm (Typical)

Conducted Net Power

-6 ~ 4dBm (Class 2)

Compatible Products

Compatible Smart Devices

Android : Android 4.4 or higher (eg. Nexus 7 2nd gen., Galaxy S3 or higher.

Does not support low-cost version regardless of the firmware version)


iOS : iOS v8.1 or higher (ex. iPhone 4S, iPod Touch 5, iPad 3rd gen. or higher)


Compatible Controllers and F/W Version

CM-150 : F/W v.23 or higher

CM-200 : F/W v.64 or higher

OpenCM7.0 : Latest F/W version

OpenCM9.04 : F/W v.10 or higher, Revision E002

(Requires the latest version of F/W)


Supported ROBOTIS App

Android : ROBOTIS MINI App, R+ m.Task, R+ m.Task2, R+ m.Motion2

iOS : ROBOTIS MINI App, R+ m.Task2, R+m.Motion2

(Requires the latest version of smartphone applications. There may be additional updates depending on the OS policy.)


Controller

R+m.Task (Dwonload Examples)

R+m.Task (Controller mode)

CM-510

X

O

CM-700

X

O

CM-530

X

O

CM-100A

O (requires F/W upgrade)

O

CM-150

O (requires F/W upgrade)

O

CM-200

O

O

OpenCM9.04

O (requires F/W upgrade)

O

Caution

Only contains 1 slave module for assembling onto the robot.


Installation Not Supported


-Remote Control : RC-100, RC-100A

-Controller : CM-100, CM-5, CM-2+
