BulkMan3D OXMAN CNC Industrial Machine 5-Axis DDCSV4.1 Offline SFU1610 Ball Screws Dual Rails Engraver for Wood Metal Acrylic
Includes all taxes
Meet your Seller
-
$3,304.80Sold by BILLIONS BIRDS
Description
OXMAN CNC Machine Full Kit - 5Axis DDCSV4.1 Control Box |
The OXMAN is an Industrial Grade CNC with High Precise Ball Screw(X & Y Axis: SFU1610, Z Axis: SFU1204) and Double HGR Linear Rail Upgrade based on very well-received QueenBee CNC and Ultimate Bee CNC Machines. It is 100% fully self-developed, designed by BulkMan3D International R&D Team and copyrighted by BulkMan3D.
Features:
● 【Sturdy Aluminum Frame】Built with a strong aluminum alloy frame, the OXMAN CNC machine provides durability and stability, minimizing vibrations for smooth and accurate operation during long machining sessions.
● 【Precision Motors】Equipped with high-precision 2.2N.M closed-loop stepper motors, the OXMAN ensures accurate and repeatable results, allowing for high-quality cuts and engravings with minimal errors.
● 【2.2KW Spindle Motor】The OXMAN CNC machine comes with a powerful 2.2KW spindle motor, providing strong torque and speed for a wide range of materials. This motor ensures excellent cutting and engraving performance, even for tough materials, delivering professional-grade results.
● 【Ball Screws for Improved Precision】The OXMAN is equipped with high-quality ball screws, offering greater accuracy and efficiency in movement, reducing backlash and ensuring smoother and more precise cuts.
● 【Dual Linear Rails】The OXMAN features dual linear rails, ensuring enhanced stability and smoother motion for more precise and reliable machining results, even under heavy loads.
● 【Stainless Steel Screws for Durability】The use of stainless steel screws throughout the machine’s construction ensures excellent resistance to wear and corrosion, prolonging the lifespan of your CNC machine and maintaining its precision over time.
● 【Multiple Workbench Options】The OXMAN CNC machine offers 3 types of workbench options to suit a variety of budgets and applications. Whether you need a more robust work surface for heavy-duty tasks or a standard workbench for general use, there’s an option that fits your requirements.
● 【Upgraded Cable Drag Chain】The upgraded cable drag chain provides better cable management, protecting your cables from wear and reducing friction. This upgrade ensures smoother machine movement and enhances operational reliability.
● 【DDCS4 V4.1 Controller Box】The OXMAN CNC is equipped with the advanced DDCS4 V4.1 controller, offering precise control over the machine’s operations. Most Internal cables and modules inside this control box have been pre-connected, just follow our instruction to simply plug this box and it can work for your machine!
Specifications:
Configuration: 4-Axis CNC Engraver
Transmission: SFU1610 Ball Screw + Dual HGR Linear Rails(Extended)
Frame Material: High-strength 6063-T5 Aluminum
Motor Type: Precision 2.2N.M Closed-loop Stepper Motors
Controller: 5-Axis DDCSV4.1 Standalone/Offline
Overall Dimensions (Including Motors):
1500x1500mm: X Axis=1665mm(65.55in), Y Axis=1630mm(64.17in), Z Axis=710mm(27.95in)
1000x1000mm: X Axis=1165mm(45.86in), Y Axis=1130mm(44.48in), Z Axis=710mm(27.95in)
Working Stroke:
1500x1500mm:X Axis=1300mm(51.18in), Y Axis=1300mm(51.18in), Z Axis=150mm(5.91in)
1000x1000mm:X Axis=800mm(31.49in), Y Axis=800mm(31.49in), Z Axis=150mm(5.91in)
Maximum Supported weight of Z-Axis(spindle): 6kg
Maximum Operating Speed (GO):
1500x1500mm: F10000~15000
1000x1000mm: F12000~20000
Cutting Speed (G1):
1500x1500mm: F10~F4000/5000
1000x1000mm: F10~F5000/6000
Compatibility: Works with wood, acrylic, plastic, soft metals, and more.
Package Weight: Appro 82~144kg (Depending on machine size, workbench, spindle types and rotary axis chose.)
Packages Contents: All parts as pictures shown: Aluminum profiles, ball screws, linear rails, motors, aluminum plates, hardware, etc.
Warranty: 1.5 year online support
This Full Kit Includes: | |
● OXMAN CNC Frame Kit + Options: Workbench: OXMAN, OXMAN PRO,OXMAN ULTRA + Options: Frame Size: 1500x1500mm, 1000x1000mm ● +Options: Rotary Axis |
|
If you would like to buy OXMAN Machine Frame (No Controller, No Spindle, No VFD Inverter, etc), please browse HERE
OXMAN CNC Machine - FAQs |
1. How to chose from different type machine options?

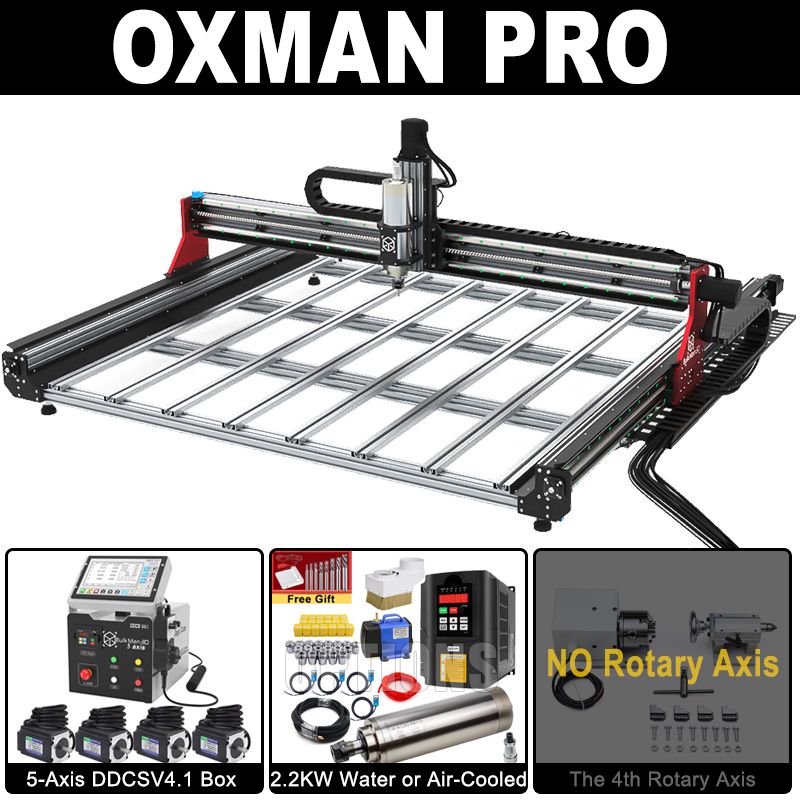

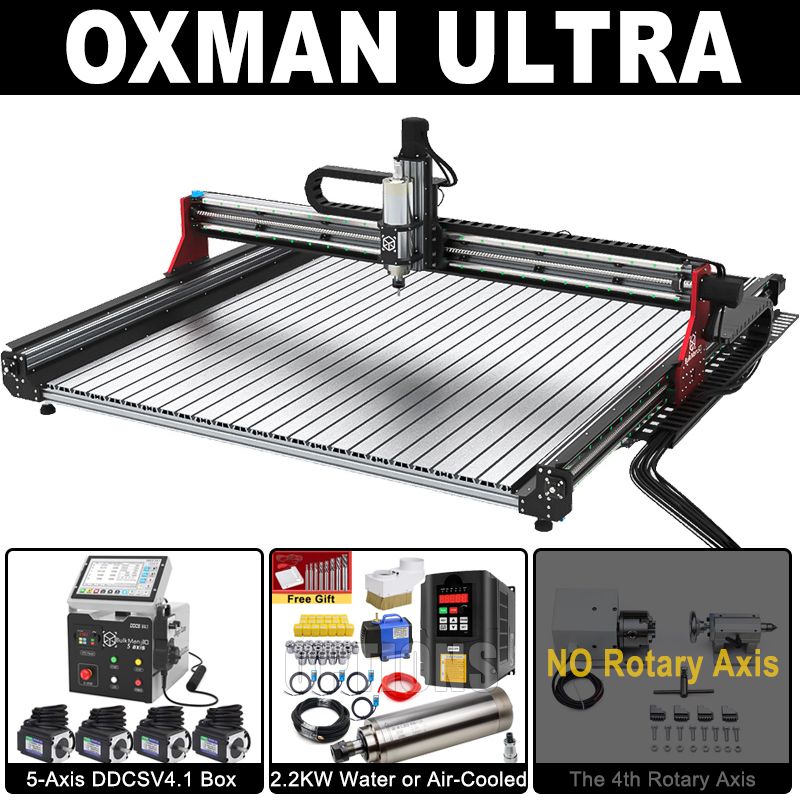

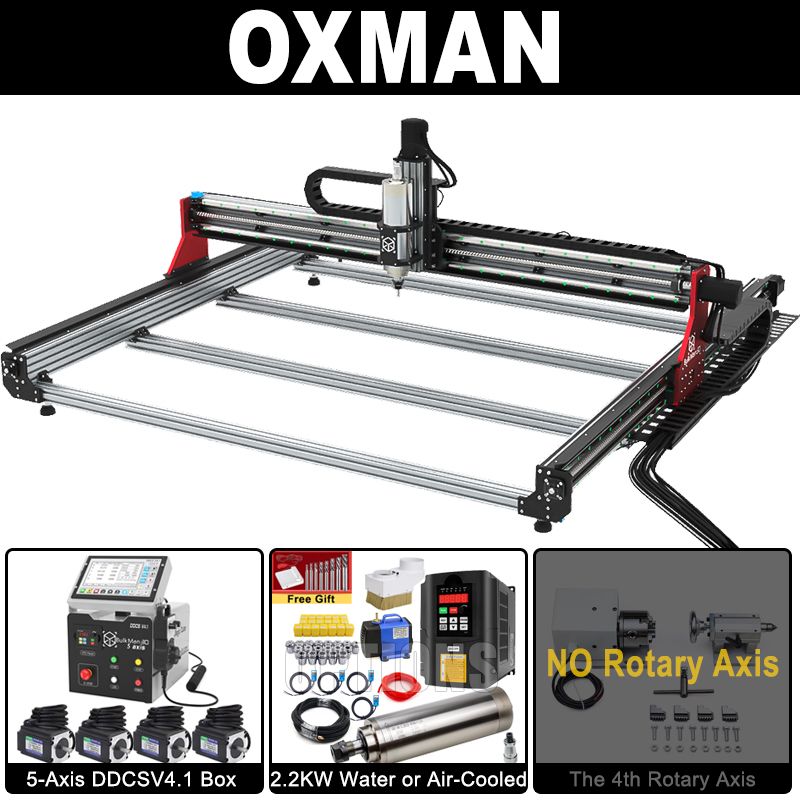

OXMAN CNC comes with 3 types workbench: OXMAN (Simple Workbench), OXMAN PRO (Upgraded Workbench), OXMAN ULTRA (Deluxe Workbench). We highly recommend ULTRA option, which includes heavy duty aluminum profiles and back panel, providing a more rigid and stable foundation for your CNC machine. This ensures less vibration during operation, which directly improves precision and cutting quality.
2. Can I use my own spindle motor on this machine?
Yes, If you prefer to use your own spindle motor with the BulkMan3D OXMAN CNC Machine, we offer a "No Spindle Kit" option to give you the flexibility to install your own preferred spindle motor system. This option is perfect for customers who already have spindle motors they trust or for those who need specific motors that match their unique requirements.
3. Does this machine comes with everything ready to work?
Our OXMAN CNC Full Kit comes with everything needed for building your CNC Machine. Other parts that are needed for you to perform your 'first cut' are:● Baseboard (usually ply or mdf) ● Power cord from wall socket to input of power supply and VFD (this varies across different countries) ● Software
4. How accurate is the OXMAN CNC Machine?
The OXMAN CNC Machine is designed for high precision with its 4-axis system and stepper motors. It provides excellent accuracy, making it suitable for detailed engraving, custom parts, and prototyping. The level of accuracy depends on your material, setup, and cutting parameters.
6. Is the OXMAN CNC Machine easy to assemble?
Yes! We provide detailed assembly instructions and tutorial videos, Whether you're a beginner or an experienced user, these resources will guide you through each step to ensure a smooth setup and optimal machine performance.
7. Is the OXMAN CNC suitable for beginners?
Absolutely! The OXMAN is beginner-friendly with a straightforward assembly process and compatibility with widely-used CNC software. It’s an excellent choice for hobbyists, DIY enthusiasts, and those new to CNC machining. The user manual provides clear instructions to help you complete the setup for the normal operation of the machine itself.
8. What type of maintenance does the OXMAN CNC require?
To keep the OXMAN CNC Machine in top condition, regular maintenance is recommended. This includes cleaning the machine after use, lubricating the rails and moving parts, and checking for wear and tear on the components. Always follow the manufacturer’s guidelines for care and maintenance.
9. Can I get technical support if I encounter issues with the machine?
Yes! BulkMan3D offers customer support for technical issues. You can contact us via email or phone, and our team will be happy to assist you with setup related to the machine itself, troubleshooting hardware problems, and answering any questions specifically regarding the OXMAN CNC Machine.
Capability |
The OXMAN CNC is not only a machine capable of cutting through a wide diversity of materials. It excels at Cutting and 3D Carving through plastics, foam, softwood, hardwood and even soft metal such as aluminium and brass.
Compatible Material for Cutting/Milling/Engraving:Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam and so on.
By using different Drill Bits & Milling Cutters:The OXMAN CNC can create intricate 3D carvings like wood artware, inlays, adverting logo, plaques, furniture, amazing art works and so much more. All the widely used applications can be achived here!
DDCSV4.1 5Axis Offline Control Box System | |
The BulkMan3D DDCSV4.1 Industrial-grade Control Box is a high-performance control system specially designed to meet the needs of industrial manufacturing. It provides reliable and efficient control for 4-axis CNC machines, offering seamless integration with various types of machinery, including routers, lathes, and mills. Price Includes: ● Magic Cube DDCSV4.1 5 Axis Offline Control Box as Picture Shown ● MPG Handwheel as Picture Shown Hardware Configuration inside this Control Box: ● 1x 4 channel relay module ● 1x 24V 50W switch power supply ● 1x 2.2KW 220V VFD ● 1x Single phase two-stage filter for VFD ● 1x Sindle phase single-stage filter for main power supply ● 3x Noiseless DC Cooling fan ● 1x BH57 4Axis module ● 1x 800W main power supply (36V use for Split Hybrid Servo Motor ) ● Voltage: 220V |
|
Tips: Most Internal cables and modules inside this control box have been pre-connected, just follow our instruction to simply plug this box and it can work for your machine. | |
2.2N.m Close-loop Stepper Motor | |
● Motor model: 57HSE2.2N |
|
2.2 KW Water or Air Cooled Spindle Kit | |
● Net weight: 5.5kg(2.2kW Air-Cooled), 5.3kg(2.2kW Water-Cooled) If you want to use your own spindle, please choose “No Spindle Kit”option. |
|

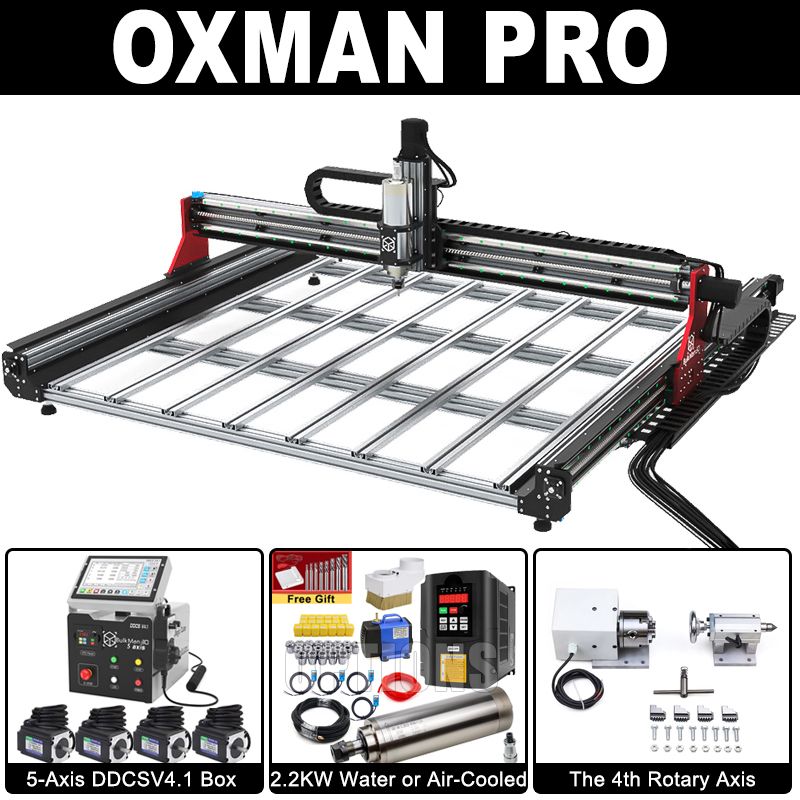

The 4th Rotary Axis | |
The rotary axis, also referred to as the 4th axis, is a powerful addition to your CNC machine that allows for rotary or indexing machining. Unlike traditional 3-axis CNC systems that operate on X, Y, and Z planes, the 4th axis introduces a rotational A-axis, enabling the workpiece to rotate during machining. This opens up a wide range of complex cutting possibilities, including cylindrical engraving, 3D carving, and machining on round or irregular objects. ● Model Number: K-80 ● Chuck: 80MM 4-jaw chuck ● Center height: 65MM ● Speed reducing ratio: 6:1 ● Stepper motor: Two phase 57 stepper motor ● Size: 205MM*168MM*117MM ● Weight: 5KG Tailstock: ● Center height: 65MM ● Telescopic stroke: 35 mm ● Weight: 2KG Note: Currently we do NOT provide technical support or assembly manual for this Rotary Axis, it needs to be configured to suit your application by yourself. |
|
