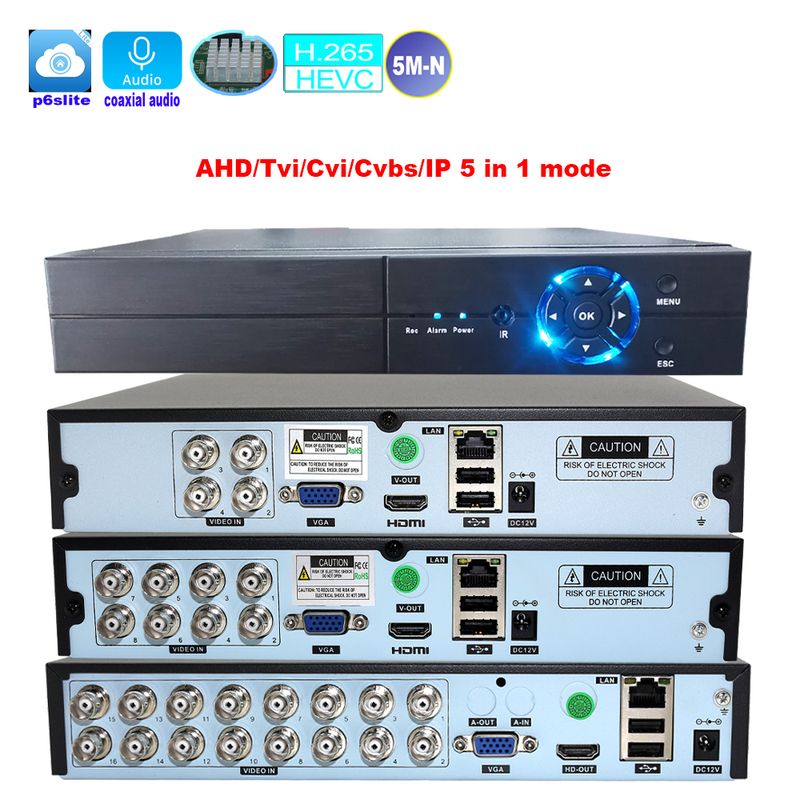

CCTV 4CH/8CH/16 Channels 5MP-N Smart Intelligence DVR Coaxial Audio P2P Hybrid 5 In 1 H.265 for AHD TVI CVI CVBS IP Camera
Includes all taxes
Meet your Seller
-
$142.70Sold by BILLIONS BIRDS
Description
if need the software and manual instructions of the DVR please copy this link to download:https://disk.yandex.lv/d/eC9OqRyZ7xkL7Q

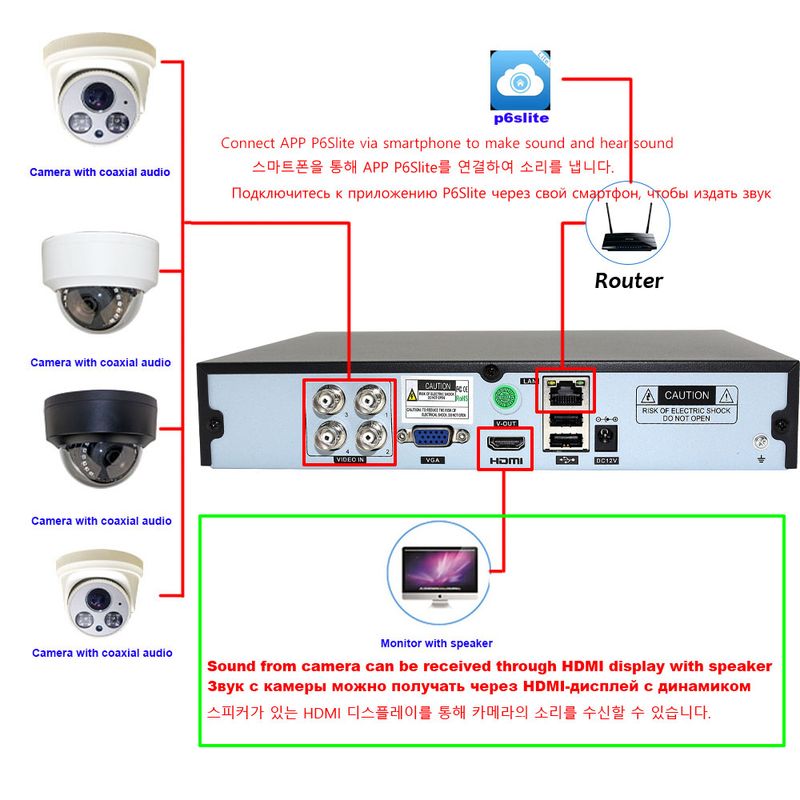

What is coaxial Audio
it is mean camera which support coaxial audio connect to DVR which support coaxial too,can No need other device can hear voice from camera by Smartphone or Computer(Camera must support Coaxial audio too)

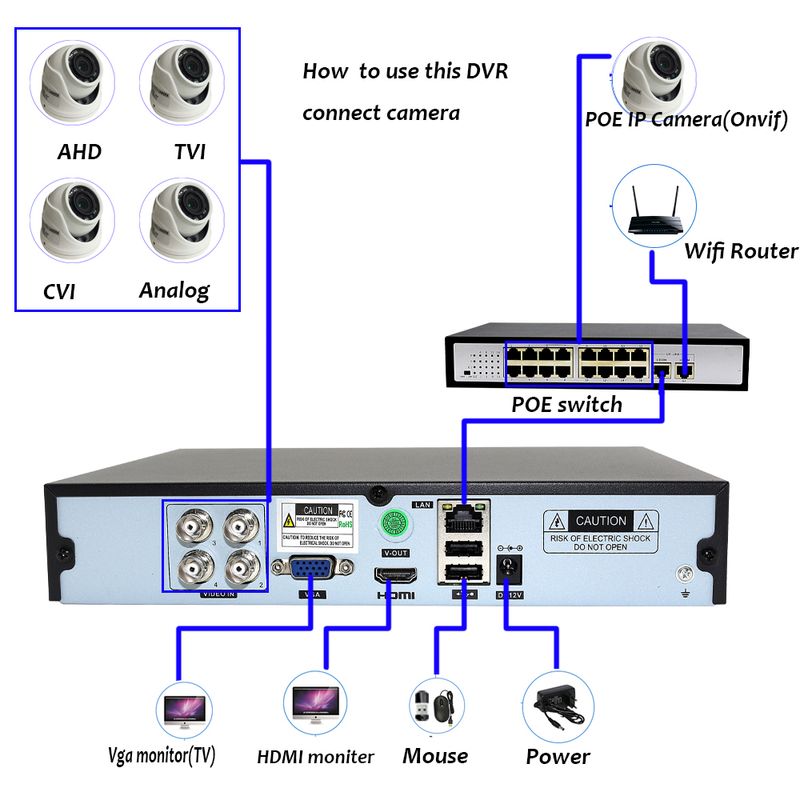

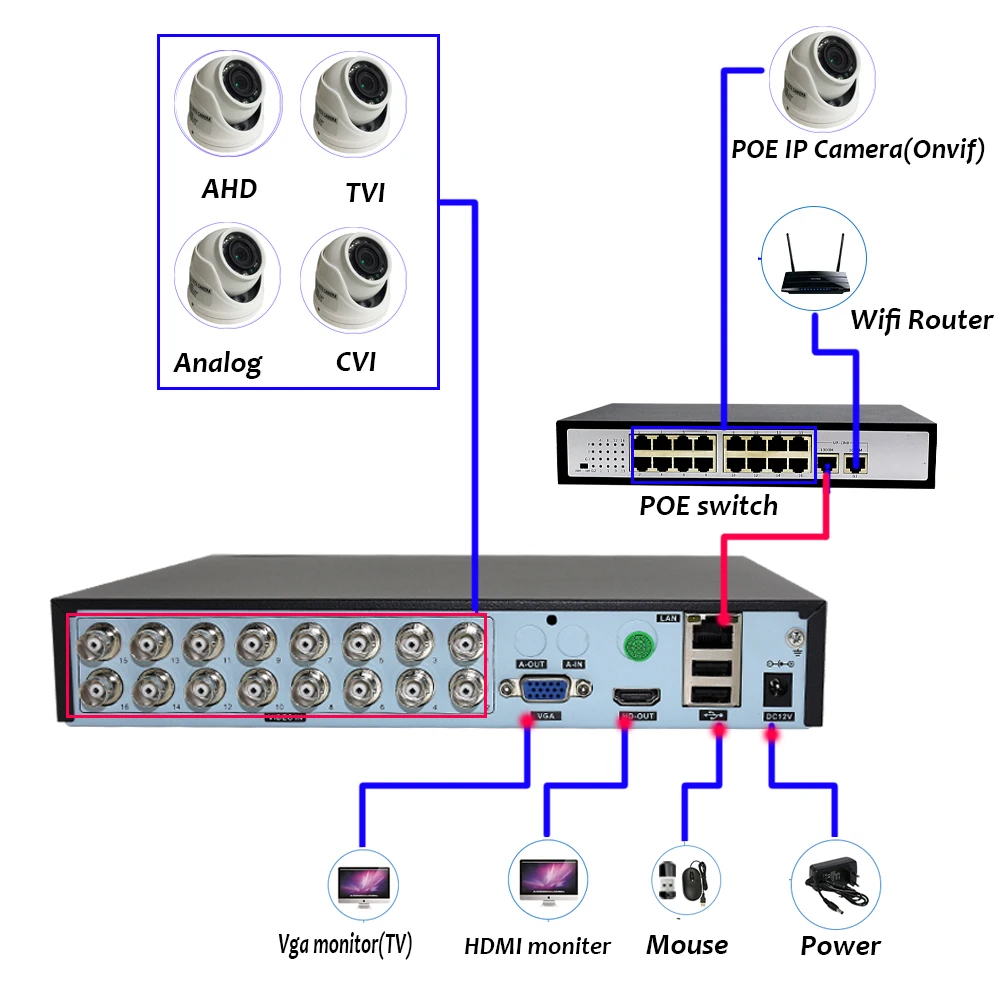

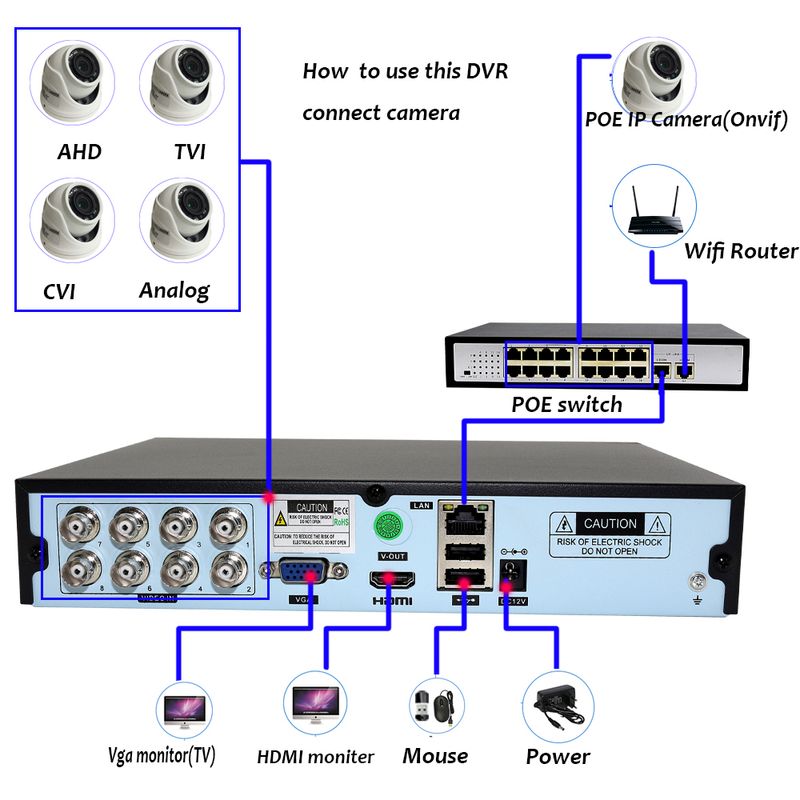

How to connect camera by this DVR:

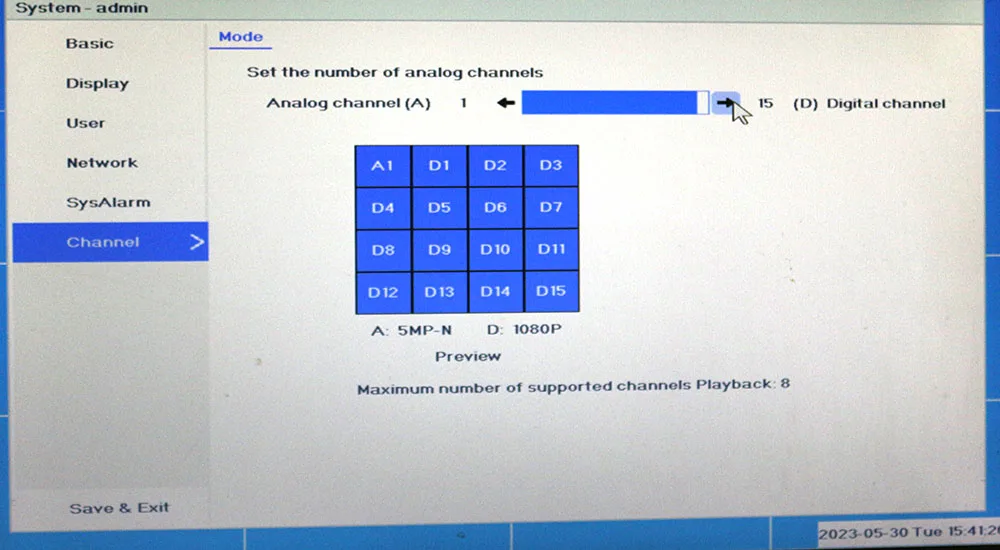

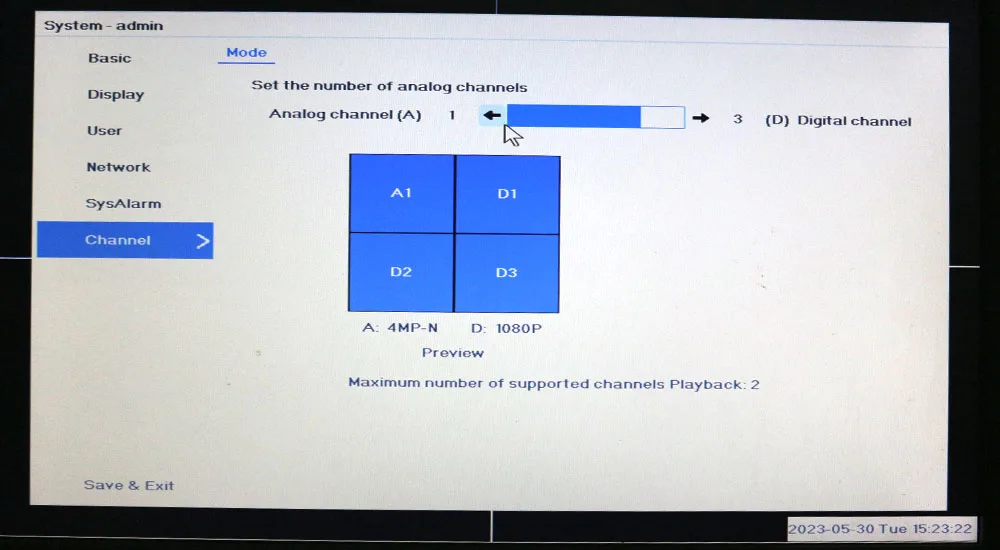

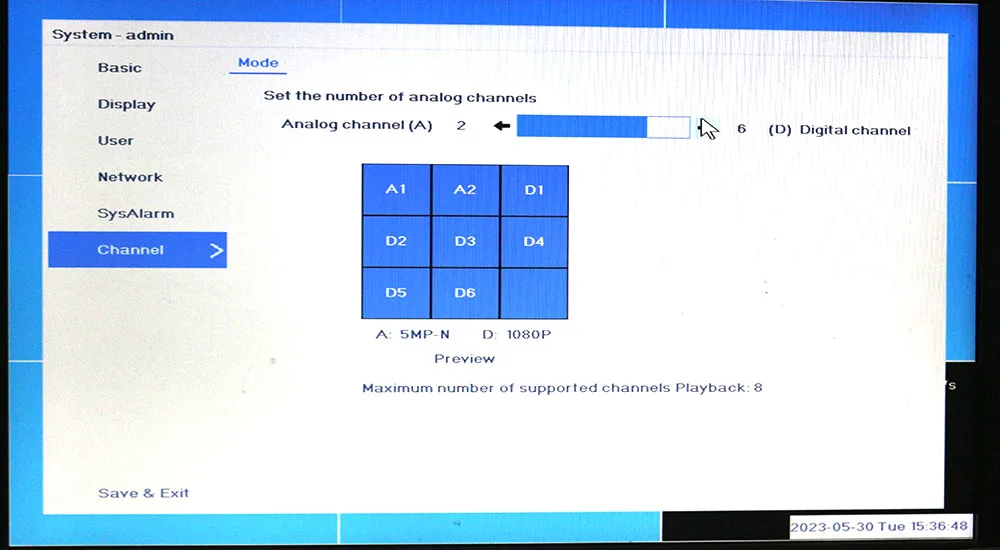

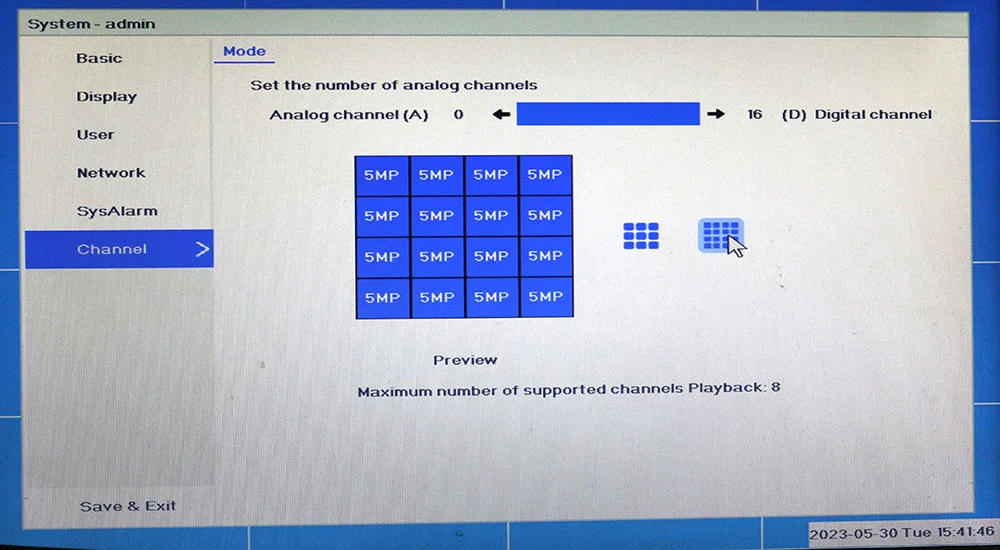

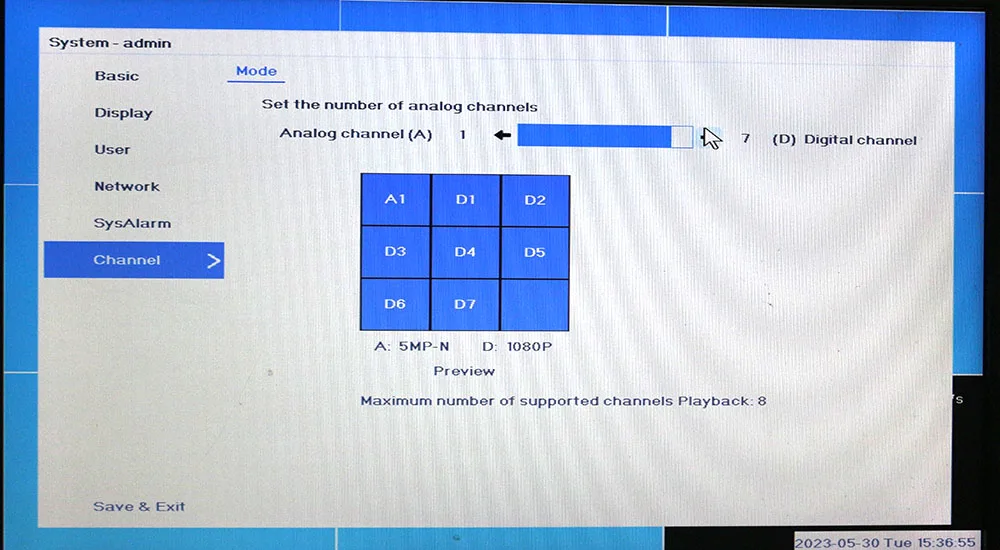

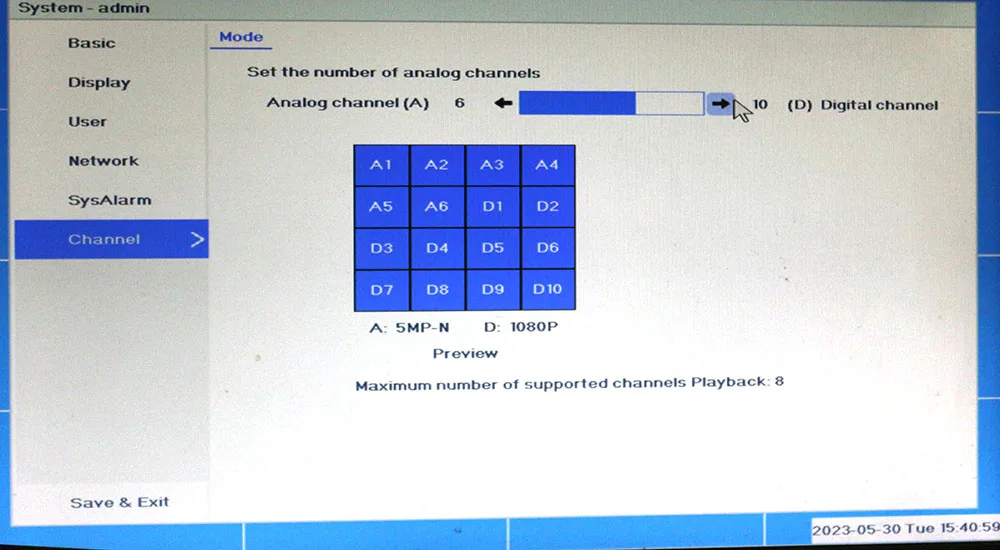

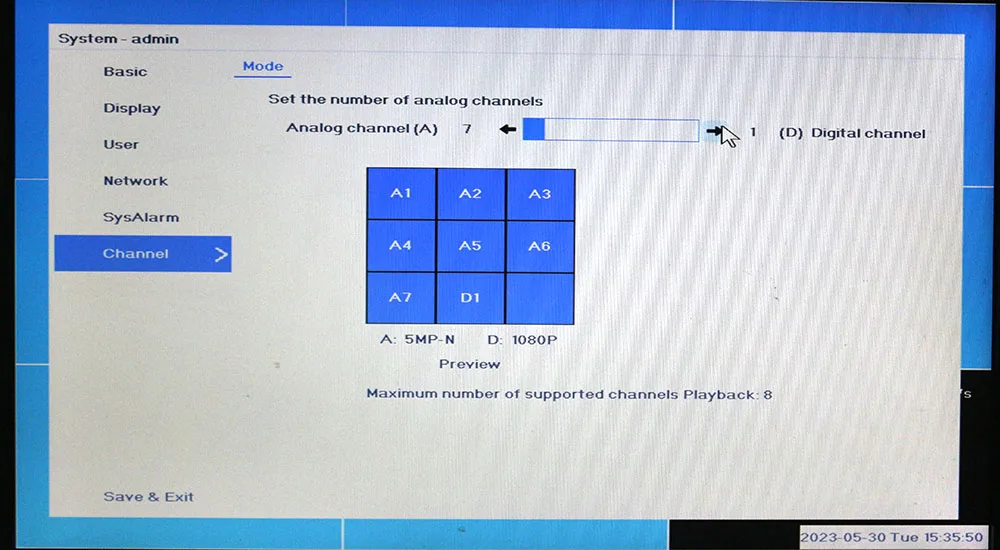

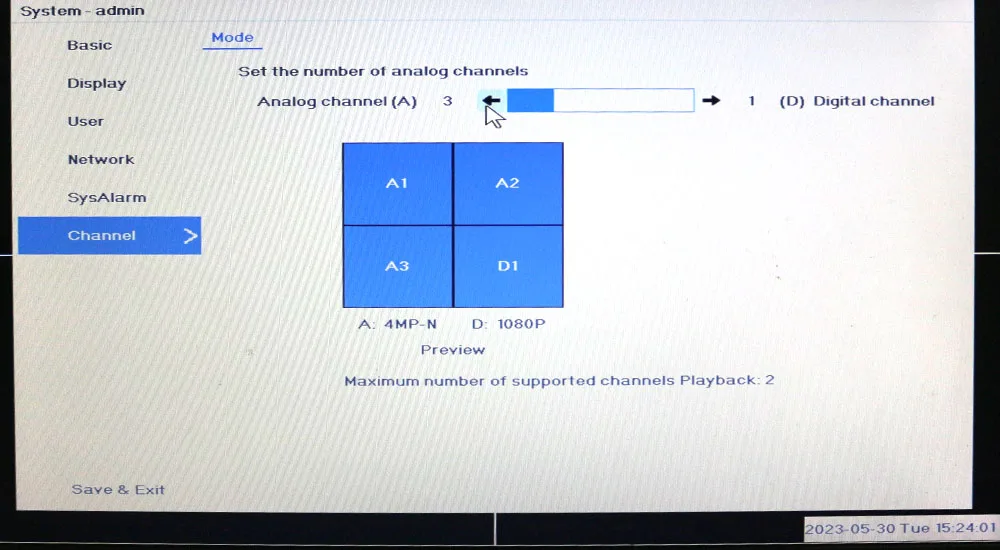

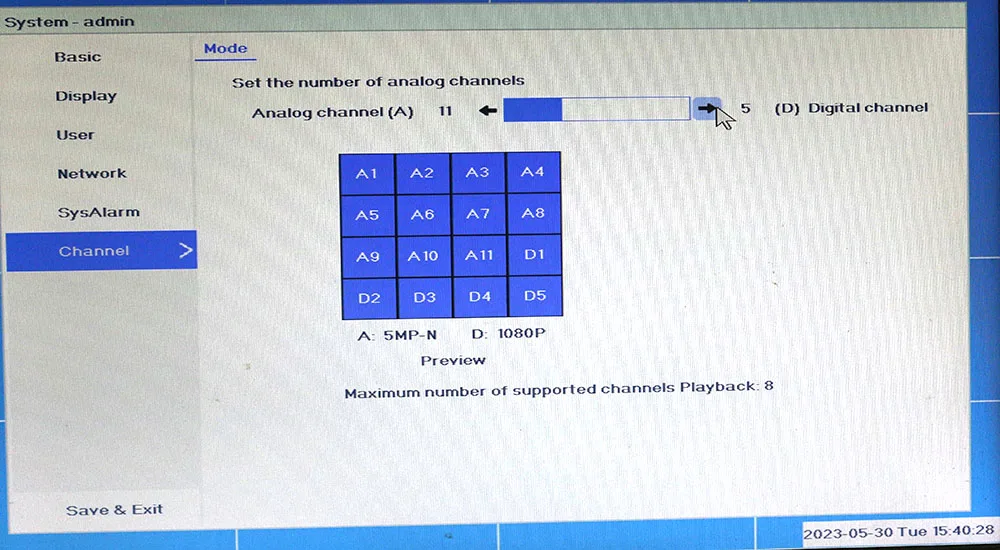

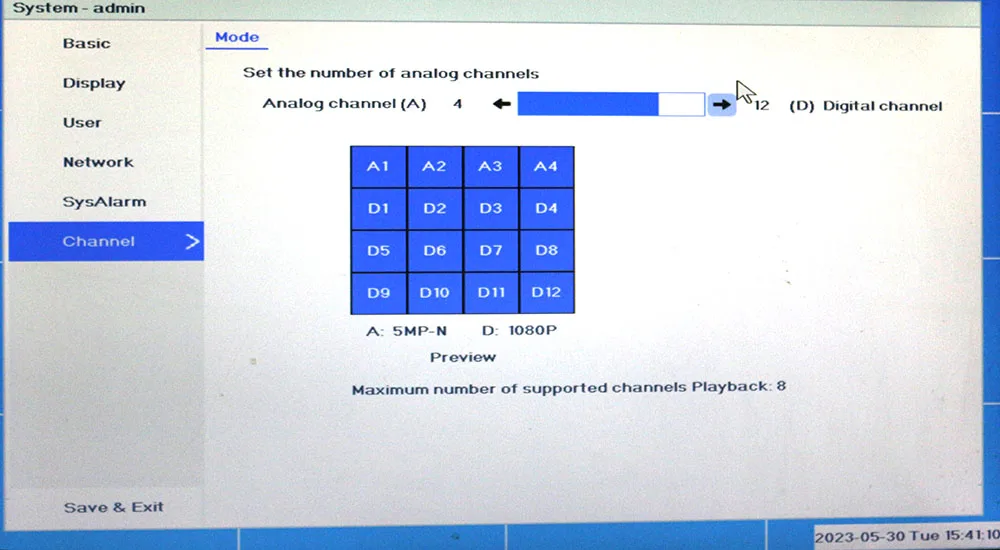

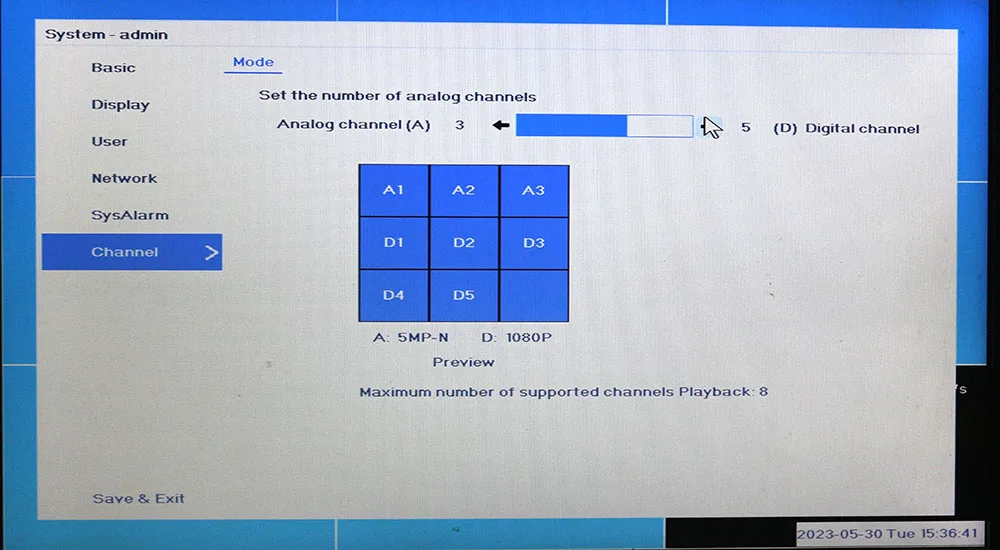

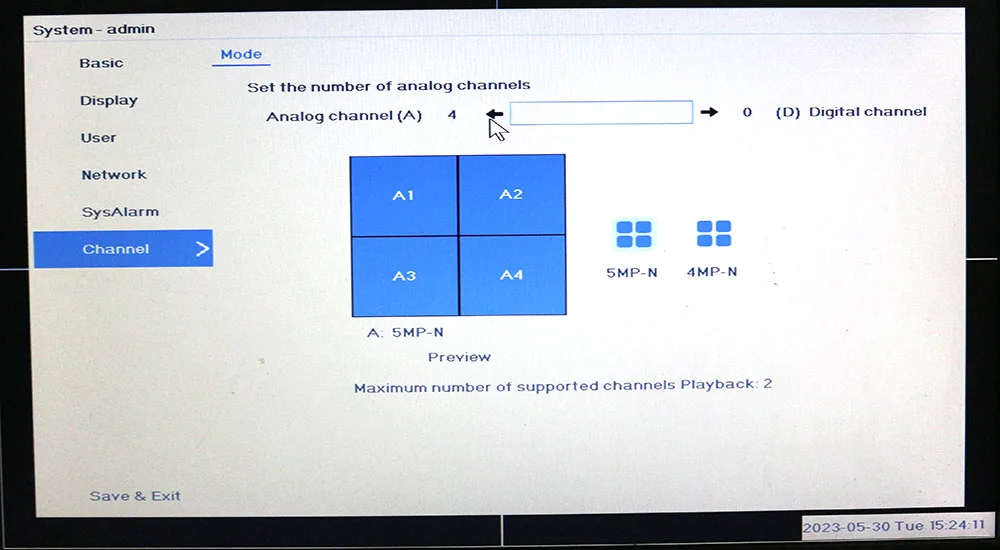

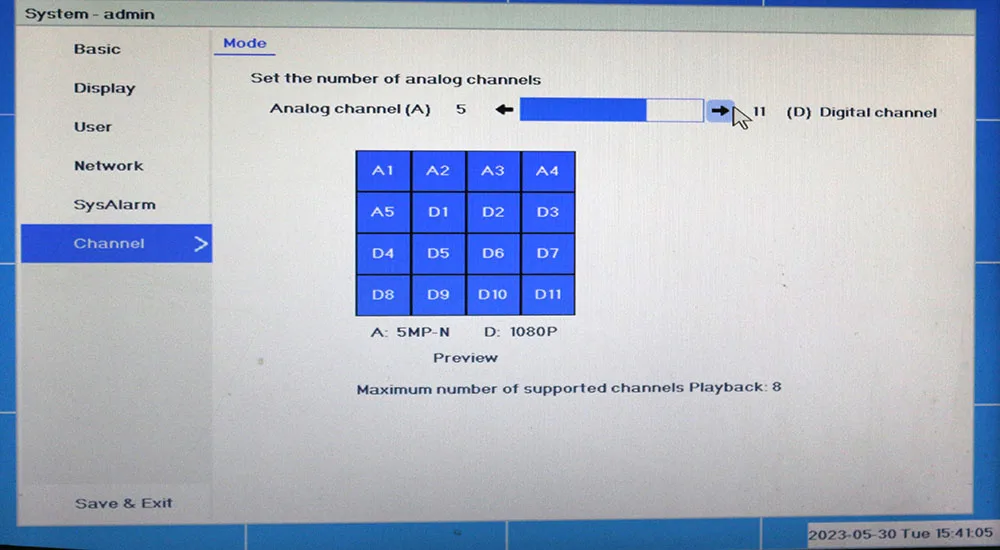

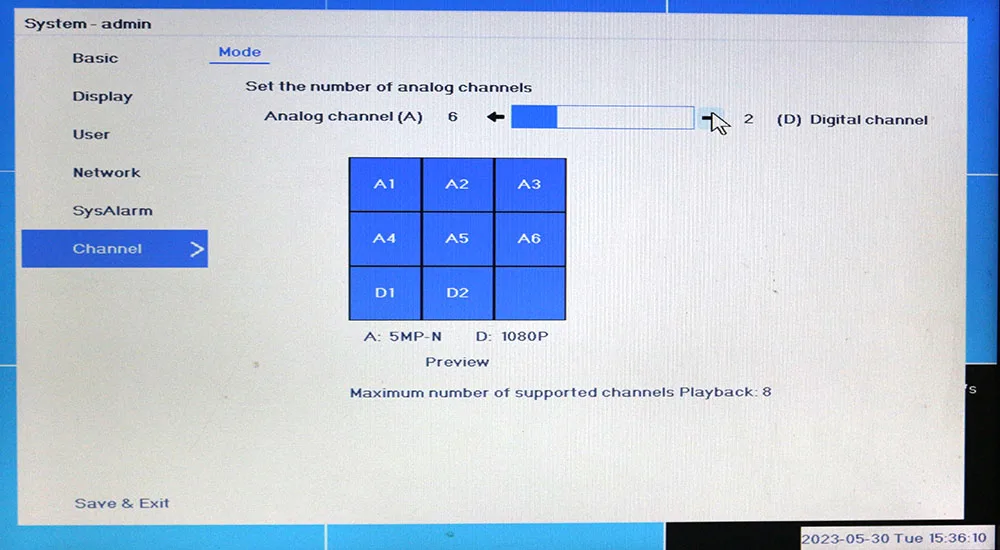

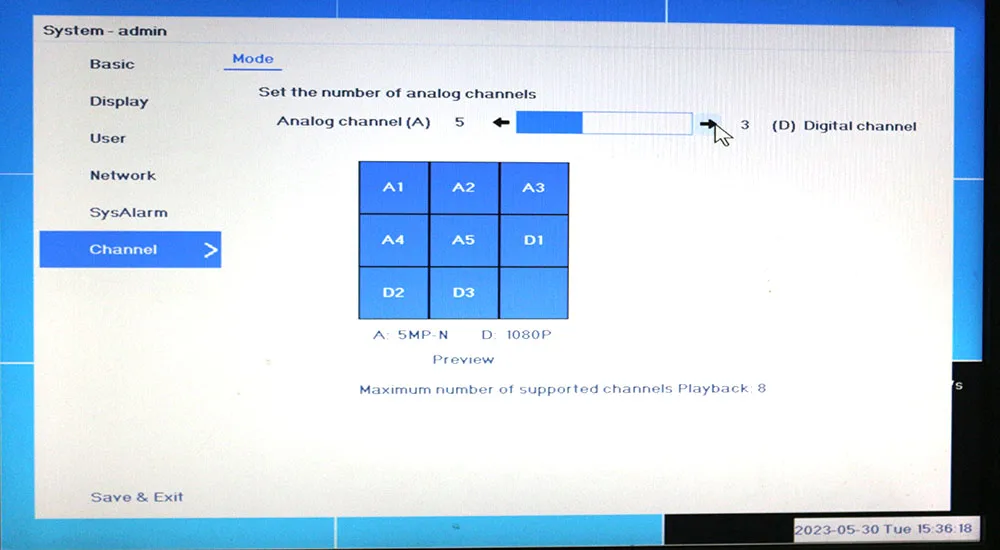

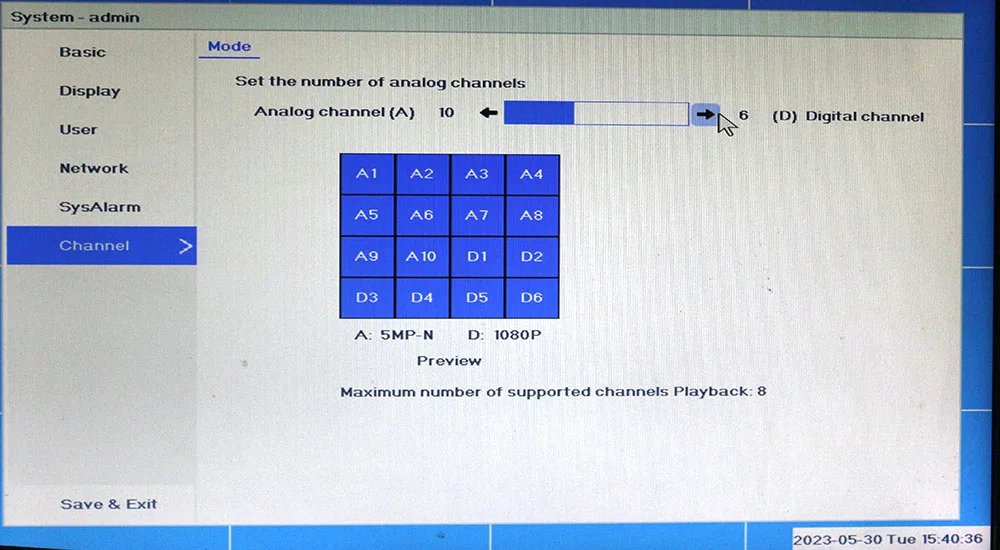

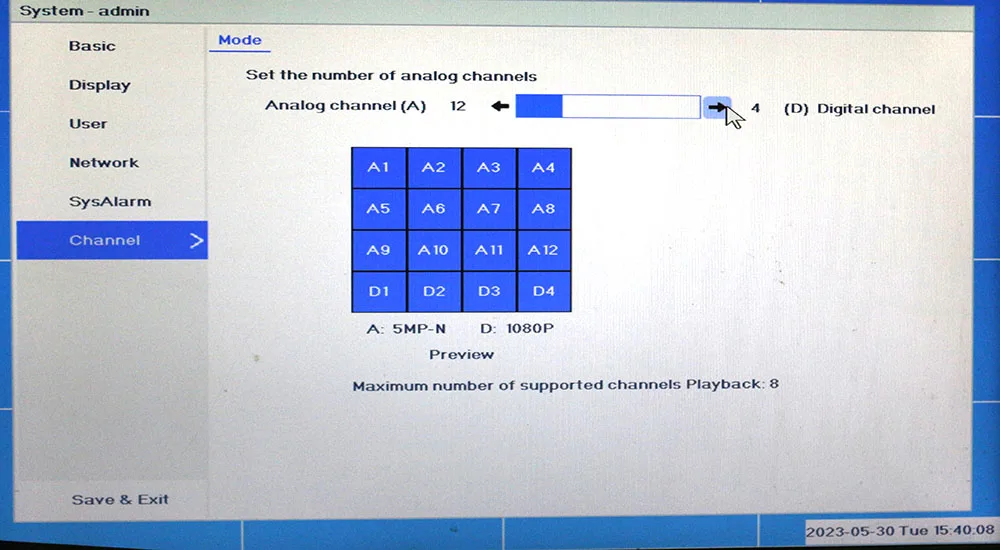

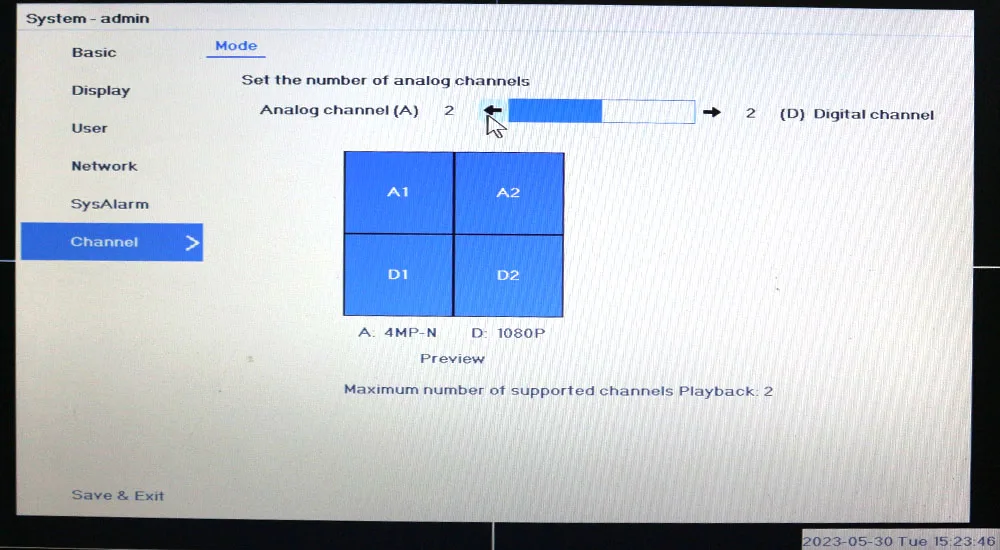

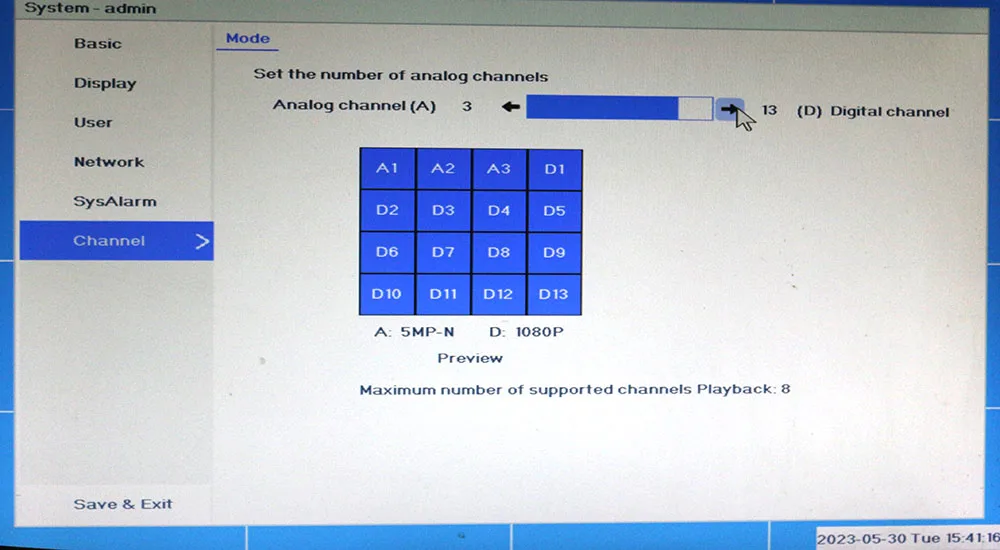

Channel type

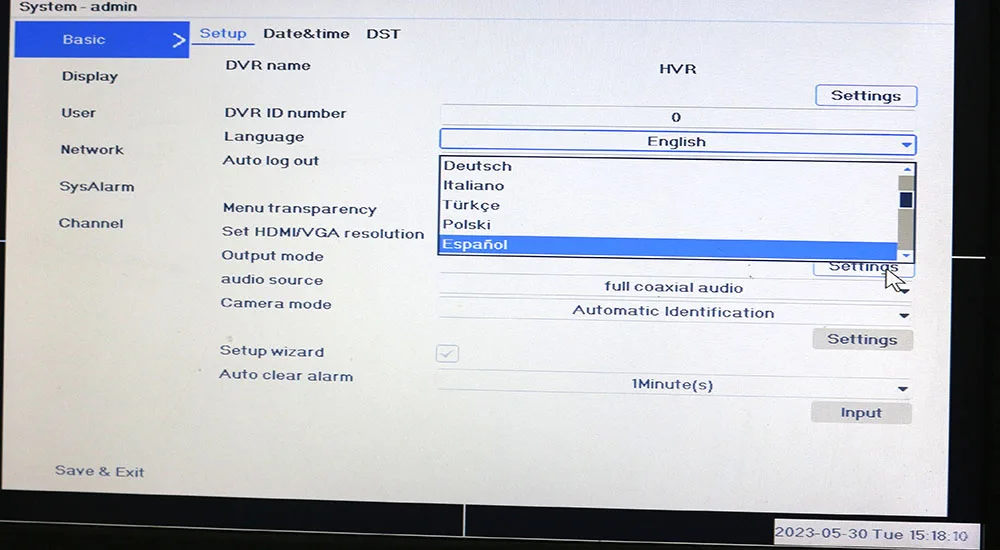

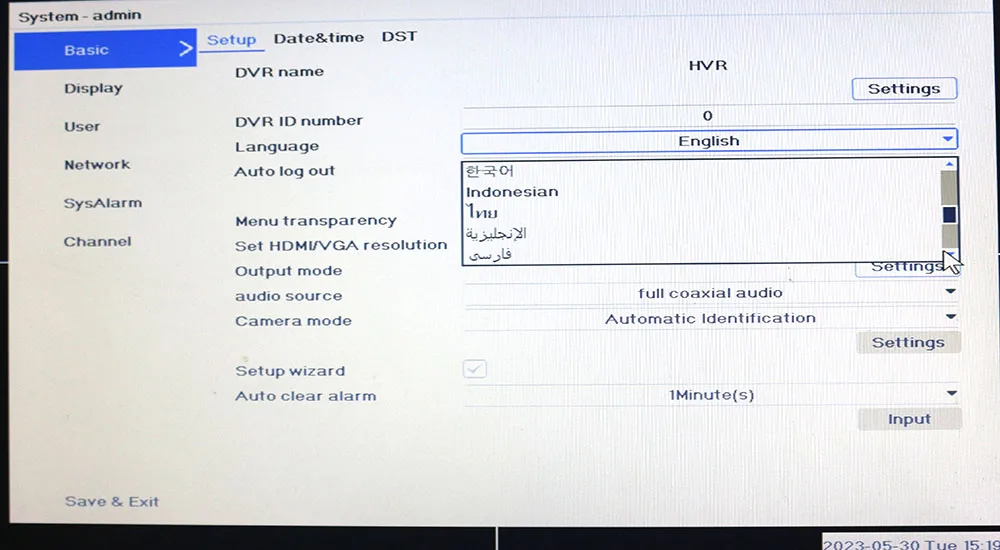

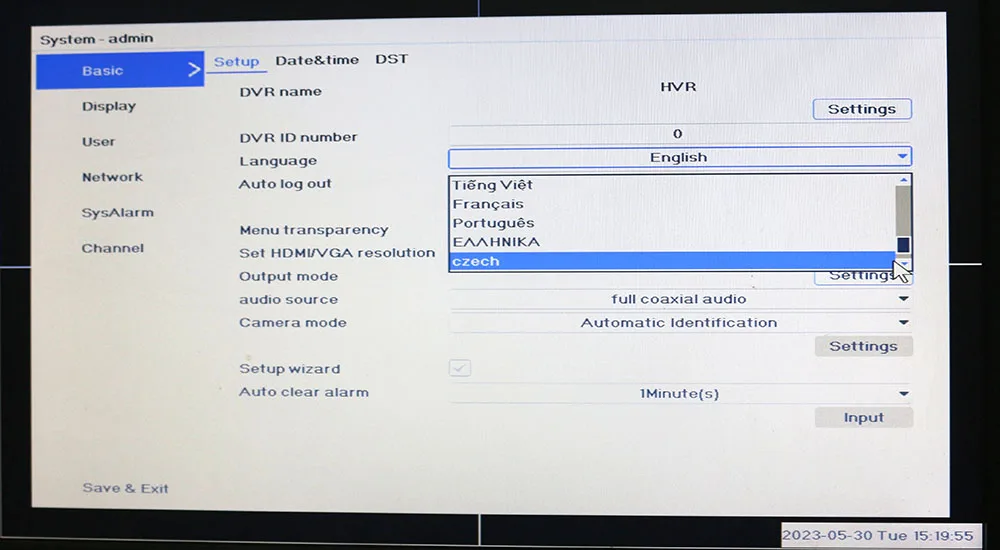

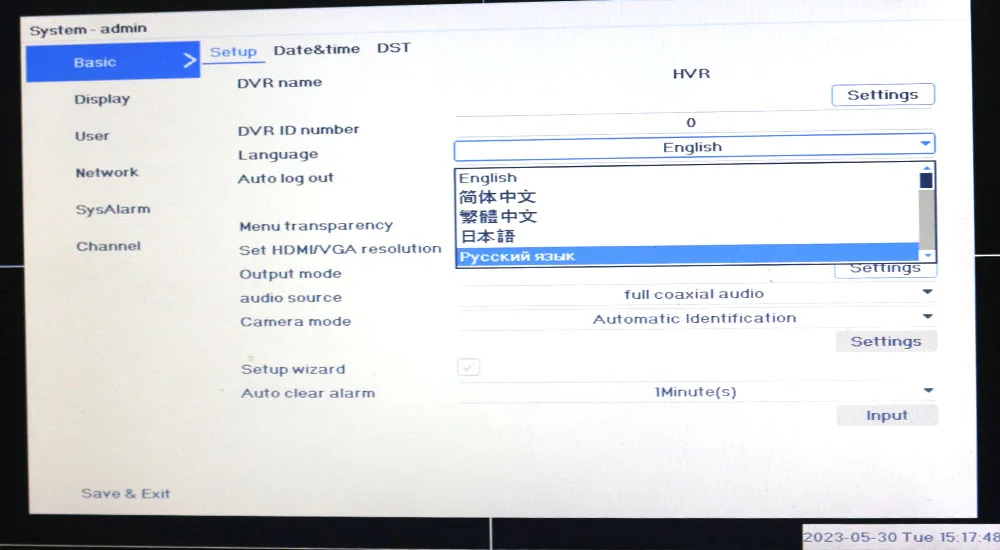

Language

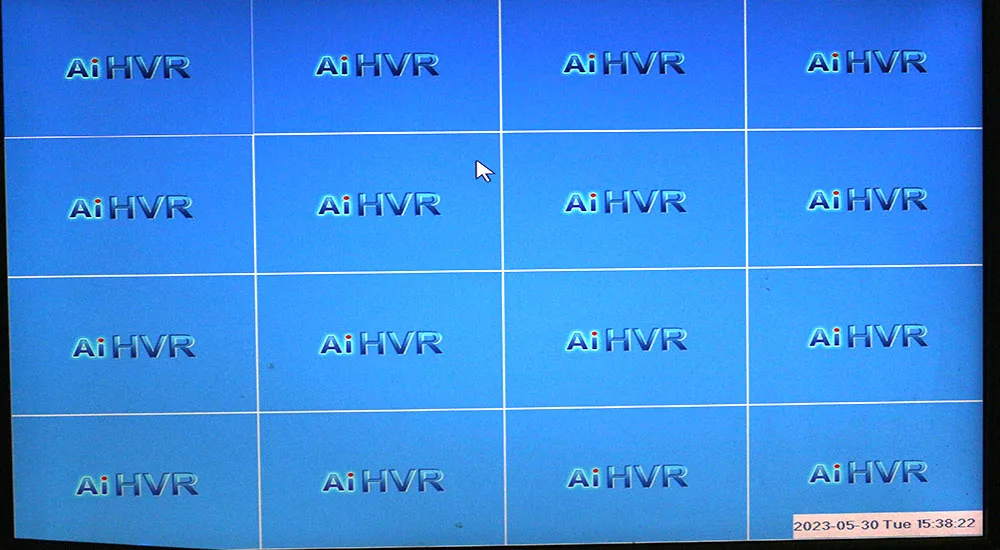

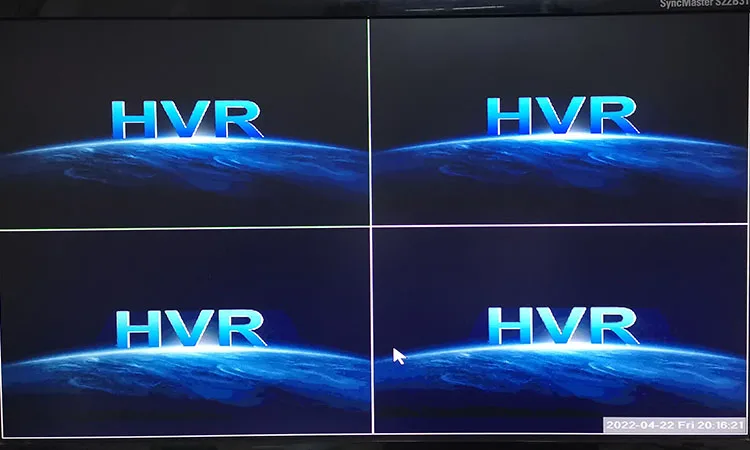

Main display
4CH
8CH
16CH
H.265+

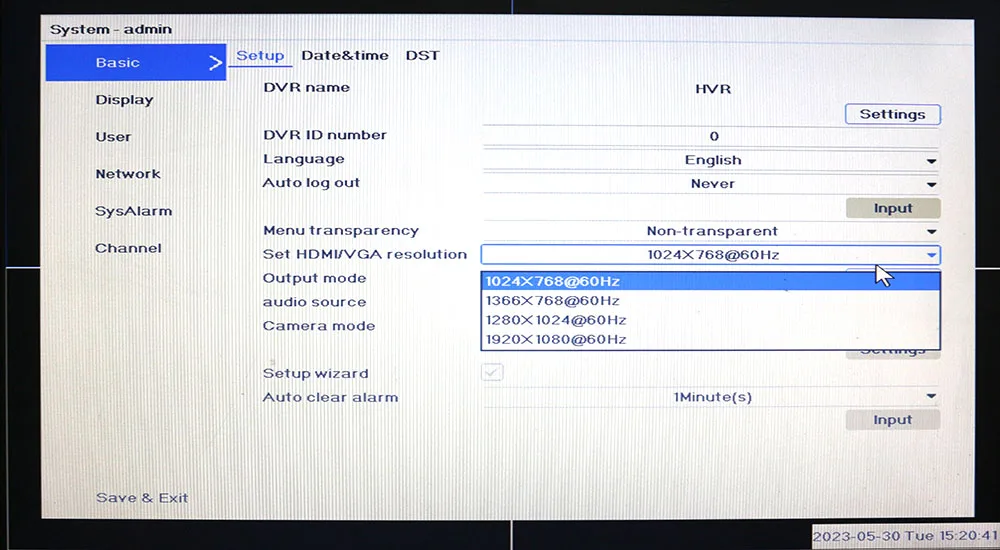

Display resolution(the board display resolution is default 1920*1080P.If you use a monitor to connect this device, please make sure it can withstand 1920*1080P resolution input.
or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported"you can ask US help to change the display resolution before send goods)
Features:
- 6 in 1 HVR product solution, supports HD analog video coding, HD analog + HD
network video input, and pure HD network video input
Support VGA,HDMI output;
Support a variety of cloud technologies, realize network penetration for camera
and DVR docking, and support the functions of pushing alarm information to
mobile phones
Support remote access, DDNS to realize one-key remote monitoring;
With UTC function, camera menu parameters can be adjusted via UTC function;
Support H.264/H.265(HEVC) IP camera
Support IP camera address modifying in bulk, and camera device added remotely;
Support AHD/TVI/CVI/CVBS/IP 6-in-1 and self-recognition
Can connect with mainstream IP camera brands in the market(private protocol or
Onvif);
Support other third-party products based on ONVIF2.4 (IP mode);
Support VGA,HDMI simultaneous display,Max resolution is up to HDMI 1080P.
Record playback can be shown by time, record type showed by color, to search
and retrieve conveniently and efficiently;
Record backup can be arranged according to the time and duration, accurate to
seconds;
Preview screen can be exchanged randomly. Picture position changed without
physical address changing, it's convenient for construction

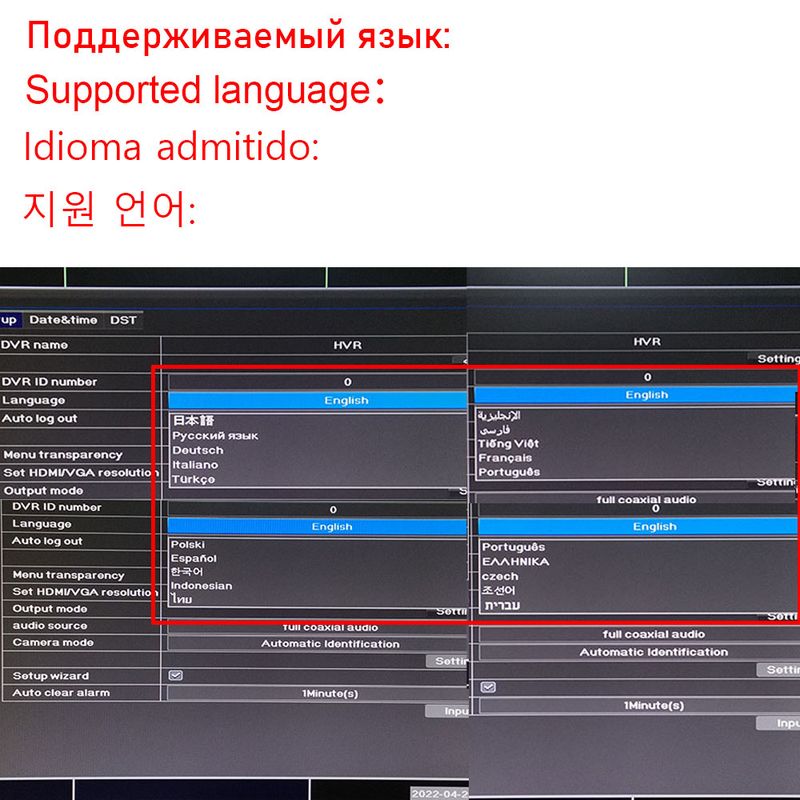

Support multiple languages
Provide mating ,MS SDK service;
Support multiple playback modes: fast forward, slow playback, fast reverse, etc.
Max 16 times fast forward or fast reverse
Product parameters
16CH
System | Main processor | MC6650 |
Operation system | Embedded LINUX operation | |
System resources | Multichannel real time | |
Multichannel real time | ||
multichannel multi-user | ||
Interface | Operation system | graphic menu operation |
Image display | 1/4/6/9/16 screen | |

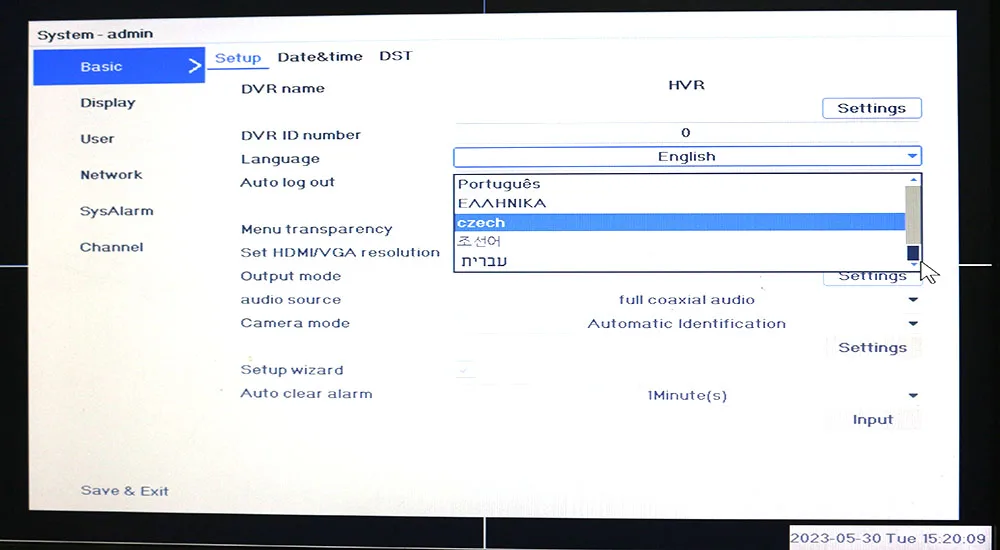

Language | English, traditional Chinese, simplified Chinese, | |
Video | Image coding | H.264/H.265 |
Surveillance quality | VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional | |
Preview | 16*5MN@12fps/16*4MN@15fps/16*1080P@30fps | |
Code capacity | 16*5MN@5fps/16*4MN@8fps/16*1080N@15fps | |
Decode capacity | 4*5MN@5fps/16*D1@12fps | |

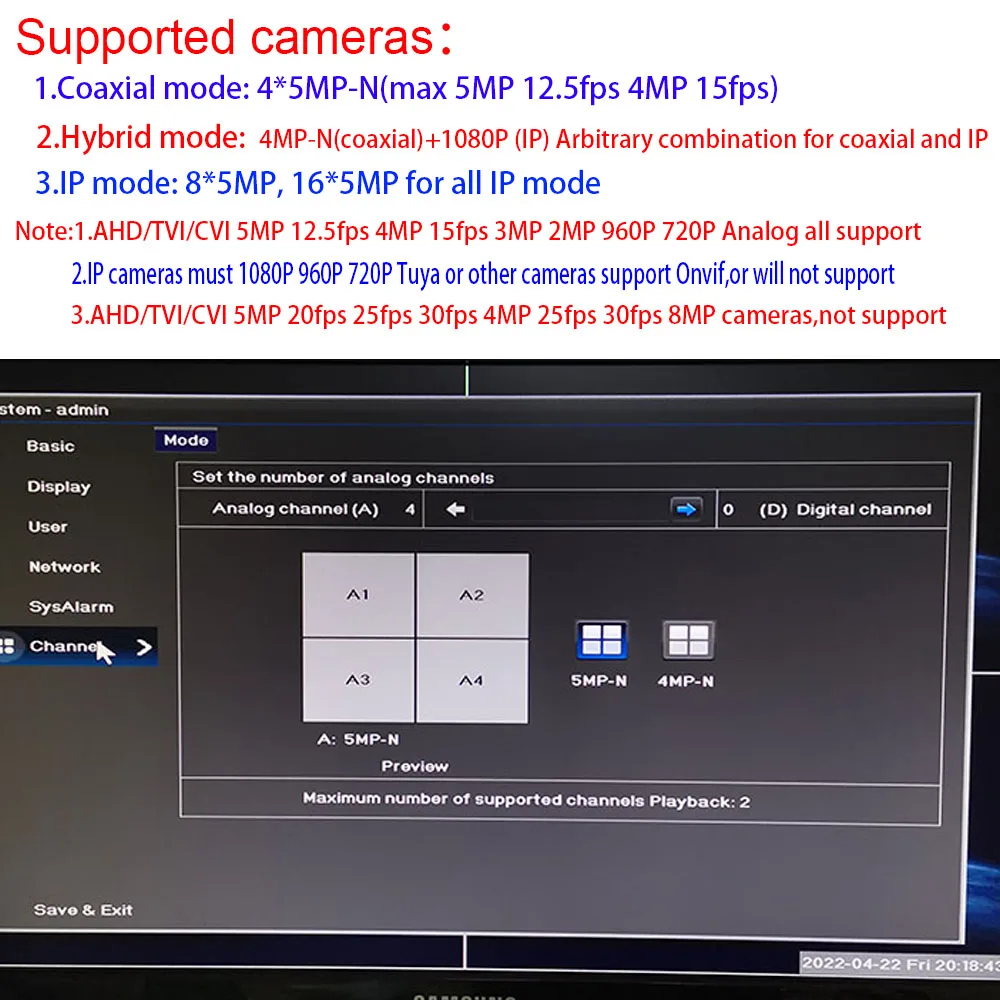

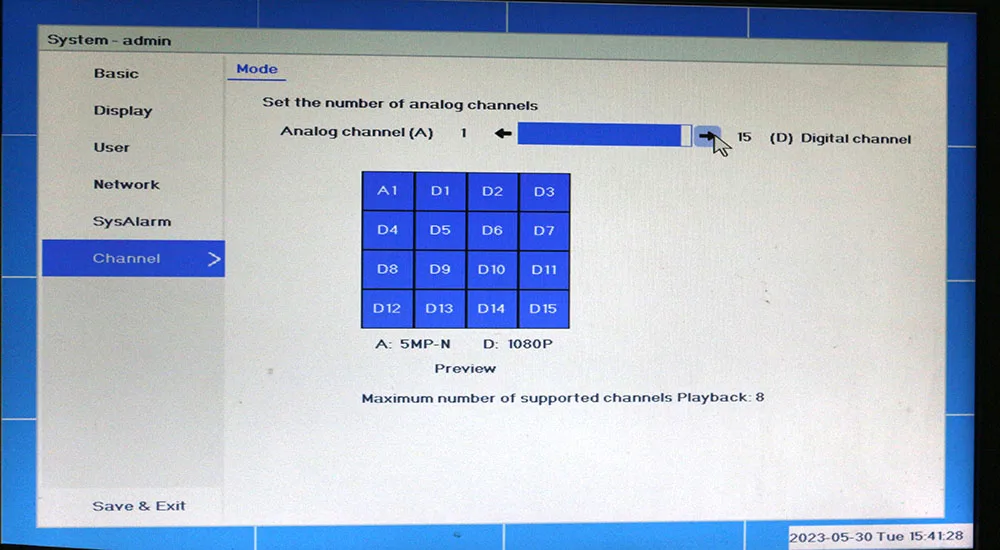

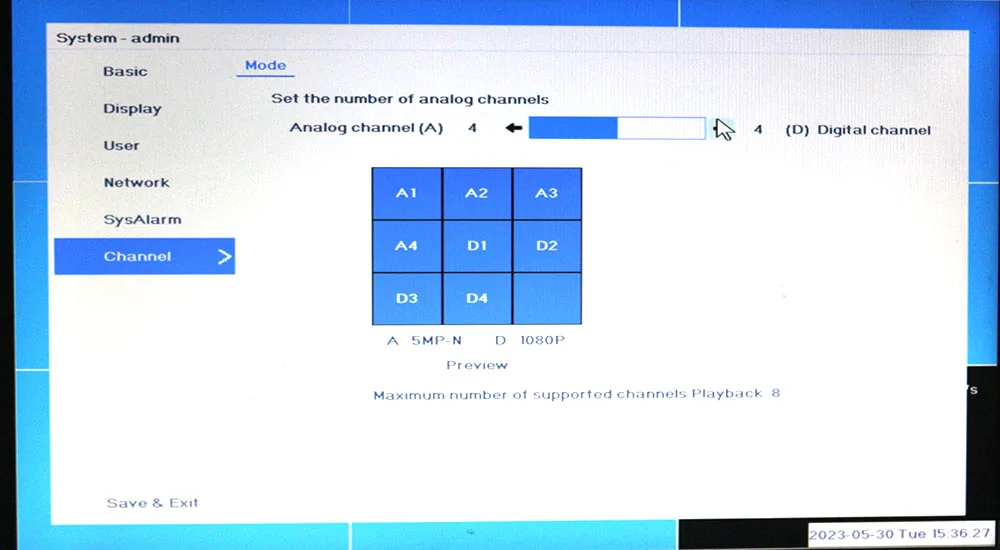

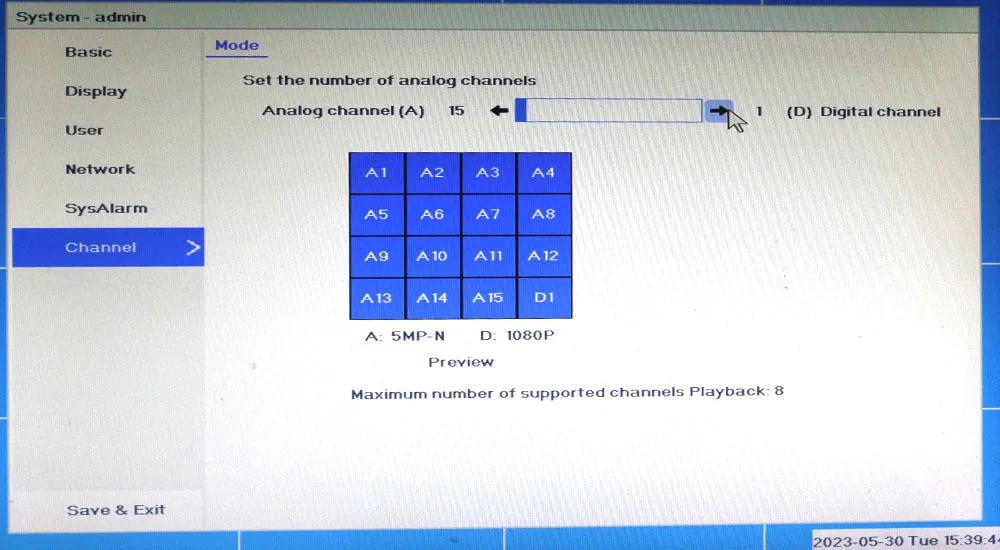

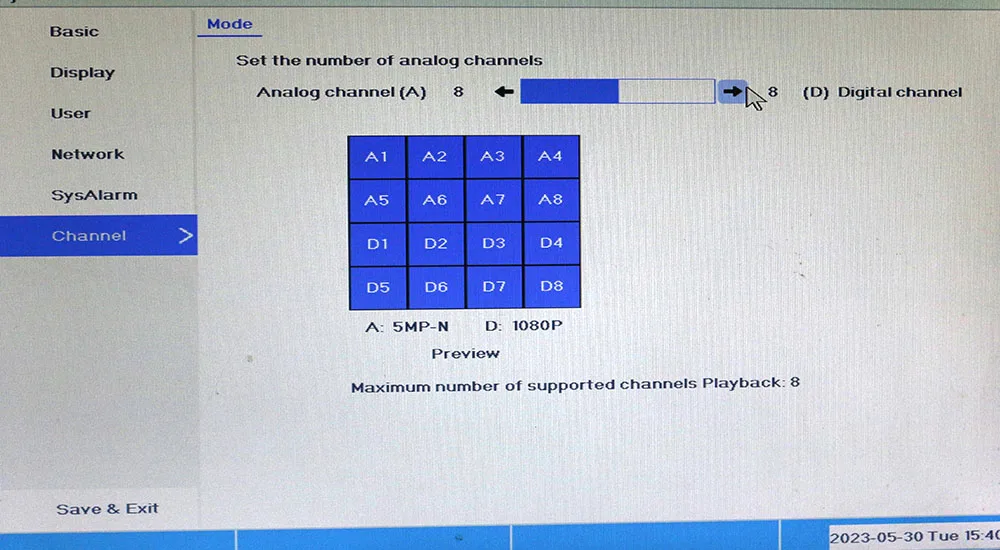

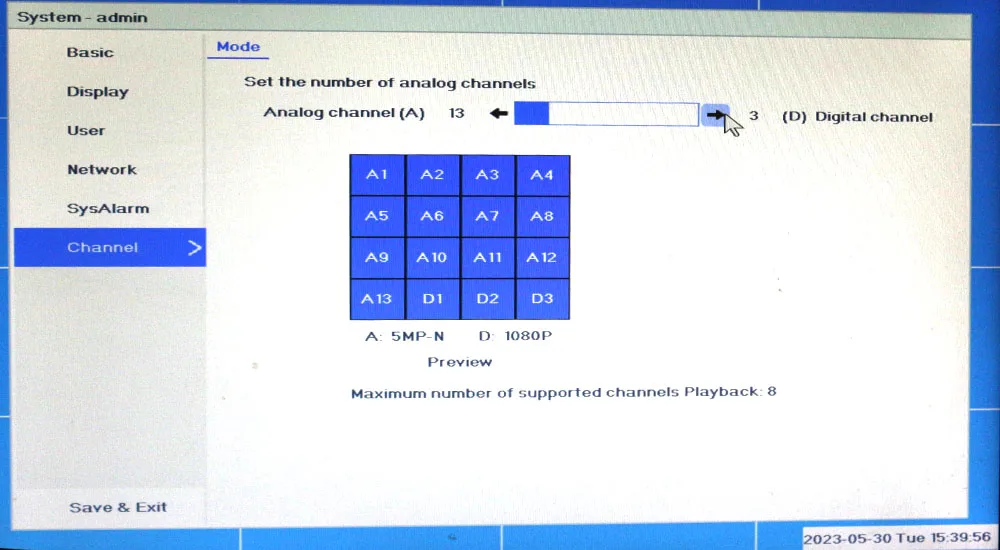

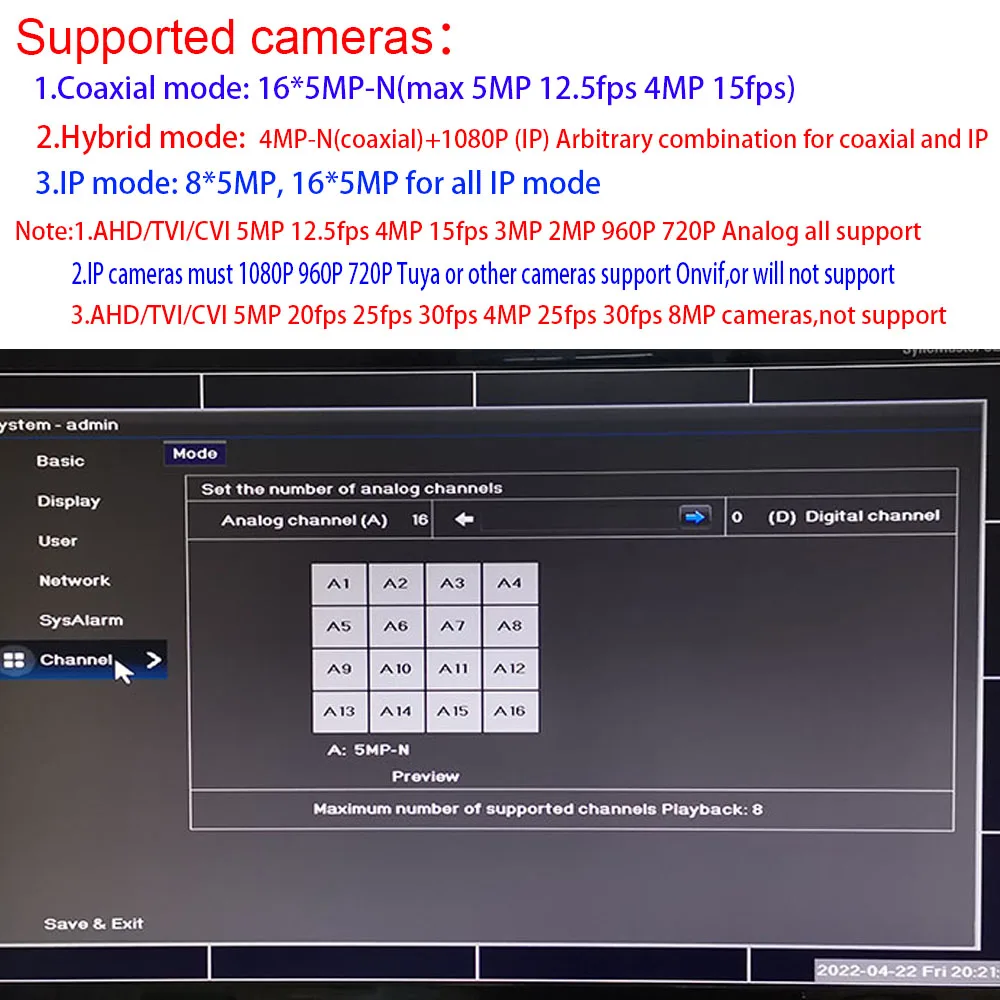

Various mode input | Coaxial: 16*5MP-N | |

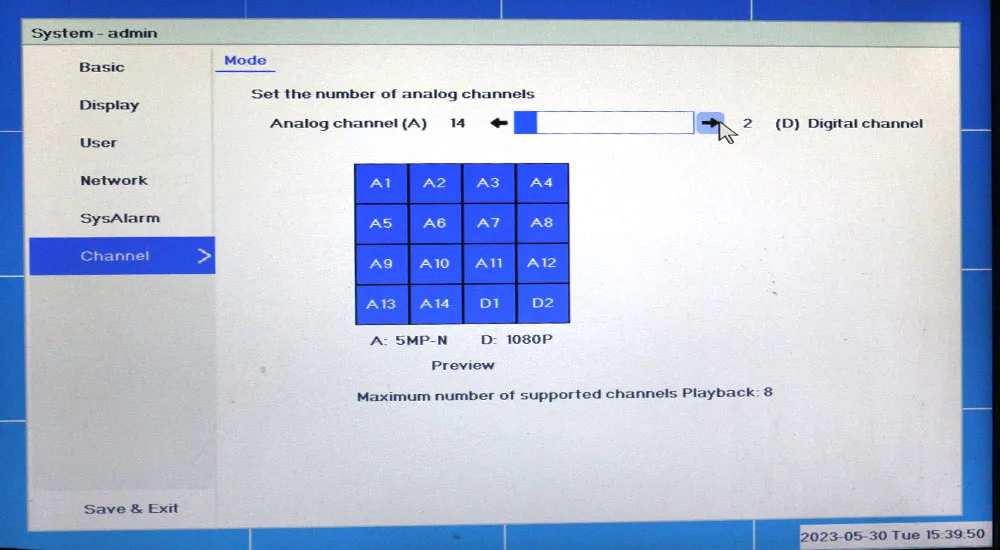

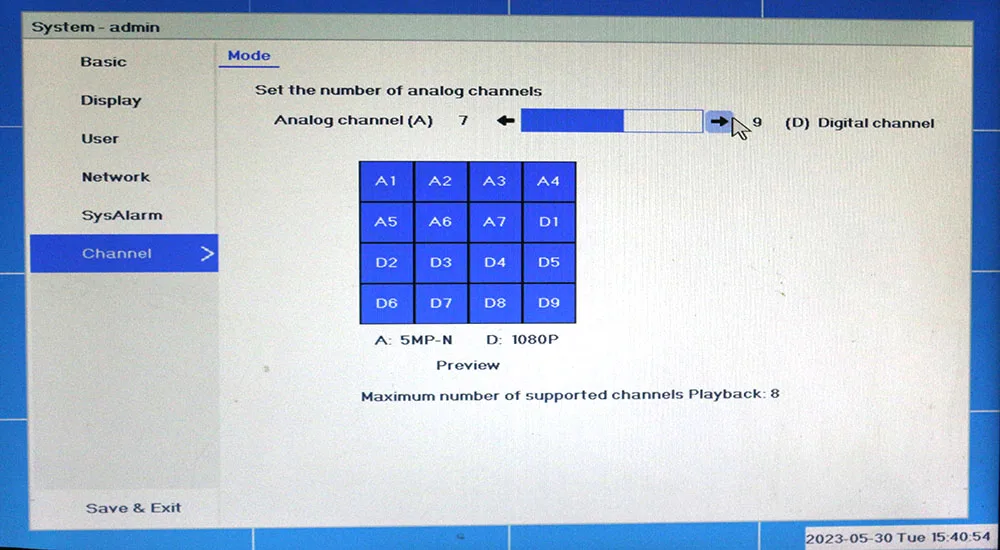

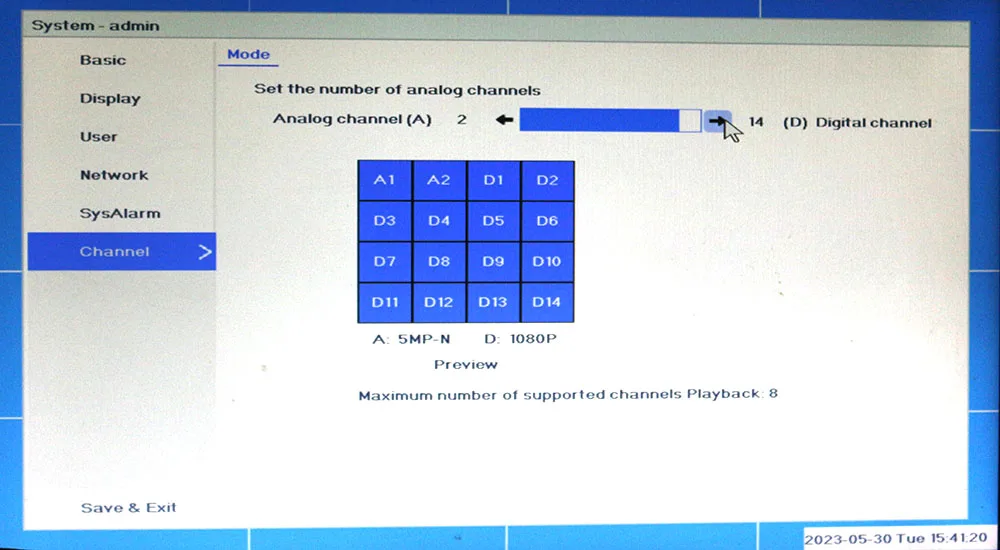

Mixed: 4MP-N(coaxial)+1080P | ||

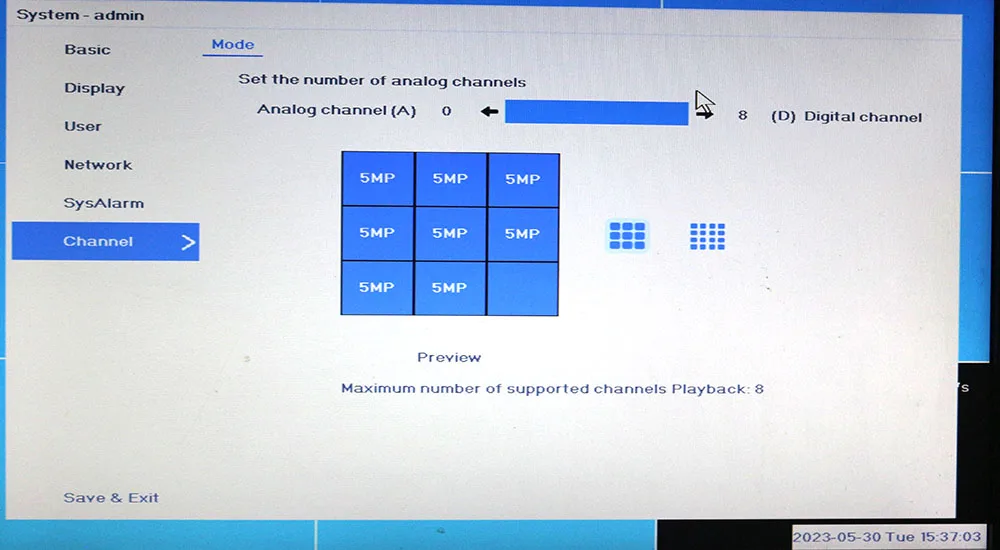

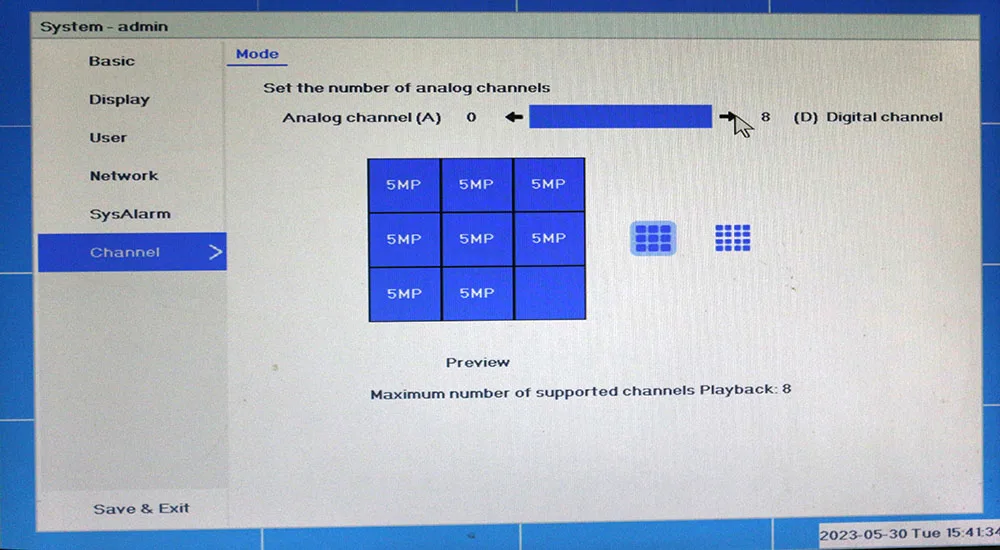

IP: 8*5MP, 16*5MP for all IP mode | ||
Recognize method | Automatic Identification、All AHD、All TVI、All CVI、Customized | |
Motion detection | 192（16*12） testing areas can be set for each image； | |
can set multi-sensitivity (only for local | ||
Audio | Audio compression | G.711U |
Audio output | HDMI, support extended audio output. | |
Audio Input | Can extend to 4ch audio In. | |
intercom | Support extend audio in and out intercom | |
coaxial audio | Support 16ch coaxial audio | |
Record & Playback | Video mode | manual>alarm>dynamic |
Local playback | 16CH (5MP-N coaxial | |
16CH (Coaxial or Hybrid | ||
16ch IP mode | ||
Playback mode | Fast playback, Playback | |
Record retrieval | Time retrieval, event retrieval, Timeline | |
Storage& Backup | Occupation | 1080P 10-15G/day*channel; 720P 10G/day*channel; 960H |
VMS | Type | mobile/VMS |
P2P | Support(IOS, Android, PC) | |
APP | Multi-screen surveillance; audio | |
UTC | Camera OSD control | Support |
Pan-tilt control | Don’t support | |
3D-NR | Support auto/manual setting for noise | |
Port | Video input | 16ch BNC; support coaxial audio in |
Video output | 1ch VGA，1ch HDMI; 1ch TV output(Optional) | |
Audio output | HDMI output/Extended 1ch | |
Network port | RJ45 10M/100M Self-adapt | |
USB port | 2 USB 2.0 port | |
HDD port | 1 SATA （Can support 8T HDD） | |
Wifi port | NO | |
Remote control | Optional | |
Others | Power | 12V/2A（Sufficient amperes） |
Consumption | < 15W（exclusive hard disk） | |
Temperature | -5 °C~ +55 °C | |
Working humidity | 10%~90% |
8CH
System | Main processor | MC6630 |
Operation system | Embedded LINUX operation | |
System resources | Multichannel real time | |
Multichannel real time | ||
multichannel multi-user | ||
Interface | Operation system | graphic menu operation |
Image display | 1/4/6/9/16 screen | |
Language | English, traditional Chinese, simplified Chinese, | |
Video | Image coding | H.264/H.265 |
Surveillance quality | VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional | |
Preview | 8*5MP-N@12fps/8*4MP-N@15fps/8*1080P@30fps | |
Code capacity | 8*5 MP-N@5fps/8*4MP-N@8fps/8*1080@15fps | |
Decode capacity | 8*5 MP-N@5fps/8*4MP-N@8fps/8*1080@15fps | |

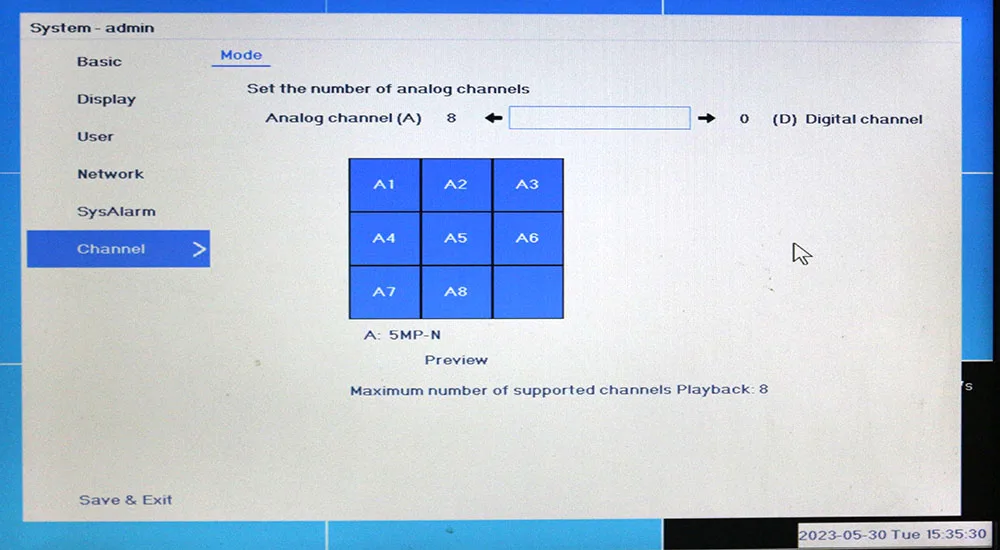

Various mode input | Coaxial: 8*5MP-N | |
Mixed: | ||
IP: 8*5MP, 16*5MP for all IP mode | ||
Recognize method | Automatic Identification、All AHD、All TVI、All CVI、Customized | |
Motion detection | 192（16*12） testing areas can be set for each image； | |
can set multi-sensitivity (only for local | ||
Audio | Audio compression | G.711U |
Audio output | HDMI, support extended audio output. | |
Audio Input | Can extend to 4ch audio In. | |
intercom | Support extend audio in and out intercom | |
coaxial audio | Support 8ch coaxial audio | |
Record & Playback | Video mode | manual>alarm>dynamic |
Local playback | 8CH (5MP-N coaxial input) |
Storage& Backup | Occupation | 1080P 10-15G/day*channel; 720P 10G/day*channel; 960H |
Record storage | Local hard disk; network | |
Backup mode | Network backup、USB , SATA record | |
VMS | Type | mobile/VMS |
P2P | Support(IOS, Android, PC) | |
APP | Multi-screen surveillance; audio | |
UTC | Camera OSD control | Support |
Pan-tilt control | Don’t support | |
3D-NR | Support auto/manual setting for noise | |
Port | Video input | 8ch BNC; support coaxial audio in |
Video output | 1ch VGA，1ch HDMI; 1ch TV output(Optional) | |
Audio output | HDMI output/Extended 1ch | |
Network port | RJ45 10M/100M Self-adapt | |
USB port | 2 USB 2.0 port | |
HDD port | 1 SATA Port（Can support 8T HDD） | |
Wifi port | NO | |
Remote control | Optional | |
Others | Power | 12V/2A（Sufficient amperes） |
Consumption | < 15W（exclusive hard disk） | |
Temperature | -5 °C~ +55 °C | |
Working humidity | 10%~90% |
