Chainway C72 Android 11/13 Handheld UHF RFID Reader With Impinj E710 30m Read Distance PDA With NFC 2D Zebra Barcode Scanner

$1,261.98

Includes all taxes

Plugs Type
Quantity
Meet your Seller
Delivery options
  • Ship Only

Description








Product Video







C72 Android 11 Handheld UHF RFID Reader With Embedded Impinj E710 R2000 30m Read Distance PDA With NFC 2D Zebra Barcode Scanner








Functions Optional:


Option 1:

Android 11/13 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+Zebra SE4710 2D Scanner


Option 2:

Android 11/13 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+Impinj E710 UHF RFID Reader

UHF RFID Max Read Range:

26m (Impinj MR6 tag, size 70 x 15mm)

28m (Impinj M750 tag, size 70 x 15mm)

30m (Alien H3 Anti-Metal tag, size 130 x 42mm)

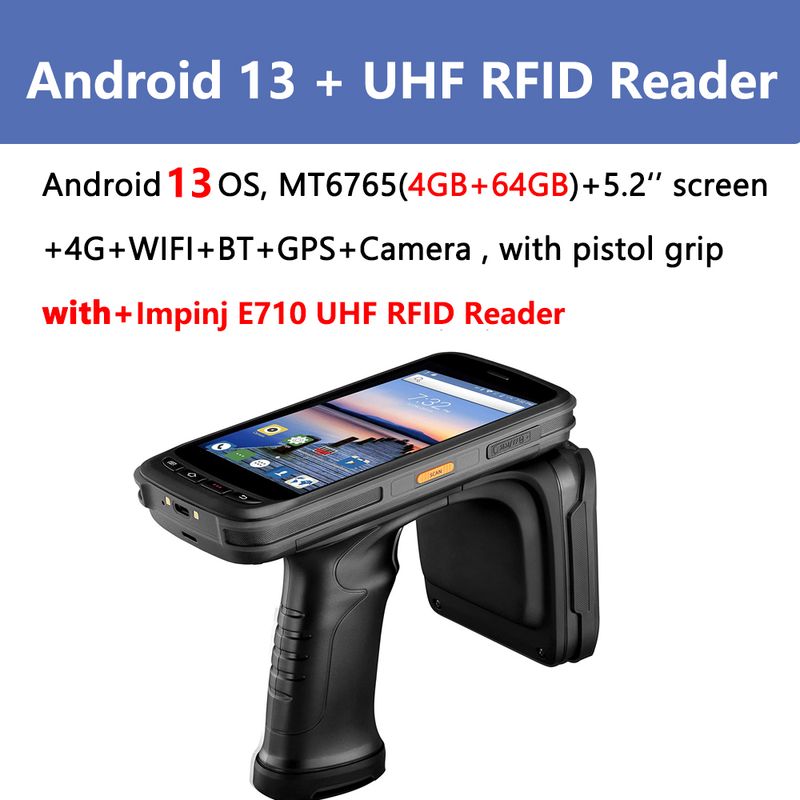

Option 3:

Android 11/13 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+Zebra SE4710 2D Scanner+Impinj E710 UHF RFID Reader

UHF RFID Max Read Range:

26m (Impinj MR6 tag, size 70 x 15mm)

28m (Impinj M750 tag, size 70 x 15mm)

30m (Alien H3 Anti-Metal tag, size 130 x 42mm)


Standard Accessories:

Handheld PDA 1 Pcs, Battery 1pcs, Usb data cable1pcs, AC Adaptor 1pcs

Optional Accessories:

  • Pistol Grip

  • Charging Cradle


if you need single charge cradle or 4-cradle charging bar,protect case and so on,please contact with out seller,

Mason Mei +86 18682169806(WhatsApp/Skype/Mobile);Email:mason@msench.com


Products Description

Specification


Physical Characteristics

Dimensions

164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.

Weight

654 g / 23.07 oz.

Display

5.2'' IPS LTPS 1920 x 1080

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

Power

Main battery: Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)

Notification

Sound, LED indicator

Expansion Slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Interfaces

USB 2.0 Type-C, OTG, Type-C headphones supported

Audio

1 microphone;1 speaker;receiver

Keypad

4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

Sensors

Light sensor, proximity sensor, gravity sensor


Communication

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA:B1/B2/B4/B5/B8
       CDMA2000 EVDO: BC0
       TD-SCDMA:A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
       B28B/B34/B38/B39/B40/B41

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth 5.0

GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Note

*C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.


Developing Environment

Operating System

Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio


Performance

CPU

Cortex-A53 2.3 GHz Octa-core

RAM+ROM

3GB + 32GB / 4GB + 64GB (optional)

Expansion

Supports up to 128 GB Micro SD card


Barcode Scanning

1D Linear Scanner

Zebra: SE965; Honeywell: N4313

2D Imager Scanner

Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Note

*This function is optional


UHF RFID

Engine

CM710-1 module based on Impinj E710
CM2000-1 module based on Impinj Indy R2000

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Linear polarization(1.8 dBi); circular polarization (4 dBi)

Power

1W (30 dBm, +5 dBm to +30 dBm adjustable)
2W Optional (33 dBm, for Latin America, etc.)

Fastest Read Rate

1200+ tags/sec (circular polarization)

Max Read Range

Impinj E710 chip:
26m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
30m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Impinj R2000 chip:
24m (Impinj MR6 tag, size 70 x 15mm)
24m (Impinj M750 tag, size 70 x 15mm)
28m (Alian H3 Anti-Metal tag, size 130 x 42mm)

Note

*Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

Note2

*This function is optional

Camera

Camera

13 MP Autofocus with flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips

M1 card (S50, S70), CPU card, NFC tags, etc.

Range

2-4 cm

Note

*This function is optional
