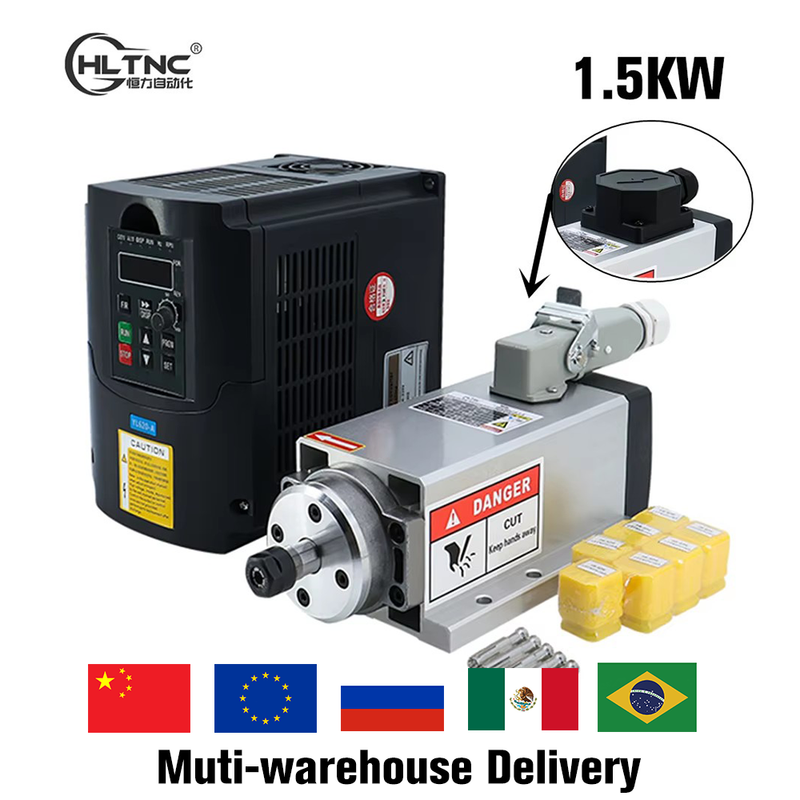

CNC 1.5kw 380V 220V 110V Air-Cooled Spindle Kit 1500W Square Air Cooling Spindle Motor + 1.5KW HY YL VFD Inverter +7pcs/set ER11

$397.85

Includes all taxes

Meet your Seller
Delivery options
  • Ship Only

Description

it is high speed spindle, please do not work with low speed for long time, it is better to work with rated speed.

Inverter setting steps:

https://www.youtube.com/watch?v=TR-kDnyZTiM
https://www.youtube.com/watch?v=ifTZNVtmhms

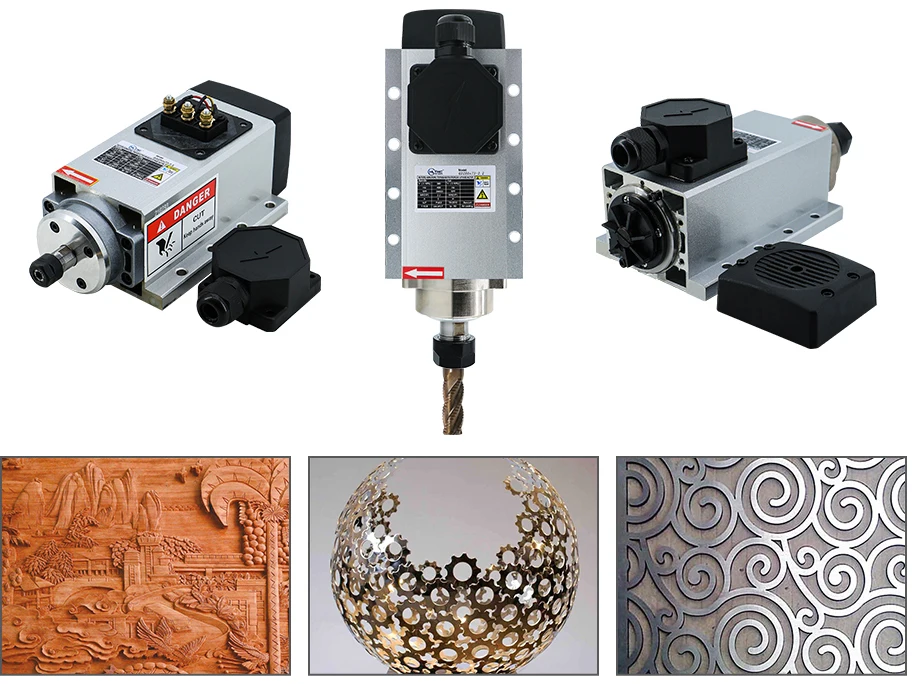

Different Power Applications of Air-cooled Square Spindle


1.5KW

Relief carving, advertising carving, material wood, pvc, acrylic board

2.2KW

Relief carving, advertising carving, material wood, aluminum,

part of soft metal, pvc, acrylic board

3.5KW

Relief carving, advertising carving, hollow cutting process of PVC,

acrylic, MDF, LED and other materials, and need faster speed and

cutting power, materials wood, aluminum, some soft metals, pvc, acrylic board.

4.5KW

For solid wood cutting and perforating, it can also be used as a cutting machine,

4.5-7.5kw, select the appropriate power according to the hardness of

the material and the depth of the hole.

6KW

For solid wood cutting and perforating, it can also be used as

a cutting machine, 4.5-7.5kw, select the appropriate power

according to the hardness of the material and the depth of the hole

7.5KW

For solid wood cutting and perforating, it can also be used as

a cutting machine, 4.5-7.5kw, select the appropriate power

according to the hardness of the material and the depth of the hole

6KW ATC

Spindle

Automatic tool change spindle: automatic tool change engraving machine

or woodworking machining center

9 KW ATC

Spindle

Automatic tool change spindle: automatic tool change engraving machine

or woodworking machining center







Option 1

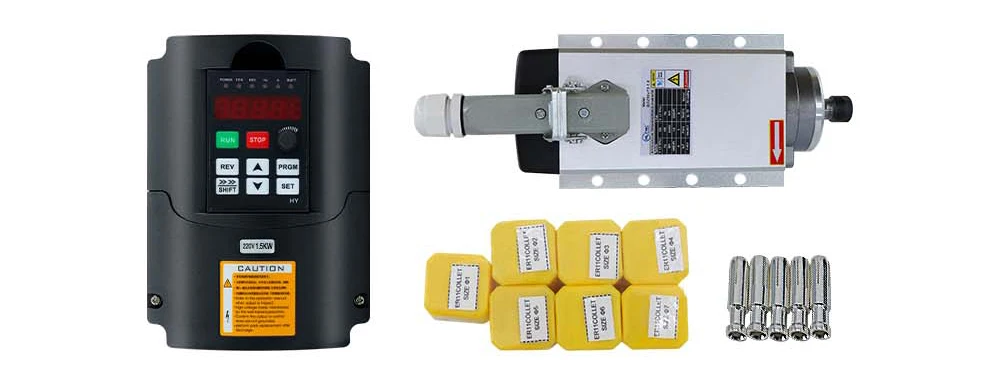

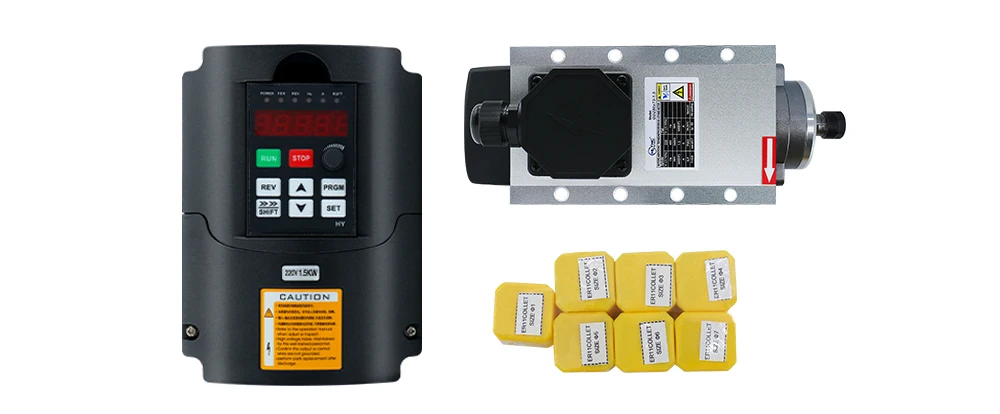

Terminal Box HY Kit

1 & 1.5kw ER11 air cooled spindle With Terminal Box

1 & 1.5kw Huanyang inverter/VFD

1 kit ER11 high accuracy collet(≤0.008mm) (Quantity: 8)




Option 2

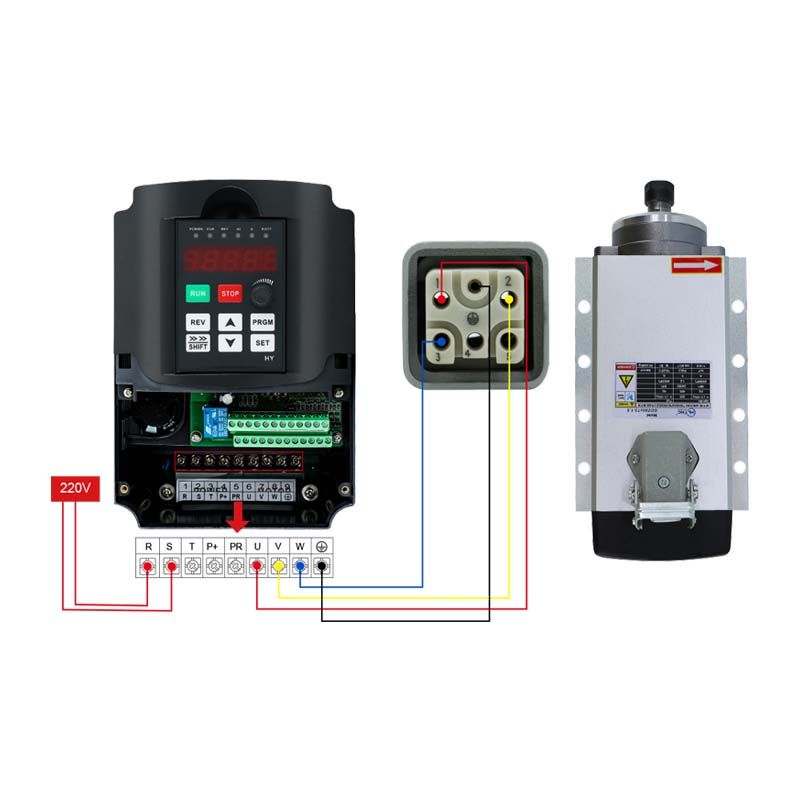

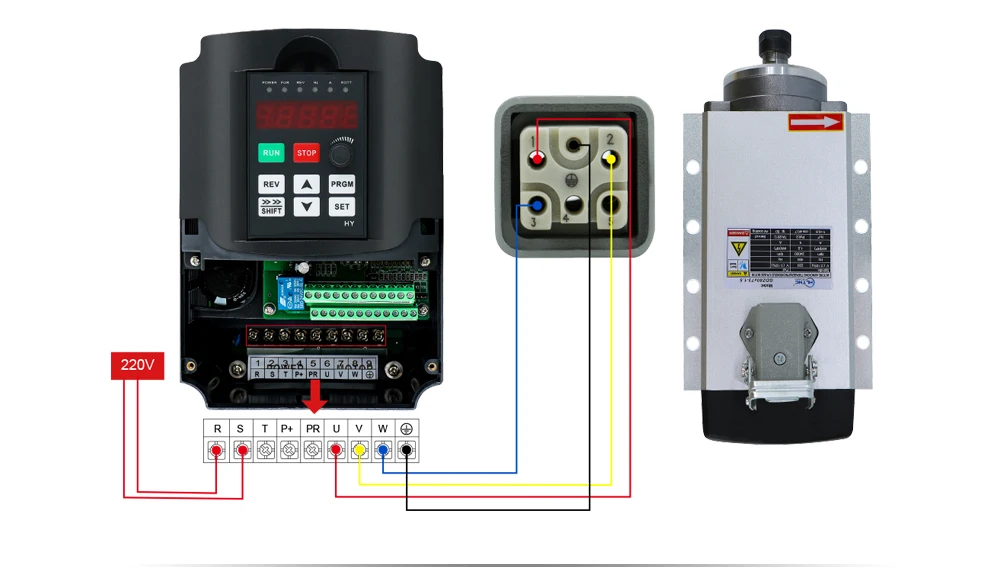

Aviation HY Kit

1 & 1.5kw ER11 air cooled spindle With Aviation Connector

1 & 1.5kw Huanyang inverter/VFD

1 kit ER11 high accuracy collet(≤0.008mm) (Quantity: 15)



Option 3

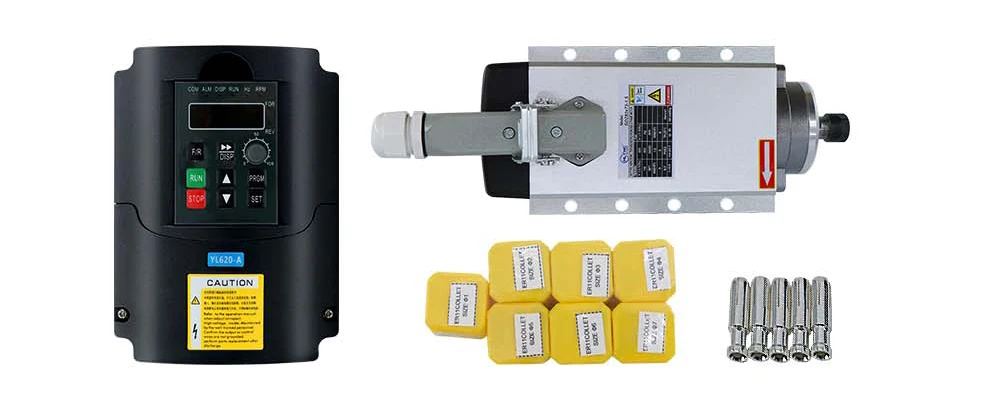

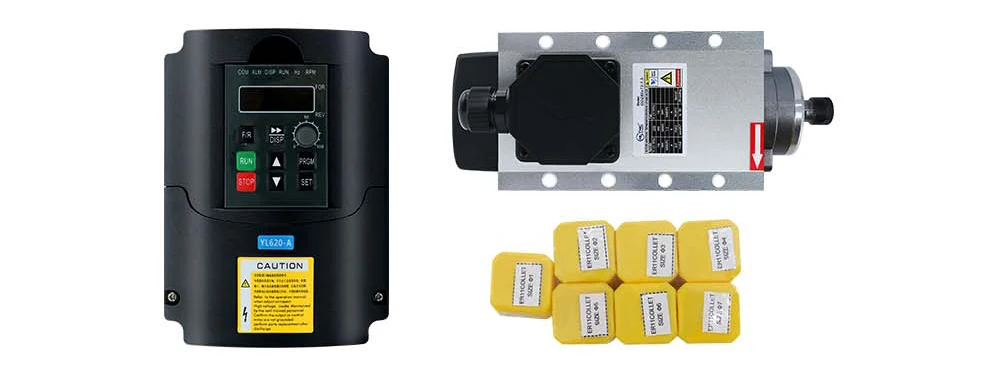

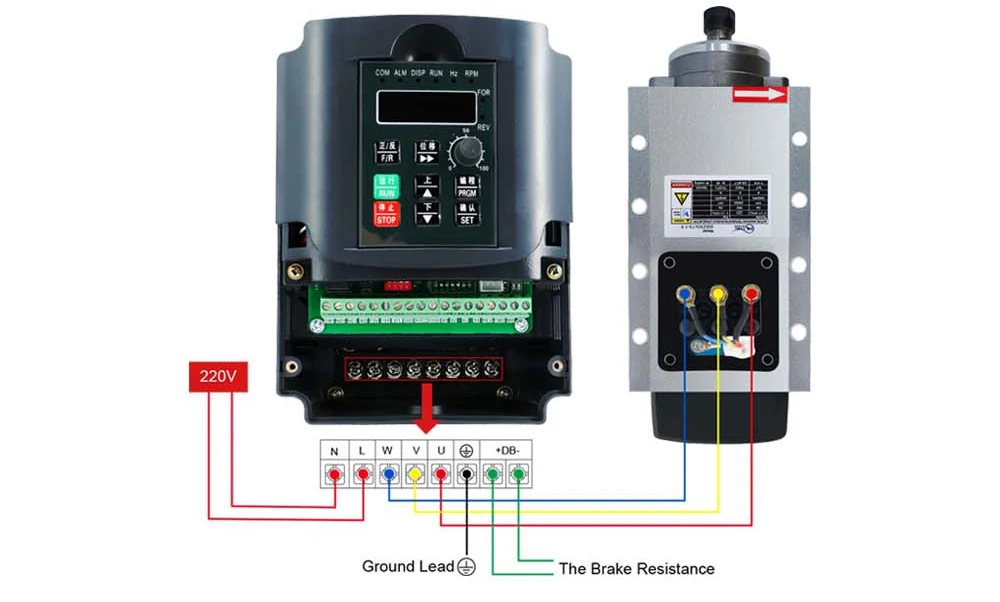

Terminal Box YL Kit

1 & 1.5kw ER11 air cooled spindle With Terminal Box

1 & 1.5kw YL620 inverter/VFD

1 kit ER11 high accuracy collet(≤0.008mm) (Quantity: 8)

Option 4

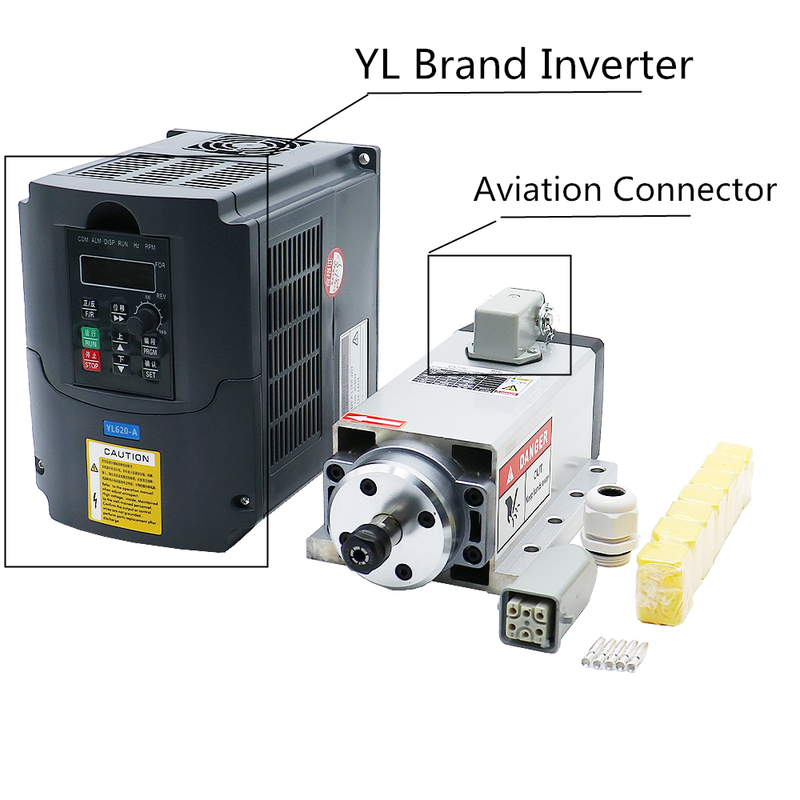

Aviation YL Kit

1 & 1.5kw ER11 air cooled spindle With Aviation Connector

1 & 1.5kw YL620 inverter/VFD

1 kit ER11 high accuracy collet(≤0.008mm) (Quantity: 8)

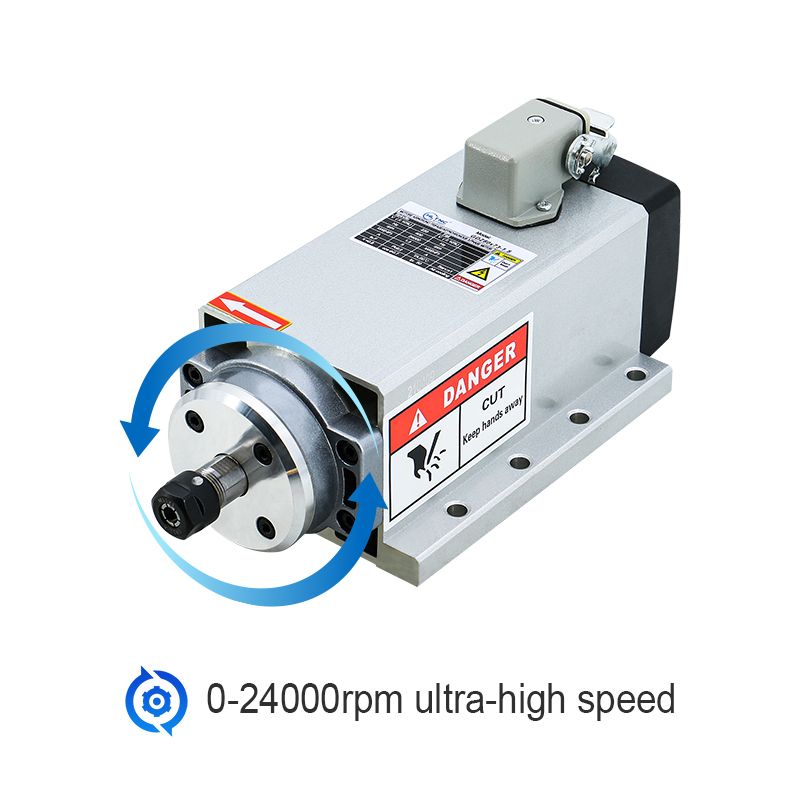

  1. 0-24000rpm ultra-high speed

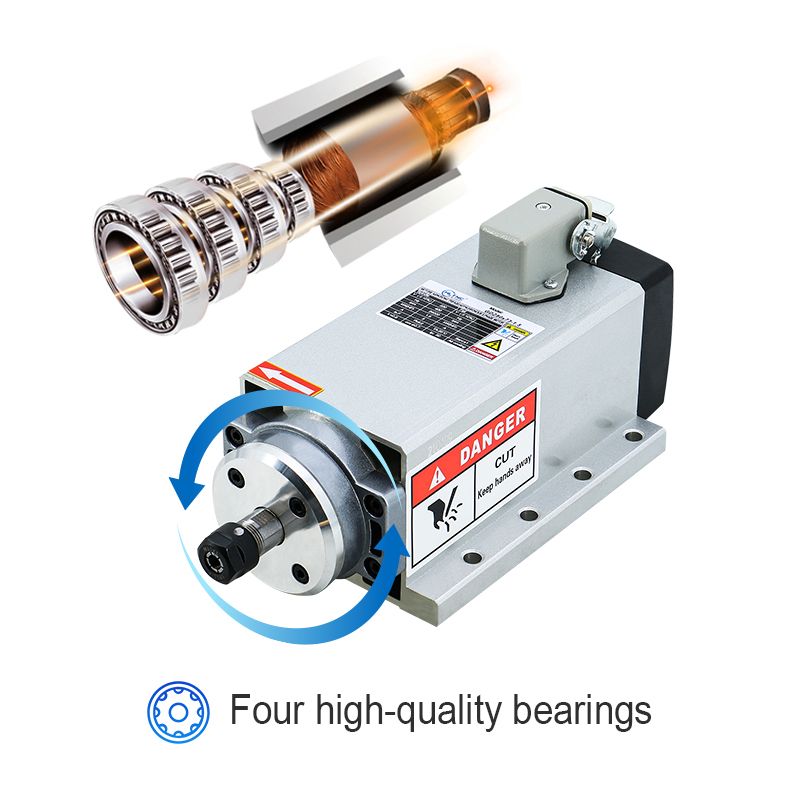

  2. Four high-quality bearings

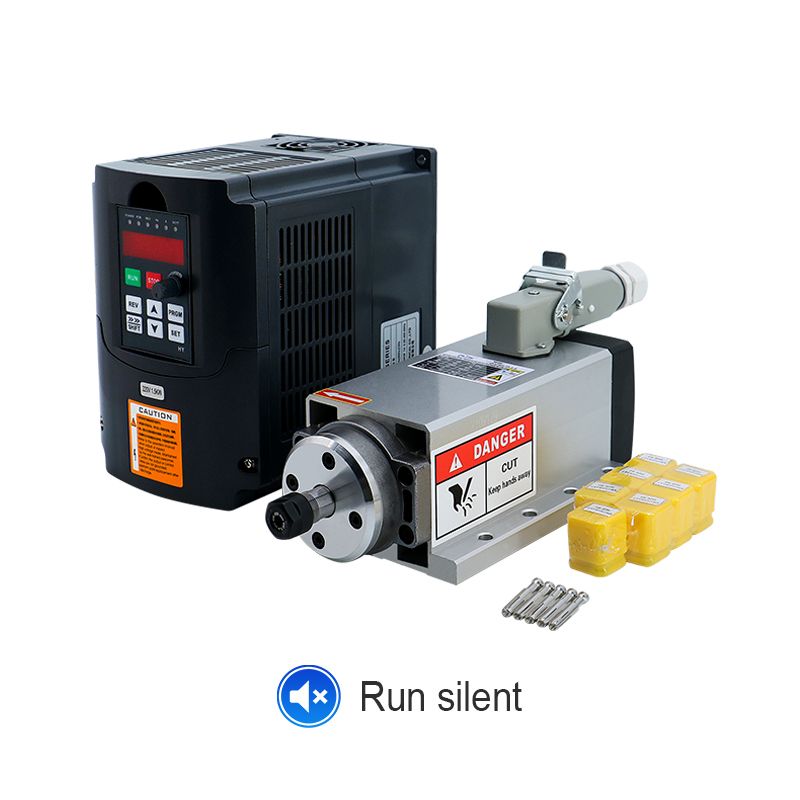

  3. Run silent

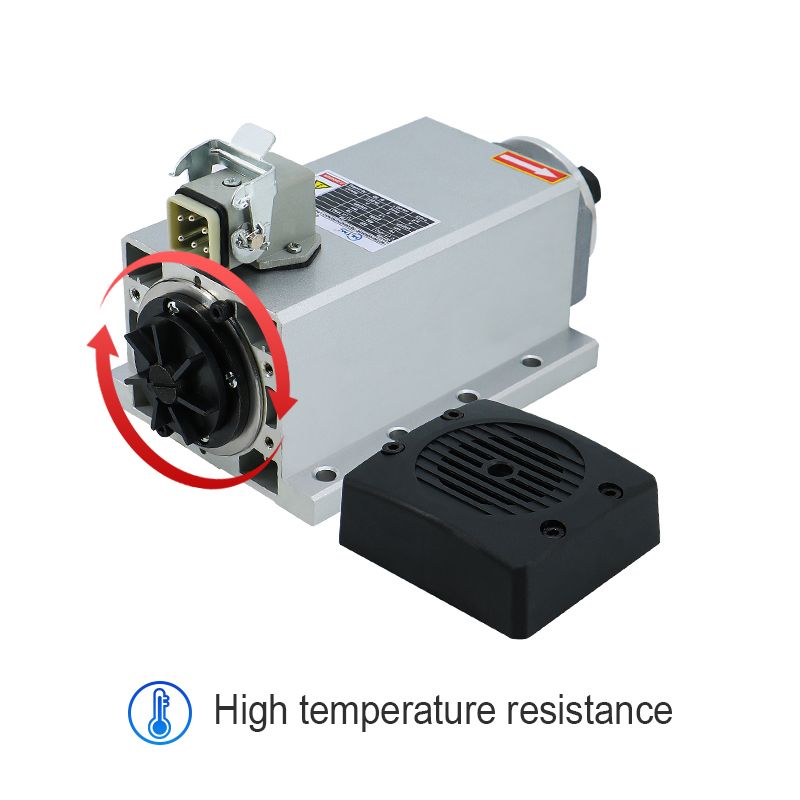

  4. High temperature resistance


  5. long life






Aviation Connector

Cooling Fan

Metal body

Parameter

Lengthened rotor

Chuck




MOTORE ASINCRONO TRIFASE/ASYNCHRONOUS 3 PHASE MOTOR


Spindle


Fail


V(±10%)

220

V(±10%)


Hz

400

Hz


rpm

24000

rpm


KW (HP)

1.5

KW (HP)


A

5

A


IS .F

Poli:2

TA :20℃

Serv:S1

=0.8

Cosφ0.7

IP:50

Air Cooling


Huanyang HY Inverter







LED Display zone indicating For., Rev.,frequency,current,recolution, etc.


Main display zone indicating frequency,current,ACV ,DC V,revolution,counter,temperature,etc


Speed controller


Function key


Set Key (enter)


Value Change key


Stop/Reset key


Run key


FOR/REV Switch


(DISP) Shift key

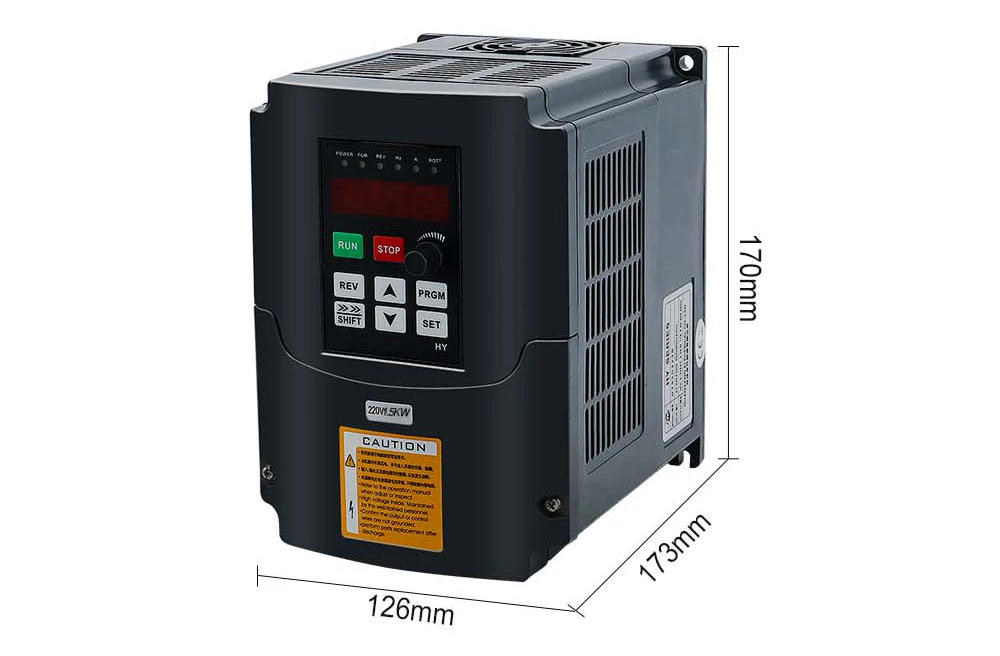

Tech parameters
       Power:1.5KW
      Input Voltage :220V
       Input Frequency :50/60Hz
       Input Phase : 1phase
     Output Voltage : 220V
       Output Phase : 3pahse
      Output Current :7A
      Output Frequency: 400Hz
  Control  Method : V/F control; Open-loop fiux vector control



YL Inverter







Digital Display


Forward/Reverse Switch Key


Run Key


Stop Reset Button


Shift Key


Frequency Adjustment Key


Programming Key(Forward/Backward)


Select/Confirm Key


Up and Down Keys


Tech parameters
       Power:1.5KW
      Input Voltage :220V
       Input Frequency :50/60Hz
       Input Phase : 1phase
     Output Voltage : 220V
       Output Phase : 3pahse
      Output Current :7A
      Output Frequency: 400Hz
  Control  Method : V/F control; Open-loop fiux vector control


The factory default setting of YL inverter is 400hz, no need to set it,

it is suitable for our spindle motor


Function description of Main circuit terminals




Symbol


Function Description

  R S T

Input terminal of AC line power.(220V class,for both single.three phase,single phase connected to

any  two phases)

 U.V.W


 Output terminal of the inverter


   P.Pr


Connector for braling resistor(optional)



      E

Ground terminal:the third method of grounding for 220V and special grounding for 380V of electrical

engineering regulations.



φ1*1

φ2*1

φ3*1

φ4*1

φ5*1

φ6*1

φ7*1





Inverter Setting Scheme


                                 PD013=8

              Restore factory setting

                                 PD005=400

              Set max operating frequency

                                 PD004=400

              Set base frequency

                                 PD002=1

              Set board potentiometer control

                                 PD070=1

              Set analoy input

                                 PD072=400

              Set high analoy frequency

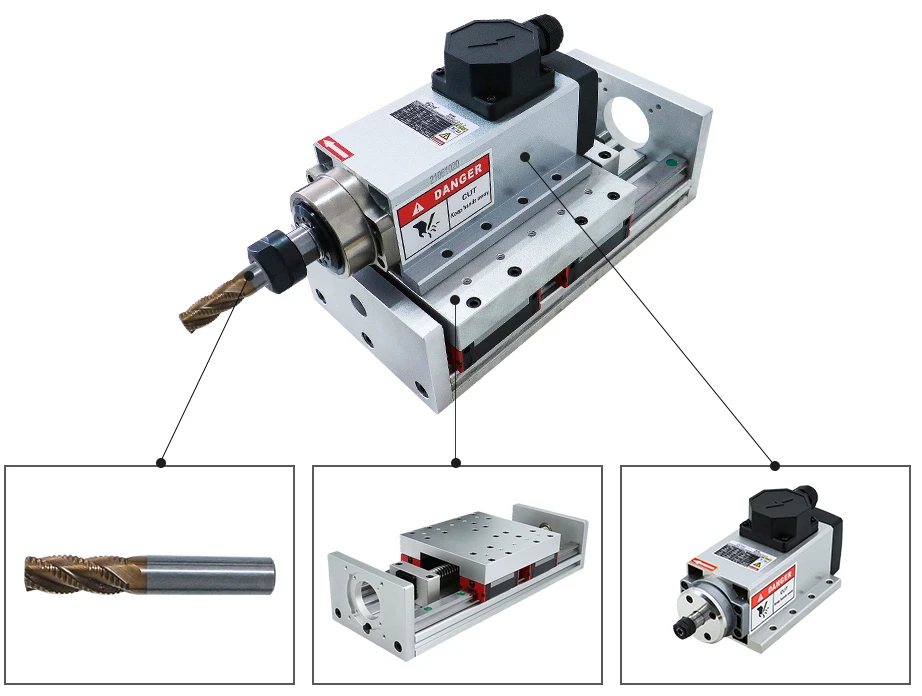

CHUCK REPLEACEMENT





Wood Carving

Soft Metal

Engraving

Aluminum Alloy

Carving




   Milling Cutter

         Sliding Table

Air Cooled Spindle






1:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?

Answer:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c


2: Application of air-cooled spindle

Answer:This air-cooled spindle is suitable for woodworking, aluminum and some soft metals, and can be used with a variety of milling cutters


3:Number and material of bearings

Answer:4 steel ball bearings, model C7002


4:Continuous working time

Answer:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.


5: Can the spindle run vulgarly?

Answer: Yes, the maximum speed of this spindle is 24000rpm, which is all possible within this range


6:Abnormal sound

Answer:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
