CNC 3.5kw ER20 Waterproof Water cooling Cooled spindle motor kit Carved Metal + HY inverter VFD &100mm clamp

$753.30

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

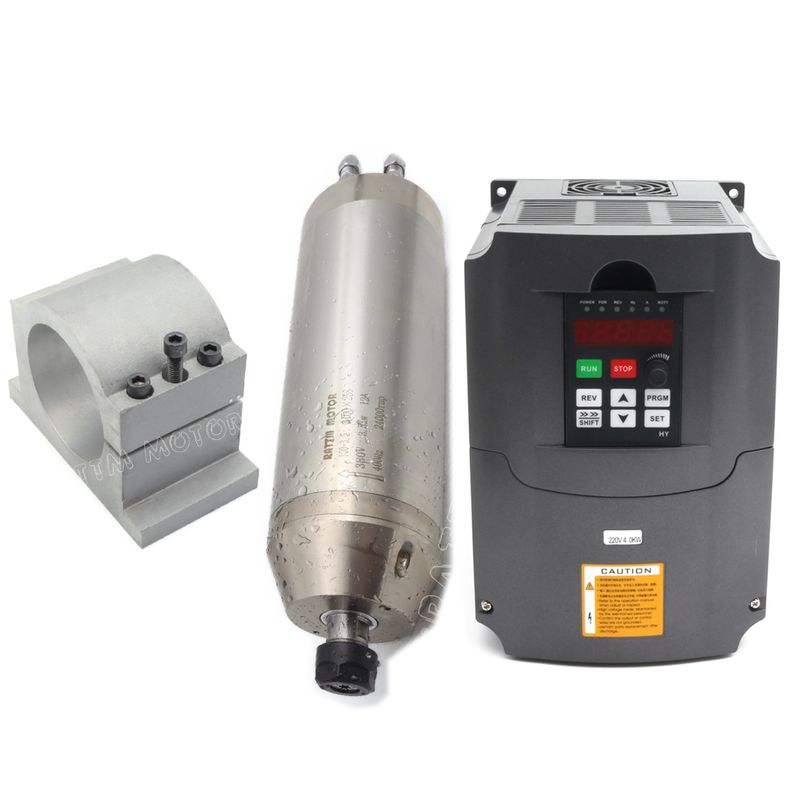

Package include:


1 x 3.5KW ER20 380V or 220VWaterproof Carved metalWater-cooled spindle motor

1x4KW 380V or 220V VFD inverter  (optional)

1 x Dia:100mm clamp  (optional)



3.5kw ER20 Bullet Waterproof spindle motor 380V Water-cooled Carved Metal CNC Mold processing


Features:

1) Waterproof

2) Long life
3) Long length and high torque
4) Can engrave metal,Mold processing
5) 4 Bearings(2x7005+2x7004)
6) High precision


Specification:


Material:Stainless Steel


Size:Φ 100x258mm(long length and high torque)


Power:3.5Kw


Voltage:380VAC


Current:12A


Frequency:0-400Hz


Speed:10-24000rpm


Cooling:Water-cooling


Precision tapered bore:0.01mm


Runout off:Less than 0.01mm


Bearing Lubrication:Grease


Collet size:ER20


Bearings:4 bearings(C7005x2 + C7004x2),P4 class


Net Weight:10.95kg


Power supply interface:Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 is blank to avoid connection wrong to burnt the spindle.


Main application:Wood, Aluminum, Stone, metal, glass, PVC industry


4KW Inverter VFD link:https://www.aliexpress.com/item/1894424458.html?spm=2114.12010615.8148356.7.10cb2a56csElEM


ProductFeature:

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2) Easy PLC function can realize 16 legs of speed and inverter control function;

3) RS485 communication port, adopting standard international MODBUS main circuit control;

4) With extremely strong anti-jamming capability

5) Low output ratting torque0.5HZ-150%, low speed running ability;

6) Carrier adjustable by 16KHZ, completely soundless working environment;

7) Broad voltage working area, normal running in 304V-456V;

8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9) Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10) With perfect error protection and short circuit starting protection capability;



English user manual:https://drive.google.com/file/d/0B49xwe9ffk3fZ3VWR3NHMjB6VkU/view?usp=sharing

Setting video:https://www.youtube.com/watch?v=1-D1gscZQvA

https://www.youtube.com/watch?v=Q9912w665RA

Spindle setting:https://www.youtube.com/watch?v=Tdn_KANxff4


Tech parameters:

1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 0-220V
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase

7) Current: 18A

8) Power: 4.0Kw

9) Warranty: 1 year from the date you purchased


Diameter: 100mm

Material: Cast aluminium
Features:
Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
Inner wall is very smooth,  outer walls is sandblasted, relatively fine uniform,  but not very smooth,.
Cast aluminium fixture is much heavier than aluminium profile fixture.
Product Description:
Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.
Usage:
Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error
