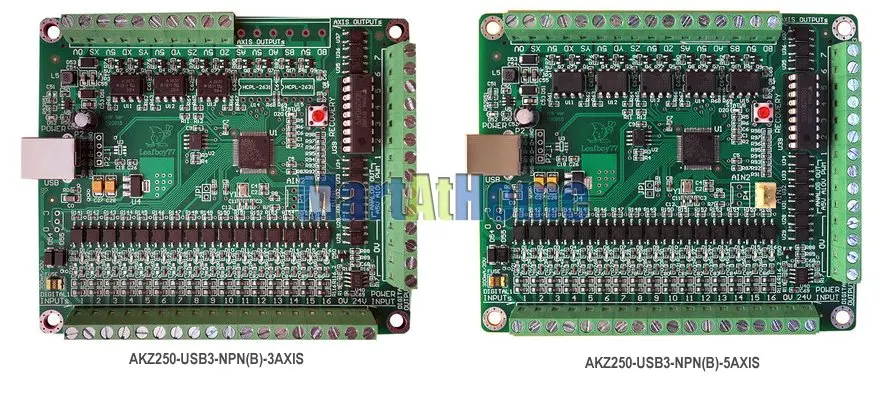

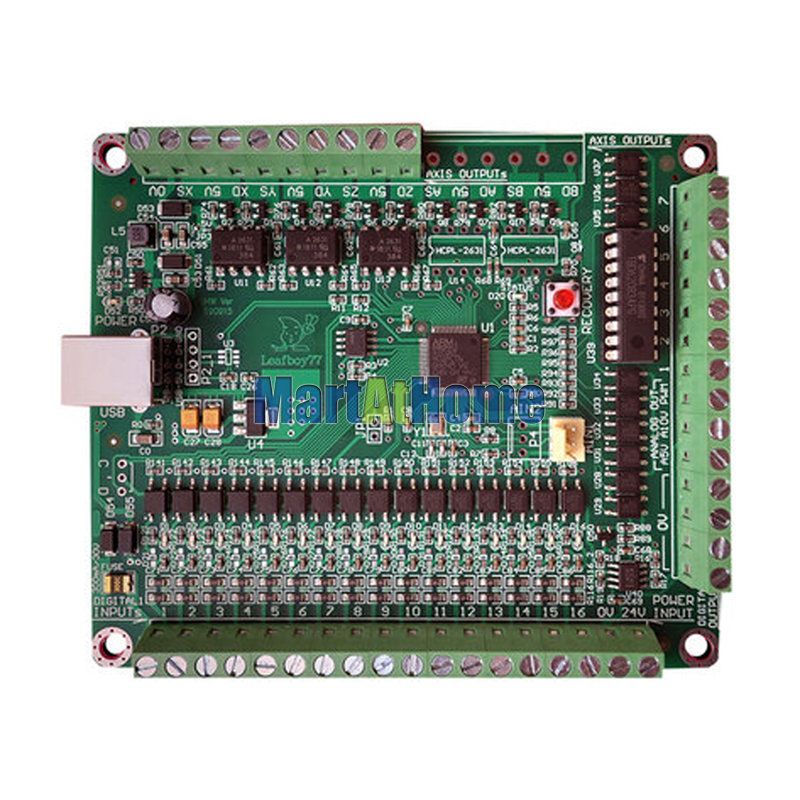

CNC 3/5 axis Mach3 USB Breakout Board Motion Control Card AKZ250-USB3-NPN(B) 500KHz High-speed Optocouplers Support 2 MPG

$152.42

Includes all taxes

Voltage

Ship from

China

Ship to

By shipping method

Meet your Seller

$152.42

Sold by BILLIONS BIRDS

Delivery options

Ship Only

Description

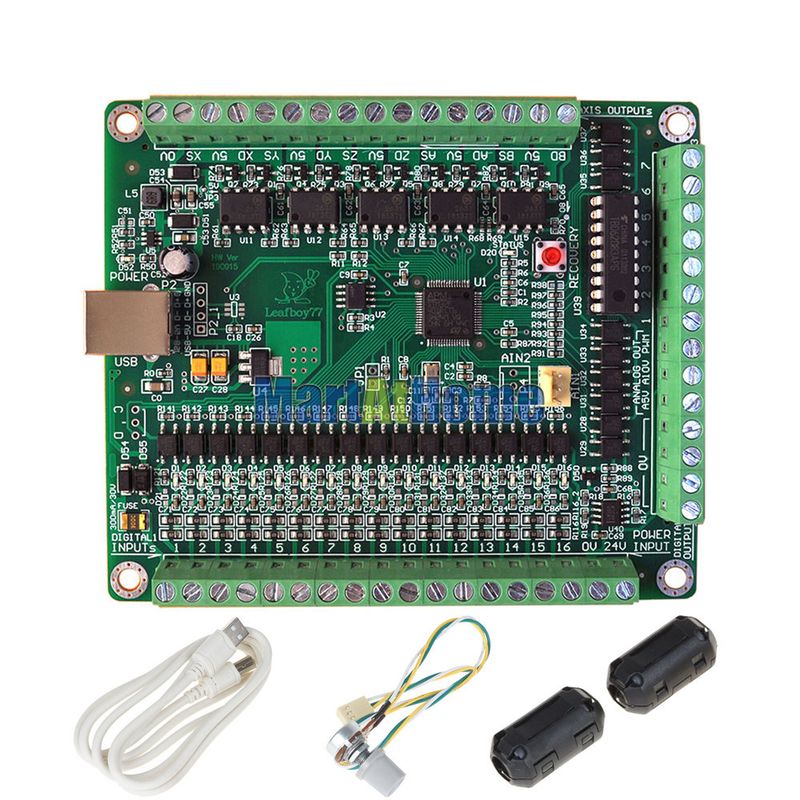

Package list:

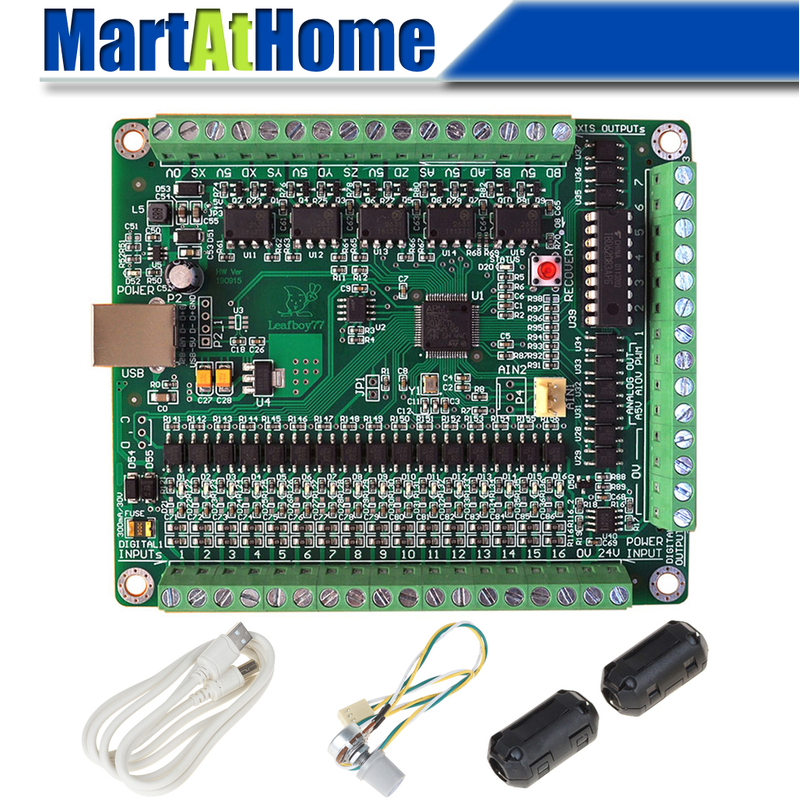

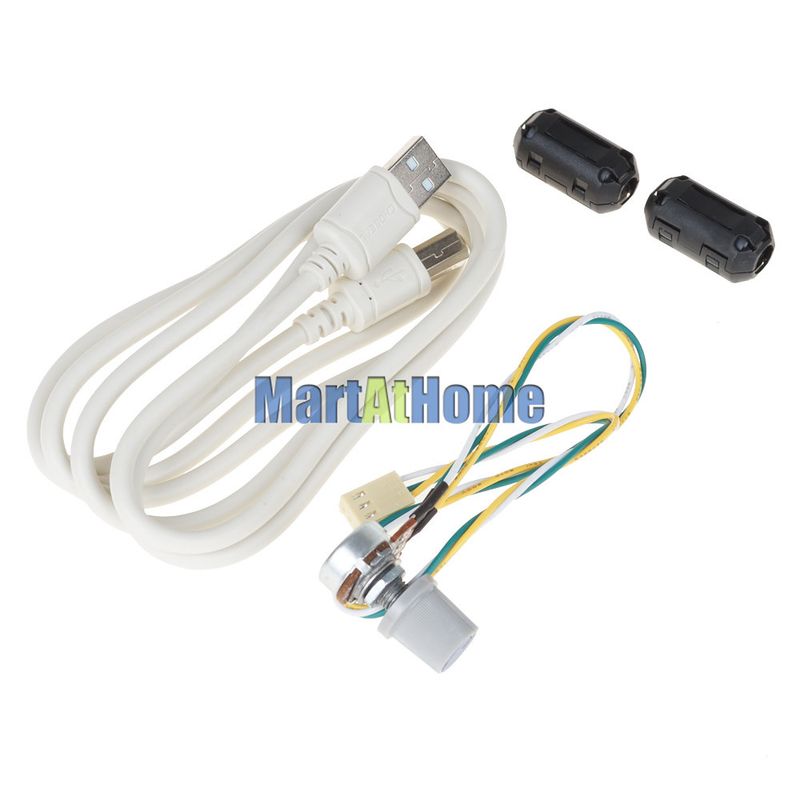

1 x Mach3 USB Breakout Board

1 x 1.5 Meter USB Cable

2 x Magnetic Ring

1 x External Magnification Knob with Cable and Plug

1 x Knob Cap

English Manual, Plugin, Schematic (We will offer a download link to you after you purchase)

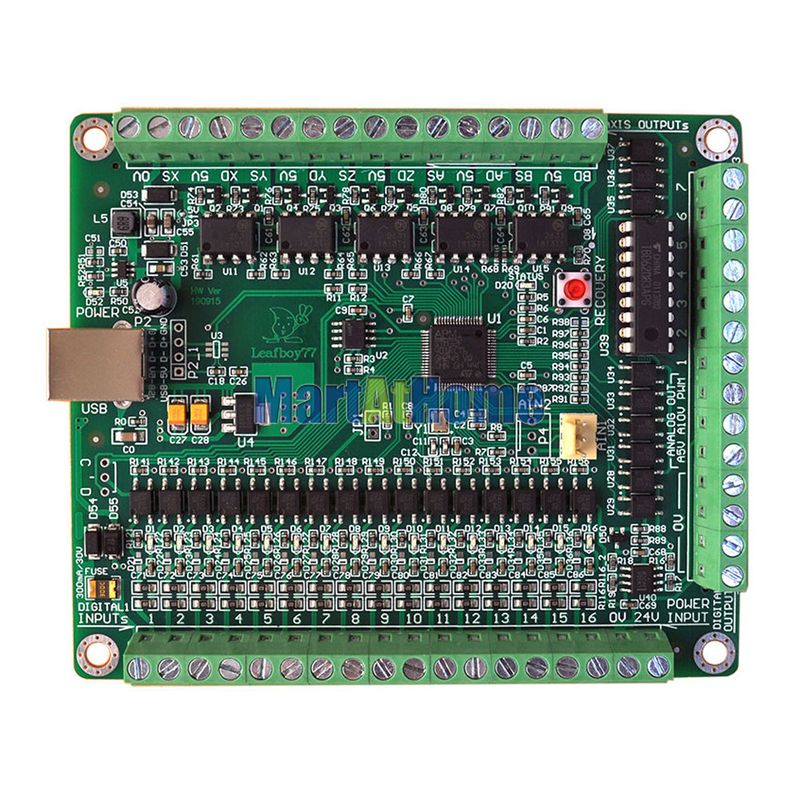

Output and Input Interface:

Interface	USB
Axis output num	3 or 5 Axis (high-speed optocouplers)
Axis output frequency	500KHz
Digital inputs	NPN*16 (Optocoupler isolation)
Analog inputs	0-3.3V * 2 (non-isolated)
MPG inputs	NPN*2 (Optocoupler isolation)
Speed measurement input	NPN*1 (Optocoupler isolation)
Digital outputs	Open collector output 500mA *7 (Optocoupler isolation)
Analog outputs	3 (Optocoupler isolation): PWM / 0-5V / 0-10V

Axis Backlash	NO
MPG (Manual Pulse Generator)	Real time, 2
Slave Axis (Dual X/Y/Z)	YES
Automatic leveling (dual side home switch)	YES
Axis Link	YES

Features:

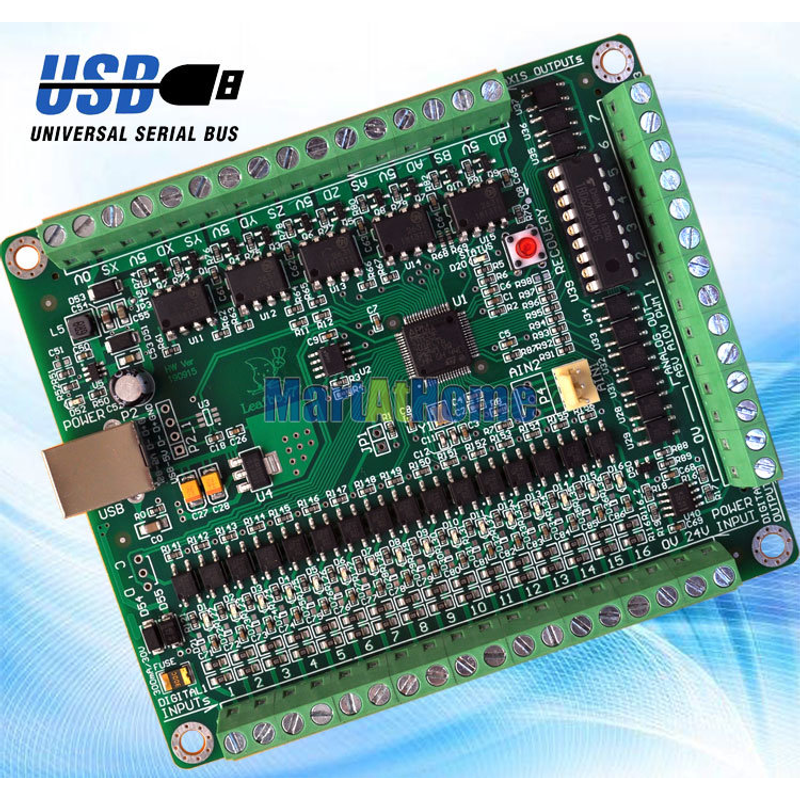

USB Full-speed connection.
Up to 5 axes, 500kHz pulsing engine, which is suitable for servo or stepping motor. Any axis can be configured as a Step/Dir Spindle.
Support slave axis (dual side motor drive: dual X/Y/Z), support home automatic leveling (dual side home switch).
2 real-time Manual Pulse Generation (MPG) input ports for 2 MPG at the same time. When the MACH3 MPG is set in the multi-step mode, it has the same real-time performance as the CNC machining center, smoothly. The control board has no delay and the mechanical system performance is fully utilized.

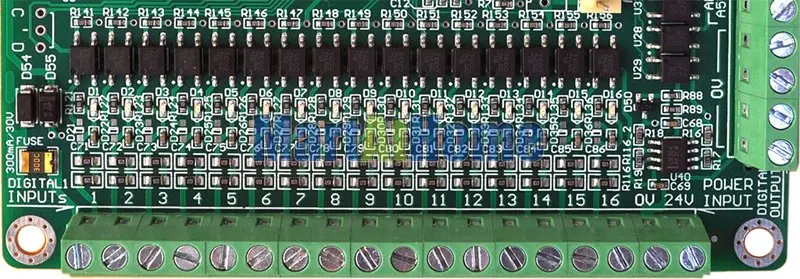

16 general-purpose inputs, with particular indicators, the input signal states can clearly show.
7 general-purpose outputs, it can be configured as: spindle clockwise / CCW / Mist / Flood / VB script programming control.
PWM output*1 channel, 0-10V analog voltage output*1 channel, 0-5V analog voltage output*1 channel. 3 outputs channels are used for spindle motor speed adjustment: PWM pulse width / 0-10V or 0-5V inverter.
2 analog input ports for adjusting the machining speed / jog speed / spindle speed.
Status indicator LED can be useful to show the USB connection, and working status by flashing.
5 high-speed optocouplers (Dual Channel) with 10MHz, 25 general optocouplers for isolating all of the input/output signals, this high-cost design can be provided high performance and stable system.
Fully supporting all Mach3 versions. Supporting Windows series, including Windows XP-Windows10(32bit/64bit).
No need to install any USB drivers, it can be used after plugging in the computer.
Easy firmware update.
Provide a complete installation manual, illustrated, detailed description.

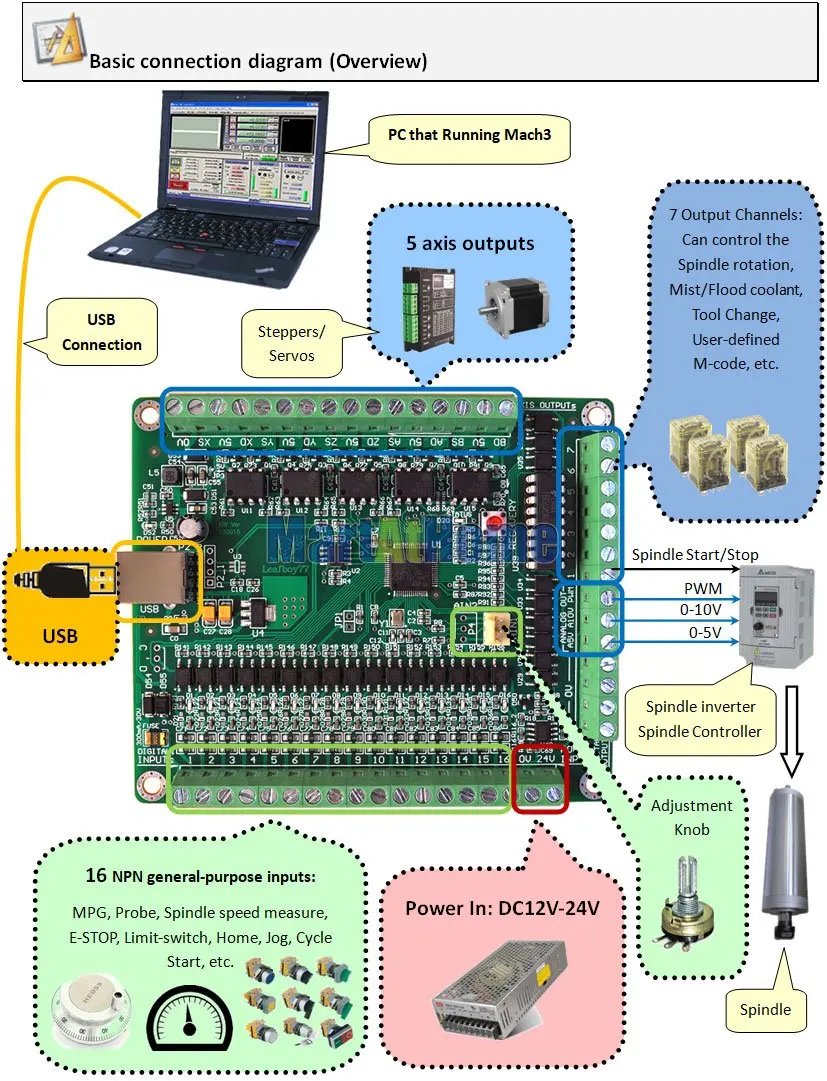

Basic Connection Diagram (Overview):

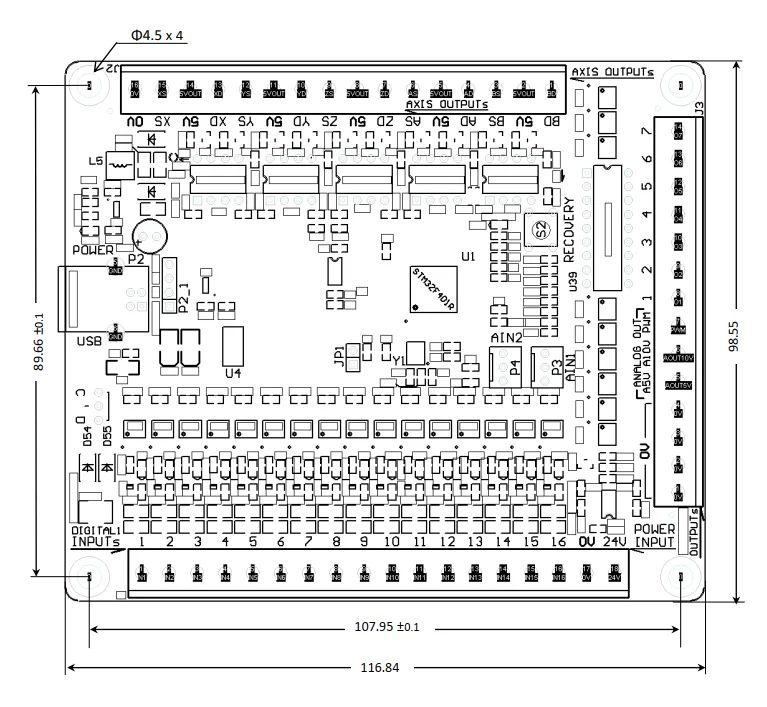

Mechanical dimensions diagram:

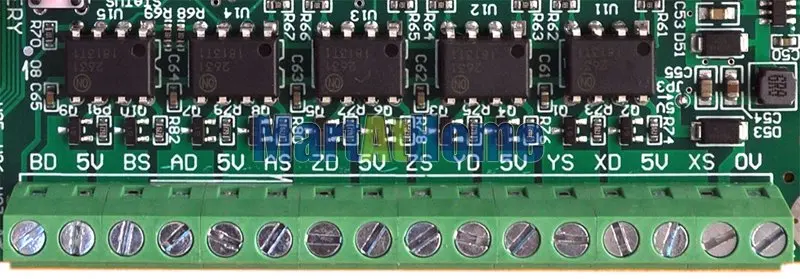

5-axis output signal (direction signal + step signal):

10MHz high-speed optocoupler isolation *10 channel

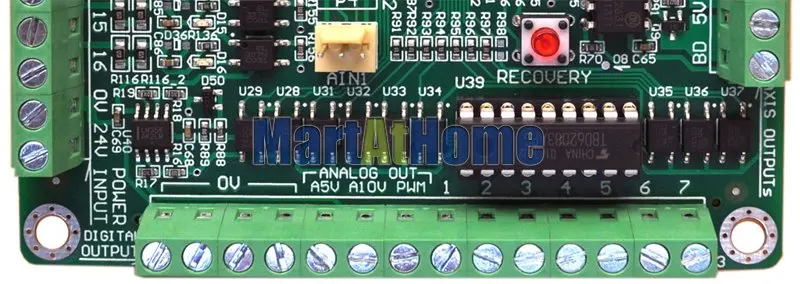

Spindle speed control signal:

Optocoupler isolation 0-5V output*1,
Optocoupler isolation 0-10V output*1,
PWM output *1,
Optocoupler isolation universal output *7

Optocoupler Isolated NPN Input *16 / Power Input:

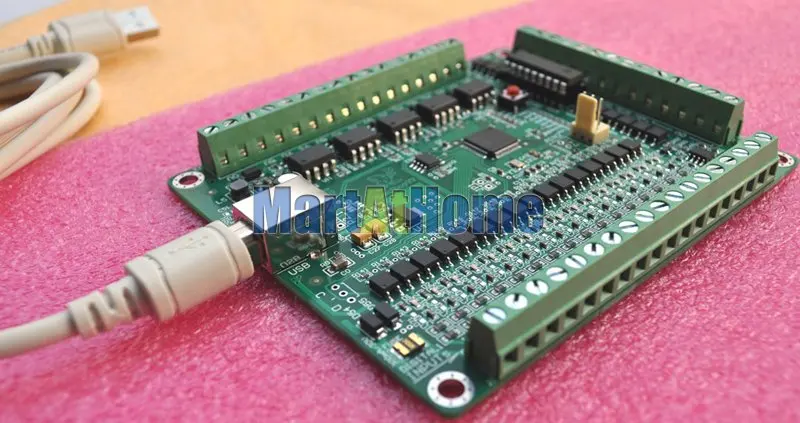

USB cable connection:

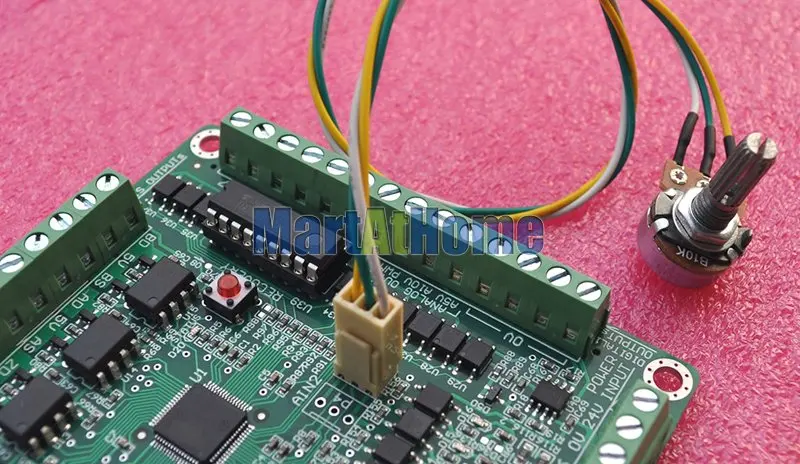

External Adjustment Knob:

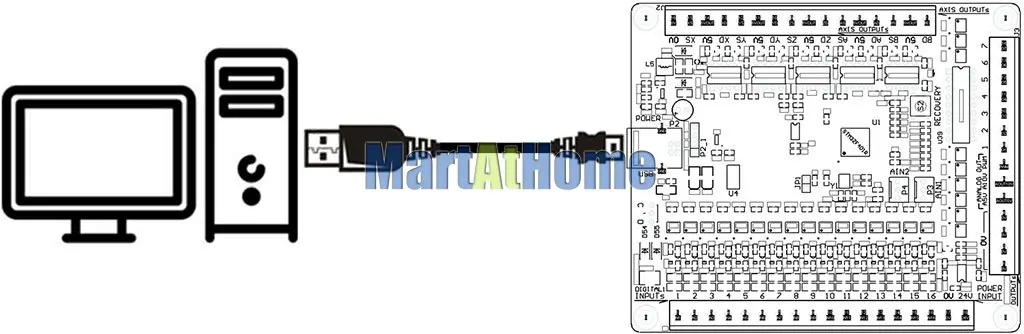

Motion control board and PC connection:
