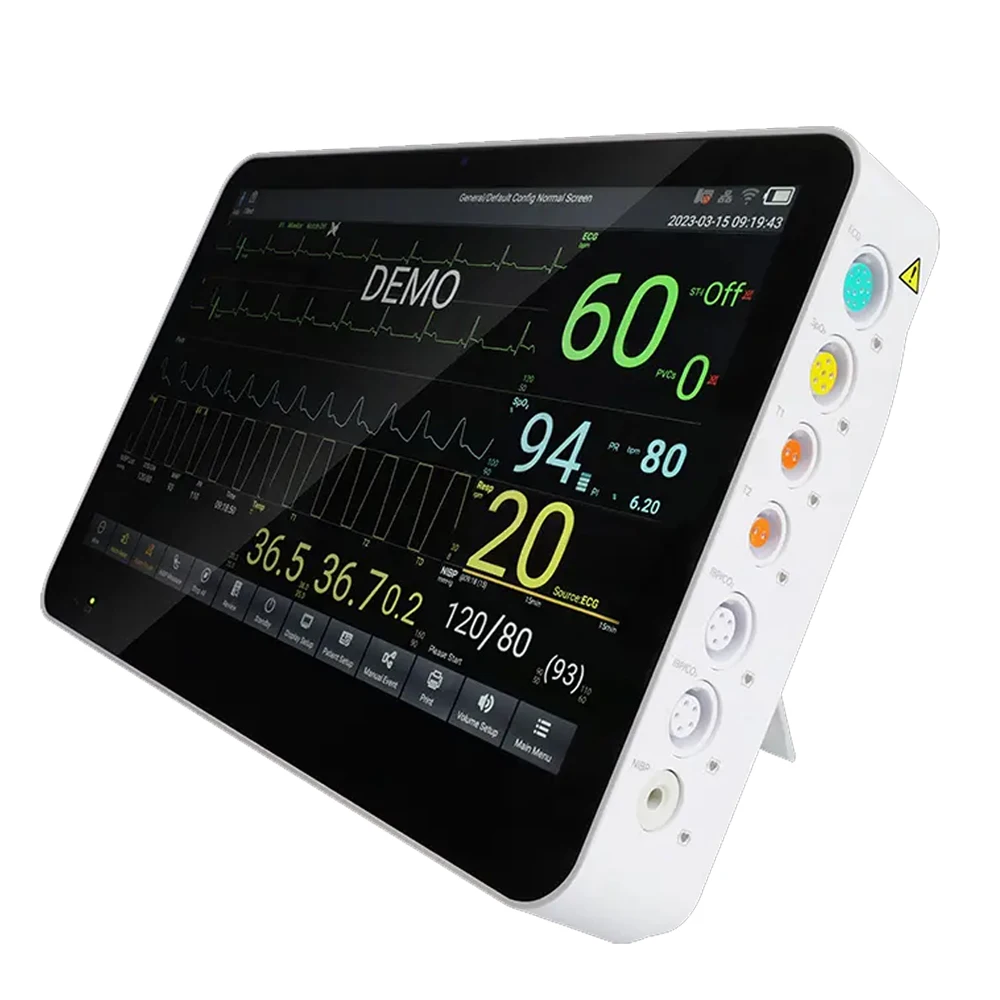

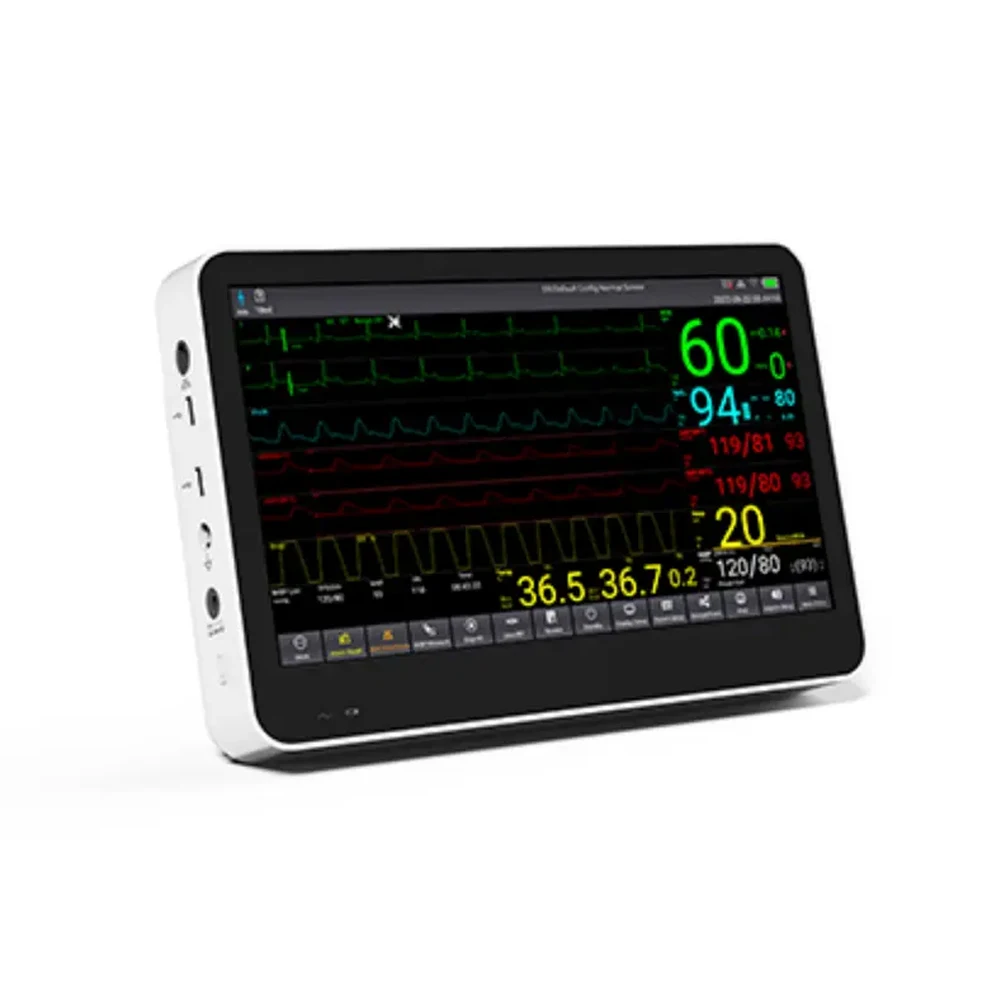

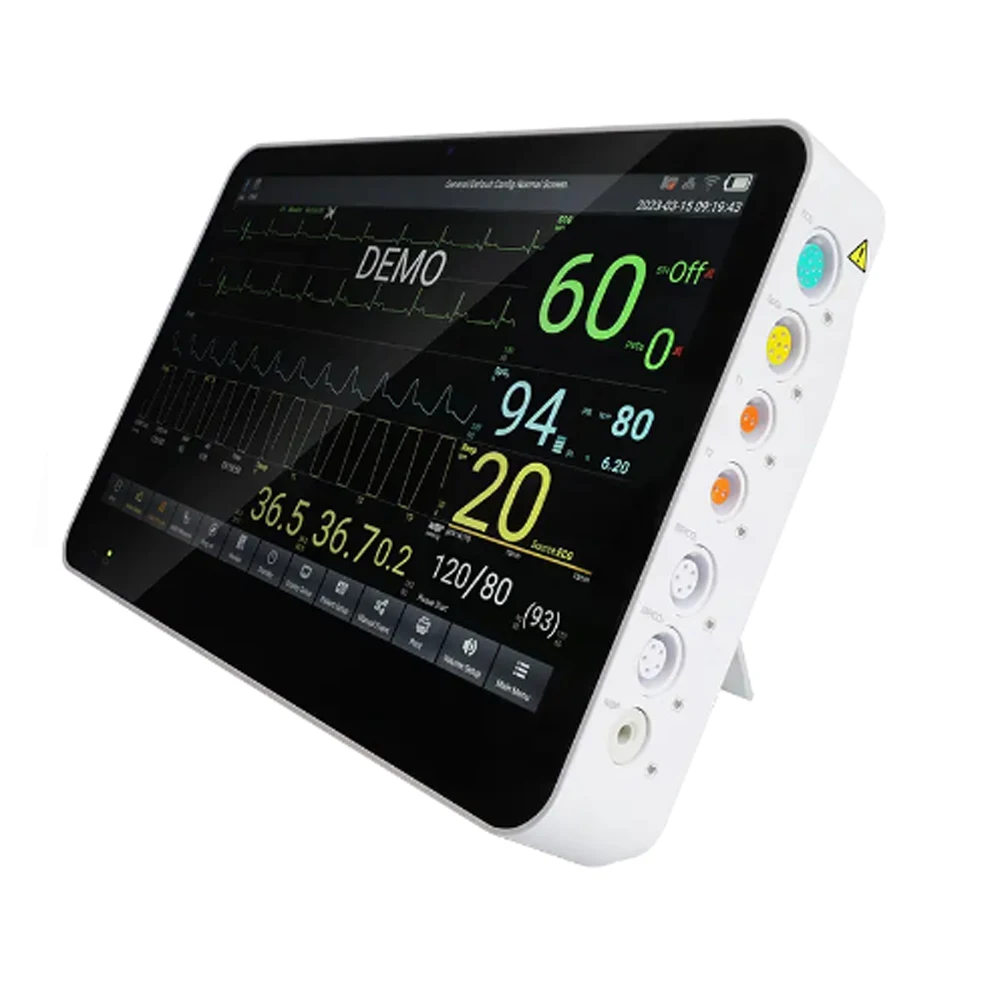

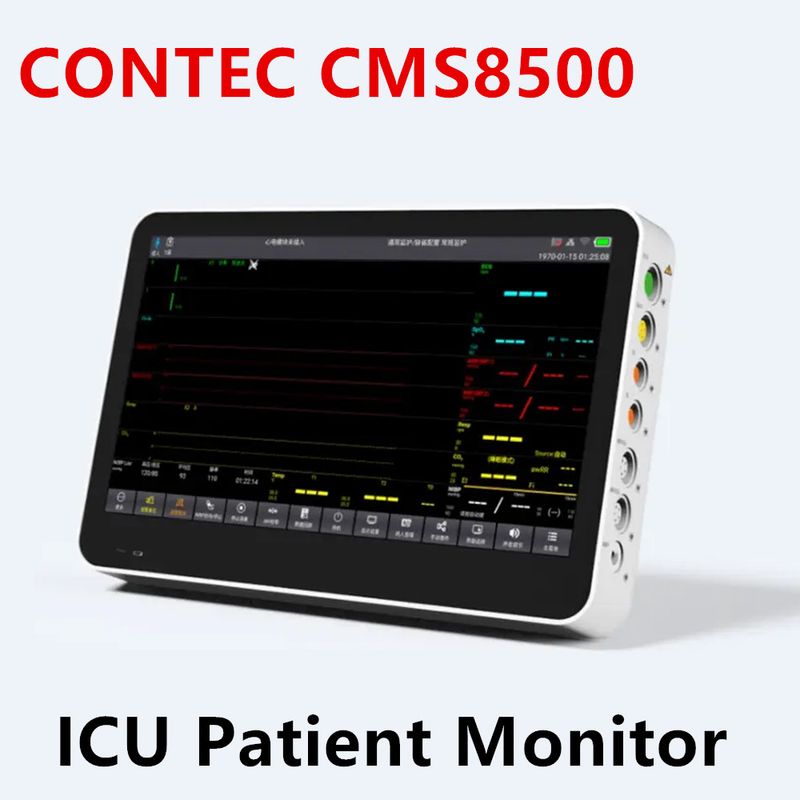

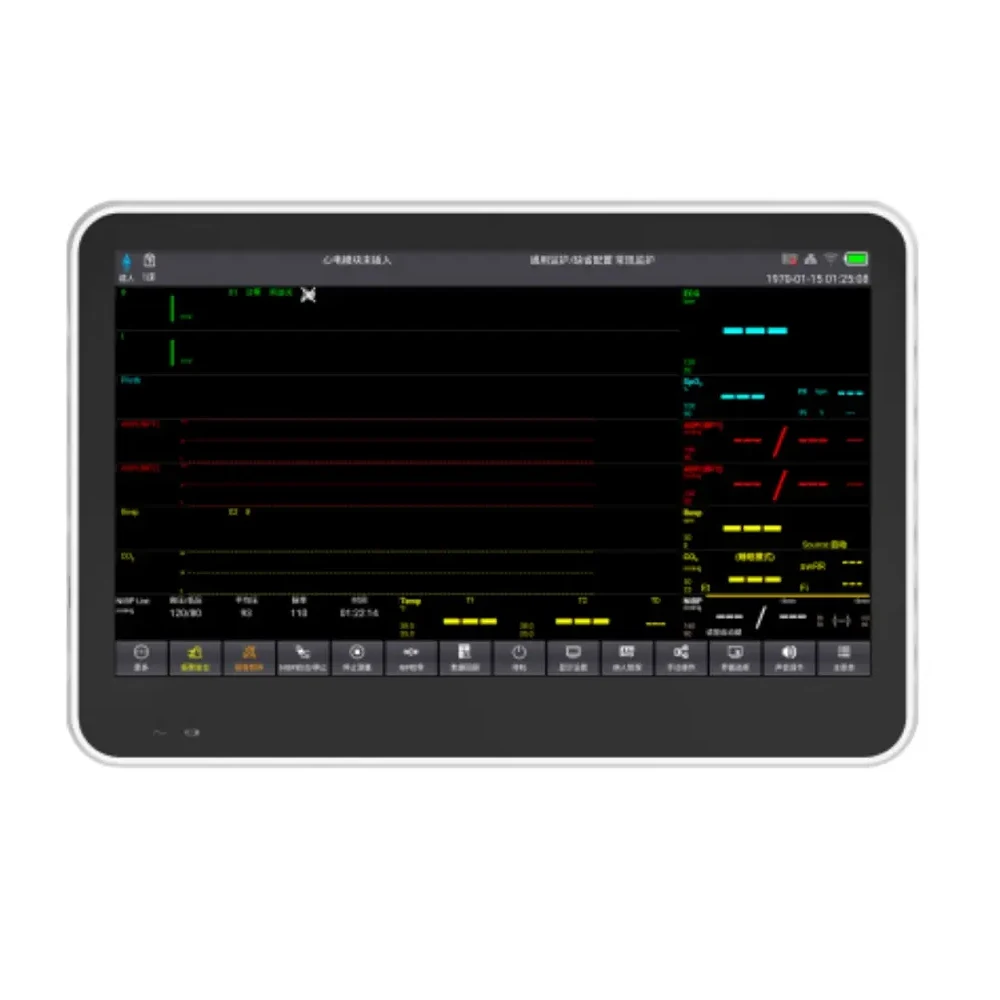

Contec CMS8500 14"" Touch Screen 6 Parameters Vital Signs ICU Patient Monitor

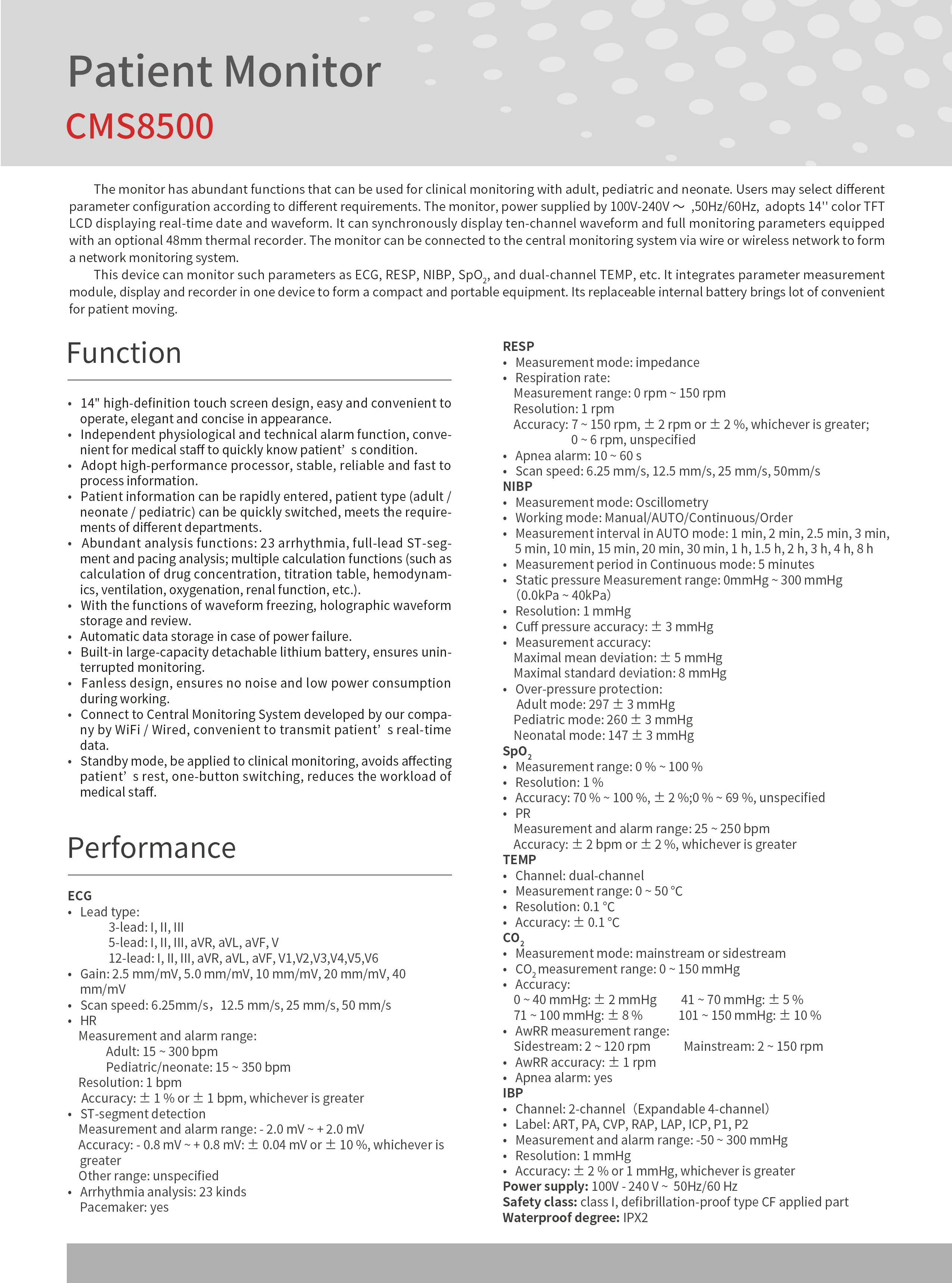

"Introduction

CMS8500 monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100V-240V～,50Hz/60Hz, adopts 14'' color TFT LCD displaying real-time date and waveform. It can synchronously display ten-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, NIBP, SpO2, and dual-channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

Feature：

1)14"" high-definition touch screen design, easy and convenient to operate, elegant and concise in appearance.

2)Independent physiological and technical alarm function, convenient for medical staff to quickly know patient’s condition.

3)Adopt high-performance processor, stable, reliable and fast to process information.

4)Patient information can be rapidly entered, patient type (adult / neonate / pediatric) can be quickly switched, meets the requirements of different departments.

5)Abundant analysis functions: 23 arrhythmia, full-lead ST-segment and pacing analysis; multiple calculation functions (such as calculation of drug concentration, titration table, hemodynamics, ventilation, oxygenation, renal function, etc.).

6)With the functions of waveform freezing, holographic waveform storage and review.

7)Automatic data storage in case of power failure.

8)Built-in large-capacity detachable lithium battery, ensures uninterrupted monitoring.

9)Fanless design, ensures no noise and low power consumption during working.

10)Connect to Central Monitoring System developed by our company by WiFi / Wired, convenient to transmit patient’s real-time data.

11)Standby mode, be applied to clinical monitoring, avoids affecting patient’s rest, one-button switching, reduces the workload of medical staff.

Performance

(1)ECG

Lead type:

3-lead: I, II, III

5-lead: I, II, III, aVR, aVL, aVF, V

12-lead: I, II, III, aVR, aVL, aVF, V1,V2,V3,V4,V5,V6

Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV

Scan speed: 6.25mm/s，12.5 mm/s, 25 mm/s, 50 mm/s

HR

Measurement and alarm range:

Adult: 15 ~ 300 bpm

Pediatric/neonate: 15 ~ 350 bpm

Resolution: 1 bpm

Accuracy: ± 1 % or ± 1 bpm, whichever is greater

ST-segment detection

Measurement and alarm range: - 2.0 mV ~ + 2.0 mV

Accuracy: - 0.8 mV ~ + 0.8 mV: ± 0.04 mV or ± 10 %, whichever is greater

Other range: unspecified

Arrhythmia analysis: 23 kinds

Pacemaker: yes

(2)RESP

Measurement mode: impedance

Respiration rate:

Measurement range: 0 rpm ~ 150 rpm

Resolution: 1 rpm

Accuracy: 7 ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;

0 ~ 6 rpm, unspecified

Apnea alarm: 10 ~ 60 s

Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s

(3)NIBP

Measurement mode: Oscillometry

Working mode: Manual/AUTO/Continuous/Order

Measurement interval in AUTO mode: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4 h, 8 h

Measurement period in Continuous mode: 5 minutes

Static pressure Measurement range: 0mmHg ~ 300 mmHg（0.0kPa ~ 40kPa）

Resolution: 1 mmHg

Cuff pressure accuracy: ± 3 mmHg

Measurement accuracy:

Maximal mean deviation: ± 5 mmHg

Maximal standard deviation: 8 mmHg

Over-pressure protection:

Adult mode: 297 ± 3 mmHg

Pediatric mode: 260 ± 3 mmHg

Neonatal mode: 147 ± 3 mmHg

(4)SpO2

Measurement range: 0 % ~ 100 %

Resolution: 1 %

Accuracy: 70 % ~ 100 %, ± 2 %;

0 % ~ 69 %, unspecified

PR

Measurement and alarm range: 25 ~ 250 bpm

Accuracy: ± 2 bpm or ± 2 %, whichever is greater

(5)TEMP

Channel: dual-channel

Measurement range: 0 ~ 50 ℃

Resolution: 0.1 ℃

Accuracy: ± 0.1 ℃

(6)CO2

Measurement mode: mainstream or sidestream

CO2 measurement range: 0 ~ 150 mmHg

Accuracy:

0 ~ 40 mmHg: ± 2 mmHg

41 ~ 70 mmHg: ± 5 %

71 ~ 100 mmHg: ± 8 %

101 ~ 150 mmHg: ± 10 %

AwRR measurement range:

Sidestream: 2 ~ 120 rpm

Mainstream: 2 ~ 150 rpm

AwRR accuracy: ± 1 rpm

Apnea alarm: yes

(7)IBP

Channel: 2-channel（Expandable 4-channel）

Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measurement and alarm range: -50 ~ 300 mmHg

Resolution: 1 mmHg

Accuracy: ± 2 % or 1 mmHg, whichever is greater

(8)Power supply: 100V - 240 V ~ 50Hz/60 Hz

(9)Safety class: class I, defibrillation-proof type CF applied part

(10)Waterproof degree: IPX2

Physical characteristic

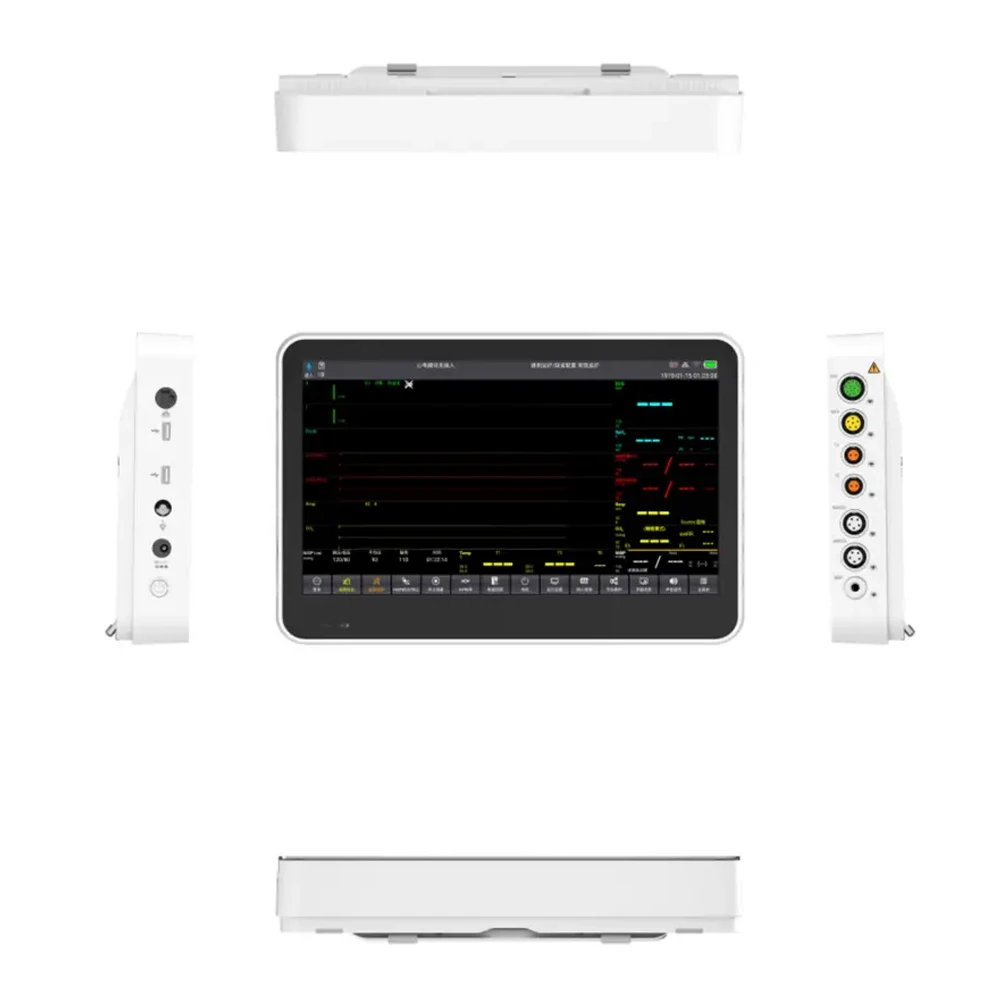

Component Dimensions (LXWXH)：351mmX234mmX60mm

Weight: About 2.1kg

RemarkHost ：Standard configuration (including battery), weight does not include recorder and accessories;

Package included:

1X CMS8500 14"" Touch Screen 6 Parameters Vital Signs ICU Patient Monitor

1X 5-lead ECG lead cable

1X ECG electrode adult,（one packet(20 pcs)

1X SpO2 probe (integrated) Digital fingertip SpO2 probe for adult (CMS-N-SPO2 6P, 3M, yellow)

1X TEMP probe （R25=2.252K TEMP probe, skin surface type, CMS-N-TEMP 2P, PVC, L=3M）

1X NIBP cuff BP extension tube, L=3M

1X Adult cuff (25 ~ 35 cm)

1X User Manual

Optional configuration(No. Function name):if you need optional product,please contact us chat about it:

1.Recorder module

2.CO2 module

3.IBP module

4.12-lead ECG

5.Central Monitoring System
