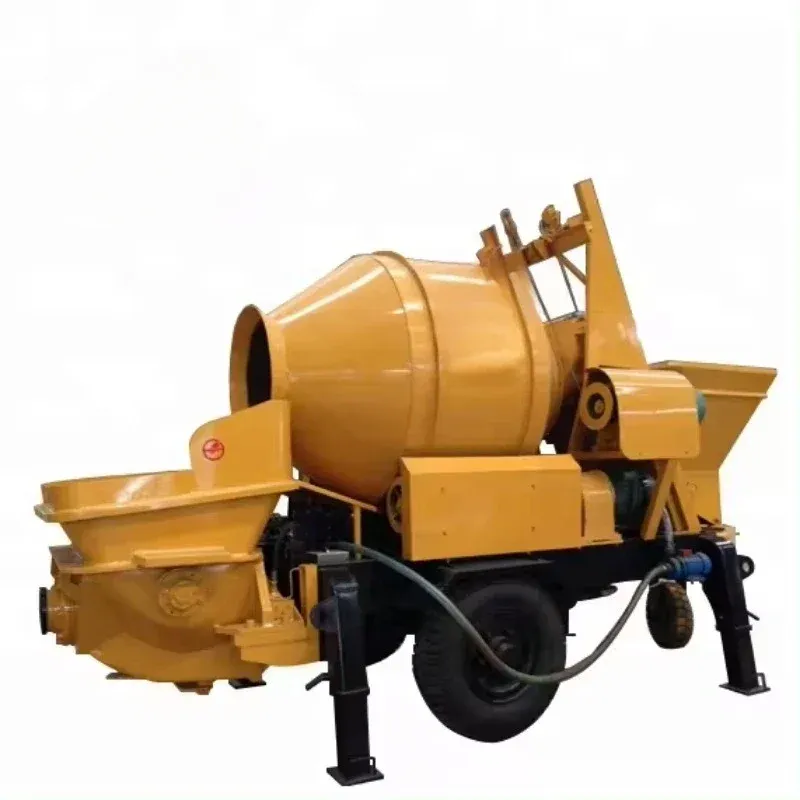

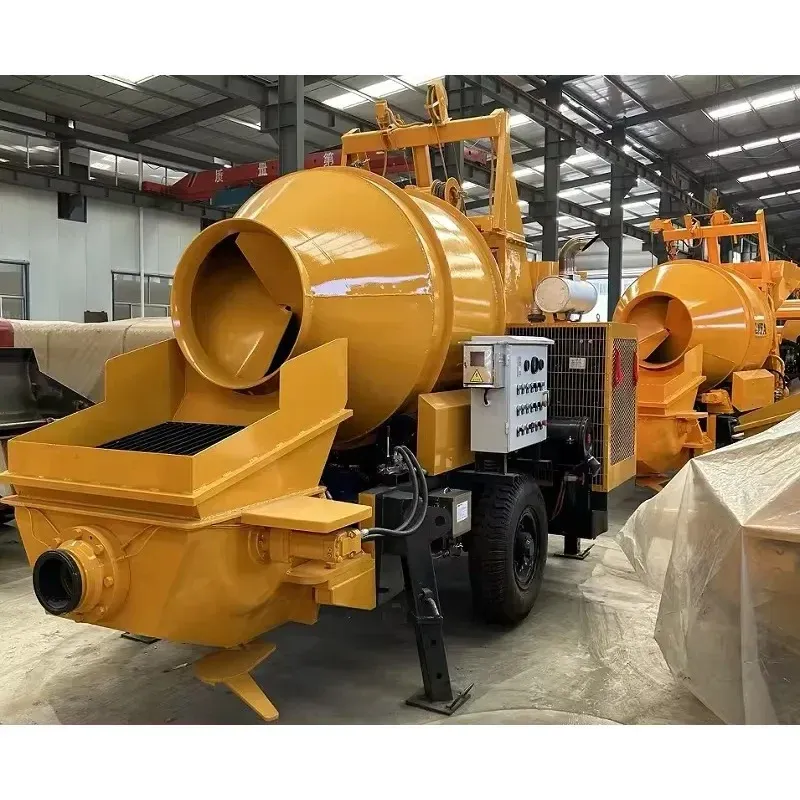

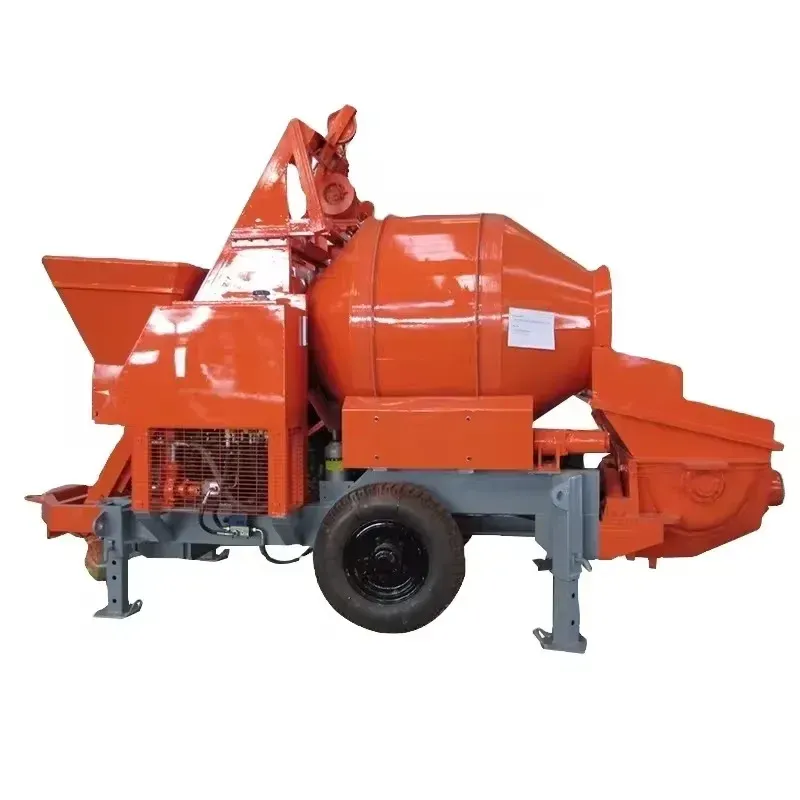

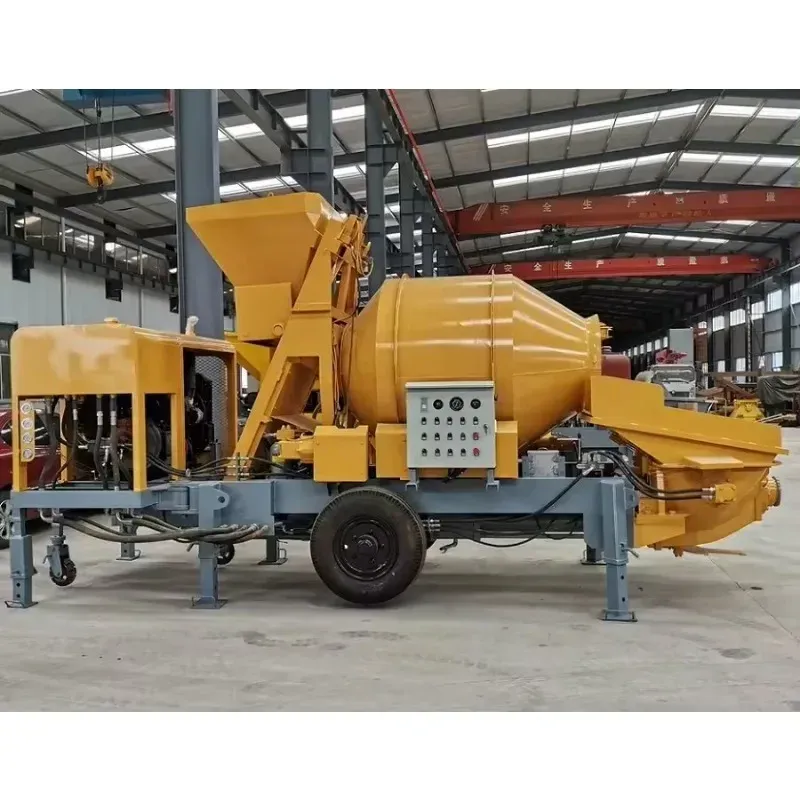

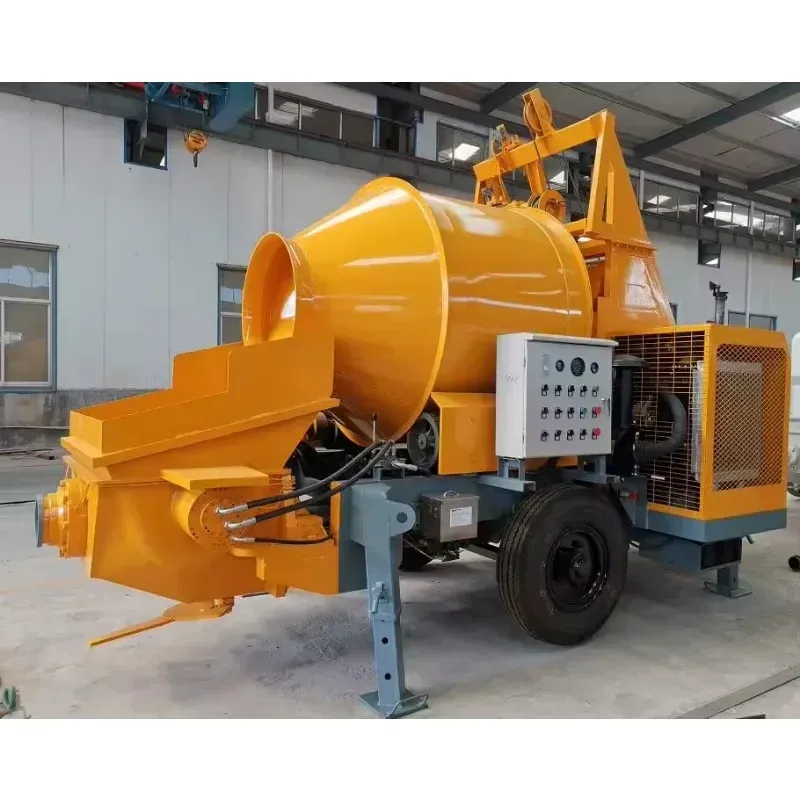

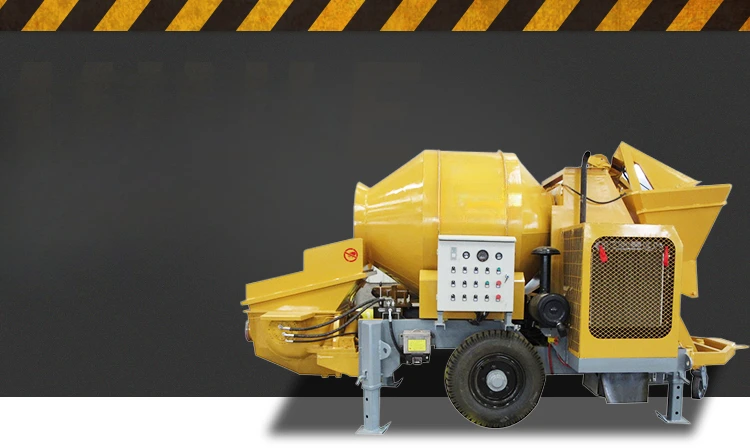

Customize High Efficiency Low Cost Portable Concrete Mixer And Pump Mobile Concrete Pump Mixer For Construction

$7,793.75

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:

1.This is a custom machine. The price on the page is only a deposit, and does not include shipping, accessories and packaging fees.


2.Please contact Alger for a free quote❤
Whatsapp/WeChat/Phone number : +86 13633712108
Email : salesmachinery@yg797.com

Item
Unit
JBS30/40
Concrete delivery capacity
m3/h
30/40
Maximum outlet pressure
MPa
10
Maximum horizontal delivery distance
m
500
Maximum vertical delivery distance
m
150
Maximum aggregate size
mm
≤40
Feeding height
mm
1400
The diameter of pipeline
mm
Φ125
Cylinder
number
2
Oil cylinder bore Ă— stroke
mm
Φ110×1000
Material cylinder bore Ă— stroke
mm
Φ180×1000
The maximum pressure
of the PUMPING system
MPa
23
Hydraulic oil tank
L
200
Main motor power
kW
78
Dimensions (L Ă— W Ă— H)
mm
5800*2150*2600mm
Weight
kg
5000/6000

1.Power system High Pressure Concrete Mixer Pump Machine
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc
2.Electronic control High Pressure Concrete Mixer Pump Machine
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system High Pressure Concrete Mixer Pump Machine
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the
system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are
guaranteed.
4.Pumping system High Pressure Concrete Mixer Pump Machine
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of
the condition.
5.Lubrication System High Pressure Concrete Mixer Pump Machine
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which
can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee
the system reliability.
6.Cooling System High Pressure Concrete Mixer Pump Machine
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic
system works at normal status.

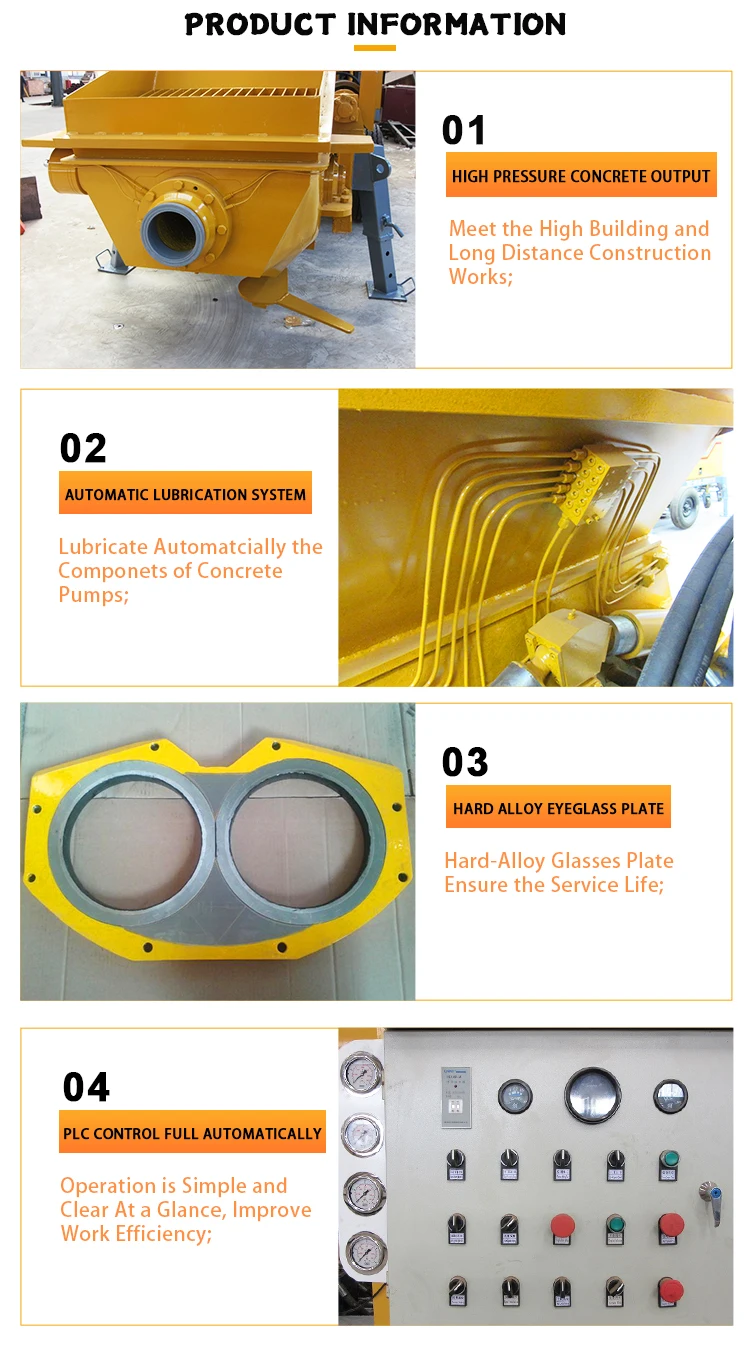

Product information
