Customized Customized 3m 4m 5m Electric Scissor Lift Aerial Platform Mini Mobile Lifter Scaffolding Hydraulic Scissor Lift

$5,309.48

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and
quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!

5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com

CONTACT US:



6-12m Hydraulic Driven Self Propelled Scissor Lift  Platform

- OEM  & ODM Service -



Product Description



Hydraulic Self Propelled Scissor Lift  is driven by hydraulic principle. Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical motor drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.



  Model No.   SP06 SP08 SP10 SP12
  Lifting capacity kg 300 300 300 300
  Folding maximum height(guardrail unfolding) mm 2150 2275 2400 2525
  Folding maximum height(guardrail removed) mm 1190 1315 1440 1565
  Overall Length mm 2400 2400 2400 2400
  Overall Width mm 1150 1150 1150 1150
  Platform Size mm 2270×1150 2270×1150 2270×1150 2270×1150
  Platform extend size mm 900 900 900 900
  Minimumground clearance(folding) mm 110 110 110 110
  Minimumground clearance(rising) mm 20 20 20 20
  Wheelbase mm 1850 1850 1850 1850
  Minimum turn radius(inner wheel) mm 0 0 0 0
  Minimum turn radius(outer wheel) mm 2100 2100 2100 2100
  Power source v/kw 24/3.0 24/3.0 24/3.0 24/3.0
  Running speed(folding) km/h 4 4 4 4
  Running speed(rising) km/h 0.8 0.8 0.8 0.8
  Rising/falling speed sec 40/50 40/50 70/80 70/80
  Battery V/Ah 4×6/210 4×6/210 4×6/210 4×6/210
  Charger V/A 24/25 24/25 24/25 24/25
  Maximum climbing ability % 20 20 20 20
  Maximum working allowable angle / 2-3° 2-3° 2-3° 2-3°
  Way of control / Electro-hydraulic proportion control
  Driver / Double front-wheel
  Hydraulic drive / Double rear-wheel
  Wheel size(stuffed&no mark) / Φ381×127 Φ381×127 Φ381×127 Φ381×127
  Whole weight kg 1900 2080 2490 2760



Hydraulic Self Propelled Scissor Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.







Proportional control                 Automatic pothole protection      Self-lock gate on platform
Drivable at full height               Non marking tyre                        Automatic brakes system
Emergency Stop Button           Emergency Lowering System     Cylinder Check Valve
Onboard diagnostic system     Tilt sensor with Alarm                  All Motion Alarm
Horn                                         Hour Meter                                 Safety Maintaince Rod
Forklift Holes                            Folding Guardrails                      Extended Platform
Charger Protection                   Flicker

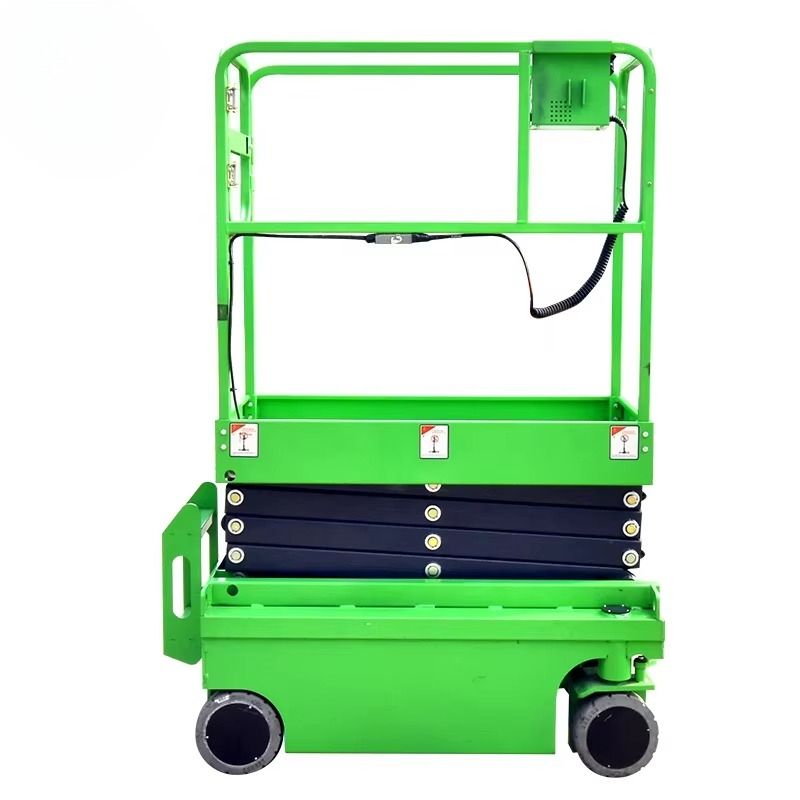

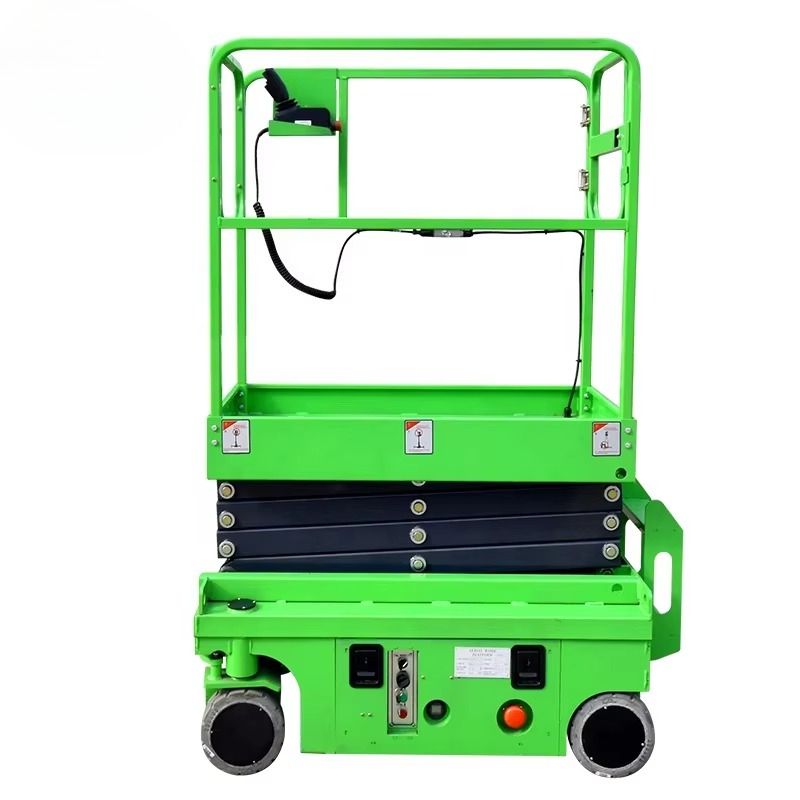

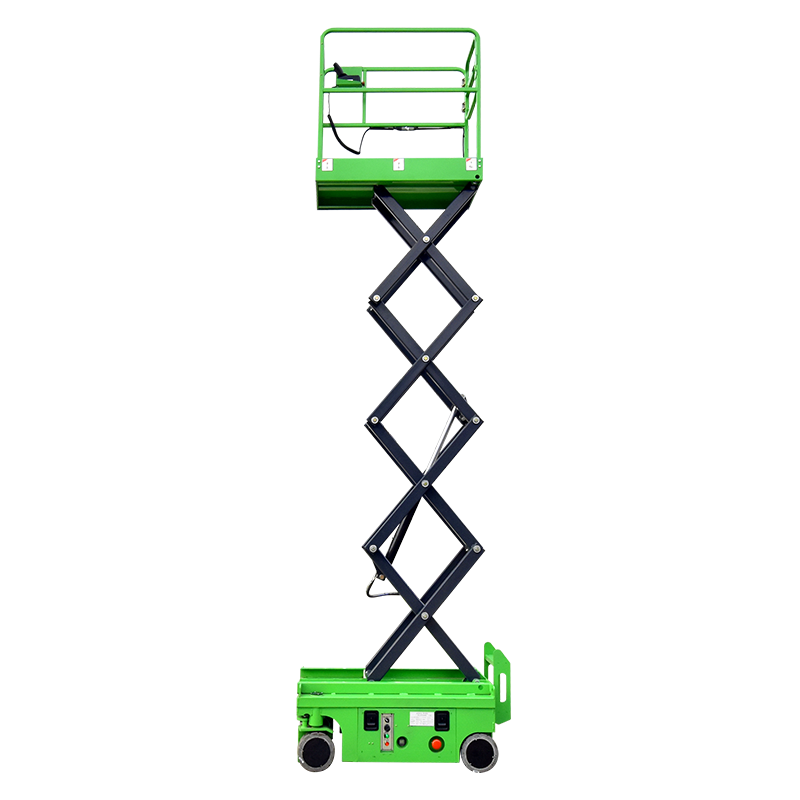

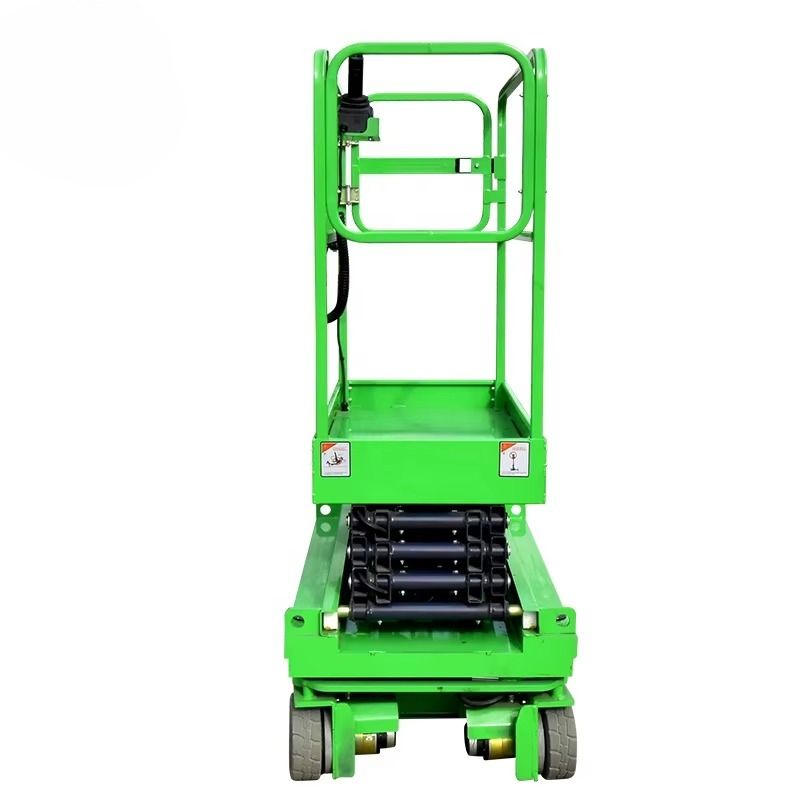

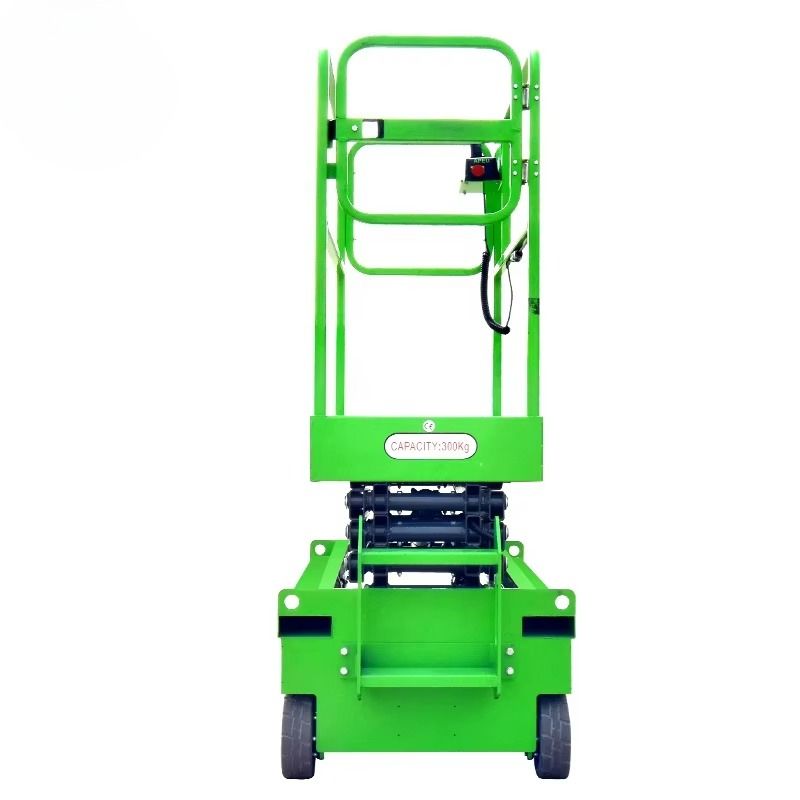

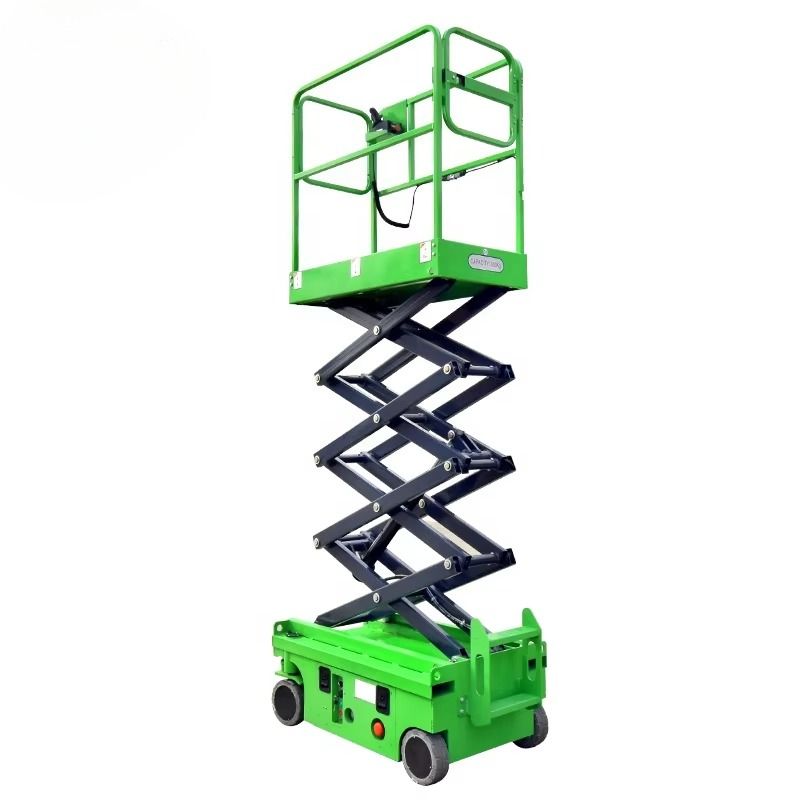

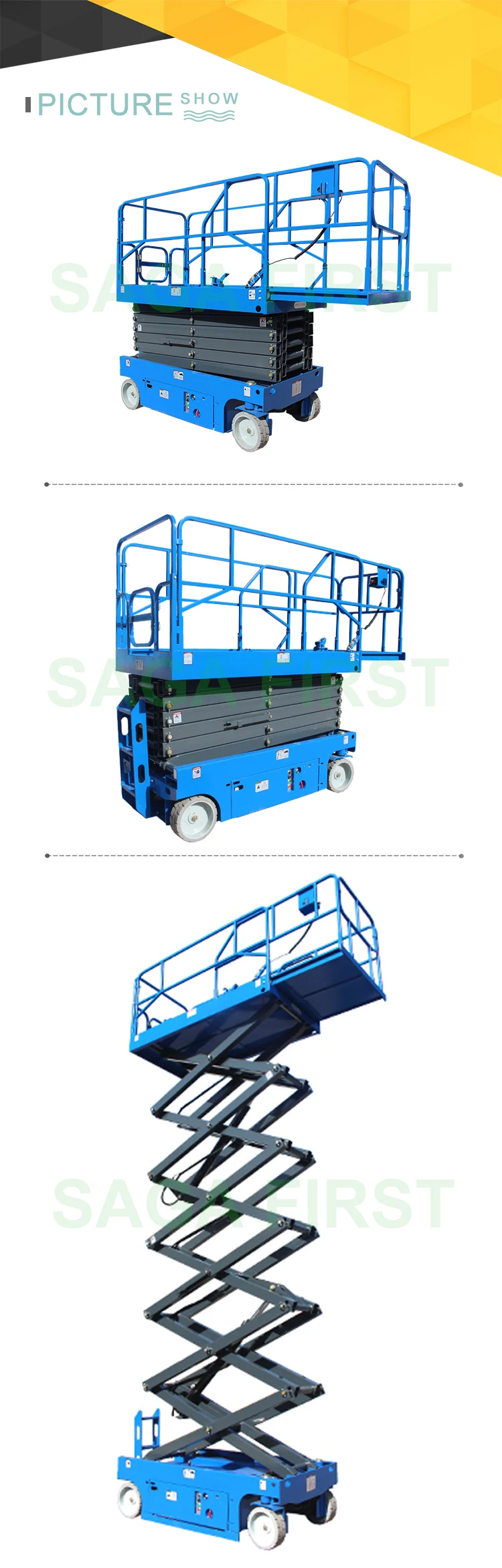

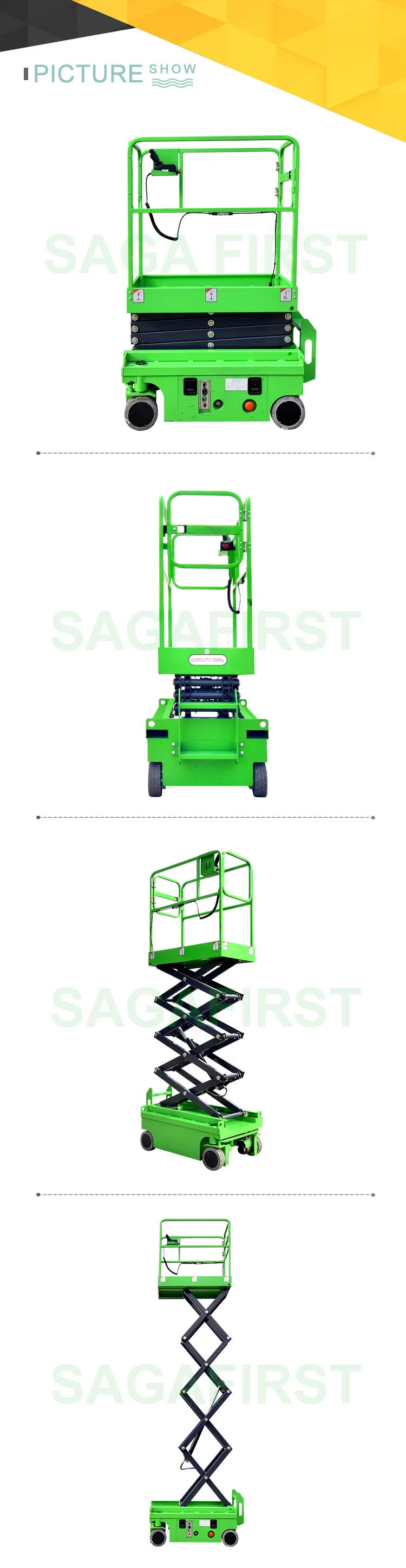

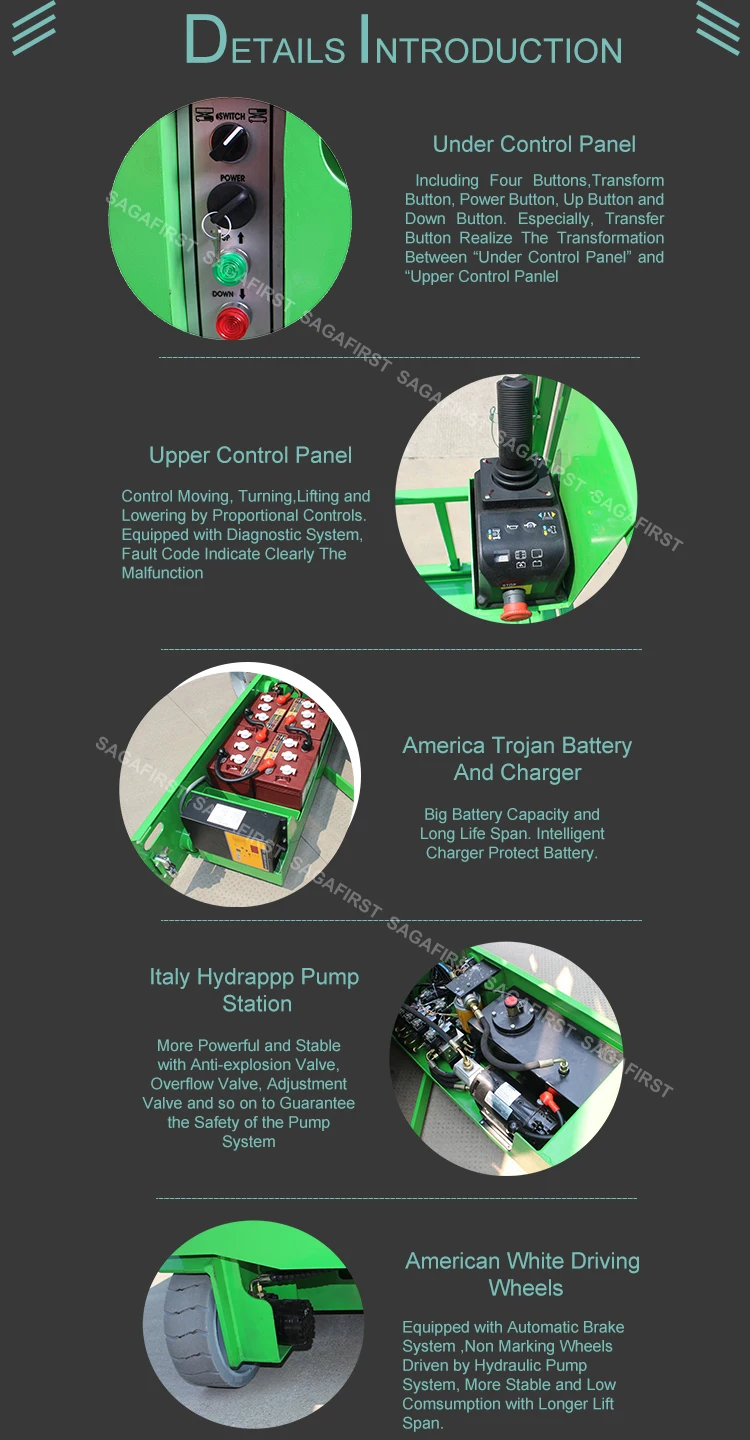

Detailed Images

 Safety Precautions:
1. Explosion-proof valves                  2. Spillover valve                  3. Emergency decline valve

4. Check Valve                                  5. Adjustment Valve              6. Tilt Angle Sensor

7.Automatic pothole protection          8.Self-lock gate on platform  9.Safety Maintaince Rod

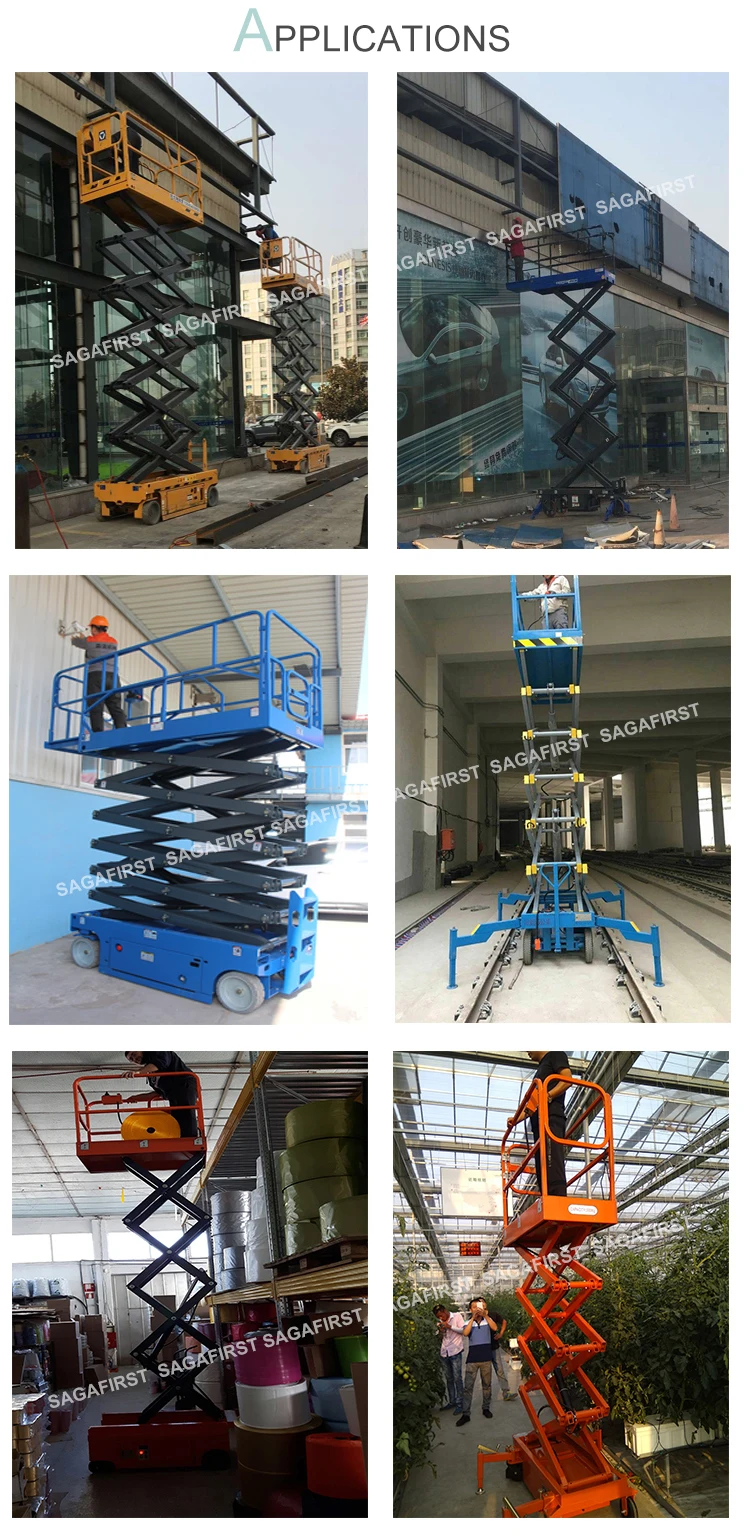

Applications

Hydraulic Self Propelled Scissor Lift is widely used  in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.

Certifications

Hydraulic Self Propelled Scissor Lift are approved by European certificates and meet the international standards.







 Questions

 Answers

 Are you a factory or trading company?

 We're factory with over 12years exporting experience.

 What's the MOQ?

 1UNIT,the more,the better.

 What's the payment terms?

 <USD4999: 100%TT in advance.

 >USD5000:  30%TT in advance,balance before shipment.

 >USD100,00: TT or Irrevocable L/C At Sight.

 Do you offer OEM&ODM service?

 Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.

 What's the delivery time?

 15~20days after down payment

 What's the quality warranty?

 24 months.Offer free parts for replacement.

 How can I get the after-sales service?

 We offer videos,pictures and technical guidance immediately.

 What's your QA&QC policy?

 3times 100% inspection before shipping.

 Can you tell me your clients in my country?

 Of course. But only after the permittance of customers.

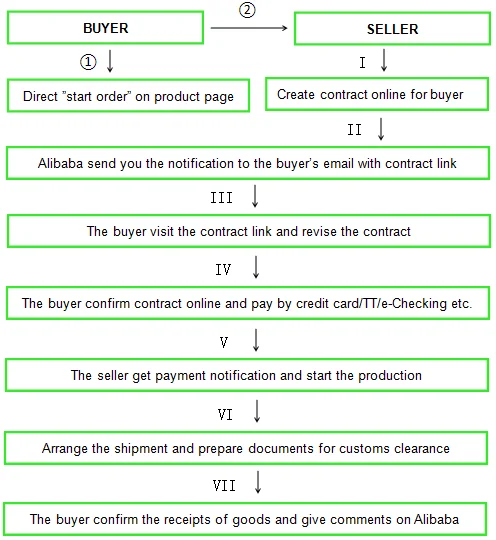

Buy Online
