Customized New Fast Freezing Machine High Productive Freeze Dried Fruit Machine Commercial Industrial Grade Energy Saving

$119,173.98

Includes all taxes

Quantity
Meet your Seller
Delivery options
  • Ship Only

Description

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations,otherwise it will not be shipped!
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
4.please fell free contact us by email or whatsapp

email address :
lechi03@163.com
whatsapp/Mobile :
+86 13598887352

Products Description
The vacuum freeze drying machine is an advanced method for the material for the material dewatering. It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material. Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little. When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered again, because of its large contacting area and it can be stored for a long period in a sealed vessel.
Product Paramenters

1. Continous de-icing.

When the trap 2 begins to catch vapor, the trap 1 begins to melt ice on the coil during drying. After melting, the clean coil is ready for another condensation cycle.

2. Efficient in heating plates.

The material of heating plates is aviation aluminum after being
anodized on the surface, releasing over 100% heat from the product by radiation. This makes heat more uniform and complete.

3.Alternate vapor trap.

Double trap is installed under the heating plates in drying chamber. Trap 1 condenses vapor to its maximum capacity, then trap 2
starts to work. In the meantime, trap 1 begins to melt ice for another condensation cycle.
Vacuum Freeze Drying Machine
Model
FL
FL-50
FL-1100
FL-1200
FL-1300
Vacuum frying tank size(mm)
Φ500*730
Φ660*2380
Φ900*2800
Φ1100*2940
Φ1400*3340
Oil storage size(mm)
Φ500*860
Φ900*1250
Φ1400*1520
Φ1600*1610
Φ1800*1700
Basket size(mm)
Φ300*200
Φ500*430
Φ760*560
Φ960*600
Φ1200*560
Volume(L)
14
84
255
430
630
Basket number
2
2
2
2
2
Vacuum degree of work(Mpa)
-0.092~-0.098
-0.092~-0.098
-0.092~-0.098
-0.092~-0.098
-0.092~-0.098
Working temperature(℃)
80-120
80-120
80-120
80-120
80-120
The vacuum pump power(KW)
5.5
11/7.5
11
11+3/11
15+4/15
The oil pump power(KW)
0.5
5.5
11/7.5
11
15
Heating mode
Electrical
steam
steam
steam
steam
Total installed power/Actual power (KW)
31KW/18KW
21KW/14KW
21KW/14KW
25KW/18KW
38KW/28KW
Overall dimensions (mm)
1600*2000*2200
2300*2100*2600
3000*3000*3090
3400*3400*3230
3930*3670*3720
Details Images
Product Display

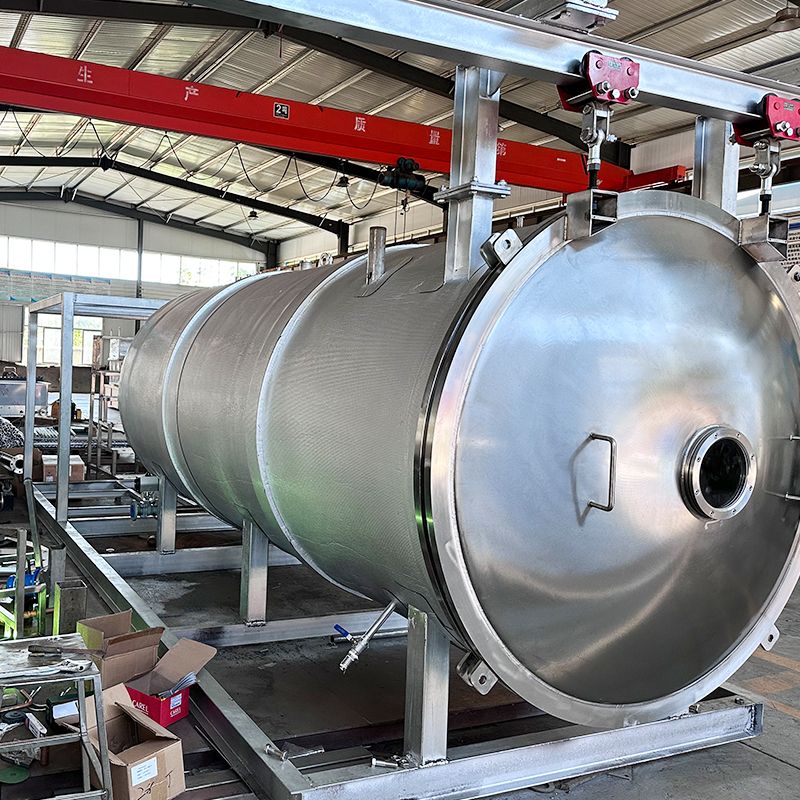

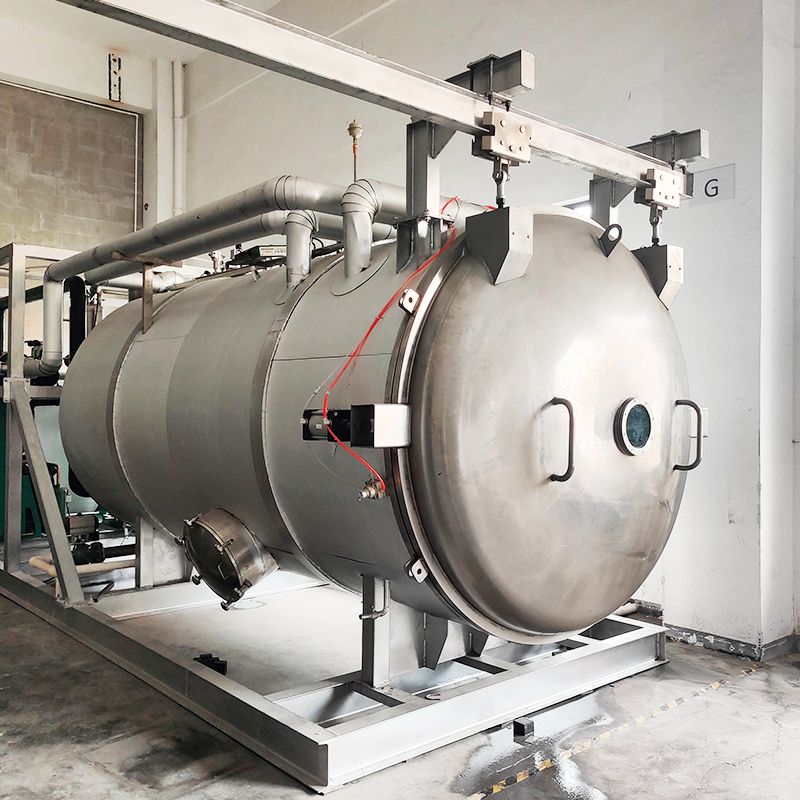

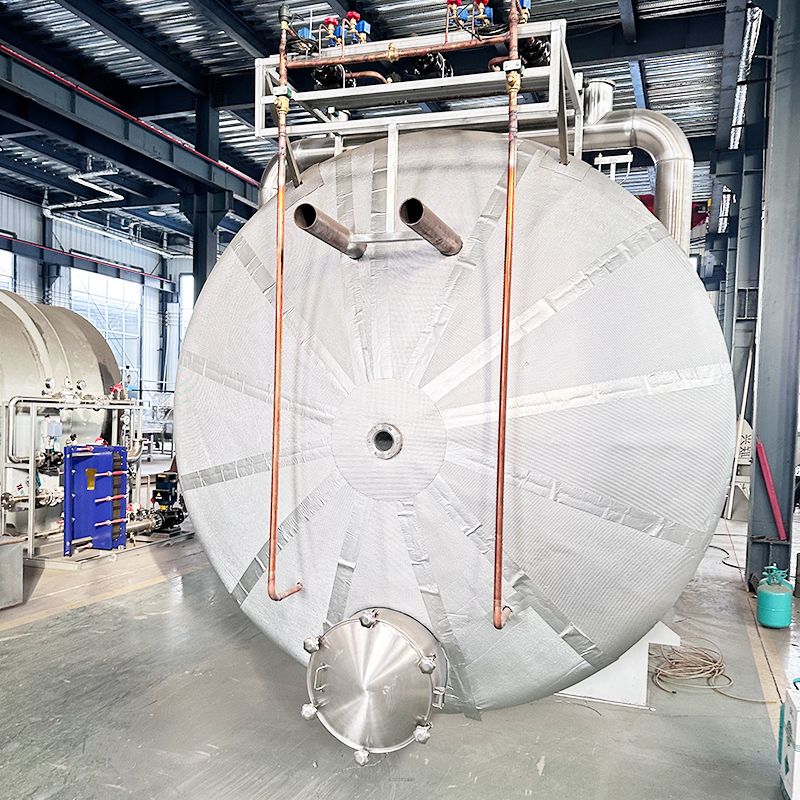

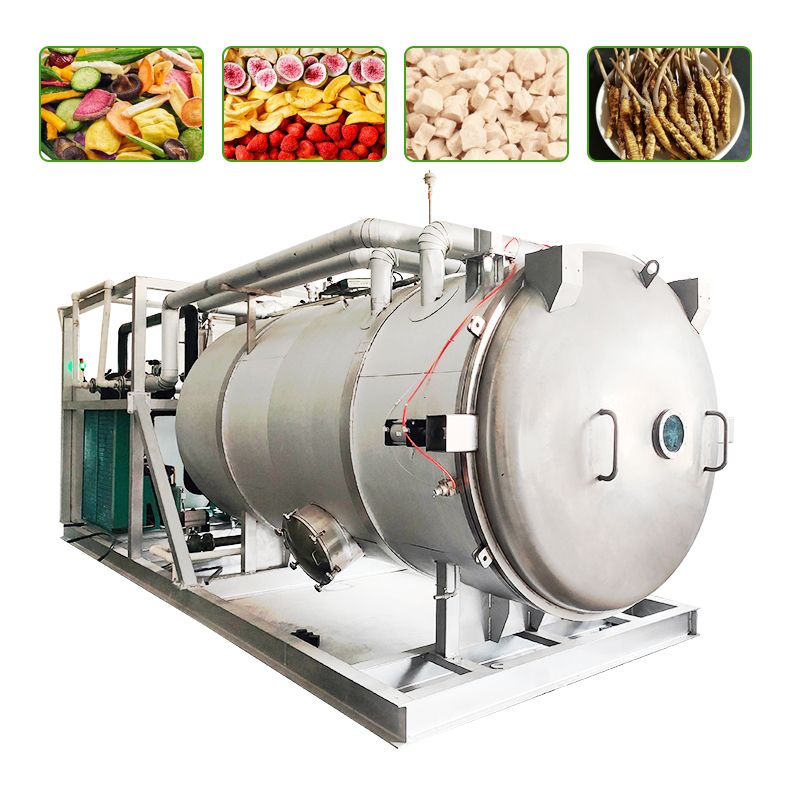

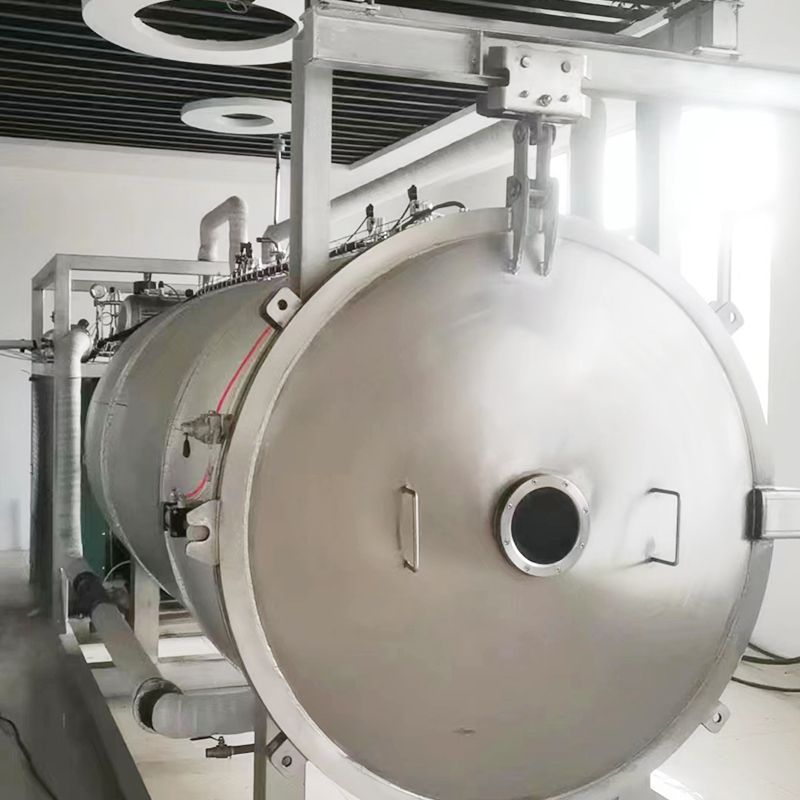

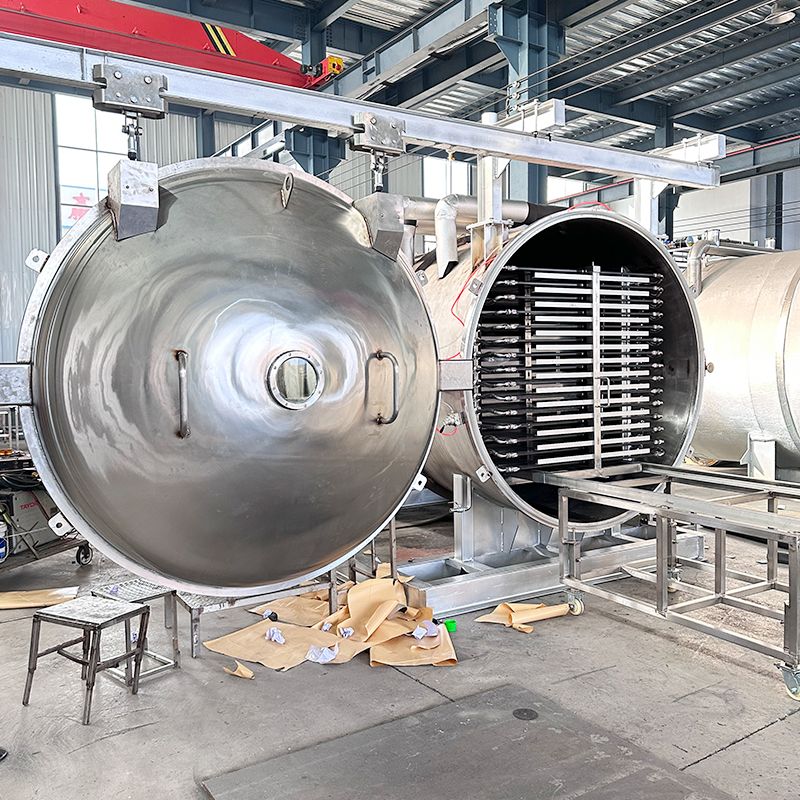

* Industrial freeze dryer
Industrial freeze-driers are suitable for commercial or small, medium, and large production enterprises, such as freeze-dried vegetable and fruit production lines, freeze-dried vaccine production lines, freeze-dried fruit juice production lines, and so on.
Production Process
* Dried products made by our machines

* 1. Complete appearance without obvious atrophy; * 2. The color remains fresh after drying; * 3. The appearance of the product remains unchanged and can be quickly restored after encountering water;

* 4. Longer storage time and no need to add additives; * 5. Nutritional loss is minimal.
Company Profile
Customer Photos
Product Packaging & Shipping



Dear Buyer,
This product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT. Freight needs to be calculated based on the delivery mode.
We can customize the color, configuration, model, appearance, logo, engine type, and powertrain. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.
