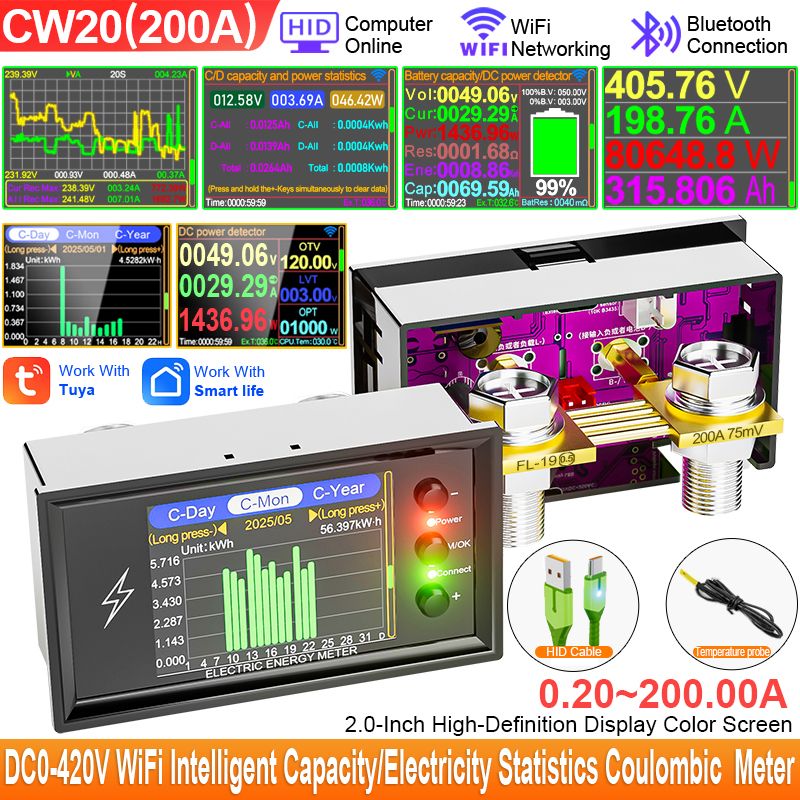

CW20 DC0-420V WiFi Tuya Smart Digital Lithium Battery Capacity Detection Tester DC Display Voltage Current Power Coulomb Meter
Includes all taxes
Meet your Seller
-
$64.71Sold by BILLIONS BIRDS
Description
Product instructions:
1. The startup information has changed. If you need to turn off information monitoring, please long press the "M" key to enter the background and turn off the information prompt!
2. Battery percentage (100% full voltage and 0% low battery voltage) and OVP (overvoltage alarm), LVP (low voltage alarm) need to be set separately, which can be set to the same value or different values
3. This product is a bidirectional current, with a+symbol for charging and a - symbol for discharging, changed to the direction of the arrow (charging position ā symbol, discharging ā symbol)
4. When encountering WiFi connection failure, long press the"M" key to enter the background and select the WiFi reset option
5. The system sound can be turned off or on, long press the "M" key to enter the background settings
6. Language selection, long press the "M" key to enter the background settings
APP instructions:
1. Increase battery percentage display (numerical and graphical display)
2. Charging as current, power will not change, discharging: The symbol - will be displayed in front of the current power value, for example, charging 12.0V 1.00A 12.00W, discharging: 12.0V -1.00A -12.00W is displayed
3. Graph curve: Real time data can be opened, and the data will change in real time
All data is uploaded to the cloud once an hour and displayed, calculated on average every hour
4. Add a switch for the relay (the device side requires long pressing the "+" key or "-" key to turn on and off). This function will only take effect if the relay package is purchased
User manual and APP download
1, User manual, PC software installation instruction and PC software and Android APP download link :http://en.atorch.cn/NewsDetail.aspx?ID=90
User manual:http://en.atorch.cn/upload/20250613110332.pdf
2, IOS APP: search smart life or tuya APP on iphone APP store to download
3, Android APP: search smart life or tuya APP at Google play to down load
Four options on control:
1. Remote control anytime anywhere (mobile app, Tuya Smart, Smart Life)
2. Voice control (AI speaker, Alexa, Google, Alice, ...)
3.Timing control (programmable schedule)
4.Manual control (by button)
Built in WiFi module, supports 2.4G network!
Built in WiFi module
Remote Control:Connect the CW20 meter Wi-Fi to 2.4GHz Wi-Fi, then you can monitor or adjust on your phone through the app at any time anywhere.
Product parameters
ā Voltage range:DC 0-420V (Need DC5V independent power supply)
Capacity range: 0-99999AH
Current rangeļ¼0~30A/0.1~100A/0.2~200A/0.3~300A/0.4~400A/0.5~500A/0.6~600A(optional)
ā” Support the modification of circuits that require additional relays to be fully charged and fully discharged, which can protect the battery;
ā¢ Support low-voltage, over-voltage, over-Power prompt or power outage (when adding 5V relay circuit); Support bidirectional current testing access,After the line, there is no distinction between the direction of current!
ā£ Support shunt selection: 100A/200A/300A/400A/500A/600A
ā¤The screw and nut specifications: M8
Attention:
This product is a bidirectional current test. When discharging, the current displays a "-" symbol. When charging, the current displays a "+" symbol. The capacity test is cumulative, and you need to hold down the "+" and "-" keys to reset zero the capacity. Enter charging or discharging to test the capacity, and the test result is the discharge capacity or charging capacity!
Attention:
Product upgrade instructions. Currently, the new product has been upgraded to combine PC and independent power supply. Please refer to the actual product received, as both can use independent power supply. Thank you
DC0-420V 30A Product List
1.30A meter WiFi version x1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC0-420V 100A Product List
1.100A meter WiFi version x1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC0-420V 200A Product List
1.200A meter WiFi versionx1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC0-420V 300A Product List
1.300A meter WiFi version x1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC0-420V 400A Product List
1.400A meter WiFi version x1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC0-420V 500A Product List
1.500A meter WiFi version x1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC0-420V 600A Product List
1.600A meter WiFi version x1pcs
2.USB power supply cables x1pcs
3.Temperature probe x1pcs
DC100V80A Relay
If you need power off function, you can add a shopping cart to purchase DC5V30A relay together!
1.DC100V80A Relay 1pcs
Fequently asked question (FAQ)
1.Can a PC connect multiple devices online?
Answer: No, a computer can only connect to one device through USB. If multiple devices are needed to view simultaneously, please prepare multiple computers to connect
2.Can mobile apps add multiple devices?
Answer: Yes, you can download and install the doodle or smart life app, pair it with WiFi, and add it to each device to observe the measurement data of different devices
3.Can I view the data curve data?
Answer: Yes, you can view the current/voltage/power/energy/CPU temperature data curve!
4.Does the device need to be powered independently by DC5V?
Answer: Yes, it is necessary. Due to the WiFi module, a USB DC 5V power supply is required to power the device in order to work.
5.Why does the connecting relay not work?
Answer: Please note that if a relay is connected, the USB DC5V power supply needs to be plugged into the HID interface in order for the relay to function!
6. Do I need to turn on Bluetooth and location information (GPS) when connecting to the WiFi app on my phone?
Answer: Yes, Bluetooth and location information (GPS) must be turned on to allow
