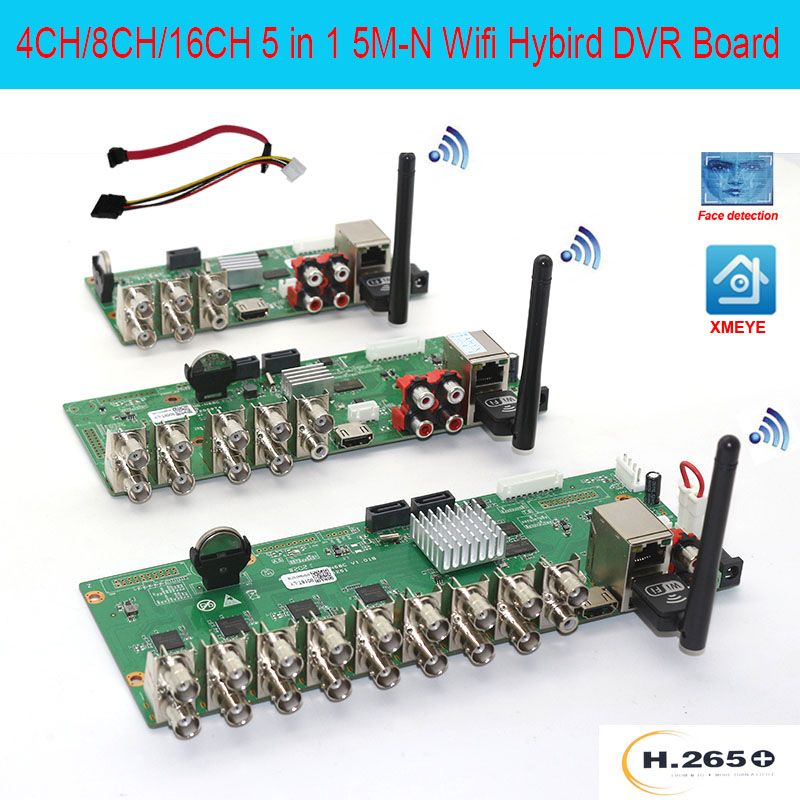

DVR NVR Module 4CH 8CH 16CH 5M-N Xmeye 5 in 1 Hybrid Coaxial Recorder Board For Replacement Surveillance AHD TVI CVI IP Camera
Includes all taxes
Meet your Seller
-
$94.20Sold by BILLIONS BIRDS
Description

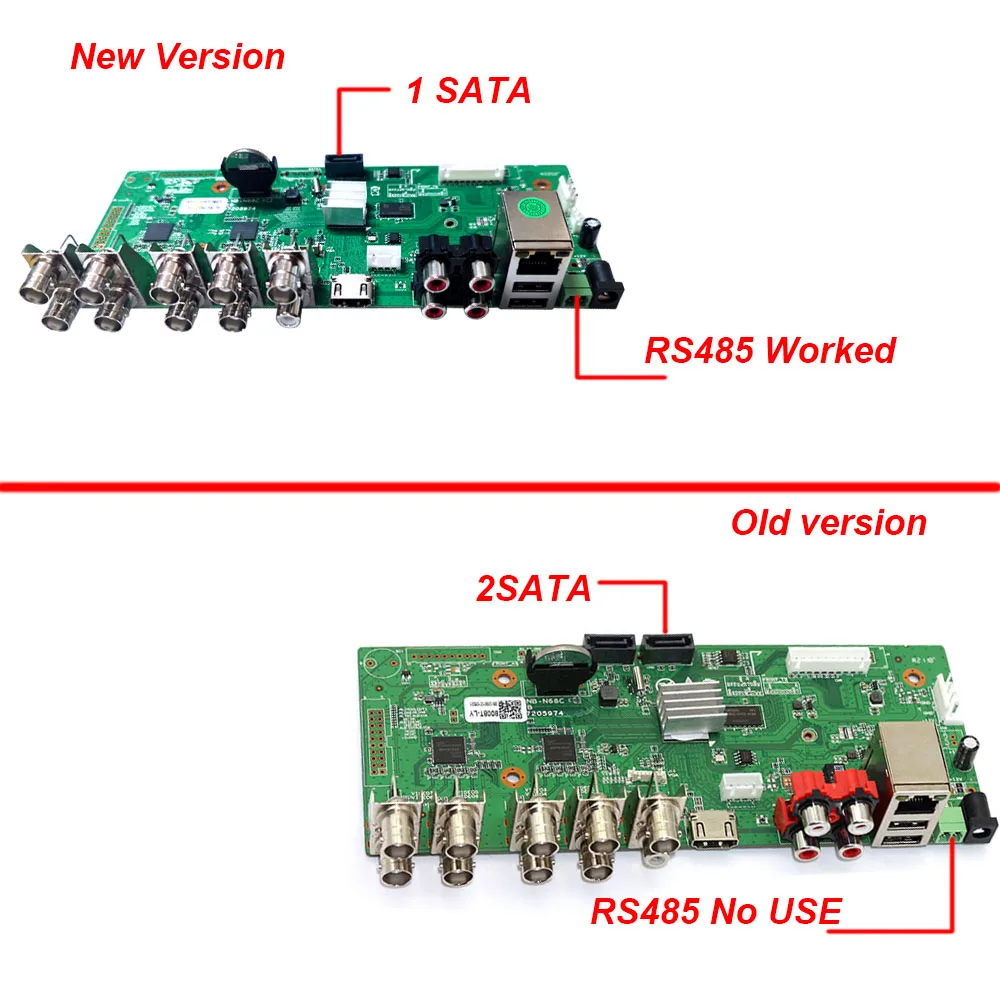

Dear customer, our product has a little change, reducing some unneeded functions(remove one SATA connector), and then adding RS485 function.please know it.thank you!

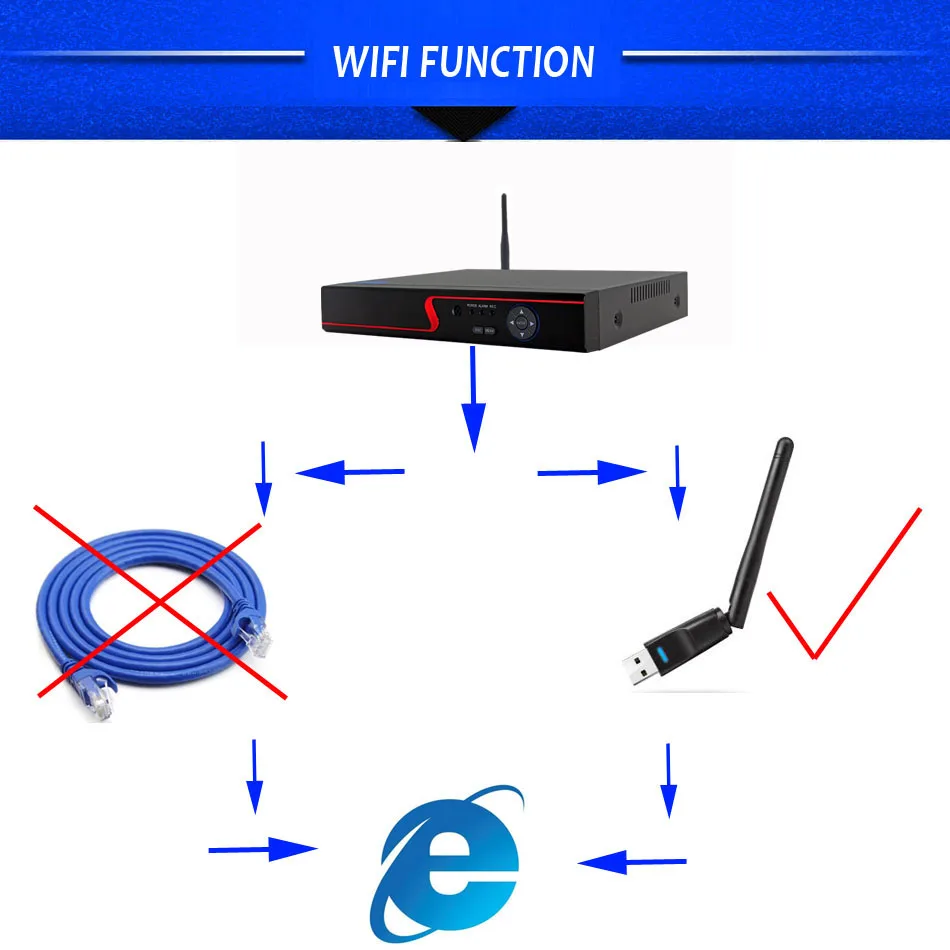

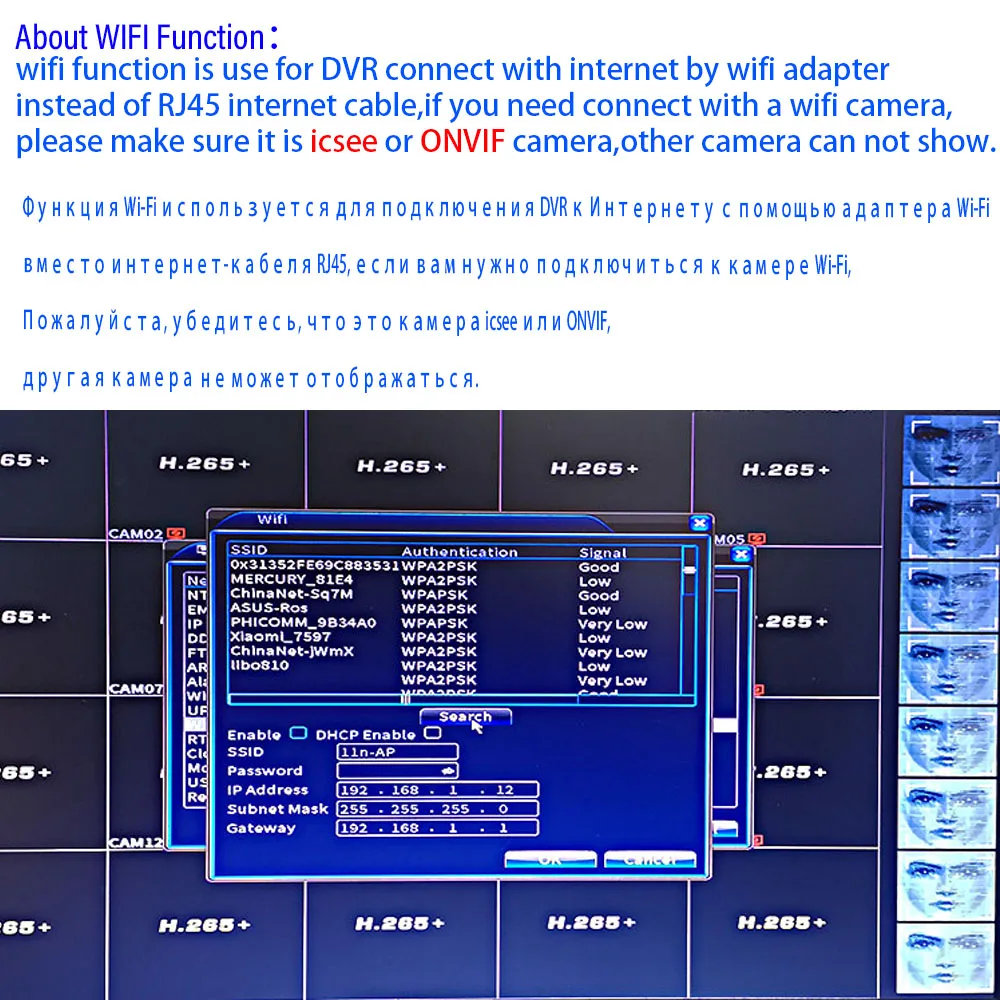

Wifi function:
Wifi fnction is use for DVR Board connect with internet by wifi adapter instead of RJ45 network cable(For example)
Channel type

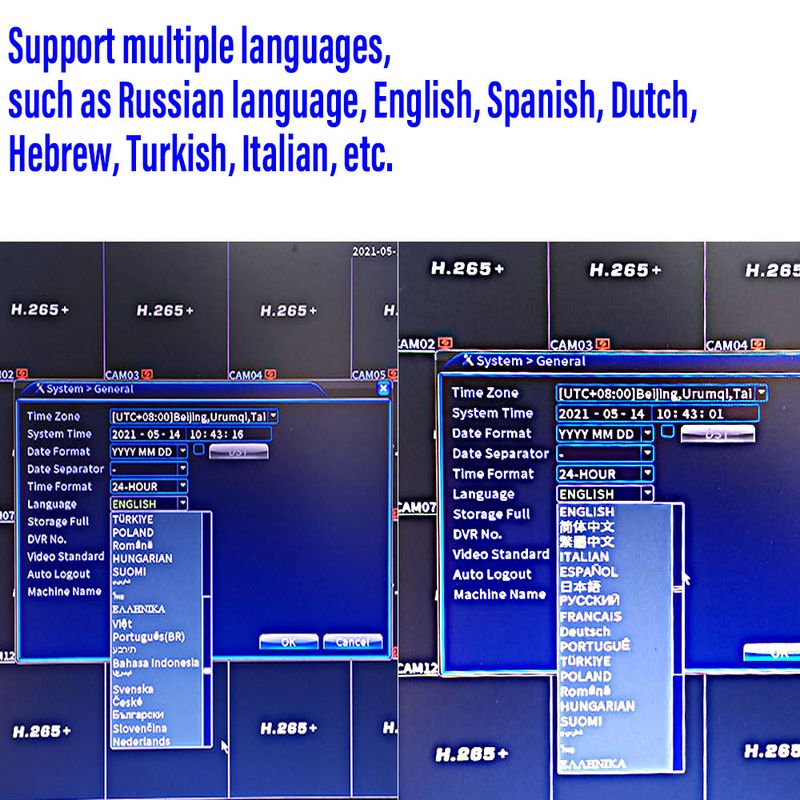

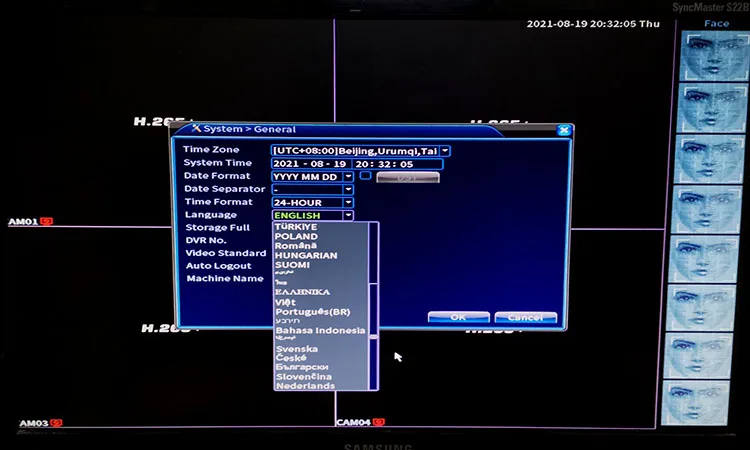

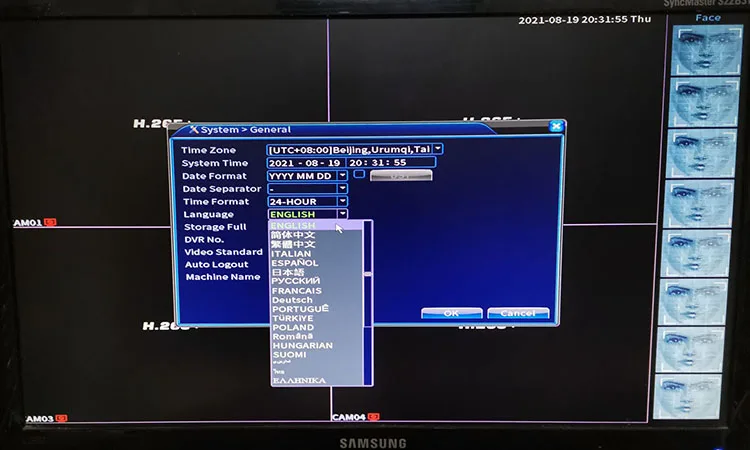

Language
Main display
4CH
8CH
16CH
H.265+
Display resolution
Features:
- Support H.265+ coding technology, ultra-low bit rate, fully compatible with H.264 matching;
- Support HDMI high-definition output display;
- Support ONVIF protocol to connect to third-party equipment (network mode);
- Support multiple cloud technologies, realize network penetration, front-end and back-end docking, push alarm information to mobile phones and other functions;
- Supporting Web, CMS, central platform management software MYEYE, and providing SDK development;
- Support various types of mobile phone monitoring (Iphone, Android);
- Remote access, with its own domain name service function (ARSP), remote monitoring is enabled with one key;
- Standard coaxial control, easy to realize back-end control and front-end;
- Support XVI/AHD/TVI/CVI/CVBS/IP signal six-in-one access;
- Support intelligent analysis: human figure detection, face detection and other functions
Technical Parameters:
4CH
System Main processor: Industrial-grade embedded chip NT98321
Interface Screen display: 1/4/8/9 screen (take the coaxial input mode as an example, others depend on the channel mode)
Image codec: H.265+

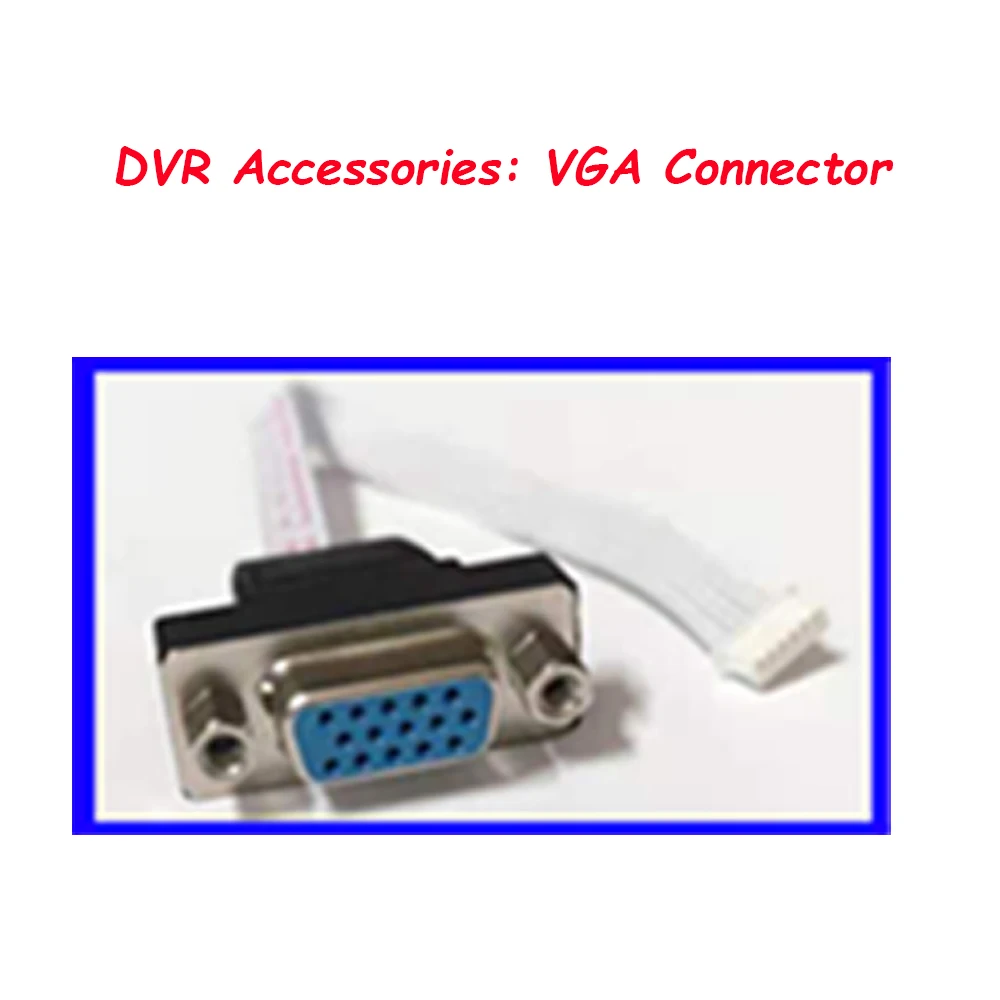

Monitoring quality: VGA (up to 1080P)not include vga connector; HDMI (up to 2K); CVBS
Preview capability: 4*5M@12fps(6 in 1)/ 4*4M@15fps(6 in 1)/ 4*3M@18fps(6 in 1)/4*1080P, default 5M-N
Encoding capability 4*5M@12fps(6 in 1)/ 4*4M@8fps(6 in 1)/ 4*3M@10fps(6 in 1)/4*1080P@18fps , default 5M-N
Decoding capability 4*5M@12fps(6 in 1)/ 4*4M@8fps(6 in 1)/4*3M@10fps(6 in 1)/4*1080P@18fps, default 5M-N

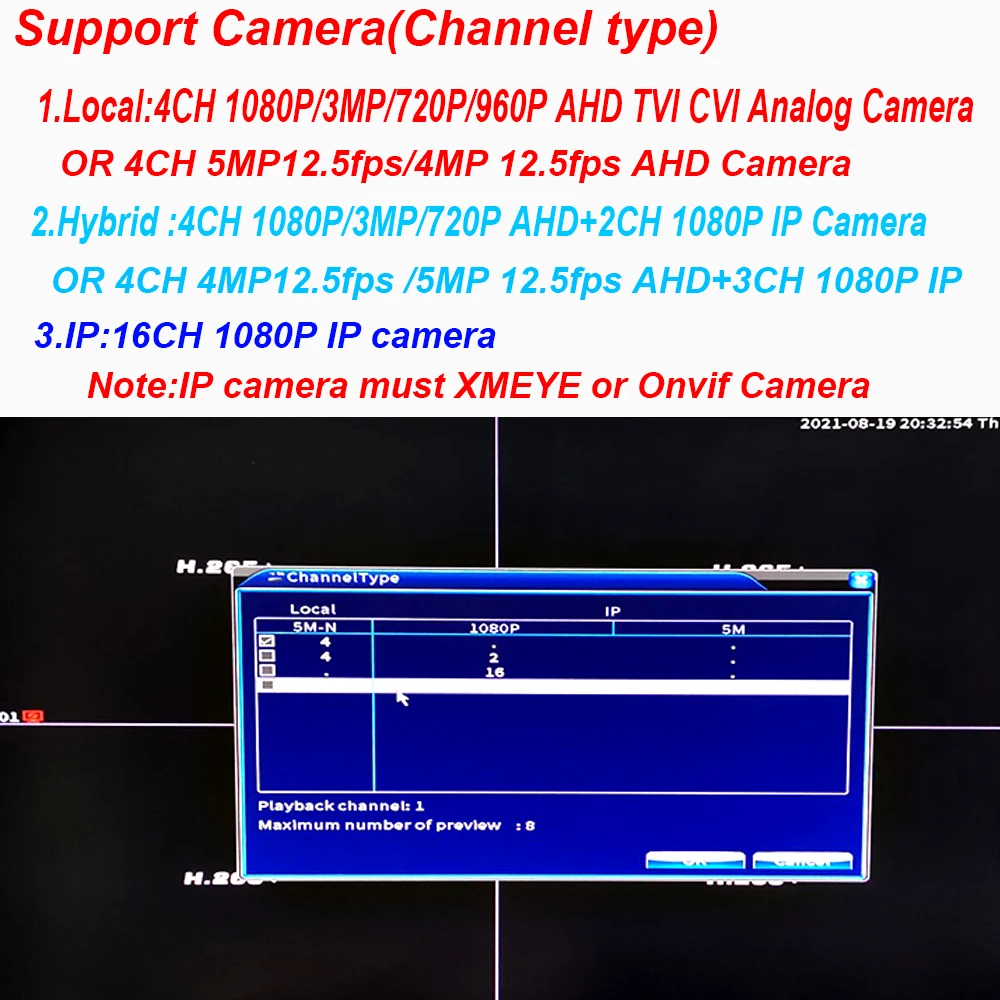

Channel type:
Local: 4*5M-N
Hybrid mode: 4*5M-N (coaxial) + 2*1080P (network)
IP mode : 16*1080P; 8*5M
Motion detection:192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (limited to local channels)
Audio compression: G.711A
Recording mode: manual>alarm>motion detection>timing
Local playback: MAX 2 channels (under coaxial input mode)
Video query: Time point search, calendar search, event search, channel search
Video preservation: Local hard disk, network
Backup method: network backup, USB mobile hard disk, USB burning, SATA burning
Video input: 4 BNC
Video output: 1 HDMI,1 CVBS,1 VGA
Network interface: RJ45 10M/100M adaptive Ethernet port
USB interface: 2 USB interfaces
Hard disk interface: 1 SATA interfaces (each supports up to 14T)
Wireless interface 3G, WIFI (expanded via USB)
Power 12V/2A
8CH
System Main processor: Industrial-grade embedded chip NT98321
Interface Screen display: 1/4/8/9 screen (take the coaxial input mode as an example, others depend on the channel mode)
Image codec: H.265+
Monitoring quality: VGA (up to 1080P); HDMI (up to 2K); CVBS
Preview capability: 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P@15fps (XVI front end), default 5M-N
Encoding capability 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps(6 in 1)/8*1080P@15fps (XVI front end), default 5M-N
Decoding capability 2*5M-N@12fps(6 in 1)/ 2*4M-N@15fps(6 in 1)/2*1080P@15fps (XVI front end), default 5M-N

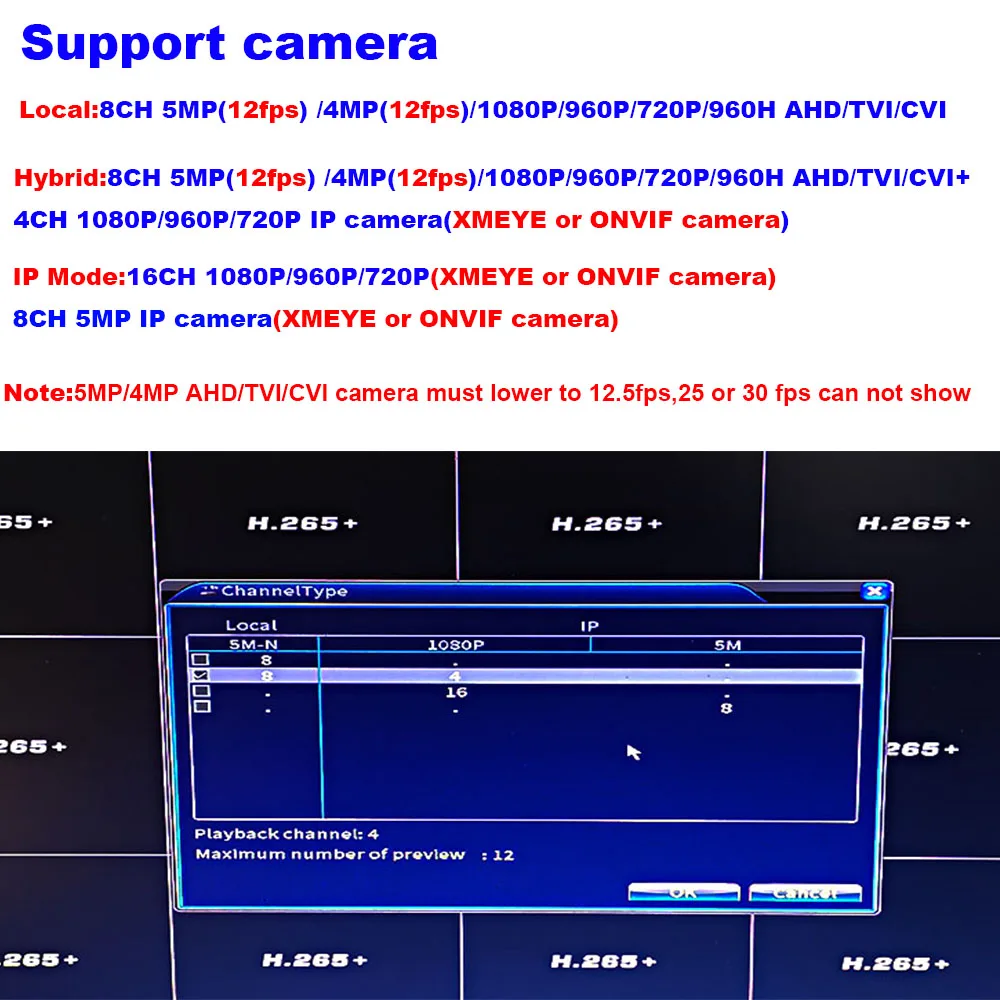

Channel type:
Local: 8*5M-N
Hybrid mode: 8*5M-N (coaxial) + 4*1080P (network)
IP mode : 16*1080P; 8*5M
Motion detection:192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (limited to local channels)
Audio compression: G.711A
Recording mode: manual>alarm>motion detection>timing
Local playback: 4 channels (under coaxial input mode)
Video query: Time point search, calendar search, event search, channel search
Video preservation: Local hard disk, network
Backup method: network backup, USB mobile hard disk, USB burning, SATA burning
Video input: 8 BNC
Video output: 1 VGA, 1 HDMI, CVBS
Network interface: RJ45 10M/100M adaptive Ethernet port
USB interface: 2 USB interfaces
Hard disk interface: 1 SATA interfaces (each supports up to 14T)
Wireless interface 3G, WIFI (expanded via USB)
Power 12V/2A
16CH
- Main processor: Industrial-grade embedded chip NT98312
- Screen display: 1/4/8/9/16 screen (take the coaxial input mode as an example, others depend on the channel mode)
- Image codec: H.265+
- Monitoring quality: VGA (up to 1080P); HDMI (up to 4K)
- Preview capability: 16*5M-N@12fps(6 in 1)/16*4M-N@15fps(6 in 1)/16*1080P@15fps(XVI front end), default 5M-N
- Coding capability: 16*5M-N@6fps(6 in 1)/16*4M-N@8fps(6 in 1)/16*1080P@8fps(XVI front end), default 5M-N
- Decoding ability: 8*5M-N@6fps(6 in 1)/16*4M-N@8fps(6 in 1)/16*1080P@8fps(XVI front end), default 5M-N

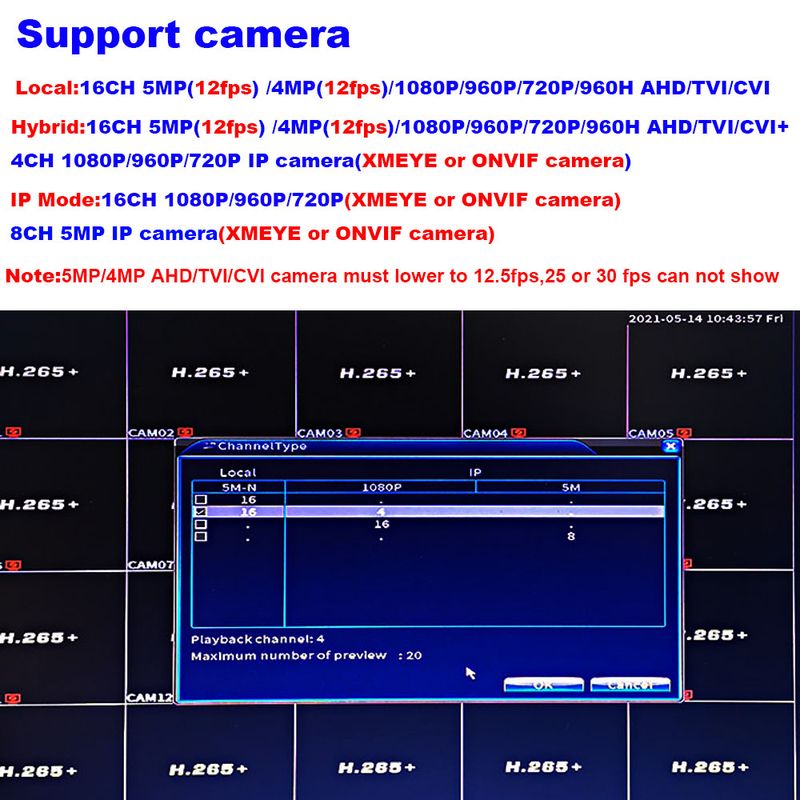

- Multi-mode input:
- Coaxial: 16*5M-N
- Network: 16*1080P; 4*5M
- Motion detection: 192 (16*12) detection areas can be set for each screen; multi-level sensitivity can be set (limited to local channels)
How to see it by smartphone and by CMS
please use computer and enter www.xmeye.net and then use serial number to enter(serial can find in this DVR and remember do not tell your serial number to anybody)
How to see it by smartphone and by smartphone
Download Xmeye APP--open it--choose log on locally--add device--input seriac number to login
If you have any questions on how to use it,please contact us.
