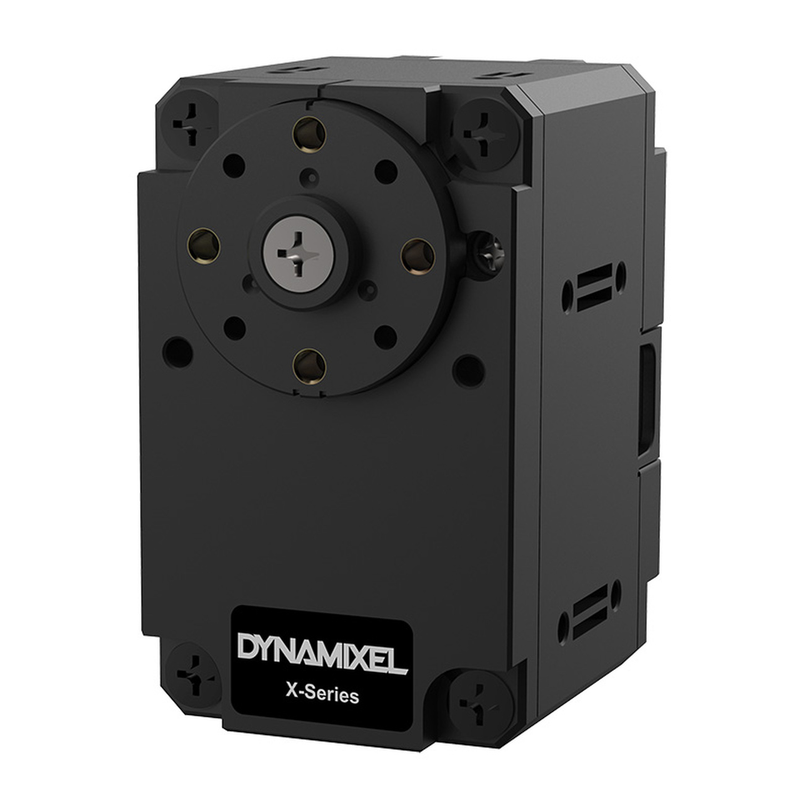

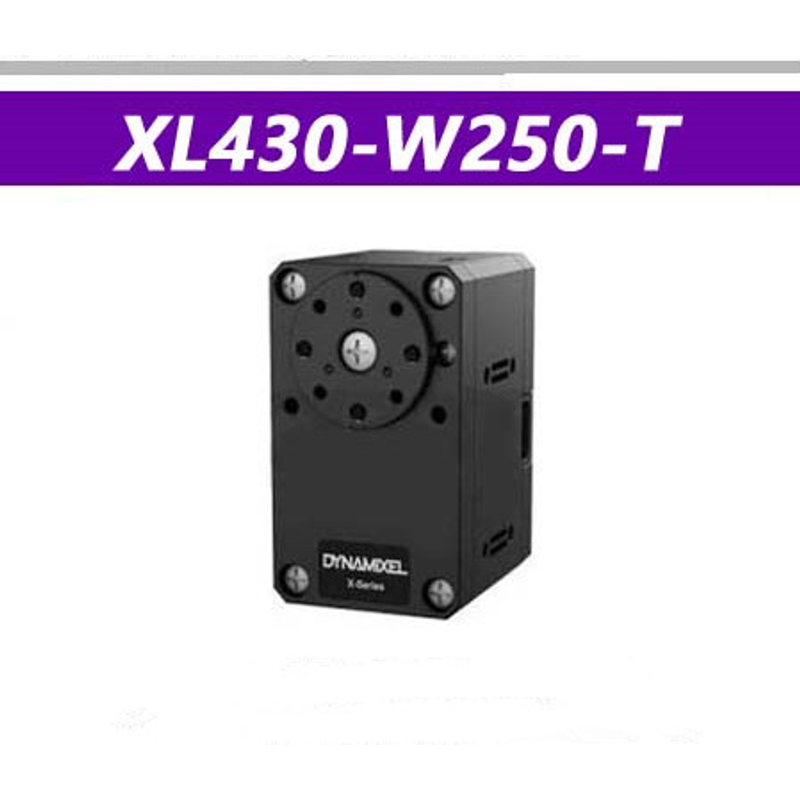

DYNAMIXEL XL series ROBOTIS DYNAMIXEL XL430-W250-T servo
Includes all taxes
Meet your Seller
-
$148.37Sold by BILLIONS BIRDS
Description
DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Controller + Driver + Sensor + Reduction Gear + Network in one DC servo module.
The DYNAMIXEL XL series adopts new features that allow 360 degrees control mode with its contactless magnetic encoder and hollow back case assembly structure. The XL series has the same mechanical structure as the XM430 and XH430 and is compatible with the respective models.
1. Various Operating Modes
(Velocity Control, Position Control, Extended Position Control, PWM Control)
2. Profile Control for Smooth Motion Planning
3. Hollow Back Case Minimizes Cable Stress (3-way-routing)
4. Easy and Simple Assembly Structure
5. Energy Saving with Reduced Current
XL430-W250-T | 1 |
HN11-N101 (Pre-assembled) | 1 |
Robot Cable-X3P 180mm | 1 |
Bolt (M2.6*5) TAP | 5 |
Bolt (M2*5) | 5 |
Bolt (PHS M2.5x14) | 5 |
Spacer | 5 |
Not included Idler Set (HN11-I101 Set)

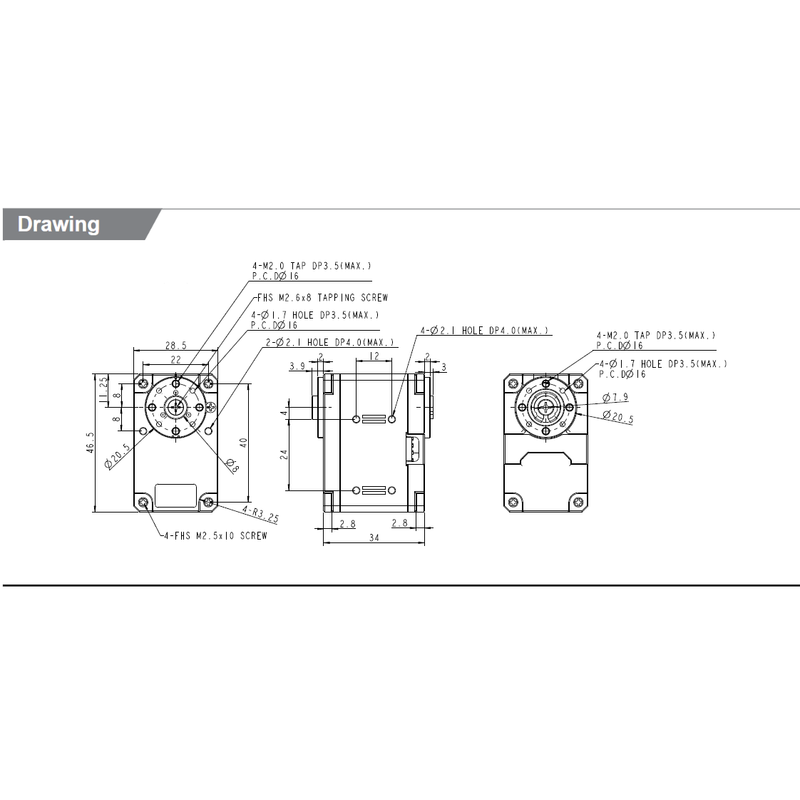

Drawing

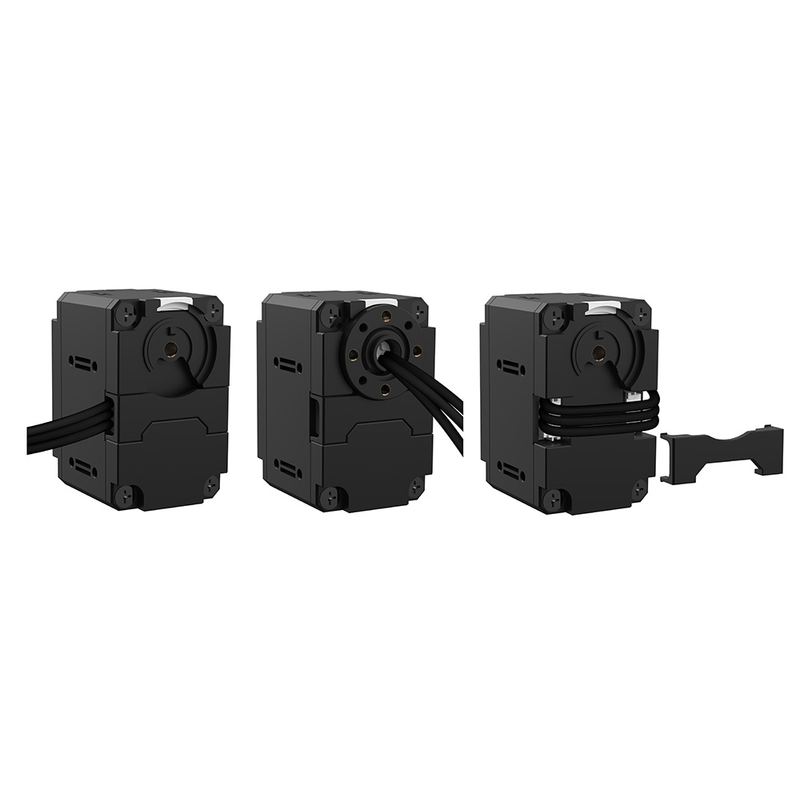

DYNAMIXEL-X Series cable assembly through hollow case
Organize the entangled cable before assembling the back case.
Do not assemble the back case with entangled cable. The entangled cable can be squashed by the case and cause communication error.
If you use two cables through the hollow case, the cables will be damaged.
Use only one cable through the hollow case.

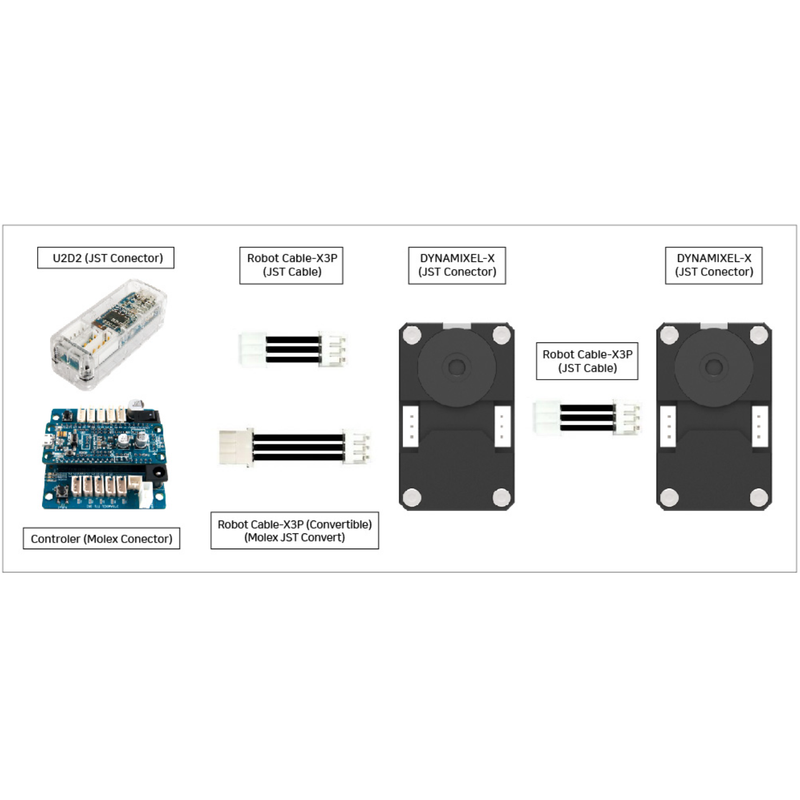

The DYNAMIXEL-X Series adopted a new gold-plated JST connector for secure and reliable communication.
The connector used for the previous DYNAMIXEL is Molex.
To control DYNAMIXEL-X Series actuators via OpenCM or USB2Dynamixel, please use the JST-Molex Convertible Cable enclosed in the package.
However, the Molex-JST convertible cable is NOT included in the XL430 model.
Please purchase a convertible cable when using a controller and interface that supports the JST connector.
Model Name | XL430-W250-T | |
MCU | Cortex-M3 (72 [Mhz], 32 [bit]) | |
Input Voltage | Min. [V] | 6.5 |
Recommended [V] | 11.1 | |
Max. [V] | 12.0 | |
Performance Characteristics | Voltage [V] | 12.0 |
Stall Torque [N·m] | 1.50 | |
Stall Current [A] | 1.4 | |
No Load Speed [rpm] | 61.0 | |
No Load Current [A] | 0.15 | |
Continuous Operation | Voltage [V] | - |
Torque [N·m] | - | |
Speed [rpm] | - | |
Current [A] | - | |
Resolution | Resolution [deg/pulse] | 0.0879 |
Step [pulse/rev] | 4 | |
Angle [degree] | 360 | |
Position Sensor | Contactless absolute encoder (12Bit, 360 [deg]) | |
Operating Temperature | Min. [°C] | -5 |
Max. [°C] | 72 | |
Motor | Cored | |
Baud Rate | Min. [bps] | 9,600 |
Max. [bps] | 4,500,000 | |
Control Algorithm | PID | |
Gear Type | Spur | |
Gear Material | Engineering Plastic | |
Case Material | Engineering Plastic | |
Dimensions (WⅹHⅹD) [mm] | 28.5 X 46.5 X 34.0 | |
Dimensions (WⅹHⅹD) [inch] | 1.12 X 1.83 X 1.34 | |
Weight [g] | 57.00 | |
Weight [oz] | 2.02 | |
Gear Ratio | 258.5 : 1 | |
Command Signal | Digital Packet | |
Protocol Type | Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity) | |
Link (Physical) | TTL Level Multi Drop Bus | |
ID | 0 ~ 252 | |
Feedback | Position, Velocity, Load, Realtime tick, Trajectory, Temperature, Input Voltage, etc | |
Protocol Type | Protocol 1.0 | |
Operating Mode / Angle | Velocity Control mode：Endless turn | |
Output [W] | - | |
Standby Current [mA] | 52 | |
