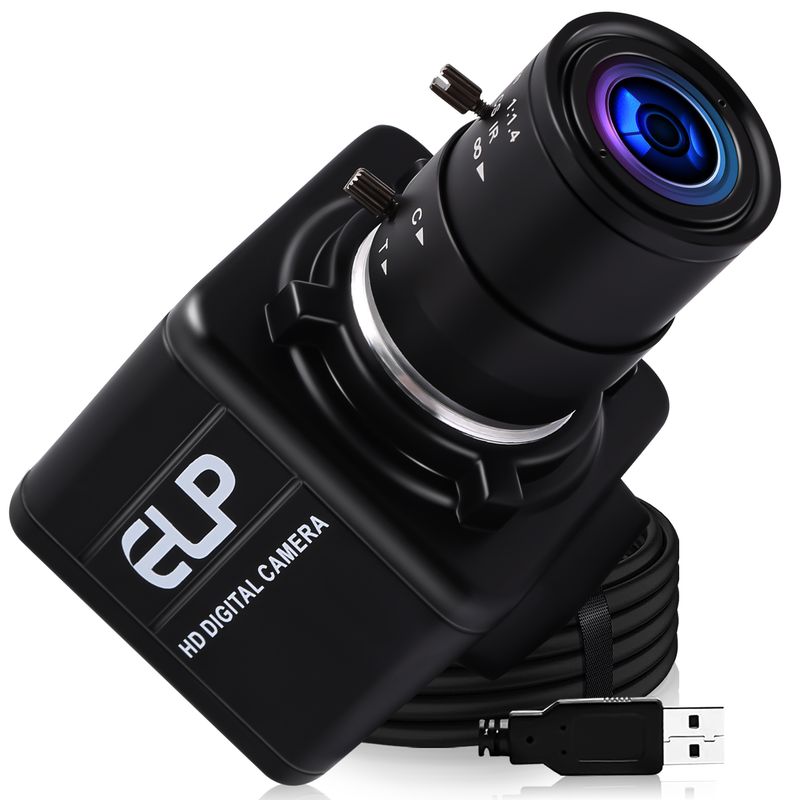

ELP 120fps 210fps Global Shutter USB Camera 800P 720P 1MP OV9281 Monochrome USB Webcam with 5-50mm Zoom Lens for Motion Capture Surveillance




Package Includes:

1pcs 800P Monochrome global shutter usb camera with manual focus or fixed focus lens;

1pcs 3m usb cable, optional 1/2/5m cable.


Description:

        ELP-USBGS800P03 is a new member of ELP's USB camera family. It's max resolution 1MP 1280*800P, can do 120fps/210fps/420fps/640fps high frame rate, based on the monochrome global shutter OV9281 image sensor, UVC compliant USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete images even for high-speed moving objects.





1. Sensor:  Based on 1MP monochrome global shutter sensor OV9281, without IR pass filter, sensitive to IR;

2. Resolution: HD 1280* 800 High Resolution 1MP Global Shutter USB Camera;

3. High Speed: MJPEG 120 FPS@1280* 800 , 1280*720 / 210FPS @ 640*480 / 420FPS @ 320X240/ 640FPS @ 160*120 etc.;

4. Megapixel Lens: High Quality lenses with CS mount, 2.8-12mm/ 5-50mm/6-60mm varifocal zoom lens, 4/6/8/12mm manual Focus Lens optional;

5. UVC Support: Free Driver , Plug and Play, easily used on different systems;

6. Support Multiple Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...;

7. OTG Support: can be used on smartphone, Tablet, Mini PC and other mobile device;

8. Wide Application: Well used for High Speed- sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection.... and so on.


Why Global Shutter Cameras?


A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.It can avoid smearing when when capturing high-speed motion.


Difference between Rolling Shutter and Global Shutter


Models

ELP-USBGS800P03-MFV(2.8-12) (2.8-12mm Vrifocal Zoom Lens)

ELP-USBGS800P03-MFV(5-50)(5-50mmVarifocal Zoom Lens)

ELP-USBGS800P03-MFV(6-60)(6-60mmVarifocal Zoom Lens)

ELP-USBGS800P03-MF40 (4mmManual Focus Lens)

ELP-USBGS800P03-MF60(6mmManual Focus Lens)

ELP-USBGS800P03-MF80(8mmManual Focus Lens)

ELP-USBGS800P03-MF12(12mmManual Focus Lens)

Sensor

OmniVision OV9281

Lens Size

1/4inch

Pixel Size

3 µmx3 µm

Max Resolution

1280(H)x 800(V)

Default Resolution

640(H)x 480(V) @ 210fps MJPEG

Image Format

MJPEG

Resolution&Frame rate

1280x800 @ 120fps MJPEG /1280x720 @ 120fps MJPEG

1024x768@ 120fps MJPEG / 800x600 @ 120fps MJPEG

640x480 @ 210fps MJPEG/640x400@ 210fps MJPEG

320x240 @420fps MJPEG/160x120@ 640fps MJPEG

Surface Mount Technology

SMT

Focus

Manual Focus

Central Definition

600LW/PH (Center)

S/N Ratio

37dB

Dynamic Range

70dB

Sensitivity

1.4V/lux-sec@550nm

Min illumination

0.3Lux

Shutter Type

Global Shutter

Connecting Port Type

USB2.0 High Speed

AEC

Support

AWB

Support

AGC

Support

Adjustable Parameters

Brightness, contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure

Lens Parameter

CS 2.8-12mm/5-50mm/6-60mm varifocal zoom lenses, 4mm/6mm/8mm/12mm manual focus lenses optional.

LED Board Power Connector

Support 2P-2.0mm socket

Power Supply

USB BUS POWER 4P-2.0mmSocket

Operating Voltage

DC5V

Working Current

100mA- 130mA

Board Dimension

38mmx 38mm(Compatible 32mm x 32mm)

Storage Temperature

-20°C to 85°C

Working Temperature

-10°C to 70°C

USB Cable

3M(1M/2M/5M... optional)

Operating System Request

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC



High Frame @120fps / 210fps / 420fps / 640fps Fast frame for for high-speed moving objects shooting, perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

Global Shutter, Exposing entire sensor at one time,free of distortion. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

5-50mm 10X Manual Zoom Lens usb webcam gives you the control to zoom in and out, focus and adjust aperture size, to give brightness to your subject and you can lock those in place with the aid of some screws on the lens.This camera debugging is very professional, different shooting angle will produce different results.

With 1/4`` size screw hole for mounting purpose, easily and conveniently used.

High compatibilty with Windows/Linux/Andorid/Mac/Raspberry PI, etc. Plug and play,free driver,UVC compliant, Can be used for all kind of machine vision,electronic microscope,medical machine,automated image acquisition system,3D scanner,VR camera,electronic microscope,medical machine,automated image acquisition system.





Global shutter cameras are commonly used in applications where distortion is a concern, such as in sports photography or industrial inspection,general photography or video applications, industrial automation, robotics, or scientific imaging, gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
