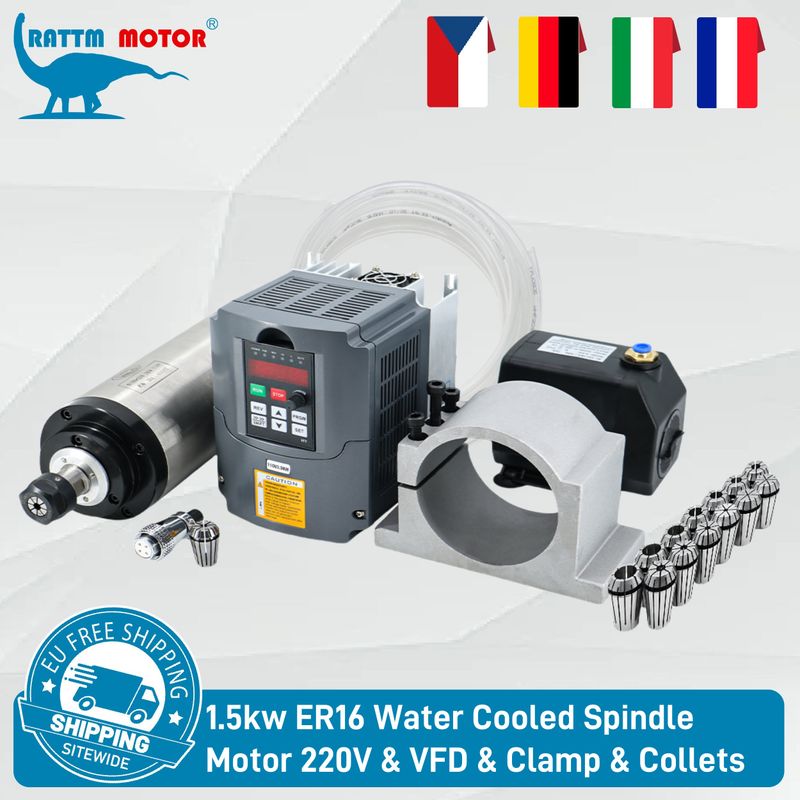

【EU Free VAT】1.5kw ER16 Water Cooled Spindle Motor & 1.5kw Inverter VFD & 80mm Clamp & 75W Pump & ER16 Collets for CNC Router
Includes all taxes
Meet your Seller
-
$410.08Sold by BILLIONS BIRDS
Description
Just Spindle Package include:
1 x 1.5KW ER16 Water-cooled spindle motor (220V,400Hz,24000rpm)

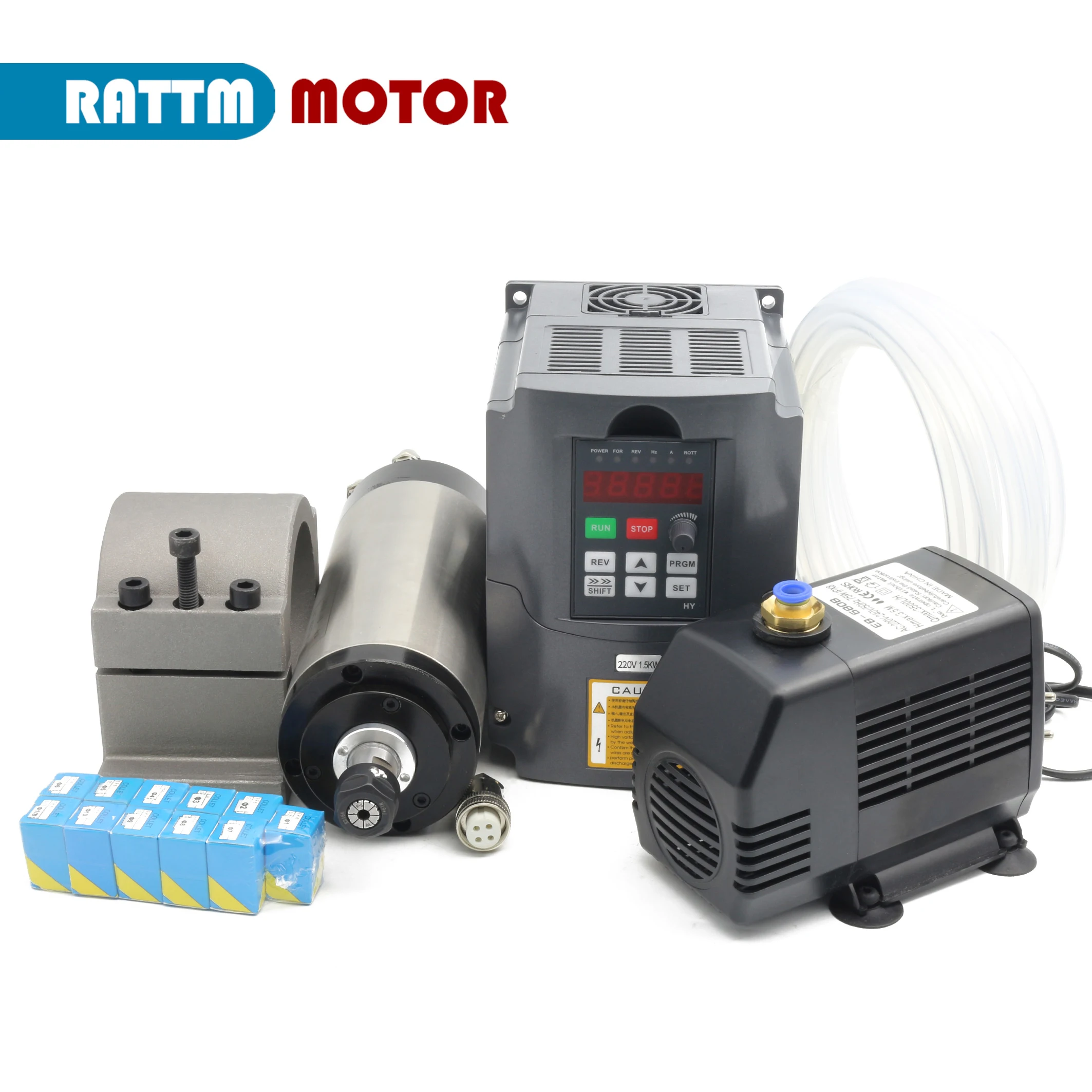

Full kit Package include:
1 x 1.5KW ER16 Water-cooled spindle motor (220V,400Hz,24000rpm)
1 x1.5KW HY Inverter VFD
1 x 80mm cast aluminium bracket clamp
1 x 75mm Water pump
6M Water pipes
1 set ER16 collet 11Pcs
English manual of the VFD will send to ur email.

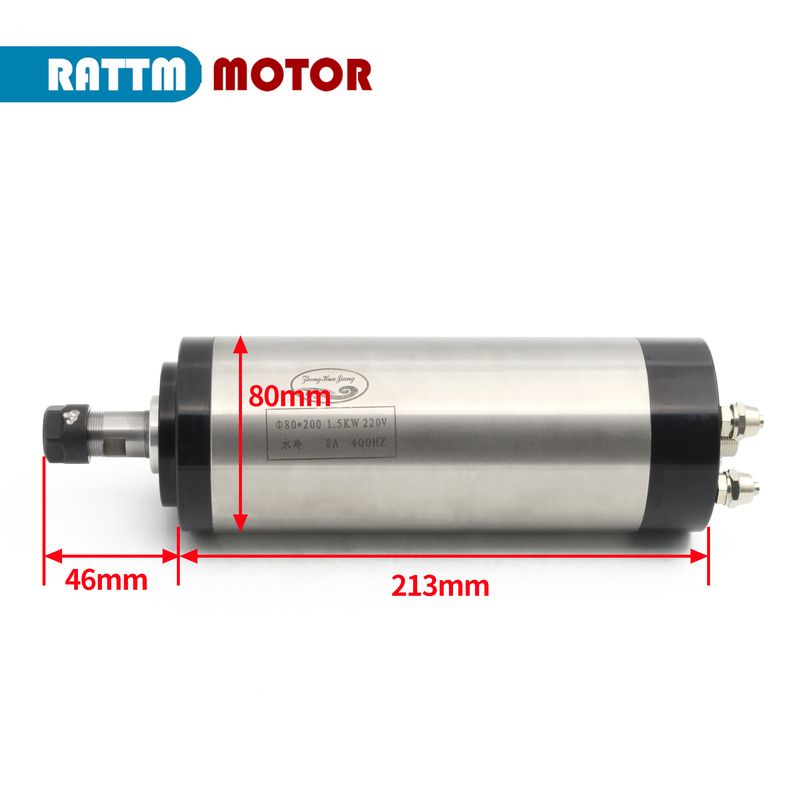

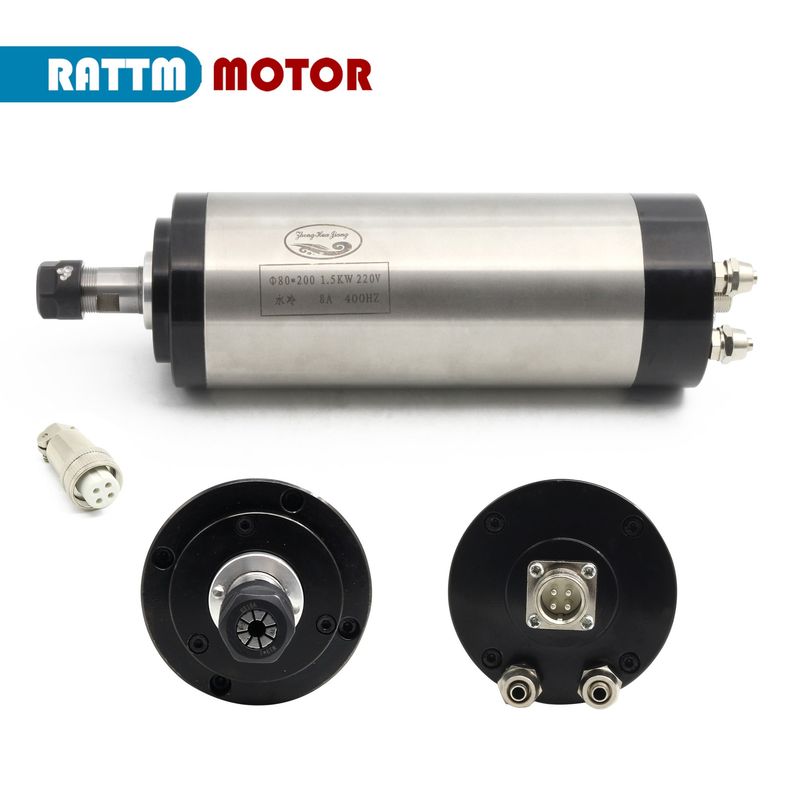

1. 1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND
Specification:
Material:Stainless Steel
Size:Φ80x200mm
Power:1.5Kw
Voltage:220VAC
Current:8A
Frequency:0-400Hz
Speed:10-24000rpm
Cooling:Water-cooling
Precision tapered bore:0.003--0.005
Runout off:Less than 0.02mm
Bearing Lubrication:Grease
Collet size:ER16
Bearings:4 bearings (C7004x2+C7002x2),P4 class
Net Weight:4.6kg
Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.
Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

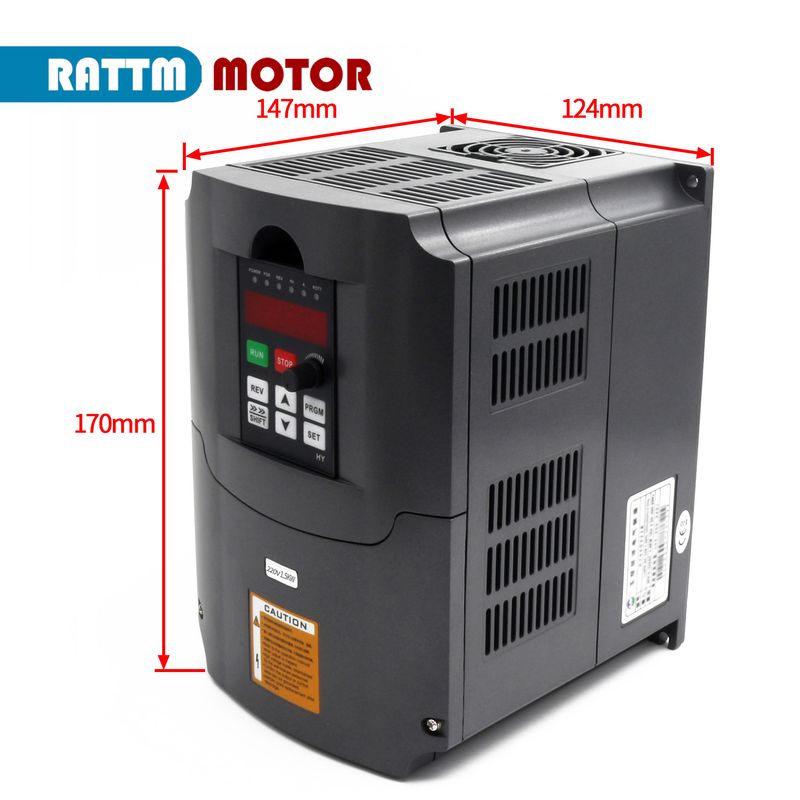

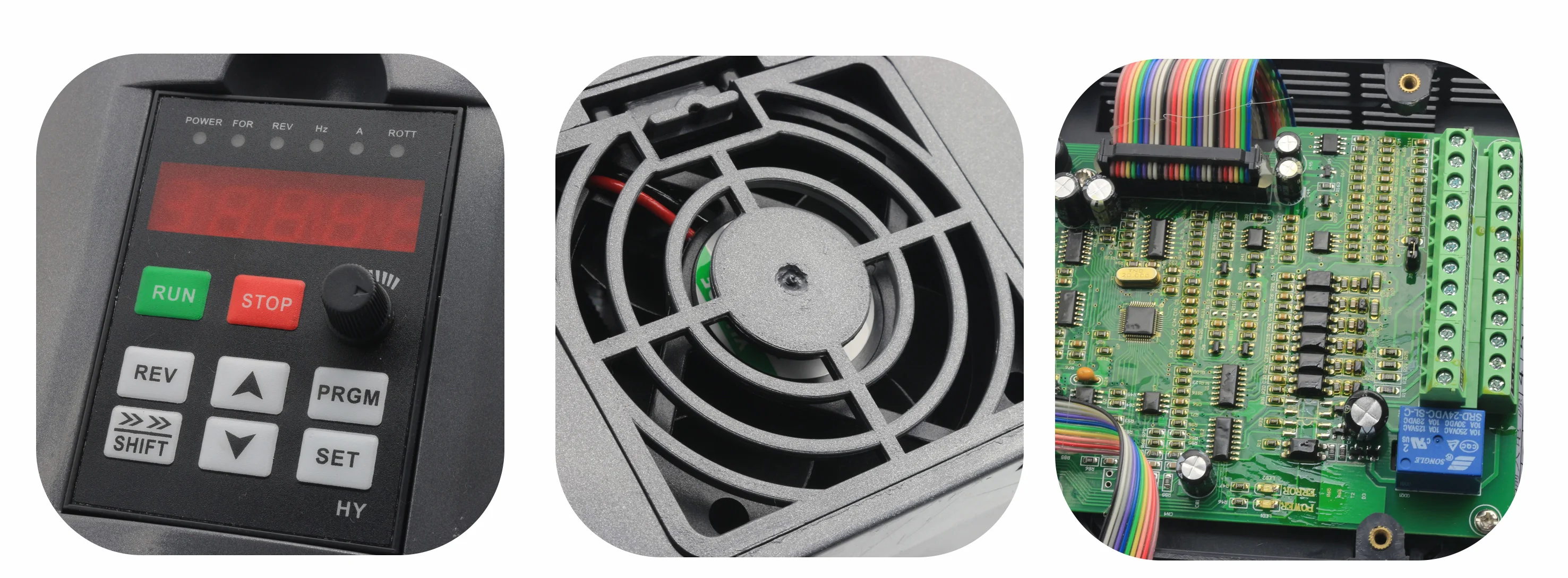

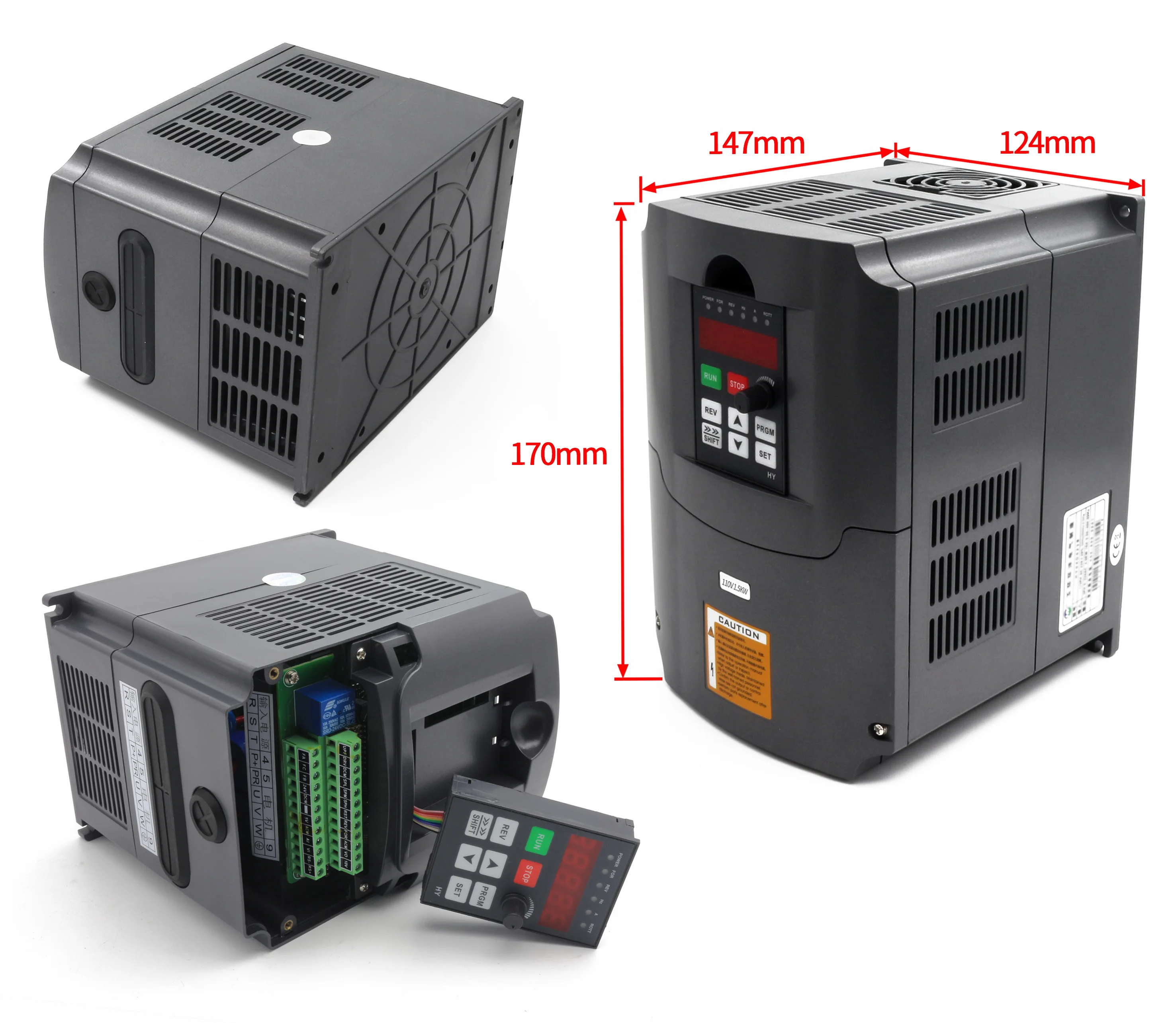

2. 1.5kw Inverter VFD
ProductFeature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage:220V(+/-15%)
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased
Specification
Series | HY inverters | |
Control Mode | SPWM | |
Input Power | 380V class:380V(+/-15%);220V class:220V(+/-15%) | |

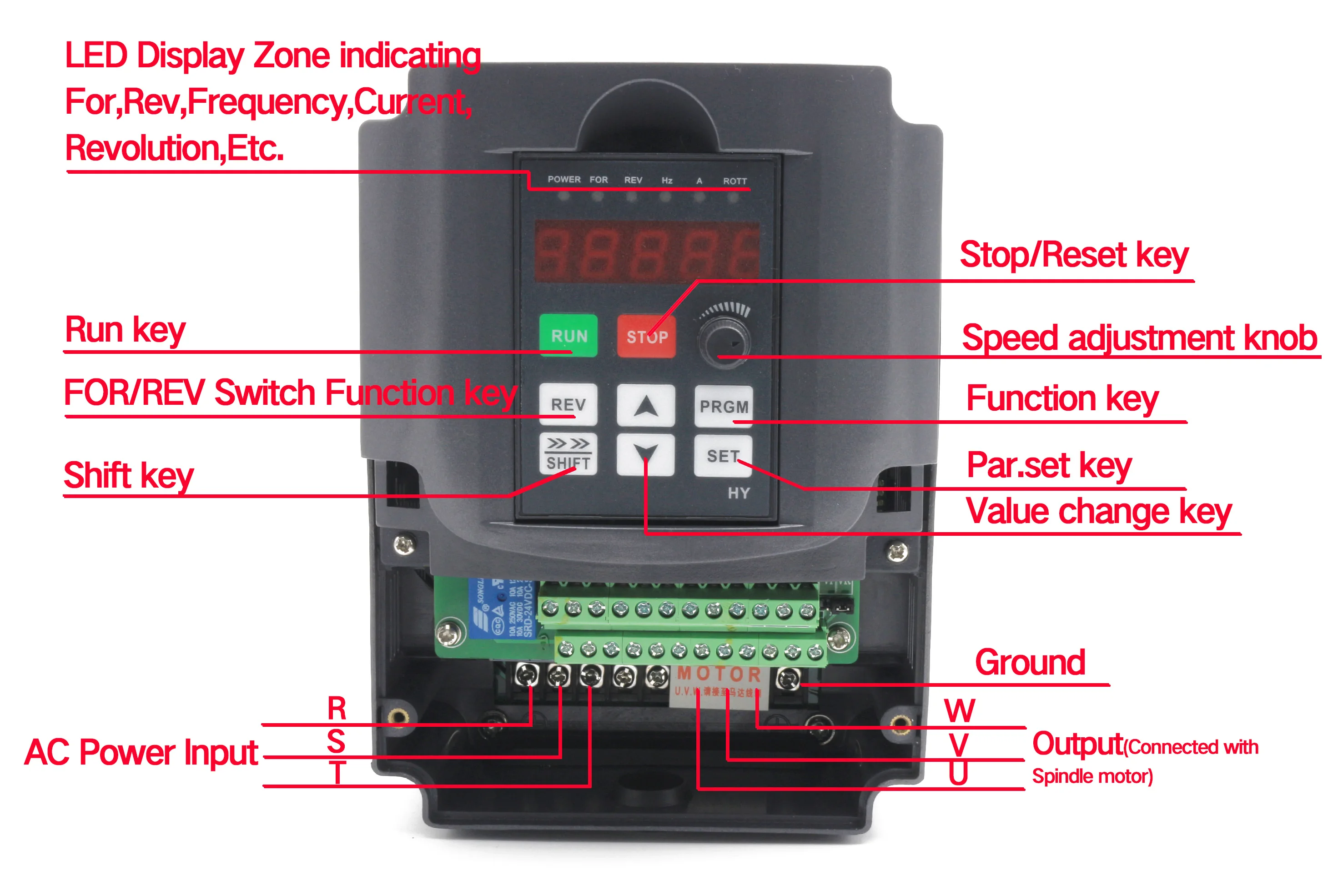

5-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc. | |
Communication Control | RS-485 | |
Working Temperature | -10~40 Celsius Degrees | |
Humidity | 0-95% Relative Humidity(without dew) | |
Vibration | Below 0.5G | |
Frequency Control | Range | 0.1~2500.0Hz |
Accuracy | Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees) | |
Setting Resolution | Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency | |
Output Resolution | 0.1Hz | |
Operator Setting Method | Press directly keys to set. | |
Analog Setting Method | External Voltage 0-5V,0-10V,4-20mA,0-20mA. | |
Other Functions | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set. | |
General Control | Ramp Control | Selectable 4-speed steps ramp-up and -down time (0.1-6500s). |
V/FCurve | Set V/F curve at will. | |
Torque Control | Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. | |
Multi-Inputs | 6 | |
Multi-Outputs | 5 | |
Other Functions | Auto | |
Protection Functions | Overload Protection | Electronic relay protection motor drive Drive(for constant torque 150% per min. for the kinds of fan 120% per min.) |
FuseProtection | When the fuse breaks, the motor will stop. | |
Over-voltage | 220V class:DC Voltage >400V 380V class:DC Voltage >800V | |
Under-voltage | 220V class:DC Voltage <200V 380V class:DC Voltage <400V | |
Restart After Instant Stop | Restart with Frequency Track after Instant Stop | |
Stall Protection | Stall protection in ramp operation | |
Output Short Circuit | Electrical circuit protection | |
Other Functions | Fin | |

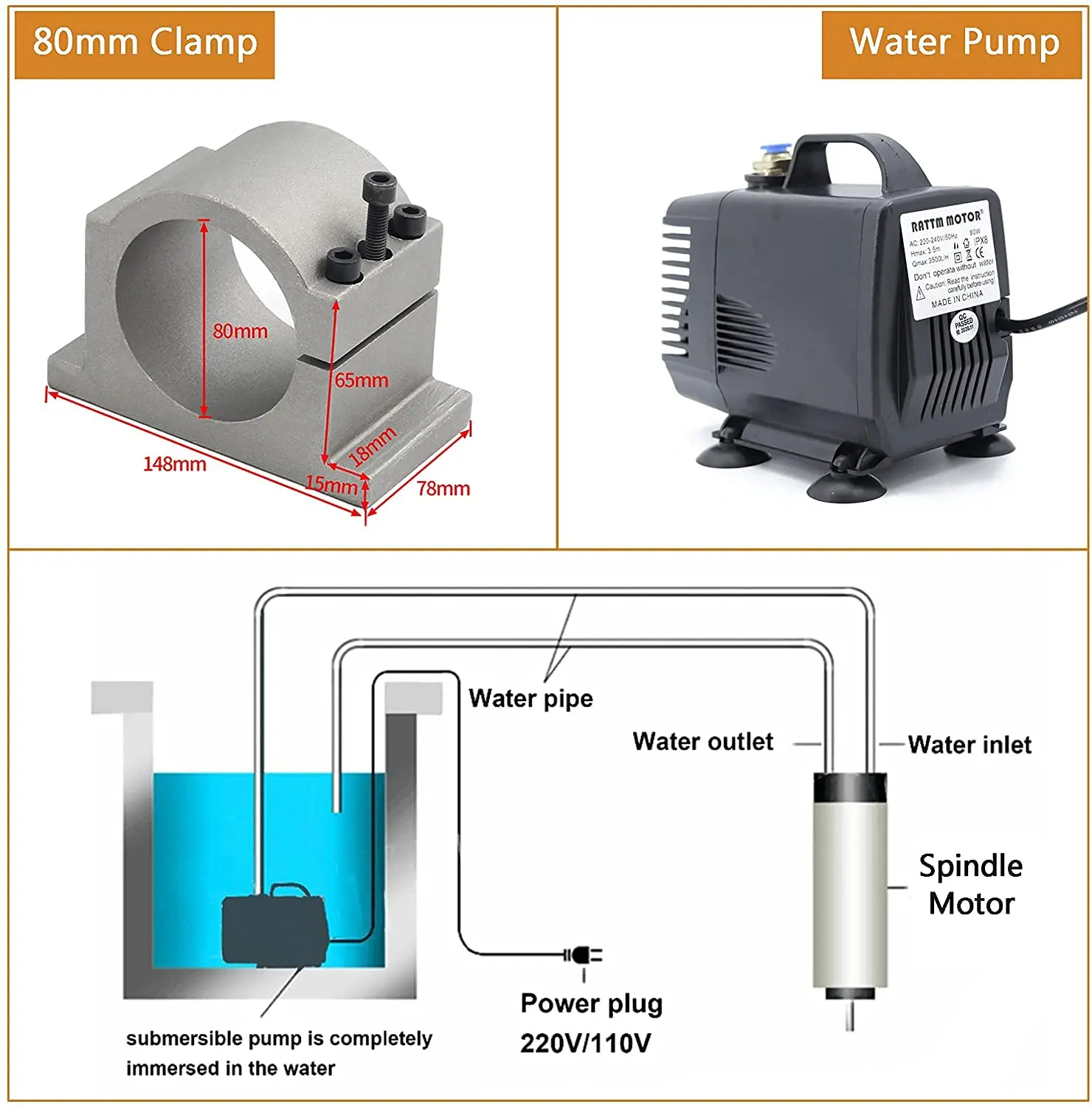

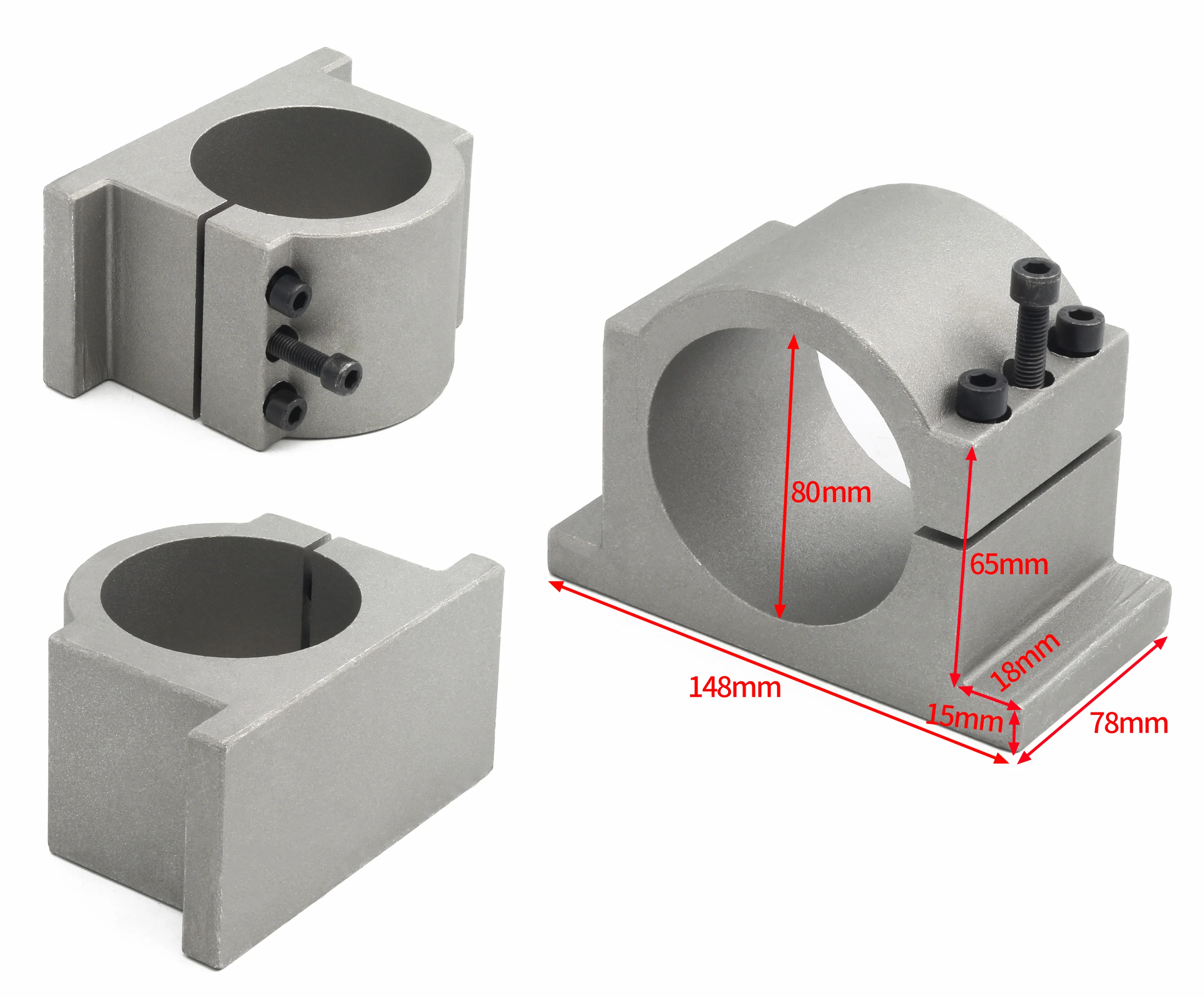

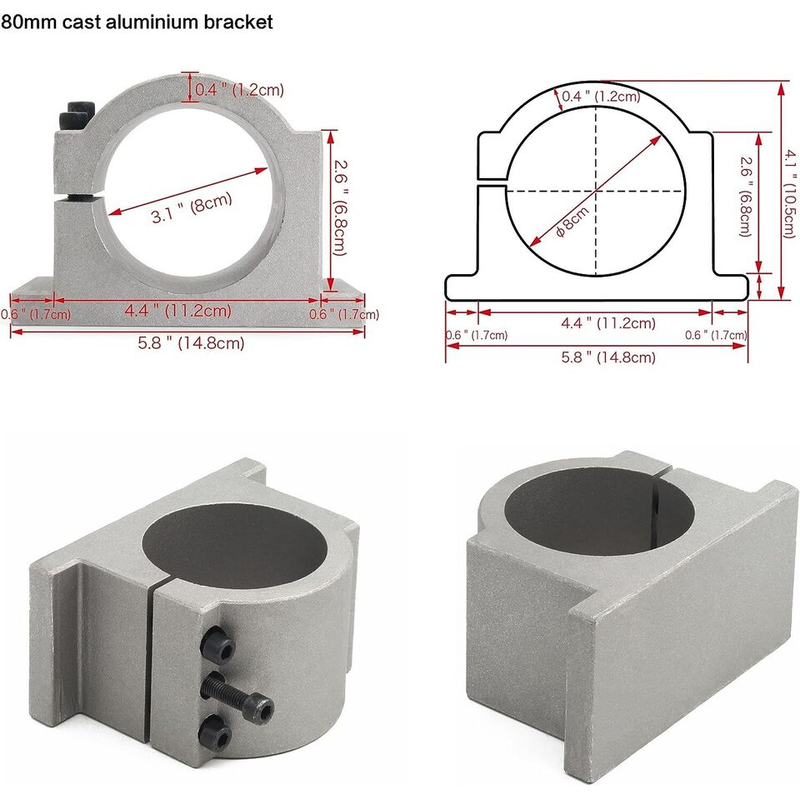

3. 80mm cast aluminium bracket

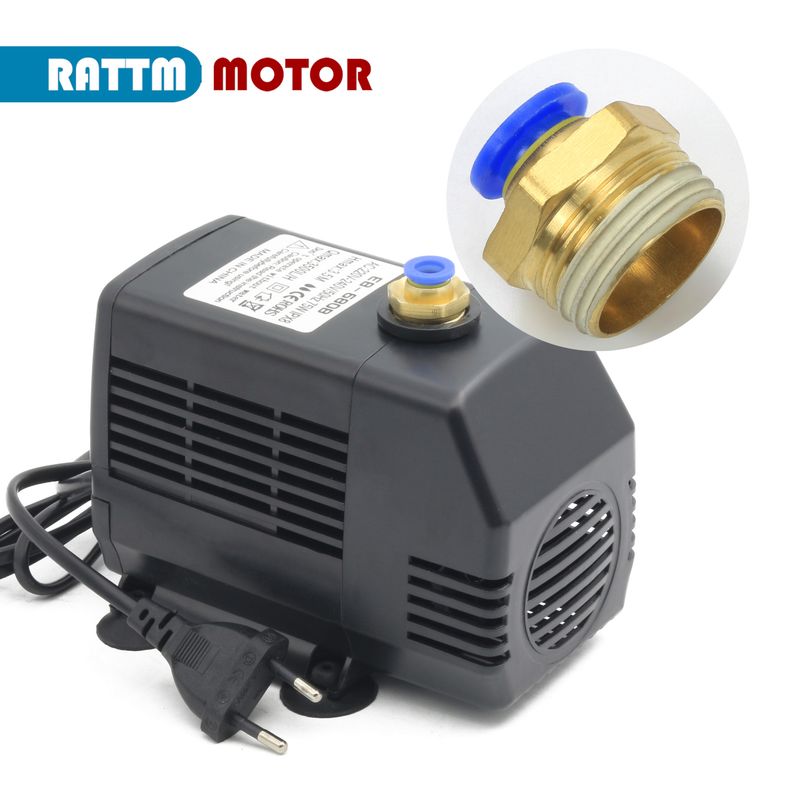

4. 80W CNC spindle motor water pump 3.2m 220VAC
Specification:
Pump length:3.2m
Voltage:220-240VAC
Power:75W
Flow:3000L/H
Size:150x80x140mm
Water nozzlediameter:6mm
Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

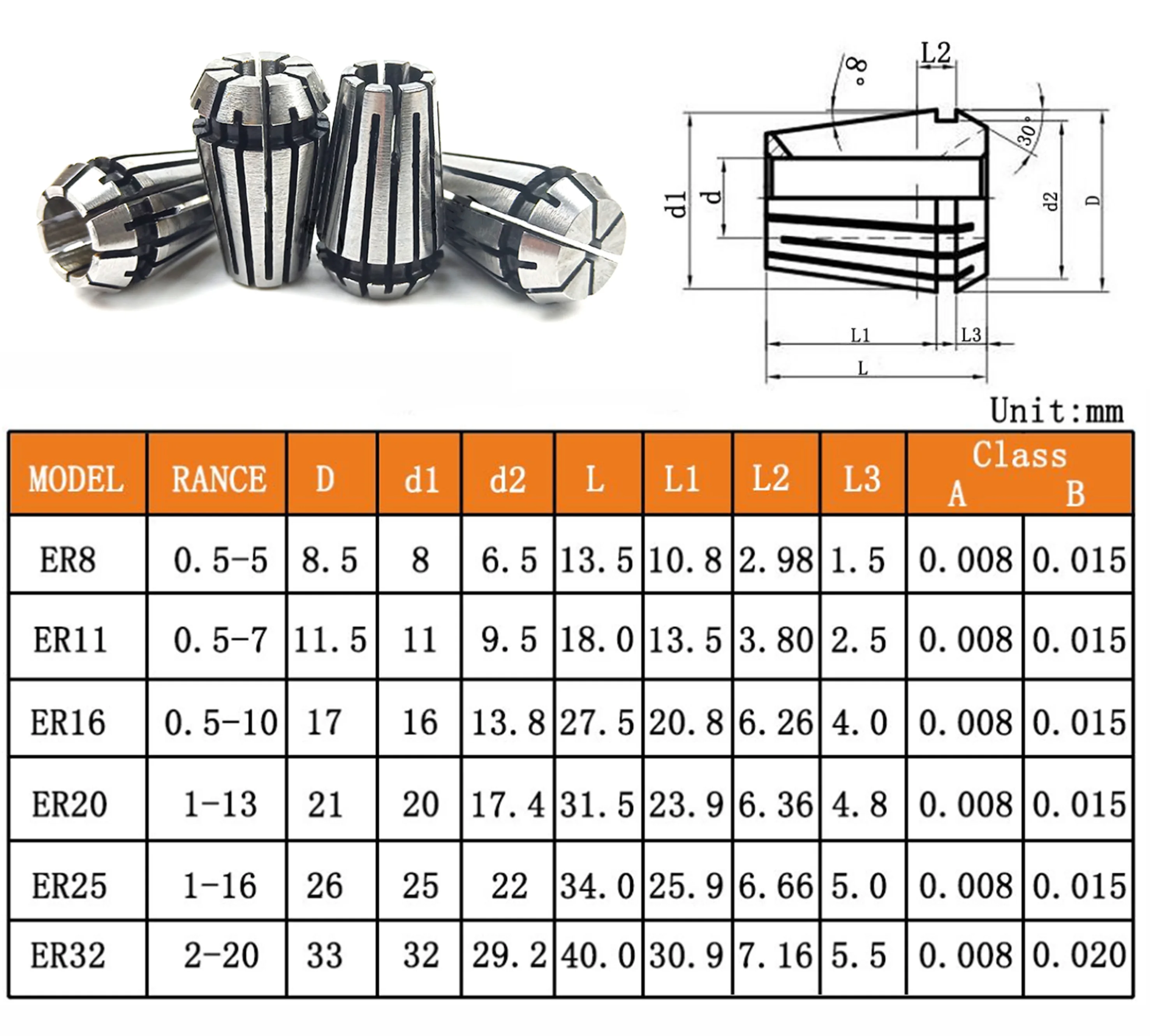

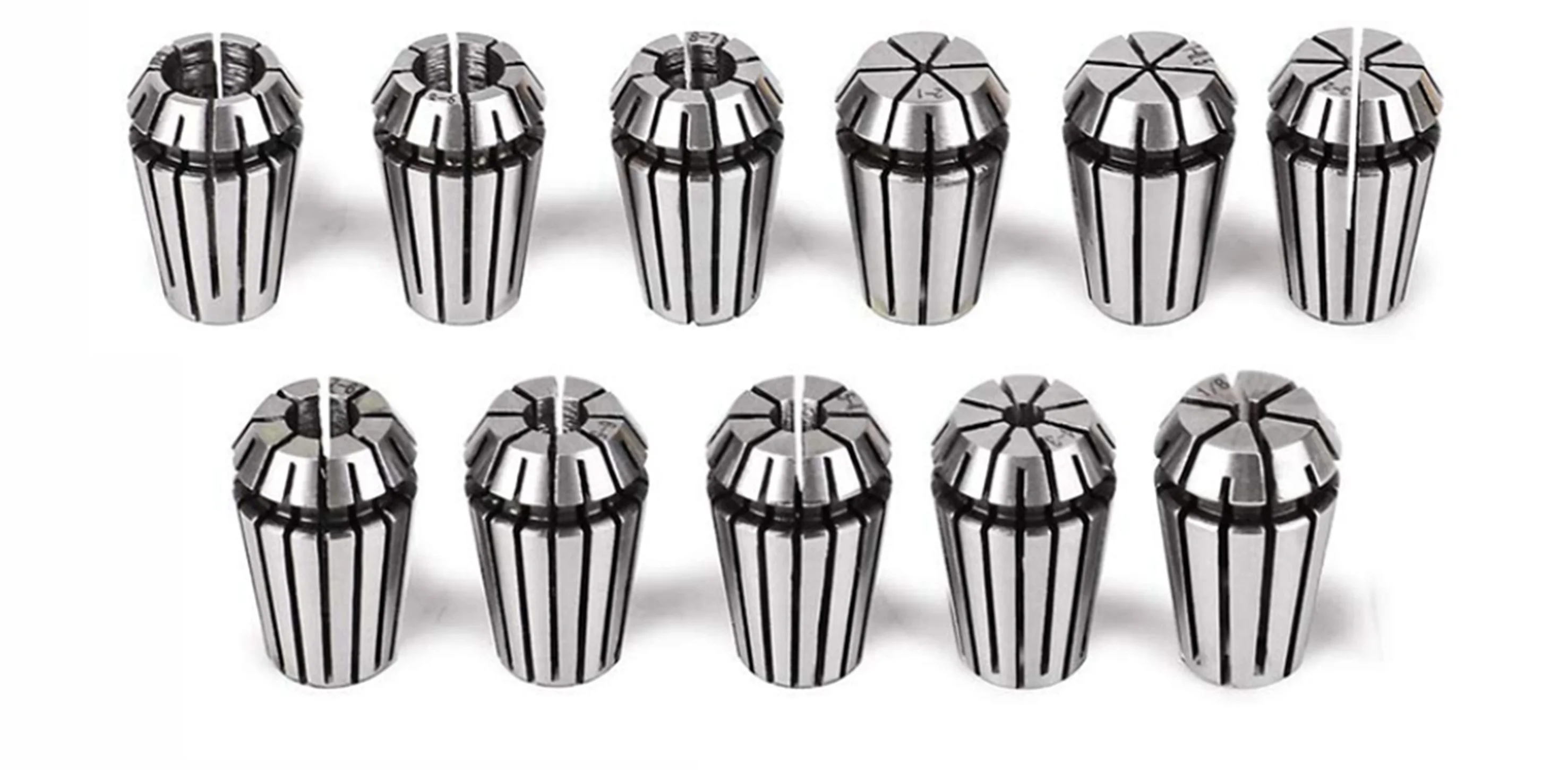

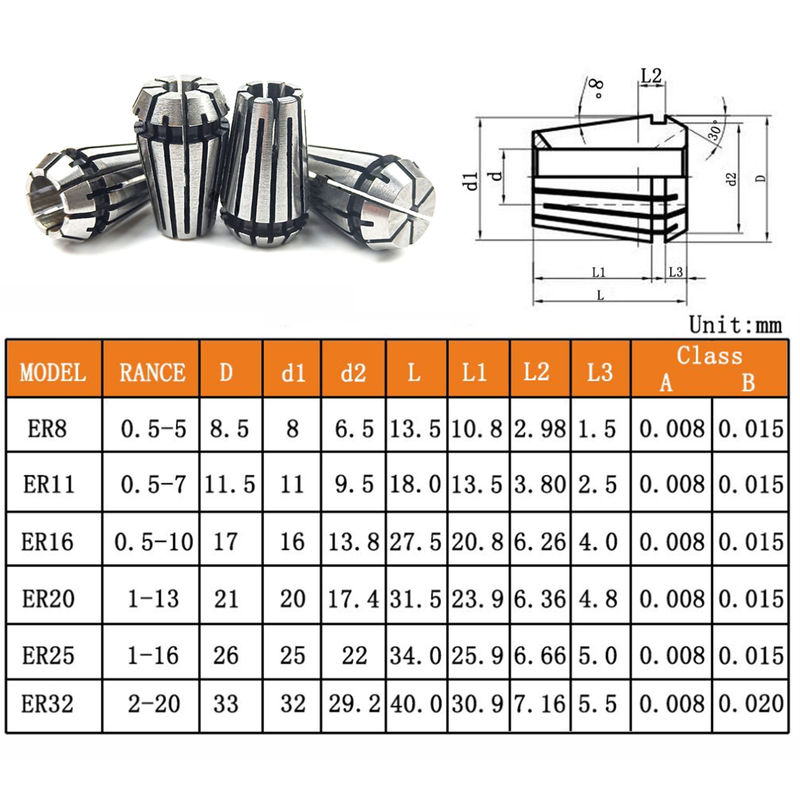

1 set ER16 collet 11Pcs
