【EU Free VAT】Aluminium 3040 6040 8060 Desktop DIY CNC Router Milling Engraving Machine Frame Set kit With 43mm 52mm 80mm Clamp
Includes all taxes
Meet your Seller
-
$862.46Sold by BILLIONS BIRDS
Description
Package 1 include:
1 x 3040 CNC RouterMilling Engraving Machine mechanical Frame Kit

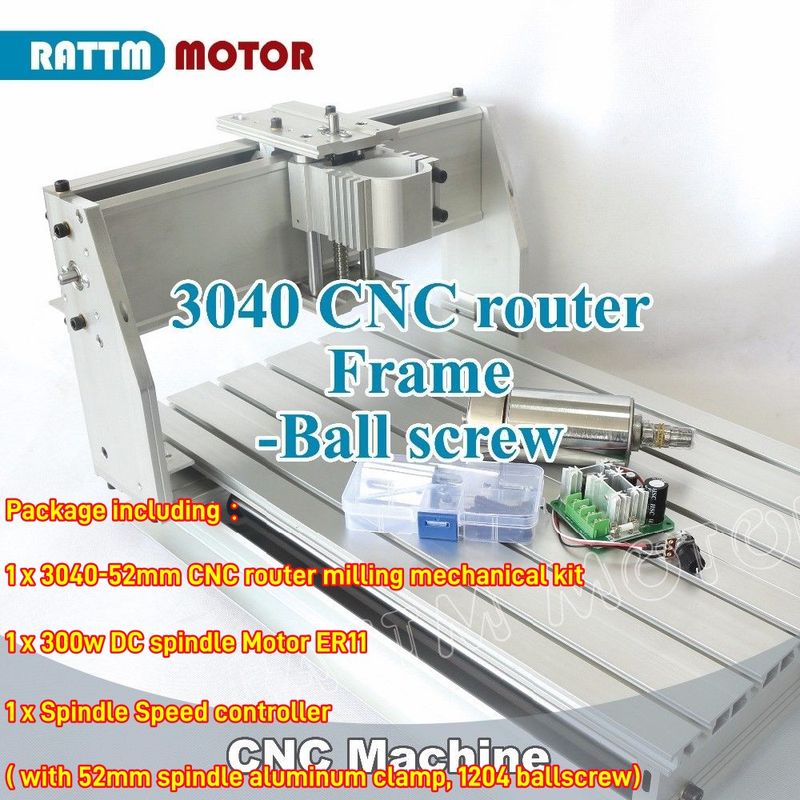

Package 3 include:
1 x 3040-52mm CNC router milling machine mechanical kit
1 x 300w DC spindle Motor ER11
1 x Spindle Speed controller
Package 4 include:
1 x 6040 CNC Router Engraving Machine mechanical Frame Kit
( with Square Guide Rail +80mm spindle aluminum clamp+Dust Cover)
(Note: without stepper motor & spindle motor & control box & cable chain carrier)
Package 5 include:
1 x 6040 CNC Router Milling Engraving Machine mechanical Frame Kit
( with 80mm spindle aluminum clamp)
Package 6 include:
( with 80mm spindle aluminum clamp, 1605 ballscrew)
1 x 8060 CNC RouterMilling Engraving Machine mechanical Frame Kit
(Note: without stepper motor & spindle motor & control box & cable chain carrier)
We have 1.5KW/2.2KW air/water cooled spindle motor 80mm dia with inverter kit in
our EU warehouse, if you need, you can contact us to order.
8060 Technical Parameters
Max. working stroke: XYZ=585×790×65mm
Acceptable material thickness: ≤90mm
Dimensions: 960X640X440mm
Frame Material: 6061-T5 extruded aluminum alloy
Rail type: Chromeplate shaft+Linear Bearings
Screw Type : Ball screw,Diameter 16mm,screw thread pitch 5mm
Mechanical Resolution: XYZ-axis:0.0025 mm/step
Positioning accuracy : 0.05mm
6040 Technical Parameters
1) Machine Dimensions: 765×560×400mm (not including the coupling and motor)
2) 3Axis effective stroke: X400mm, Y580mm, Z70mm
3) Table size: 745x480; Groove width: 8.5mm
4) Max workpiece thickness: ≤105mm
5)Transmission unit: X-axis= 20mm linear shaft; Y-axis=16mm linear shaft;
Z-aixs=16mm linear shaft.The X/Y/Z axis are all new SFU1605 ball
screws,and good quanlity coupler.
6)Rack material: 6061-T5 aluminium alloy,high strength, through the CNC
machining center precision machining, all of the surface after
anodic oxidation treatment.
7) Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)
8) Repeat positioning Accuracy: 0.05mm
9) Spindle Fixture diameter: 65mm and 80mm can interchangeable.
10) Suitable for motor: Nema23 stepper motor 3A(23HS8430 or 23HS8430B)
11) Packing dimension: 780*580*380mm
12) Machine weight: 37kg(including packaging)
3040 Technical Parameters
1) Machine Dimensions: 610×485×395mm
2) Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)
3) Engraving Area:390×285mm
4) Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge
5) Max workpiece thickness:<=70mm
6) Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)
7) Transmission unit:SFU1204 ball screw
8) Repeat positioning Accuracy: 0.05mm
9) Machine weight: 16kg(including packaging)
10)Main application: engrave for Wood,bamboo,normal
PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can
engrave on gold,silver,copper,aluminium,Pb etc soft metal surface
working,but not milling working.
Feature:
1) Simple operation and installation.
2) More steady and strong equiped with aluminum alloy frame materials.
3) X Y and Z axis carving make more precise and and three-dimensional effect.
4) Can control the engraving more precise
5) Engrave almost anything on almost any surface
6) Cover plates reducing pollution for the screws and shafts.
7) The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
8) The chrome shafts is not easy to deform,suitable for long time use.
9) Flexible coupling can be used for high torque transmission.
10) This item already be equiped NEW SFU1605 ball screws. Anti-blackflash,high precision,long life circle.
11) Spindle Fixture can interchangeable 65mm or 80mm .
Main application:
Engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone
board(ABS)and etc nonmetal,also can engrave on
gold,silver,copper,aluminium,Pb etc soft metal surface working,but not
milling working.
6040 machine frame install step with motors:
6040 CNC Machine frame with Square Guide Rail +80mm spindle aluminum clamp+Dust Cover
Package 6 include:
( with 80mm spindle aluminum clamp, 1605 ballscrew)
1 x 8060 CNC RouterMilling Engraving Machine mechanical Frame Kit
(Note: without stepper motor & spindle motor & control box & cable chain carrier)
We have 1.5KW/2.2KW air/water cooled spindle motor 80mm dia with inverter kit in
our EU warehouse, if you need, you can contact us to order.
8060 Technical Parameters
Max. working stroke: XYZ=585×790×65mm
Acceptable material thickness: ≤90mm
Dimensions: 960X640X440mm
Frame Material: 6061-T5 extruded aluminum alloy
Rail type: Chromeplate shaft+Linear Bearings
Screw Type : Ball screw,Diameter 16mm,screw thread pitch 5mm
Mechanical Resolution: XYZ-axis:0.0025 mm/step
Positioning accuracy : 0.05mm
8060 Technical Parameters
Max. working stroke: XYZ=585×790×65mm
Acceptable material thickness: ≤90mm
Dimensions: 960X640X440mm
Frame Material: 6061-T5 extruded aluminum alloy
Rail type: Chromeplate shaft+Linear Bearings
Screw Type : Ball screw,Diameter 16mm,screw thread pitch 5mm
Mechanical Resolution: XYZ-axis:0.0025 mm/step
Positioning accuracy : 0.05mm
6040 Technical Parameters
1) Machine Dimensions: 765×560×400mm (not including the coupling and motor)
2) 3Axis effective stroke: X400mm, Y580mm, Z70mm
3) Table size: 745x480; Groove width: 8.5mm
4) Max workpiece thickness: ≤105mm
5)Transmission unit: X-axis= 20mm linear shaft; Y-axis=16mm linear shaft;
Z-aixs=16mm linear shaft.The X/Y/Z axis are all new SFU1605 ball
screws,and good quanlity coupler.
6)Rack material: 6061-T5 aluminium alloy,high strength, through the CNC
machining center precision machining, all of the surface after
anodic oxidation treatment.
7) Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)
8) Repeat positioning Accuracy: 0.05mm
9) Spindle Fixture diameter: 65mm and 80mm can interchangeable.
10) Suitable for motor: Nema23 stepper motor 3A(23HS8430 or 23HS8430B)
11) Packing dimension: 780*580*380mm
12) Machine weight: 37kg(including packaging)
3040 Technical Parameters
1) Machine Dimensions: 610×485×395mm
2) Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)
3) Engraving Area:390×285mm
4) Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge
5) Max workpiece thickness:<=70mm
6) Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)
7) Transmission unit:SFU1204 ball screw
8) Repeat positioning Accuracy: 0.05mm
9) Machine weight: 16kg(including packaging)
10)Main application: engrave for Wood,bamboo,normal
PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can
engrave on gold,silver,copper,aluminium,Pb etc soft metal surface
working,but not milling working.
Feature:
1) Simple operation and installation.
2) More steady and strong equiped with aluminum alloy frame materials.
3) X Y and Z axis carving make more precise and and three-dimensional effect.
4) Can control the engraving more precise
5) Engrave almost anything on almost any surface
6) Cover plates reducing pollution for the screws and shafts.
7) The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
8) The chrome shafts is not easy to deform,suitable for long time use.
9) Flexible coupling can be used for high torque transmission.
10) This item already be equiped NEW SFU1605 ball screws. Anti-blackflash,high precision,long life circle.
11) Spindle Fixture can interchangeable 65mm or 80mm .
Main application:
Engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone
board(ABS)and etc nonmetal,also can engrave on
gold,silver,copper,aluminium,Pb etc soft metal surface working,but not
milling working.
6040 machine frame install step with motors:
6040 CNC Machine frame with Square Guide Rail +80mm spindle aluminum clamp+Dust Cover
Product technical parameters:
1) Machine size: 750 × six hundred and ten × 390mm (excluding couplings and motors)
2) 3-axis effective travel: X330mm, removing the dust cover can achieve 400mm, Y580mm, Z70mm, and removing the dust cover can achieve 95mm for the Z-axis;
3) Workbench size: 735x480 Slot width: 8.5mm
4) Maximum workpiece thickness: ≤ 100mm
5) Transmission device: Y-axis=2005 screw HGH15 square rail; X-axis=1605 screw HGH15 square rail; Z-axis=1605 screw HGH15 square rail. The shafts are all equipped with brand new SFU2005&SFU1605 ball screws and high-quality couplings.
6) Rack material: 6061-T5 aluminum alloy, high strength, precision machined by CNC machining center, all surfaces are precision machined by CNC, without any surface treatment, resulting in higher accuracy.
7) Track type: chrome plated shaft+linear bearing (surface hardened 61HRC)
8) Repetitive positioning accuracy: 0.05mm
9) Spindle fixture diameter: 65mm and 80mm can be interchanged. (Customer installation universal fixture required to achieve) Installation hole position 117.5x46mm M8
10) Applicable motor: 57 stepper motor 3A
11) Packaging size: 680x230x460mm&680x830x180mm
12) Machine weight: 37 kilograms (including packaging)
Features:
1) Easy operation and installation.
2) Made of aluminum alloy frame material, it is more stable and sturdy.
3) X-axis, Y-axis, and Z-axis engraving make carving more precise and three-dimensional.
4) More precise control of engraving
5) Carving almost anything on almost any surface
6) The cover plate reduces contamination of the screw and shaft.
7) Strengthen and thicken the body to ensure safer transportation and longer service life.
8) The chrome plated shaft is not easily deformed and is suitable for long-term use.
9) Elastic couplings can be used for high torque transmission.
10) This project has been equipped with new SFU2005&SFU1605 ball screws. Anti black light, high accuracy, and long service life.
11) The spindle fixture can be interchanged with 65mm or 80mm. (Customer installation universal fixture required to achieve) Installation hole position 117.5x46mm M8
